Email from Hans Courrier  on  May 16, 2023 at 10:35 AM:
Hello Sean,

RS05 S/N: CCD-16343 arrived yesterday afternoon.  I pulled it into our lab and did a quick visual inspection - it was packed well and topically Id say that I dont expect it suffered any atrocities in shipping.

Our internal software has gone through a major update since we last saw any of these instruments.  I am currently working to interface the camera with an older machine to make sure the camera turns on and works.  Casey Smith is travelling this week, so I will try to keep you up to date on any progress.

Thanks Sean!

2nd Order fit to Resonon data
PRE P(1,:) = [1.23288e-05 0.390642 508.943]; % Track 1
PRE P(2,:) = [1.20835e-05 0.390773 508.899]; % Track 2
PRE P(3,:) = [1.19669e-05 0.390767 508.911]; % Track 3
PRE P(4,:) = [1.19655e-05 0.390728 508.923]; % Track 4
PRE P(5,:) = [1.03977e-05 0.391704 508.793]; % Track 5
PRE P(6,:) = [1.05503e-05 0.391581 508.84]; % Track 6
PRE P(7,:) = [1.20911e-05 0.390568 509.006]; % Track 7
PRE P(8,:) = [1.203e-05 0.390588 508.99]; % Track 8
PRE P(9,:) = [1.28952e-05 0.39004 509.033]; % Track 9
PRE P(10,:) = [1.30459e-05 0.389964 509.031]; % Track 10
PRE P(11,:) = [1.29759e-05 0.390082 509.029]; % Track 11
PRE P(12,:) = [1.28185e-05 0.390239 508.995]; % Track 12
PRE P(13,:) = [1.29394e-05 0.39021 508.993]; % Track 13
PRE P(14,:) = [1.22846e-05 0.390715 508.923]; % Track 14
POST P(1,:) = [1.30815e-05 0.390093 509.071]; % Track 1
POST P(2,:) = [1.23069e-05 0.390603 508.977]; % Track 2
POST P(3,:) = [1.20766e-05 0.390682 508.976]; % Track 3
POST P(4,:) = [1.20295e-05 0.390672 508.987]; % Track 4
POST P(5,:) = [1.31394e-05 0.389812 509.118]; % Track 5
POST P(6,:) = [1.30795e-05 0.389846 509.138]; % Track 6
POST P(7,:) = [1.31588e-05 0.389789 509.168]; % Track 7
POST P(8,:) = [1.30991e-05 0.389809 509.153]; % Track 8
POST P(9,:) = [1.21114e-05 0.39053 509.009]; % Track 9
POST P(10,:) = [1.21146e-05 0.390551 509.001]; % Track 10
POST P(11,:) = [1.21101e-05 0.390616 509.01]; % Track 11
POST P(12,:) = [1.20722e-05 0.3907 508.982]; % Track 12
POST P(13,:) = [1.22518e-05 0.39064 508.987]; % Track 13
POST P(14,:) = [1.32958e-05 0.390012 509.078]; % Track 14
Min and Max waves by Track - PRE & POST shaking
PRE Track 1= [509.3334 921.888]
PRE Track 2= [509.2894 921.721]
PRE Track 3= [509.302 921.6046]
PRE Track 4= [509.3137 921.575]
PRE Track 5= [509.1844 920.8008]
PRE Track 6= [509.2311 920.8812]
PRE Track 7= [509.3968 921.6264]
PRE Track 8= [509.3809 921.5667]
PRE Track 9= [509.4228 921.9551]
PRE Track 10= [509.4207 922.034]
PRE Track 11= [509.4191 922.0787]
PRE Track 12= [509.385 922.0411]
PRE Track 13= [509.3832 922.1358]
PRE Track 14= [509.314 921.8969]
Min and Max waves by Track - POST
POST Track 1= [509.4609 922.2433]
POST Track 2= [509.3674 921.8593]
POST Track 3= [509.3669 921.6978]
POST Track 4= [509.3776 921.649]
POST Track 5= [509.5076 922.0631]
POST Track 6= [509.5276 922.0553]
POST Track 7= [509.5579 922.11]
POST Track 8= [509.5423 922.0518]
POST Track 9= [509.3995 921.6115]
POST Track 10= [509.3913 921.6286]
POST Track 11= [509.4005 921.6995]
POST Track 12= [509.3725 921.717]
POST Track 13= [509.3775 921.8496]
POST Track 14= [509.4685 922.3927]

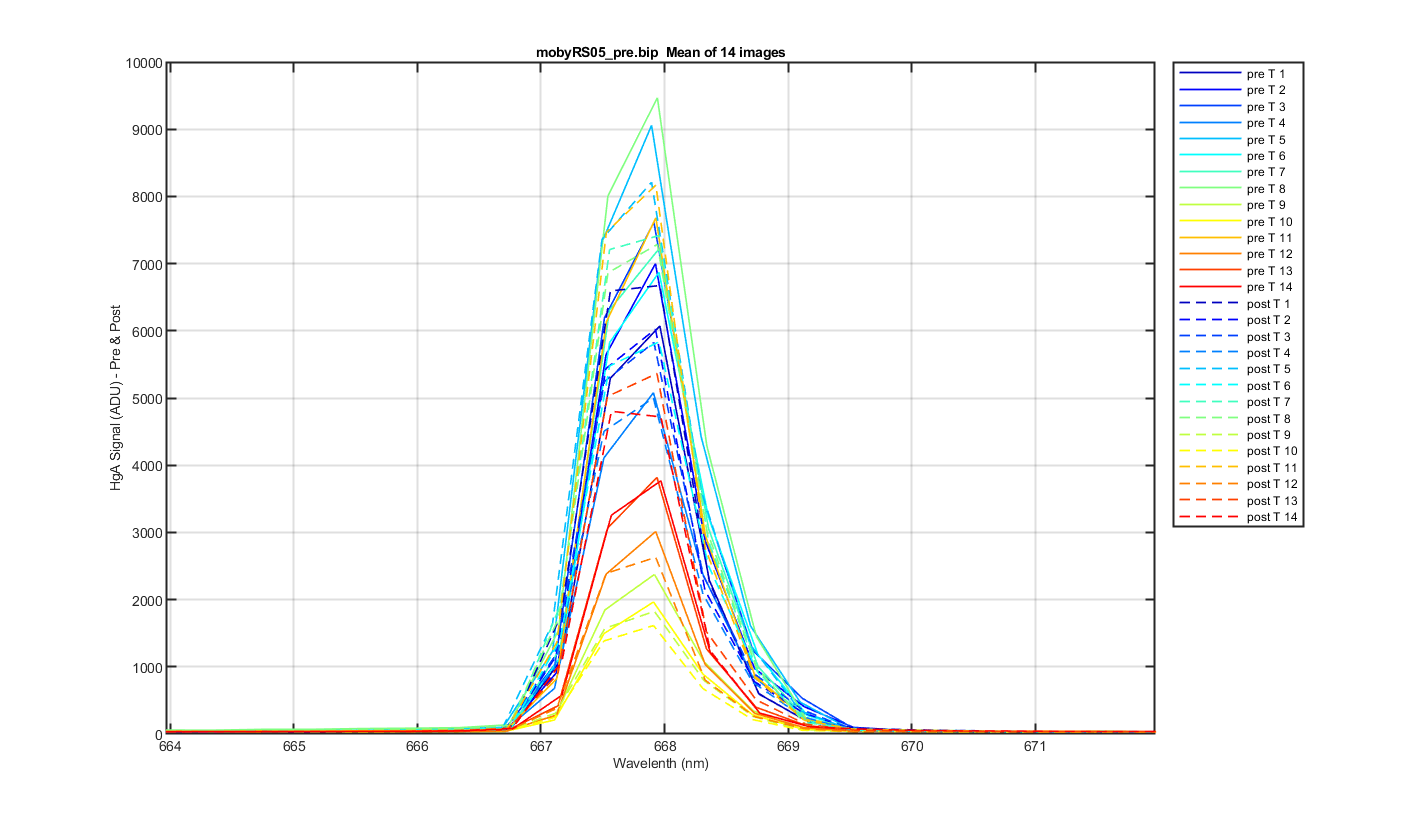

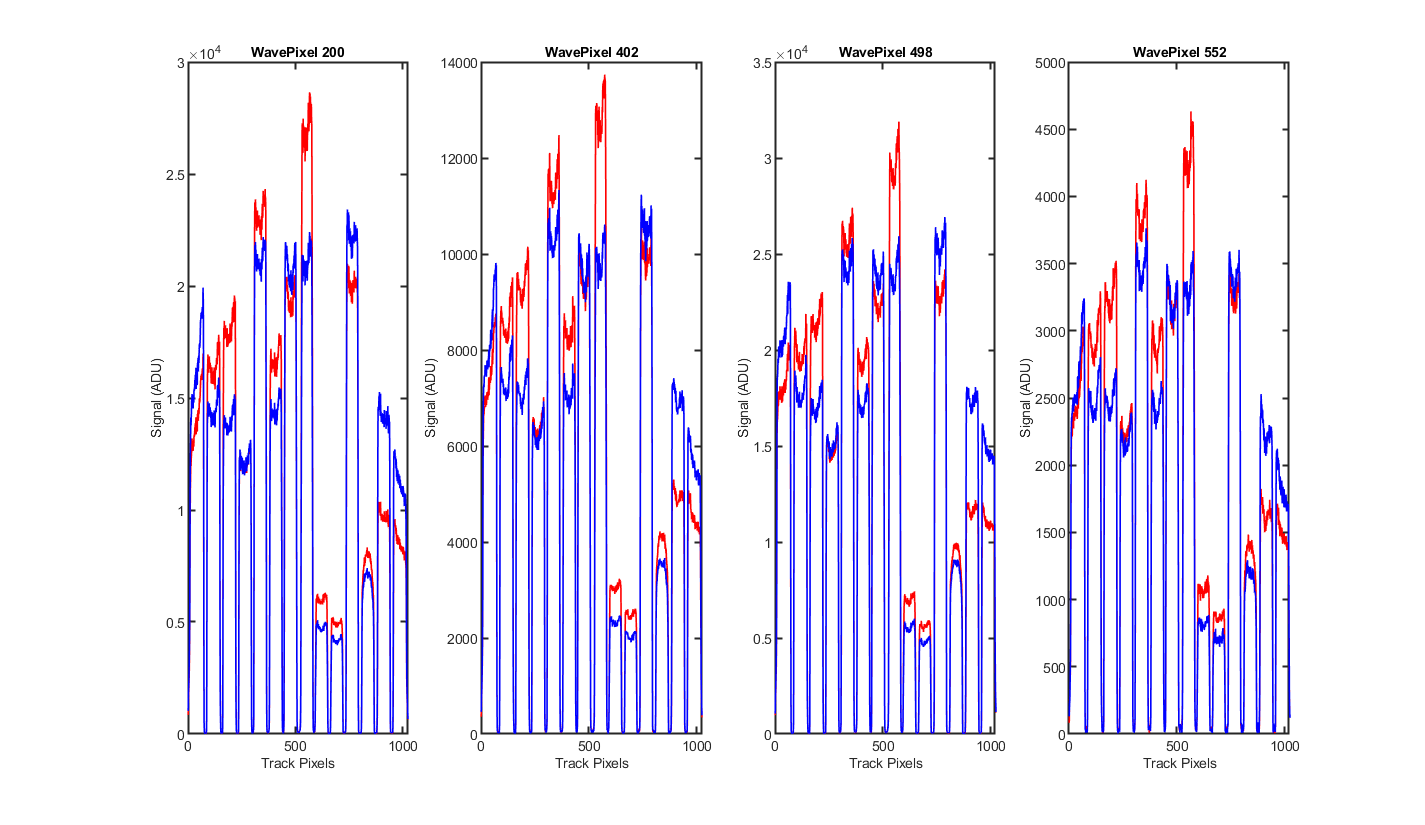

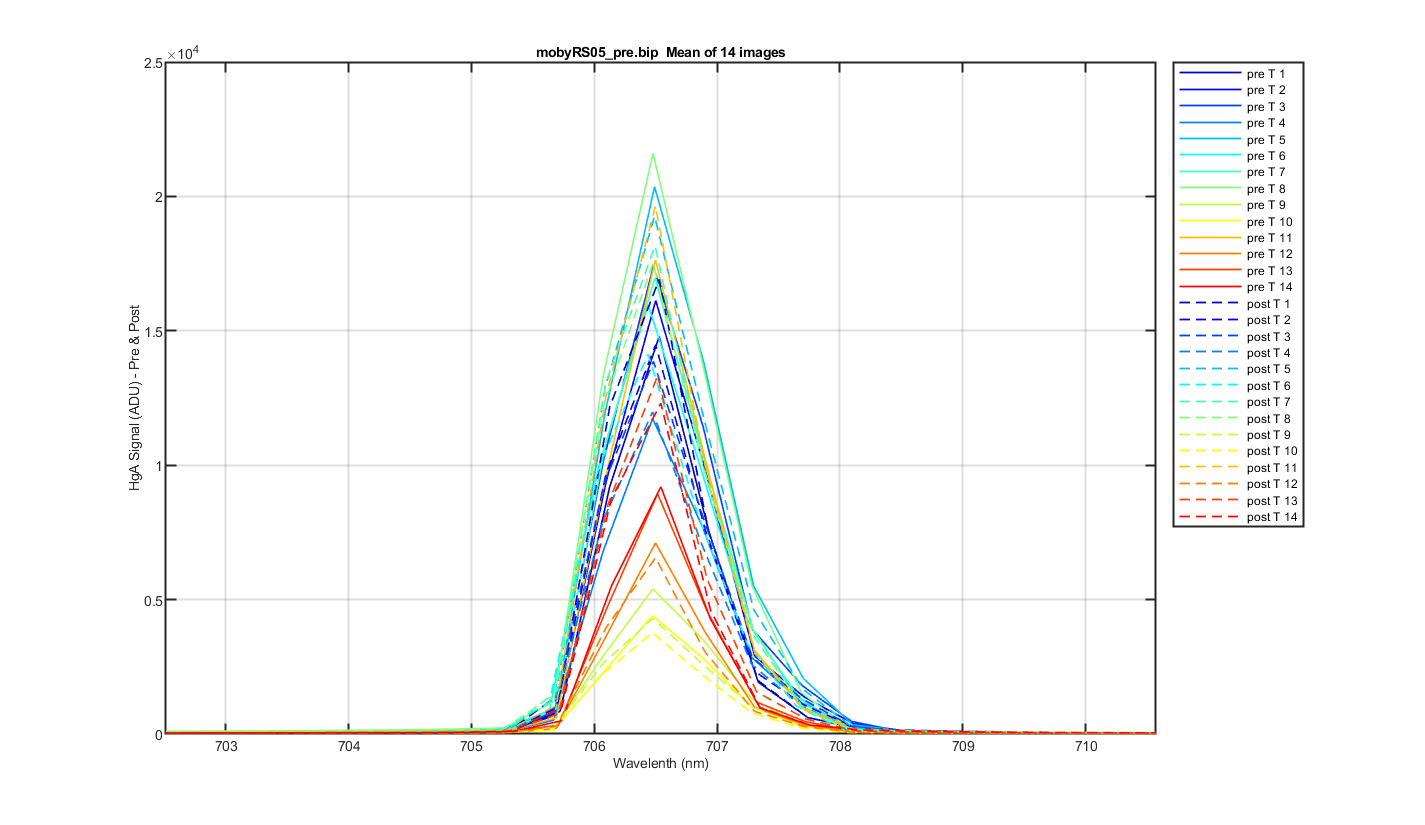

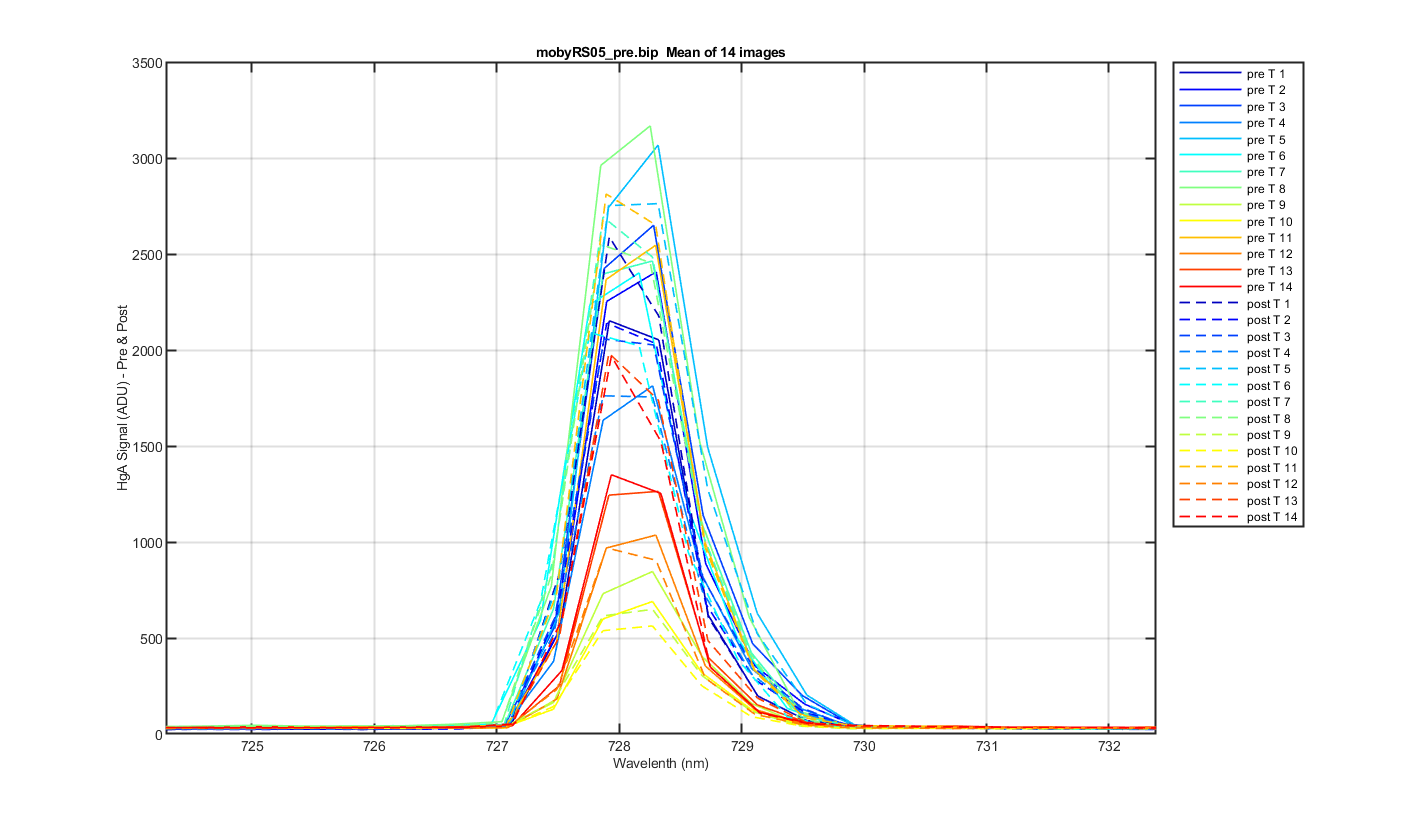

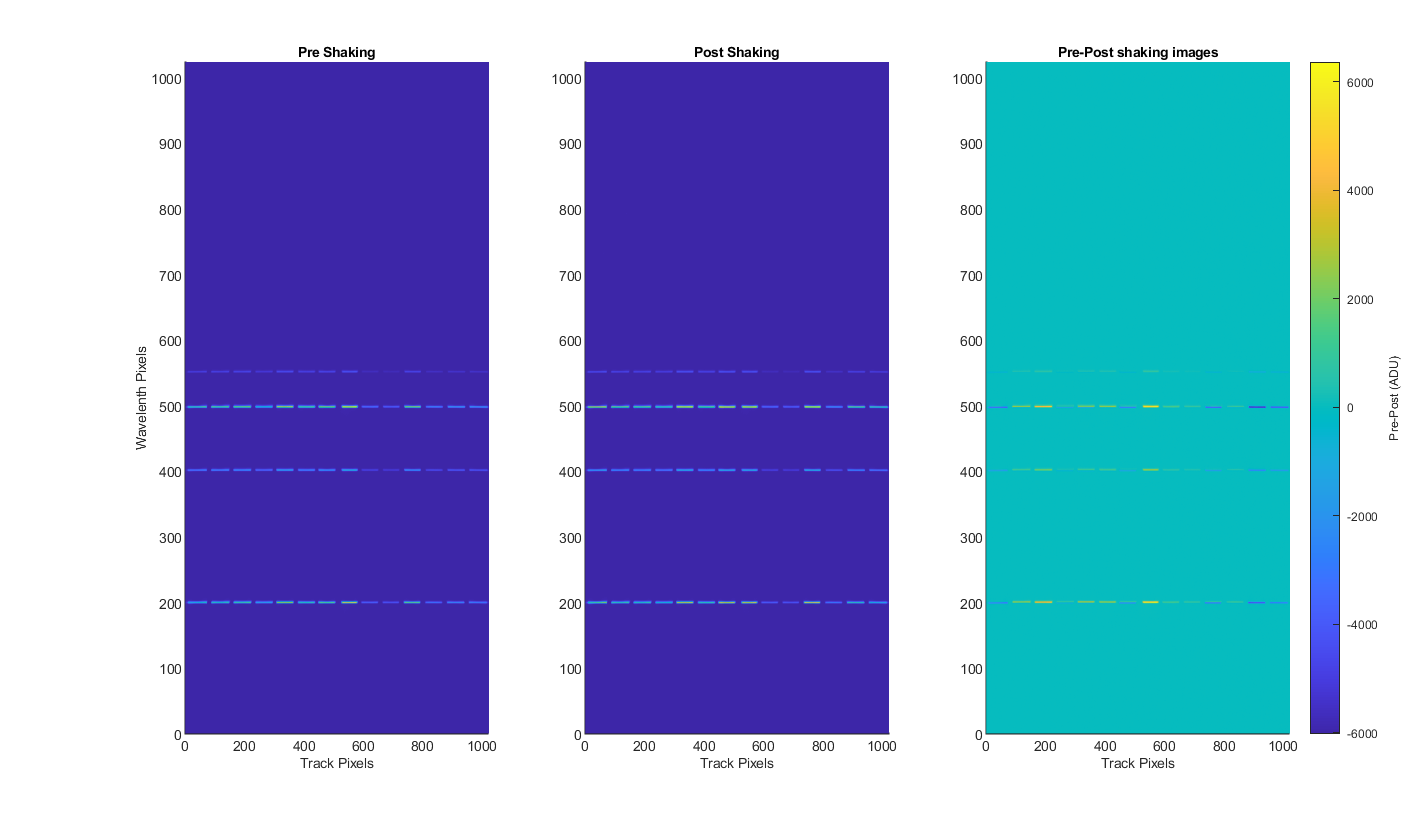

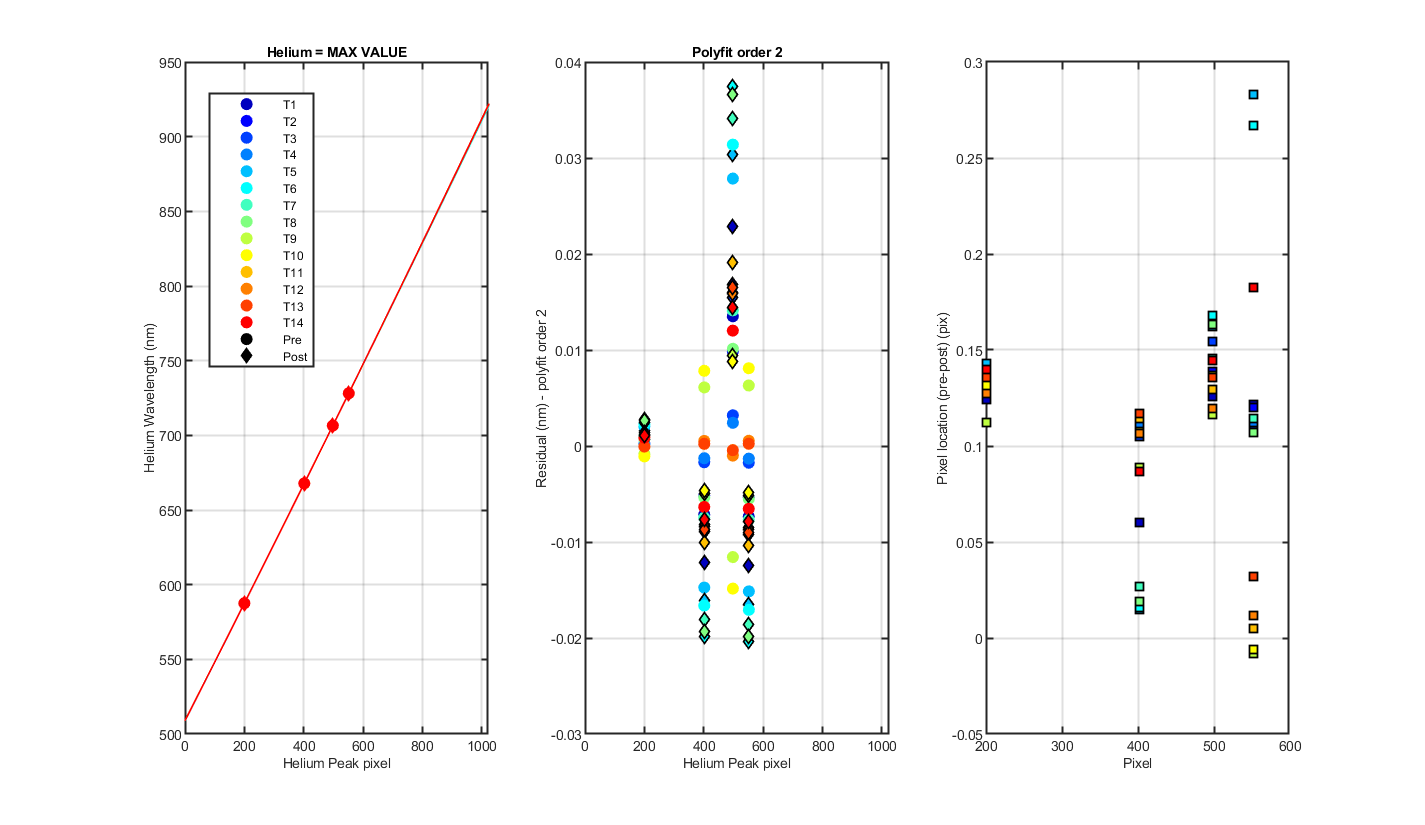

Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7

  Track = The Resonon Track number
Lwave = Laser Wavelength
Lpix1 = Laser Pixel found using the max value of the track
Lpix2 = Laser Pixel found using mygaussfit to fit the laser peak
Track Lwave Lpix1 Lpix2 Pre Lpix2 Post Pre-Post
1 587.56 200.00 199.99 199.87 0.12
1 667.82 402.00 401.62 401.56 0.06
1 706.52 498.00 497.91 497.79 0.13
1 728.13 551.00 551.53 551.40 0.12
2 587.56 200.00 200.06 199.93 0.14
2 667.82 402.00 401.70 401.59 0.11
2 706.52 498.00 498.02 497.88 0.14
2 728.13 551.00 551.64 551.52 0.12
3 587.56 200.00 200.05 199.91 0.13
3 667.82 402.00 401.71 401.60 0.11
3 706.52 498.00 498.09 497.93 0.15
3 728.13 551.00 551.69 551.58 0.11
4 587.56 200.00 200.04 199.89 0.14
4 667.82 402.00 401.72 401.61 0.11
4 706.52 498.00 498.11 497.95 0.16
4 728.13 551.00 551.72 551.60 0.11
5 587.56 200.00 200.03 199.88 0.14
5 667.82 402.00 401.73 401.71 0.02
5 706.52 498.00 498.13 497.96 0.16
5 728.13 552.00 551.92 551.64 0.28
6 587.56 200.00 199.95 199.82 0.13
6 667.82 402.00 401.68 401.66 0.02
6 706.52 498.00 498.06 497.89 0.17
6 728.13 551.00 551.86 551.60 0.27
7 587.56 200.00 199.89 199.77 0.13
7 667.82 402.00 401.64 401.61 0.03
7 706.52 498.00 497.99 497.85 0.15
7 728.13 551.00 551.65 551.54 0.11
8 587.56 200.00 199.93 199.80 0.13
8 667.82 402.00 401.67 401.66 0.02
8 706.52 498.00 498.06 497.89 0.16
8 728.13 551.00 551.70 551.60 0.11
9 587.56 200.00 200.02 199.90 0.11
9 667.82 402.00 401.74 401.65 0.09
9 706.52 498.00 498.15 498.03 0.12
9 728.13 552.00 551.67 551.67 -0.01
10 587.56 200.00 200.04 199.91 0.13
10 667.82 402.00 401.76 401.65 0.11
10 706.52 498.00 498.16 498.03 0.14
10 728.13 552.00 551.66 551.66 -0.01
11 587.56 200.00 199.99 199.86 0.14
11 667.82 402.00 401.69 401.58 0.11
11 706.52 498.00 498.03 497.90 0.13
11 728.13 551.00 551.57 551.57 0.00
12 587.56 200.00 200.02 199.89 0.13
12 667.82 402.00 401.68 401.57 0.11
12 706.52 498.00 498.02 497.90 0.12
12 728.13 551.00 551.56 551.55 0.01
13 587.56 200.00 200.02 199.89 0.14
13 667.82 402.00 401.67 401.55 0.12
13 706.52 498.00 497.98 497.85 0.14
13 728.13 551.00 551.51 551.48 0.03
14 587.56 200.00 200.01 199.87 0.14
14 667.82 401.00 401.61 401.53 0.09
14 706.52 498.00 497.90 497.76 0.14
14 728.13 551.00 551.51 551.32 0.18
pwd: D:\zflora\mldata\mobynet\characterizations\configs\rs05cfg107\20230531
Date: 05-Jun-2023 12:03:24
Created from plt_20230531_prepostshake_(1)
