BS_20200130_014922_raw01 - Day 1

REVISION DATE: 07-Feb-2020 15:13:16

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: BS05 Data
Dataset# Filename / Fit# Type file creation date Total Exposure Time Tracks on Laser
Wavelength (nm)		 Temperature Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
1 BS_20200130_014922_raw01 / 001 Background 30-Jan-2020 01:49:22 30 6 NaN -60 4 3960 3269.3042 0.26416
1 BS_20200130_014922_raw01 / 002 Background 30-Jan-2020 01:57:31 30 6 NaN -60 4 6646 3269.8669 0.2865
1 BS_20200130_014922_raw01 / 001 Lite 30-Jan-2020 01:58:38 30 6 NaN -60 4 4830 3269.8165 0.30356
1 BS_20200130_014922_raw01 / 002 Lite 30-Jan-2020 02:00:07 30 6 NaN -60 4 3391 3270.1888 0.26115
1 BS_20200130_014922_raw01 / 003 Lite 30-Jan-2020 02:01:10 30 6 NaN -60 4 4152 3270.2943 0.26303
1 BS_20200130_014922_raw01 / 004 Lite 30-Jan-2020 02:01:58 30 6 NaN -60 4 3397 3271.0654 0.26101
1 BS_20200130_014922_raw01 / 003 Background 30-Jan-2020 02:02:46 30 6 NaN -60 4 5127 3270.2934 0.27139
1 BS_20200130_014922_raw01 / 004 Background 30-Jan-2020 02:03:31 30 6 NaN -60 4 3395 3270.9588 0.2611
2 BS_20200130_014922_raw01 / 005 Background 30-Jan-2020 02:46:08 30 6 300 -60 4 4264 3270.3097 0.26638
2 BS_20200130_014922_raw01 / 006 Background 30-Jan-2020 02:47:04 30 6 300 -60 4 3404 3271.3734 0.26152
2 BS_20200130_014922_raw01 / 005 Lite 30-Jan-2020 02:47:04 30 6 300 -60 4 3404 3271.3734 0.26152
2 BS_20200130_014922_raw01 / 006 Lite 30-Jan-2020 02:50:26 30 6 300 -60 4 10875 3302.0422 3.8244
2 BS_20200130_014922_raw01 / 007 Lite 30-Jan-2020 02:51:15 30 6 300 -60 4 13309 3302.7417 3.8261
2 BS_20200130_014922_raw01 / 008 Lite 30-Jan-2020 02:52:24 30 6 300 -60 4 5712 3301.8674 3.8013
2 BS_20200130_014922_raw01 / 007 Background 30-Jan-2020 02:54:58 30 6 300 -60 4 4502 3270.4438 0.26884
2 BS_20200130_014922_raw01 / 008 Background 30-Jan-2020 02:55:49 30 6 300 -60 4 3416 3271.7357 0.26175
3 BS_20200130_014922_raw01 / 009 Background 30-Jan-2020 03:04:29 30 6 320 -60 4 3390 3270.3422 0.26187
3 BS_20200130_014922_raw01 / 010 Background 30-Jan-2020 03:05:20 30 6 320 -60 4 3410 3271.8272 0.26173
3 BS_20200130_014922_raw01 / 009 Lite 30-Jan-2020 03:06:23 30 6 320 -60 4 6746 3347.3897 10.1021
3 BS_20200130_014922_raw01 / 010 Lite 30-Jan-2020 03:08:08 30 6 320 -60 4 6704 3347.2095 10.0907
3 BS_20200130_014922_raw01 / 011 Lite 30-Jan-2020 03:09:33 30 6 320 -60 4 6745 3346.9343 10.0801
3 BS_20200130_014922_raw01 / 012 Lite 30-Jan-2020 03:10:52 30 6 320 -60 4 6687 3347.0747 10.0817
3 BS_20200130_014922_raw01 / 011 Background 30-Jan-2020 03:12:10 30 6 320 -60 4 3430 3270.5886 0.26195
3 BS_20200130_014922_raw01 / 012 Background 30-Jan-2020 03:13:22 30 6 320 -60 4 3399 3271.4447 0.26198
4 BS_20200130_014922_raw01 / 013 Background 30-Jan-2020 03:30:28 2.8 6 350 -60 4 3291 3253.0755 0.22756
4 BS_20200130_014922_raw01 / 014 Background 30-Jan-2020 03:30:50 2.8 6 350 -60 4 3287 3253.2601 0.22706
4 BS_20200130_014922_raw01 / 013 Lite 30-Jan-2020 03:32:07 2.8 6 350 -60 4 63772 3291.3997 20.9427
4 BS_20200130_014922_raw01 / 014 Lite 30-Jan-2020 03:33:53 2.8 6 350 -60 4 63783 3291.0637 20.6554
4 BS_20200130_014922_raw01 / 015 Lite 30-Jan-2020 03:35:24 2.8 6 350 -60 4 63783 3291.398 20.887
4 BS_20200130_014922_raw01 / 016 Lite 30-Jan-2020 03:37:43 2.8 6 350 -60 4 63775 3291.1454 20.5164
4 BS_20200130_014922_raw01 / 015 Background 30-Jan-2020 03:38:04 2.8 6 350 -60 4 3291 3253.0573 0.22763
4 BS_20200130_014922_raw01 / 016 Background 30-Jan-2020 03:38:36 2.8 6 350 -60 4 3286 3253.0165 0.22745
5 BS_20200130_014922_raw01 / 017 Background 30-Jan-2020 03:49:44 0.05 6 375 -60 4 3290 3254.3496 0.22297
5 BS_20200130_014922_raw01 / 018 Background 30-Jan-2020 03:50:27 0.05 6 375 -60 4 3288 3254.3658 0.22299
5 BS_20200130_014922_raw01 / 017 Lite 30-Jan-2020 03:53:28 0.05 6 375 -60 4 52977 3262.3975 14.58
5 BS_20200130_014922_raw01 / 018 Lite 30-Jan-2020 03:55:33 0.05 6 375 -60 4 53957 3262.9112 14.9619
5 BS_20200130_014922_raw01 / 019 Lite 30-Jan-2020 03:58:44 0.05 6 375 -60 4 53818 3262.5729 14.8956
5 BS_20200130_014922_raw01 / 020 Lite 30-Jan-2020 03:59:32 0.05 6 375 -60 4 52028 3262.3102 14.3726
5 BS_20200130_014922_raw01 / 019 Background 30-Jan-2020 04:01:49 0.05 6 375 -60 4 3288 3254.4797 0.22281
5 BS_20200130_014922_raw01 / 020 Background 30-Jan-2020 04:02:07 0.05 6 375 -60 4 3294 3254.62 0.22274
6 BS_20200130_014922_raw01 / 021 Background 30-Jan-2020 04:58:22 3 6 405 -60 4 3288 3253.0146 0.22672
6 BS_20200130_014922_raw01 / 022 Background 30-Jan-2020 04:58:44 3 6 405 -60 4 3290 3253.1588 0.22667
6 BS_20200130_014922_raw01 / 021 Lite 30-Jan-2020 05:00:08 3 6 405 -60 4 39145 3259.2977 10.6887
6 BS_20200130_014922_raw01 / 022 Lite 30-Jan-2020 05:01:21 3 6 405 -60 4 39492 3259.6384 10.8337
6 BS_20200130_014922_raw01 / 023 Lite 30-Jan-2020 05:02:23 3 6 405 -60 4 39032 3259.377 10.6845
6 BS_20200130_014922_raw01 / 024 Lite 30-Jan-2020 05:03:02 3 6 405 -60 4 41133 3259.5638 11.3733
6 BS_20200130_014922_raw01 / 023 Background 30-Jan-2020 05:04:47 3 6 405 -60 4 3286 3252.7508 0.22715
6 BS_20200130_014922_raw01 / 024 Background 30-Jan-2020 05:05:14 3 6 405 -60 4 3287 3252.9673 0.22649
Grouped Image file: BS_20200130_N001_grouped.html
Grouped Image file: BS_20200130_N002_grouped.html
Grouped Image file: BS_20200130_N003_grouped.html
Grouped Image file: BS_20200130_N005_grouped.html
Grouped Image file: BS_20200130_N006_grouped.html
Grouped Image file: BS_20200130_N007_grouped.html
Grouped Image file: BS_20200130_N009_grouped.html
Grouped Image file: BS_20200130_N020_grouped.html
Grouped Image file: BS_20200130_N022_grouped.html

Graphs below are of the Nets for a dataset. A dataset is a group of dark-lite-dark files that Mike says in his logsheet are collected together. One net = darks before and after averaged then , lights averaged, then avg_lite-avg_dark and the avg_net divided by intergration time for each track.

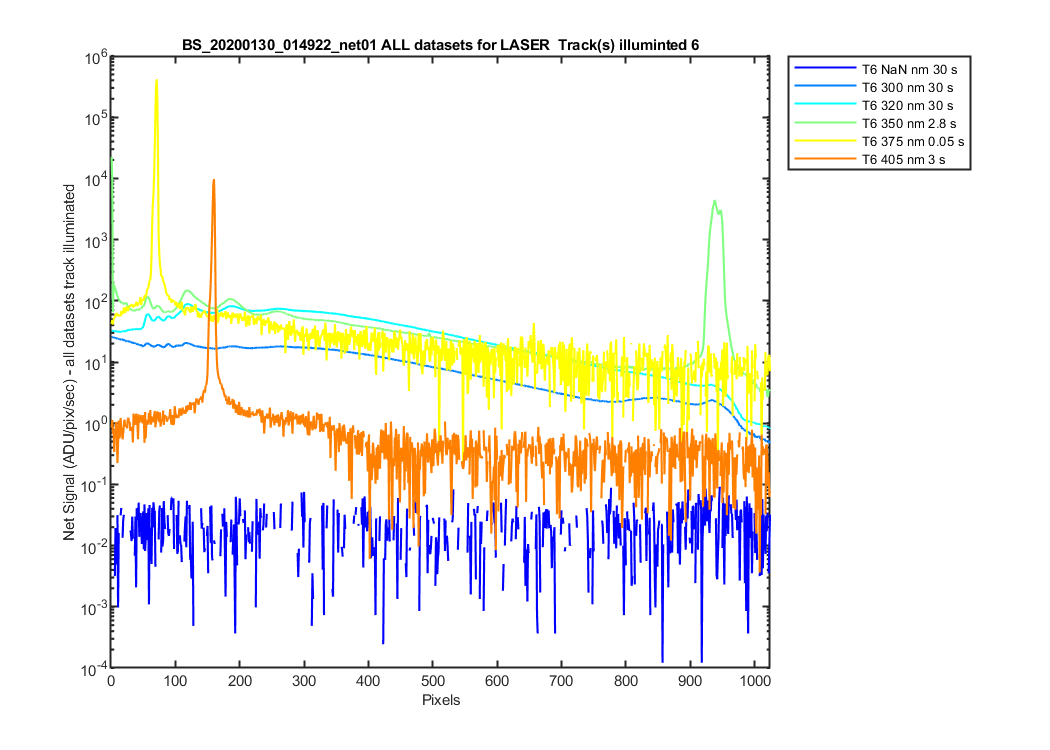

Figure 1 A: All the net data sets with a track illuminated. This shows ALL the net tracks with light on them.

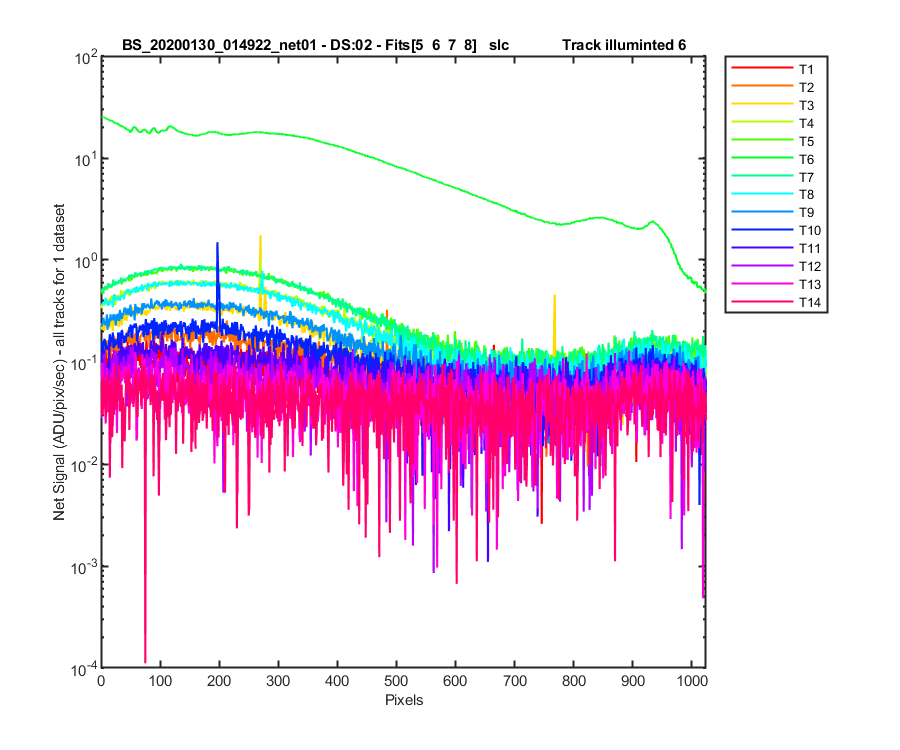

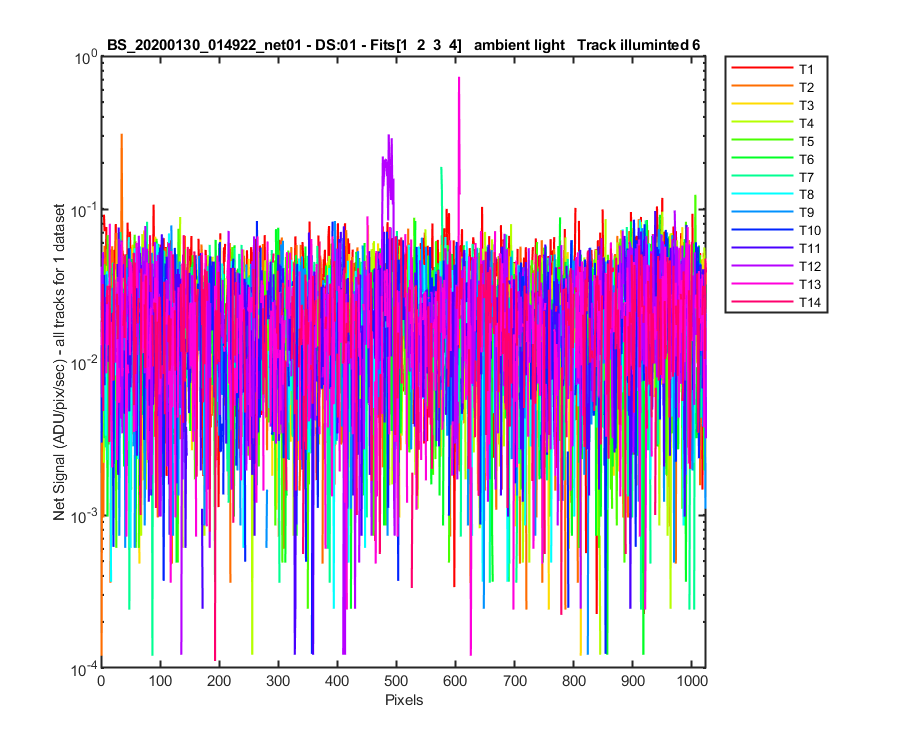

Figure 2 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

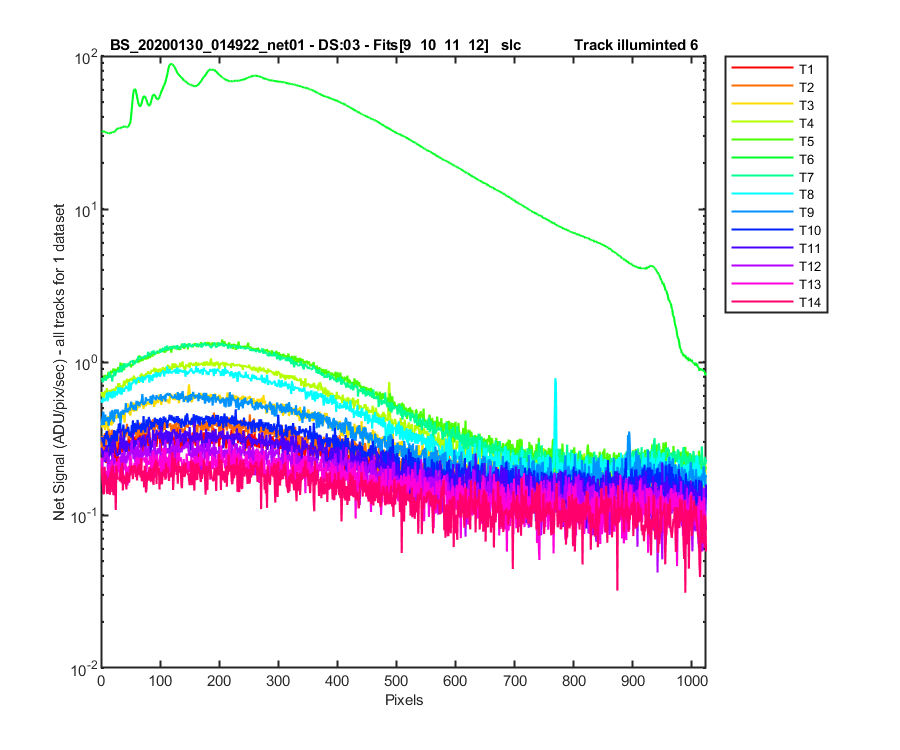

Figure 3 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

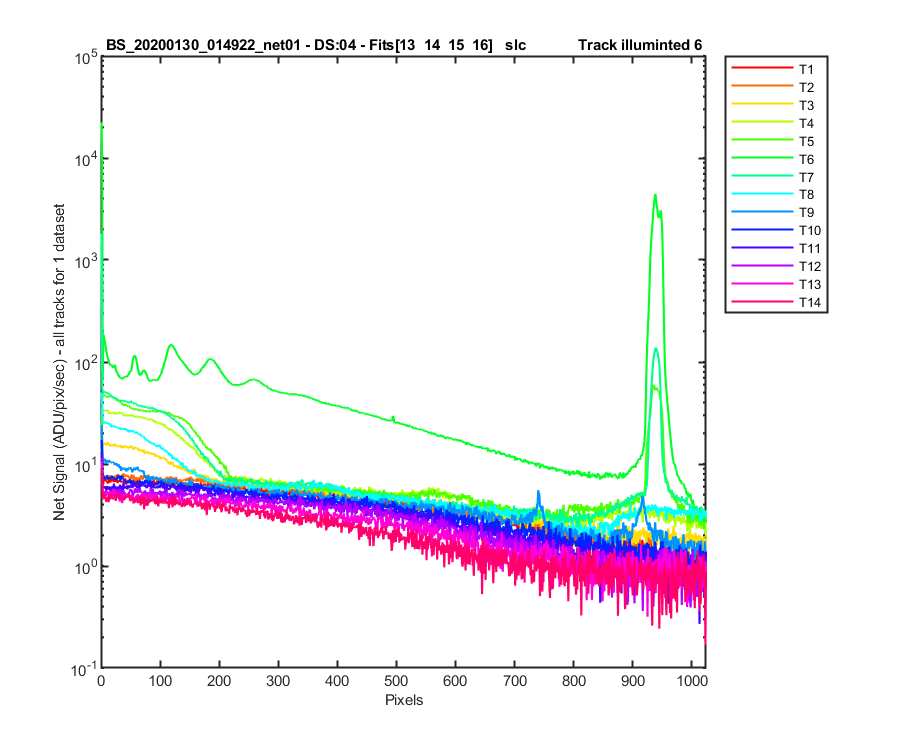

Figure 4 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

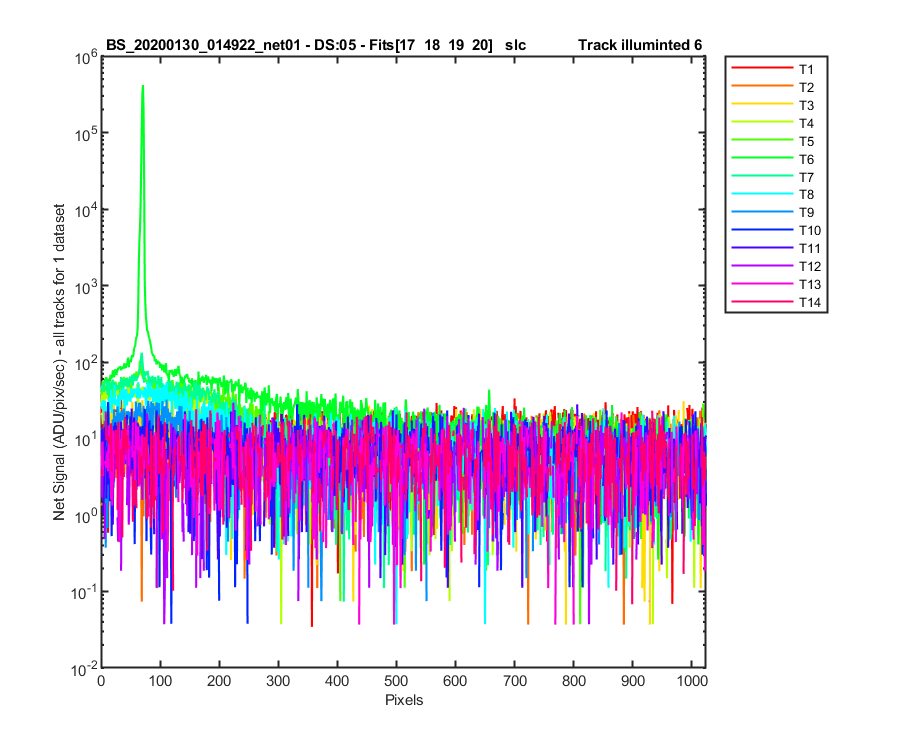

Figure 5 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

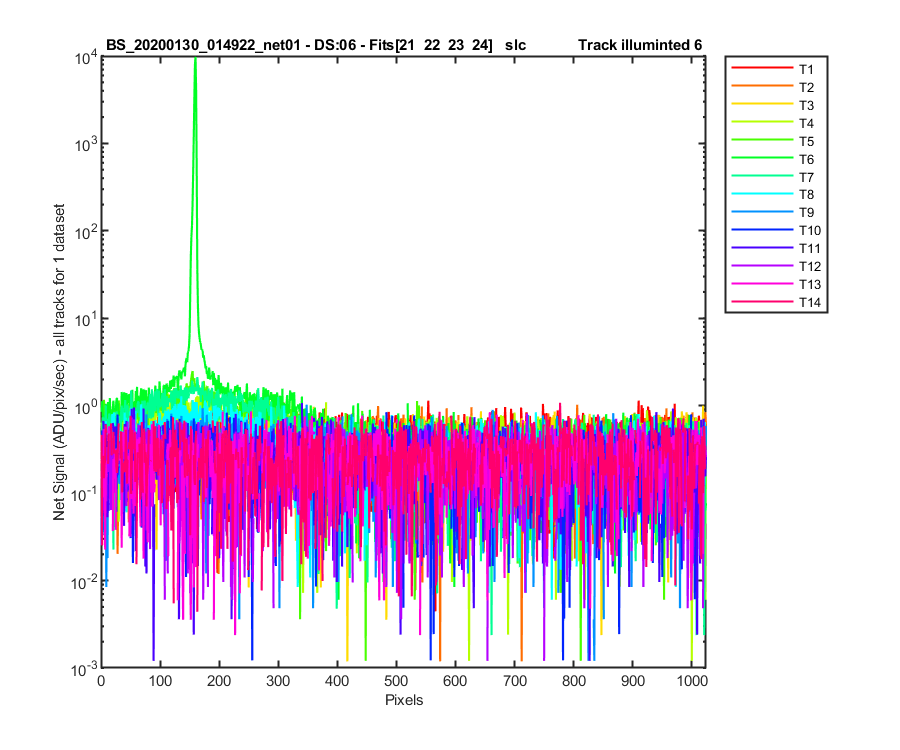

Figure 6 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.


Figure 7 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.
