RS_20200130_014940_raw01 - Day 1

REVISION DATE: 07-Feb-2020 15:51:10

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: RS05 Data
Dataset# Filename / Fit# Type file creation date Total Exposure Time Tracks on Laser
Wavelength (nm)		 Temperature Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
1 RS_20200130_014940_raw01 / 001 Background 30-Jan-2020 01:49:40 30 6 NaN -60 4 6744 3308.4246 0.31511
1 RS_20200130_014940_raw01 / 002 Background 30-Jan-2020 01:57:52 30 6 NaN -60 4 3518 3307.0905 0.28162
1 RS_20200130_014940_raw01 / 001 Lite 30-Jan-2020 01:59:27 30 6 NaN -60 4 6865 3307.6028 0.34964
1 RS_20200130_014940_raw01 / 002 Lite 30-Jan-2020 02:00:31 30 6 NaN -60 4 13818 3308.671 0.54447
1 RS_20200130_014940_raw01 / 003 Lite 30-Jan-2020 02:01:24 30 6 NaN -60 4 12245 3309.7171 0.47744
1 RS_20200130_014940_raw01 / 004 Lite 30-Jan-2020 02:02:08 30 6 NaN -60 4 3514 3310.8332 0.28575
1 RS_20200130_014940_raw01 / 003 Background 30-Jan-2020 02:02:58 30 6 NaN -60 4 3502 3310.5015 0.28733
1 RS_20200130_014940_raw01 / 004 Background 30-Jan-2020 02:03:50 30 6 NaN -60 4 7120 3310.3071 0.32851
2 RS_20200130_014940_raw01 / 005 Background 30-Jan-2020 02:46:58 30 6 300 -60 4 5864 3308.1922 0.32143
2 RS_20200130_014940_raw01 / 006 Background 30-Jan-2020 02:47:50 30 6 300 -60 4 4847 3310.3693 0.28888
2 RS_20200130_014940_raw01 / 005 Lite 30-Jan-2020 02:48:47 30 6 300 -60 4 4944 3312.0481 0.46313
2 RS_20200130_014940_raw01 / 006 Lite 30-Jan-2020 02:49:46 30 6 300 -60 4 4606 3312.0218 0.46431
2 RS_20200130_014940_raw01 / 007 Lite 30-Jan-2020 02:51:22 30 6 300 -60 4 5587 3310.8023 0.47357
2 RS_20200130_014940_raw01 / 008 Lite 30-Jan-2020 02:52:31 30 6 300 -60 4 3502 3311.4095 0.45744
2 RS_20200130_014940_raw01 / 007 Background 30-Jan-2020 02:55:15 30 6 300 -60 4 6755 3308.6079 0.32981
2 RS_20200130_014940_raw01 / 008 Background 30-Jan-2020 02:56:02 30 6 300 -60 4 6097 3310.978 0.30213
3 RS_20200130_014940_raw01 / 009 Background 30-Jan-2020 03:04:11 30 6 320 -60 4 3499 3310.0133 0.28308
3 RS_20200130_014940_raw01 / 010 Background 30-Jan-2020 03:05:17 30 6 320 -60 4 3527 3309.6381 0.2823
3 RS_20200130_014940_raw01 / 009 Lite 30-Jan-2020 03:07:03 30 6 320 -60 4 4520 3313.5196 0.98338
3 RS_20200130_014940_raw01 / 010 Lite 30-Jan-2020 03:08:57 30 6 320 -60 4 3776 3313.1131 0.97812
3 RS_20200130_014940_raw01 / 011 Lite 30-Jan-2020 03:09:47 30 6 320 -60 4 4203 3314.9146 0.98117
3 RS_20200130_014940_raw01 / 012 Lite 30-Jan-2020 03:11:08 30 6 320 -60 4 3792 3313.7729 0.9803
3 RS_20200130_014940_raw01 / 011 Background 30-Jan-2020 03:12:49 30 6 320 -60 4 4344 3308.3811 0.28621
3 RS_20200130_014940_raw01 / 012 Background 30-Jan-2020 03:13:39 30 6 320 -60 4 5241 3310.2809 0.28919
4 RS_20200130_014940_raw01 / 013 Background 30-Jan-2020 03:30:42 30 6 350 -60 4 3524 3311.4894 0.28384
4 RS_20200130_014940_raw01 / 014 Background 30-Jan-2020 03:31:50 30 6 350 -60 4 7521 3309.5279 0.32306
4 RS_20200130_014940_raw01 / 013 Lite 30-Jan-2020 03:32:32 30 6 350 -60 4 3642 3314.4552 0.72005
4 RS_20200130_014940_raw01 / 014 Lite 30-Jan-2020 03:33:58 30 6 350 -60 4 3655 3311.9241 0.71949
4 RS_20200130_014940_raw01 / 015 Lite 30-Jan-2020 03:34:57 30 6 350 -60 4 8386 3312.8905 0.74808
4 RS_20200130_014940_raw01 / 016 Lite 30-Jan-2020 03:35:47 30 6 350 -60 4 5680 3313.6681 0.72303
4 RS_20200130_014940_raw01 / 015 Background 30-Jan-2020 03:38:39 30 6 350 -60 4 3917 3307.8549 0.28444
4 RS_20200130_014940_raw01 / 016 Background 30-Jan-2020 03:39:42 30 6 350 -60 4 9924 3309.4453 0.41201
5 RS_20200130_014940_raw01 / 017 Background 30-Jan-2020 03:50:06 30 6 375 -60 4 3534 3310.966 0.28406
5 RS_20200130_014940_raw01 / 018 Background 30-Jan-2020 03:51:38 30 6 375 -60 4 3495 3308.5562 0.28203
5 RS_20200130_014940_raw01 / 017 Lite 30-Jan-2020 03:53:54 30 6 375 -60 4 10381 3309.7445 0.54264
5 RS_20200130_014940_raw01 / 018 Lite 30-Jan-2020 03:55:52 30 6 375 -60 4 3993 3309.9265 0.47822
5 RS_20200130_014940_raw01 / 019 Lite 30-Jan-2020 03:58:46 30 6 375 -60 4 3992 3309.5182 0.47743
5 RS_20200130_014940_raw01 / 020 Lite 30-Jan-2020 03:59:58 30 6 375 -60 4 3994 3310.3358 0.47749
5 RS_20200130_014940_raw01 / 019 Background 30-Jan-2020 04:02:08 30 6 375 -60 4 3519 3307.9326 0.28224
5 RS_20200130_014940_raw01 / 020 Background 30-Jan-2020 04:03:08 30 6 375 -60 4 3512 3309.15 0.28294
6 RS_20200130_014940_raw01 / 021 Background 30-Jan-2020 04:57:55 30 6 405 -60 4 3516 3306.7708 0.28317
6 RS_20200130_014940_raw01 / 022 Background 30-Jan-2020 04:58:36 30 6 405 -60 4 7454 3309.4392 0.37502
6 RS_20200130_014940_raw01 / 021 Lite 30-Jan-2020 05:00:35 30 6 405 -60 4 4072 3306.1304 0.28431
6 RS_20200130_014940_raw01 / 022 Lite 30-Jan-2020 05:01:33 30 6 405 -60 4 9210 3307.8285 0.35672
6 RS_20200130_014940_raw01 / 023 Lite 30-Jan-2020 05:02:15 30 6 405 -60 4 3512 3309.2961 0.28535
6 RS_20200130_014940_raw01 / 024 Lite 30-Jan-2020 05:03:22 30 6 405 -60 4 3510 3307.4183 0.28317
6 RS_20200130_014940_raw01 / 023 Background 30-Jan-2020 05:05:22 30 6 405 -60 4 4299 3305.827 0.28892
6 RS_20200130_014940_raw01 / 024 Background 30-Jan-2020 05:06:17 30 6 405 -60 4 4144 3307.642 0.28782
Grouped Image file: RS_20200130_N001_grouped.html
Grouped Image file: RS_20200130_N002_grouped.html
Grouped Image file: RS_20200130_N003_grouped.html
Grouped Image file: RS_20200130_N005_grouped.html
Grouped Image file: RS_20200130_N007_grouped.html
Grouped Image file: RS_20200130_N009_grouped.html
Grouped Image file: RS_20200130_N020_grouped.html
Grouped Image file: RS_20200130_N022_grouped.html

Graphs below are of the Nets for a dataset. A dataset is a group of dark-lite-dark files that Mike says in his logsheet are collected together. One net = darks before and after averaged then , lights averaged, then avg_lite-avg_dark and the avg_net divided by intergration time for each track.

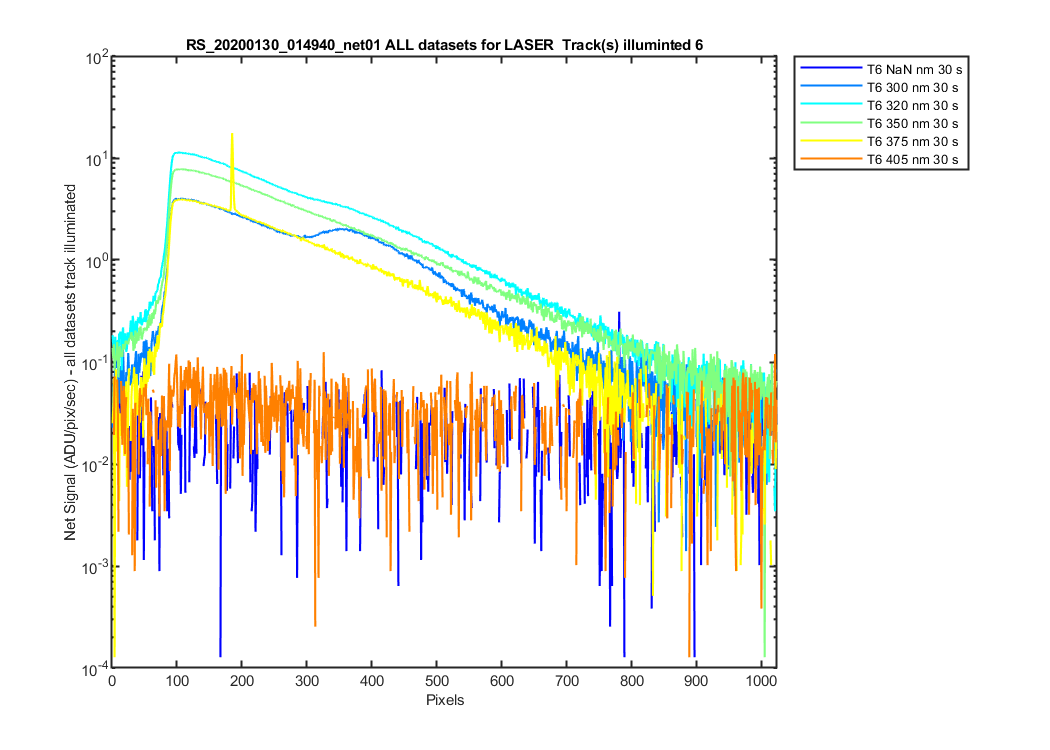

Figure 1 A: All the net data sets with a track illuminated. This shows ALL the net tracks with light on them.

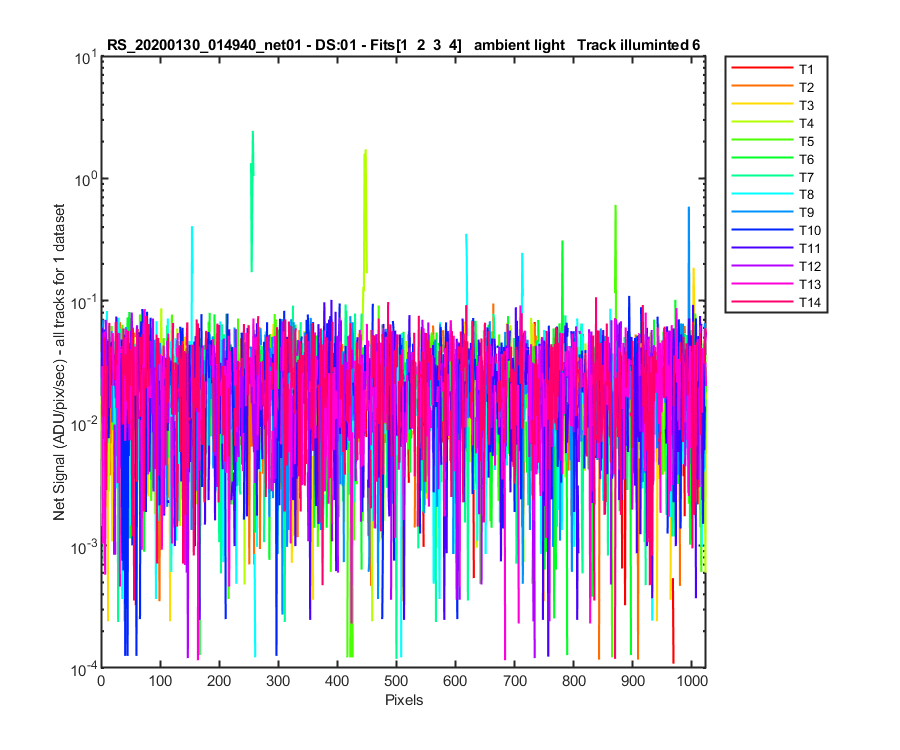

Figure 2 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

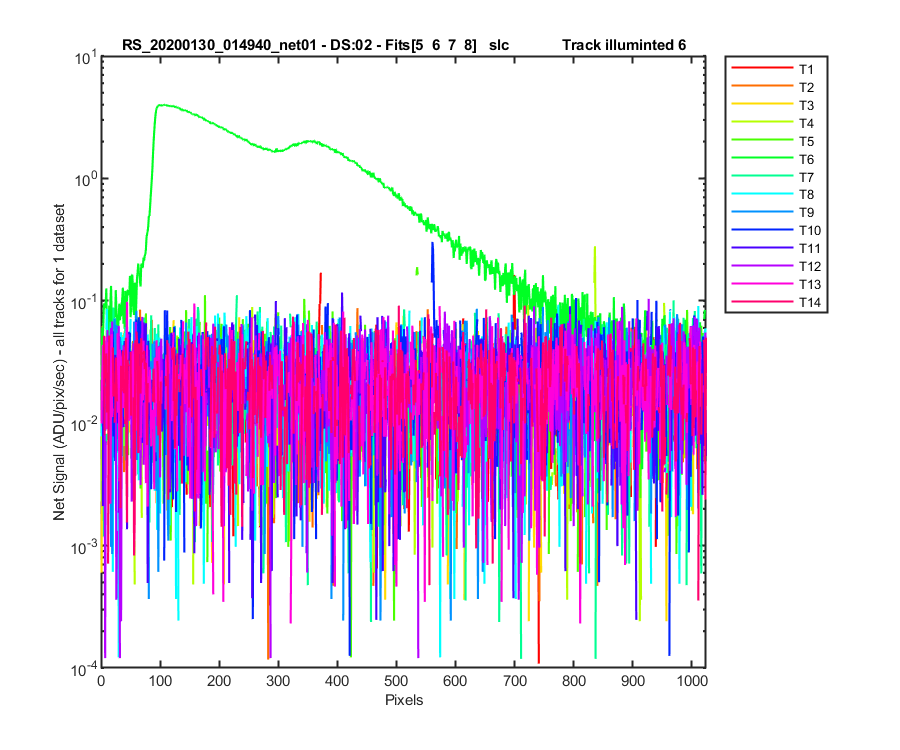

Figure 3 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

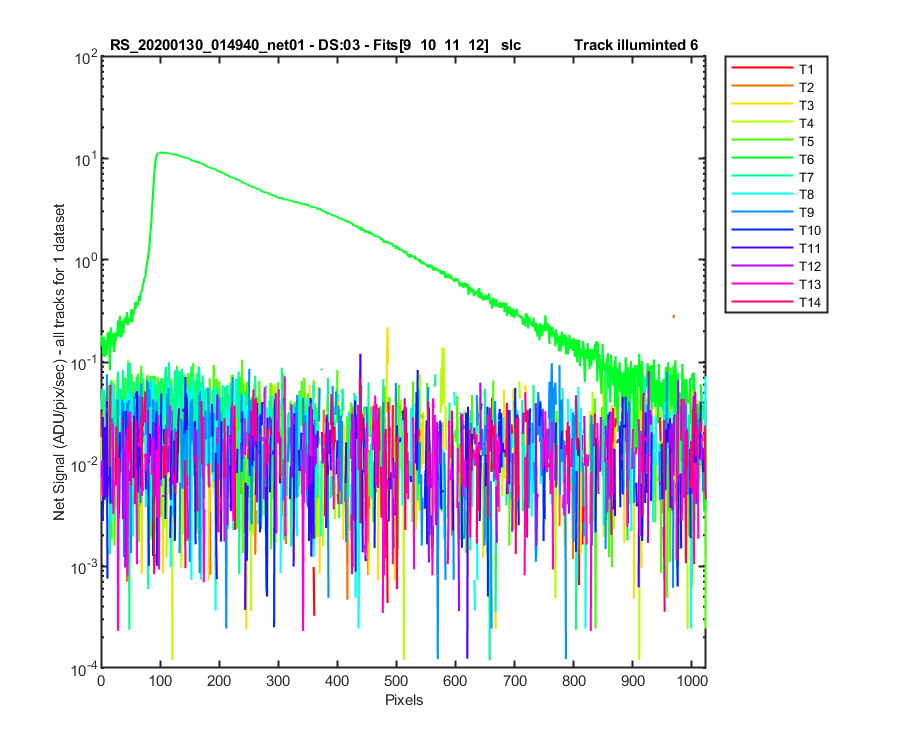

Figure 4 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

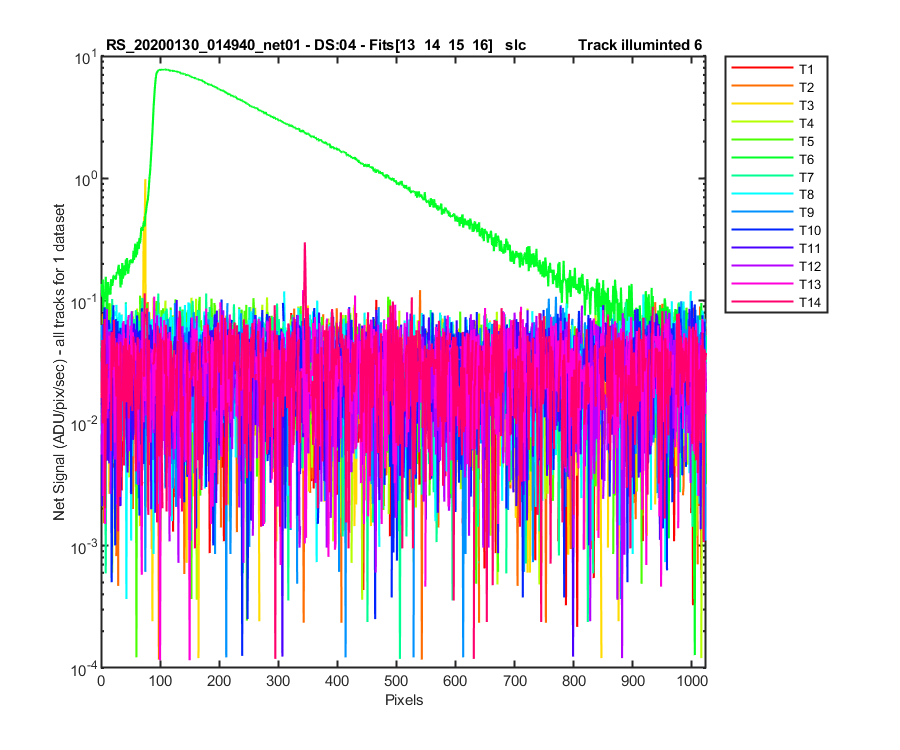

Figure 5 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

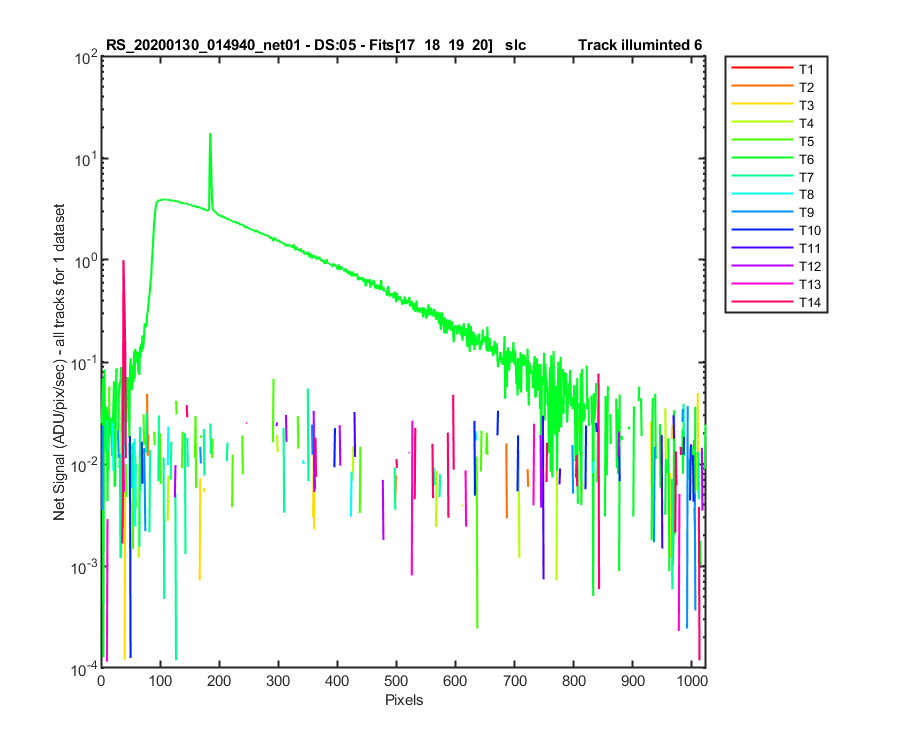

Figure 6 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

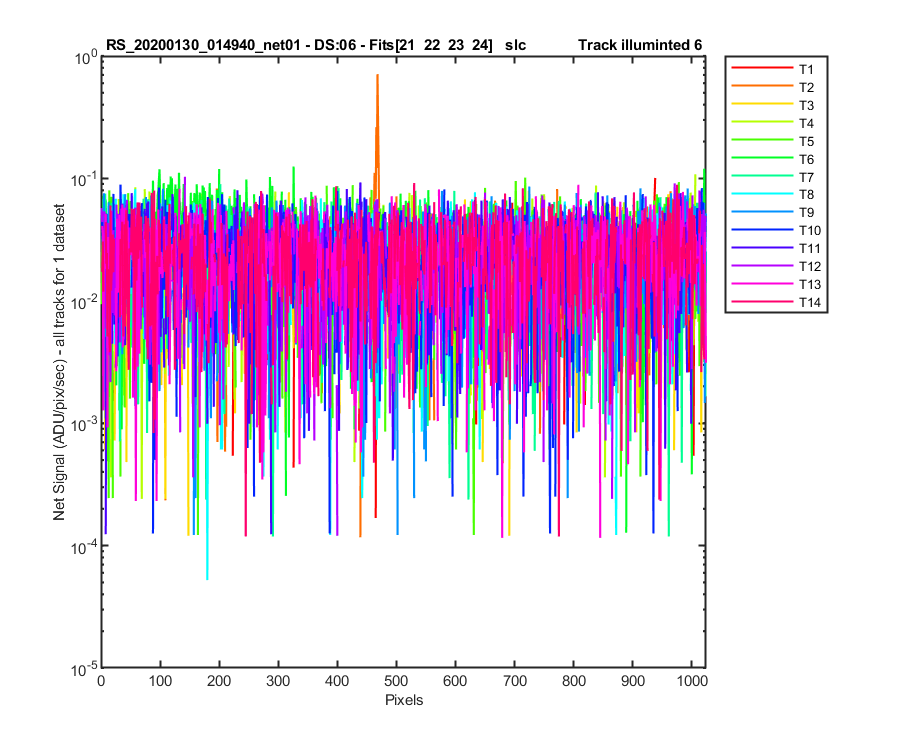

Figure 7 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.


pwd: D:\zflora\mldata2\maronet\characterization\Hawaii-2020-01\RS05cal
Date: 07-Feb-2020 15:51:11
Created from mkhtml2_(1)
