rs_20200205_g43_21_02_022

REVISION DATE: 07-Feb-2020 15:57:16

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: RS05 Data
Previous HOME NEXT
Filename/Fit# Type file creation date Total Exposure Time Tracks on Temperature Gain Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
rs_20200205_g43_21_02_022 / 20200205 Lite 05-Feb-2020 05:16:24 1.5 6 -60 -60 4 45894 3309.8835 11.8182

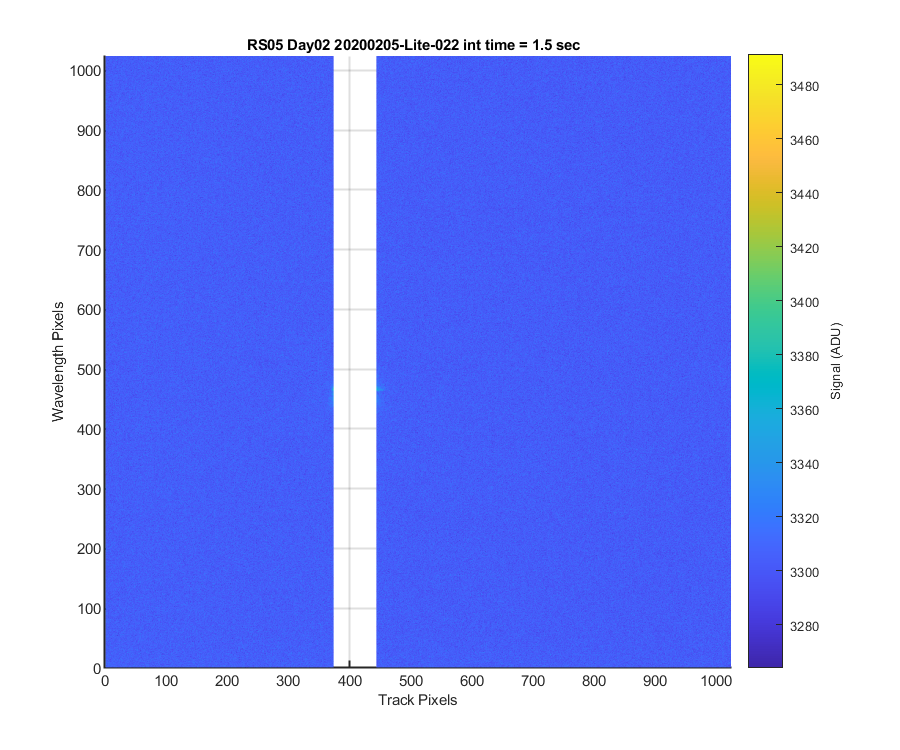

Figure 1

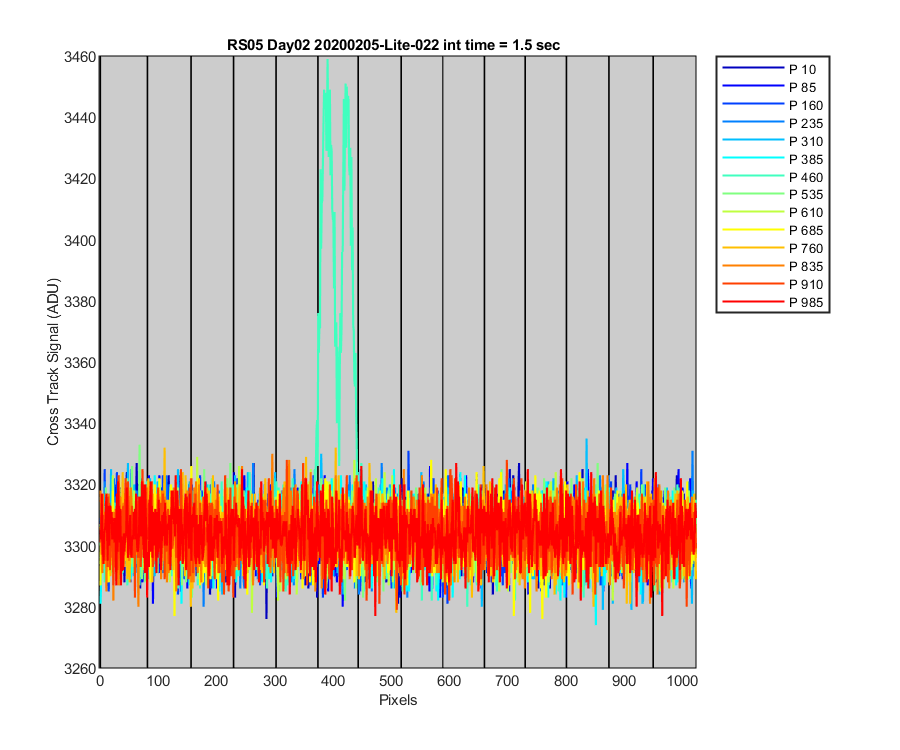

Figure 2

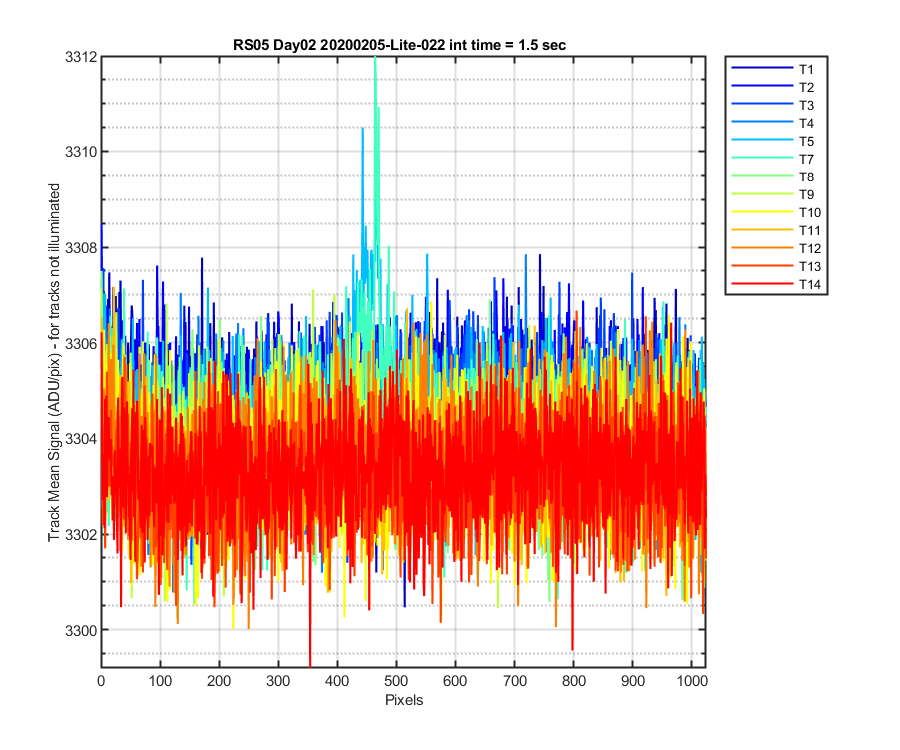

Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
pwd: D:\zflora\mldata2\maronet\characterization\Hawaii-2020-01\RS05cal
Date: 07-Feb-2020 15:57:16
Created from mkhtml2_(1)
