RS_20200208_065147_raw01 - Day 4

REVISION DATE: 10-Feb-2020 15:19:15

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: RS05 Data
Dataset# Filename / Fit# Type file creation date Total Exposure Time Tracks on Laser
Wavelength (nm)		 Saturated? Temperature Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
1 RS_20200208_065147_raw01 / 001 Background 08-Feb-2020 06:51:47 0.5 6 709 No -60 4 3349 3302.6489 0.23373
1 RS_20200208_065147_raw01 / 002 Background 08-Feb-2020 06:53:21 0.5 6 709 No -60 4 3337 3300.9907 0.23328
1 RS_20200208_065147_raw01 / 001 Lite 08-Feb-2020 06:53:32 0.5 6 709 No -60 4 30085 3305.1949 7.8706
1 RS_20200208_065147_raw01 / 002 Lite 08-Feb-2020 06:55:06 0.5 6 709 No -60 4 37385 3304.8674 10.2202
1 RS_20200208_065147_raw01 / 003 Lite 08-Feb-2020 06:55:15 0.5 6 709 No -60 4 34441 3304.3785 9.2705
1 RS_20200208_065147_raw01 / 004 Lite 08-Feb-2020 06:55:24 0.5 6 709 No -60 4 34740 3304.4811 9.3569
1 RS_20200208_065147_raw01 / 003 Background 08-Feb-2020 06:55:32 0.5 6 709 No -60 4 3339 3300.1244 0.2327
1 RS_20200208_065147_raw01 / 004 Background 08-Feb-2020 06:55:41 0.5 6 709 No -60 4 3337 3299.733 0.233
2 RS_20200208_065147_raw01 / 005 Background 08-Feb-2020 06:56:43 1 6 709 No -60 4 3344 3301.8746 0.23318
2 RS_20200208_065147_raw01 / 006 Background 08-Feb-2020 06:56:58 1 6 709 No -60 4 3339 3302.043 0.23331
2 RS_20200208_065147_raw01 / 005 Lite 08-Feb-2020 06:57:08 1 6 709 No -60 4 62568 3313.0151 20.2043
2 RS_20200208_065147_raw01 / 006 Lite 08-Feb-2020 06:57:48 1 6 709 No -60 4 61467 3311.3153 17.8588
2 RS_20200208_065147_raw01 / 007 Lite 08-Feb-2020 06:58:04 1 6 709 No -60 4 61547 3311.6023 17.8981
2 RS_20200208_065147_raw01 / 008 Lite 08-Feb-2020 06:58:14 1 6 709 No -60 4 61211 3311.6283 17.618
2 RS_20200208_065147_raw01 / 007 Background 08-Feb-2020 06:58:24 1 6 709 No -60 4 3344 3303.3659 0.23345
2 RS_20200208_065147_raw01 / 008 Background 08-Feb-2020 06:58:32 1 6 709 No -60 4 3343 3303.3017 0.23352
3 RS_20200208_065147_raw01 / 009 Background 08-Feb-2020 06:58:57 10 6 709 Yes -60 4 4352 3315.9579 0.26001
3 RS_20200208_065147_raw01 / 010 Background 08-Feb-2020 06:59:22 10 6 709 Yes -60 4 3382 3317.6099 0.25445
3 RS_20200208_065147_raw01 / 009 Lite 08-Feb-2020 06:59:43 10 6 709 Yes -60 4 64124 3355.9396 41.9439
3 RS_20200208_065147_raw01 / 010 Lite 08-Feb-2020 07:00:43 10 6 709 Yes -60 4 64132 3355.3031 42.9045
3 RS_20200208_065147_raw01 / 011 Lite 08-Feb-2020 07:01:03 10 6 709 Yes -60 4 64100 3355.9126 41.9856
3 RS_20200208_065147_raw01 / 012 Lite 08-Feb-2020 07:01:21 10 6 709 Yes -60 4 64151 3357.112 41.9567
3 RS_20200208_065147_raw01 / 011 Background 08-Feb-2020 07:01:39 10 6 709 Yes -60 4 3392 3321.277 0.25789
3 RS_20200208_065147_raw01 / 012 Background 08-Feb-2020 07:02:06 10 6 709 Yes -60 4 3390 3319.9183 0.25602
4 RS_20200208_065147_raw01 / 013 Background 08-Feb-2020 07:03:16 30 6 709 Yes -60 4 3550 3338.4038 0.28463
4 RS_20200208_065147_raw01 / 014 Background 08-Feb-2020 07:04:03 30 6 709 Yes -60 4 3556 3341.0519 0.28668
4 RS_20200208_065147_raw01 / 013 Lite 08-Feb-2020 07:04:53 30 6 709 Yes -60 4 64354 3453.3427 72.3251
4 RS_20200208_065147_raw01 / 014 Lite 08-Feb-2020 07:05:40 30 6 709 Yes -60 4 64309 3451.8402 71.6736
4 RS_20200208_065147_raw01 / 015 Lite 08-Feb-2020 07:06:31 30 6 709 Yes -60 4 64343 3453.4748 72.3162
4 RS_20200208_065147_raw01 / 016 Lite 08-Feb-2020 07:07:11 30 6 709 Yes -60 4 64296 3450.1145 70.831
4 RS_20200208_065147_raw01 / 015 Background 08-Feb-2020 07:07:50 30 6 709 Yes -60 4 4205 3343.6267 0.29764
4 RS_20200208_065147_raw01 / 016 Background 08-Feb-2020 07:08:35 30 6 709 Yes -60 4 6646 3342.7878 0.32407
5 RS_20200208_065147_raw01 / 017 Background 08-Feb-2020 07:09:27 60 6 709 Yes -60 4 12155 3369.3522 0.46042
5 RS_20200208_065147_raw01 / 018 Background 08-Feb-2020 07:10:50 60 6 709 Yes -60 4 5904 3369.6418 0.35614
5 RS_20200208_065147_raw01 / 017 Lite 08-Feb-2020 07:12:01 60 6 709 Yes -60 4 64250 3576.8357 95.4506
5 RS_20200208_065147_raw01 / 018 Lite 08-Feb-2020 07:13:11 60 6 709 Yes -60 4 64228 3577.5885 95.4136
5 RS_20200208_065147_raw01 / 019 Lite 08-Feb-2020 07:14:30 60 6 709 Yes -60 4 64231 3575.4893 95.035
5 RS_20200208_065147_raw01 / 020 Lite 08-Feb-2020 07:15:43 60 6 709 Yes -60 4 64186 3573.4228 94.4709
5 RS_20200208_065147_raw01 / 019 Background 08-Feb-2020 07:16:52 60 6 709 Yes -60 4 10581 3371.4658 0.41575
5 RS_20200208_065147_raw01 / 020 Background 08-Feb-2020 07:18:05 60 6 709 Yes -60 4 4695 3369.7341 0.33751
6 RS_20200208_065147_raw01 / 021 Background 08-Feb-2020 07:19:43 120 6 709 Yes -60 4 63233 3419.6346 6.6347
6 RS_20200208_065147_raw01 / 022 Background 08-Feb-2020 07:22:03 120 6 709 Yes -60 4 4495 3419.3458 0.43441
6 RS_20200208_065147_raw01 / 021 Lite 08-Feb-2020 07:24:16 120 6 709 Yes -60 4 64146 3825.1425 125.4343
6 RS_20200208_065147_raw01 / 022 Lite 08-Feb-2020 07:26:35 120 6 709 Yes -60 4 64349 3834.6478 126.3122
6 RS_20200208_065147_raw01 / 023 Lite 08-Feb-2020 07:28:53 120 6 709 Yes -60 4 64222 3826.5825 125.3626
6 RS_20200208_065147_raw01 / 024 Lite 08-Feb-2020 07:31:42 120 6 709 Yes -60 4 64183 3830.9098 125.9904
6 RS_20200208_065147_raw01 / 023 Background 08-Feb-2020 07:34:03 120 6 709 Yes -60 4 4892 3421.6236 0.46879
6 RS_20200208_065147_raw01 / 024 Background 08-Feb-2020 07:36:45 120 6 709 Yes -60 4 4314 3420.2127 0.43362
Grouped Image file: RS_20200208_N001_grouped.html
Grouped Image file: RS_20200208_N002_grouped.html
Grouped Image file: RS_20200208_N003_grouped.html
Grouped Image file: RS_20200208_N005_grouped.html
Grouped Image file: RS_20200208_N007_grouped.html
Grouped Image file: RS_20200208_N009_grouped.html
Grouped Image file: RS_20200208_N020_grouped.html
Grouped Image file: RS_20200208_N022_grouped.html

Graphs below are of the Nets for a dataset. A dataset is a group of dark-lite-dark files that Mike says in his logsheet are collected together. One net = darks before and after averaged then , lights averaged, then avg_lite-avg_dark and the avg_net divided by intergration time for each track.

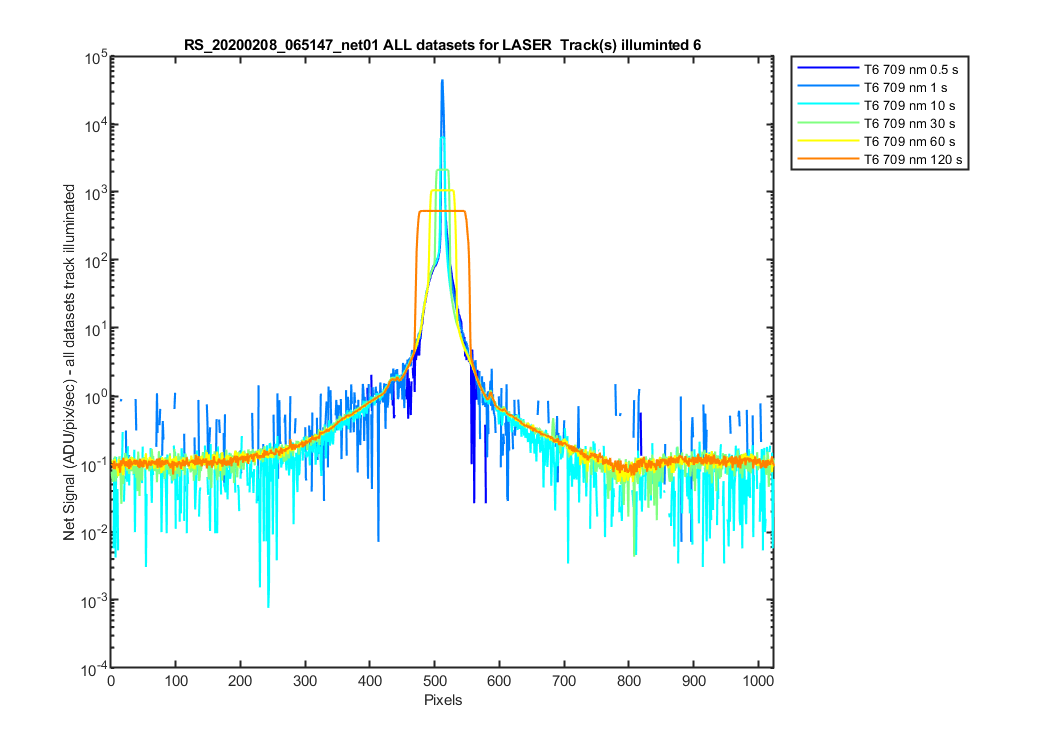

Figure 1 A: All the net data sets with a track illuminated. This shows ALL the net tracks with light on them.

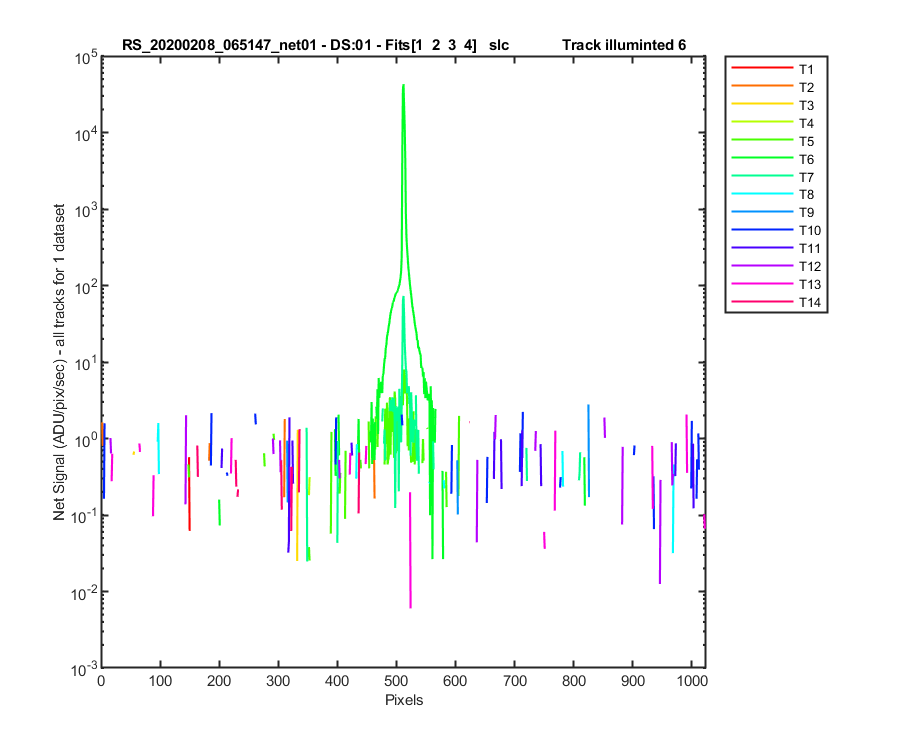

Figure 2 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

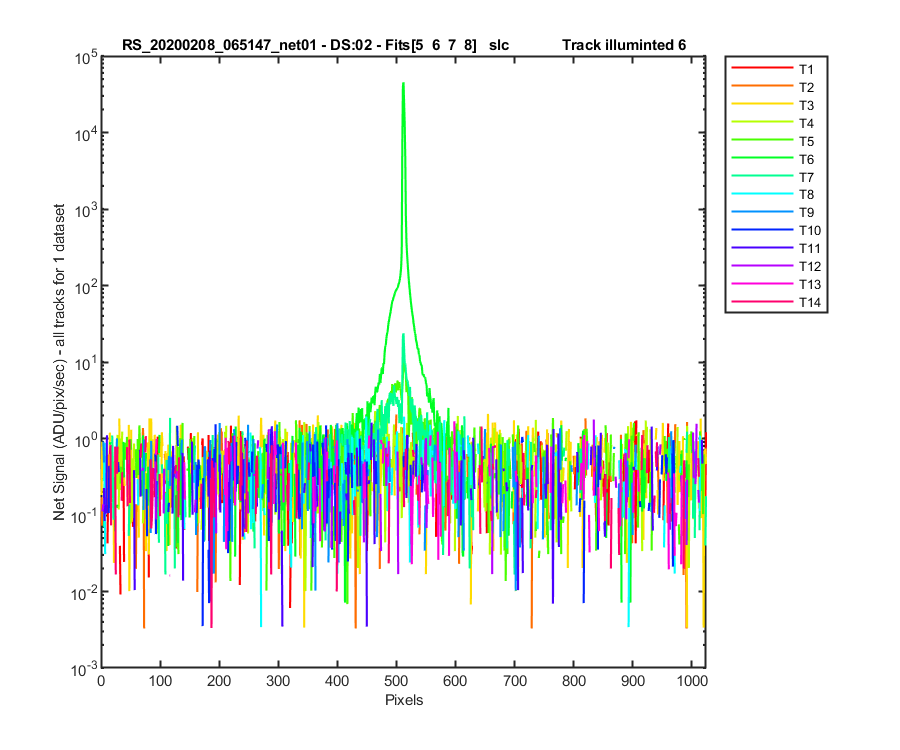

Figure 3 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

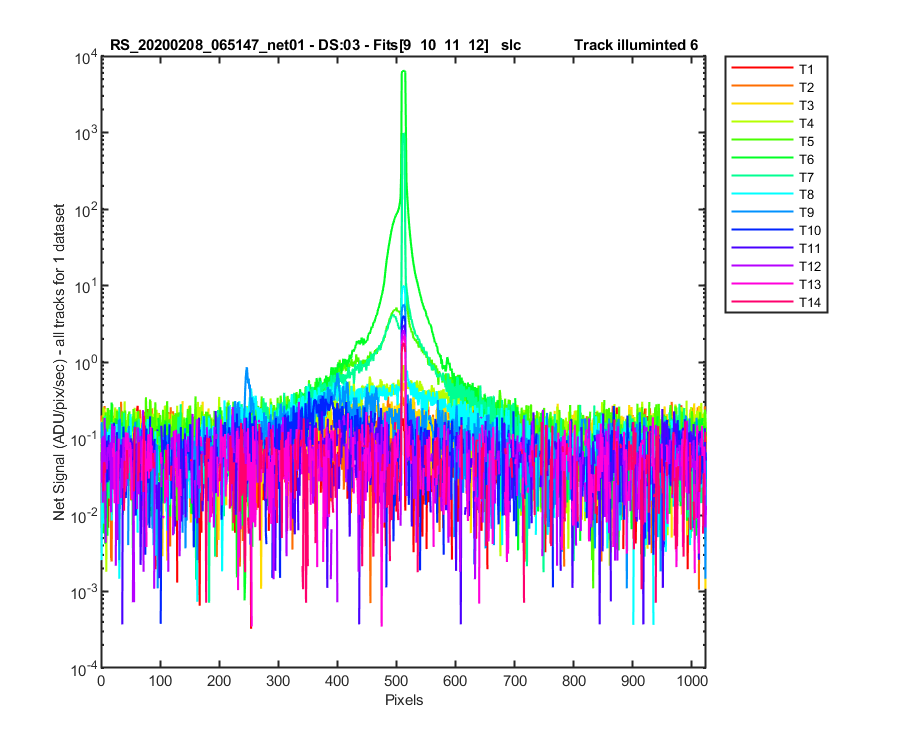

Figure 4 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

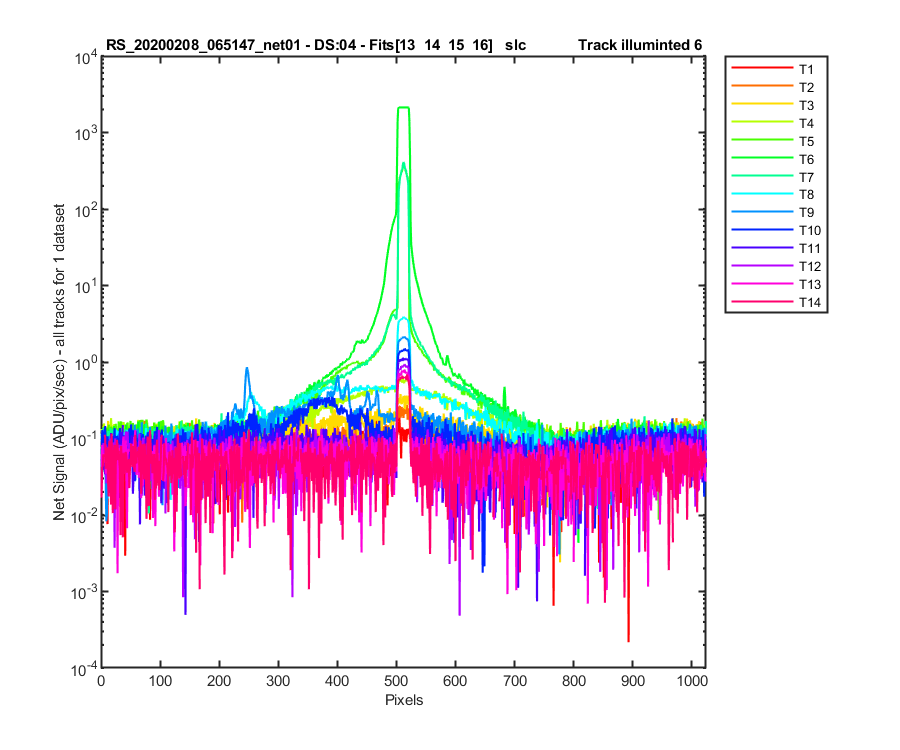

Figure 5 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

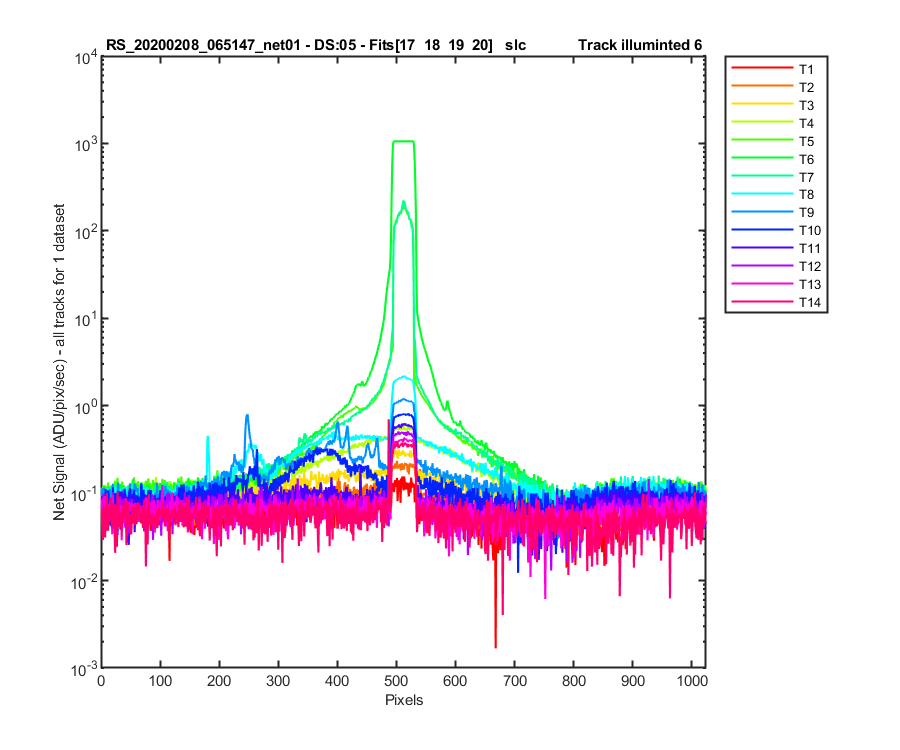

Figure 6 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

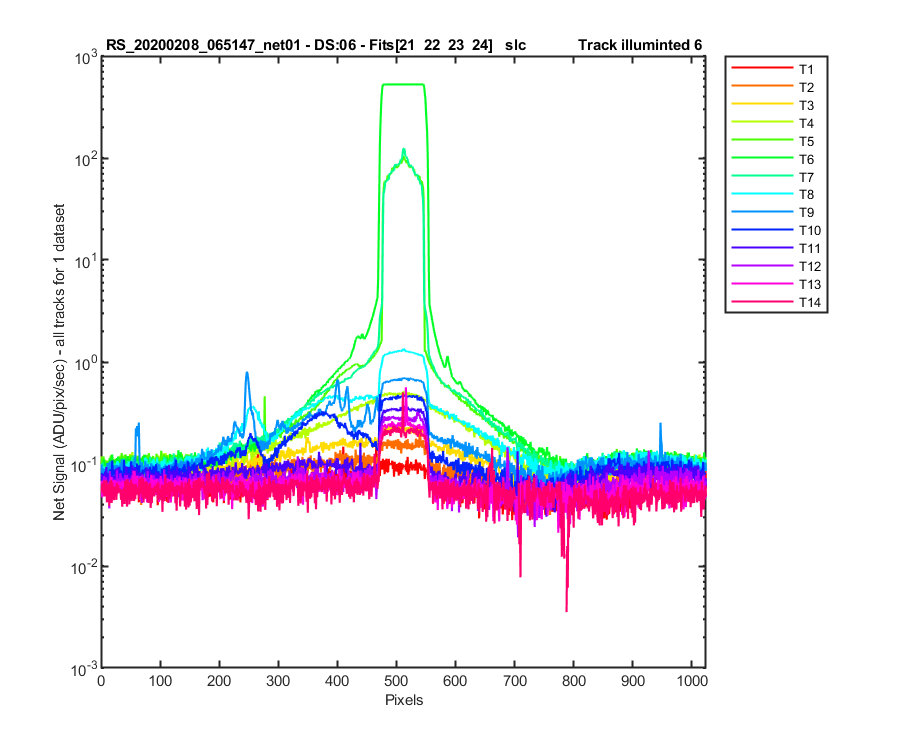

Figure 7 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.
