REVISION DATE: 13-Dec-2016 12:32:13


Email from Mike Kehoe on 10/19/2016 8:26 AM:

Greetings All,

Casey finished assembly and testing of RS6 last week. Please find attached the pre-delivery report.  The data is at the usual site:
 file:  MOBY Red file dated 10/18/16.  The system is ready so ship, so please let me
know when you are ready to receive it.

We should be receiving two fiber bundles later this week.  We plan to assemble the last remaining red system, RS5, as the next build.
That will close out the Red system orders.

Best,
Mike

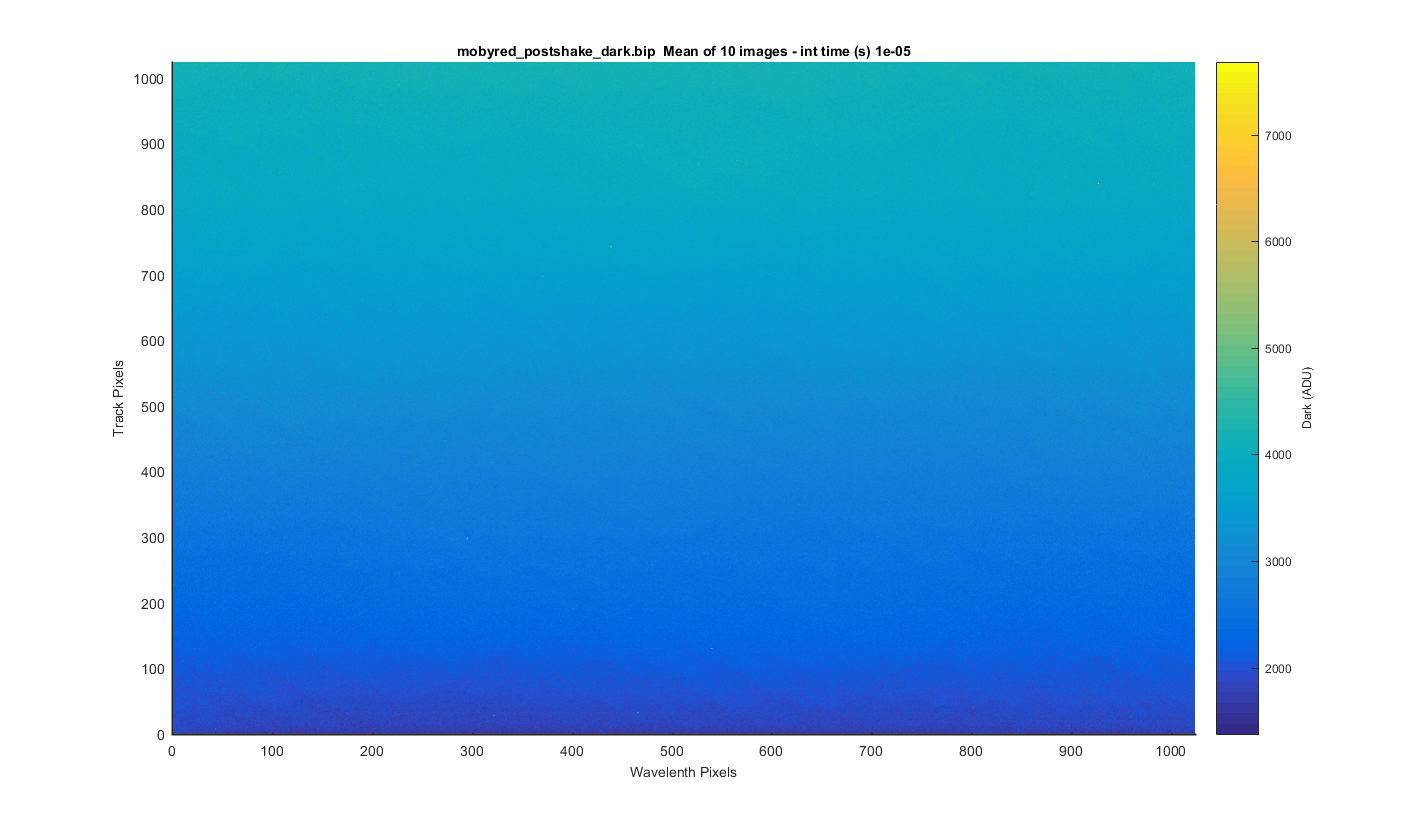

Below are my graphs of the mobyred_postshake_dark.bip file. The file contains 10 dark images at 1e-05 sec Note some graphs are dark corrected and some are not so check the axis labels to know what you are looking at.

I meaned all 10 images to get the surface below.

Figure 1

Same image but with the spikes removed so the colorbar works better to show the shape of the darks.

Figure 2

This is a cross section through the tracks at a number of wavelength pixels, from the mean image.

Figure 3

Data showing a track pixel at pixel 640 for all 20 dark images.

Figure 4

The darks for each track from the mean dark image.

Figure 5

The darks for each track from the 10 dark images (so there are 10 for each track).

Figure 6
