REVISION DATE: 25-Jun-2019 14:34:51

Below are my graphs of the rs05_sphere_100ms.bip file. The file contains 10 dark images at 0.1 sec Note some graphs are dark corrected and some are not so check the axis labels to know what you are looking at.

Figure 1 I took the 10 images and meaned them to get the surface plot below.

Figure 2 This is a cross section through the tracks at wavelength pixel 900, with one line for each of the 10 images (darks are subtracted).

Figure 3 Same as the previous graph but zoomed into the bottom to see the level of the darks between the tracks.

Figure 4 Same as figure 2 but for Wavelength pixel 400 (darks are subtracted)

Figure 5 Again this is the mean image with slices thought the image at different wavelength pixels (darks are subtracted).

Figure 6 Same as figure 6 but zoomed to the bottom so you can see the darks between the tracks (darks are subtracted).

Figure 7 Same as figure 7 but zoomed into the dark area between tracks 5 and 6 so you can see the amount of light getting between the tracks (darks are subtracted). It varies by wavelength.

Figure 8 The same cross track plots but zoomed to the bottom and not dark corrected with the dark plotted at a black line (wavelength pixel 900).

Figure 9 The same cross track plots but zoomed to the bottom and not dark corrected with the dark plotted at a black line (wavelength pixel 400).

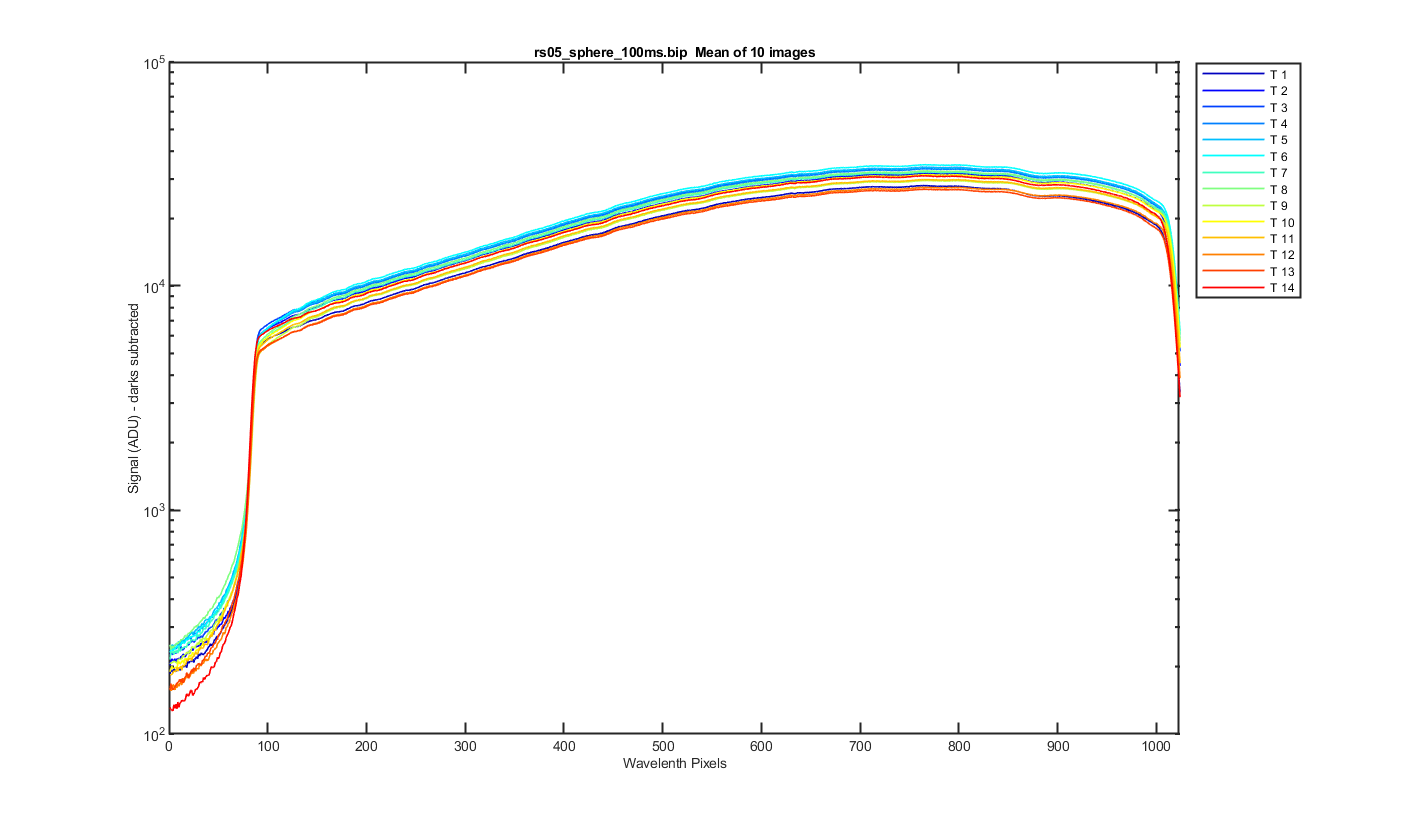

Figure 10 Track data which is dark subtracted

Figure 11 TRACK 1: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 12 TRACK 2: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 13 TRACK 3: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 14 TRACK 4: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 15 TRACK 5: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 16 TRACK 6: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 17 TRACK 7: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

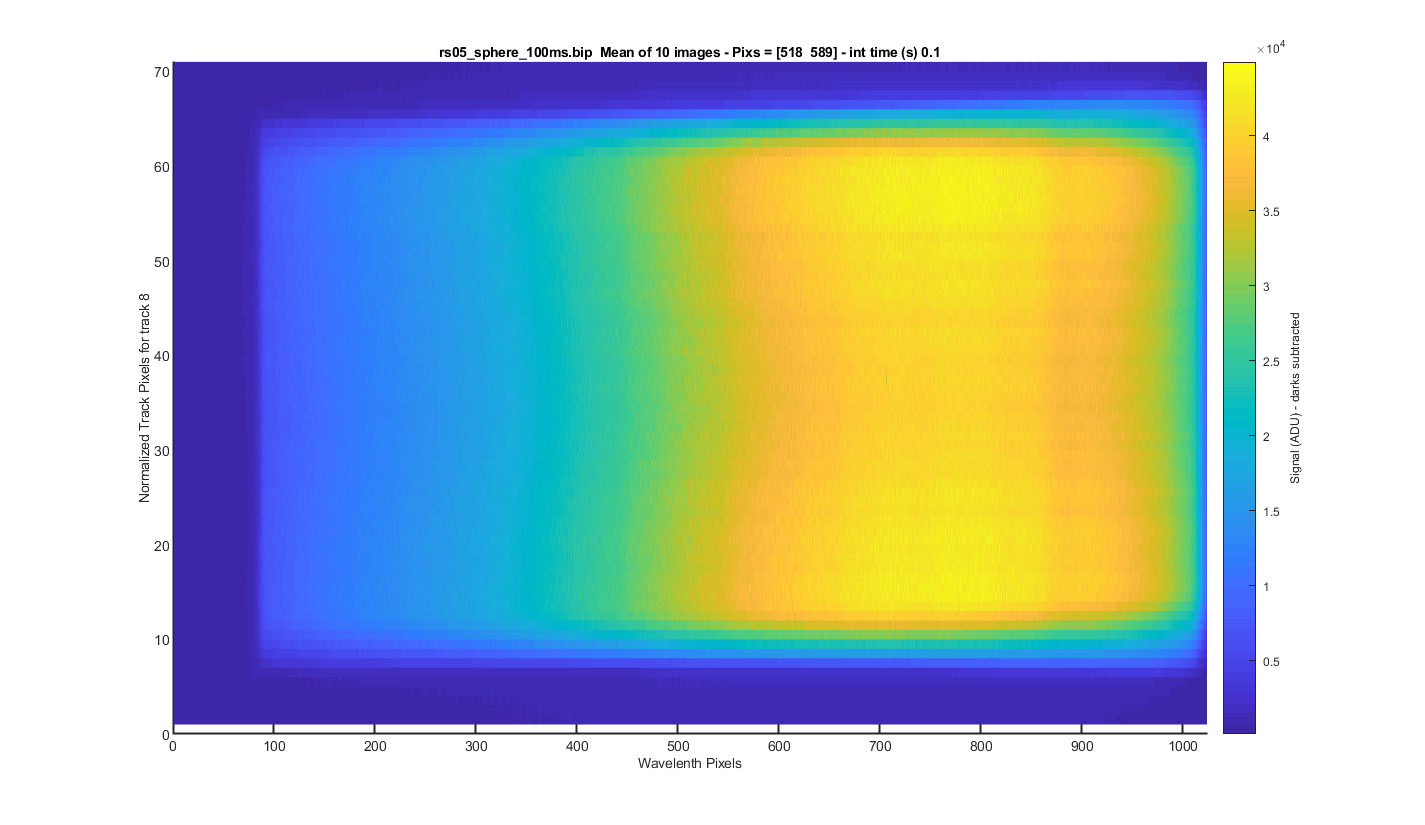

Figure 18 TRACK 8: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 19 TRACK 9: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

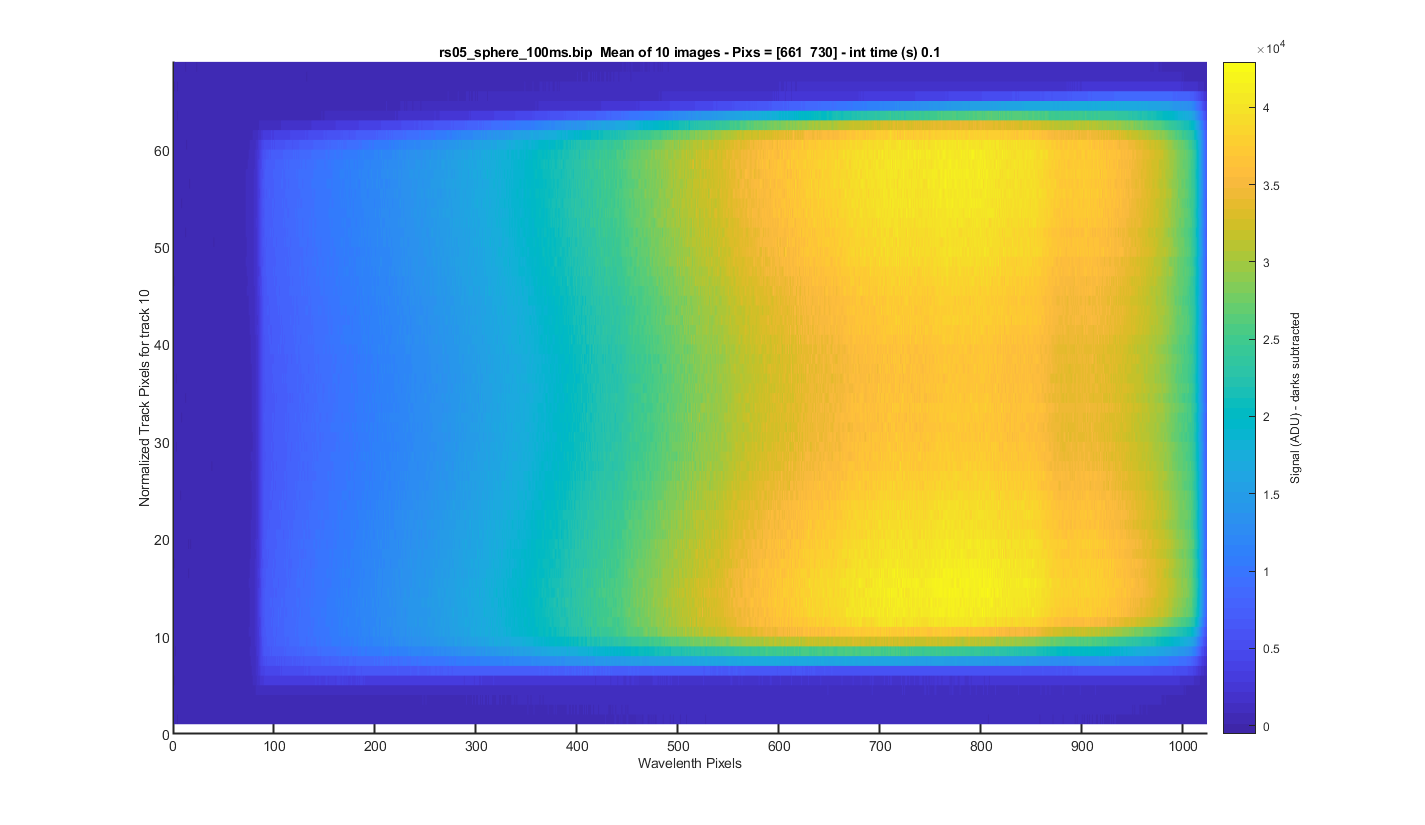

Figure 20 TRACK 10: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 21 TRACK 11: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 22 TRACK 12: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 23 TRACK 13: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 24 TRACK 14: The meaned image (darks are subtracted) surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.
