Email from Mike Kehoe on 10/19/2016 8:26 AM:

Greetings All,

Casey finished assembly and testing of RS6 last week. Please find attached the pre-delivery report.  The data is at the usual site:
 file:  MOBY Red file dated 10/18/16.  The system is ready so ship, so please let me
know when you are ready to receive it.

We should be receiving two fiber bundles later this week.  We plan to assemble the last remaining red system, RS5, as the next build.
That will close out the Red system orders.

Best,
Mike

Below is my analysis of the before and after shake test data. There are two data sets. Thr helium line data before and after shaking and lamp data for all 14 tracks. Note all data sets use the same dark which means some of the images the darks are not quite right. These offsets will effect the answer and add uncertainty.

For the helimum lines I found for each peak the max value. I then removed the peak data within +- 10 pixels of the peak. I subtracted the minimun and divded by the max to normalize the peaks. I then used a gaussian peak fitting program to find the peak for each helium line in the pre and post shake data and each track. The table and graphs show the change in the peak is in most cases less than 1/2 a pixel, very nice.

For the lamp data and looking at the track shift. I used one of the masimum pixel values for the lamp data (~850 pixel) to pull out a cross track line. I normalized each tracks cross-track line to the maximum value for each track pre and post shaking. I then interpolte the left and right edge of the tracks to 0.001 intervals data and find which pixel is closest to 0.50 (green line in the graphs) I save the sub-pixel value in a table. The Table in the Tracek movement section shows the pixel values and changes pre/post shaking. My values will differ from Resonon values since they use a different method. Also their Pre delivery doc gives a single value for all the tracks. I saw movement from 1 to 3.6 pixels for different tracks. Track 1 moved the lest and Track 14 moved the most. The track widths did not change much. And the wavelength did not change number either. So the movement see want mostly a track shift with little wavelength change.

And EMail from Mike Kehoe explained it this way:
Spatial direction means the position of the individual fibers on the image plane. From what I am hearing, I think the thing that is moving mostly is the camera. If so, it translated by two pixels in the direction parallel to the slit after the shake test. In that case, the positions of the spectrum lines on the camera will remain unchanged as shown in Table 2. The position of each of the 14 fibers would move in one direction by two pixels.

LOOKING AT WAVELENGTH MOVEMENT------------------------------------------------------------

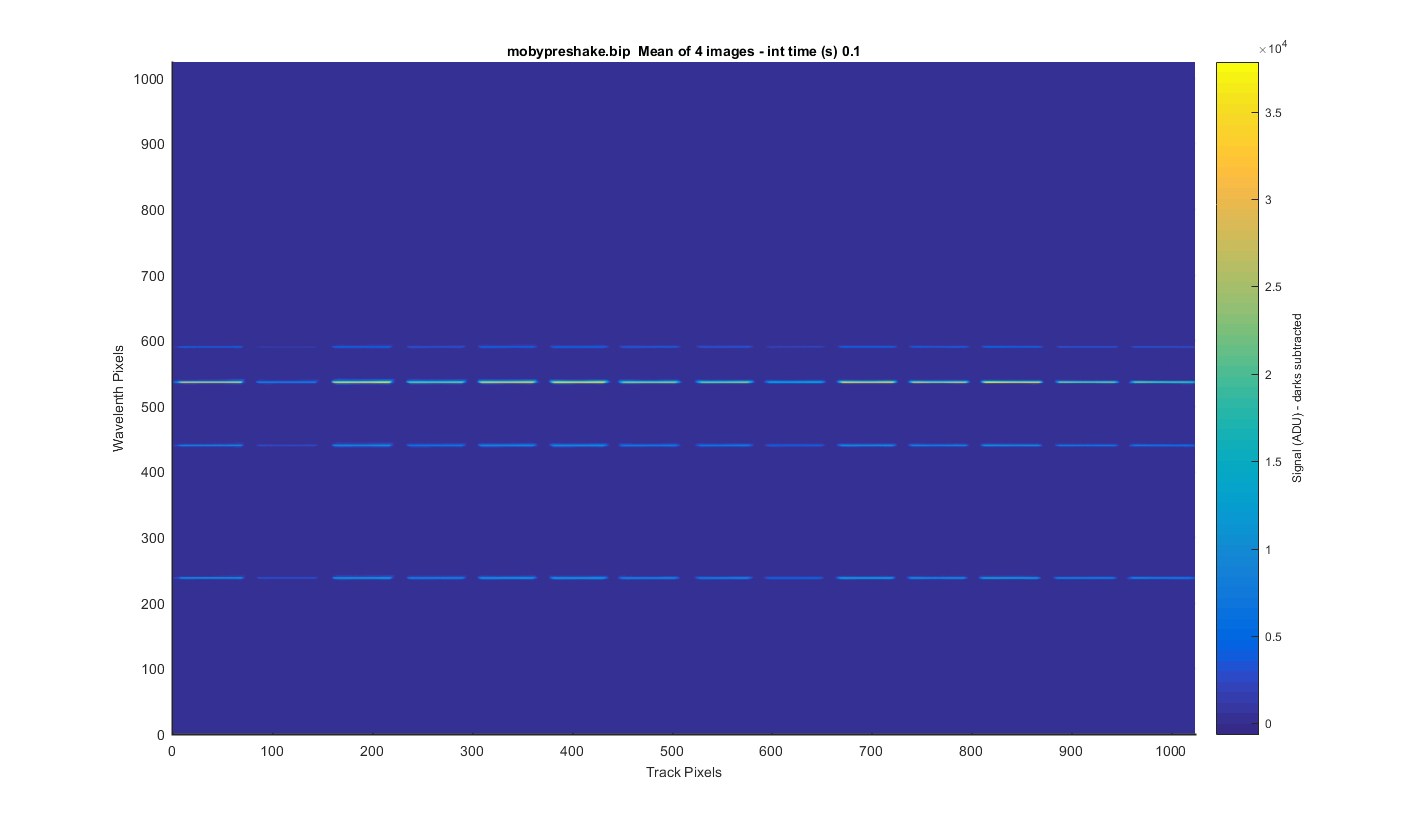

Helium image before shacking, You can see the 4 helium lines. Each helium line is plotted in the graphs below for each track with the before and after shaking data.

Figure 1

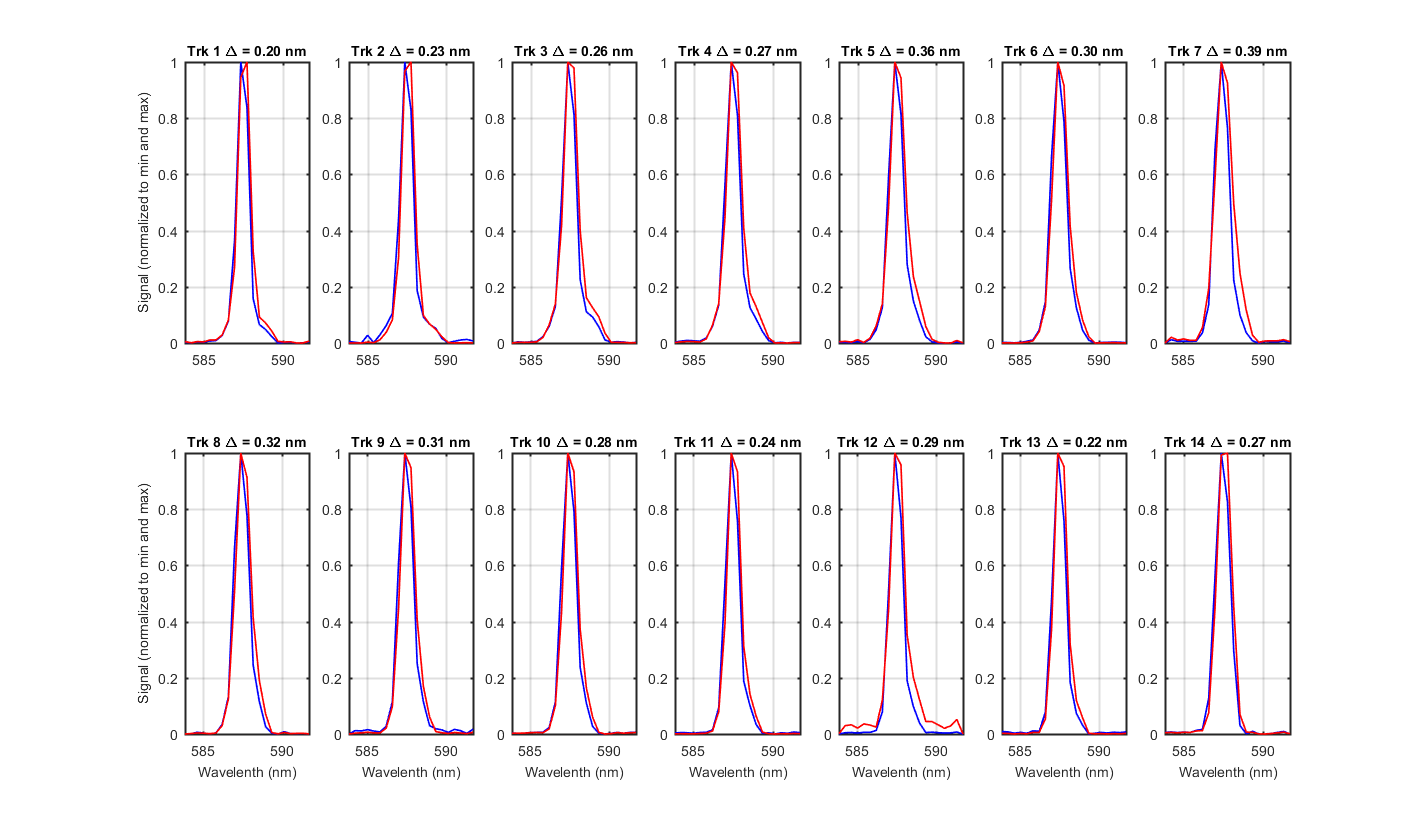

Helium line 587.5621 nm @ pixel 238 for all 14 tracks The delta in the title is the number of nm a gaussian fit says the peak moved

Figure 2

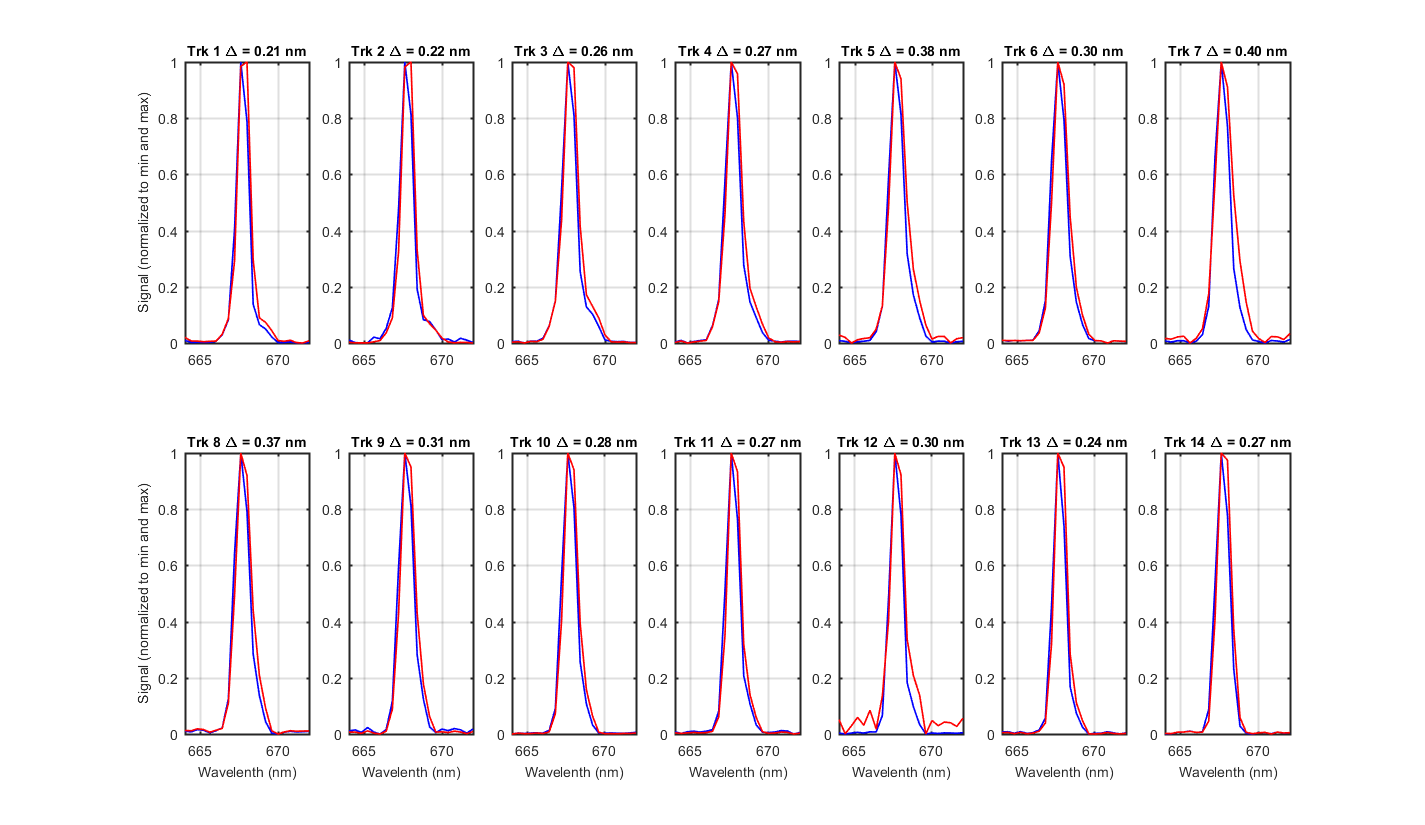

Helium line 667.8151 nm @ pixel 440 for all 14 tracks The delta in the title is the number of nm a gaussian fit says the peak moved

Figure 3

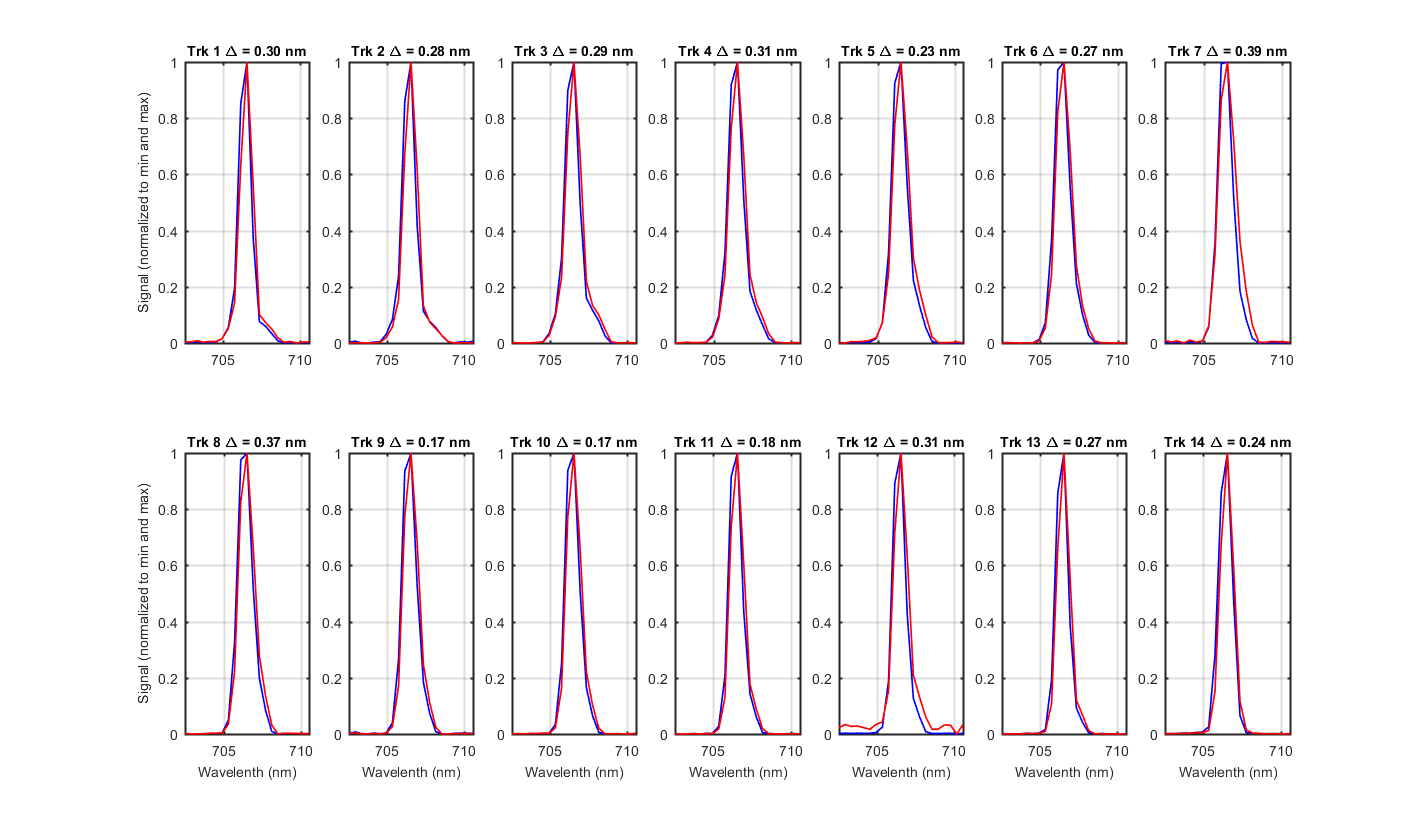

Helium line 706.519 nm @ pixel 536 for all 14 tracks The delta in the title is the number of nm a gaussian fit says the peak moved

Figure 4

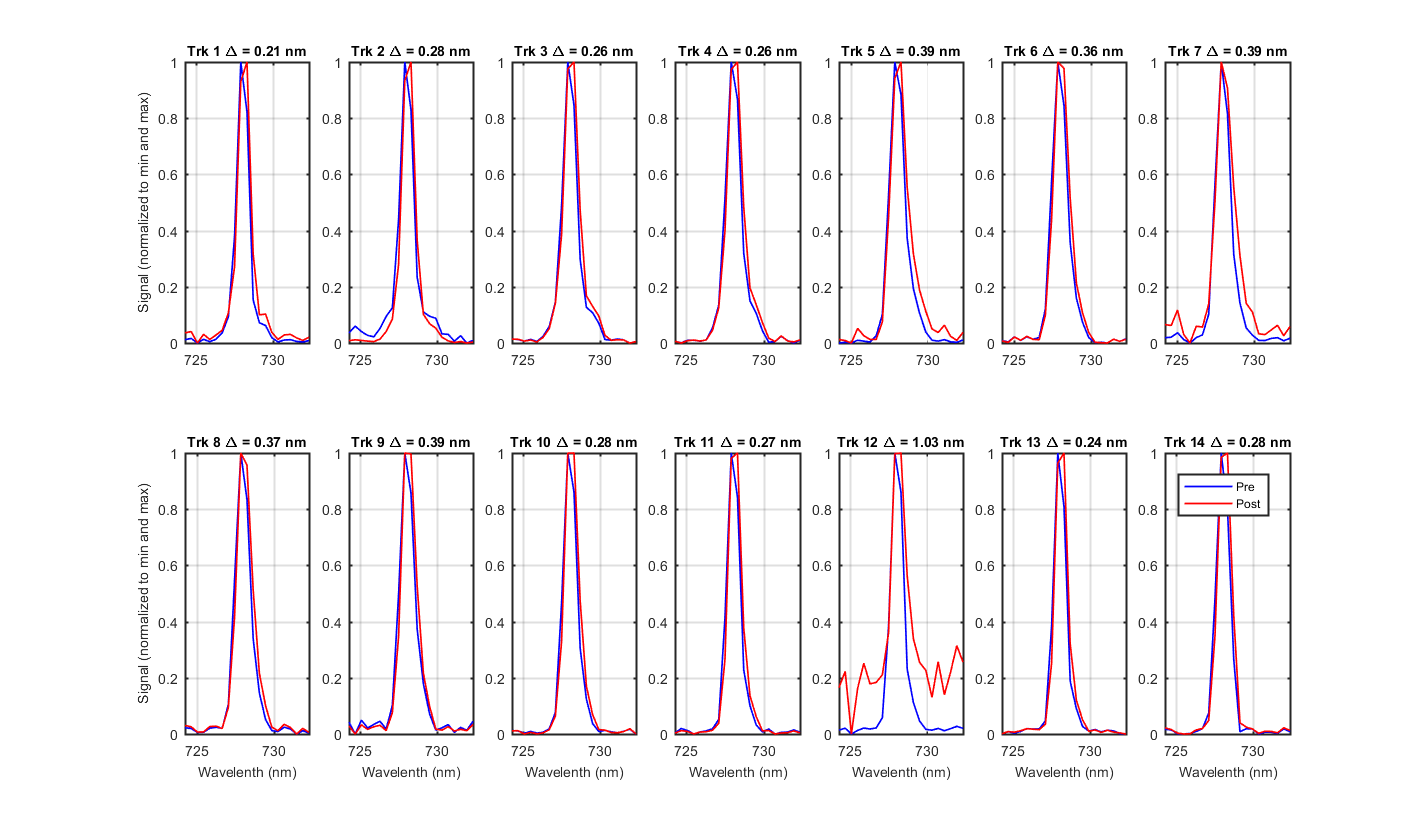

Helium line 728.1349 nm @ pixel 590 for all 14 tracks The delta in the title is the number of nm a gaussian fit says the peak moved

Figure 5

LOOKING AT TRACK MOVEMENT------------------------------------------------------------

Lamp data collected before shaking

Figure 6

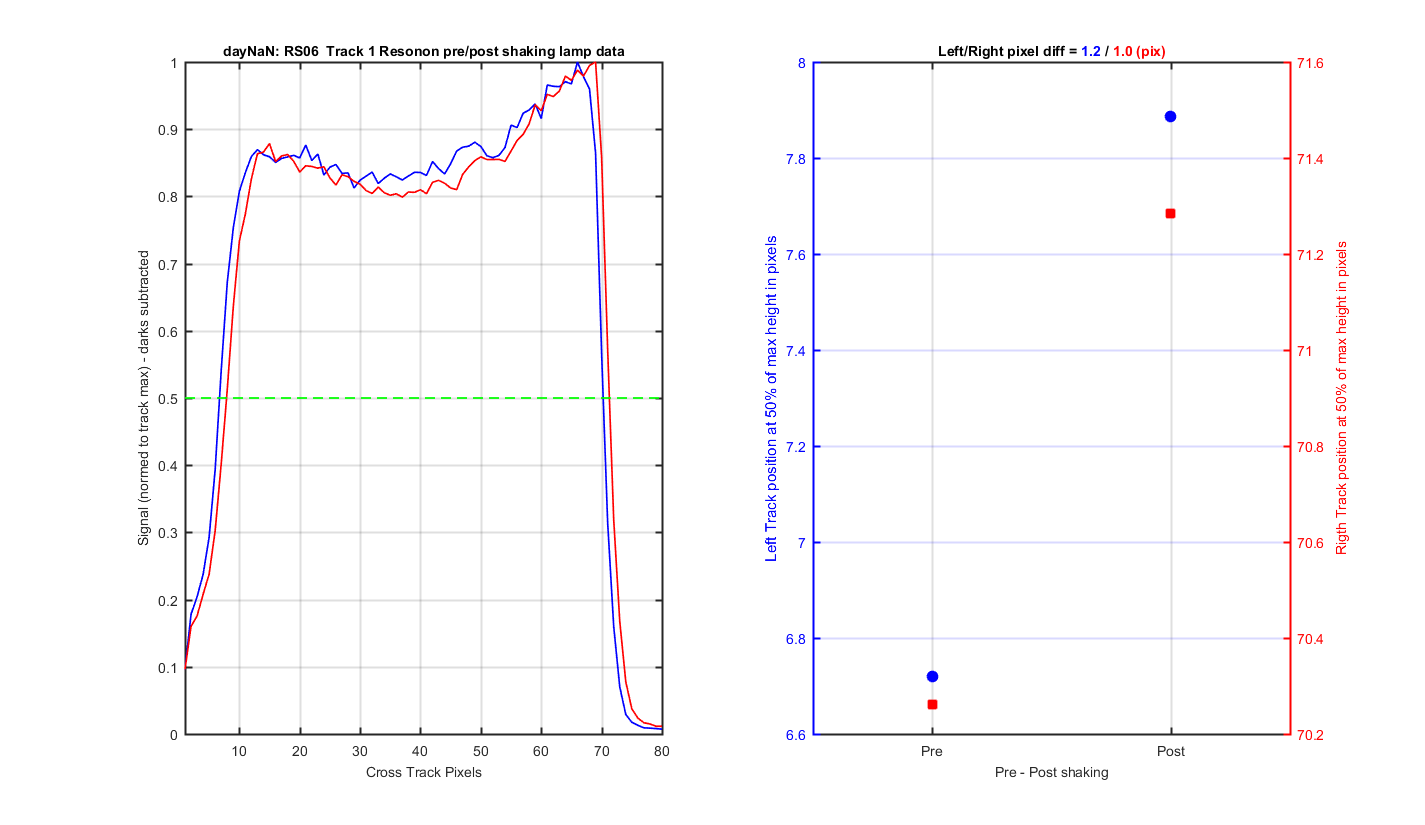

The track movement image for Track 1 from the lamp data.

Figure 7

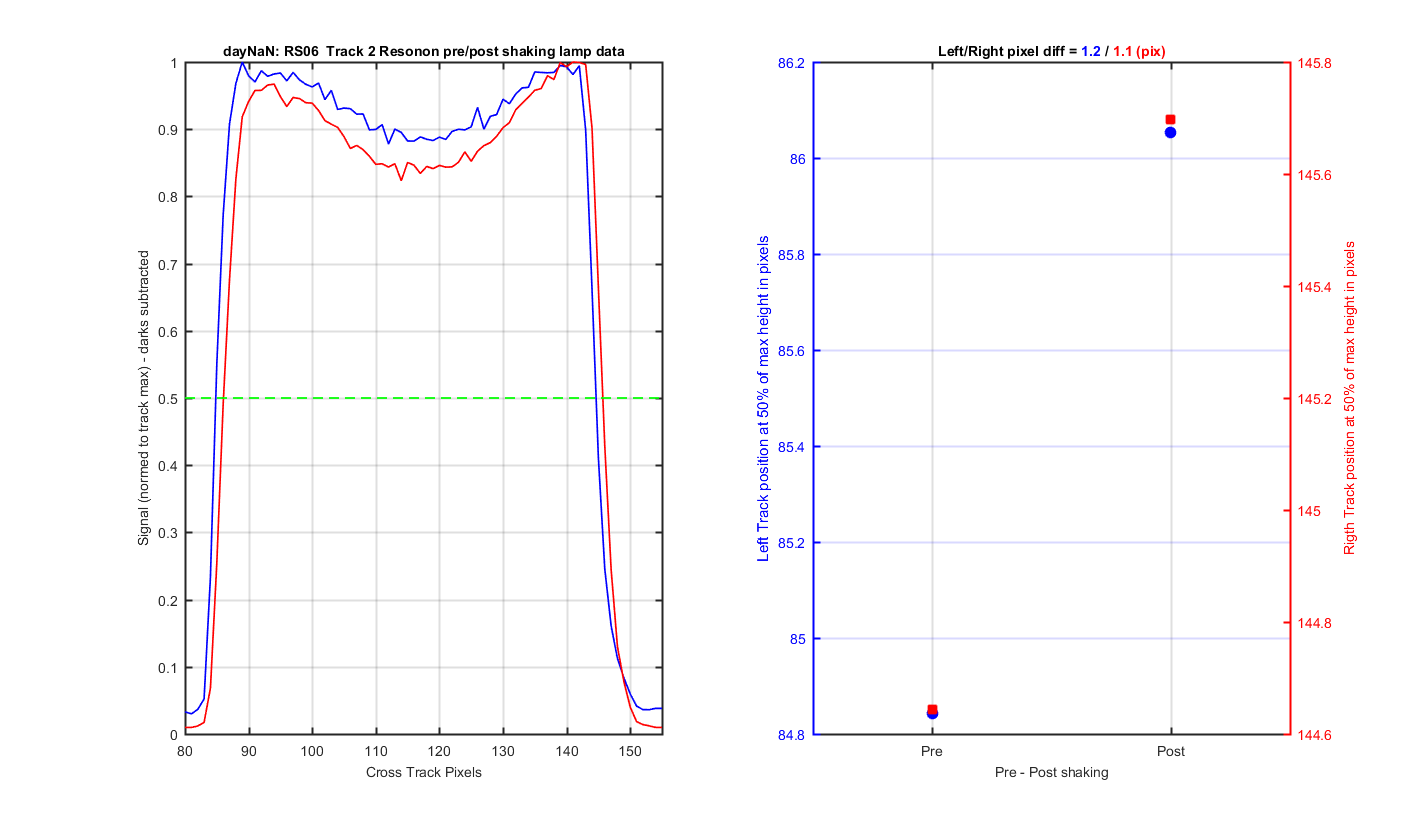

The track movement image for Track 2 from the lamp data.

Figure 8

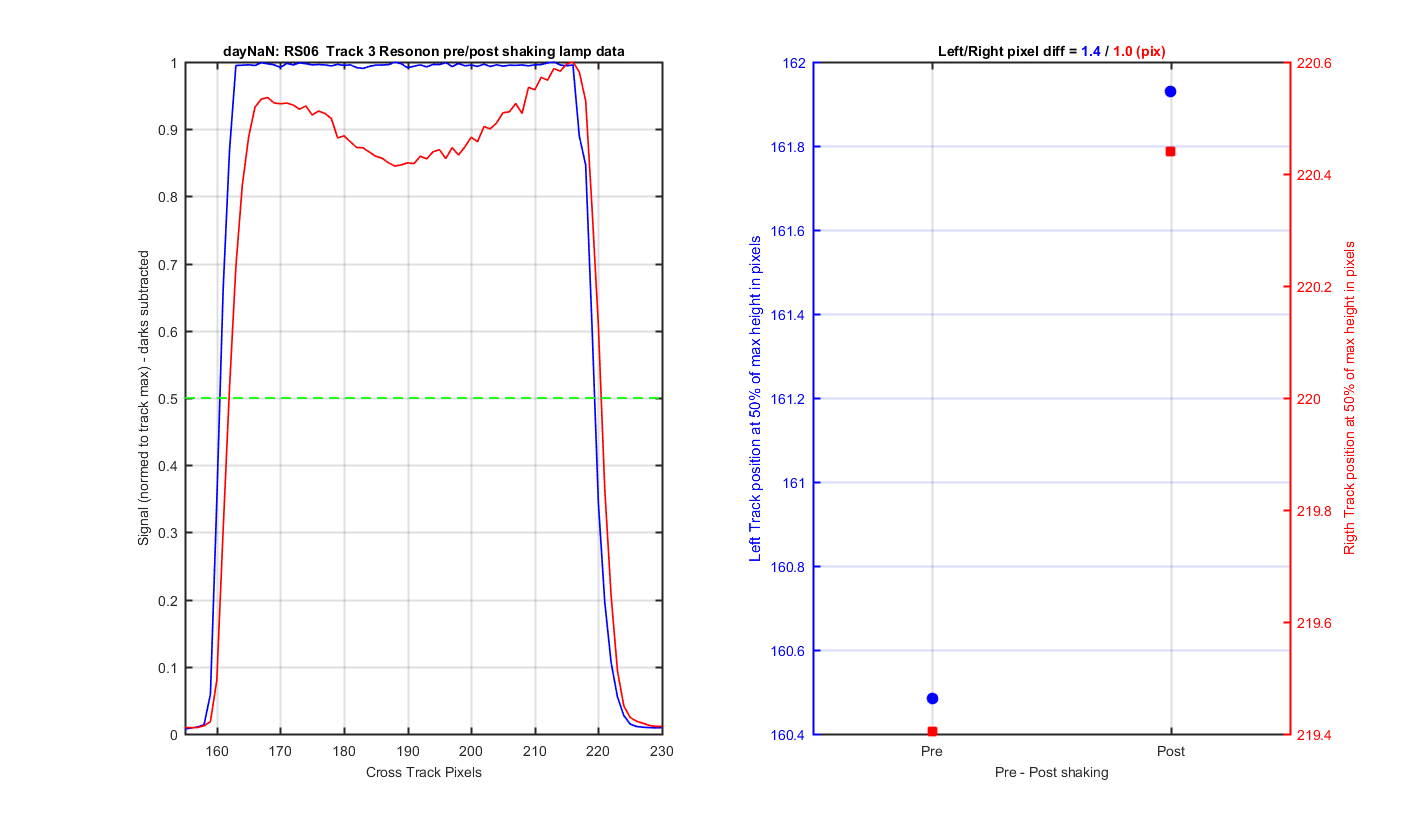

The track movement image for Track 3 from the lamp data.

Figure 9

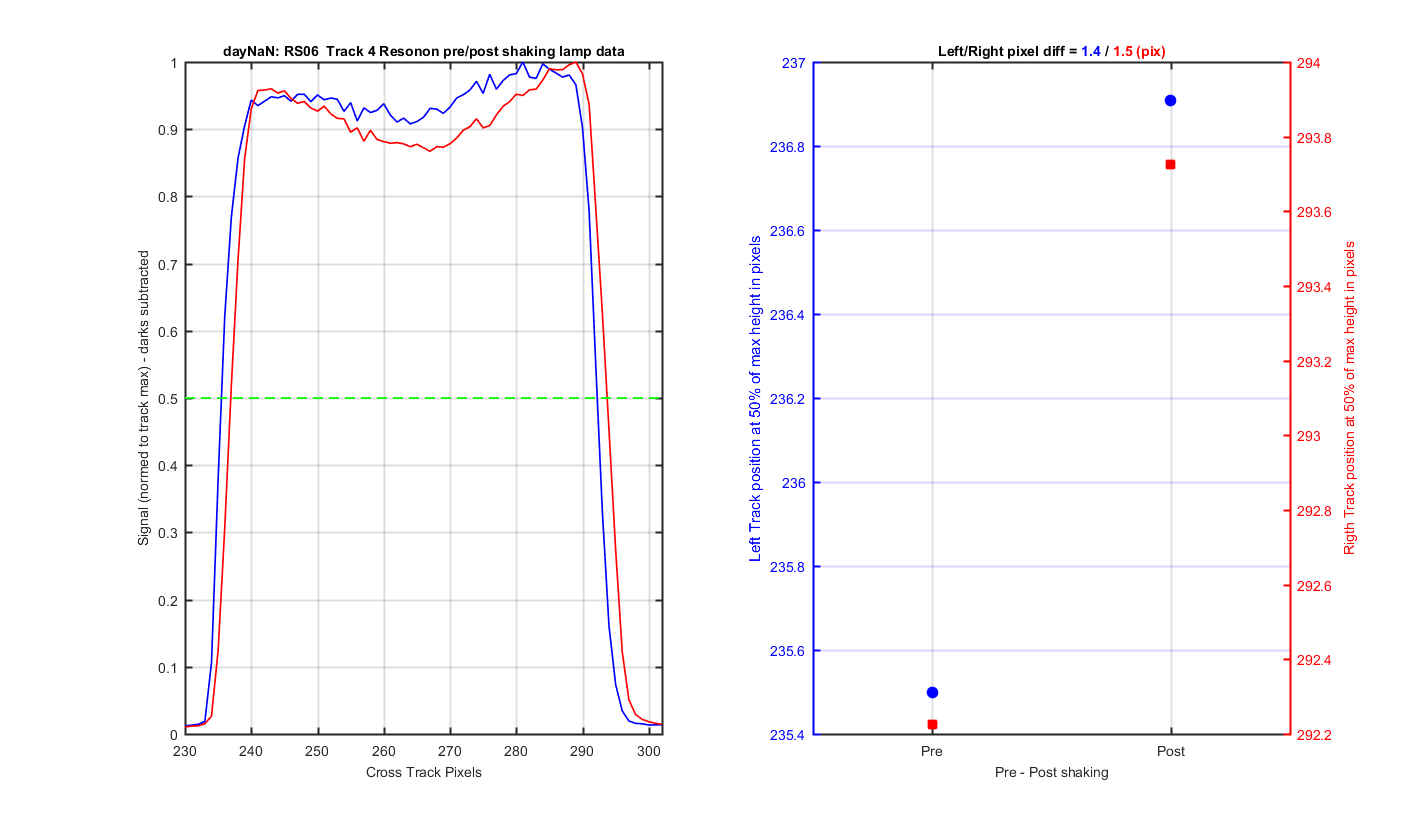

The track movement image for Track 4 from the lamp data.

Figure 10

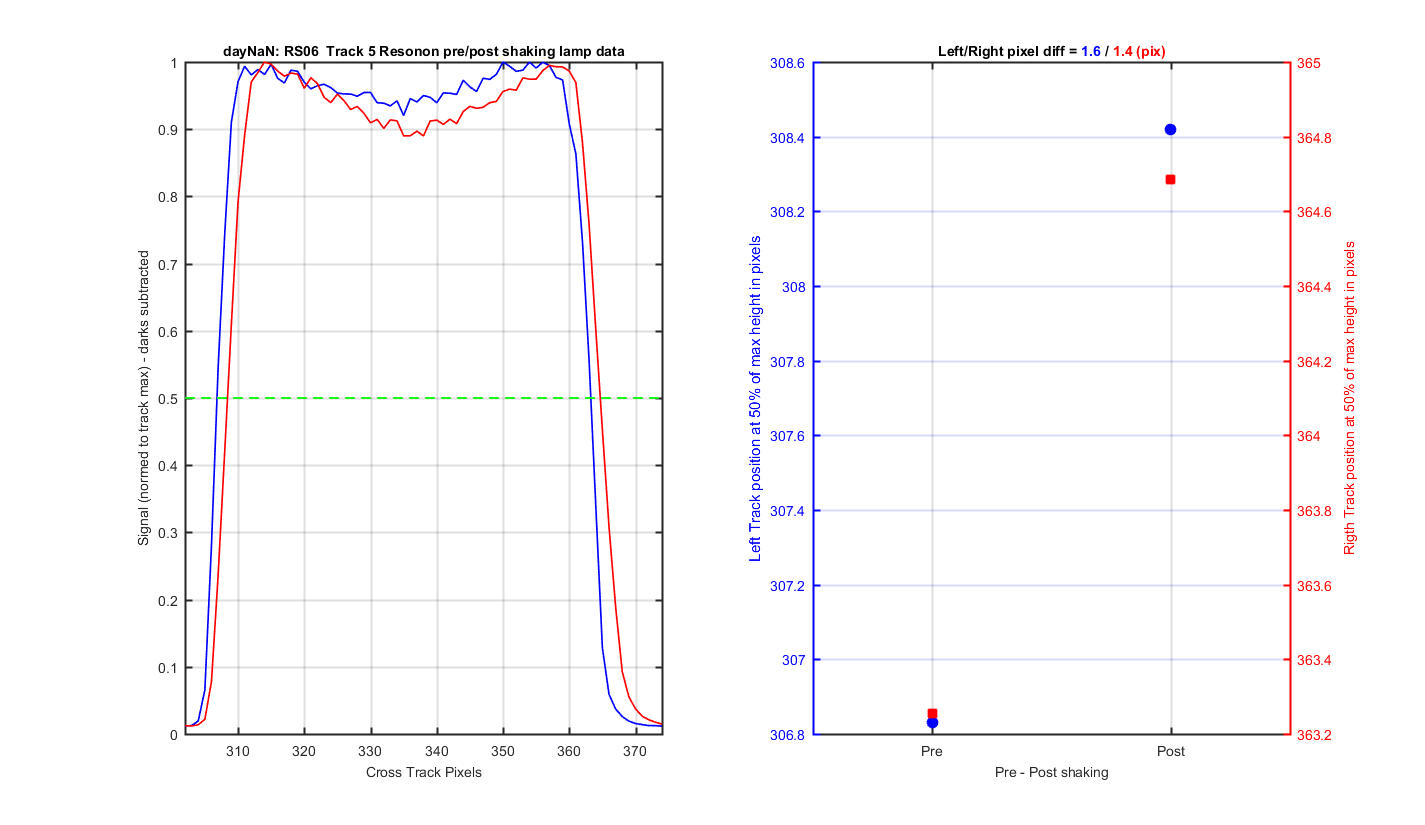

The track movement image for Track 5 from the lamp data.

Figure 11

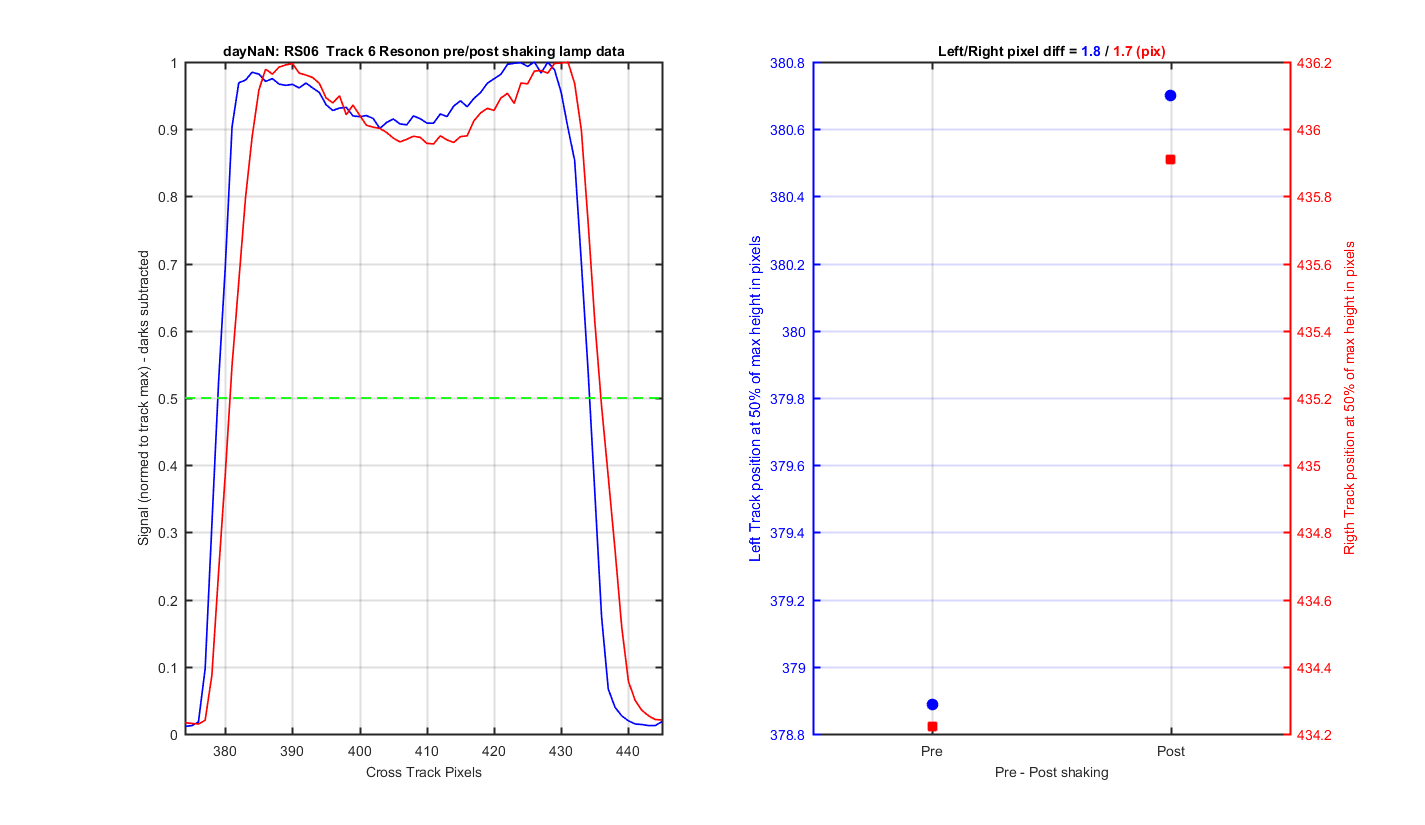

The track movement image for Track 6 from the lamp data.

Figure 12

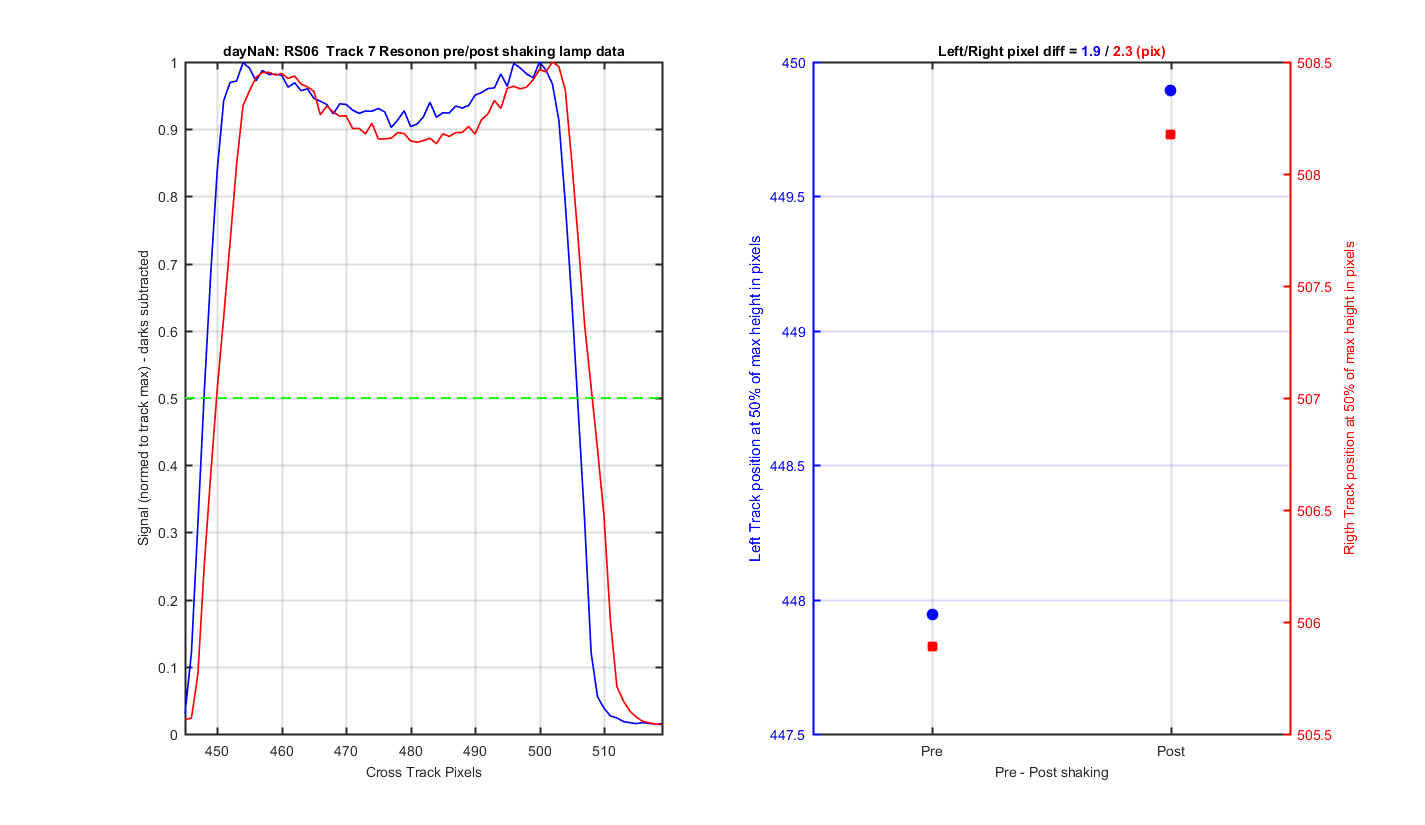

The track movement image for Track 7 from the lamp data.

Figure 13

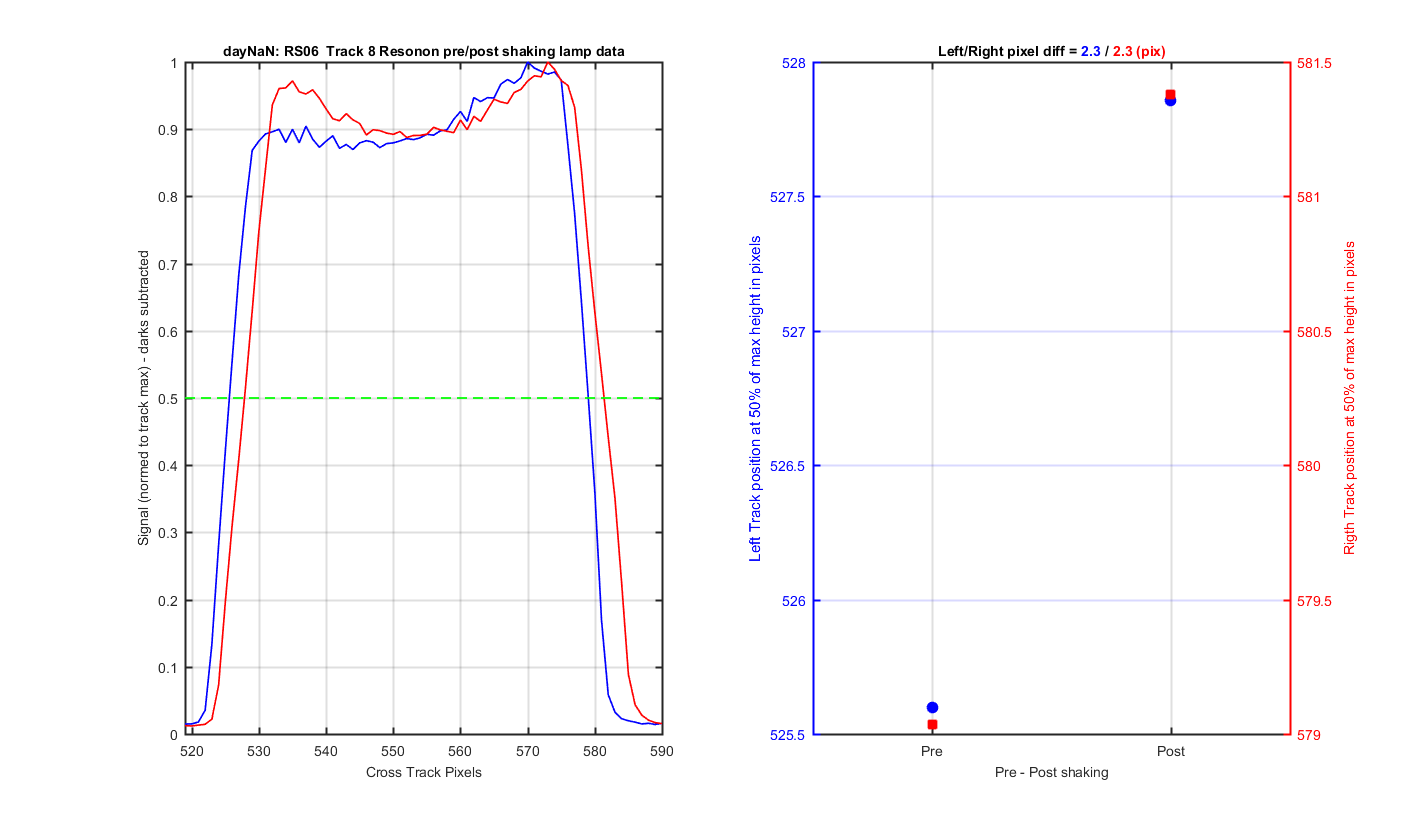

The track movement image for Track 8 from the lamp data.

Figure 14

The track movement image for Track 9 from the lamp data.

Figure 15

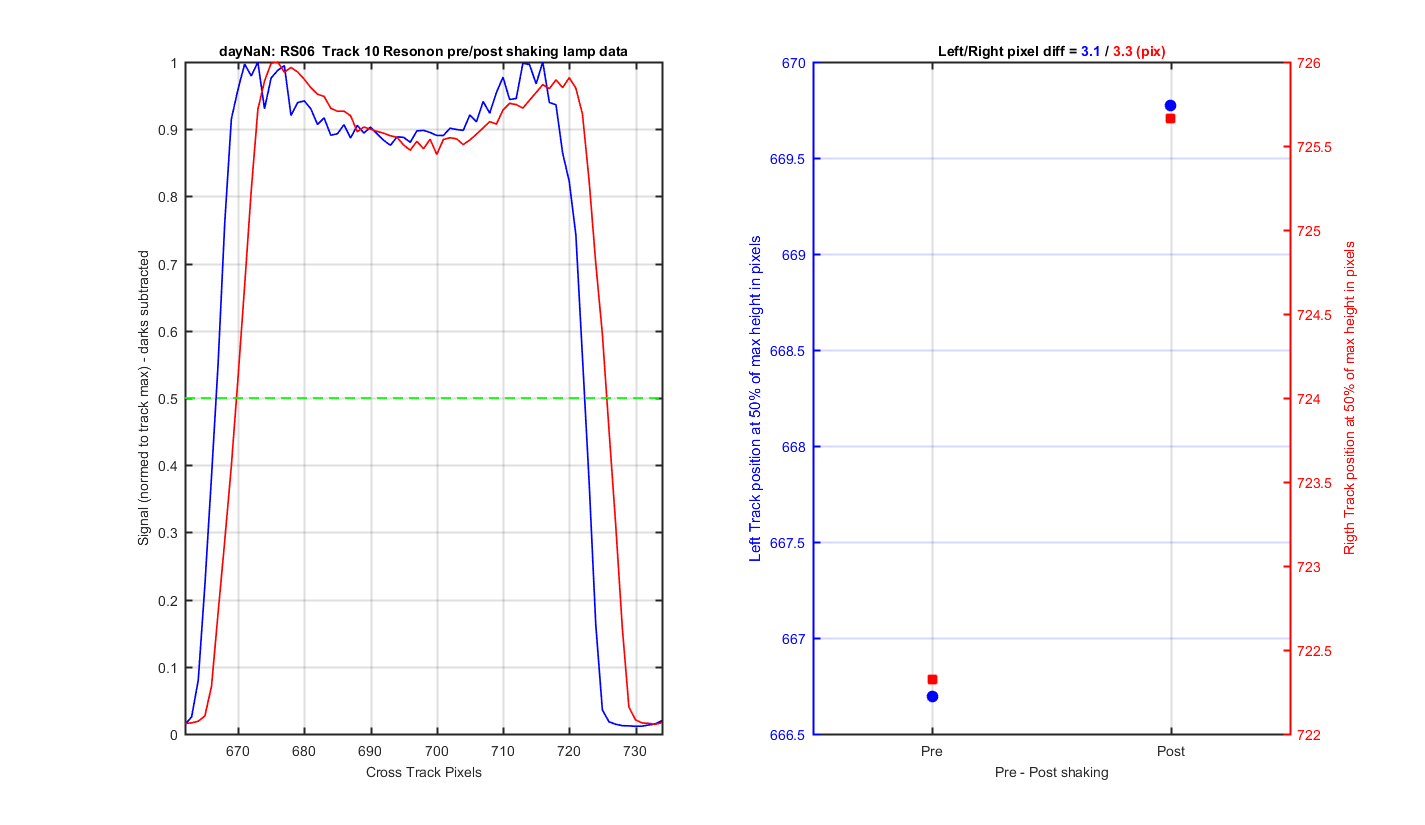

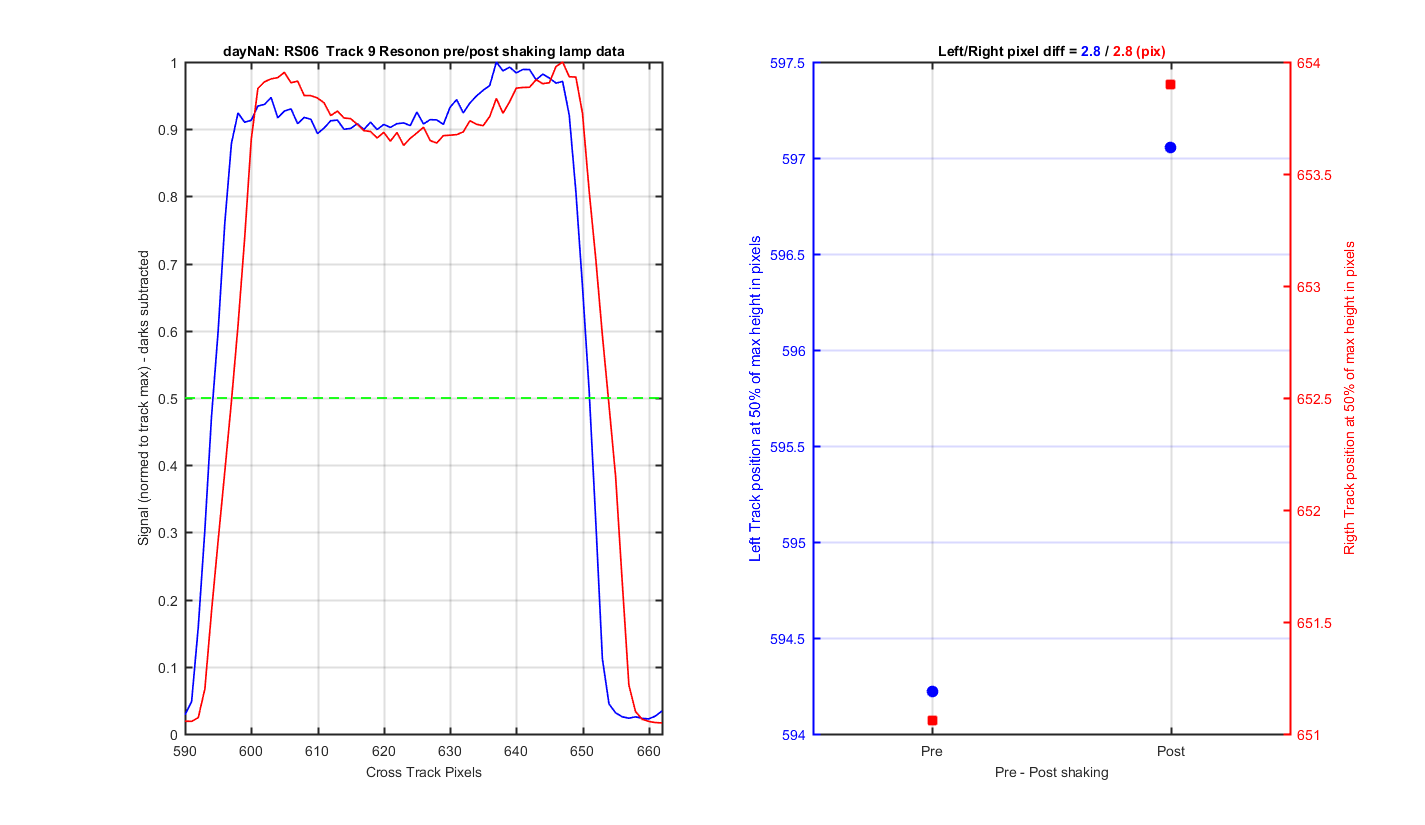

The track movement image for Track 10 from the lamp data.

Figure 16

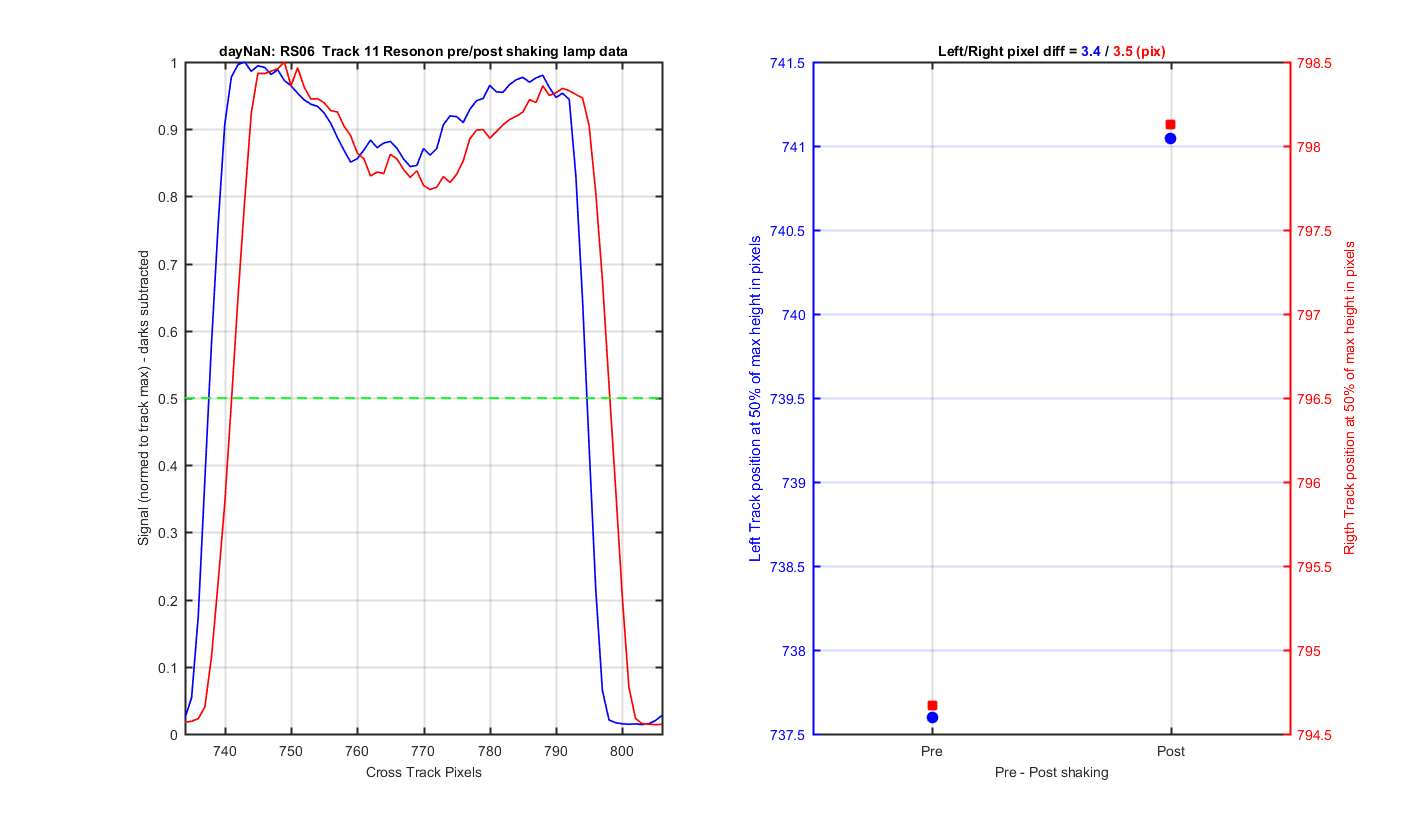

The track movement image for Track 11 from the lamp data.

Figure 17

The track movement image for Track 12 from the lamp data.

Figure 18

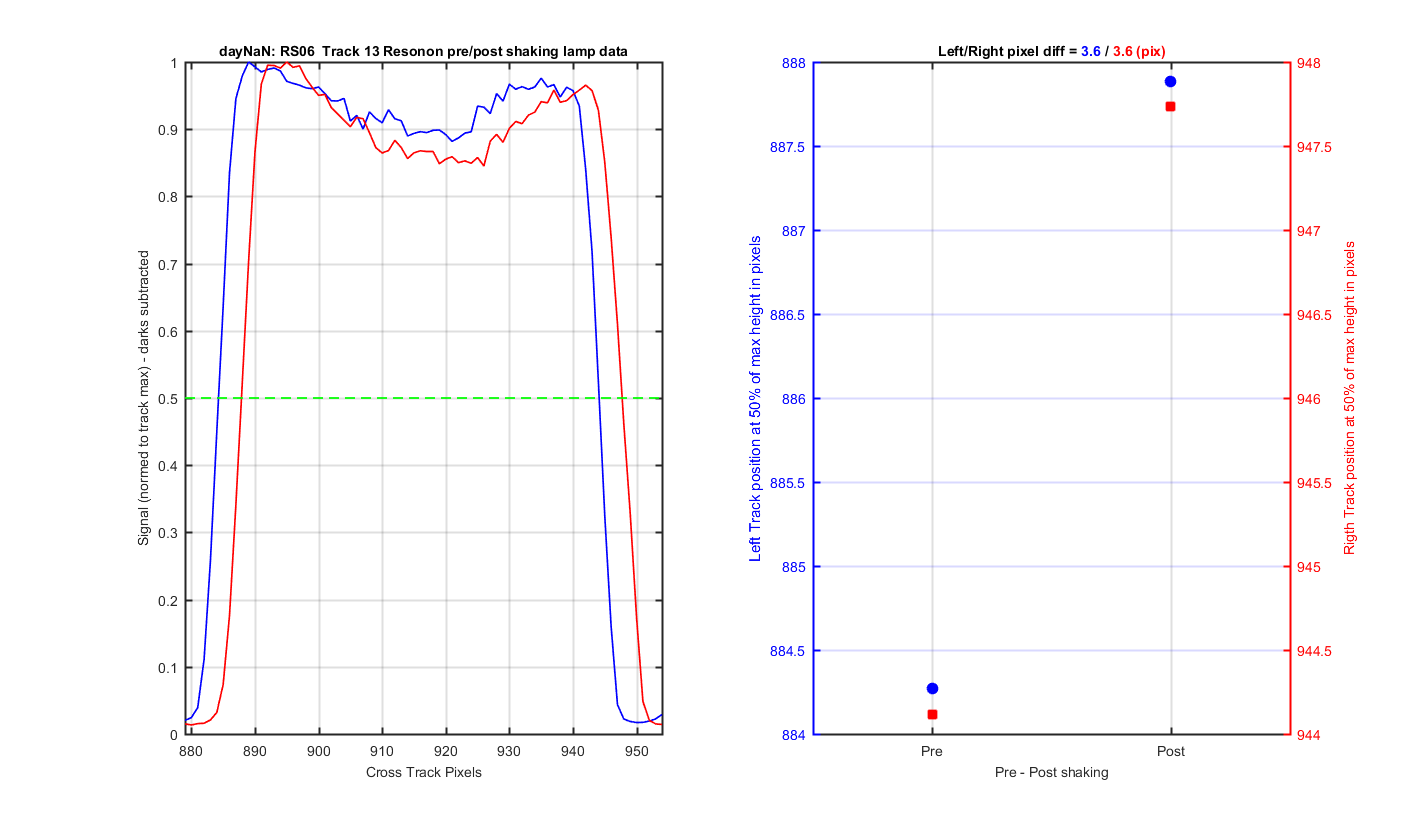

The track movement image for Track 13 from the lamp data.

Figure 19

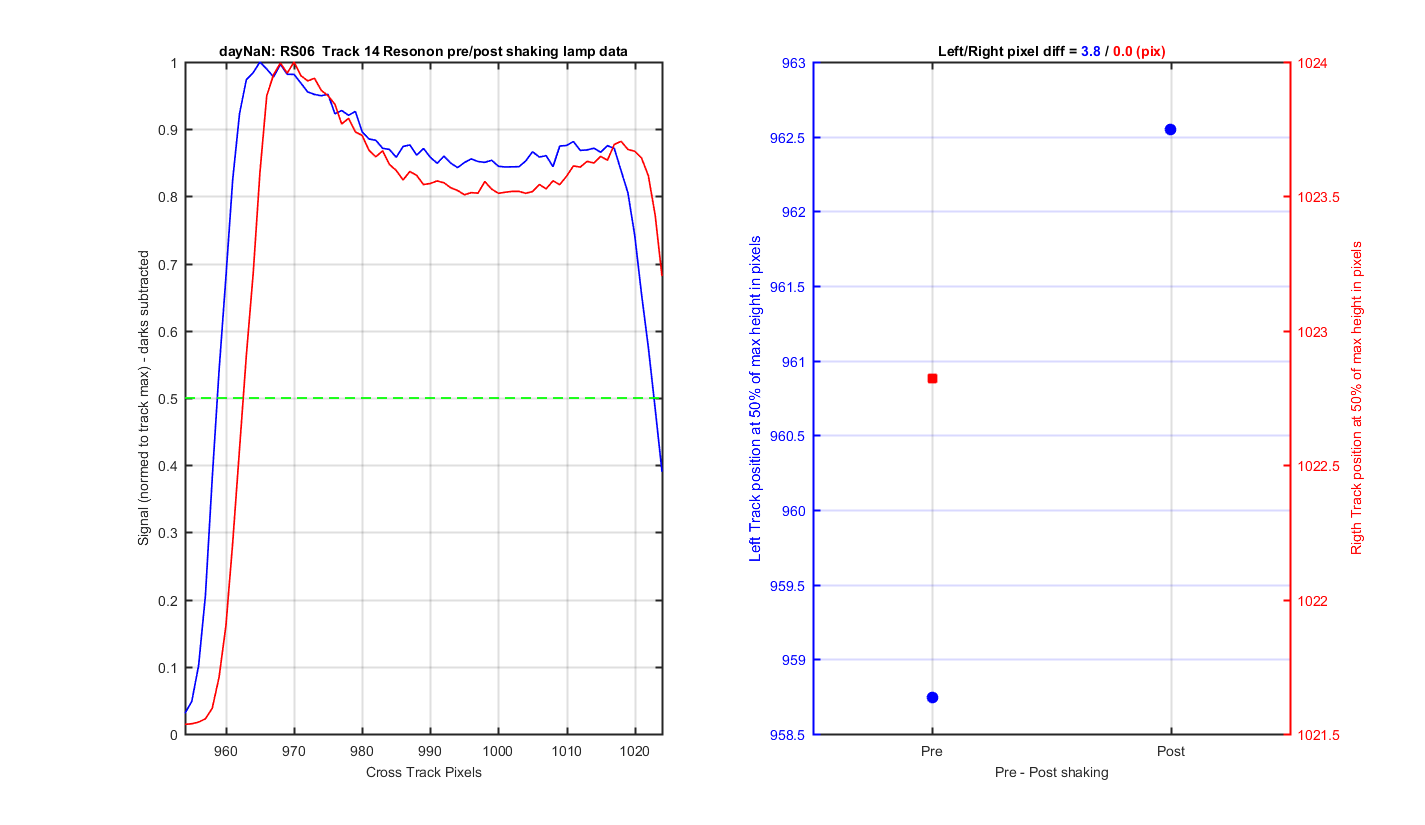

The track movement image for Track 14 from the lamp data.

Figure 20
