SAT 19-MAR-2005 (078) - 23      Bad Day - Cloudy

DATE: 20-Mar-2005     START TIME: 00:02     STOP TIME: 00:39     POSITION: 20° 49.4' N 157° 11.21' W
Quality Checking | Engineering Info | Forth Log
2005031923_01.png 2005031923_02.png 2005031923_03.png 2005031923_04.png 2005031923_05.png 2005031923_06.png 2005031923_07.png
Table of Quality Checking Information
FILE:                                    Complete

PROCESSING:                              Bad

CONFIGURATION:                           mby23001

RAW SCANS W/ PIXELS REMOVED:             VR = 7; Pixels = [36  35  34];
                                         VR = 10; Pixels = [245  244  243];
                                         VR = 32; Pixels = [948  949  950  951  952];
                                         VR = 30; Pixels = [886  887  888  918  919  920];
                                         VR = 33; Pixels = [996  995  994];
                                         VR = 34; Pixels = [913   914   915   926   927   928  1005  1006  1007];
                                         VR = 41; Pixels = [680  679  678];
                                         VR = 45; Pixels = [696  697  698  855  856  857  987  988  989];
                                         VR = 46; Pixels = [832  833  834  895  896  897  996  997  998];

RAW SCANS W/ PIXELS FILLED:              VR = 59; Pixels = [668  669  670];
                                         VR = 56; Pixels = [763  764  765];
                                         VR = 31; Pixels = [700  701  702];
                                         VR = 19; Pixels = [729  730  731];
                                         VR = 18; Pixels = [930  931  932];

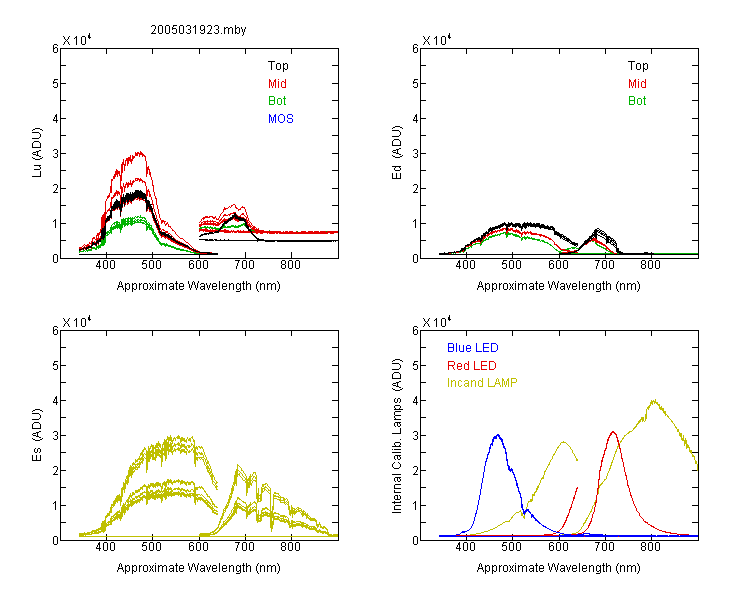

Table of Engineering Information
                 |           LITE                      |           DARK                       |
                 |            Int       Bin    Maximum |            Int       Bin     Maximum |     MUX    No.    No.
    MOBY         |           Time    Factor     Counts |           Time    Factor      Counts |     Pos   Lite   Dark
    File  Source |          (B/R)     (B/R)      (B/R) |          (B/R)     (B/R)       (B/R) |
-------------------------------------------------------------------------------------------------------------
05031923 LuTop   |  40.000/40.000    6/384  17800/12288 |  40.000/40.000    6/384   1148/5334   |     9      5      2
05031923 LuMid   |  64.000/64.000    4/384  30543/15392 |  64.000/64.000    4/384   1172/8338   |     5      5      2
05031923 LuBot   |  64.000/64.000    4/384  12009/9834  |  64.000/64.000    4/384   1163/8036   |     2      5      2
05031923 EdTop   |   0.600/0.600    32/64    9716/7997  |   0.600/0.600    32/64     992/1031   |    10      5      2
05031923 EdMid   |   2.500/2.500     8/64    8319/5269  |   2.500/2.500     8/64     985/1055   |     7      5      2
05031923 EdBot   |   2.000/2.000    12/384   7180/5108  |   2.000/2.000    12/384    988/1284   |     3      5      2
05031923 EsSfc   |   0.750/0.750    16/16   26459/19131 |   0.750/0.750    16/16     984/1015   |     8      3      2
05031923 Blue LED|   1.000/1.000    64/384  29825/1802  |   1.000/1.000    64/384   1044/1204   |    12      3      2
05031923 Blue LED|   1.000/1.000    64/384  30234/1778  |   1.000/1.000    64/384   1033/1156   |    12      3      2
05031923 Red LED |   1.000/1.000   384/64   15077/31021 |   1.000/1.000   384/64    1398/1043   |    13      3      2
05031923 Red LED |   1.000/1.000   384/64   15021/30803 |   1.000/1.000   384/64    1348/1040   |    13      3      2
05031923 Lamp    |   1.000/1.000    64/16   27991/39869 |   1.000/1.000    64/16    1034/1019   |    15      3      2
                 |        (sec)   (pixel)      (AD U) |        (sec)   (pixel)        (ADU) |
FORTH LOG FILE

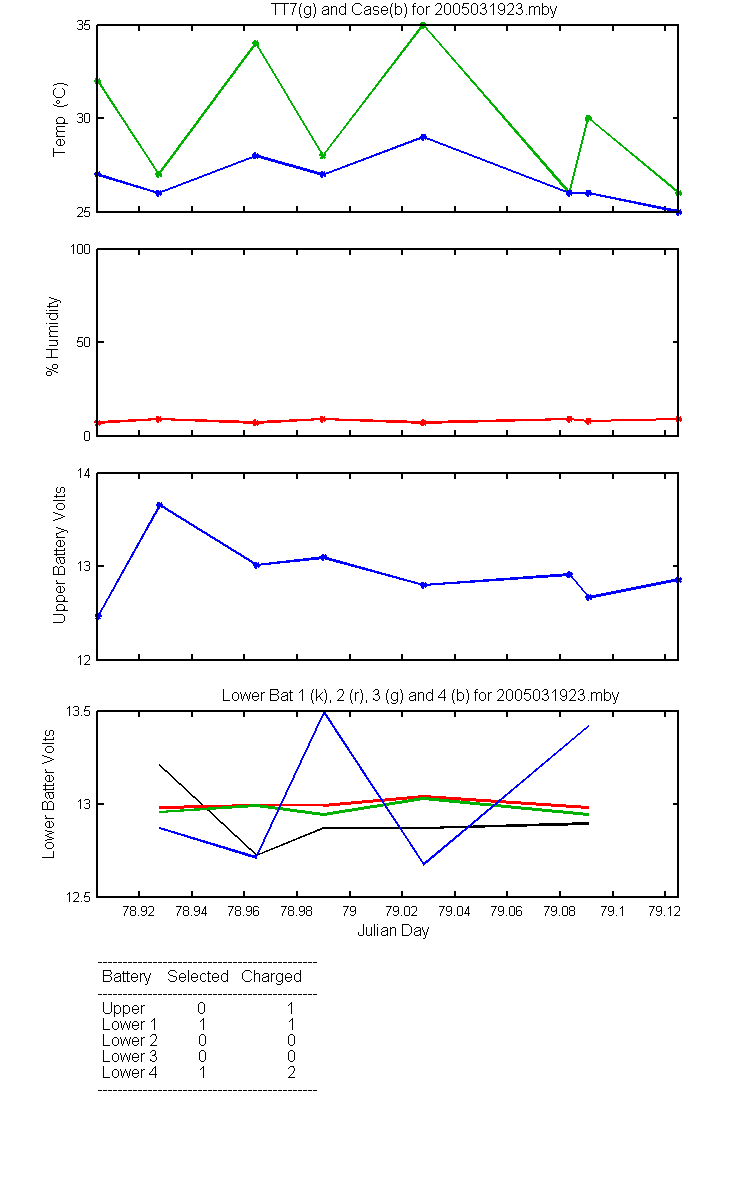

The battery selcted for 2005031923.mby is #4 at 13.529 volts There was a ALARM INTERRUPT DETECTED in this FORTH LOG.

19/03/2005 21:22:14 KERMIT:  SENT FILE: FORTH.LOG, 8788 BYTES, 0 NAKs
19/03/2005 21:41:46 XMODEM:  SENT FILE: 05031920.MOB, 228622 BYTES, 0 NAKs
19/03/2005 21:41:54 VAX STOPPED
19/03/2005 21:41:54 Temperature (deg):  TT7 = 32 (1765) Case = 27 (1977)  % Humidity: 7 (836)
19/03/2005 21:41:55 SHUTTING DOWN SYSTEM
19/03/2005 21:41:56 SHUTDOWN:  MOSOFF
19/03/2005 21:42:00 SHUTDOWN:  CHRGBATT
19/03/2005 21:42:04 CHRGBATT:  CHARGING UPPER BATTERY
19/03/2005 21:42:05 CHRGBATT:  UPPER BATTERY = 12.460 VOLTS
19/03/2005 21:42:06 SHUTDOWN:  TT5OFF
19/03/2005 21:42:07 SHUTDOWN:  GPSOFF
19/03/2005 21:42:08 SHUTDOWN:  APWR-OFF
19/03/2005 21:42:08 SHUTDOWN:  MODEMOFF
19/03/2005 21:42:09 END SHUTDOWN
19/03/2005 22:15:06 Temperature (deg):  TT7 = 27 (1986) Case = 26 (2003)  % Humidity: 9 (874)
19/03/2005 22:15:07 MOBY STARTED
19/03/2005 22:15:33 LOWER BATTERY VOLTAGES (1 to 4) =  13.211 12.979 12.955 12.869
19/03/2005 22:15:45 MOBY:  UPPER BATTERY = 13.657 VOLTS
19/03/2005 22:16:00 SELECTBATT:  LOWER BATTERY SELECTED # 1 = 13.199 VOLTS
19/03/2005 23:00:20 MOSLOOP:  ALARM INTERRUPT DETECTED
19/03/2005 23:08:18 MOBY STOPPED
19/03/2005 23:08:19 Temperature (deg):  TT7 = 34 (1690) Case = 28 (1917)  % Humidity: 7 (835)
19/03/2005 23:08:20 SHUTTING DOWN SYSTEM
19/03/2005 23:08:20 SHUTDOWN:  MOSOFF
19/03/2005 23:08:22 SHUTDOWN:  CHRGBATT
19/03/2005 23:08:39 LOWER BATTERY VOLTAGES (1 to 4) =  12.723 12.991 12.991 12.711
19/03/2005 23:08:39 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.711 VOLTS
19/03/2005 23:08:45 CHRGBATT:  UPPER BATTERY = 13.016 VOLTS
19/03/2005 23:08:45 SHUTDOWN:  TT5OFF
19/03/2005 23:08:46 SHUTDOWN:  GPSOFF
19/03/2005 23:08:47 SHUTDOWN:  APWR-OFF
19/03/2005 23:08:48 SHUTDOWN:  MODEMOFF
19/03/2005 23:08:49 END SHUTDOWN
19/03/2005 23:45:06 Temperature (deg):  TT7 = 28 (1945) Case = 27 (1959)  % Humidity: 9 (878)
19/03/2005 23:45:07 MOBY STARTED
19/03/2005 23:45:34 LOWER BATTERY VOLTAGES (1 to 4) =  12.869 12.991 12.943 13.492
19/03/2005 23:45:35 MOBY:  UPPER BATTERY = 13.095 VOLTS
19/03/2005 23:45:52 SELECTBATT:  LOWER BATTERY SELECTED # 4 = 13.529 VOLTS
20/03/2005 00:39:57 MOBY STOPPED
20/03/2005 00:39:58 Temperature (deg):  TT7 = 35 (1671) Case = 29 (1905)  % Humidity: 7 (836)
20/03/2005 00:39:59 SHUTTING DOWN SYSTEM
20/03/2005 00:39:59 SHUTDOWN:  MOSOFF
20/03/2005 00:40:01 SHUTDOWN:  CHRGBATT
20/03/2005 00:40:18 LOWER BATTERY VOLTAGES (1 to 4) =  12.869 13.040 13.028 12.674
20/03/2005 00:40:18 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.674 VOLTS
20/03/2005 00:40:24 CHRGBATT:  UPPER BATTERY = 12.802 VOLTS
20/03/2005 00:40:24 SHUTDOWN:  TT5OFF
20/03/2005 00:40:25 SHUTDOWN:  GPSOFF
20/03/2005 00:40:26 SHUTDOWN:  APWR-OFF
20/03/2005 00:40:27 SHUTDOWN:  MODEMOFF
20/03/2005 00:40:28 END SHUTDOWN
20/03/2005 02:00:06 Temperature (deg):  TT7 = 26 (1996) Case = 26 (2003)  % Humidity: 9 (885)
20/03/2005 02:00:07 MODEM STARTED
20/03/2005 02:00:07 WAKEMODEM:  UPPER BATTERY = 12.912 VOLTS
20/03/2005 02:10:22 MODEM STOPPED
20/03/2005 02:10:22 Temperature (deg):  TT7 = 30 (1851) Case = 26 (1989)  % Humidity: 8 (861)
20/03/2005 02:10:23 SHUTTING DOWN SYSTEM
20/03/2005 02:10:24 SHUTDOWN:  MOSOFF
20/03/2005 02:10:28 SHUTDOWN:  CHRGBATT
20/03/2005 02:10:44 LOWER BATTERY VOLTAGES (1 to 4) =  12.894 12.979 12.943 13.419
20/03/2005 02:10:45 CHRGBATT:  CHARGING LOWER BATTERY #1 = 12.894 VOLTS
20/03/2005 02:10:50 CHRGBATT:  UPPER BATTERY = 12.668 VOLTS
20/03/2005 02:10:51 SHUTDOWN:  TT5OFF
20/03/2005 02:10:52 SHUTDOWN:  GPSOFF
20/03/2005 02:10:53 SHUTDOWN:  APWR-OFF
20/03/2005 02:10:54 SHUTDOWN:  MODEMOFF
20/03/2005 02:10:55 END SHUTDOWN
20/03/2005 03:00:06 Temperature (deg):  TT7 = 26 (2027) Case = 25 (2046)  % Humidity: 9 (884)
20/03/2005 03:00:09 VAX STARTED
20/03/2005 03:00:09 WAKEVAX:  UPPER BATTERY = 12.857 VOLTS
20/03/2005 03:00:11 DIALING VAX: xxxxxxxxxxxxxxx
QCHK FILE
% 05031923.mob Quality Check ASCII file: created on 29-Mar-2005 by   MKQCHK_
OPTION14: VRpixFILL = 59; ERpixFILL = [668  669  670];  OPTDATESTR ='29-Mar-2005 16:56:42';
OPTION14: VRpixFILL = 56; ERpixFILL = [763  764  765];  OPTDATESTR ='29-Mar-2005 16:56:43';
OPTION2: VRpixRMD = 7; ERpixRMD = [36  35  34];  OPTDATESTR ='29-Mar-2005 16:57:10';
OPTION2: VRpixRMD = 10; ERpixRMD = [245  244  243];  OPTDATESTR ='29-Mar-2005 16:57:11';
OPTION5: MOBYFNMS = '05031923.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1; QCHKCODE = 2048;  OPTDATESTR ='29-Mar-2005 16:57:52';
OPTION11: MOBYFNMS = '05031923.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1;   OPTDATESTR ='29-Mar-2005 16:57:53';
OPTION2: VRpixRMD = 32; ERpixRMD = [948  949  950  951  952]; OPTDATESTR ='11-Oct-2016 21:21:07'; % RSG384FIX_
OPTION2: VRpixRMD = 30; ERpixRMD = [886  887  888  918  919  920]; OPTDATESTR ='11-Oct-2016 21:21:07'; % RSG384FIX_
OPTION2: VRpixRMD = 33; ERpixRMD = [996  995  994]; OPTDATESTR ='11-Oct-2016 21:21:07'; % RSG384FIX_
OPTION2: VRpixRMD = 34; ERpixRMD = [913   914   915   926   927   928  1005  1006  1007]; OPTDATESTR ='11-Oct-2016 21:21:07'; % RSG384FIX_
OPTION2: VRpixRMD = 41; ERpixRMD = [680  679  678]; OPTDATESTR ='11-Oct-2016 21:21:07'; % RSG384FIX_
OPTION2: VRpixRMD = 45; ERpixRMD = [696  697  698  855  856  857  987  988  989]; OPTDATESTR ='11-Oct-2016 21:21:07'; % RSG384FIX_
OPTION2: VRpixRMD = 46; ERpixRMD = [832  833  834  895  896  897  996  997  998]; OPTDATESTR ='11-Oct-2016 21:21:07'; % RSG384FIX_
OPTION14: VRpixFILL = 31; ERpixFILL = [700  701  702]; OPTDATESTR ='11-Oct-2016 21:21:07'; % RSG384FIX_
OPTION14: VRpixFILL = 19; ERpixFILL = [729  730  731]; OPTDATESTR ='11-Oct-2016 21:21:07'; % RSG384FIX_
OPTION14: VRpixFILL = 18; ERpixFILL = [930  931  932]; OPTDATESTR ='11-Oct-2016 21:21:07'; % RSG384FIX_
% RSG384FIX_ run on 11-Oct-2016 21:21:07
OPTION13: MOBYFNMS = '05031923.mob'; CONfile = 'mby23001';  OPTDATESTR ='10-Nov-2017 16:20:09';

Stephanie Flora - Moss Landing Marine Laboratories
