MON 09-MAY-2005 (129) - 23      Bad Day - Cloudy

DATE: 10-May-2005     START TIME: 00:02     STOP TIME: 00:40     POSITION: 20° 49.48' N 157° 11.76' W
Quality Checking | Engineering Info | Forth Log

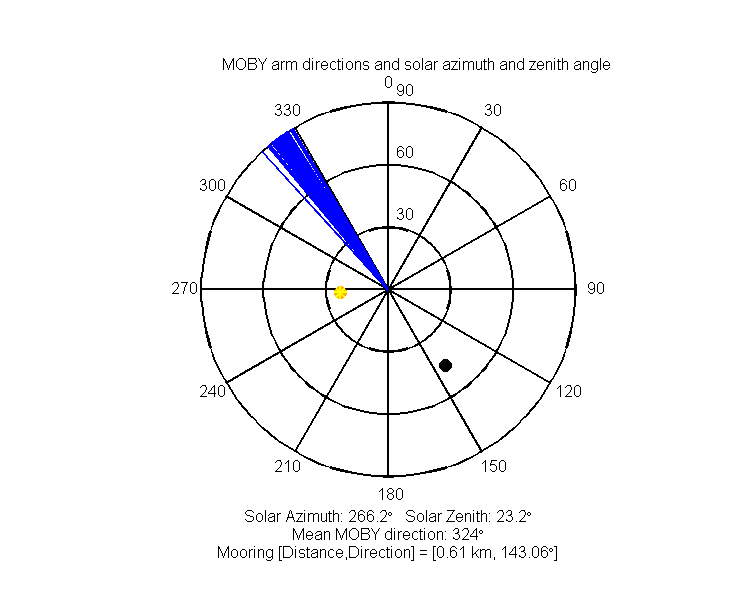

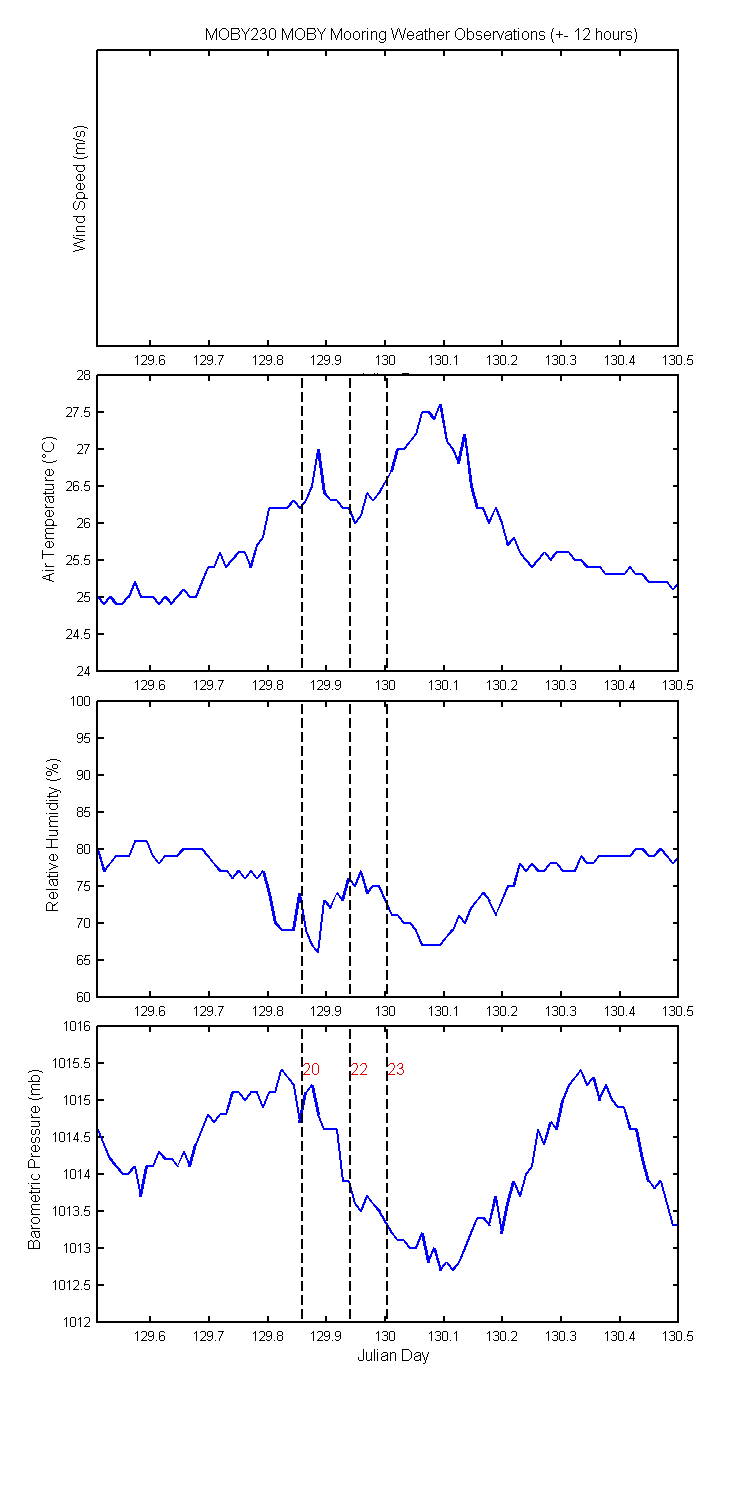

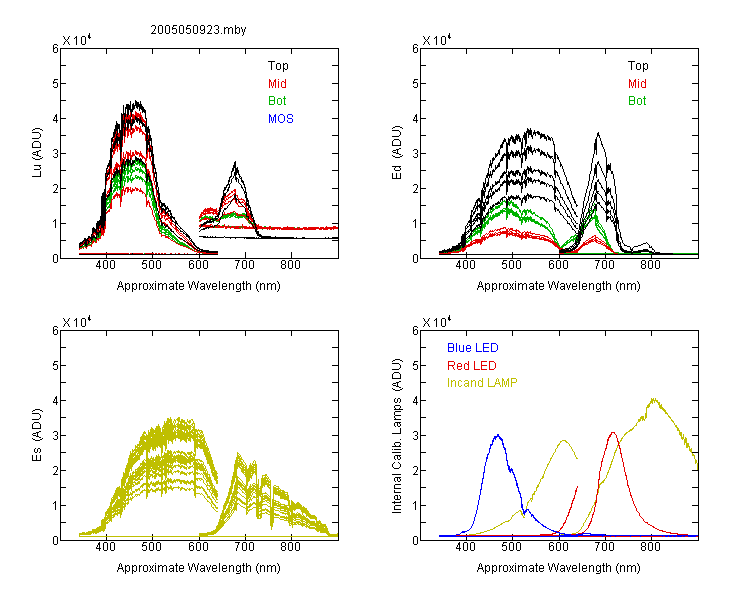

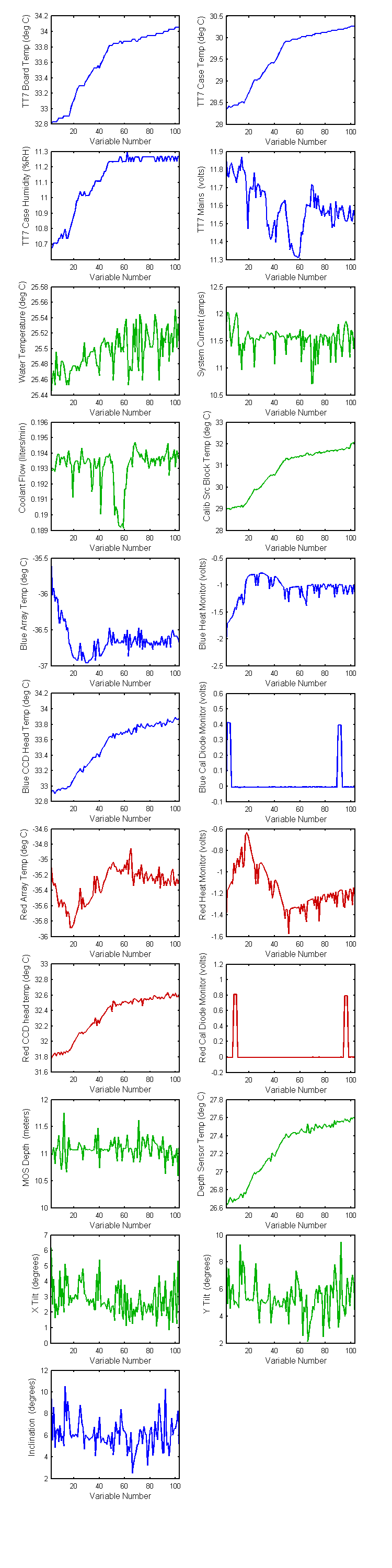

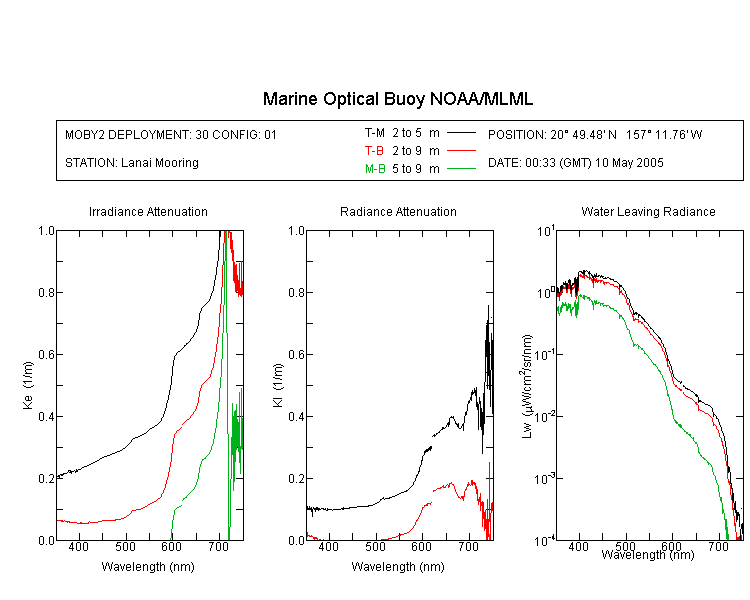

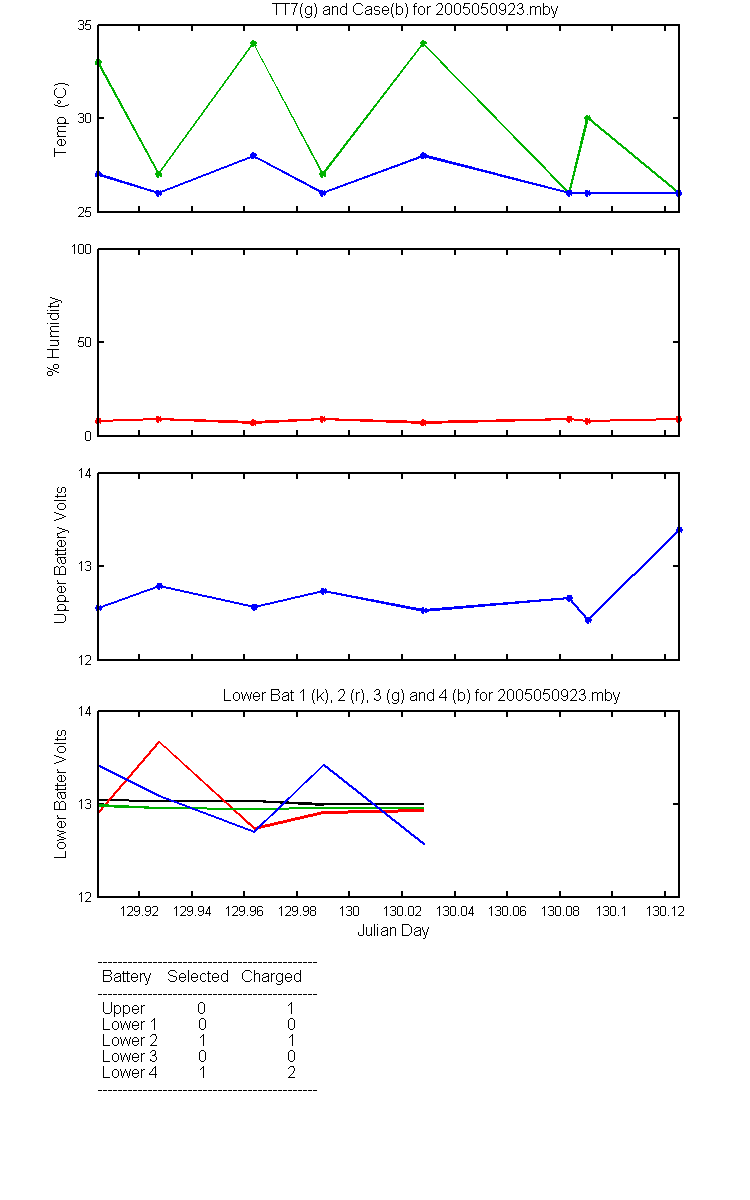

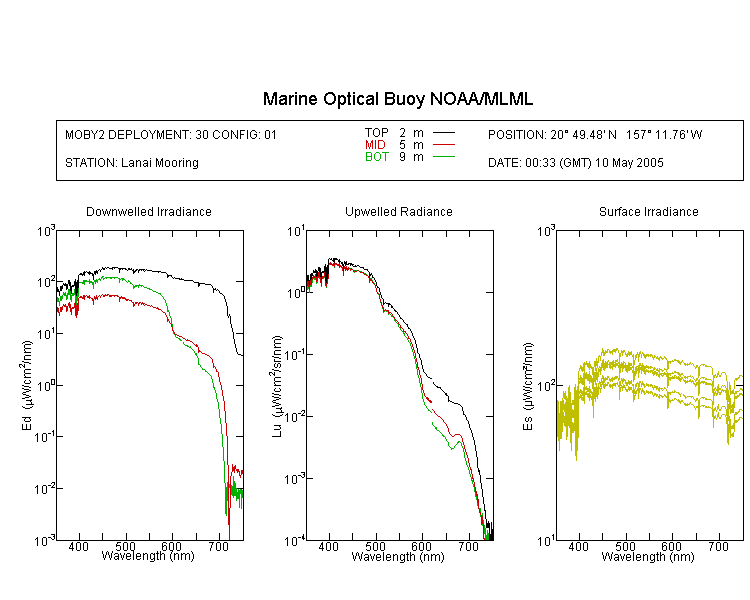

2005050923_01.png 2005050923_02.png 2005050923_03.png 2005050923_04.png 2005050923_05.png 2005050923_06.png 2005050923_07.png
Table of Quality Checking Information
FILE:                                    Complete

PROCESSING:                              Bad

CONFIGURATION:                           mby23001

RAW SCANS W/ PIXELS REMOVED:             VR = 99; Pixels = [460  459  458];
                                         VR = 29; Pixels = [694  693  692];
                                         VR = 30; Pixels = [762  761  760];
                                         VR = 35; Pixels = [646   647   648   719   720   721  1004  1005  1006  1007  1008];
                                         VR = 45; Pixels = [730  729  728];
                                         VR = 43; Pixels = [782  781  780];
                                         VR = 44; Pixels = [945  944  943];
                                         VR = 83; Pixels = [970  969  968  967  966];
                                         VR = 91; Pixels = [623  622  621  620  619];

RAW SCANS W/ PIXELS FILLED:              VR = 47; Pixels = [463  464  465];
                                         VR = 31; Pixels = [527  528  529];
                                         VR = 21; Pixels = [547  548  549];
                                         VR = 21; Pixels = [688  689  690];
                                         VR = 20; Pixels = [675  676  677];
                                         VR = 18; Pixels = [878  879  880];
                                         VR = 18; Pixels = [966  967  968];
                                         VR = 45; Pixels = [601  602  603];
Table of Engineering Information
                 |           LITE                      |           DARK                       |
                 |            Int       Bin    Maximum |            Int       Bin     Maximum |     MUX    No.    No.
    MOBY         |           Time    Factor     Counts |           Time    Factor      Counts |     Pos   Lite   Dark
    File  Source |          (B/R)     (B/R)      (B/R) |          (B/R)     (B/R)       (B/R) |
-------------------------------------------------------------------------------------------------------------
05050923 LuTop   |  40.000/40.000    6/384  44910/27470 |  40.000/40.000    6/384   1186/6208   |     9      5      2
05050923 LuMid   |  64.000/64.000    4/384  30612/16894 |  64.000/64.000    4/384   1207/9640   |     5      5      2
05050923 LuBot   |  64.000/64.000    4/384  23532/12074 |  64.000/64.000    4/384   1201/9356   |     2      5      2
05050923 EdTop   |   0.600/0.600    32/64   32005/27534 |   0.600/0.600    32/64     995/1032   |    10      5      2
05050923 EdMid   |   2.500/2.500     8/64    8644/6543  |   2.500/2.500     8/64     990/1070   |     7      5      2
05050923 EdBot   |   2.000/2.000    12/384  13533/11666 |   2.000/2.000    12/384    992/1316   |     3      5      2
05050923 EsSfc   |   0.750/0.750    16/16   29982/21771 |   0.750/0.750    16/16     986/1014   |     8      3      2
05050923 Blue LED|   1.000/1.000    64/384  29705/1816  |   1.000/1.000    64/384   1053/1210   |    12      3      2
05050923 Blue LED|   1.000/1.000    64/384  30090/1800  |   1.000/1.000    64/384   1045/1174   |    12      3      2
05050923 Red LED |   1.000/1.000   384/64   15238/30863 |   1.000/1.000   384/64    1477/1048   |    13      3      2
05050923 Red LED |   1.000/1.000   384/64   15269/30791 |   1.000/1.000   384/64    1436/1046   |    13      3      2
05050923 Lamp    |   1.000/1.000    64/16   28425/40323 |   1.000/1.000    64/16    1042/1022   |    15      3      2
                 |        (sec)   (pixel)      (AD U) |        (sec)   (pixel)        (ADU) |
FORTH LOG FILE

The battery selcted for 2005050923.mby is #4 at 13.346 volts There was a ALARM INTERRUPT DETECTED in this FORTH LOG.

09/05/2005 21:22:15 KERMIT:  SENT FILE: FORTH.LOG, 9093 BYTES, 0 NAKs
09/05/2005 21:41:46 XMODEM:  SENT FILE: 05050920.MOB, 228624 BYTES, 0 NAKs
09/05/2005 21:41:53 VAX STOPPED
09/05/2005 21:41:54 Temperature (deg):  TT7 = 33 (1739) Case = 27 (1968)  % Humidity: 8 (845)
09/05/2005 21:41:55 SHUTTING DOWN SYSTEM
09/05/2005 21:41:56 SHUTDOWN:  MOSOFF
09/05/2005 21:42:00 SHUTDOWN:  CHRGBATT
09/05/2005 21:42:16 LOWER BATTERY VOLTAGES (1 to 4) =  13.040 12.906 12.979 13.407
09/05/2005 21:42:17 CHRGBATT:  CHARGING LOWER BATTERY #2 = 12.906 VOLTS
09/05/2005 21:42:22 CHRGBATT:  UPPER BATTERY = 12.552 VOLTS
09/05/2005 21:42:23 SHUTDOWN:  TT5OFF
09/05/2005 21:42:24 SHUTDOWN:  GPSOFF
09/05/2005 21:42:25 SHUTDOWN:  APWR-OFF
09/05/2005 21:42:26 SHUTDOWN:  MODEMOFF
09/05/2005 21:42:27 END SHUTDOWN
09/05/2005 22:15:06 Temperature (deg):  TT7 = 27 (1973) Case = 26 (2006)  % Humidity: 9 (882)
09/05/2005 22:15:07 MOBY STARTED
09/05/2005 22:15:34 LOWER BATTERY VOLTAGES (1 to 4) =  13.028 13.663 12.955 13.089
09/05/2005 22:15:35 MOBY:  UPPER BATTERY = 12.790 VOLTS
09/05/2005 22:15:51 SELECTBATT:  LOWER BATTERY SELECTED # 2 = 13.651 VOLTS
09/05/2005 23:00:10 MOSLOOP:  ALARM INTERRUPT DETECTED
09/05/2005 23:07:06 MOBY STOPPED
09/05/2005 23:07:07 Temperature (deg):  TT7 = 34 (1700) Case = 28 (1943)  % Humidity: 7 (839)
09/05/2005 23:07:08 SHUTTING DOWN SYSTEM
09/05/2005 23:07:09 SHUTDOWN:  MOSOFF
09/05/2005 23:07:11 SHUTDOWN:  CHRGBATT
09/05/2005 23:07:27 LOWER BATTERY VOLTAGES (1 to 4) =  13.028 12.735 12.943 12.698
09/05/2005 23:07:28 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.698 VOLTS
09/05/2005 23:07:33 CHRGBATT:  UPPER BATTERY = 12.564 VOLTS
09/05/2005 23:07:34 SHUTDOWN:  TT5OFF
09/05/2005 23:07:35 SHUTDOWN:  GPSOFF
09/05/2005 23:07:36 SHUTDOWN:  APWR-OFF
09/05/2005 23:07:37 SHUTDOWN:  MODEMOFF
09/05/2005 23:07:38 END SHUTDOWN
09/05/2005 23:45:06 Temperature (deg):  TT7 = 27 (1972) Case = 26 (1998)  % Humidity: 9 (883)
09/05/2005 23:45:07 MOBY STARTED
09/05/2005 23:45:34 LOWER BATTERY VOLTAGES (1 to 4) =  12.991 12.906 12.955 13.419
09/05/2005 23:45:35 MOBY:  UPPER BATTERY = 12.735 VOLTS
09/05/2005 23:45:52 SELECTBATT:  LOWER BATTERY SELECTED # 4 = 13.346 VOLTS
10/05/2005 00:40:03 MOBY STOPPED
10/05/2005 00:40:04 Temperature (deg):  TT7 = 34 (1698) Case = 28 (1942)  % Humidity: 7 (841)
10/05/2005 00:40:05 SHUTTING DOWN SYSTEM
10/05/2005 00:40:06 SHUTDOWN:  MOSOFF
10/05/2005 00:40:08 SHUTDOWN:  CHRGBATT
10/05/2005 00:40:24 LOWER BATTERY VOLTAGES (1 to 4) =  12.991 12.930 12.955 12.564
10/05/2005 00:40:25 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.564 VOLTS
10/05/2005 00:40:30 CHRGBATT:  UPPER BATTERY = 12.527 VOLTS
10/05/2005 00:40:31 SHUTDOWN:  TT5OFF
10/05/2005 00:40:32 SHUTDOWN:  GPSOFF
10/05/2005 00:40:33 SHUTDOWN:  APWR-OFF
10/05/2005 00:40:34 SHUTDOWN:  MODEMOFF
10/05/2005 00:40:35 END SHUTDOWN
10/05/2005 02:00:06 Temperature (deg):  TT7 = 26 (2013) Case = 26 (2022)  % Humidity: 9 (890)
10/05/2005 02:00:07 MODEM STARTED
10/05/2005 02:00:07 WAKEMODEM:  UPPER BATTERY = 12.662 VOLTS
10/05/2005 02:10:22 MODEM STOPPED
10/05/2005 02:10:23 Temperature (deg):  TT7 = 30 (1865) Case = 26 (2006)  % Humidity: 8 (867)
10/05/2005 02:10:23 SHUTTING DOWN SYSTEM
10/05/2005 02:10:24 SHUTDOWN:  MOSOFF
10/05/2005 02:10:28 SHUTDOWN:  CHRGBATT
10/05/2005 02:10:32 CHRGBATT:  CHARGING UPPER BATTERY
10/05/2005 02:10:33 CHRGBATT:  UPPER BATTERY = 12.424 VOLTS
10/05/2005 02:10:34 SHUTDOWN:  TT5OFF
10/05/2005 02:10:35 SHUTDOWN:  GPSOFF
10/05/2005 02:10:36 SHUTDOWN:  APWR-OFF
10/05/2005 02:10:37 SHUTDOWN:  MODEMOFF
10/05/2005 02:10:38 END SHUTDOWN
10/05/2005 03:00:06 Temperature (deg):  TT7 = 26 (2015) Case = 26 (2029)  % Humidity: 9 (890)
10/05/2005 03:00:20 VAX STARTED
10/05/2005 03:00:20 WAKEVAX:  UPPER BATTERY = 13.388 VOLTS
10/05/2005 03:00:22 DIALING VAX: xxxxxxxxxxxxxxx
QCHK FILE
% 05050923.mob Quality Check ASCII file: created on 10-May-2005 by   MKQCHK_
OPTION14: VRpixFILL = 47; ERpixFILL = [463  464  465];  OPTDATESTR ='10-May-2005 11:15:38';
OPTION2: VRpixRMD = 99; ERpixRMD = [460  459  458];  OPTDATESTR ='10-May-2005 11:16:31';
OPTION5: MOBYFNMS = '05050923.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1; QCHKCODE = 2056;  OPTDATESTR ='10-May-2005 11:17:17';
OPTION11: MOBYFNMS = '05050923.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1;   OPTDATESTR ='10-May-2005 11:17:18';
OPTION2: VRpixRMD = 29; ERpixRMD = [694  693  692]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION2: VRpixRMD = 30; ERpixRMD = [762  761  760]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION2: VRpixRMD = 35; ERpixRMD = [646   647   648   719   720   721  1004  1005  1006  1007  1008]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION2: VRpixRMD = 45; ERpixRMD = [730  729  728]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION2: VRpixRMD = 43; ERpixRMD = [782  781  780]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION2: VRpixRMD = 44; ERpixRMD = [945  944  943]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION2: VRpixRMD = 83; ERpixRMD = [970  969  968  967  966]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION2: VRpixRMD = 91; ERpixRMD = [623  622  621  620  619]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION14: VRpixFILL = 31; ERpixFILL = [527  528  529]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION14: VRpixFILL = 21; ERpixFILL = [547  548  549]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION14: VRpixFILL = 21; ERpixFILL = [688  689  690]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION14: VRpixFILL = 20; ERpixFILL = [675  676  677]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION14: VRpixFILL = 18; ERpixFILL = [878  879  880]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION14: VRpixFILL = 18; ERpixFILL = [966  967  968]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
OPTION14: VRpixFILL = 45; ERpixFILL = [601  602  603]; OPTDATESTR ='11-Oct-2016 21:21:40'; % RSG384FIX_
% RSG384FIX_ run on 11-Oct-2016 21:21:40
OPTION13: MOBYFNMS = '05050923.mob'; CONfile = 'mby23001';  OPTDATESTR ='10-Nov-2017 16:29:08';

Stephanie Flora - Moss Landing Marine Laboratories
