TUE 24-MAY-2005 (144) - 20      Good Day

DATE: 24-May-2005     START TIME: 20:32     STOP TIME: 21:10     POSITION: 20° 48.92' N 157° 11.93' W
Quality Checking | Engineering Info | Forth Log

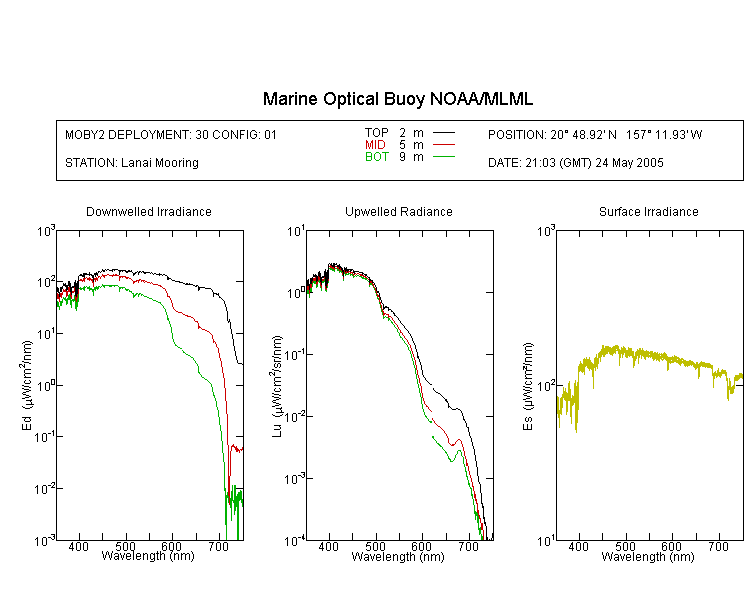

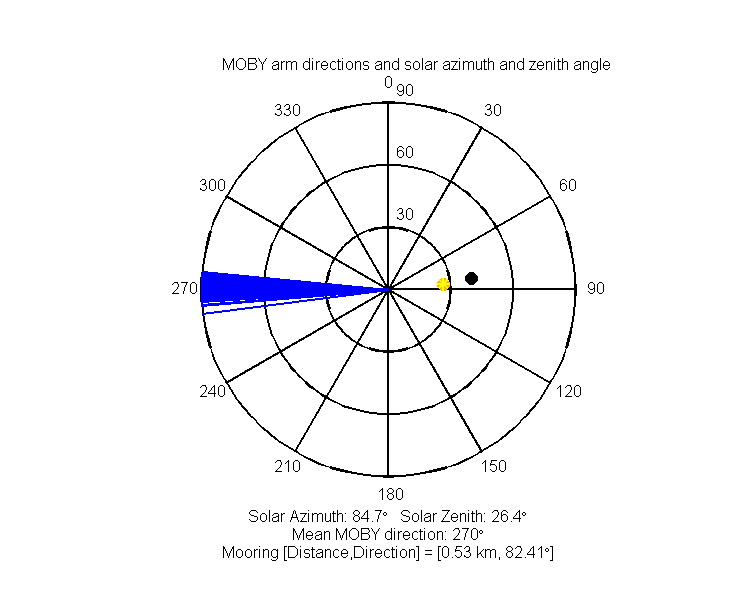

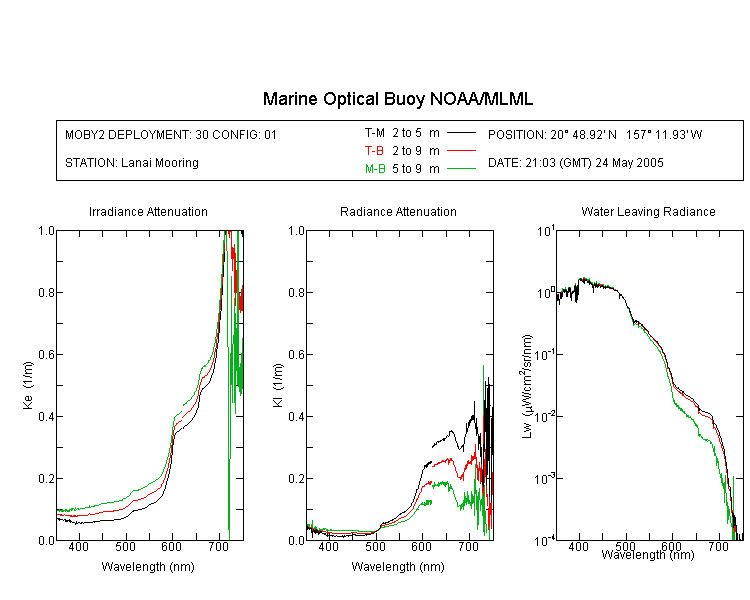

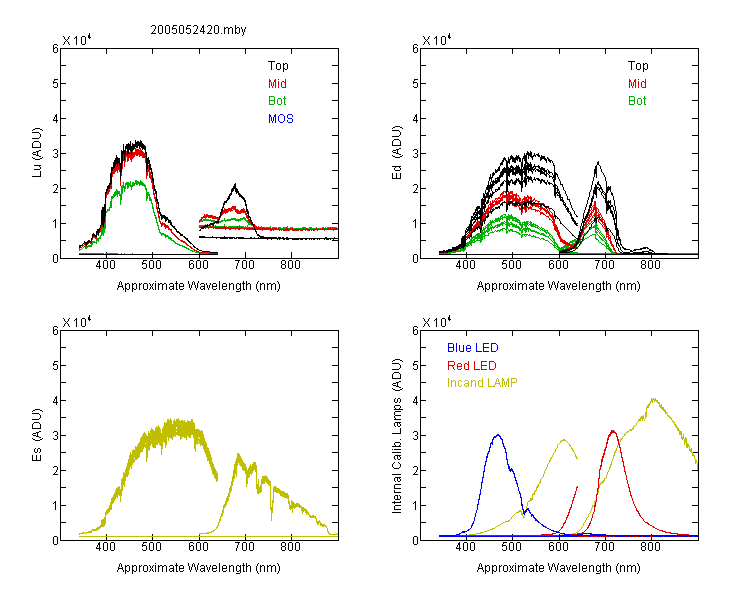

2005052420_01.png 2005052420_02.png 2005052420_03.png 2005052420_04.png 2005052420_05.png 2005052420_06.png 2005052420_07.png
Table of Quality Checking Information
FILE:                                    Complete

PROCESSING:                              Good Day

CONFIGURATION:                           mby23001

RAW SCANS W/ PIXELS REMOVED:             VR = 10; Pixels = [174  173  172];
                                         VR = 35; Pixels = [817  816  815];
                                         VR = 32; Pixels = [752  753  754  970  971  972];
                                         VR = 30; Pixels = [853  854  855  978  979  980];
                                         VR = 34; Pixels = [1011  1010  1009];
                                         VR = 18; Pixels = [521  522  523  539  540  541];
                                         VR = 17; Pixels = [740  739  738];
                                         VR = 21; Pixels = [848  847  846];
                                         VR = 43; Pixels = [875  874  873];
                                         VR = 44; Pixels = [911  910  909];
                                         VR = 45; Pixels = [1005  1004  1003];

RAW SCANS W/ PIXELS FILLED:              VR = 17; Pixels = [812  813  814];
Table of Engineering Information
                 |           LITE                      |           DARK                       |
                 |            Int       Bin    Maximum |            Int       Bin     Maximum |     MUX    No.    No.
    MOBY         |           Time    Factor     Counts |           Time    Factor      Counts |     Pos   Lite   Dark
    File  Source |          (B/R)     (B/R)      (B/R) |          (B/R)     (B/R)       (B/R) |
-------------------------------------------------------------------------------------------------------------
05052420 LuTop   |  40.000/40.000    6/384  33044/21070 |  40.000/40.000    6/384   1170/6054   |     9      5      2
05052420 LuMid   |  64.000/64.000    4/384  30306/14416 |  64.000/64.000    4/384   1186/9212   |     5      5      2
05052420 LuBot   |  64.000/64.000    4/384  22079/11456 |  64.000/64.000    4/384   1190/9304   |     2      5      2
05052420 EdTop   |   0.600/0.600    32/64   16370/11710 |   0.600/0.600    32/64     994/1034   |    10      5      2
05052420 EdMid   |   2.500/2.500     8/64   16109/12943 |   2.500/2.500     8/64     990/1067   |     7      5      2
05052420 EdBot   |   2.000/2.000    12/384  12440/11932 |   2.000/2.000    12/384    991/1308   |     3      5      2
05052420 EsSfc   |   0.750/0.750    16/16   30724/22394 |   0.750/0.750    16/16     985/1012   |     8      3      2
05052420 Blue LED|   1.000/1.000    64/384  30187/1824  |   1.000/1.000    64/384   1043/1202   |    12      3      2
05052420 Blue LED|   1.000/1.000    64/384  30250/1816  |   1.000/1.000    64/384   1043/1182   |    12      3      2
05052420 Red LED |   1.000/1.000   384/64   15189/31381 |   1.000/1.000   384/64    1403/1049   |    13      3      2
05052420 Red LED |   1.000/1.000   384/64   15397/30975 |   1.000/1.000   384/64    1430/1046   |    13      3      2
05052420 Lamp    |   1.000/1.000    64/16   28494/40387 |   1.000/1.000    64/16    1045/1023   |    15      3      2
                 |        (sec)   (pixel)      (AD U) |        (sec)   (pixel)        (ADU) |
FORTH LOG FILE

The battery selcted for 2005052420.mby is #3 at 13.260 volts

24/05/2005 03:02:00 KERMIT:  SENT FILE: FORTH.LOG, 3803 BYTES, 0 NAKs
24/05/2005 03:21:27 XMODEM:  SENT FILE: 05052323.MOB, 228624 BYTES, 0 NAKs
24/05/2005 03:21:35 VAX STOPPED
24/05/2005 03:21:36 Temperature (deg):  TT7 = 33 (1744) Case = 27 (1951)  % Humidity: 8 (852)
24/05/2005 03:21:37 SHUTTING DOWN SYSTEM
24/05/2005 03:21:37 SHUTDOWN:  MOSOFF
24/05/2005 03:21:41 SHUTDOWN:  CHRGBATT
24/05/2005 03:22:08 LOWER BATTERY VOLTAGES (1 to 4) =  12.967 12.918 13.016 13.077
24/05/2005 03:22:09 CHRGBATT:  CHARGING LOWER BATTERY #2 = 12.918 VOLTS
24/05/2005 03:22:14 CHRGBATT:  UPPER BATTERY = 13.529 VOLTS
24/05/2005 03:22:15 SHUTDOWN:  TT5OFF
24/05/2005 03:22:16 SHUTDOWN:  GPSOFF
24/05/2005 03:22:17 SHUTDOWN:  APWR-OFF
24/05/2005 03:22:18 SHUTDOWN:  MODEMOFF
24/05/2005 03:22:19 END SHUTDOWN
24/05/2005 05:00:06 Temperature (deg):  TT7 = 26 (1999) Case = 26 (2009)  % Humidity: 9 (892)
24/05/2005 05:00:07 MODEM STARTED
24/05/2005 05:00:07 WAKEMODEM:  UPPER BATTERY = 13.230 VOLTS
24/05/2005 05:10:22 MODEM STOPPED
24/05/2005 05:10:23 Temperature (deg):  TT7 = 30 (1847) Case = 27 (1988)  % Humidity: 8 (868)
24/05/2005 05:10:23 SHUTTING DOWN SYSTEM
24/05/2005 05:10:24 SHUTDOWN:  MOSOFF
24/05/2005 05:10:28 SHUTDOWN:  CHRGBATT
24/05/2005 05:10:45 LOWER BATTERY VOLTAGES (1 to 4) =  12.967 13.272 13.004 12.930
24/05/2005 05:10:46 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.930 VOLTS
24/05/2005 05:10:51 CHRGBATT:  UPPER BATTERY = 13.016 VOLTS
24/05/2005 05:10:52 SHUTDOWN:  TT5OFF
24/05/2005 05:10:53 SHUTDOWN:  GPSOFF
24/05/2005 05:10:54 SHUTDOWN:  APWR-OFF
24/05/2005 05:10:55 SHUTDOWN:  MODEMOFF
24/05/2005 05:10:56 END SHUTDOWN
24/05/2005 06:00:06 Temperature (deg):  TT7 = 26 (1996) Case = 26 (2010)  % Humidity: 9 (890)
24/05/2005 06:00:07 GPS STARTED
24/05/2005 06:00:08 WAKEGPS:  UPPER BATTERY = 13.150 VOLTS
24/05/2005 06:00:16 GPS at 6:00:44, DelTime 27.56, Lat 20:48.9642' N, Lon 157:10.7716' W
24/05/2005 06:00:17 $GPGGA,060044,2048.9642,N,15710.7716,W,0,00,20.0,00.0,M,04.0,M,00,0000*53
24/05/2005 06:00:18 GPS STOPPED
24/05/2005 06:00:19 Temperature (deg):  TT7 = 26 (1993) Case = 26 (2010)  % Humidity: 9 (890)
24/05/2005 06:00:20 SHUTTING DOWN SYSTEM
24/05/2005 06:00:21 SHUTDOWN:  MOSOFF
24/05/2005 06:00:25 SHUTDOWN:  CHRGBATT
24/05/2005 06:00:41 LOWER BATTERY VOLTAGES (1 to 4) =  12.955 13.211 12.979 12.906
24/05/2005 06:00:42 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.906 VOLTS
24/05/2005 06:00:47 CHRGBATT:  UPPER BATTERY = 13.101 VOLTS
24/05/2005 06:00:48 SHUTDOWN:  TT5OFF
24/05/2005 06:00:49 SHUTDOWN:  GPSOFF
24/05/2005 06:00:50 SHUTDOWN:  APWR-OFF
24/05/2005 06:00:51 SHUTDOWN:  MODEMOFF
24/05/2005 06:00:52 END SHUTDOWN
24/05/2005 08:00:06 Temperature (deg):  TT7 = 26 (2025) Case = 25 (2030)  % Humidity: 9 (893)
24/05/2005 08:00:07 MODEM STARTED
24/05/2005 08:00:08 WAKEMODEM:  UPPER BATTERY = 13.126 VOLTS
24/05/2005 08:10:22 MODEM STOPPED
24/05/2005 08:10:23 Temperature (deg):  TT7 = 29 (1871) Case = 26 (2007)  % Humidity: 9 (870)
24/05/2005 08:10:24 SHUTTING DOWN SYSTEM
24/05/2005 08:10:24 SHUTDOWN:  MOSOFF
24/05/2005 08:10:28 SHUTDOWN:  CHRGBATT
24/05/2005 08:10:45 LOWER BATTERY VOLTAGES (1 to 4) =  12.918 13.126 12.930 12.784
24/05/2005 08:10:46 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.784 VOLTS
24/05/2005 08:10:51 CHRGBATT:  UPPER BATTERY = 12.900 VOLTS
24/05/2005 08:10:52 SHUTDOWN:  TT5OFF
24/05/2005 08:10:53 SHUTDOWN:  GPSOFF
24/05/2005 08:10:54 SHUTDOWN:  APWR-OFF
24/05/2005 08:10:55 SHUTDOWN:  MODEMOFF
24/05/2005 08:10:56 END SHUTDOWN
24/05/2005 11:00:06 Temperature (deg):  TT7 = 25 (2034) Case = 25 (2037)  % Humidity: 9 (894)
24/05/2005 11:00:07 MODEM STARTED
24/05/2005 11:00:08 WAKEMODEM:  UPPER BATTERY = 13.071 VOLTS
24/05/2005 11:10:22 MODEM STOPPED
24/05/2005 11:10:23 Temperature (deg):  TT7 = 29 (1879) Case = 26 (2017)  % Humidity: 9 (870)
24/05/2005 11:10:24 SHUTTING DOWN SYSTEM
24/05/2005 11:10:24 SHUTDOWN:  MOSOFF
24/05/2005 11:10:28 SHUTDOWN:  CHRGBATT
24/05/2005 11:10:45 LOWER BATTERY VOLTAGES (1 to 4) =  12.955 13.053 12.967 12.711
24/05/2005 11:10:46 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.711 VOLTS
24/05/2005 11:10:51 CHRGBATT:  UPPER BATTERY = 12.839 VOLTS
24/05/2005 11:10:52 SHUTDOWN:  TT5OFF
24/05/2005 11:10:53 SHUTDOWN:  GPSOFF
24/05/2005 11:10:54 SHUTDOWN:  APWR-OFF
24/05/2005 11:10:55 SHUTDOWN:  MODEMOFF
24/05/2005 11:10:56 END SHUTDOWN
24/05/2005 14:00:06 Temperature (deg):  TT7 = 25 (2048) Case = 25 (2050)  % Humidity: 9 (895)
24/05/2005 14:00:07 MODEM STARTED
24/05/2005 14:00:08 WAKEMODEM:  UPPER BATTERY = 13.034 VOLTS
24/05/2005 14:10:22 MODEM STOPPED
24/05/2005 14:10:23 Temperature (deg):  TT7 = 29 (1891) Case = 26 (2027)  % Humidity: 9 (870)
24/05/2005 14:10:24 SHUTTING DOWN SYSTEM
24/05/2005 14:10:24 SHUTDOWN:  MOSOFF
24/05/2005 14:10:28 SHUTDOWN:  CHRGBATT
24/05/2005 14:10:45 LOWER BATTERY VOLTAGES (1 to 4) =  12.930 13.040 12.906 12.662
24/05/2005 14:10:46 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.662 VOLTS
24/05/2005 14:10:51 CHRGBATT:  UPPER BATTERY = 12.790 VOLTS
24/05/2005 14:10:52 SHUTDOWN:  TT5OFF
24/05/2005 14:10:53 SHUTDOWN:  GPSOFF
24/05/2005 14:10:54 SHUTDOWN:  APWR-OFF
24/05/2005 14:10:55 SHUTDOWN:  MODEMOFF
24/05/2005 14:10:56 END SHUTDOWN
24/05/2005 17:00:06 Temperature (deg):  TT7 = 25 (2061) Case = 25 (2062)  % Humidity: 9 (894)
24/05/2005 17:00:07 MODEM STARTED
24/05/2005 17:00:08 WAKEMODEM:  UPPER BATTERY = 13.004 VOLTS
24/05/2005 17:10:22 MODEM STOPPED
24/05/2005 17:10:23 Temperature (deg):  TT7 = 29 (1905) Case = 25 (2037)  % Humidity: 8 (869)
24/05/2005 17:10:24 SHUTTING DOWN SYSTEM
24/05/2005 17:10:24 SHUTDOWN:  MOSOFF
24/05/2005 17:10:28 SHUTDOWN:  CHRGBATT
24/05/2005 17:10:45 LOWER BATTERY VOLTAGES (1 to 4) =  12.930 13.040 12.930 13.211
24/05/2005 17:10:46 CHRGBATT:  CHARGING LOWER BATTERY #1 = 12.930 VOLTS
24/05/2005 17:10:51 CHRGBATT:  UPPER BATTERY = 12.759 VOLTS
24/05/2005 17:10:52 SHUTDOWN:  TT5OFF
24/05/2005 17:10:53 SHUTDOWN:  GPSOFF
24/05/2005 17:10:54 SHUTDOWN:  APWR-OFF
24/05/2005 17:10:55 SHUTDOWN:  MODEMOFF
24/05/2005 17:10:56 END SHUTDOWN
24/05/2005 18:00:06 Temperature (deg):  TT7 = 25 (2039) Case = 25 (2043)  % Humidity: 9 (890)
24/05/2005 18:00:07 GPS STARTED
24/05/2005 18:00:08 WAKEGPS:  UPPER BATTERY = 12.967 VOLTS
24/05/2005 18:00:16 GPS at 18:00:48, DelTime 31.60, Lat 20:48.9642' N, Lon 157:10.7716' W
24/05/2005 18:00:17 $GPGGA,180048,2048.9642,N,15710.7716,W,0,00,20.0,00.0,M,04.0,M,00,0000*50
24/05/2005 18:00:18 GPS STOPPED
24/05/2005 18:00:19 Temperature (deg):  TT7 = 25 (2036) Case = 25 (2043)  % Humidity: 9 (890)
24/05/2005 18:00:20 SHUTTING DOWN SYSTEM
24/05/2005 18:00:21 SHUTDOWN:  MOSOFF
24/05/2005 18:00:25 SHUTDOWN:  CHRGBATT
24/05/2005 18:00:41 LOWER BATTERY VOLTAGES (1 to 4) =  13.590 13.016 12.930 12.882
24/05/2005 18:00:42 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.882 VOLTS
24/05/2005 18:00:47 CHRGBATT:  UPPER BATTERY = 12.912 VOLTS
24/05/2005 18:00:48 SHUTDOWN:  TT5OFF
24/05/2005 18:00:49 SHUTDOWN:  GPSOFF
24/05/2005 18:00:50 SHUTDOWN:  APWR-OFF
24/05/2005 18:00:51 SHUTDOWN:  MODEMOFF
24/05/2005 18:00:52 END SHUTDOWN
24/05/2005 20:00:06 Temperature (deg):  TT7 = 25 (2063) Case = 25 (2066)  % Humidity: 9 (894)
24/05/2005 20:00:07 MODEM STARTED
24/05/2005 20:00:08 WAKEMODEM:  UPPER BATTERY = 12.979 VOLTS
24/05/2005 20:10:22 MODEM STOPPED
24/05/2005 20:10:23 Temperature (deg):  TT7 = 29 (1906) Case = 25 (2041)  % Humidity: 8 (869)
24/05/2005 20:10:24 SHUTTING DOWN SYSTEM
24/05/2005 20:10:24 SHUTDOWN:  MOSOFF
24/05/2005 20:10:28 SHUTDOWN:  CHRGBATT
24/05/2005 20:10:45 LOWER BATTERY VOLTAGES (1 to 4) =  13.077 13.016 12.906 13.321
24/05/2005 20:10:46 CHRGBATT:  CHARGING LOWER BATTERY #3 = 12.906 VOLTS
24/05/2005 20:10:51 CHRGBATT:  UPPER BATTERY = 12.723 VOLTS
24/05/2005 20:10:52 SHUTDOWN:  TT5OFF
24/05/2005 20:10:53 SHUTDOWN:  GPSOFF
24/05/2005 20:10:54 SHUTDOWN:  APWR-OFF
24/05/2005 20:10:55 SHUTDOWN:  MODEMOFF
24/05/2005 20:10:56 END SHUTDOWN
24/05/2005 20:15:06 Temperature (deg):  TT7 = 28 (1914) Case = 25 (2037)  % Humidity: 8 (867)
24/05/2005 20:15:07 MOBY STARTED
24/05/2005 20:15:34 LOWER BATTERY VOLTAGES (1 to 4) =  13.053 13.053 13.333 13.101
24/05/2005 20:15:35 MOBY:  UPPER BATTERY = 12.943 VOLTS
24/05/2005 20:15:53 SELECTBATT:  LOWER BATTERY SELECTED # 3 = 13.260 VOLTS
24/05/2005 21:10:04 MOBY STOPPED
24/05/2005 21:10:05 Temperature (deg):  TT7 = 33 (1723) Case = 27 (1965)  % Humidity: 7 (839)
24/05/2005 21:10:06 SHUTTING DOWN SYSTEM
24/05/2005 21:10:07 SHUTDOWN:  MOSOFF
24/05/2005 21:10:09 SHUTDOWN:  CHRGBATT
24/05/2005 21:10:25 LOWER BATTERY VOLTAGES (1 to 4) =  13.028 12.991 12.735 12.698
24/05/2005 21:10:26 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.698 VOLTS
24/05/2005 21:10:31 CHRGBATT:  UPPER BATTERY = 12.759 VOLTS
24/05/2005 21:10:32 SHUTDOWN:  TT5OFF
24/05/2005 21:10:33 SHUTDOWN:  GPSOFF
24/05/2005 21:10:34 SHUTDOWN:  APWR-OFF
24/05/2005 21:10:35 SHUTDOWN:  MODEMOFF
24/05/2005 21:10:36 END SHUTDOWN
24/05/2005 21:20:06 Temperature (deg):  TT7 = 30 (1855) Case = 27 (1981)  % Humidity: 8 (859)
24/05/2005 21:20:09 VAX STARTED
24/05/2005 21:20:09 WAKEVAX:  UPPER BATTERY = 12.827 VOLTS
24/05/2005 21:20:11 DIALING VAX: xxxxxxxxxxxxxxx
QCHK FILE
% 05052420.mob Quality Check ASCII file: created on 31-May-2005 by   MKQCHK_
OPTION2: VRpixRMD = 10; ERpixRMD = [174  173  172];  OPTDATESTR ='31-May-2005 13:49:13';
OPTION5: MOBYFNMS = '05052420.mob'; QCHKFLAG = 1; QCHKWHAT = 1; QCHKWHO = 1;   OPTDATESTR ='31-May-2005 14:00:27';
OPTION11: MOBYFNMS = '05052420.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1;   OPTDATESTR ='31-May-2005 14:00:27';
OPTION2: VRpixRMD = 35; ERpixRMD = [817  816  815]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
OPTION2: VRpixRMD = 32; ERpixRMD = [752  753  754  970  971  972]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
OPTION2: VRpixRMD = 30; ERpixRMD = [853  854  855  978  979  980]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
OPTION2: VRpixRMD = 34; ERpixRMD = [1011  1010  1009]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
OPTION2: VRpixRMD = 18; ERpixRMD = [521  522  523  539  540  541]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
OPTION2: VRpixRMD = 17; ERpixRMD = [740  739  738]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
OPTION2: VRpixRMD = 21; ERpixRMD = [848  847  846]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
OPTION2: VRpixRMD = 43; ERpixRMD = [875  874  873]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
OPTION2: VRpixRMD = 44; ERpixRMD = [911  910  909]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
OPTION2: VRpixRMD = 45; ERpixRMD = [1005  1004  1003]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
OPTION14: VRpixFILL = 17; ERpixFILL = [812  813  814]; OPTDATESTR ='11-Oct-2016 21:21:48'; % RSG384FIX_
% RSG384FIX_ run on 11-Oct-2016 21:21:48
OPTION13: MOBYFNMS = '05052420.mob'; CONfile = 'mby23001';  OPTDATESTR ='10-Nov-2017 16:31:35';

Stephanie Flora - Moss Landing Marine Laboratories
