MOBY230 - FRI 10-JUN-2005 (161)

FRI 10-JUN-2005 (161) - 23 Bad Day - Cloudy

DATE: 11-Jun-2005 START TIME: 00:02 STOP TIME: 00:40 POSITION: 20° 49.49' N 157° 11.15' W

Quality Checking | Engineering Info | Forth Log

Table of Quality Checking Information

FILE:                                    Complete

PROCESSING:                              Bad

CONFIGURATION:                           mby23001

RAW SCANS MARKED BAD:                    VR = 34; DscS = 'NEAR SFC'; FhdS = '';

RAW SCANS W/ PIXELS REMOVED:             VR = 30; Pixels = [789  788  787];
                                         VR = 33; Pixels = [902  901  900];
                                         VR = 35; Pixels = [927  926  925];
                                         VR = 31; Pixels = [933  932  931];
                                         VR = 22; Pixels = [857  858  859  947  948  949];
                                         VR = 43; Pixels = [524  523  522];
                                         VR = 46; Pixels = [662  661  660];
                                         VR = 42; Pixels = [544  545  546  827  828  829];

RAW SCANS W/ PIXELS FILLED:              VR = 53; Pixels = [879  880  881];
                                         VR = 9; Pixels = [228  229  230];
                                         VR = 30; Pixels = [700  701  702];
                                         VR = 17; Pixels = [562];
                                         VR = 22; Pixels = [616  617  618];
                                         VR = 17; Pixels = [814];
                                         VR = 43; Pixels = [947  948  949  950  951  952];
                                         VR = 42; Pixels = [952  953  954];
                                         VR = 80; Pixels = [740  741  742];
                                         VR = 77; Pixels = [871  872  873];

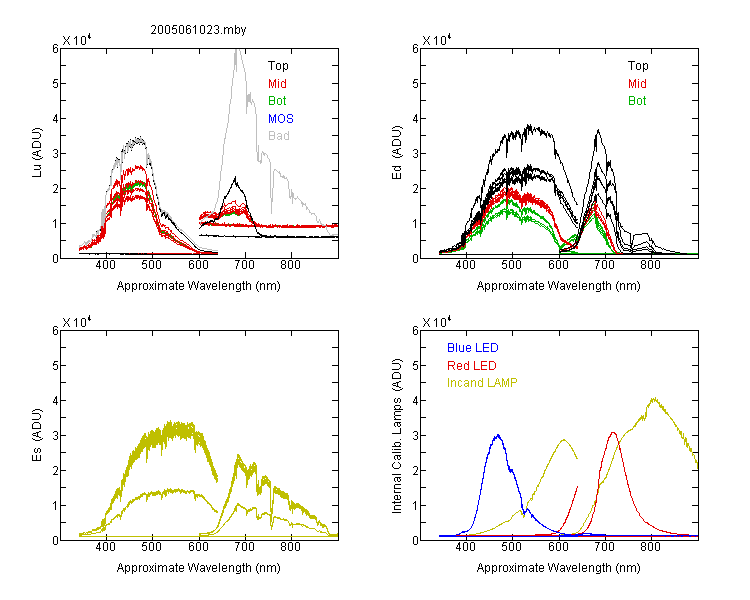

Table of Engineering Information

                 |           LITE                      |           DARK                       |
                 |            Int       Bin    Maximum |            Int       Bin     Maximum |     MUX    No.    No.
    MOBY         |           Time    Factor     Counts |           Time    Factor      Counts |     Pos   Lite   Dark
    File  Source |          (B/R)     (B/R)      (B/R) |          (B/R)     (B/R)       (B/R) |
-------------------------------------------------------------------------------------------------------------
05061023 LuTop   |  40.000/40.000    6/384  34688/22948 |  40.000/40.000    6/384   1201/6586   |     9      5      2
05061023 LuMid   |  64.000/64.000    4/384  17621/13580 |  64.000/64.000    4/384   1228/10298  |     5      5      2
05061023 LuBot   |  64.000/64.000    4/384  22056/13326 |  64.000/64.000    4/384   1219/10038  |     2      5      2
05061023 EdTop   |   0.600/0.600    32/64   24271/23047 |   0.600/0.600    32/64     998/1031   |    10      5      2
05061023 EdMid   |   2.500/2.500     8/64   19013/14439 |   2.500/2.500     8/64     988/1073   |     7      5      2
05061023 EdBot   |   2.000/2.000    12/384  16562/14000 |   2.000/2.000    12/384    994/1334   |     3      5      2
05061023 EsSfc   |   0.750/0.750    16/16   14721/10466 |   0.750/0.750    16/16     988/1013   |     8      3      2
05061023 Blue LED|   1.000/1.000    64/384  29627/1830  |   1.000/1.000    64/384   1059/1232   |    12      3      2
05061023 Blue LED|   1.000/1.000    64/384  30043/1834  |   1.000/1.000    64/384   1054/1212   |    12      3      2
05061023 Red LED |   1.000/1.000   384/64   15133/30827 |   1.000/1.000   384/64    1494/1048   |    13      3      2
05061023 Red LED |   1.000/1.000   384/64   15211/30852 |   1.000/1.000   384/64    1477/1050   |    13      3      2
05061023 Lamp    |   1.000/1.000    64/16   28533/40492 |   1.000/1.000    64/16    1053/1029   |    15      3      2
                 |        (sec)   (pixel)      (AD U) |        (sec)   (pixel)        (ADU) |

FORTH LOG FILE

The battery selcted for 2005061023.mby is #4 at 13.175 volts There was a ALARM INTERRUPT DETECTED in this FORTH LOG.

10/06/2005 21:22:22 KERMIT:  SENT FILE: FORTH.LOG, 8690 BYTES, 0 NAKs
10/06/2005 21:42:38 XMODEM:  SENT FILE: 05061020.MOB, 228624 BYTES, 0 NAKs
10/06/2005 21:42:47 VAX STOPPED

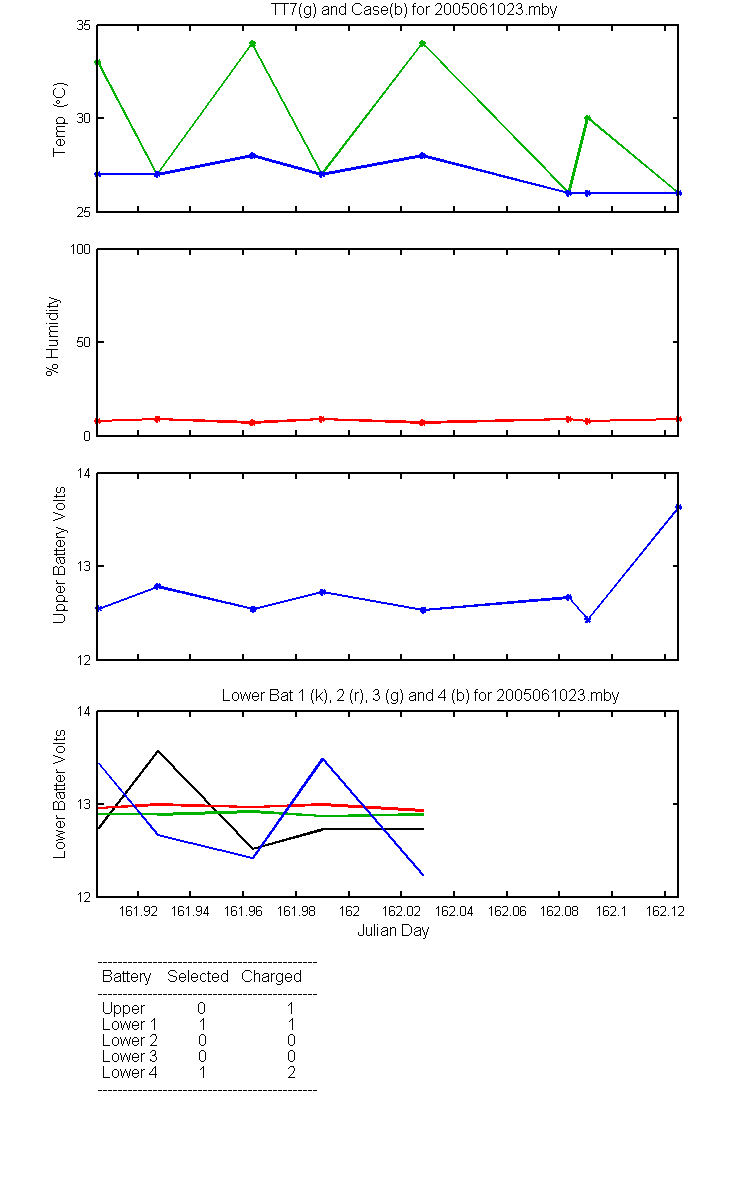

10/06/2005 21:42:48 Temperature (deg):  TT7 = 33 (1729) Case = 27 (1949)  % Humidity: 8 (844)
10/06/2005 21:42:49 SHUTTING DOWN SYSTEM
10/06/2005 21:42:49 SHUTDOWN:  MOSOFF
10/06/2005 21:42:54 SHUTDOWN:  CHRGBATT
10/06/2005 21:43:10 LOWER BATTERY VOLTAGES (1 to 4) =  12.735 12.955 12.882 13.431
10/06/2005 21:43:11 CHRGBATT:  CHARGING LOWER BATTERY #1 = 12.735 VOLTS
10/06/2005 21:43:16 CHRGBATT:  UPPER BATTERY = 12.546 VOLTS
10/06/2005 21:43:17 SHUTDOWN:  TT5OFF
10/06/2005 21:43:18 SHUTDOWN:  GPSOFF
10/06/2005 21:43:19 SHUTDOWN:  APWR-OFF
10/06/2005 21:43:20 SHUTDOWN:  MODEMOFF
10/06/2005 21:43:21 END SHUTDOWN
10/06/2005 22:15:06 Temperature (deg):  TT7 = 27 (1952) Case = 27 (1977)  % Humidity: 9 (881)
10/06/2005 22:15:07 MOBY STARTED
10/06/2005 22:15:34 LOWER BATTERY VOLTAGES (1 to 4) =  13.565 12.991 12.882 12.662
10/06/2005 22:15:35 MOBY:  UPPER BATTERY = 12.784 VOLTS
10/06/2005 22:15:52 SELECTBATT:  LOWER BATTERY SELECTED # 1 = 13.529 VOLTS
10/06/2005 23:00:11 MOSLOOP:  ALARM INTERRUPT DETECTED
10/06/2005 23:07:08 MOBY STOPPED
10/06/2005 23:07:09 Temperature (deg):  TT7 = 34 (1680) Case = 28 (1921)  % Humidity: 7 (840)
10/06/2005 23:07:10 SHUTTING DOWN SYSTEM
10/06/2005 23:07:11 SHUTDOWN:  MOSOFF
10/06/2005 23:07:13 SHUTDOWN:  CHRGBATT
10/06/2005 23:07:29 LOWER BATTERY VOLTAGES (1 to 4) =  12.515 12.967 12.918 12.418
10/06/2005 23:07:30 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.418 VOLTS
10/06/2005 23:07:36 CHRGBATT:  UPPER BATTERY = 12.540 VOLTS
10/06/2005 23:07:37 SHUTDOWN:  TT5OFF
10/06/2005 23:07:38 SHUTDOWN:  GPSOFF
10/06/2005 23:07:39 SHUTDOWN:  APWR-OFF
10/06/2005 23:07:40 SHUTDOWN:  MODEMOFF
10/06/2005 23:07:41 END SHUTDOWN
10/06/2005 23:45:06 Temperature (deg):  TT7 = 27 (1955) Case = 27 (1982)  % Humidity: 9 (885)
10/06/2005 23:45:07 MOBY STARTED
10/06/2005 23:45:34 LOWER BATTERY VOLTAGES (1 to 4) =  12.723 12.991 12.869 13.480
10/06/2005 23:45:35 MOBY:  UPPER BATTERY = 12.723 VOLTS
10/06/2005 23:45:53 SELECTBATT:  LOWER BATTERY SELECTED # 4 = 13.175 VOLTS
11/06/2005 00:40:06 MOBY STOPPED
11/06/2005 00:40:07 Temperature (deg):  TT7 = 34 (1683) Case = 28 (1923)  % Humidity: 7 (841)
11/06/2005 00:40:08 SHUTTING DOWN SYSTEM
11/06/2005 00:40:09 SHUTDOWN:  MOSOFF
11/06/2005 00:40:11 SHUTDOWN:  CHRGBATT
11/06/2005 00:40:27 LOWER BATTERY VOLTAGES (1 to 4) =  12.723 12.930 12.882 12.234
11/06/2005 00:40:28 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.234 VOLTS
11/06/2005 00:40:34 CHRGBATT:  UPPER BATTERY = 12.534 VOLTS
11/06/2005 00:40:34 SHUTDOWN:  TT5OFF
11/06/2005 00:40:36 SHUTDOWN:  GPSOFF
11/06/2005 00:40:37 SHUTDOWN:  APWR-OFF
11/06/2005 00:40:38 SHUTDOWN:  MODEMOFF
11/06/2005 00:40:38 END SHUTDOWN
11/06/2005 02:00:06 Temperature (deg):  TT7 = 26 (2002) Case = 26 (2011)  % Humidity: 9 (891)
11/06/2005 02:00:07 MODEM STARTED
11/06/2005 02:00:07 WAKEMODEM:  UPPER BATTERY = 12.668 VOLTS
11/06/2005 02:10:22 MODEM STOPPED
11/06/2005 02:10:23 Temperature (deg):  TT7 = 30 (1851) Case = 26 (1994)  % Humidity: 8 (868)
11/06/2005 02:10:23 SHUTTING DOWN SYSTEM
11/06/2005 02:10:24 SHUTDOWN:  MOSOFF
11/06/2005 02:10:28 SHUTDOWN:  CHRGBATT
11/06/2005 02:10:33 CHRGBATT:  CHARGING UPPER BATTERY
11/06/2005 02:10:34 CHRGBATT:  UPPER BATTERY = 12.430 VOLTS
11/06/2005 02:10:34 SHUTDOWN:  TT5OFF
11/06/2005 02:10:35 SHUTDOWN:  GPSOFF
11/06/2005 02:10:36 SHUTDOWN:  APWR-OFF
11/06/2005 02:10:37 SHUTDOWN:  MODEMOFF
11/06/2005 02:10:38 END SHUTDOWN
11/06/2005 03:00:06 Temperature (deg):  TT7 = 26 (1999) Case = 26 (2011)  % Humidity: 9 (892)
11/06/2005 03:00:20 VAX STARTED
11/06/2005 03:00:21 WAKEVAX:  UPPER BATTERY = 13.632 VOLTS
11/06/2005 03:00:22 DIALING VAX: xxxxxxxxxxxxxxx

QCHK FILE

% 05061023.mob Quality Check ASCII file: created on 13-Jun-2005 by   MKQCHK_
OPTION1: VRmarkBAD = 34; DSCSmarkBAD = 'NEAR SFC'; FHDSmarkBAD = '';  OPTDATESTR ='13-Jun-2005 18:24:07';
OPTION14: VRpixFILL = 53; ERpixFILL = [879  880  881];  OPTDATESTR ='13-Jun-2005 18:27:47';
OPTION14: VRpixFILL = 9; ERpixFILL = [228  229  230];  OPTDATESTR ='13-Jun-2005 18:28:07';
OPTION5: MOBYFNMS = '05061023.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1; QCHKCODE = 2064;  OPTDATESTR ='13-Jun-2005 18:28:58';
OPTION11: MOBYFNMS = '05061023.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1;   OPTDATESTR ='13-Jun-2005 18:29:02';
OPTION2: VRpixRMD = 30; ERpixRMD = [789  788  787]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION2: VRpixRMD = 33; ERpixRMD = [902  901  900]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION2: VRpixRMD = 35; ERpixRMD = [927  926  925]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION2: VRpixRMD = 31; ERpixRMD = [933  932  931]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION2: VRpixRMD = 22; ERpixRMD = [857  858  859  947  948  949]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION2: VRpixRMD = 43; ERpixRMD = [524  523  522]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION2: VRpixRMD = 46; ERpixRMD = [662  661  660]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION2: VRpixRMD = 42; ERpixRMD = [544  545  546  827  828  829]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION14: VRpixFILL = 30; ERpixFILL = [700  701  702]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION14: VRpixFILL = 17; ERpixFILL = [562]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION14: VRpixFILL = 22; ERpixFILL = [616  617  618]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION14: VRpixFILL = 17; ERpixFILL = [814]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION14: VRpixFILL = 43; ERpixFILL = [947  948  949  950  951  952]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION14: VRpixFILL = 42; ERpixFILL = [952  953  954]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION14: VRpixFILL = 80; ERpixFILL = [740  741  742]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
OPTION14: VRpixFILL = 77; ERpixFILL = [871  872  873]; OPTDATESTR ='11-Oct-2016 21:22:00'; % RSG384FIX_
% RSG384FIX_ run on 11-Oct-2016 21:22:00
OPTION13: MOBYFNMS = '05061023.mob'; CONfile = 'mby23001';  OPTDATESTR ='10-Nov-2017 16:34:53';
