MOBY243 - SUN 17-MAY-2009 (137)

SUN 17-MAY-2009 (137) - 20 Good Day

DATE: 17-May-2009 START TIME: 20:32 STOP TIME: 21:00 POSITION: 20° 48.62' N 157° 11.53' W

Quality Checking | Engineering Info | Forth Log

Table of Quality Checking Information

FILE:                                    Complete

PROCESSING:                              Good Day

CONFIGURATION:                           mby24301

RAW SCANS MARKED BAD:                    VR = 5; DscS = 'TOO LOW'; FhdS = '';
                                         VR = 4; DscS = 'TOO LOW'; FhdS = ''
                                         VR = 3; DscS = 'TOO LOW'; FhdS = ''

RAW SCANS W/ PIXELS REMOVED:             VR = 56; Pixels = [914  913  912];
                                         VR = 91; Pixels = [179  178  177];
                                         VR = 19; Pixels = [779  778  777];
                                         VR = 22; Pixels = [896  895  894];
                                         VR = 24; Pixels = [550  551  552  970  971  972];
                                         VR = 20; Pixels = [1008  1007  1006];
                                         VR = 10; Pixels = [769  770  771  889  890  891];
                                         VR = 8; Pixels = [923  922  921];
                                         VR = 12; Pixels = [818  819  820  943  944  945];
                                         VR = 7; Pixels = [822  823  824  964  965  966];
                                         VR = 11; Pixels = [695   696   697  1011  1012  1013];
                                         VR = 35; Pixels = [713  712  711];
                                         VR = 36; Pixels = [693  694  695  696  731  732  733  734  735];
                                         VR = 31; Pixels = [489  490  491  801  802  803];
                                         VR = 37; Pixels = [987  986  985];
                                         VR = 44; Pixels = [826  827  828  832  833  834];
                                         VR = 79; Pixels = [618  617  616];
                                         VR = 84; Pixels = [971  970  969];
                                         VR = 95; Pixels = [731  730  729];
                                         VR = 92; Pixels = [890  891  892  893  894  895  896];

RAW SCANS W/ PIXELS FILLED:              VR = 10; Pixels = [932  933  934];
                                         VR = 36; Pixels = [694  695  696];

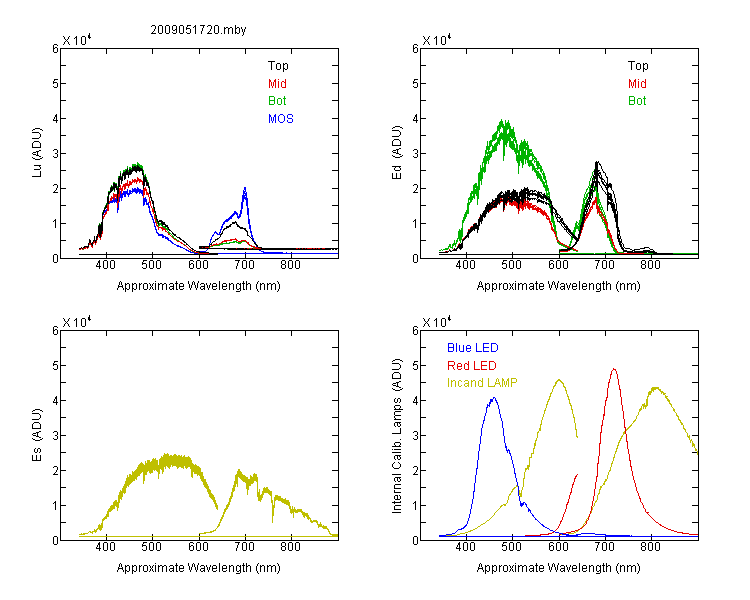

Table of Engineering Information

                 |           LITE                      |           DARK                       |
                 |            Int       Bin    Maximum |            Int       Bin     Maximum |     MUX    No.    No.
    MOBY         |           Time    Factor     Counts |           Time    Factor      Counts |     Pos   Lite   Dark
    File  Source |          (B/R)     (B/R)      (B/R) |          (B/R)     (B/R)       (B/R) |
-------------------------------------------------------------------------------------------------------------
09051720 LuTop   |  30.000/30.000   12/384  26261/10544 |  30.000/30.000   12/384    996/2850   |     8      5      2
09051720 LuMid   |  30.000/30.000   12/384  22636/5491  |  30.000/30.000   12/384    988/2918   |     9      5      2
09051720 LuBot   |  30.000/30.000   12/384  26783/4806  |  30.000/30.000   12/384    993/2917   |     1      5      2
09051720 LuMOS   |   5.000/5.000     1/384  20022/17973 |   5.000/5.000     1/384    911/1354   |    11      5      2
09051720 EdTop   |   1.000/1.000    24/64   18980/25288 |   1.000/1.000    24/64     916/1044   |     7      5      2
09051720 EdMid   |   1.500/1.500    16/128  16421/16923 |   1.500/1.500    16/128    916/1063   |     2      5      2
09051720 EdBot   |   2.000/2.000    24/384  38528/23408 |   2.000/2.000    24/384    929/1172   |    10      5      2
09051720 EsSfc   |   0.750/0.750    32/32   22095/18267 |   0.750/0.750    32/32     926/1036   |     5      3      2
09051720 Blue LED|   1.000/1.000    64/384  40801/1943  |   1.000/1.000    64/384    930/1114   |    12      3      2
09051720 Red LED |   1.000/1.000   384/64   18742/48896 |   1.000/1.000   384/64    1032/1044   |    13      3      2
09051720 Lamp    |   1.000/1.000    64/8    45623/43577 |   1.000/1.000    64/8      928/1034   |    15      3      2
                 |        (sec)   (pixel)      (AD U) |        (sec)   (pixel)        (ADU) |

FORTH LOG FILE

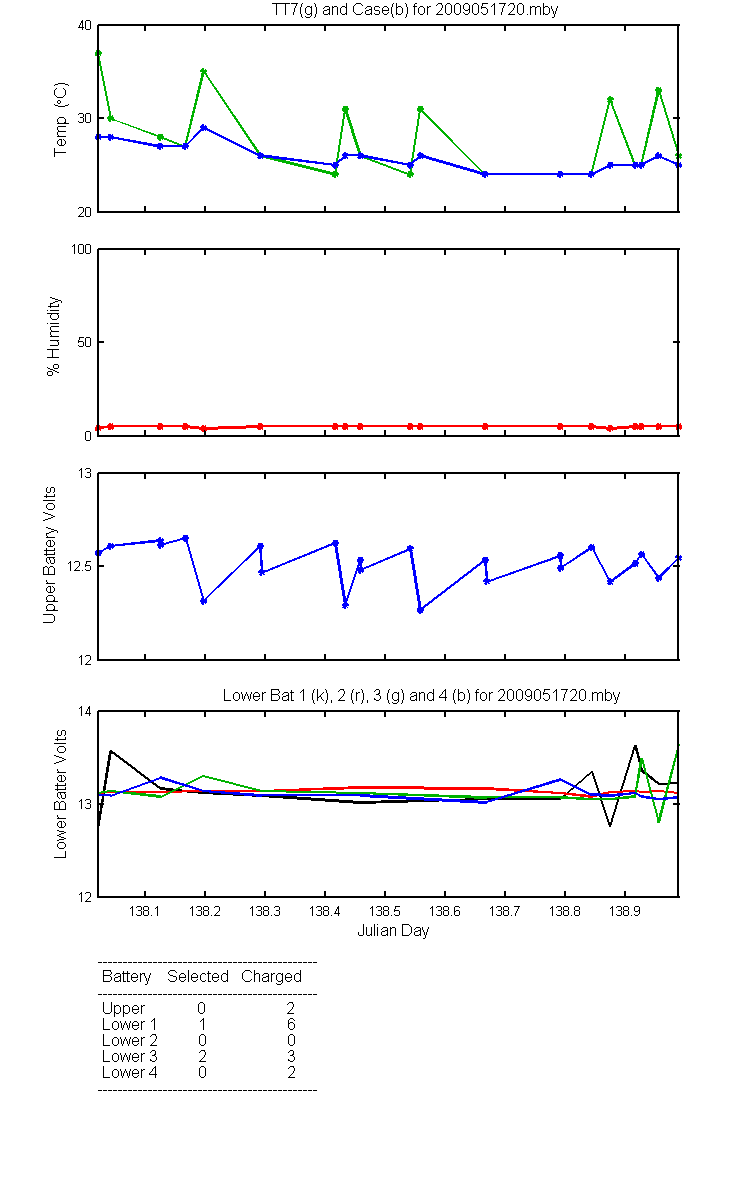

The battery selcted for 2009051720.mby is #4 at 13.248 volts

17/05/2009 16:21:34 USER LOGGED OFF
17/05/2009 16:25:28 MODEM STOPPED
17/05/2009 16:25:29 Temperature (deg):  TT7 = 33 (1750) Case = 27 (1969)  % Humidity: 5 (768)
17/05/2009 16:25:30 SHUTTING DOWN SYSTEM
17/05/2009 16:25:30 SHUTDOWN:  MOSOFF
17/05/2009 16:25:34 SHUTDOWN:  CHRGBATT
17/05/2009 16:25:51 LOWER BATTERY VOLTAGES (1 to 4) =  13.089 13.126 13.028 13.455
17/05/2009 16:25:52 CHRGBATT:  CHARGING LOWER BATTERY #3 = 13.028 VOLTS
17/05/2009 16:25:57 CHRGBATT:  UPPER BATTERY = 12.424 VOLTS
17/05/2009 16:25:57 SHUTDOWN:  TT5OFF
17/05/2009 16:25:58 SHUTDOWN:  GPSOFF
17/05/2009 16:25:59 SHUTDOWN:  APWR-OFF
17/05/2009 16:26:00 SHUTDOWN:  MODEMOFF
17/05/2009 16:26:01 END SHUTDOWN
17/05/2009 19:00:06 Temperature (deg):  TT7 = 27 (1954) Case = 27 (1986)  % Humidity: 5 (784)
17/05/2009 19:00:06 GPS STARTED
17/05/2009 19:00:07 WAKEGPS:  UPPER BATTERY = 12.686 VOLTS
17/05/2009 19:00:50 GPS at 19:00:58, DelTime 7.96, Lat 20:48.5625' N, Lon 157:11.4742' W
17/05/2009 19:00:51 $GPGGA,190058,2048.5625,N,15711.4742,W,1,00,1.2,12.1,M,04.0,M,00,0000*6C
17/05/2009 19:00:51 GPS STOPPED
17/05/2009 19:00:52 Temperature (deg):  TT7 = 28 (1945) Case = 27 (1986)  % Humidity: 5 (784)
17/05/2009 19:00:53 SHUTTING DOWN SYSTEM
17/05/2009 19:00:54 SHUTDOWN:  MOSOFF
17/05/2009 19:00:58 SHUTDOWN:  CHRGBATT
17/05/2009 19:01:14 LOWER BATTERY VOLTAGES (1 to 4) =  13.089 13.150 13.407 13.028
17/05/2009 19:01:15 CHRGBATT:  CHARGING LOWER BATTERY #4 = 13.028 VOLTS
17/05/2009 19:01:20 CHRGBATT:  UPPER BATTERY = 12.650 VOLTS
17/05/2009 19:01:21 SHUTDOWN:  TT5OFF
17/05/2009 19:01:22 SHUTDOWN:  GPSOFF
17/05/2009 19:01:23 SHUTDOWN:  APWR-OFF
17/05/2009 19:01:24 SHUTDOWN:  MODEMOFF
17/05/2009 19:01:25 END SHUTDOWN
17/05/2009 20:15:06 Temperature (deg):  TT7 = 28 (1933) Case = 27 (1969)  % Humidity: 5 (785)
17/05/2009 20:15:07 MOBY STARTED
17/05/2009 20:15:34 LOWER BATTERY VOLTAGES (1 to 4) =  13.053 13.114 13.175 13.248
17/05/2009 20:15:34 MOBY:  UPPER BATTERY = 12.741 VOLTS
17/05/2009 20:15:52 SELECTBATT:  LOWER BATTERY SELECTED # 4 = 13.248 VOLTS
17/05/2009 21:00:54 MOBY STOPPED
17/05/2009 21:00:55 Temperature (deg):  TT7 = 37 (1593) Case = 28 (1938)  % Humidity: 4 (763)
17/05/2009 21:00:55 SHUTTING DOWN SYSTEM
17/05/2009 21:00:56 SHUTDOWN:  MOSOFF
17/05/2009 21:00:58 SHUTDOWN:  CHRGBATT
17/05/2009 21:01:14 LOWER BATTERY VOLTAGES (1 to 4) =  13.077 13.101 13.138 12.735
17/05/2009 21:01:15 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.735 VOLTS
17/05/2009 21:01:20 CHRGBATT:  UPPER BATTERY = 12.613 VOLTS
17/05/2009 21:01:21 SHUTDOWN:  TT5OFF
17/05/2009 21:01:22 SHUTDOWN:  GPSOFF
17/05/2009 21:01:23 SHUTDOWN:  APWR-OFF
17/05/2009 21:01:24 SHUTDOWN:  MODEMOFF
17/05/2009 21:01:25 END SHUTDOWN
17/05/2009 22:00:06 Temperature (deg):  TT7 = 29 (1868) Case = 28 (1925)  % Humidity: 5 (782)
17/05/2009 22:00:07 SHUTTING DOWN SYSTEM
17/05/2009 22:00:07 SHUTDOWN:  MOSOFF
17/05/2009 22:00:11 SHUTDOWN:  CHRGBATT
17/05/2009 22:00:28 LOWER BATTERY VOLTAGES (1 to 4) =  13.089 13.114 13.175 13.553
17/05/2009 22:00:29 CHRGBATT:  CHARGING LOWER BATTERY #1 = 13.089 VOLTS
17/05/2009 22:00:34 CHRGBATT:  UPPER BATTERY = 12.643 VOLTS
17/05/2009 22:00:35 SHUTDOWN:  TT5OFF
17/05/2009 22:00:36 SHUTDOWN:  GPSOFF
17/05/2009 22:00:36 SHUTDOWN:  APWR-OFF
17/05/2009 22:00:37 SHUTDOWN:  MODEMOFF
17/05/2009 22:00:38 END SHUTDOWN
17/05/2009 22:15:06 Temperature (deg):  TT7 = 29 (1874) Case = 28 (1927)  % Humidity: 5 (782)
17/05/2009 22:15:07 MOBY STARTED
17/05/2009 22:15:34 LOWER BATTERY VOLTAGES (1 to 4) =  13.455 13.150 13.126 13.236
17/05/2009 22:15:35 MOBY:  UPPER BATTERY = 12.729 VOLTS
17/05/2009 22:15:51 SELECTBATT:  LOWER BATTERY SELECTED # 1 = 13.382 VOLTS
17/05/2009 22:56:22 MOBY STOPPED
17/05/2009 22:56:23 Temperature (deg):  TT7 = 37 (1588) Case = 28 (1912)  % Humidity: 4 (762)
17/05/2009 22:56:23 SHUTTING DOWN SYSTEM
17/05/2009 22:56:24 SHUTDOWN:  MOSOFF
17/05/2009 22:56:26 SHUTDOWN:  CHRGBATT
17/05/2009 22:56:42 LOWER BATTERY VOLTAGES (1 to 4) =  12.845 13.150 13.101 13.223
17/05/2009 22:56:43 CHRGBATT:  CHARGING LOWER BATTERY #1 = 12.845 VOLTS
17/05/2009 22:56:48 CHRGBATT:  UPPER BATTERY = 12.595 VOLTS
17/05/2009 22:56:49 SHUTDOWN:  TT5OFF
17/05/2009 22:56:50 SHUTDOWN:  GPSOFF
17/05/2009 22:56:51 SHUTDOWN:  APWR-OFF
17/05/2009 22:56:52 SHUTDOWN:  MODEMOFF
17/05/2009 22:56:53 END SHUTDOWN
17/05/2009 23:45:06 Temperature (deg):  TT7 = 29 (1871) Case = 28 (1923)  % Humidity: 5 (782)
17/05/2009 23:45:07 MOBY STARTED
17/05/2009 23:45:34 LOWER BATTERY VOLTAGES (1 to 4) =  13.578 13.187 13.089 13.126
17/05/2009 23:45:34 MOBY:  UPPER BATTERY = 12.698 VOLTS
17/05/2009 23:45:52 SELECTBATT:  LOWER BATTERY SELECTED # 1 = 13.541 VOLTS
18/05/2009 00:29:58 MOBY STOPPED
18/05/2009 00:29:59 Temperature (deg):  TT7 = 37 (1591) Case = 28 (1916)  % Humidity: 4 (762)
18/05/2009 00:29:59 SHUTTING DOWN SYSTEM
18/05/2009 00:30:00 SHUTDOWN:  MOSOFF
18/05/2009 00:30:02 SHUTDOWN:  CHRGBATT
18/05/2009 00:30:18 LOWER BATTERY VOLTAGES (1 to 4) =  12.735 13.114 13.114 13.089
18/05/2009 00:30:19 CHRGBATT:  CHARGING LOWER BATTERY #1 = 12.735 VOLTS
18/05/2009 00:30:24 CHRGBATT:  UPPER BATTERY = 12.570 VOLTS
18/05/2009 00:30:25 SHUTDOWN:  TT5OFF
18/05/2009 00:30:26 SHUTDOWN:  GPSOFF
18/05/2009 00:30:27 SHUTDOWN:  APWR-OFF
18/05/2009 00:30:28 SHUTDOWN:  MODEMOFF
18/05/2009 00:30:29 END SHUTDOWN
18/05/2009 01:00:06 Temperature (deg):  TT7 = 30 (1829) Case = 28 (1917)  % Humidity: 5 (779)
18/05/2009 01:00:07 SHUTTING DOWN SYSTEM
18/05/2009 01:00:07 SHUTDOWN:  MOSOFF
18/05/2009 01:00:11 SHUTDOWN:  CHRGBATT
18/05/2009 01:00:28 LOWER BATTERY VOLTAGES (1 to 4) =  13.565 13.126 13.138 13.089
18/05/2009 01:00:29 CHRGBATT:  CHARGING LOWER BATTERY #4 = 13.089 VOLTS
18/05/2009 01:00:34 CHRGBATT:  UPPER BATTERY = 12.607 VOLTS
18/05/2009 01:00:34 SHUTDOWN:  TT5OFF
18/05/2009 01:00:36 SHUTDOWN:  GPSOFF
18/05/2009 01:00:36 SHUTDOWN:  APWR-OFF
18/05/2009 01:00:37 SHUTDOWN:  MODEMOFF
18/05/2009 01:00:38 END SHUTDOWN
18/05/2009 03:00:06 Temperature (deg):  TT7 = 28 (1940) Case = 27 (1957)  % Humidity: 5 (783)
18/05/2009 03:00:07 GPS STARTED
18/05/2009 03:00:07 WAKEGPS:  UPPER BATTERY = 12.637 VOLTS
18/05/2009 03:00:20 GPS at 3:00:28, DelTime 7.84, Lat 20:48.7321' N, Lon 157:11.1709' W
18/05/2009 03:00:21 $GPGGA,030028,2048.7321,N,15711.1709,W,1,03,15.7,14.2,M,04.0,M,00,0000*5F
18/05/2009 03:00:22 GPS STOPPED
18/05/2009 03:00:22 Temperature (deg):  TT7 = 28 (1936) Case = 27 (1957)  % Humidity: 5 (783)
18/05/2009 03:00:23 SHUTTING DOWN SYSTEM
18/05/2009 03:00:24 SHUTDOWN:  MOSOFF
18/05/2009 03:00:28 SHUTDOWN:  CHRGBATT
18/05/2009 03:00:44 LOWER BATTERY VOLTAGES (1 to 4) =  13.162 13.126 13.077 13.284
18/05/2009 03:00:45 CHRGBATT:  CHARGING LOWER BATTERY #3 = 13.077 VOLTS
18/05/2009 03:00:50 CHRGBATT:  UPPER BATTERY = 12.613 VOLTS
18/05/2009 03:00:51 SHUTDOWN:  TT5OFF
18/05/2009 03:00:52 SHUTDOWN:  GPSOFF
18/05/2009 03:00:53 SHUTDOWN:  APWR-OFF
18/05/2009 03:00:54 SHUTDOWN:  MODEMOFF
18/05/2009 03:00:55 END SHUTDOWN
18/05/2009 04:00:06 Temperature (deg):  TT7 = 27 (1961) Case = 27 (1974)  % Humidity: 5 (783)
18/05/2009 04:00:06 MODEM STARTED
18/05/2009 04:00:07 WAKEMODEM:  UPPER BATTERY = 12.650 VOLTS
18/05/2009 04:02:16 USER LOGGED ON

QCHK FILE

% 09051720.mob Quality Check ASCII file: created on 18-May-2009 by   MKQCHK_
OPTION2: VRpixRMD = 56; ERpixRMD = [914  913  912];  OPTDATESTR ='18-May-2009 11:58:04';
OPTION2: VRpixRMD = 91; ERpixRMD = [179  178  177];  OPTDATESTR ='18-May-2009 11:58:26';
OPTION1: VRmarkBAD = 5; DSCSmarkBAD = 'TOO LOW'; FHDSmarkBAD = '';  OPTDATESTR ='18-May-2009 11:59:02';
OPTION1: VRmarkBAD = 4; DSCSmarkBAD = 'TOO LOW'; FHDSmarkBAD = '';  OPTDATESTR ='18-May-2009 11:59:02';
OPTION1: VRmarkBAD = 3; DSCSmarkBAD = 'TOO LOW'; FHDSmarkBAD = '';  OPTDATESTR ='18-May-2009 11:59:02';
OPTION5: MOBYFNMS = '09051720.mob'; QCHKFLAG = 1; QCHKWHAT = 1; QCHKWHO = 1;   OPTDATESTR ='18-May-2009 12:00:07';
OPTION11: MOBYFNMS = '09051720.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1; QCHKCODE = 0;  OPTDATESTR ='18-May-2009 12:00:08';
OPTION2: VRpixRMD = 19; ERpixRMD = [779  778  777]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 22; ERpixRMD = [896  895  894]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 24; ERpixRMD = [550  551  552  970  971  972]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 20; ERpixRMD = [1008  1007  1006]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 10; ERpixRMD = [769  770  771  889  890  891]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 8; ERpixRMD = [923  922  921]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 12; ERpixRMD = [818  819  820  943  944  945]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 7; ERpixRMD = [822  823  824  964  965  966]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 11; ERpixRMD = [695   696   697  1011  1012  1013]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 35; ERpixRMD = [713  712  711]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 36; ERpixRMD = [693  694  695  696  731  732  733  734  735]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 31; ERpixRMD = [489  490  491  801  802  803]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 37; ERpixRMD = [987  986  985]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 44; ERpixRMD = [826  827  828  832  833  834]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 79; ERpixRMD = [618  617  616]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 84; ERpixRMD = [971  970  969]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 95; ERpixRMD = [731  730  729]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION2: VRpixRMD = 92; ERpixRMD = [890  891  892  893  894  895  896]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION14: VRpixFILL = 10; ERpixFILL = [932  933  934]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
OPTION14: VRpixFILL = 36; ERpixFILL = [694  695  696]; OPTDATESTR ='11-Oct-2016 21:24:36'; % RSG384FIX_
% RSG384FIX_ run on 11-Oct-2016 21:24:36
OPTION13: MOBYFNMS = '09051720.mob'; CONfile = 'mby24301';  OPTDATESTR ='12-Nov-2017 13:02:46';

Stephanie Flora - Moss Landing Marine Laboratories
