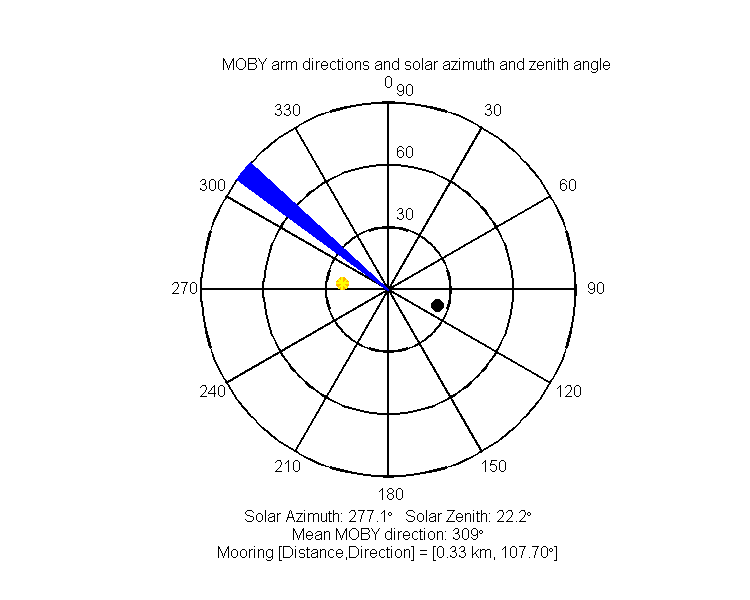

SAT 30-MAY-2009 (150) - 23      Bad Day - Tilt greater than 5 degrees

DATE: 31-May-2009     START TIME: 00:02     STOP TIME: 00:30     POSITION: 20° 49.5' N 157° 11.9' W
Quality Checking | Engineering Info | Forth Log

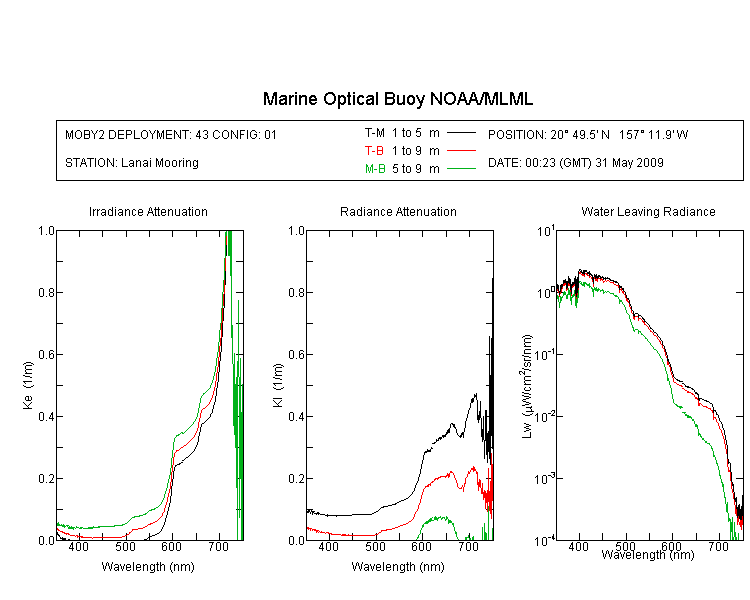

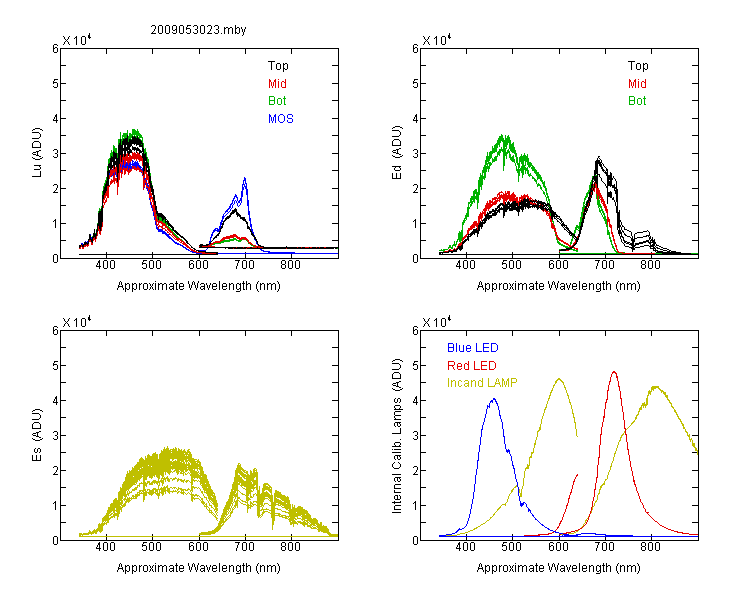

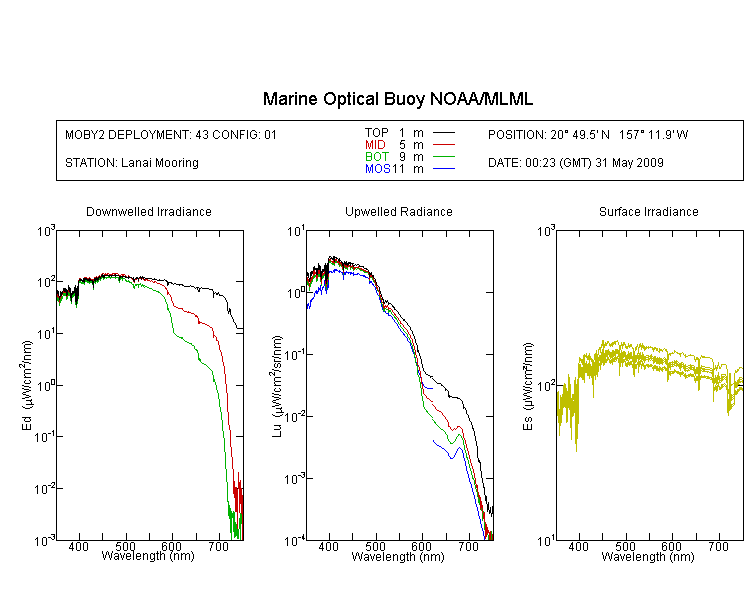

2009053023_01.png 2009053023_02.png 2009053023_03.png 2009053023_04.png 2009053023_05.png 2009053023_06.png 2009053023_07.png
Table of Quality Checking Information
FILE:                                    Complete

PROCESSING:                              Bad

CONFIGURATION:                           mby24301

RAW SCANS W/ PIXELS REMOVED:             VR = 18; Pixels = [714  713  712];
                                         VR = 25; Pixels = [569  570  571  700  701  702  826  827  828];
                                         VR = 20; Pixels = [830  829  828];
                                         VR = 23; Pixels = [954  953  952];
                                         VR = 22; Pixels = [977  976  975];
                                         VR = 10; Pixels = [531  530  529];
                                         VR = 9; Pixels = [538   539   540   545   546   547  1021  1022  1023];
                                         VR = 34; Pixels = [773  772  771];
                                         VR = 31; Pixels = [828  827  826];
                                         VR = 37; Pixels = [921  920  919];
                                         VR = 32; Pixels = [978  977  976];
                                         VR = 95; Pixels = [1008  1007  1006];

RAW SCANS W/ PIXELS FILLED:              VR = 21; Pixels = [564  565  566];
                                         VR = 22; Pixels = [666  667  668];
                                         VR = 23; Pixels = [882  883  884];
                                         VR = 9; Pixels = [638  639  640];
                                         VR = 10; Pixels = [658  659  660];
                                         VR = 11; Pixels = [675  676  677];
                                         VR = 13; Pixels = [713  714  715];
                                         VR = 8; Pixels = [748  749  750];
                                         VR = 7; Pixels = [869  870  871];
                                         VR = 8; Pixels = [932  933  934];
                                         VR = 34; Pixels = [771  772  773];
Table of Engineering Information
                 |           LITE                      |           DARK                       |
                 |            Int       Bin    Maximum |            Int       Bin     Maximum |     MUX    No.    No.
    MOBY         |           Time    Factor     Counts |           Time    Factor      Counts |     Pos   Lite   Dark
    File  Source |          (B/R)     (B/R)      (B/R) |          (B/R)     (B/R)       (B/R) |
-------------------------------------------------------------------------------------------------------------
09053023 LuTop   |  30.000/30.000   12/384  33819/13595 |  30.000/30.000   12/384   1007/3205   |     8      5      2
09053023 LuMid   |  30.000/30.000   12/384  26220/6171  |  30.000/30.000   12/384   1020/3450   |     9      5      2
09053023 LuBot   |  30.000/30.000   12/384  35068/5559  |  30.000/30.000   12/384   1003/3169   |     1      5      2
09053023 LuMOS   |   5.000/5.000     1/384  28416/22881 |   5.000/5.000     1/384    911/1394   |    11      5      2
09053023 EdTop   |   1.000/1.000    24/64   15267/23878 |   1.000/1.000    24/64     917/1042   |     7      5      2
09053023 EdMid   |   1.500/1.500    16/128  17465/20966 |   1.500/1.500    16/128    918/1067   |     2      5      2
09053023 EdBot   |   2.000/2.000    24/384  31483/21315 |   2.000/2.000    24/384    923/1187   |    10      5      2
09053023 EsSfc   |   0.750/0.750    32/32   26642/21866 |   0.750/0.750    32/32     926/1036   |     5      3      2
09053023 Blue LED|   1.000/1.000    64/384  40498/1948  |   1.000/1.000    64/384    932/1122   |    12      3      2
09053023 Red LED |   1.000/1.000   384/64   18625/48181 |   1.000/1.000   384/64    1064/1045   |    13      3      2
09053023 Lamp    |   1.000/1.000    64/8    45922/43818 |   1.000/1.000    64/8      933/1031   |    15      3      2
                 |        (sec)   (pixel)      (AD U) |        (sec)   (pixel)        (ADU) |
FORTH LOG FILE

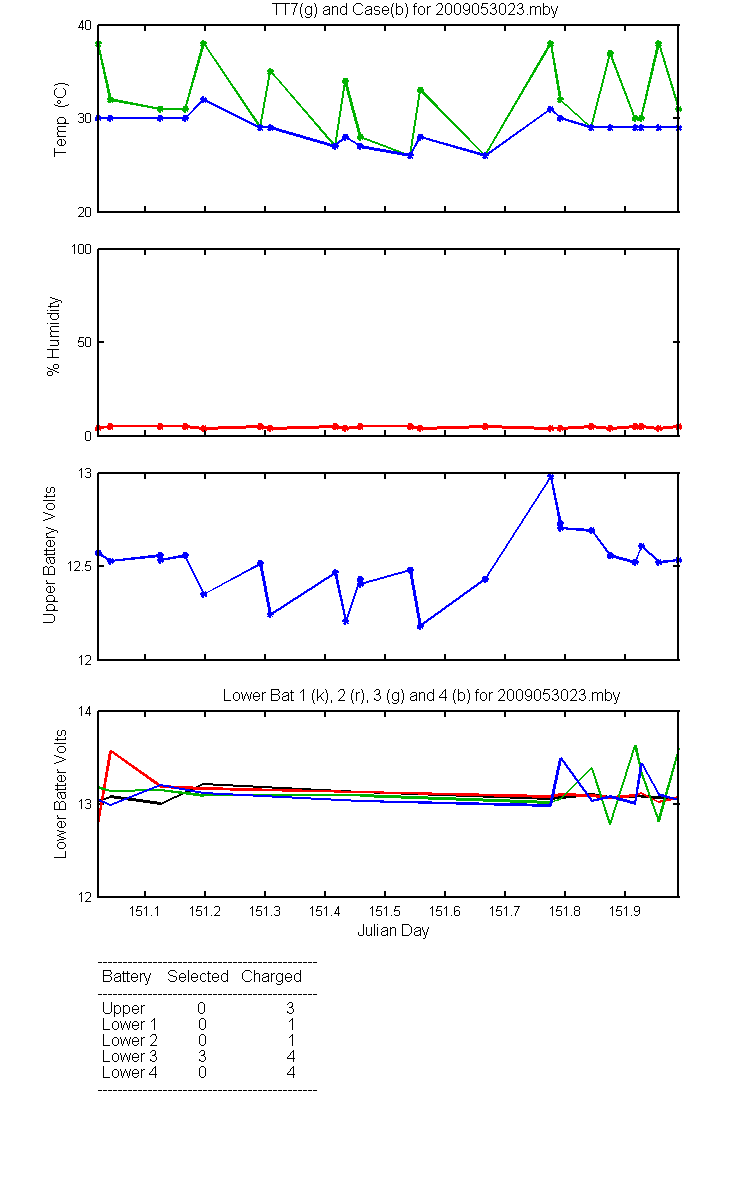

The battery selcted for 2009053023.mby is #2 at 13.712 volts

30/05/2009 16:20:24 USER LOGGED OFF
30/05/2009 16:24:15 MODEM STOPPED
30/05/2009 16:24:16 Temperature (deg):  TT7 = 33 (1739) Case = 27 (1952)  % Humidity: 4 (759)
30/05/2009 16:24:16 SHUTTING DOWN SYSTEM
30/05/2009 16:24:17 SHUTDOWN:  MOSOFF
30/05/2009 16:24:21 SHUTDOWN:  CHRGBATT
30/05/2009 16:24:38 LOWER BATTERY VOLTAGES (1 to 4) =  13.101 13.077 13.040 13.114
30/05/2009 16:24:38 CHRGBATT:  CHARGING LOWER BATTERY #3 = 13.040 VOLTS
30/05/2009 16:24:44 CHRGBATT:  UPPER BATTERY = 12.375 VOLTS
30/05/2009 16:24:44 SHUTDOWN:  TT5OFF
30/05/2009 16:24:45 SHUTDOWN:  GPSOFF
30/05/2009 16:24:46 SHUTDOWN:  APWR-OFF
30/05/2009 16:24:47 SHUTDOWN:  MODEMOFF
30/05/2009 16:24:48 END SHUTDOWN
30/05/2009 19:00:06 Temperature (deg):  TT7 = 27 (1969) Case = 27 (1975)  % Humidity: 5 (775)
30/05/2009 19:00:07 GPS STARTED
30/05/2009 19:00:07 WAKEGPS:  UPPER BATTERY = 12.619 VOLTS
30/05/2009 19:00:52 GPS at 19:01:05, DelTime 12.86, Lat 20:49.5269' N, Lon 157:11.8754' W
30/05/2009 19:00:53 $GPGGA,190105,2049.5269,N,15711.8754,W,1,00,1.3,08.9,M,04.1,M,00,0000*60
30/05/2009 19:00:54 GPS STOPPED
30/05/2009 19:00:54 Temperature (deg):  TT7 = 27 (1960) Case = 27 (1974)  % Humidity: 5 (776)
30/05/2009 19:00:55 SHUTTING DOWN SYSTEM
30/05/2009 19:00:56 SHUTDOWN:  MOSOFF
30/05/2009 19:01:00 SHUTDOWN:  CHRGBATT
30/05/2009 19:01:16 LOWER BATTERY VOLTAGES (1 to 4) =  13.114 13.040 13.382 12.991
30/05/2009 19:01:17 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.991 VOLTS
30/05/2009 19:01:22 CHRGBATT:  UPPER BATTERY = 12.595 VOLTS
30/05/2009 19:01:23 SHUTDOWN:  TT5OFF
30/05/2009 19:01:24 SHUTDOWN:  GPSOFF
30/05/2009 19:01:25 SHUTDOWN:  APWR-OFF
30/05/2009 19:01:26 SHUTDOWN:  MODEMOFF
30/05/2009 19:01:27 END SHUTDOWN
30/05/2009 20:15:06 Temperature (deg):  TT7 = 27 (1957) Case = 27 (1964)  % Humidity: 5 (775)
30/05/2009 20:15:07 MOBY STARTED
30/05/2009 20:15:34 LOWER BATTERY VOLTAGES (1 to 4) =  13.053 13.065 13.199 13.211
30/05/2009 20:15:34 MOBY:  UPPER BATTERY = 12.668 VOLTS
30/05/2009 20:15:52 SELECTBATT:  LOWER BATTERY SELECTED # 3 = 13.248 VOLTS
30/05/2009 20:59:59 MOBY STOPPED
30/05/2009 21:00:00 Temperature (deg):  TT7 = 36 (1615) Case = 28 (1934)  % Humidity: 4 (757)
30/05/2009 21:00:00 SHUTTING DOWN SYSTEM
30/05/2009 21:00:01 SHUTDOWN:  MOSOFF
30/05/2009 21:00:03 SHUTDOWN:  CHRGBATT
30/05/2009 21:00:19 LOWER BATTERY VOLTAGES (1 to 4) =  13.053 13.040 12.845 13.150
30/05/2009 21:00:20 CHRGBATT:  CHARGING LOWER BATTERY #3 = 12.845 VOLTS
30/05/2009 21:00:25 CHRGBATT:  UPPER BATTERY = 12.546 VOLTS
30/05/2009 21:00:26 SHUTDOWN:  TT5OFF
30/05/2009 21:00:27 SHUTDOWN:  GPSOFF
30/05/2009 21:00:28 SHUTDOWN:  APWR-OFF
30/05/2009 21:00:29 SHUTDOWN:  MODEMOFF
30/05/2009 21:00:30 END SHUTDOWN
30/05/2009 22:00:06 Temperature (deg):  TT7 = 29 (1892) Case = 28 (1925)  % Humidity: 5 (774)
30/05/2009 22:00:07 SHUTTING DOWN SYSTEM
30/05/2009 22:00:07 SHUTDOWN:  MOSOFF
30/05/2009 22:00:11 SHUTDOWN:  CHRGBATT
30/05/2009 22:00:28 LOWER BATTERY VOLTAGES (1 to 4) =  13.077 13.053 13.541 13.089
30/05/2009 22:00:29 CHRGBATT:  CHARGING LOWER BATTERY #2 = 13.053 VOLTS
30/05/2009 22:00:34 CHRGBATT:  UPPER BATTERY = 12.582 VOLTS
30/05/2009 22:00:35 SHUTDOWN:  TT5OFF
30/05/2009 22:00:36 SHUTDOWN:  GPSOFF
30/05/2009 22:00:36 SHUTDOWN:  APWR-OFF
30/05/2009 22:00:37 SHUTDOWN:  MODEMOFF
30/05/2009 22:00:38 END SHUTDOWN
30/05/2009 22:15:06 Temperature (deg):  TT7 = 29 (1892) Case = 28 (1924)  % Humidity: 5 (774)
30/05/2009 22:15:07 MOBY STARTED
30/05/2009 22:15:34 LOWER BATTERY VOLTAGES (1 to 4) =  13.053 13.626 13.370 13.114
30/05/2009 22:15:35 MOBY:  UPPER BATTERY = 12.650 VOLTS
30/05/2009 22:15:51 SELECTBATT:  LOWER BATTERY SELECTED # 2 = 13.614 VOLTS
30/05/2009 22:56:23 MOBY STOPPED
30/05/2009 22:56:24 Temperature (deg):  TT7 = 37 (1579) Case = 29 (1901)  % Humidity: 4 (757)
30/05/2009 22:56:25 SHUTTING DOWN SYSTEM
30/05/2009 22:56:25 SHUTDOWN:  MOSOFF
30/05/2009 22:56:27 SHUTDOWN:  CHRGBATT
30/05/2009 22:56:43 LOWER BATTERY VOLTAGES (1 to 4) =  13.077 12.833 13.236 13.065
30/05/2009 22:56:44 CHRGBATT:  CHARGING LOWER BATTERY #2 = 12.833 VOLTS
30/05/2009 22:56:50 CHRGBATT:  UPPER BATTERY = 12.558 VOLTS
30/05/2009 22:56:50 SHUTDOWN:  TT5OFF
30/05/2009 22:56:51 SHUTDOWN:  GPSOFF
30/05/2009 22:56:52 SHUTDOWN:  APWR-OFF
30/05/2009 22:56:53 SHUTDOWN:  MODEMOFF
30/05/2009 22:56:54 END SHUTDOWN
30/05/2009 23:45:06 Temperature (deg):  TT7 = 30 (1842) Case = 29 (1891)  % Humidity: 5 (773)
30/05/2009 23:45:06 MOBY STARTED
30/05/2009 23:45:34 LOWER BATTERY VOLTAGES (1 to 4) =  13.028 13.785 13.138 13.016
30/05/2009 23:45:34 MOBY:  UPPER BATTERY = 12.625 VOLTS
30/05/2009 23:45:52 SELECTBATT:  LOWER BATTERY SELECTED # 2 = 13.712 VOLTS
31/05/2009 00:30:07 MOBY STOPPED
31/05/2009 00:30:08 Temperature (deg):  TT7 = 38 (1529) Case = 30 (1862)  % Humidity: 4 (757)
31/05/2009 00:30:08 SHUTTING DOWN SYSTEM
31/05/2009 00:30:09 SHUTDOWN:  MOSOFF
31/05/2009 00:30:11 SHUTDOWN:  CHRGBATT
31/05/2009 00:30:27 LOWER BATTERY VOLTAGES (1 to 4) =  13.028 12.784 13.175 13.040
31/05/2009 00:30:28 CHRGBATT:  CHARGING LOWER BATTERY #2 = 12.784 VOLTS
31/05/2009 00:30:33 CHRGBATT:  UPPER BATTERY = 12.570 VOLTS
31/05/2009 00:30:34 SHUTDOWN:  TT5OFF
31/05/2009 00:30:35 SHUTDOWN:  GPSOFF
31/05/2009 00:30:36 SHUTDOWN:  APWR-OFF
31/05/2009 00:30:37 SHUTDOWN:  MODEMOFF
31/05/2009 00:30:38 END SHUTDOWN
31/05/2009 01:00:06 Temperature (deg):  TT7 = 32 (1754) Case = 30 (1847)  % Humidity: 5 (771)
31/05/2009 01:00:07 SHUTTING DOWN SYSTEM
31/05/2009 01:00:07 SHUTDOWN:  MOSOFF
31/05/2009 01:00:11 SHUTDOWN:  CHRGBATT
31/05/2009 01:00:28 LOWER BATTERY VOLTAGES (1 to 4) =  13.077 13.565 13.138 12.991
31/05/2009 01:00:29 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.991 VOLTS
31/05/2009 01:00:34 CHRGBATT:  UPPER BATTERY = 12.527 VOLTS
31/05/2009 01:00:35 SHUTDOWN:  TT5OFF
31/05/2009 01:00:36 SHUTDOWN:  GPSOFF
31/05/2009 01:00:36 SHUTDOWN:  APWR-OFF
31/05/2009 01:00:37 SHUTDOWN:  MODEMOFF
31/05/2009 01:00:38 END SHUTDOWN
31/05/2009 03:00:06 Temperature (deg):  TT7 = 31 (1817) Case = 30 (1846)  % Humidity: 5 (776)
31/05/2009 03:00:07 GPS STARTED
31/05/2009 03:00:07 WAKEGPS:  UPPER BATTERY = 12.558 VOLTS
31/05/2009 03:00:22 GPS at 3:00:35, DelTime 12.84, Lat 20:49.5500' N, Lon 157:11.8462' W
31/05/2009 03:00:23 $GPGGA,030035,2049.5500,N,15711.8462,W,1,00,1.7,15.6,M,04.1,M,00,0000*60
31/05/2009 03:00:24 GPS STOPPED
31/05/2009 03:00:24 Temperature (deg):  TT7 = 31 (1813) Case = 30 (1846)  % Humidity: 5 (776)
31/05/2009 03:00:25 SHUTTING DOWN SYSTEM
31/05/2009 03:00:26 SHUTDOWN:  MOSOFF
31/05/2009 03:00:30 SHUTDOWN:  CHRGBATT
31/05/2009 03:00:46 LOWER BATTERY VOLTAGES (1 to 4) =  13.004 13.187 13.150 13.199
31/05/2009 03:00:47 CHRGBATT:  CHARGING LOWER BATTERY #1 = 13.004 VOLTS
31/05/2009 03:00:52 CHRGBATT:  UPPER BATTERY = 12.534 VOLTS
31/05/2009 03:00:53 SHUTDOWN:  TT5OFF
31/05/2009 03:00:54 SHUTDOWN:  GPSOFF
31/05/2009 03:00:55 SHUTDOWN:  APWR-OFF
31/05/2009 03:00:56 SHUTDOWN:  MODEMOFF
31/05/2009 03:00:57 END SHUTDOWN
31/05/2009 04:00:06 Temperature (deg):  TT7 = 31 (1822) Case = 30 (1853)  % Humidity: 5 (776)
31/05/2009 04:00:07 MODEM STARTED
31/05/2009 04:00:07 WAKEMODEM:  UPPER BATTERY = 12.558 VOLTS
31/05/2009 04:02:17 USER LOGGED ON
QCHK FILE
% 09053023.mob Quality Check ASCII file: created on 01-Jun-2009 by   MKQCHK_
OPTION2: VRpixRMD = 18; ERpixRMD = [714  713  712];  OPTDATESTR ='01-Jun-2009 11:17:19';
OPTION5: MOBYFNMS = '09053023.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1; QCHKCODE = 20504;  OPTDATESTR ='01-Jun-2009 12:50:13';
OPTION11: MOBYFNMS = '09053023.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1; QCHKCODE = 0;  OPTDATESTR ='01-Jun-2009 12:50:14';
OPTION2: VRpixRMD = 25; ERpixRMD = [569  570  571  700  701  702  826  827  828]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION2: VRpixRMD = 20; ERpixRMD = [830  829  828]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION2: VRpixRMD = 23; ERpixRMD = [954  953  952]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION2: VRpixRMD = 22; ERpixRMD = [977  976  975]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION2: VRpixRMD = 10; ERpixRMD = [531  530  529]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION2: VRpixRMD = 9; ERpixRMD = [538   539   540   545   546   547  1021  1022  1023]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION2: VRpixRMD = 34; ERpixRMD = [773  772  771]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION2: VRpixRMD = 31; ERpixRMD = [828  827  826]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION2: VRpixRMD = 37; ERpixRMD = [921  920  919]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION2: VRpixRMD = 32; ERpixRMD = [978  977  976]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION2: VRpixRMD = 95; ERpixRMD = [1008  1007  1006]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 21; ERpixFILL = [564  565  566]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 22; ERpixFILL = [666  667  668]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 23; ERpixFILL = [882  883  884]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 9; ERpixFILL = [638  639  640]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 10; ERpixFILL = [658  659  660]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 11; ERpixFILL = [675  676  677]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 13; ERpixFILL = [713  714  715]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 8; ERpixFILL = [748  749  750]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 7; ERpixFILL = [869  870  871]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 8; ERpixFILL = [932  933  934]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
OPTION14: VRpixFILL = 34; ERpixFILL = [771  772  773]; OPTDATESTR ='11-Oct-2016 21:24:43'; % RSG384FIX_
% RSG384FIX_ run on 11-Oct-2016 21:24:43
OPTION13: MOBYFNMS = '09053023.mob'; CONfile = 'mby24301';  OPTDATESTR ='12-Nov-2017 13:05:30';
