TUE 28-JUL-2009 (209) - 20      Bad Day - Cloudy

DATE: 28-Jul-2009     START TIME: 20:32     STOP TIME: 20:60     POSITION: 20° 49.51' N 157° 10.97' W
Quality Checking | Engineering Info | Forth Log

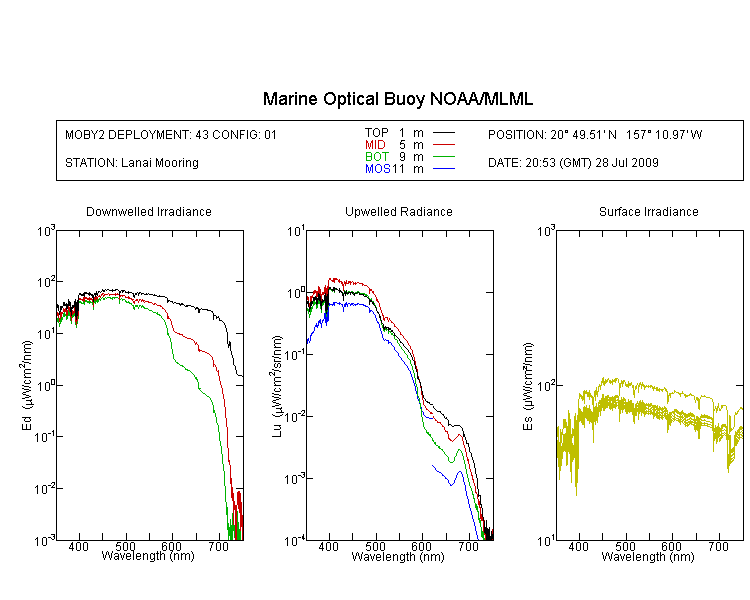

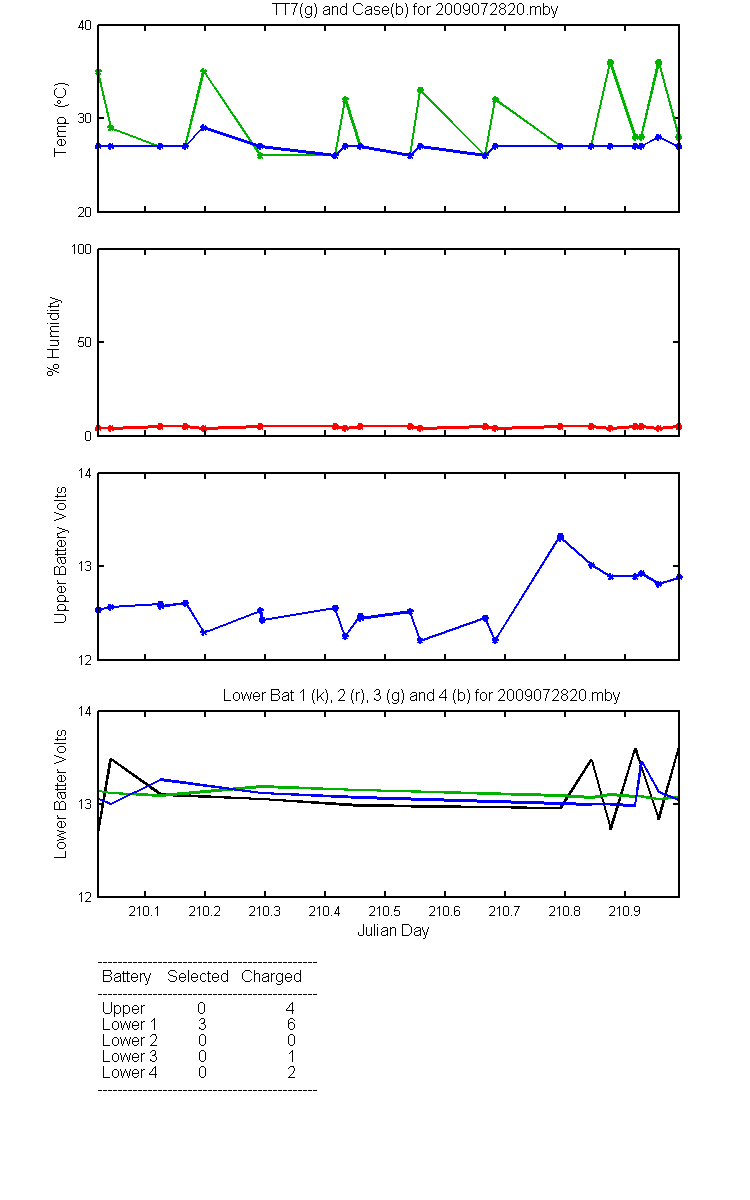

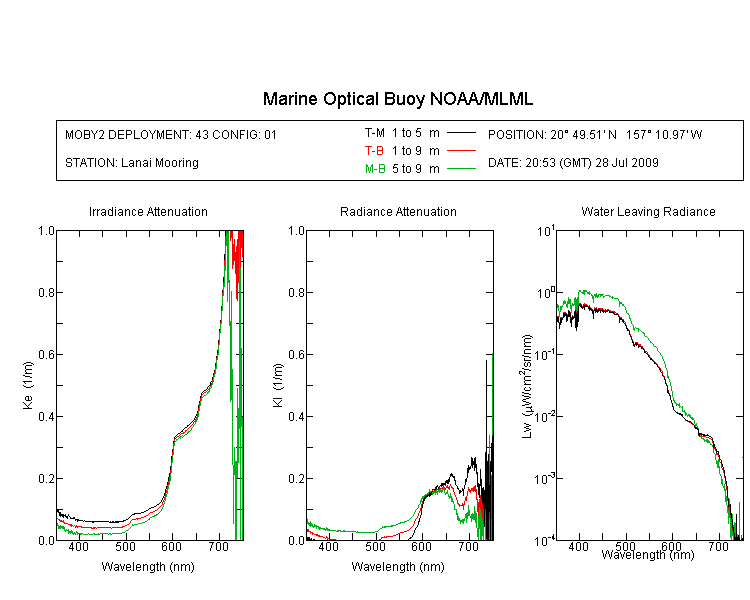

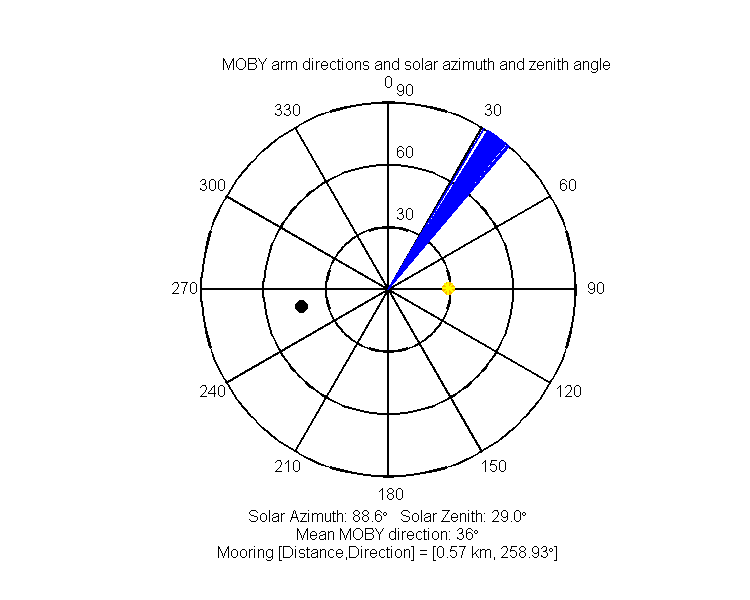

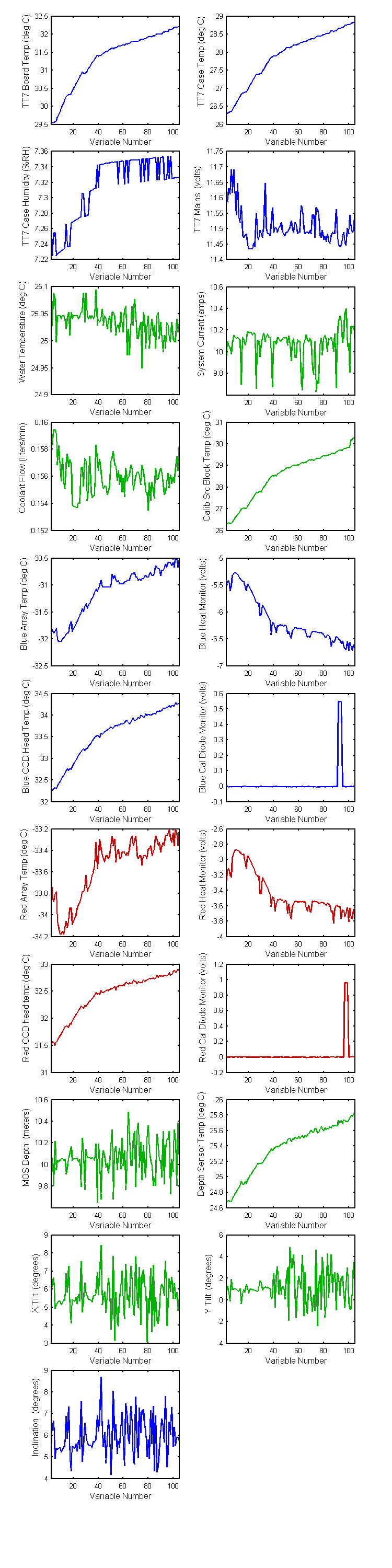

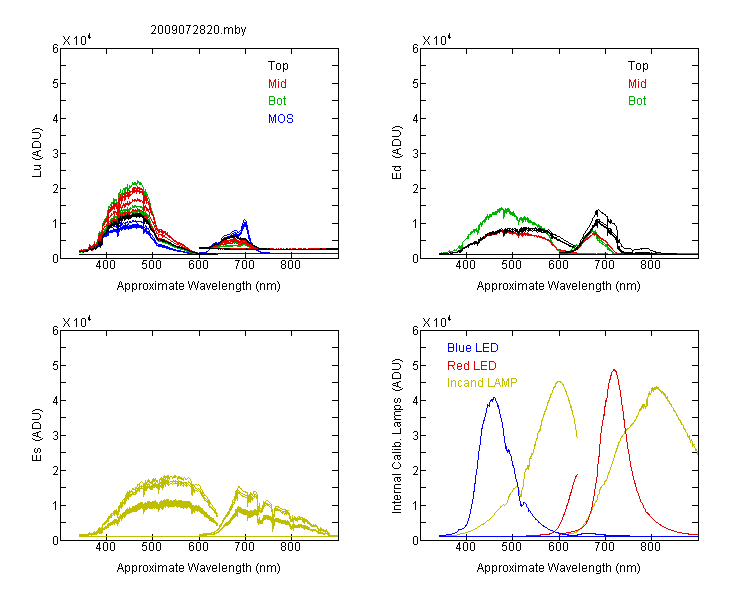

2009072820_01.png 2009072820_02.png 2009072820_03.png 2009072820_04.png 2009072820_05.png 2009072820_06.png
Table of Quality Checking Information
FILE:                                    Complete

PROCESSING:                              Bad

CONFIGURATION:                           mby24301

RAW SCANS W/ PIXELS REMOVED:             VR = 59; Pixels = [814  813  812];
                                         VR = 100; Pixels = [476  477  478  864  865  866];
                                         VR = 23; Pixels = [659  658  657];
                                         VR = 19; Pixels = [547  548  549  707  708  709];
                                         VR = 20; Pixels = [556  557  558  843  844  845];
                                         VR = 21; Pixels = [583  584  585  867  868  869];
                                         VR = 22; Pixels = [763  764  765  813  814  815  927  928  929];
                                         VR = 25; Pixels = [639   640   641   750   751   752   954   955   956  1004  1005  1006];
                                         VR = 24; Pixels = [1023  1022  1021];
                                         VR = 35; Pixels = [760  761  762  780  781  782];
                                         VR = 31; Pixels = [998  997  996];
                                         VR = 48; Pixels = [959  958  957];

RAW SCANS W/ PIXELS FILLED:              VR = 23; Pixels = [638  639  640];
                                         VR = 24; Pixels = [742  743  744];
                                         VR = 7; Pixels = [866  867  868];
                                         VR = 13; Pixels = [876  877  878];
                                         VR = 37; Pixels = [851  852  853];
                                         VR = 44; Pixels = [540  541  542];
                                         VR = 81; Pixels = [720  721  722];
Table of Engineering Information
                 |           LITE                      |           DARK                       |
                 |            Int       Bin    Maximum |            Int       Bin     Maximum |     MUX    No.    No.
    MOBY         |           Time    Factor     Counts |           Time    Factor      Counts |     Pos   Lite   Dark
    File  Source |          (B/R)     (B/R)      (B/R) |          (B/R)     (B/R)       (B/R) |
-------------------------------------------------------------------------------------------------------------
09072820 LuTop   |  30.000/30.000   12/384  12622/6384  |  30.000/30.000   12/384    980/2807   |     8      5      2
09072820 LuMid   |  30.000/30.000   12/384  20361/5534  |  30.000/30.000   12/384    983/2930   |     9      5      2
09072820 LuBot   |  30.000/30.000   12/384  15084/4046  |  30.000/30.000   12/384    980/2832   |     1      5      2
09072820 LuMOS   |   5.000/5.000     1/384   9439/9674  |   5.000/5.000     1/384    912/1342   |    11      5      2
09072820 EdTop   |   1.000/1.000    24/64    8721/10373 |   1.000/1.000    24/64     917/1046   |     7      5      2
09072820 EdMid   |   1.500/1.500    16/128   7665/7271  |   1.500/1.500    16/128    916/1065   |     2      5      2
09072820 EdBot   |   2.000/2.000    24/384  14012/6964  |   2.000/2.000    24/384    922/1168   |    10      5      2
09072820 EsSfc   |   0.750/0.750    32/32   16645/13517 |   0.750/0.750    32/32     926/1037   |     5      3      2
09072820 Blue LED|   1.000/1.000    64/384  40766/1926  |   1.000/1.000    64/384    929/1114   |    12      3      2
09072820 Red LED |   1.000/1.000   384/64   18745/48715 |   1.000/1.000   384/64    1028/1044   |    13      3      2
09072820 Lamp    |   1.000/1.000    64/8    45357/43545 |   1.000/1.000    64/8      928/1032   |    15      3      2
                 |        (sec)   (pixel)      (AD U) |        (sec)   (pixel)        (ADU) |
FORTH LOG FILE

The battery selcted for 2009072820.mby is #3 at 13.358 volts

28/07/2009 16:19:44 USER LOGGED OFF
28/07/2009 16:23:42 MODEM STOPPED
28/07/2009 16:23:43 Temperature (deg):  TT7 = 32 (1780) Case = 26 (1989)  % Humidity: 4 (758)
28/07/2009 16:23:44 SHUTTING DOWN SYSTEM
28/07/2009 16:23:44 SHUTDOWN:  MOSOFF
28/07/2009 16:23:48 SHUTDOWN:  CHRGBATT
28/07/2009 16:24:04 LOWER BATTERY VOLTAGES (1 to 4) =  13.126 N/A 13.065 12.955
28/07/2009 16:24:05 CHRGBATT:  CHARGING LOWER BATTERY #4 = 12.955 VOLTS
28/07/2009 16:24:10 CHRGBATT:  UPPER BATTERY = 12.399 VOLTS
28/07/2009 16:24:11 SHUTDOWN:  TT5OFF
28/07/2009 16:24:12 SHUTDOWN:  GPSOFF
28/07/2009 16:24:12 SHUTDOWN:  APWR-OFF
28/07/2009 16:24:13 SHUTDOWN:  MODEMOFF
28/07/2009 16:24:14 END SHUTDOWN
28/07/2009 19:00:06 Temperature (deg):  TT7 = 25 (2033) Case = 25 (2031)  % Humidity: 5 (772)
28/07/2009 19:00:07 GPS STARTED
28/07/2009 19:00:07 WAKEGPS:  UPPER BATTERY = 12.656 VOLTS
28/07/2009 19:00:50 GPS at 19:01:22, DelTime 31.83, Lat 20:49.2806' N, Lon 157:11.2555' W
28/07/2009 19:00:51 $GPGGA,190122,2049.2806,N,15711.2555,W,1,00,7.7,08.5,M,04.1,M,00,0000*66
28/07/2009 19:00:52 GPS STOPPED
28/07/2009 19:00:52 Temperature (deg):  TT7 = 26 (2025) Case = 25 (2031)  % Humidity: 5 (772)
28/07/2009 19:00:53 SHUTTING DOWN SYSTEM
28/07/2009 19:00:54 SHUTDOWN:  MOSOFF
28/07/2009 19:00:58 SHUTDOWN:  CHRGBATT
28/07/2009 19:01:13 LOWER BATTERY VOLTAGES (1 to 4) =  13.065 N/A 13.053 13.248
28/07/2009 19:01:14 CHRGBATT:  CHARGING LOWER BATTERY #3 = 13.053 VOLTS
28/07/2009 19:01:19 CHRGBATT:  UPPER BATTERY = 12.625 VOLTS
28/07/2009 19:01:20 SHUTDOWN:  TT5OFF
28/07/2009 19:01:21 SHUTDOWN:  GPSOFF
28/07/2009 19:01:22 SHUTDOWN:  APWR-OFF
28/07/2009 19:01:23 SHUTDOWN:  MODEMOFF
28/07/2009 19:01:24 END SHUTDOWN
28/07/2009 20:15:06 Temperature (deg):  TT7 = 25 (2033) Case = 25 (2030)  % Humidity: 5 (772)
28/07/2009 20:15:07 MOBY STARTED
28/07/2009 20:15:33 LOWER BATTERY VOLTAGES (1 to 4) =  13.053 N/A 13.431 13.150
28/07/2009 20:15:34 MOBY:  UPPER BATTERY = 12.705 VOLTS
28/07/2009 20:15:51 SELECTBATT:  LOWER BATTERY SELECTED # 3 = 13.358 VOLTS
28/07/2009 21:00:02 MOBY STOPPED
28/07/2009 21:00:03 Temperature (deg):  TT7 = 34 (1679) Case = 26 (1998)  % Humidity: 4 (755)
28/07/2009 21:00:04 SHUTTING DOWN SYSTEM
28/07/2009 21:00:05 SHUTDOWN:  MOSOFF
28/07/2009 21:00:06 SHUTDOWN:  CHRGBATT
28/07/2009 21:00:22 LOWER BATTERY VOLTAGES (1 to 4) =  13.077 N/A 12.674 13.101
28/07/2009 21:00:23 CHRGBATT:  CHARGING LOWER BATTERY #3 = 12.674 VOLTS
28/07/2009 21:00:28 CHRGBATT:  UPPER BATTERY = 12.546 VOLTS
28/07/2009 21:00:29 SHUTDOWN:  TT5OFF
28/07/2009 21:00:30 SHUTDOWN:  GPSOFF
28/07/2009 21:00:31 SHUTDOWN:  APWR-OFF
28/07/2009 21:00:32 SHUTDOWN:  MODEMOFF
28/07/2009 21:00:33 END SHUTDOWN
28/07/2009 22:00:06 Temperature (deg):  TT7 = 27 (1960) Case = 26 (1990)  % Humidity: 5 (770)
28/07/2009 22:00:07 SHUTTING DOWN SYSTEM
28/07/2009 22:00:07 SHUTDOWN:  MOSOFF
28/07/2009 22:00:11 SHUTDOWN:  CHRGBATT
28/07/2009 22:00:27 LOWER BATTERY VOLTAGES (1 to 4) =  13.065 N/A 13.602 13.065
28/07/2009 22:00:28 CHRGBATT:  CHARGING LOWER BATTERY #1 = 13.065 VOLTS
28/07/2009 22:00:33 CHRGBATT:  UPPER BATTERY = 12.607 VOLTS
28/07/2009 22:00:34 SHUTDOWN:  TT5OFF
28/07/2009 22:00:35 SHUTDOWN:  GPSOFF
28/07/2009 22:00:36 SHUTDOWN:  APWR-OFF
28/07/2009 22:00:36 SHUTDOWN:  MODEMOFF
28/07/2009 22:00:37 END SHUTDOWN
28/07/2009 22:15:06 Temperature (deg):  TT7 = 27 (1960) Case = 26 (1991)  % Humidity: 5 (770)
28/07/2009 22:15:07 MOBY STARTED
28/07/2009 22:15:33 LOWER BATTERY VOLTAGES (1 to 4) =  13.541 N/A 13.370 13.089
28/07/2009 22:15:34 MOBY:  UPPER BATTERY = 12.625 VOLTS
28/07/2009 22:15:49 SELECTBATT:  LOWER BATTERY SELECTED # 1 = 13.455 VOLTS
28/07/2009 22:56:24 MOBY STOPPED
28/07/2009 22:56:25 Temperature (deg):  TT7 = 35 (1662) Case = 27 (1983)  % Humidity: 4 (754)
28/07/2009 22:56:26 SHUTTING DOWN SYSTEM
28/07/2009 22:56:27 SHUTDOWN:  MOSOFF
28/07/2009 22:56:28 SHUTDOWN:  CHRGBATT
28/07/2009 22:56:44 LOWER BATTERY VOLTAGES (1 to 4) =  12.674 N/A 13.260 13.040
28/07/2009 22:56:45 CHRGBATT:  CHARGING LOWER BATTERY #1 = 12.674 VOLTS
28/07/2009 22:56:50 CHRGBATT:  UPPER BATTERY = 12.503 VOLTS
28/07/2009 22:56:51 SHUTDOWN:  TT5OFF
28/07/2009 22:56:52 SHUTDOWN:  GPSOFF
28/07/2009 22:56:53 SHUTDOWN:  APWR-OFF
28/07/2009 22:56:54 SHUTDOWN:  MODEMOFF
28/07/2009 22:56:54 END SHUTDOWN
28/07/2009 23:45:06 Temperature (deg):  TT7 = 27 (1956) Case = 27 (1981)  % Humidity: 5 (769)
28/07/2009 23:45:07 MOBY STARTED
28/07/2009 23:45:33 LOWER BATTERY VOLTAGES (1 to 4) =  13.578 N/A 13.211 13.040
28/07/2009 23:45:34 MOBY:  UPPER BATTERY = 12.662 VOLTS
28/07/2009 23:45:51 SELECTBATT:  LOWER BATTERY SELECTED # 1 = 13.553 VOLTS
29/07/2009 00:30:01 MOBY STOPPED
29/07/2009 00:30:02 Temperature (deg):  TT7 = 35 (1647) Case = 27 (1958)  % Humidity: 4 (753)
29/07/2009 00:30:03 SHUTTING DOWN SYSTEM
29/07/2009 00:30:04 SHUTDOWN:  MOSOFF
29/07/2009 00:30:05 SHUTDOWN:  CHRGBATT
29/07/2009 00:30:21 LOWER BATTERY VOLTAGES (1 to 4) =  12.686 N/A 13.138 13.053
29/07/2009 00:30:22 CHRGBATT:  CHARGING LOWER BATTERY #1 = 12.686 VOLTS
29/07/2009 00:30:27 CHRGBATT:  UPPER BATTERY = 12.534 VOLTS
29/07/2009 00:30:28 SHUTDOWN:  TT5OFF
29/07/2009 00:30:29 SHUTDOWN:  GPSOFF
29/07/2009 00:30:30 SHUTDOWN:  APWR-OFF
29/07/2009 00:30:31 SHUTDOWN:  MODEMOFF
29/07/2009 00:30:32 END SHUTDOWN
29/07/2009 01:00:06 Temperature (deg):  TT7 = 29 (1885) Case = 27 (1950)  % Humidity: 4 (766)
29/07/2009 01:00:07 SHUTTING DOWN SYSTEM
29/07/2009 01:00:07 SHUTDOWN:  MOSOFF
29/07/2009 01:00:11 SHUTDOWN:  CHRGBATT
29/07/2009 01:00:27 LOWER BATTERY VOLTAGES (1 to 4) =  13.480 N/A 13.114 13.004
29/07/2009 01:00:28 CHRGBATT:  CHARGING LOWER BATTERY #4 = 13.004 VOLTS
29/07/2009 01:00:33 CHRGBATT:  UPPER BATTERY = 12.564 VOLTS
29/07/2009 01:00:34 SHUTDOWN:  TT5OFF
29/07/2009 01:00:35 SHUTDOWN:  GPSOFF
29/07/2009 01:00:36 SHUTDOWN:  APWR-OFF
29/07/2009 01:00:36 SHUTDOWN:  MODEMOFF
29/07/2009 01:00:37 END SHUTDOWN
29/07/2009 03:00:06 Temperature (deg):  TT7 = 27 (1975) Case = 27 (1976)  % Humidity: 5 (770)
29/07/2009 03:00:07 GPS STARTED
29/07/2009 03:00:07 WAKEGPS:  UPPER BATTERY = 12.595 VOLTS
29/07/2009 03:00:26 GPS at 3:00:58, DelTime 31.81, Lat 20:49.4165' N, Lon 157:10.8502' W
29/07/2009 03:00:27 $GPGGA,030058,2049.4165,N,15710.8502,W,1,00,1.5,04.3,M,04.0,M,00,0000*6D
29/07/2009 03:00:28 GPS STOPPED
29/07/2009 03:00:29 Temperature (deg):  TT7 = 27 (1970) Case = 27 (1976)  % Humidity: 5 (769)
29/07/2009 03:00:29 SHUTTING DOWN SYSTEM
29/07/2009 03:00:30 SHUTDOWN:  MOSOFF
29/07/2009 03:00:34 SHUTDOWN:  CHRGBATT
29/07/2009 03:00:50 LOWER BATTERY VOLTAGES (1 to 4) =  13.101 N/A 13.089 13.260
29/07/2009 03:00:50 CHRGBATT:  CHARGING LOWER BATTERY #3 = 13.089 VOLTS
29/07/2009 03:00:56 CHRGBATT:  UPPER BATTERY = 12.570 VOLTS
29/07/2009 03:00:56 SHUTDOWN:  TT5OFF
29/07/2009 03:00:58 SHUTDOWN:  GPSOFF
29/07/2009 03:00:59 SHUTDOWN:  APWR-OFF
29/07/2009 03:00:59 SHUTDOWN:  MODEMOFF
29/07/2009 03:01:00 END SHUTDOWN
29/07/2009 04:00:06 Temperature (deg):  TT7 = 27 (1987) Case = 27 (1985)  % Humidity: 5 (770)
29/07/2009 04:00:07 MODEM STARTED
29/07/2009 04:00:07 WAKEMODEM:  UPPER BATTERY = 12.607 VOLTS
29/07/2009 04:02:17 USER LOGGED ON
QCHK FILE
% 09072820.mob Quality Check ASCII file: created on 31-Jul-2009 by   MKQCHK_
OPTION2: VRpixRMD = 59; ERpixRMD = [814  813  812];  OPTDATESTR ='31-Jul-2009 11:31:14';
OPTION2: VRpixRMD = 100;  ERpixRMD = [476  477  478  864  865  866];  OPTDATESTR ='31-Jul-2009 11:31:46';
OPTION5: MOBYFNMS = '09072820.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1; QCHKCODE = 2048;  OPTDATESTR ='31-Jul-2009 11:32:37';
OPTION11: MOBYFNMS = '09072820.mob'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 1; QCHKCODE = 0;  OPTDATESTR ='31-Jul-2009 11:32:38';
OPTION2: VRpixRMD = 23; ERpixRMD = [659  658  657]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION2: VRpixRMD = 19; ERpixRMD = [547  548  549  707  708  709]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION2: VRpixRMD = 20; ERpixRMD = [556  557  558  843  844  845]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION2: VRpixRMD = 21; ERpixRMD = [583  584  585  867  868  869]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION2: VRpixRMD = 22; ERpixRMD = [763  764  765  813  814  815  927  928  929]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION2: VRpixRMD = 25; ERpixRMD = [639   640   641   750   751   752   954   955   956  1004  1005  1006]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION2: VRpixRMD = 24; ERpixRMD = [1023  1022  1021]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION2: VRpixRMD = 35; ERpixRMD = [760  761  762  780  781  782]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION2: VRpixRMD = 31; ERpixRMD = [998  997  996]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION2: VRpixRMD = 48; ERpixRMD = [959  958  957]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION14: VRpixFILL = 23; ERpixFILL = [638  639  640]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION14: VRpixFILL = 24; ERpixFILL = [742  743  744]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION14: VRpixFILL = 7; ERpixFILL = [866  867  868]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION14: VRpixFILL = 13; ERpixFILL = [876  877  878]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION14: VRpixFILL = 37; ERpixFILL = [851  852  853]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION14: VRpixFILL = 44; ERpixFILL = [540  541  542]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
OPTION14: VRpixFILL = 81; ERpixFILL = [720  721  722]; OPTDATESTR ='11-Oct-2016 21:25:16'; % RSG384FIX_
% RSG384FIX_ run on 11-Oct-2016 21:25:16
OPTION13: MOBYFNMS = '09072820.mob'; CONfile = 'mby24301';  OPTDATESTR ='12-Nov-2017 13:17:40';

Stephanie Flora - Moss Landing Marine Laboratories
