MOBY261 Information/Configuration Page
Deployment Events
WED 24-AUG-2016 (237) - 2 hurricanes passed near MOBY in Aug. Hurricane Madeline passed south of Hawaii on Aug 31 as a
tropcal storm. Hurricane Lester paased north of Hawaii on 3 Sept where it went from a cat 2 to a tropical storm.
MOBYs physical Configuration
| Sensor | MUX Position | Depth (m) |
|---|
| Es SFC |
5 |
N/A |
| Ed TOP |
7 |
1.538 |
| Lu TOP |
8 |
1.585 |
| Ed MID |
2 |
5.51 |
| Lu MID |
9 |
5.557 |
| Ed BOT |
10 |
9.354 |
| Lu BOT |
1 |
9.401 |
| Eu MOS |
6 |
N/A |
| LuMOS |
11 |
11.513 |
| BLUE LED |
12 |
N/A |
| RED LED |
13 |
N/A |
| LAMP |
15 |
N/A |
MOS2 Vaux Analog Data Types
| Name | Code | Conversion |
|---|
| Unknown |
-1 |
X; |
| None |
0 |
X; |
| Water Temperature (deg C) |
10 |
(2.5551e-015).*X^4+(-1.2120e-010).*X^3+(2.0394e-006)*X^2 + (-2.0680e-002)*X + 1.1270e+002; |
| Blue array temp (deg C) |
11 |
(3.0518E-2)*X; |
| Red array temp (deg C) |
12 |
(3.0518E-2)*X; |
| Calib src block temp (deg C) |
13 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| Depth Sensor temp (deg C) |
14 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| Blue CCD head temp (deg C) |
15 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| Red CCD head temp (deg C) |
16 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| TT7 board temp (deg C) |
17 |
(-1.1978E-13)*X^4 - (1.1059E-09)*X^3 + (1.1556E-05)*X^2 - (5.3524E-02)*X + 9.7741E+01; |
| TT7 case temp (deg C) |
18 |
(-1.1978E-13)*X^4 - (1.1059E-09)*X^3 + (1.1556E-05)*X^2 - (5.3524E-02)*X + 9.7741E+01; |
| Depth (meters) |
20 |
(1.3423E-09)*X^2 + (1.2839E-02)*X + 2.2724E-02; |
| X Tilt (degrees) |
21 |
(-2.2218E-13)*X^3 + (1.5007E-10)*X^2 + (3.0805E-03)*X + 6.1564E-03; |
| Y Tilt (degrees) |
22 |
(-8.2511E-14)*X^3 + (8.6841E-10)*X^2 + (3.0540E-03)*X - 3.3977E-02; |
| Inclination |
2122 |
X; |
| Blue cal diode mon (volts) |
23 |
(3.0518E-4)*X; |
| Red cal diode mon (volts) |
24 |
(3.0518E-4)*X; |
| Blue heat mon (volts) |
25 |
(3.0518E-4)*X; |
| Red heat mon (volts) |
26 |
(3.0518E-4)*X; |
| Coolant flow (liters/min) |
27 |
(6.1035E-5)*X; |
| System current (amps) |
28 |
(3.05E-3)*X - 40; |
| TT7 Mains (volts) |
29 |
(6.105E-3)*X; |
| TT7 case humidity (%RH) |
30 |
(X*0.02906-19)/(1.054-.00216*T); |
MOS2 Faux Analog Data Types
| Name | Code | Conversion |
|---|
| TT7 upper bat (volts) |
100 |
6.104E-03*X |
| TT7 board temp (deg C) |
101 |
-1.1978E-13*X^4 -1.1059E-09*X^3 +1.1556E-05*X^2 -5.3524E-02*X +9.7741E+01; |
| TT7 case temp (deg C) |
102 |
-1.1978E-13*X^4 -1.1059E-09*X^3 +1.1556E-05*X^2 -5.3524E-02*X +9.7741E+01; |
| TT7 case humidity (%RH) |
103 |
(X*0.02906-19)/(1.054-.00216*T); |
| Solar panel #1 current (Amps) |
104 |
3.052E-4*X; |
| Solar panel #2 current (Amps) |
105 |
3.052E-4*X; |
| Solar panel #3 current (Amps) |
106 |
3.052E-4*X; |
| Solar panel #4 current (Amps) |
107 |
3.052E-4*X; |
| Upper bat. charge current (Amps) |
108 |
6.104-4*X; |
| Upper arm collector depth (Meters) |
109 |
(0.0003*X - 0.9272)-0.985; |
| Upper bat. drain current (Amps) |
110 |
6.104-4*X; |
| N/A |
111 |
(NaN); |
| TT5 mains power (Volts) |
112 |
6.104E-03*X; |
| Lower bat. charge current (Amps) |
113 |
3.662E-3*X; |
| MOS current (Amps) |
114 |
3.662E-3*X; |
| MOS voltage (Volts) |
115 |
6.104E-03*X; |
| Lower Battery #1 (Volts) |
116 |
1.221E-2*X; |
| Lower Battery #2 (Volts) |
117 |
1.221E-2*X; |
| Lower Battery #3 (Volts) |
118 |
1.221E-2*X; |
| Lower Battery #4 (Volts) |
119 |
1.221E-2*X; |

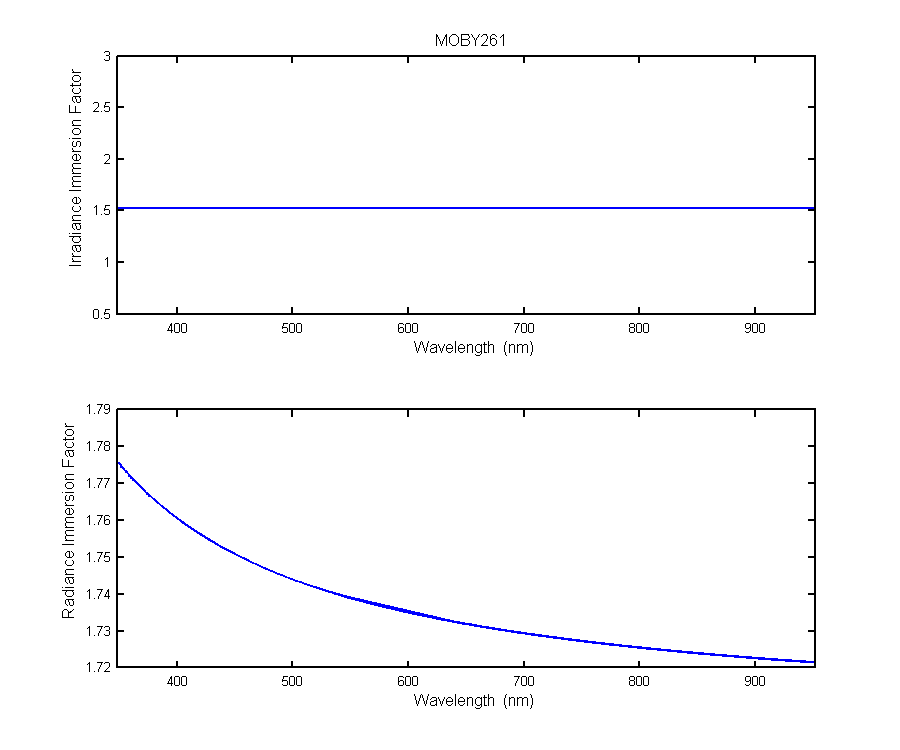

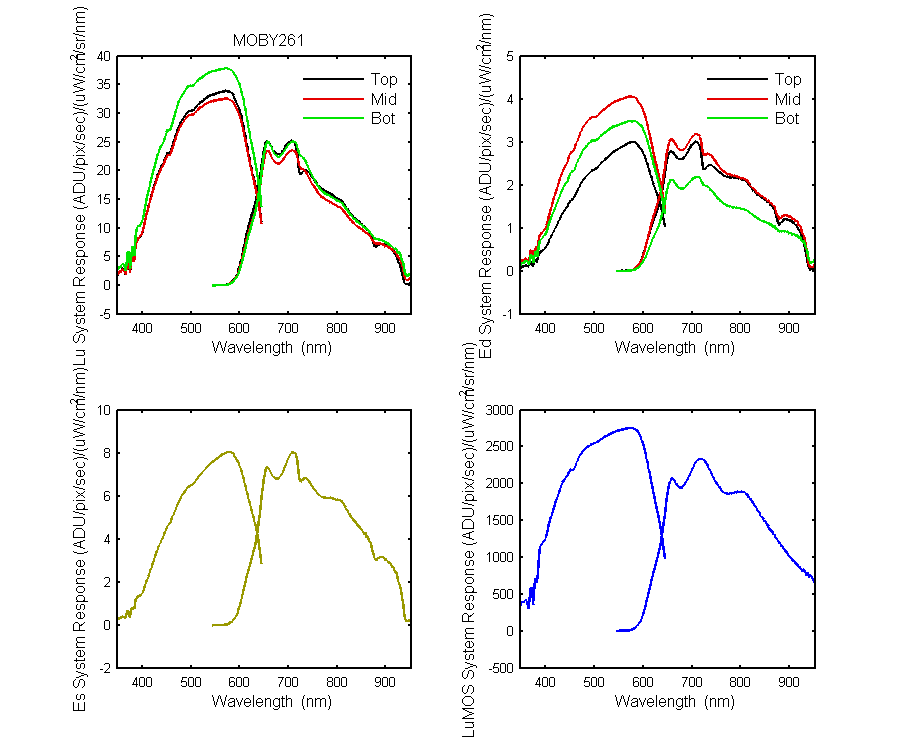

System Response Information
File: 261_RSP.MLD
DscS 14: MOBY261 Nominal Integration Time (sec)
DscS 15: MOBY261 Calibrated Integration Time (sec)
DscS 16: MOBY261 Nominal CCD Bin Factor (pix)
DscS 17: MOBY261 Calibrated CCD Bin Factor (pix)
Xdat:
NomInt, CalInt, NomBin, CalBin
0.050000, 0.066607, 1.000, 1.000
0.100000, 0.115757, 2.000, 2.000
0.200000, 0.213580, 3.000, 3.000
0.250000, 0.262470, 4.000, 4.000
0.400000, 0.409303, 6.000, 6.000
0.500000, 0.507344, 8.000, 8.000
0.800000, 0.802046, 12.000, 12.000
1.000000, 0.998863, 16.000, 16.000
2.000000, 1.985070, 24.000, 24.000
2.500000, 2.478875, 32.000, 32.000
3.000000, 2.972933, 48.000, 48.000
4.000000, 3.961566, 64.000, 64.000
5.000000, 4.950710, 96.000, 96.000
6.000000, 5.940270, 128.000, 128.000
8.000000, 7.920518, 192.000, 192.000
10.000000, 9.902205, 384.000, 384.000
12.000000, 11.885306, ,
16.000000, 15.855642, ,
20.000000, 19.831234, ,
24.000000, 23.811710, ,
25.000000, 24.807545, ,
30.000000, 29.790697, ,
32.000000, 31.785700, ,
40.000000, 39.774513, ,
48.000000, 47.775410, ,
50.000000, 49.777241, ,
60.000000, 59.794361, ,
64.000000, 63.804386, ,
96.000000, 95.923920, ,
100.000000, 99.941498, ,
128.000000,128.063400, ,
256.000000,256.049988, ,
--------------------------------------------------------------------------------------------------
MOBY261: Table of Engineering Information
--------------------------------------------------------------------------------------------------
HOUR: 0 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2017008 LuTop | 60.00/60.00 6/384 | 20499/15790 1047/6264 | 5 2
2017008 LuMid | 60.00/60.00 6/384 | 13463/8306 1054/6678 | 5 2
2017008 LuBot | 60.00/60.00 6/384 | 18064/7813 1050/6618 | 5 2
2017008 EdTop | 1.00/1.00 24/64 | 8540/10777 921/1046 | 5 2
2017008 EdMid | 1.50/1.50 24/64 | 12861/3488 925/1054 | 5 2
2017008 EdBot | 2.00/2.00 24/384 | 14193/4044 930/1230 | 5 2
2017008 EsSfc | 1.13/1.13 16/16 | 17105/14212 928/1039 | 3 2
2017008 Blue LED | 1.00/1.00 64/384 | 39141/1987 943/1145 | 3 2
2017008 Red LED | 1.00/1.00 384/64 | 17362/24965 1124/1050 | 3 2
2017008 Lamp | 1.00/0.75 64/16 | 45293/44751 943/1032 | 3 2
--------------------------------------------------------------------------------------------------
HOUR: 20 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2017045 LuTop | 60.00/60.00 6/384 | 30213/61978 1081/7052 | 5 2
2017045 LuMid | 60.00/60.00 6/384 | 18782/9507 1074/7163 | 5 2
2017045 LuBot | 60.00/60.00 6/384 | 28038/9307 1084/7122 | 5 2
2017045 EdTop | 1.00/1.00 24/64 | 15009/29298 935/1086 | 5 2
2017045 EdMid | 1.50/1.50 24/64 | 29128/9202 931/1059 | 5 2
2017045 EdBot | 2.00/2.00 24/384 | 30547/11326 934/1263 | 5 2
2017045 EsSfc | 1.13/1.13 16/16 | 28589/23157 931/1040 | 3 2
2017045 Blue LED | 1.00/1.00 64/384 | 39359/2034 970/1168 | 3 2
2017045 Red LED | 1.00/1.00 384/64 | 17496/25089 1159/1077 | 3 2
2017045 Lamp | 1.00/0.75 64/16 | 45799/45386 962/1040 | 3 2
--------------------------------------------------------------------------------------------------
HOUR: 22 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2017045 LuTop | 60.00/60.00 6/384 | 29837/54342 1087/7123 | 5 2
2017045 LuMid | 60.00/60.00 6/384 | 20573/9940 1103/7721 | 5 2
2017045 LuBot | 60.00/60.00 6/384 | 31968/8936 1088/7138 | 5 2
2017045 EdTop | 1.00/1.00 24/64 | 15091/26460 987/1091 | 5 2
2017045 EdMid | 1.50/1.50 24/64 | 24602/7725 935/1084 | 5 2
2017045 EdBot | 2.00/2.00 24/384 | 26697/12513 949/1267 | 5 2
2017045 EsSfc | 1.13/1.13 16/16 | 31219/25258 934/1040 | 3 2
2017045 Blue LED | 1.00/1.00 64/384 | 39315/2023 978/1162 | 3 2
2017045 Red LED | 1.00/1.00 384/64 | 17460/25019 1192/1113 | 3 2
2017045 Lamp | 1.00/0.75 64/16 | 45873/45252 975/1062 | 3 2
2016258 | 1.00/0.75 64/16 | 45873/45252 975/1062 | 2 2
--------------------------------------------------------------------------------------------------
HOUR: 23 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2017046 LuTop | 60.00/60.00 6/384 | 27740/61737 2466/7668 | 5 2
2017046 LuMid | 60.00/60.00 6/384 | 19223/9790 1098/7708 | 5 2
2017046 LuBot | 60.00/60.00 6/384 | 25730/8704 1088/7090 | 5 2
2017046 EdTop | 1.00/1.00 24/64 | 13699/19554 933/1068 | 5 2
2017046 EdMid | 1.50/1.50 24/64 | 19865/6100 934/1064 | 5 2
2017046 EdBot | 2.00/2.00 24/384 | 22977/7499 945/1267 | 5 2
2017046 EsSfc | 1.13/1.13 16/16 | 27397/21982 933/1044 | 3 2
2017046 Blue LED | 1.00/1.00 64/384 | 39294/2018 953/1164 | 3 2
2017046 Red LED | 1.00/1.00 384/64 | 17421/24971 1173/1087 | 3 2
2017046 Lamp | 1.00/0.75 64/16 | 45748/45220 951/1042 | 3 2
2016267 | 1.00/0.75 64/16 | 45748/45220 951/1042 | 2 2
--------------------------------------------------------------------------------------------------

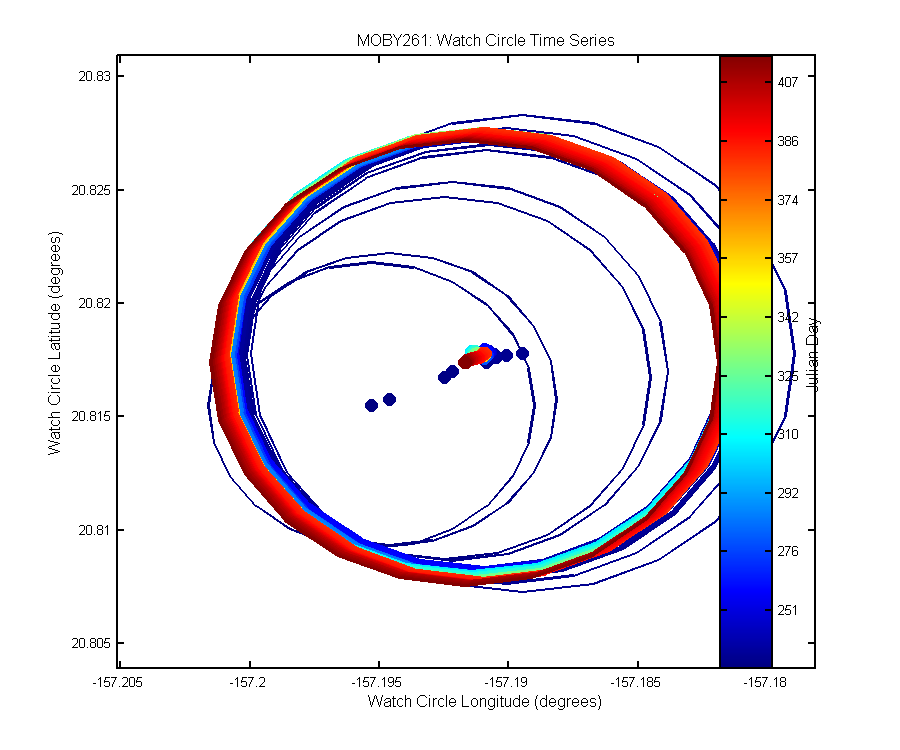

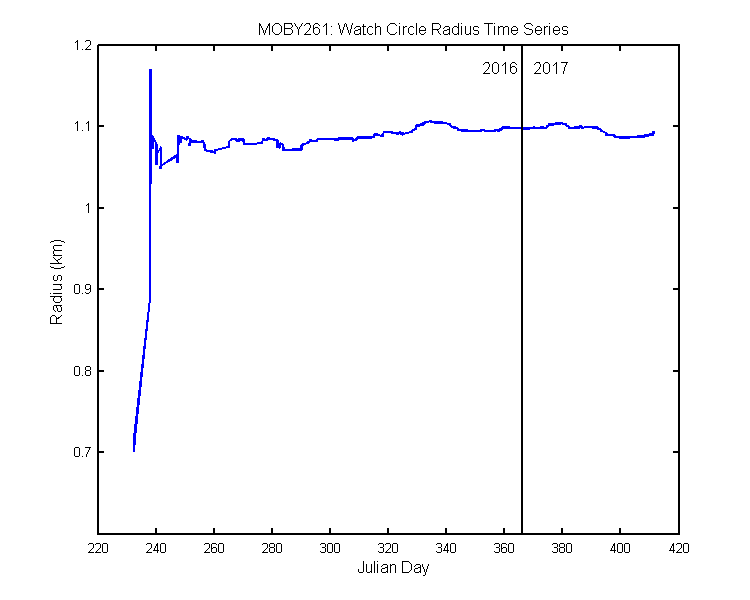

Watch Circle Time Series

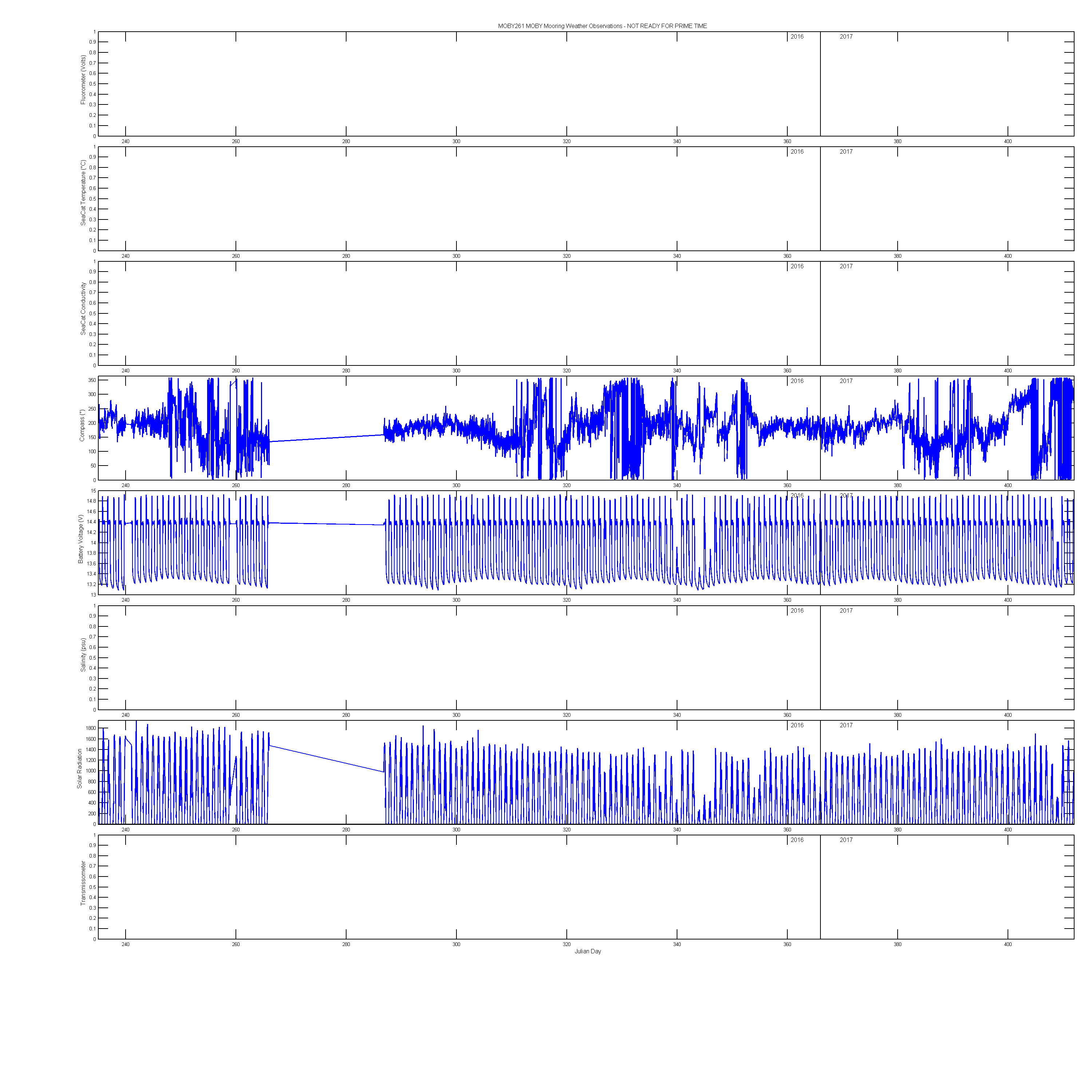

MOBY Weather Time Series

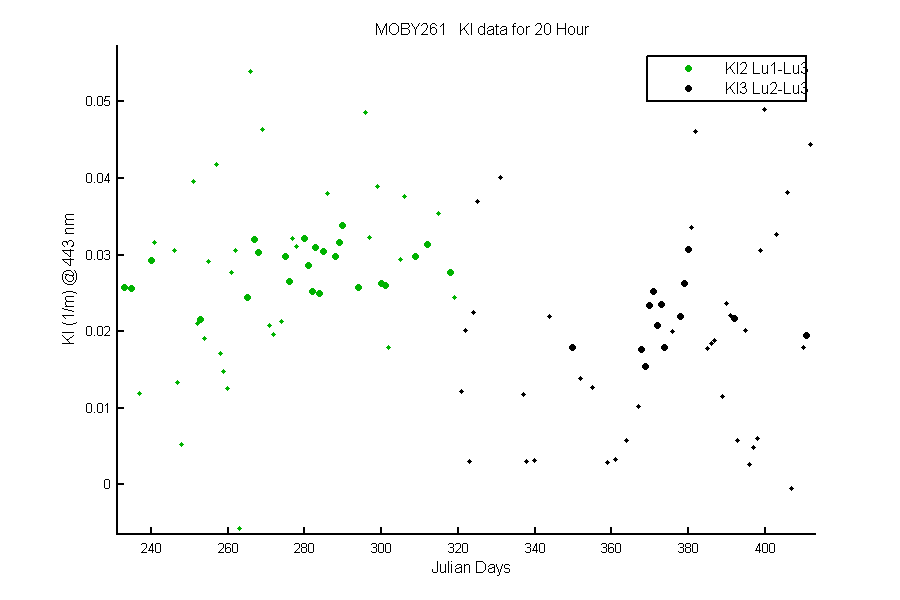

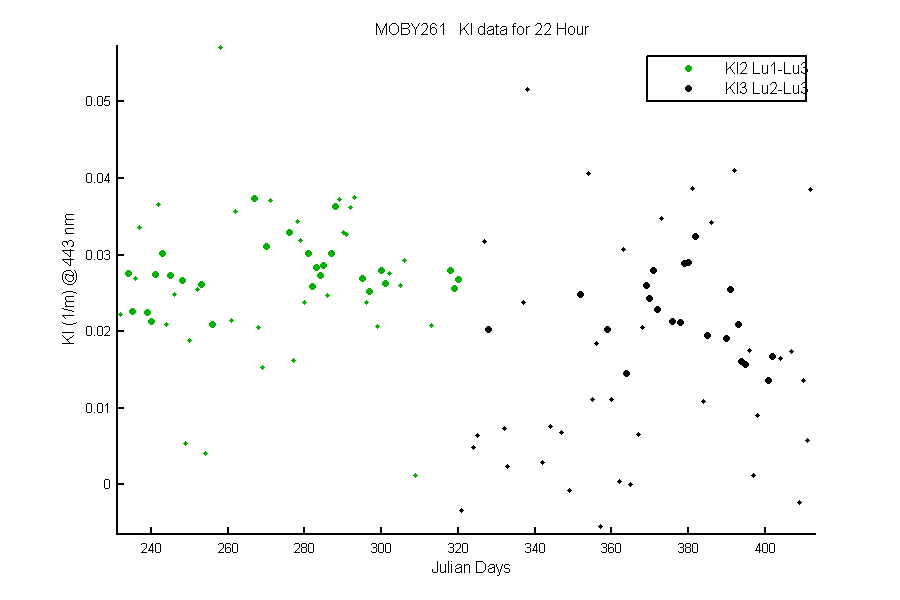

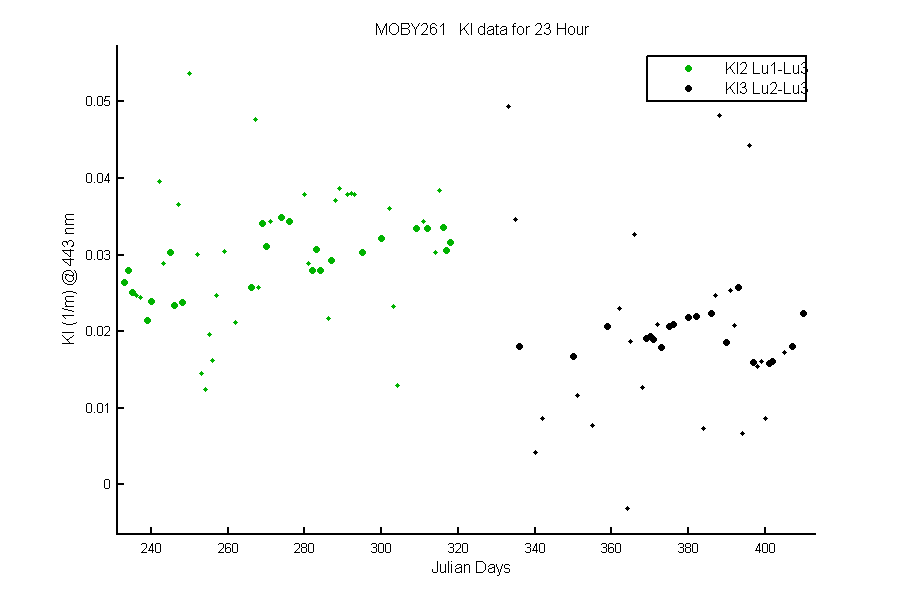

MOBY Kl Graph
