WED 28-AUG-2019 (240) - 20
Bad Day
DATE: 28-Aug-2019 START TIME: 20:58 STOP TIME: 21:35 POSITION: 20° 49.68' N 157° 11.53' W
Quality Checking |
Engineering Info |
Forth Log
LuMid too Low
Table of Quality Checking Information
FILE: Complete
PROCESSING: Bad
CONFIGURATION: mby26701
RAW SCANS MARKED BAD: VR = 11; DscS = 'TOO LOW'; FhdS = '';
VR = 10; DscS = 'TOO LOW'; FhdS = ''
VR = 9; DscS = 'TOO LOW'; FhdS = ''
VR = 8; DscS = 'TOO LOW'; FhdS = ''
VR = 33; DscS = 'TOO HIGH'; FhdS = ''
VR = 32; DscS = 'TOO HIGH'; FhdS = ''
VR = 41; DscS = 'TOO LOW'; FhdS = ''
VR = 27; DscS = 'TOO LOW'; FhdS = ''
RAW SCANS W/ PIXELS REMOVED: VR = 21; Pixels = [569 568 567];
VR = 25; Pixels = [551 550 549];
VR = 22; Pixels = [722 723 724 764 765 766];
VR = 11; Pixels = [670 669 668];
VR = 10; Pixels = [755 754 753];
VR = 8; Pixels = [876 875 874];
VR = 12; Pixels = [934 933 932];
VR = 37; Pixels = [615 616 617 623 624 625];
VR = 33; Pixels = [657 658 659 661 662 663 770 771 772];
VR = 36; Pixels = [614 615 616 872 873 874];
VR = 34; Pixels = [547 548 549 668 669 670 933 934 935];
VR = 35; Pixels = [554 555 556 557 558 650 651 652 741 742 743 985 986 987];
VR = 32; Pixels = [838 839 840 1018 1019 1020];
VR = 50; Pixels = [870 869 868];
VR = 54; Pixels = [170 169 168];
VR = 53; Pixels = [611 610 609];
VR = 85; Pixels = [961 960 959];
RAW SCANS W/ PIXELS FILLED: VR = 7; Pixels = [611 612];
VR = 37; Pixels = [670 671];
VR = 37; Pixels = [756];
FHDS(6,:): FHDS = 'LuMid too Low';

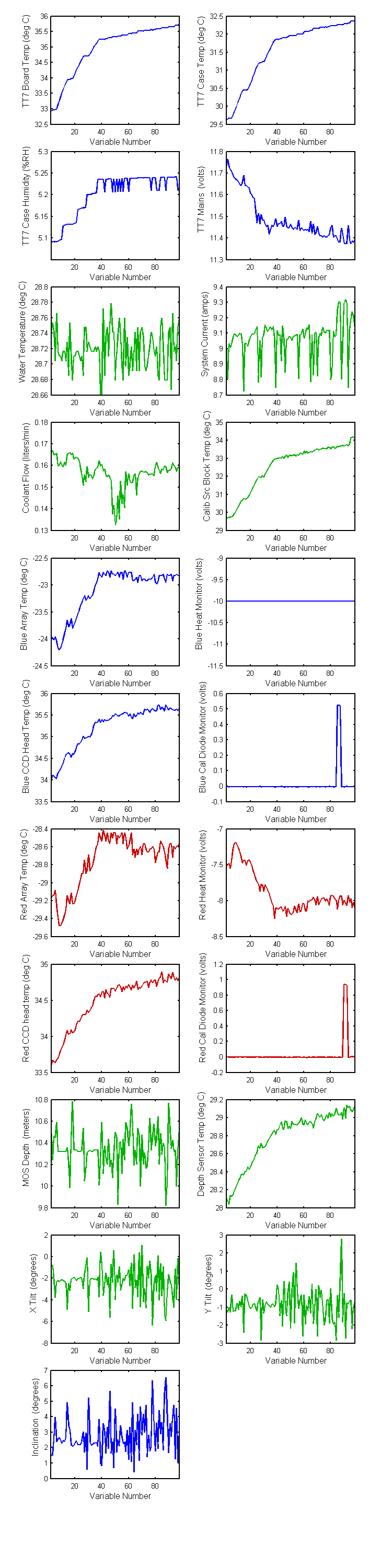

Table of Engineering Information
| LITE | DARK |
| Int Bin Maximum | Int Bin Maximum | MUX No. No.
MOBY | Time Factor Counts | Time Factor Counts | Pos Lite Dark
File Source | (B/R) (B/R) (B/R) | (B/R) (B/R) (B/R) |
-------------------------------------------------------------------------------------------------------------
19082820 LuTop | 60.000/60.000 6/384 18139/11849 | 60.000/60.000 6/384 1077/7126 | 8 5 2
19082820 LuMid | 60.000/60.000 6/384 16547/8508 | 60.000/60.000 6/384 1083/7622 | 9 5 2
19082820 LuBot | 60.000/60.000 6/384 21191/8054 | 60.000/60.000 6/384 1081/7325 | 1 5 2
19082820 EdTop | 1.000/1.000 24/64 8058/10459 | 1.000/1.000 24/64 921/1052 | 7 5 2
19082820 EdMid | 1.500/1.500 24/64 11922/3912 | 1.500/1.500 24/64 926/1060 | 2 5 2
19082820 EdBot | 2.000/2.000 24/384 13632/4417 | 2.000/2.000 24/384 935/1270 | 10 5 2
19082820 EsSfc | 1.125/1.125 16/16 20734/18125 | 1.125/1.125 16/16 924/1034 | 5 3 2
19082820 Blue LED| 1.000/1.000 64/384 39008/1986 | 1.000/1.000 64/384 950/1170 | 12 3 2
19082820 Red LED | 1.000/1.000 384/64 18309/24867 | 1.000/1.000 384/64 1181/1053 | 13 3 2
19082820 Lamp | 1.000/0.750 64/16 46593/46283 | 1.000/0.750 64/16 952/1032 | 15 3 2
| (sec) (pixel) (AD U) | (sec) (pixel) (ADU) |
FORTH LOG FILE
No FORTH LOG file appears to exist for this MOBY file
QCHK FILE
% 19082820.mo3 Quality Check ASCII file: created on 29-Aug-2019 by MKQCHK_
OPTION2: VRpixRMD = 21; ERpixRMD = [569 568 567]; OPTDATESTR ='29-Aug-2019 09:04:27';
OPTION2: VRpixRMD = 25; ERpixRMD = [551 550 549]; OPTDATESTR ='29-Aug-2019 09:04:38';
OPTION2: VRpixRMD = 22; ERpixRMD = [722 723 724 764 765 766]; OPTDATESTR ='29-Aug-2019 09:04:50';
OPTION14: VRpixFILL = 7; ERpixFILL = [611 612]; OPTDATESTR ='29-Aug-2019 09:05:34';
OPTION2: VRpixRMD = 11; ERpixRMD = [670 669 668]; OPTDATESTR ='29-Aug-2019 09:05:40';
OPTION2: VRpixRMD = 10; ERpixRMD = [755 754 753]; OPTDATESTR ='29-Aug-2019 09:05:52';
OPTION2: VRpixRMD = 8; ERpixRMD = [876 875 874]; OPTDATESTR ='29-Aug-2019 09:05:55';
OPTION2: VRpixRMD = 12; ERpixRMD = [934 933 932]; OPTDATESTR ='29-Aug-2019 09:05:58';
OPTION2: VRpixRMD = 37; ERpixRMD = [615 616 617 623 624 625]; OPTDATESTR ='29-Aug-2019 09:06:30';
OPTION14: VRpixFILL = 37; ERpixFILL = [670 671]; OPTDATESTR ='29-Aug-2019 09:06:45';
OPTION2: VRpixRMD = 33; ERpixRMD = [657 658 659 661 662 663 770 771 772]; OPTDATESTR ='29-Aug-2019 09:07:10';
OPTION14: VRpixFILL = 37; ERpixFILL = [756]; OPTDATESTR ='29-Aug-2019 09:07:17';
OPTION2: VRpixRMD = 36; ERpixRMD = [614 615 616 872 873 874]; OPTDATESTR ='29-Aug-2019 09:07:30';
OPTION2: VRpixRMD = 34; ERpixRMD = [547 548 549 668 669 670 933 934 935]; OPTDATESTR ='29-Aug-2019 09:07:33';
OPTION2: VRpixRMD = 35; ERpixRMD = [554 555 556 557 558 650 651 652 741 742 743 985 986 987]; OPTDATESTR ='29-Aug-2019 09:07:39';
OPTION2: VRpixRMD = 32; ERpixRMD = [838 839 840 1018 1019 1020]; OPTDATESTR ='29-Aug-2019 09:07:42';
OPTION2: VRpixRMD = 50; ERpixRMD = [870 869 868]; OPTDATESTR ='29-Aug-2019 09:08:23';
OPTION2: VRpixRMD = 54; ERpixRMD = [170 169 168]; OPTDATESTR ='29-Aug-2019 09:08:42';
OPTION2: VRpixRMD = 53; ERpixRMD = [611 610 609]; OPTDATESTR ='29-Aug-2019 09:08:58';
OPTION2: VRpixRMD = 85; ERpixRMD = [961 960 959]; OPTDATESTR ='29-Aug-2019 09:09:47';
OPTION1: VRmarkBAD = 11; DSCSmarkBAD = 'TOO LOW'; FHDSmarkBAD = ''; OPTDATESTR ='29-Aug-2019 09:10:51';
OPTION1: VRmarkBAD = 10; DSCSmarkBAD = 'TOO LOW'; FHDSmarkBAD = ''; OPTDATESTR ='29-Aug-2019 09:10:51';
OPTION1: VRmarkBAD = 9; DSCSmarkBAD = 'TOO LOW'; FHDSmarkBAD = ''; OPTDATESTR ='29-Aug-2019 09:10:51';
OPTION1: VRmarkBAD = 8; DSCSmarkBAD = 'TOO LOW'; FHDSmarkBAD = ''; OPTDATESTR ='29-Aug-2019 09:10:51';
OPTION1: VRmarkBAD = 33; DSCSmarkBAD = 'TOO HIGH'; FHDSmarkBAD = ''; OPTDATESTR ='29-Aug-2019 09:11:09';
OPTION1: VRmarkBAD = 32; DSCSmarkBAD = 'TOO HIGH'; FHDSmarkBAD = ''; OPTDATESTR ='29-Aug-2019 09:11:09';
OPTION1: VRmarkBAD = 41; DSCSmarkBAD = 'TOO LOW'; FHDSmarkBAD = ''; OPTDATESTR ='29-Aug-2019 09:12:51';
OPTION1: VRmarkBAD = 27; DSCSmarkBAD = 'TOO LOW'; FHDSmarkBAD = ''; OPTDATESTR ='29-Aug-2019 09:12:51';
OPTION5: MOBYFNMS = '19082820.mo3'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 2; QCHKCODE = 32; OPTDATESTR ='29-Aug-2019 09:13:21';
OPTION11: MOBYFNMS = '19082820.mo3'; QCHKFLAG = 0; QCHKWHAT = 1; QCHKWHO = 2; QCHKCODE = 0; OPTDATESTR ='29-Aug-2019 09:13:23';
OPTION13: MOBYFNMS = '19082820.mo3'; CONfile = 'mby26701'; OPTDATESTR ='14-Feb-2020 22:27:31';
OPTION7: FHDS ='LuMid too Low'; OPTDATESTR ='14-Feb-2020 22:27:31';
OPTION15: TYPEsensorBAD = 21.02; DSCSsensorBAD = 'PROBLEM'; FHDSsensorBAD = 'LuMid too Low'; OPTDATESTR ='14-Feb-2020 22:27:31';
