MOBY267 Information/Configuration Page
MOBYs physical Configuration
| Sensor | MUX Position | Depth (m) |
|---|
| Es SFC |
5 |
N/A |
| Ed TOP |
7 |
1.488 |
| Lu TOP |
8 |
1.614 |
| Ed MID |
2 |
5.412 |
| Lu MID |
9 |
5.538 |
| Ed BOT |
10 |
9.225 |
| Lu BOT |
1 |
9.351 |
| Eu MOS |
6 |
N/A |
| LuMOS |
11 |
11.513 |
| BLUE LED |
12 |
N/A |
| RED LED |
13 |
N/A |
| LAMP |
15 |
N/A |
MOS2 Vaux Analog Data Types
| Name | Code | Conversion |
|---|
| Unknown |
-1 |
X; |
| None |
0 |
X; |
| Water Temperature (deg C) |
10 |
(2.5551e-015).*X^4+(-1.2120e-010).*X^3+(2.0394e-006)*X^2 + (-2.0680e-002)*X + 1.1270e+002; |
| Blue array temp (deg C) |
11 |
(3.0518E-2)*X; |
| Red array temp (deg C) |
12 |
(3.0518E-2)*X; |
| Calib src block temp (deg C) |
13 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| Depth Sensor temp (deg C) |
14 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| Blue CCD head temp (deg C) |
15 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| Red CCD head temp (deg C) |
16 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| TT7 board temp (deg C) |
17 |
(-1.1978E-13)*X^4 - (1.1059E-09)*X^3 + (1.1556E-05)*X^2 - (5.3524E-02)*X + 9.7741E+01; |
| TT7 case temp (deg C) |
18 |
(-1.1978E-13)*X^4 - (1.1059E-09)*X^3 + (1.1556E-05)*X^2 - (5.3524E-02)*X + 9.7741E+01; |
| Depth (meters) |
20 |
(1.3423E-09)*X^2 + (1.2839E-02)*X + 2.2724E-02; |
| X Tilt (degrees) |
21 |
(-2.2218E-13)*X^3 + (1.5007E-10)*X^2 + (3.0805E-03)*X + 6.1564E-03; |
| Y Tilt (degrees) |
22 |
(-8.2511E-14)*X^3 + (8.6841E-10)*X^2 + (3.0540E-03)*X - 3.3977E-02; |
| Inclination |
2122 |
X; |
| Blue cal diode mon (volts) |
23 |
(3.0518E-4)*X; |
| Red cal diode mon (volts) |
24 |
(3.0518E-4)*X; |
| Blue heat mon (volts) |
25 |
(3.0518E-4)*X; |
| Red heat mon (volts) |
26 |
(3.0518E-4)*X; |
| Coolant flow (liters/min) |
27 |
(6.1035E-5)*X; |
| System current (amps) |
28 |
(3.05E-3)*X - 40; |
| TT7 Mains (volts) |
29 |
(6.105E-3)*X; |
| TT7 case humidity (%RH) |
30 |
(X*0.02906-19)/(1.054-.00216*T); |
MOS2 Faux Analog Data Types
| Name | Code | Conversion |
|---|
| TT7 upper bat (volts) |
100 |
6.104E-03*X |
| TT7 board temp (deg C) |
101 |
-1.1978E-13*X^4 -1.1059E-09*X^3 +1.1556E-05*X^2 -5.3524E-02*X +9.7741E+01; |
| TT7 case temp (deg C) |
102 |
-1.1978E-13*X^4 -1.1059E-09*X^3 +1.1556E-05*X^2 -5.3524E-02*X +9.7741E+01; |
| TT7 case humidity (%RH) |
103 |
(X*0.02906-19)/(1.054-.00216*T); |
| Solar panel #1 current (Amps) |
104 |
3.052E-4*X; |
| Solar panel #2 current (Amps) |
105 |
3.052E-4*X; |
| Solar panel #3 current (Amps) |
106 |
3.052E-4*X; |
| Solar panel #4 current (Amps) |
107 |
3.052E-4*X; |
| Upper bat. charge current (Amps) |
108 |
6.104-4*X; |
| Upper arm collector depth (Meters) |
109 |
(0.0003*X - 0.9272)-0.985; |
| Upper bat. drain current (Amps) |
110 |
6.104-4*X; |
| N/A |
111 |
(NaN); |
| TT5 mains power (Volts) |
112 |
6.104E-03*X; |
| Lower bat. charge current (Amps) |
113 |
3.662E-3*X; |
| MOS current (Amps) |
114 |
3.662E-3*X; |
| MOS voltage (Volts) |
115 |
6.104E-03*X; |
| Lower Battery #1 (Volts) |
116 |
1.221E-2*X; |
| Lower Battery #2 (Volts) |
117 |
1.221E-2*X; |
| Lower Battery #3 (Volts) |
118 |
1.221E-2*X; |
| Lower Battery #4 (Volts) |
119 |
1.221E-2*X; |

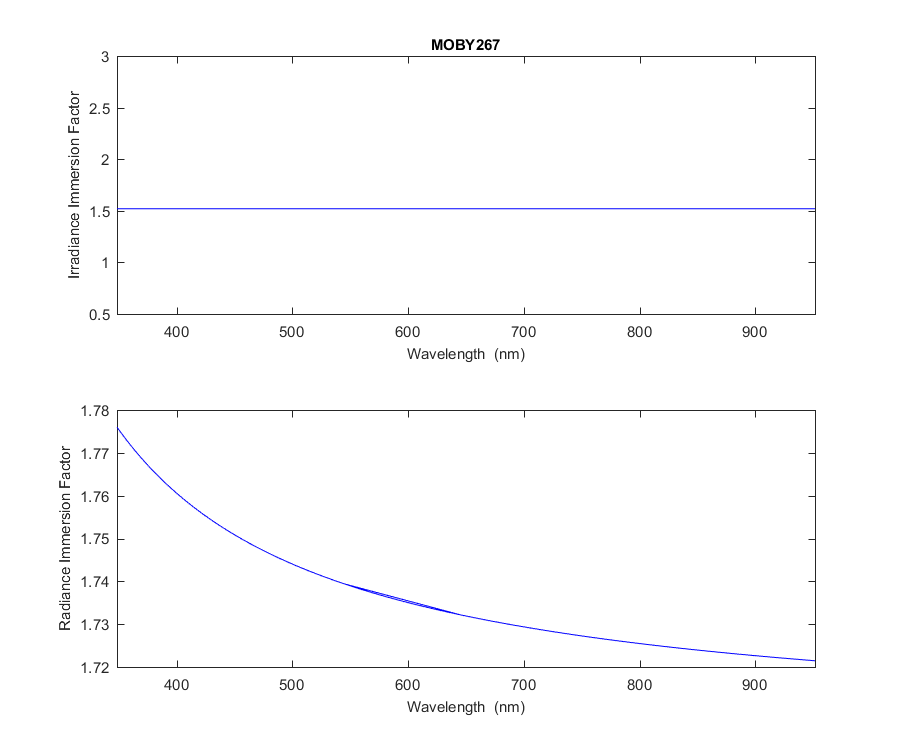

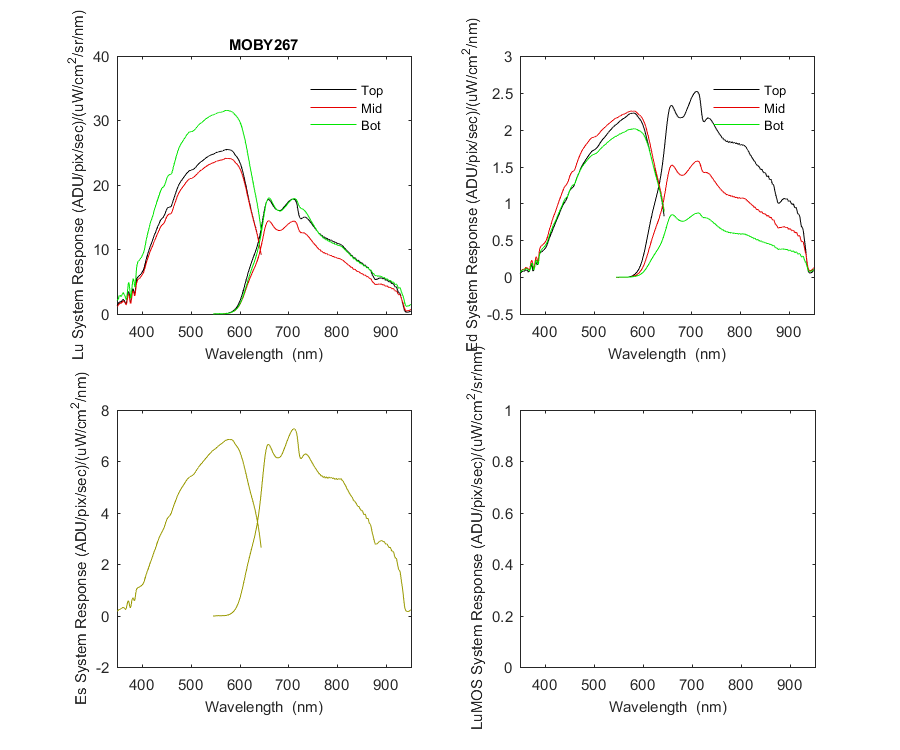

System Response Information
File: 267_RSP.MLD
DscS 14: MOBY267 Nominal Integration Time (sec)
DscS 15: MOBY267 Calibrated Integration Time (sec)
DscS 16: MOBY267 Nominal CCD Bin Factor (pix)
DscS 17: MOBY267 Calibrated CCD Bin Factor (pix)
Xdat:
NomInt, CalInt, NomBin, CalBin
0.050000, 0.067767, 1.000, 1.000
0.055000, 0.072640, 2.000, 2.000
0.060000, 0.077515, 3.000, 3.000
0.065000, 0.082391, 4.000, 4.000
0.070000, 0.087267, 6.000, 6.000
0.075000, 0.092145, 8.000, 8.000
0.080000, 0.097024, 12.000, 12.000
0.085000, 0.101904, 16.000, 16.000
0.090000, 0.106785, 24.000, 24.000
0.095000, 0.111667, 32.000, 32.000
0.100000, 0.116549, 48.000, 48.000
0.150000, 0.165410, 64.000, 64.000
0.200000, 0.214322, 96.000, 96.000
0.250000, 0.263272, 128.000, 128.000
0.300000, 0.312252, 192.000, 192.000
0.350000, 0.361258, 384.000, 384.000
0.400000, 0.410286, ,
0.450000, 0.459332, ,
0.500000, 0.508396, ,
0.550000, 0.557474, ,
0.600000, 0.606566, ,
0.650000, 0.655671, ,
0.700000, 0.704788, ,
0.750000, 0.753915, ,
0.800000, 0.803053, ,
0.850000, 0.852200, ,
0.900000, 0.901356, ,
0.950000, 0.950521, ,
1.000000, 0.999693, ,
1.500000, 1.491787, ,
2.000000, 1.984400, ,
2.500000, 2.477401, ,
3.000000, 2.970714, ,
3.500000, 3.464286, ,
4.000000, 3.958082, ,
4.500000, 4.452075, ,
5.000000, 4.946242, ,
5.500000, 5.440568, ,
6.000000, 5.935040, ,
6.500000, 6.429644, ,
7.000000, 6.924372, ,
7.500000, 7.419215, ,
8.000000, 7.914166, ,
8.500000, 8.409219, ,
9.000000, 8.904368, ,
9.500000, 9.399609, ,
10.000000, 9.894937, ,
15.000000, 14.852271, ,
20.000000, 19.815483, ,
25.000000, 24.783258, ,
30.000000, 29.754826, ,
35.000000, 34.729671, ,
40.000000, 39.707436, ,
45.000000, 44.687843, ,
50.000000, 49.670685, ,
55.000000, 54.655792, ,
60.000000, 59.643028, ,
65.000000, 64.632278, ,
70.000000, 69.623444, ,
75.000000, 74.616447, ,
80.000000, 79.611214, ,
85.000000, 84.607674, ,
90.000000, 89.605774, ,
95.000000, 94.605476, ,
100.000000, 99.606728, ,
125.000000,124.634956, ,
150.000000,149.697281, ,
175.000000,174.791122, ,
200.000000,199.914688, ,
225.000000,225.066605, ,
250.000000,250.245819, ,
275.000000,275.451508, ,
300.000000,300.682983, ,
325.000000,325.939636, ,
350.000000,351.221008, ,
375.000000,376.526672, ,
400.000000,401.856293, ,
425.000000,427.209534, ,
450.000000,452.586151, ,
475.000000,477.985840, ,
500.000000,503.408417, ,
--------------------------------------------------------------------------------------------------
MOBY267: Table of Engineering Information
--------------------------------------------------------------------------------------------------
HOUR: 0 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2019162 LuTop | 60.00/60.00 6/384 | 16124/10033 1104/7327 | 5 2
2019162 LuMid | 60.00/60.00 6/384 | 16206/8260 1120/7942 | 5 2
2019162 LuBot | 60.00/60.00 6/384 | 17969/7568 1106/7460 | 5 2
2019162 EdTop | 1.00/1.00 24/64 | 7733/10595 924/1049 | 5 2
2019162 EdMid | 1.50/1.50 24/64 | 9913/3072 930/1059 | 5 2
2019162 EdBot | 2.00/2.00 24/384 | 11681/3532 937/1272 | 5 2
2019162 EsSfc | 1.13/1.13 16/16 | 21765/19099 931/1036 | 3 2
2019162 Blue LED | 1.00/1.00 64/384 | 39073/1967 954/1159 | 3 2
2019162 Red LED | 1.00/1.00 384/64 | 18435/24916 1202/1056 | 3 2
2019162 Lamp | 1.00/0.75 64/16 | 46635/46302 954/1032 | 3 2
--------------------------------------------------------------------------------------------------
HOUR: 20 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2019109 LuTop | 60.00/60.00 6/384 | 23798/20938 1297/9011 | 5 2
2019109 LuMid | 1.50/1.50 24/64 | 22140/8926 1250/8195 | 5 2
2019111 | 60.00/60.00 6/384 | 22140/8926 1250/8195 | 5 2
2019109 LuBot | 60.00/60.00 6/384 | 26424/10825 1353/10001 | 5 2
2019109 EdTop | 1.00/1.00 24/64 | 15916/23968 1057/1185 | 5 2
2019109 EdMid | 60.00/60.00 6/384 | 44599/60966 1027/5678 | 5 2
2019111 | 1.50/1.50 24/64 | 44599/60966 1027/5678 | 5 2
2019109 EdBot | 2.00/2.00 24/384 | 16514/6011 1044/1535 | 5 2
2019109 EsSfc | 1.13/1.13 16/16 | 27299/23836 1000/1157 | 3 2
2019109 Blue LED | 1.00/1.00 64/384 | 39282/2021 1002/1652 | 3 2
2019109 Red LED | 1.00/1.00 384/64 | 18548/25207 1556/1189 | 3 2
2019109 Lamp | 1.00/0.75 64/16 | 46806/46423 1103/1141 | 3 2
2019231 | 1.00/0.75 64/16 | 46806/46423 1103/1141 | 2 2
--------------------------------------------------------------------------------------------------
HOUR: 22 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2019109 LuTop | 60.00/60.00 6/384 | 24677/14424 1429/10766 | 5 2
2019109 LuMid | 1.50/1.50 24/64 | 23605/12251 1411/10578 | 5 2
2019111 | 60.00/60.00 6/384 | 23605/12251 1411/10578 | 5 2
2019109 LuBot | 60.00/60.00 6/384 | 25682/12926 1452/11131 | 5 2
2019109 EdTop | 1.00/1.00 24/64 | 12592/20897 1005/1184 | 5 2
2019109 EdMid | 60.00/60.00 6/384 | 44922/61661 1073/5913 | 5 2
2019111 | 1.50/1.50 24/64 | 44922/61661 1073/5913 | 5 2
2019109 EdBot | 2.00/2.00 24/384 | 15402/5761 1176/2361 | 5 2
2019109 EsSfc | 1.13/1.13 16/16 | 28740/24949 1032/1161 | 3 2
2019109 Blue LED | 1.00/1.00 64/384 | 39246/2857 1126/1385 | 3 2
2019109 Red LED | 1.00/1.00 384/64 | 18496/25075 1575/1186 | 3 2
2019109 Lamp | 1.00/0.75 64/16 | 47060/46657 1082/1150 | 3 2
--------------------------------------------------------------------------------------------------
HOUR: 23 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2019110 LuTop | 60.00/60.00 6/384 | 51130/24781 1126/10883 | 5 2
2019110 LuMid | 1.50/1.50 24/64 | 20254/9196 2874/8599 | 5 2
2019112 | 60.00/60.00 6/384 | 20254/9196 2874/8599 | 5 2
2019110 LuBot | 60.00/60.00 6/384 | 58039/8496 1121/8018 | 5 2
2019110 EdTop | 1.00/1.00 24/64 | 11801/39193 3149/1095 | 5 2
2019110 EdMid | 60.00/60.00 6/384 | 44427/61618 1042/5876 | 5 2
2019112 | 1.50/1.50 24/64 | 44427/61618 1042/5876 | 5 2
2019110 EdBot | 2.00/2.00 24/384 | 14156/12194 1937/12194 | 5 2
2019110 EsSfc | 1.13/1.13 16/16 | 31447/27184 975/1144 | 3 2
2019110 Blue LED | 1.00/1.00 64/384 | 39197/8151 2933/8151 | 3 2
2019110 Red LED | 1.00/1.00 384/64 | 18510/25032 1220/1109 | 3 2
2019110 Lamp | 1.00/0.75 64/16 | 46963/46627 4832/1077 | 3 2
--------------------------------------------------------------------------------------------------

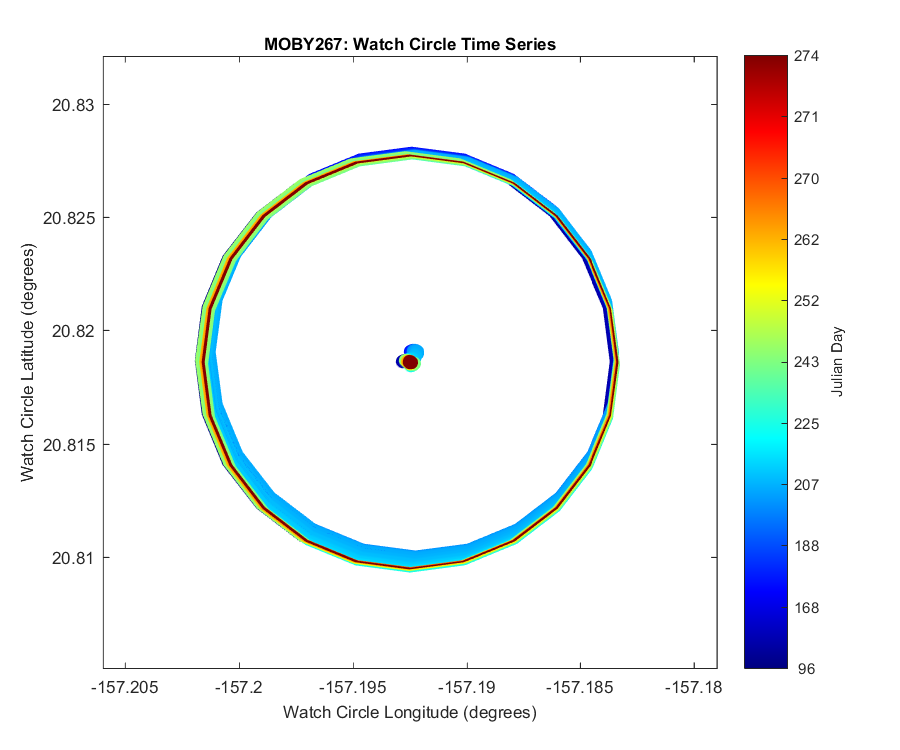

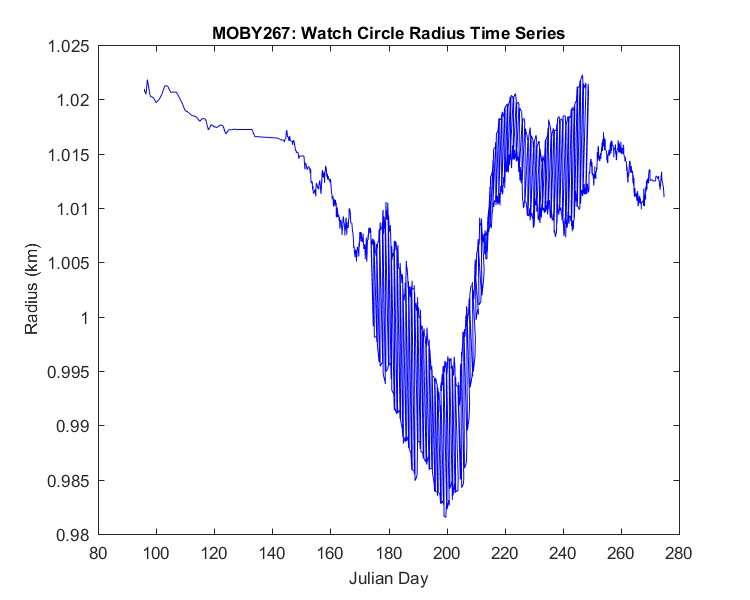

Watch Circle Time Series

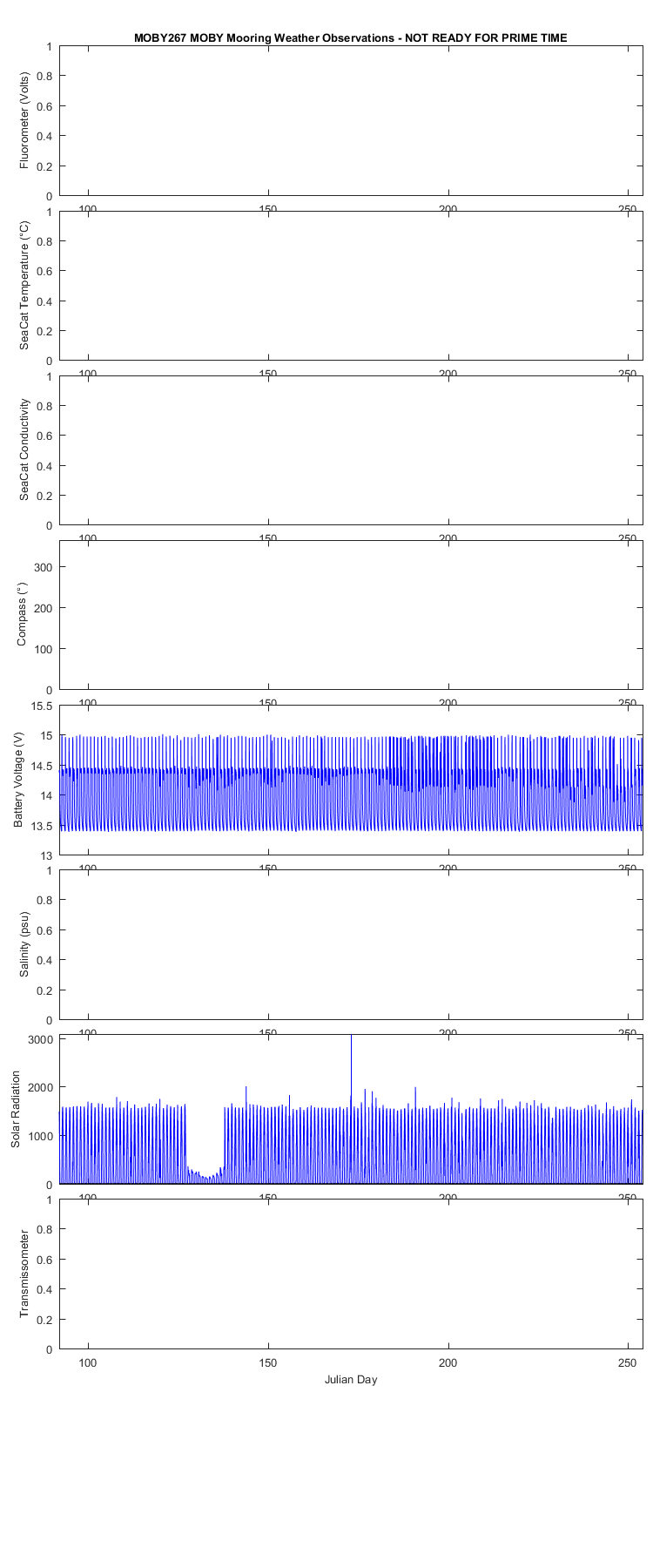

MOBY Weather Time Series

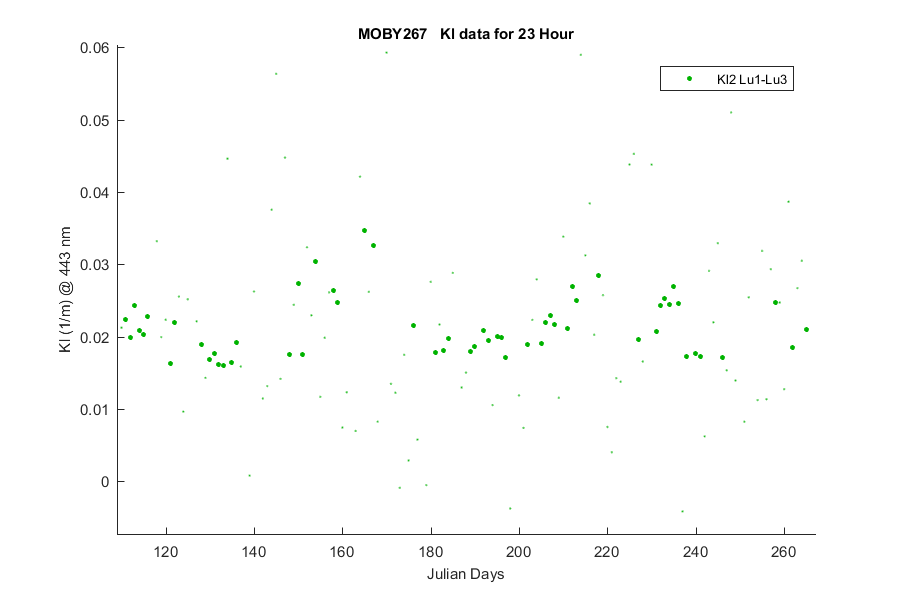

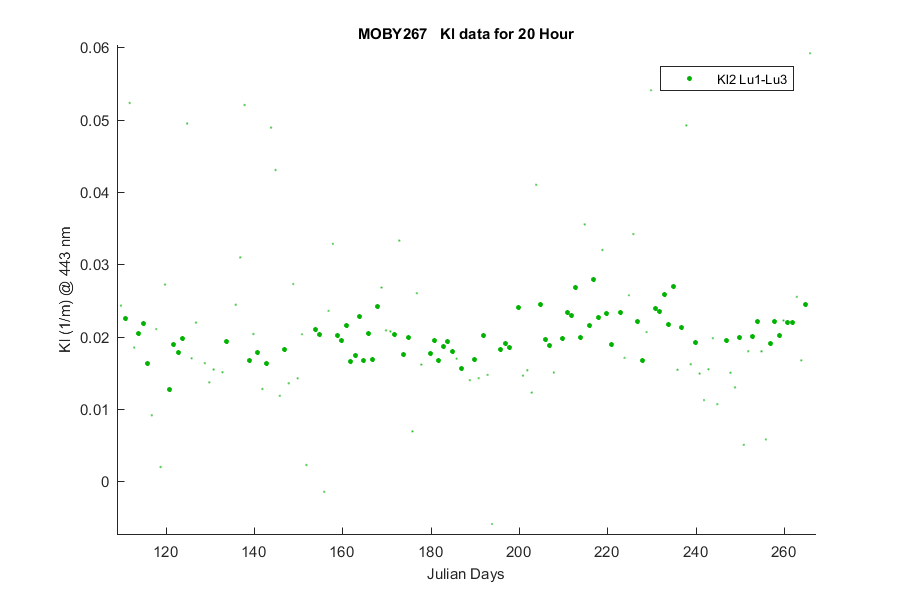

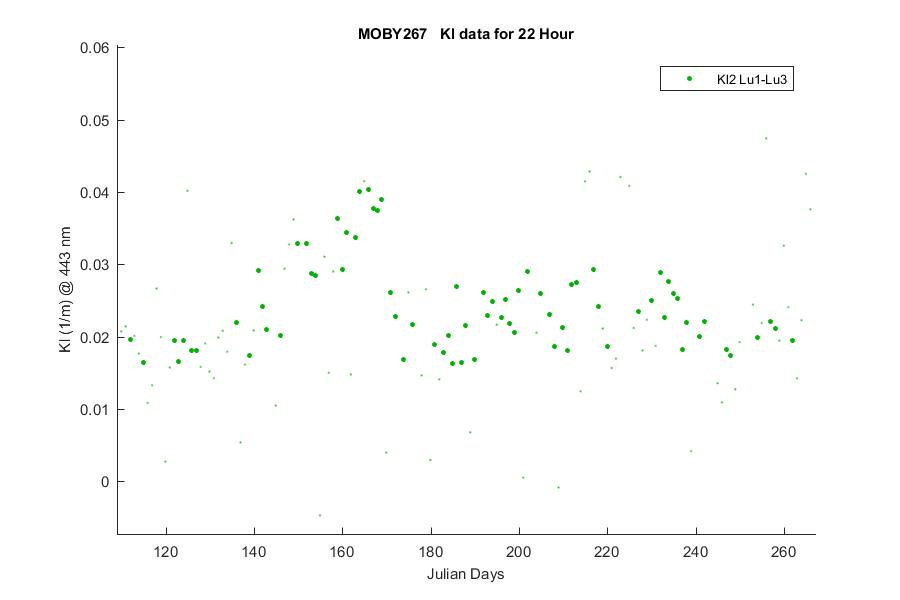

MOBY Kl Graph
Stephanie Flora - Moss Landing Marine Laboratories
