FRI 18-DEC-2020 (353) - 20
DATE: 18-Dec-2020 START TIME: 21:03 STOP TIME: 21:34 POSITION: 20° 49.32' N 157° 12.04' W
Quality Checking |
Engineering Info |
Forth Log
Table of Quality Checking Information
FILE: Complete
PROCESSING: No Quality checking code
CONFIGURATION: mby27002

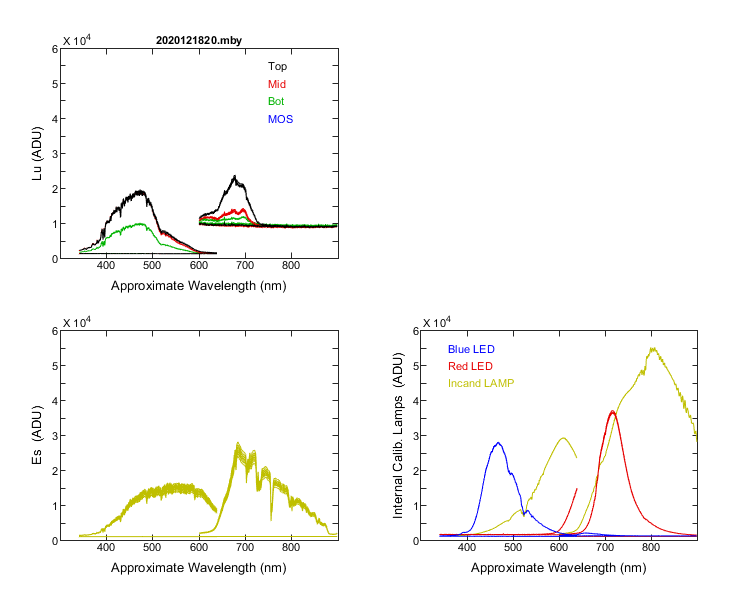

Table of Engineering Information
| LITE | DARK |
| Int Bin Maximum | Int Bin Maximum | MUX No. No.
MOBY | Time Factor Counts | Time Factor Counts | Pos Lite Dark
File Source | (B/R) (B/R) (B/R) | (B/R) (B/R) (B/R) |
-------------------------------------------------------------------------------------------------------------
20121820 LuTop | 64.000/64.000 4/384 18685/22552 | 64.000/64.000 4/384 1343/10014 | 9 5 2
20121820 LuMid | 64.000/64.000 4/384 18858/14222 | 64.000/64.000 4/384 1349/10602 | 4 5 2
20121820 LuBot | 64.000/64.000 4/384 9784/11678 | 64.000/64.000 4/384 1366/10364 | 2 5 2
20121820 EsSfc | 0.750/0.750 16/32 14836/25607 | 0.750/0.750 16/32 989/1016 | 8 3 2
20121820 Blue LED| 1.000/1.000 64/384 27949/2010 | 1.000/1.000 64/384 1093/1182 | 12 3 2
20121820 Red LED | 1.000/1.000 384/64 14850/36966 | 1.000/1.000 384/64 1760/1042 | 13 3 2
20121820 Lamp | 1.000/1.000 64/16 29090/54949 | 1.000/1.000 64/16 1099/1040 | 15 3 2
| (sec) (pixel) (AD U) | (sec) (pixel) (ADU) |
FORTH LOG FILE
No FORTH LOG file appears to exist for this MOBY file
QCHK FILE
% 20121820.mo3 Quality Check ASCII file: created on 19-Dec-2020 by MKQCHK_
OPTION13: MOBYFNMS = '20121820.mo3'; CONfile = 'mby27002'; OPTDATESTR ='15-Dec-2021 23:23:15';
Stephanie Flora - Moss Landing Marine Laboratories
