MOBY271 Information/Configuration Page
MOBYs physical Configuration
| Sensor | MUX Position | Depth (m) |
|---|
| Es SFC |
5 |
N/A |
| Ed TOP |
7 |
1.502 |
| Lu TOP |
8 |
1.628 |
| Ed MID |
2 |
5.458 |
| Lu MID |
6 |
5.584 |
| Ed BOT |
3 |
9.282 |
| Lu BOT |
1 |
9.408 |
| LuMOS |
11 |
11.513 |
| BLUE LED |
12 |
N/A |
| RED LED |
13 |
N/A |
| LAMP |
15 |
N/A |
MOS2 Vaux Analog Data Types
| Name | Code | Conversion |
|---|
| Unknown |
-1 |
X; |
| None |
0 |
X; |
| Water Temperature (deg C) |
10 |
(2.5551e-015).*X^4+(-1.2120e-010).*X^3+(2.0394e-006)*X^2 + (-2.0680e-002)*X + 1.1270e+002; |
| Blue array temp (deg C) |
11 |
(3.0518E-2)*X; |
| Red array temp (deg C) |
12 |
(3.0518E-2)*X; |
| Calib src block temp (deg C) |
13 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| Depth Sensor temp (deg C) |
14 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| Blue CCD head temp (deg C) |
15 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| Red CCD head temp (deg C) |
16 |
(-4.6789E-16)*X^4 - (1.7279E-11)*X^3 + (7.2224E-07)*X^2 - (1.3381E-02)*X + 9.7741E+01; |
| TT7 board temp (deg C) |
17 |
(-1.1978E-13)*X^4 - (1.1059E-09)*X^3 + (1.1556E-05)*X^2 - (5.3524E-02)*X + 9.7741E+01; |
| TT7 case temp (deg C) |
18 |
(-1.1978E-13)*X^4 - (1.1059E-09)*X^3 + (1.1556E-05)*X^2 - (5.3524E-02)*X + 9.7741E+01; |
| Depth (meters) |
20 |
(1.3423E-09)*X^2 + (1.2839E-02)*X + 2.2724E-02; |
| X Tilt (degrees) |
21 |
(-2.2218E-13)*X^3 + (1.5007E-10)*X^2 + (3.0805E-03)*X + 6.1564E-03; |
| Y Tilt (degrees) |
22 |
(-8.2511E-14)*X^3 + (8.6841E-10)*X^2 + (3.0540E-03)*X - 3.3977E-02; |
| Inclination |
2122 |
X; |
| Blue cal diode mon (volts) |
23 |
(3.0518E-4)*X; |
| Red cal diode mon (volts) |
24 |
(3.0518E-4)*X; |
| Blue heat mon (volts) |
25 |
(3.0518E-4)*X; |
| Red heat mon (volts) |
26 |
(3.0518E-4)*X; |
| Coolant flow (liters/min) |
27 |
(6.1035E-5)*X; |
| System current (amps) |
28 |
(3.05E-3)*X - 40; |
| TT7 Mains (volts) |
29 |
(6.105E-3)*X; |
| TT7 case humidity (%RH) |
30 |
(X*0.02906-19)/(1.054-.00216*T); |
MOS2 Faux Analog Data Types
| Name | Code | Conversion |
|---|
| TT7 upper bat (volts) |
100 |
6.104E-03*X |
| TT7 board temp (deg C) |
101 |
-1.1978E-13*X^4 -1.1059E-09*X^3 +1.1556E-05*X^2 -5.3524E-02*X +9.7741E+01; |
| TT7 case temp (deg C) |
102 |
-1.1978E-13*X^4 -1.1059E-09*X^3 +1.1556E-05*X^2 -5.3524E-02*X +9.7741E+01; |
| TT7 case humidity (%RH) |
103 |
(X*0.02906-19)/(1.054-.00216*T); |
| Solar panel #1 current (Amps) |
104 |
3.052E-4*X; |
| Solar panel #2 current (Amps) |
105 |
3.052E-4*X; |
| Solar panel #3 current (Amps) |
106 |
3.052E-4*X; |
| Solar panel #4 current (Amps) |
107 |
3.052E-4*X; |
| Upper bat. charge current (Amps) |
108 |
6.104-4*X; |
| Upper arm collector depth (Meters) |
109 |
(0.0003*X - 0.9272)-0.985; |
| Upper bat. drain current (Amps) |
110 |
6.104-4*X; |
| N/A |
111 |
(NaN); |
| TT5 mains power (Volts) |
112 |
6.104E-03*X; |
| Lower bat. charge current (Amps) |
113 |
3.662E-3*X; |
| MOS current (Amps) |
114 |
3.662E-3*X; |
| MOS voltage (Volts) |
115 |
6.104E-03*X; |
| Lower Battery #1 (Volts) |
116 |
1.221E-2*X; |
| Lower Battery #2 (Volts) |
117 |
1.221E-2*X; |
| Lower Battery #3 (Volts) |
118 |
1.221E-2*X; |
| Lower Battery #4 (Volts) |
119 |
1.221E-2*X; |

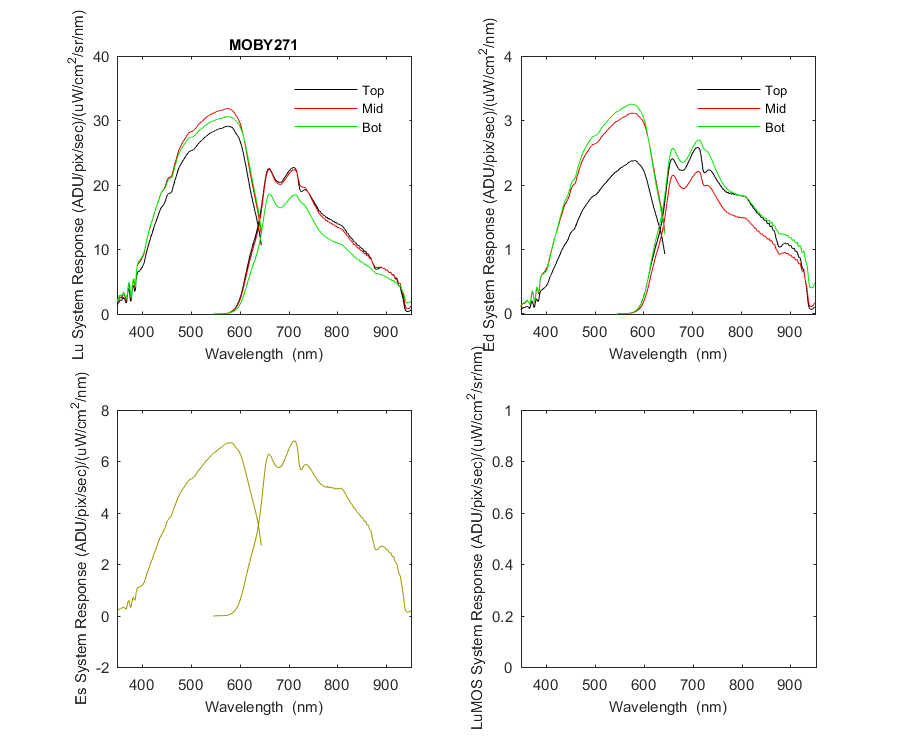

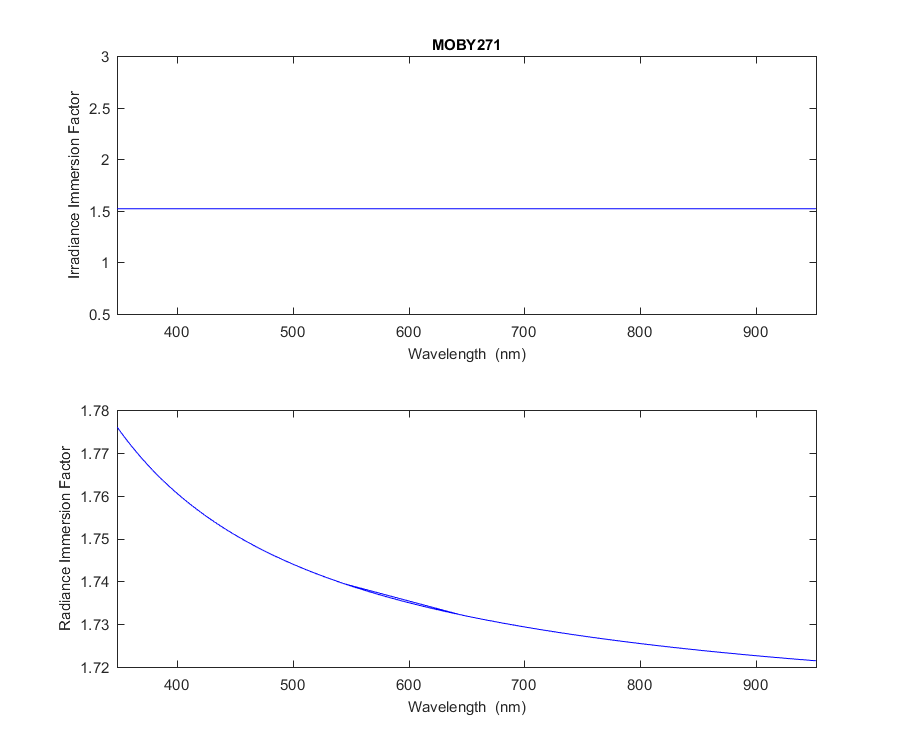

System Response Information
File: 271_RSP.MLD
DscS 14: MOBY271 Nominal Integration Time (sec)
DscS 15: MOBY271 Calibrated Integration Time (sec)
DscS 16: MOBY271 Nominal CCD Bin Factor (pix)
DscS 17: MOBY271 Calibrated CCD Bin Factor (pix)
Xdat:
NomInt, CalInt, NomBin, CalBin
0.050000, 0.067767, 1.000, 1.000
0.055000, 0.072640, 2.000, 2.000
0.060000, 0.077515, 3.000, 3.000
0.065000, 0.082391, 4.000, 4.000
0.070000, 0.087267, 6.000, 6.000
0.075000, 0.092145, 8.000, 8.000
0.080000, 0.097024, 12.000, 12.000
0.085000, 0.101904, 16.000, 16.000
0.090000, 0.106785, 24.000, 24.000
0.095000, 0.111667, 32.000, 32.000
0.100000, 0.116549, 48.000, 48.000
0.150000, 0.165410, 64.000, 64.000
0.200000, 0.214322, 96.000, 96.000
0.250000, 0.263272, 128.000, 128.000
0.300000, 0.312252, 192.000, 192.000
0.350000, 0.361258, 384.000, 384.000
0.400000, 0.410286, ,
0.450000, 0.459332, ,
0.500000, 0.508396, ,
0.550000, 0.557474, ,
0.600000, 0.606566, ,
0.650000, 0.655671, ,
0.700000, 0.704788, ,
0.750000, 0.753915, ,
0.800000, 0.803053, ,
0.850000, 0.852200, ,
0.900000, 0.901356, ,
0.950000, 0.950521, ,
1.000000, 0.999693, ,
1.500000, 1.491787, ,
2.000000, 1.984400, ,
2.500000, 2.477401, ,
3.000000, 2.970714, ,
3.500000, 3.464286, ,
4.000000, 3.958082, ,
4.500000, 4.452075, ,
5.000000, 4.946242, ,
5.500000, 5.440568, ,
6.000000, 5.935040, ,
6.500000, 6.429644, ,
7.000000, 6.924372, ,
7.500000, 7.419215, ,
8.000000, 7.914166, ,
8.500000, 8.409219, ,
9.000000, 8.904368, ,
9.500000, 9.399609, ,
10.000000, 9.894937, ,
15.000000, 14.852271, ,
20.000000, 19.815483, ,
25.000000, 24.783258, ,
30.000000, 29.754826, ,
35.000000, 34.729671, ,
40.000000, 39.707436, ,
45.000000, 44.687843, ,
50.000000, 49.670685, ,
55.000000, 54.655792, ,
60.000000, 59.643028, ,
65.000000, 64.632278, ,
70.000000, 69.623444, ,
75.000000, 74.616447, ,
80.000000, 79.611214, ,
85.000000, 84.607674, ,
90.000000, 89.605774, ,
95.000000, 94.605476, ,
100.000000, 99.606728, ,
125.000000,124.634956, ,
150.000000,149.697281, ,
175.000000,174.791122, ,
200.000000,199.914688, ,
225.000000,225.066605, ,
250.000000,250.245819, ,
275.000000,275.451508, ,
300.000000,300.682983, ,
325.000000,325.939636, ,
350.000000,351.221008, ,
375.000000,376.526672, ,
400.000000,401.856293, ,
425.000000,427.209534, ,
450.000000,452.586151, ,
475.000000,477.985840, ,
500.000000,503.408417, ,
--------------------------------------------------------------------------------------------------
MOBY271: Table of Engineering Information
--------------------------------------------------------------------------------------------------
HOUR: 0 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2021136 LuTop | 60.00/60.00 6/384 | 17222/13868 1099/6144 | 5 2
2021136 LuMid | 60.00/60.00 6/384 | 18507/9129 1113/6560 | 5 2
2021136 LuBot | 60.00/60.00 6/384 | 15564/6568 1103/6227 | 5 2
2021136 EsSfc | 1.13/1.13 16/16 | 21247/17492 932/1035 | 3 2
2021136 Blue LED | 1.00/1.00 64/384 | 39094/1931 953/1154 | 3 2
2021136 Red LED | 1.00/1.00 384/64 | 19255/24900 1185/1046 | 3 2
2021136 Lamp | 1.00/0.75 64/16 | 46098/45755 953/1030 | 3 2
--------------------------------------------------------------------------------------------------
HOUR: 20 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2021118 LuTop | 60.00/60.00 6/384 | 22474/46364 1108/7107 | 5 2
2021118 LuMid | 60.00/60.00 6/384 | 22758/9662 1107/7827 | 5 2
2021118 LuBot | 60.00/60.00 6/384 | 21710/8572 1191/7366 | 5 2
2021118 EdTop | 1.00/1.00 24/64 | 13004/20563 961/1147 | 5 2
2021118 EdMid | 1.50/1.50 24/64 | 19920/6164 945/1141 | 5 2
2021118 EdBot | 2.00/2.00 24/384 | 28421/15840 1079/1761 | 5 2
2021118 EsSfc | 1.13/1.13 16/16 | 26143/21622 933/1039 | 3 2
2021118 Blue LED | 1.00/1.00 64/384 | 39167/6198 1311/6198 | 3 2
2021118 Red LED | 1.00/1.00 384/64 | 19305/24983 3707/7837 | 3 2
2021118 Lamp | 1.00/0.75 64/16 | 46988/46605 1725/4660 | 3 2
2021194 | 1.00/0.75 64/16 | 46988/46605 1725/4660 | 2 2
--------------------------------------------------------------------------------------------------
HOUR: 21 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2021241 LuTop | 60.00/60.00 6/384 | 18188/14098 1080/6054 | 5 2
2021241 LuMid | 60.00/60.00 6/384 | 18012/8535 1086/6372 | 5 2
2021241 LuBot | 60.00/60.00 6/384 | 7962/6484 1083/6236 | 5 2
2021241 EdTop | 1.00/1.00 24/64 | 11773/16900 924/1047 | 5 2
2021241 EdMid | 1.50/1.50 24/64 | 12680/4248 928/1050 | 5 2
2021241 EdBot | 2.00/2.00 24/384 | 22286/13670 937/1225 | 5 2
2021241 EsSfc | 1.13/1.13 16/16 | 22393/18518 932/1034 | 3 2
2021241 Blue LED | 1.00/1.00 64/384 | 38978/1948 952/1145 | 3 2
2021241 Red LED | 1.00/1.00 384/64 | 19235/24889 1168/1047 | 3 2
2021241 Lamp | 1.00/0.75 64/16 | 46170/45738 952/1030 | 3 2
--------------------------------------------------------------------------------------------------
HOUR: 22 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2021118 LuTop | 60.00/60.00 6/384 | 27886/65535 1286/8544 | 5 2
2021118 LuMid | 60.00/60.00 6/384 | 25944/65535 1197/8917 | 5 2
2021118 LuBot | 60.00/60.00 6/384 | 30592/10346 13033/10307 | 5 2
2021118 EsSfc | 1.13/1.13 16/16 | 34230/27849 984/1111 | 3 2
2021118 Blue LED | 1.00/1.00 64/384 | 39131/2101 1088/1370 | 3 2
2021118 Red LED | 1.00/1.00 384/64 | 19209/24928 1551/1218 | 3 2
2021118 Lamp | 1.00/0.75 64/16 | 47120/47106 1088/4620 | 3 2
--------------------------------------------------------------------------------------------------
HOUR: 23 | | LITE DARK |
| Int Bin | Maximum Maximum | No. No.
| Time Factor | Counts Counts | Lite Dark
Date Source | (B/R) (B/R) | (B/R) (B/R) |
--------------------------------------------------------------------------------------------------
2021120 LuTop | 60.00/60.00 6/384 | 22293/65535 1372/10096 | 5 2
2021120 LuMid | 60.00/60.00 6/384 | 22434/11342 1331/9462 | 5 2
2021120 LuBot | 60.00/60.00 6/384 | 21092/65535 2845/10902 | 5 2
2021120 EsSfc | 1.13/1.13 16/16 | 28330/23366 1020/1134 | 3 2
2021120 Blue LED | 1.00/1.00 64/384 | 39148/7779 6681/7543 | 3 2
2021120 Red LED | 1.00/1.00 384/64 | 19252/24923 6927/7430 | 3 2
2021120 Lamp | 1.00/0.75 64/16 | 47090/47090 6403/7464 | 3 2
2021181 | 1.00/0.75 64/16 | 47090/47090 6403/7464 | 2 2
--------------------------------------------------------------------------------------------------

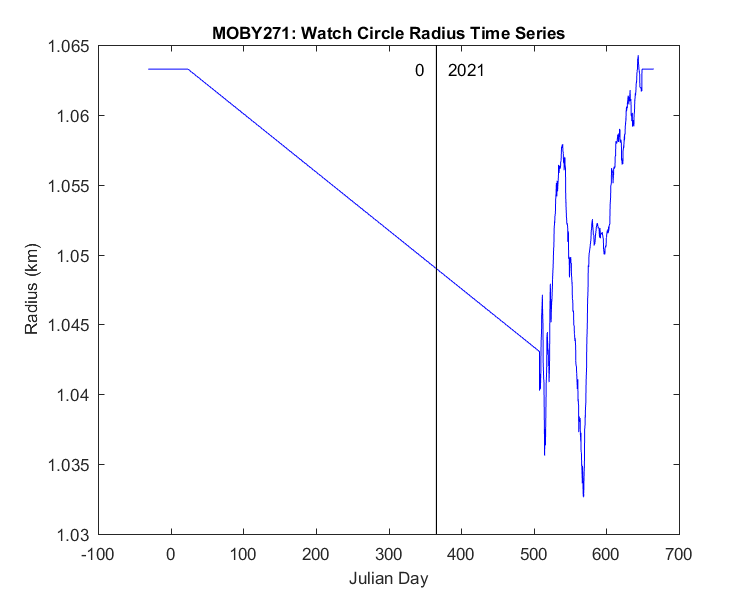

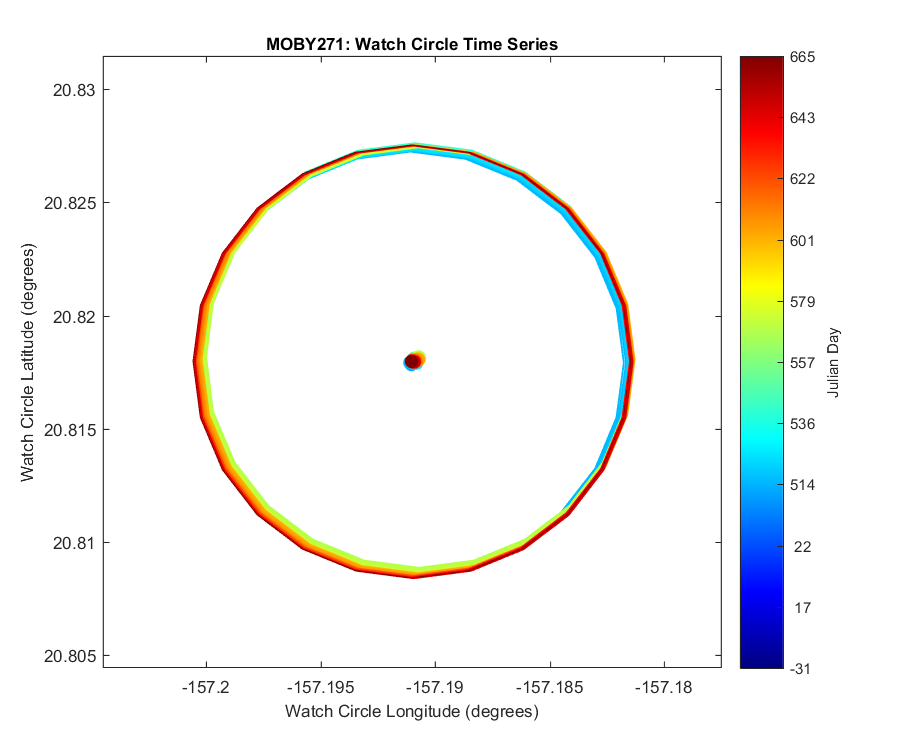

Watch Circle Time Series

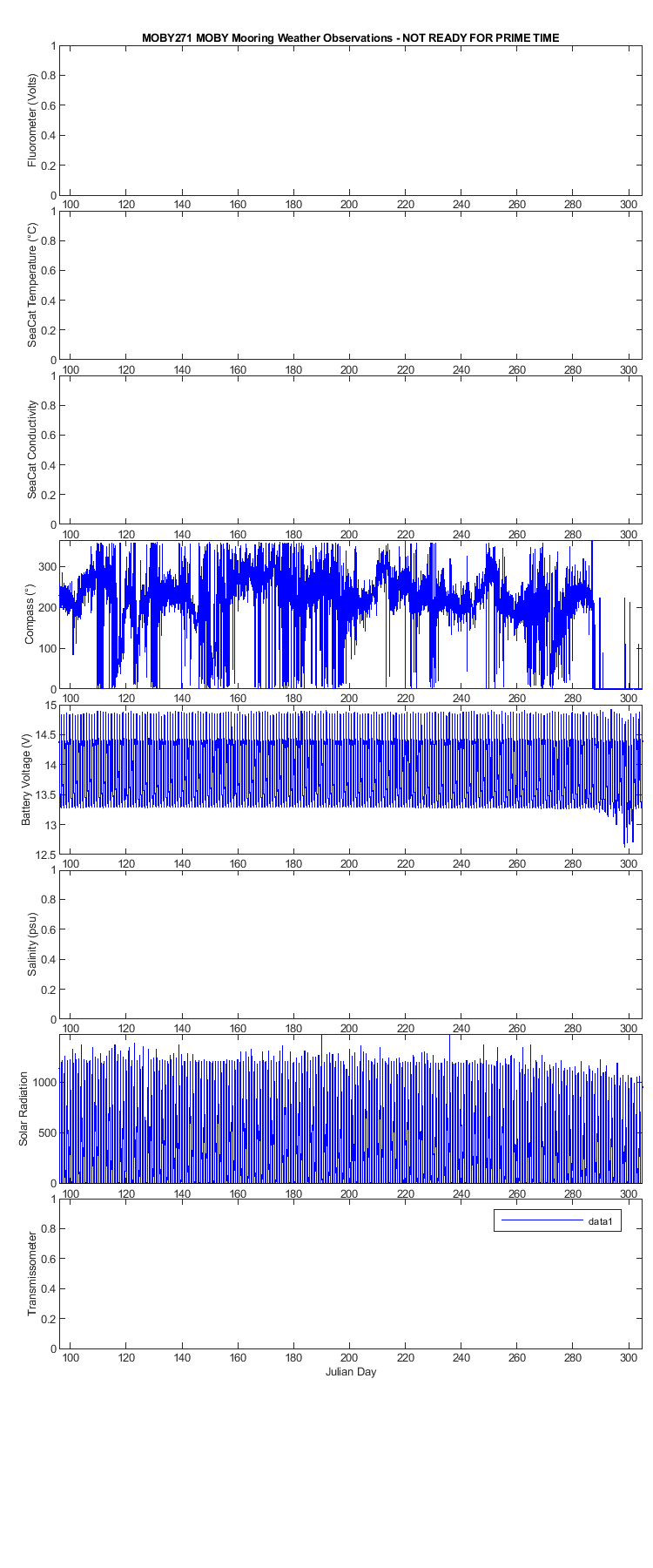

MOBY Weather Time Series

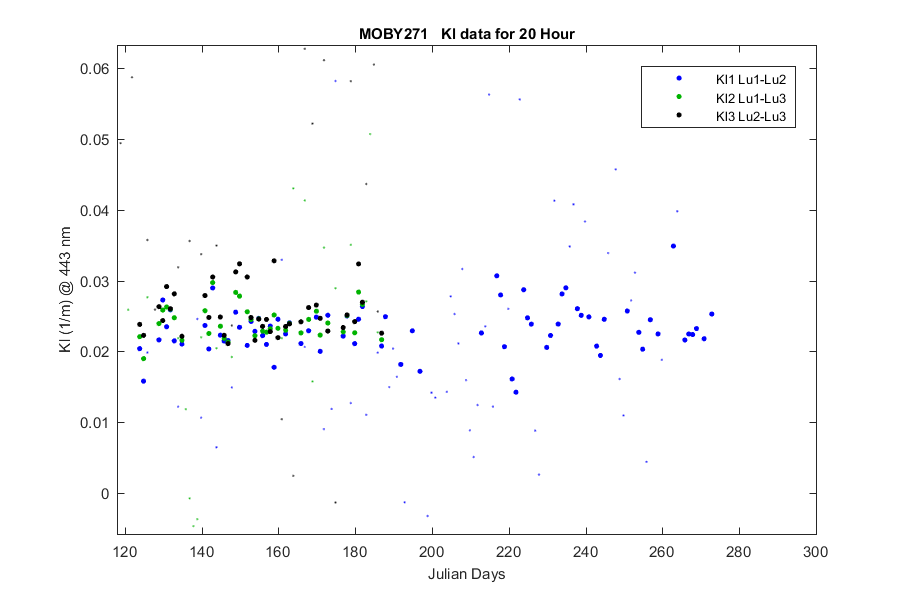

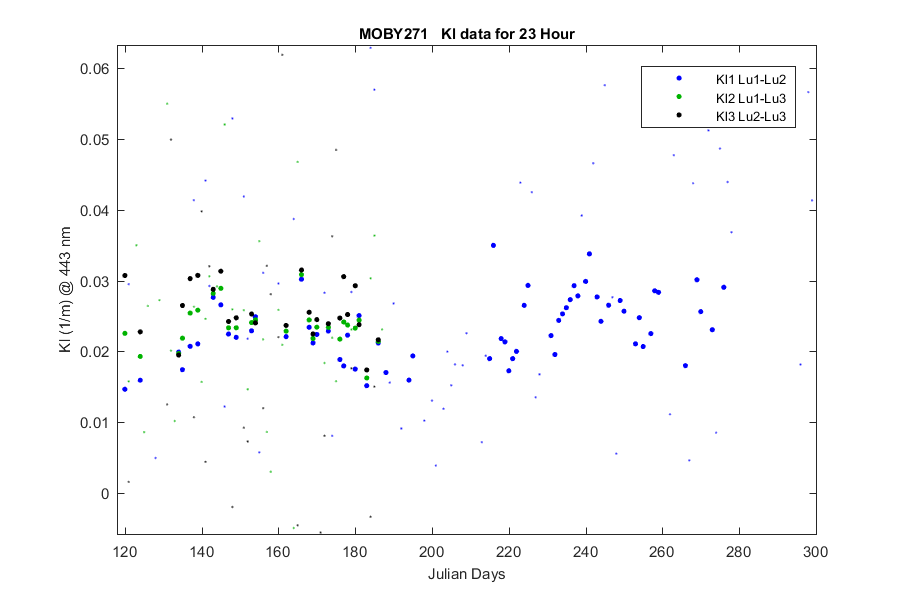

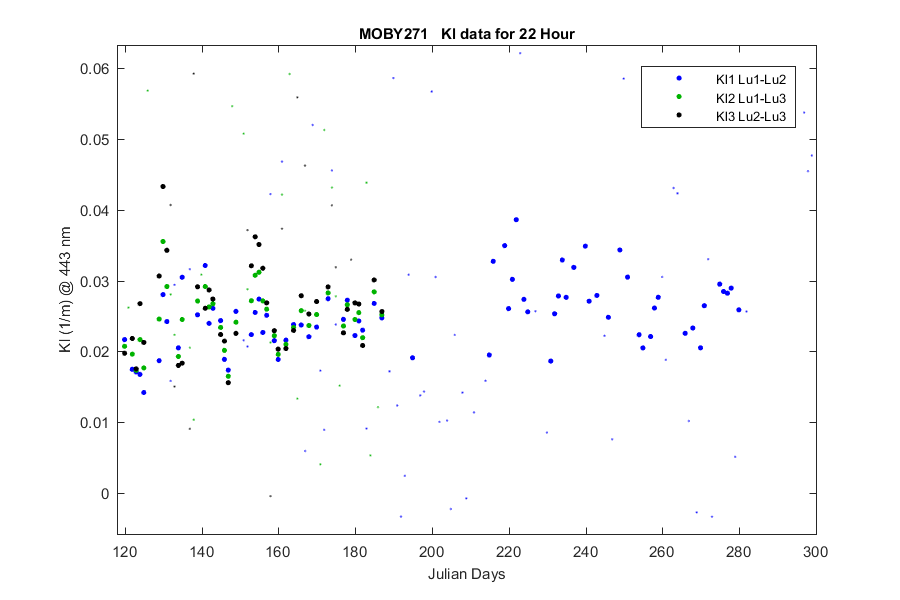

MOBY Kl Graph
