Campbell Time Series

The Campbell data logger controls MOBYs functional timing. It turns on the Falcon controller computer which will do a task depending upon the time it is powered up. The Campbell is also programed to power down the buoy at programmable times to make sure the system is shutdown at least once per day to return the system to a known state. The Falcon always boots from a cold state at power up. The Campbell operates based on a proprietary CRBasic programing language. Campbell analog Inputs measure Battery voltage, Campbell unit panel temperature, Case Air Temperature, Case Humidity, state of the Falcon Main Power Relay and state of the Charge Relay. Campbell has override control of the Main Power Relay and the Charge Relay. Campbell modem power is also controlled by the Campbell. The Campbell data table contains a record of the above parameters as well as important program flow flags. The voltage monitored by the Campbell is actually the voltage of the Campbell backup battery which is diode isolated from the Campbell and the Upper Battery. Due to the isolated battery supplies, this voltage is not much use in quantitatively monitoring the health of the Upper Battery. The Campbell backup battery only powers the Campbell when the Upper Battery falls below about 11.5 volts. The Campbell will operate down to a voltage of 10.5 volts at which point it will only try to switch the Charge Really to the Upper Battery to try and gain power for the controller rather than any lower batteries.

MainRlyState, 0=False=Off -1=True=On
ChargeRlyState, 0=False=Down -1=True=Up

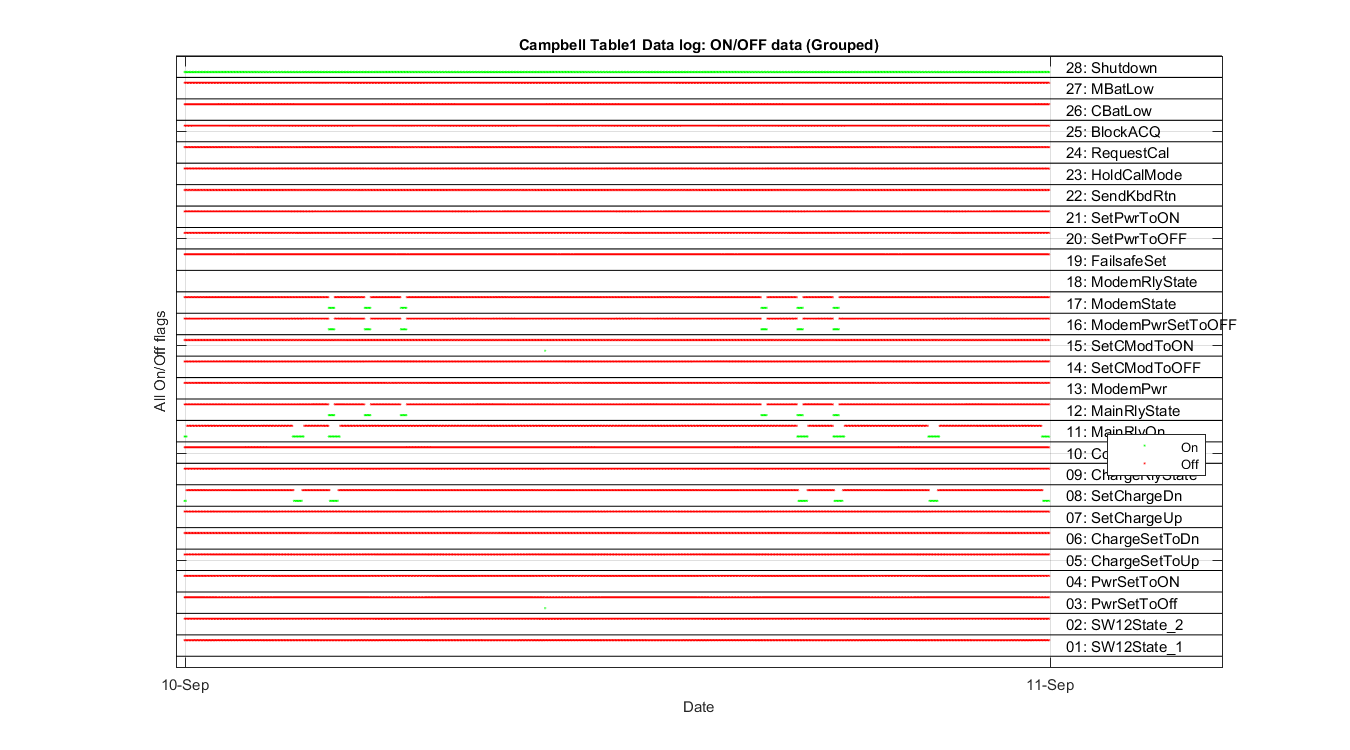

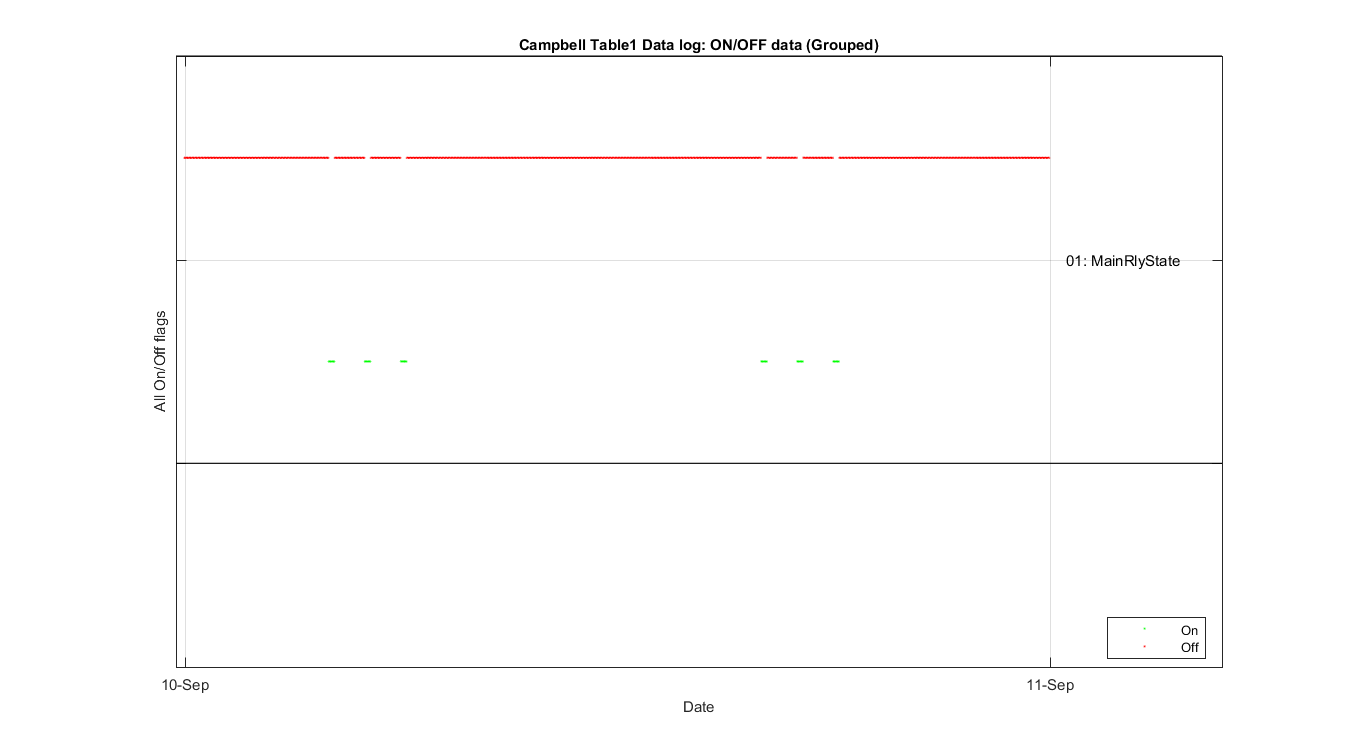

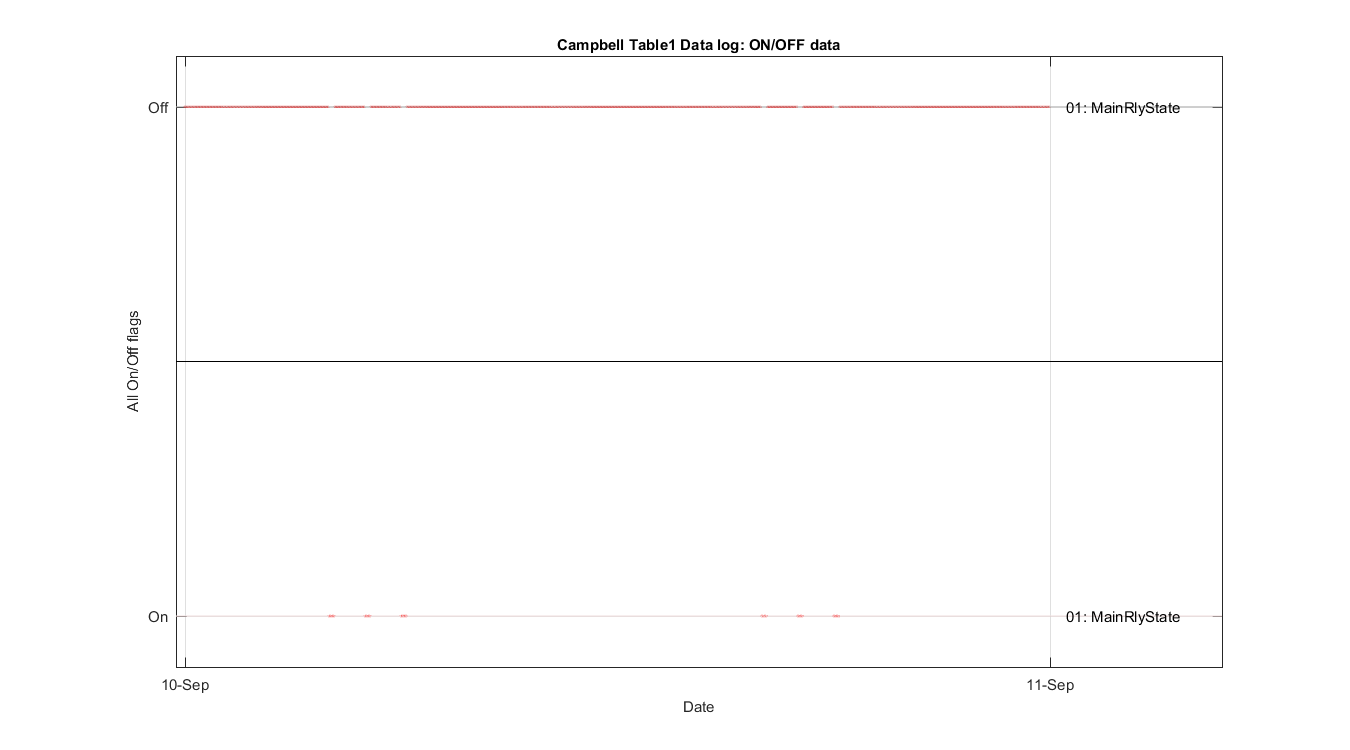

MainRlyState is the feedback from the power relay controlling the Falcon
ChargeRlyState is the feedback from the charge relay that switches the PV power to the Upper or Lower batteries
kohms is a flooding sensor, it will go below 10K if the housing contains free water

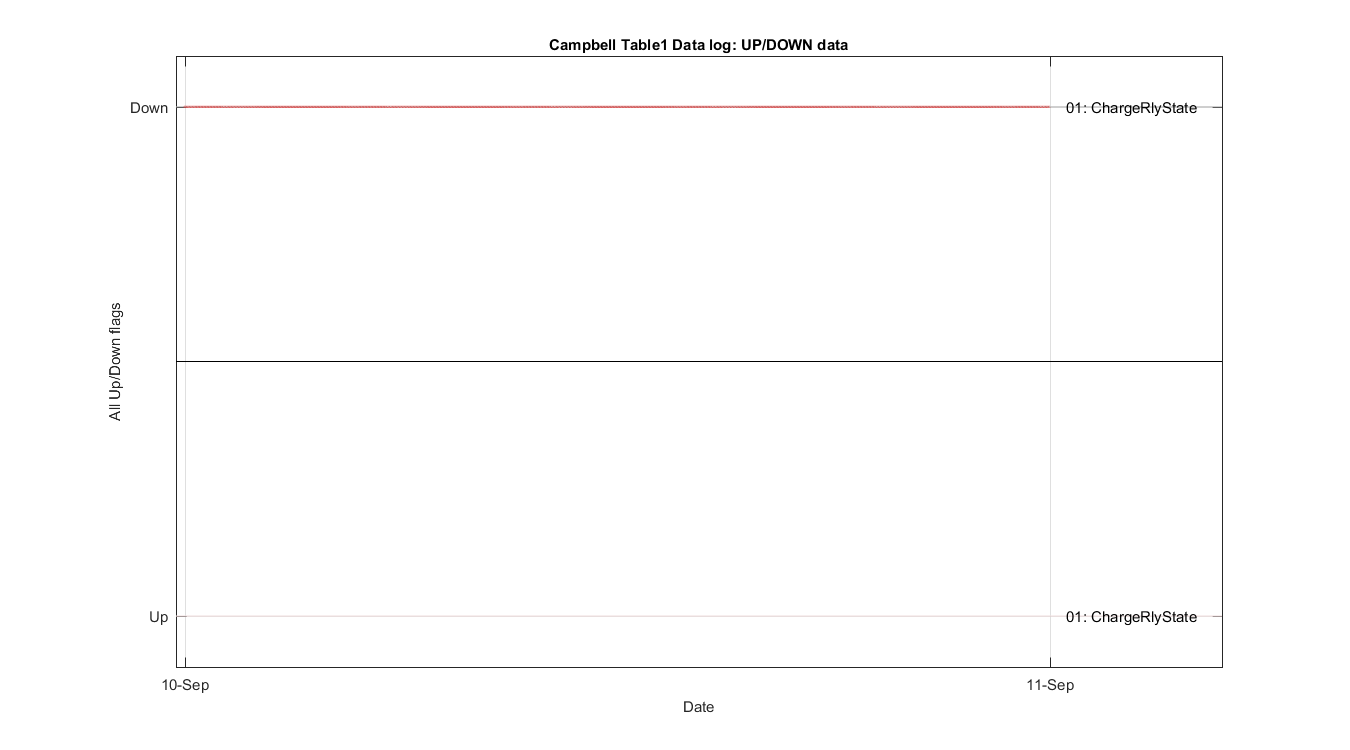

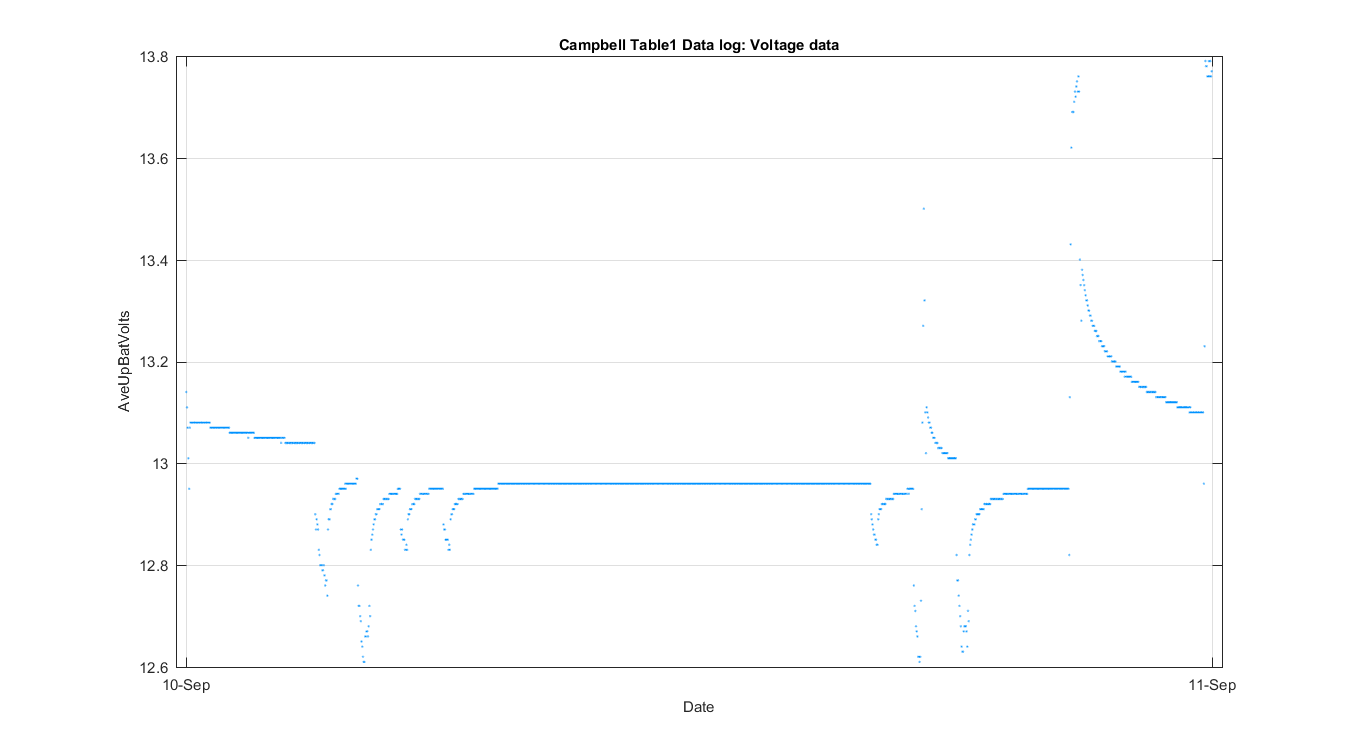

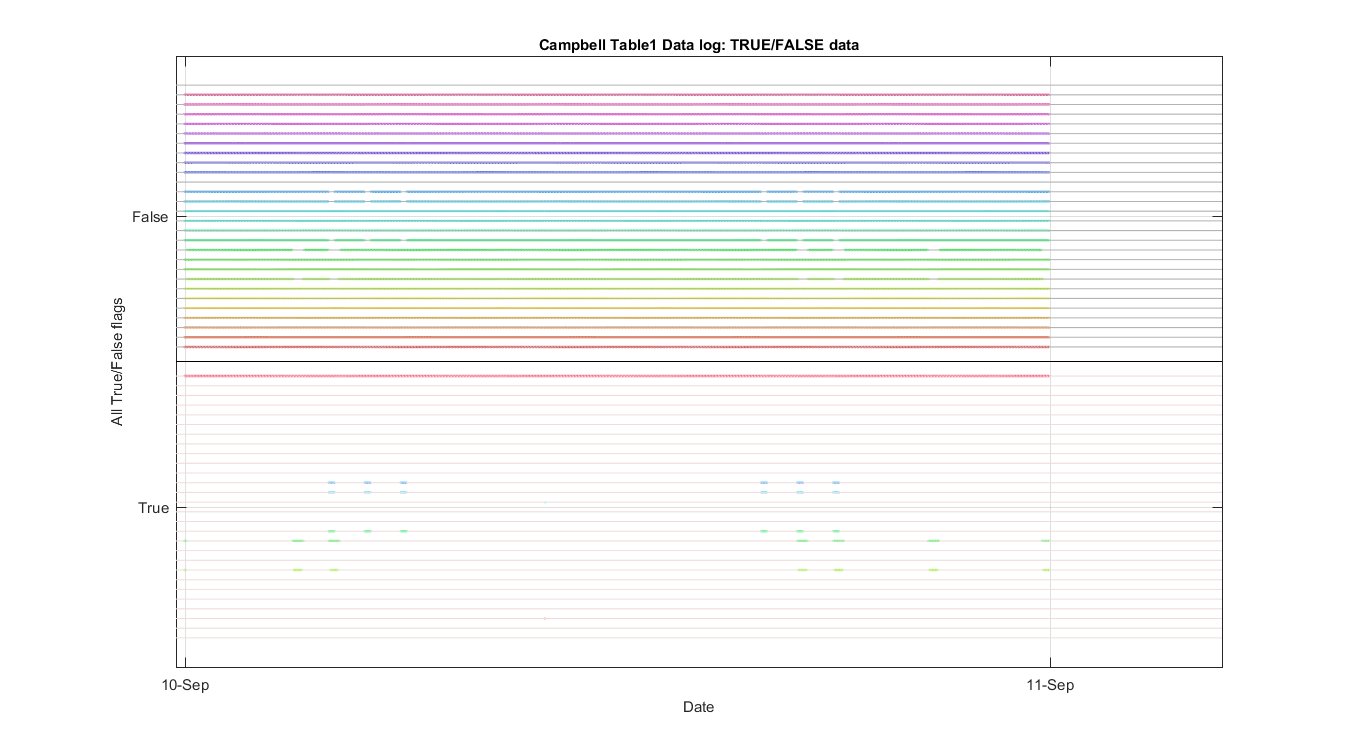

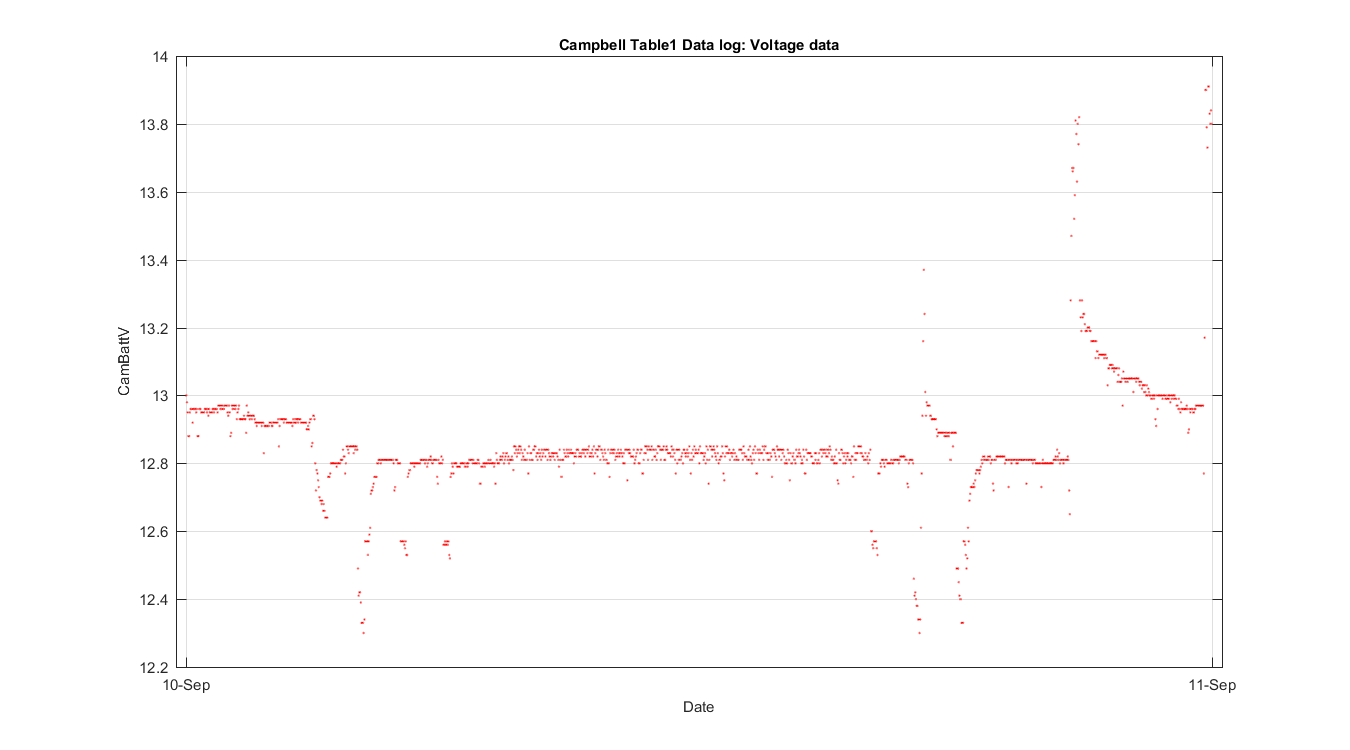

Campbell battery = BattV

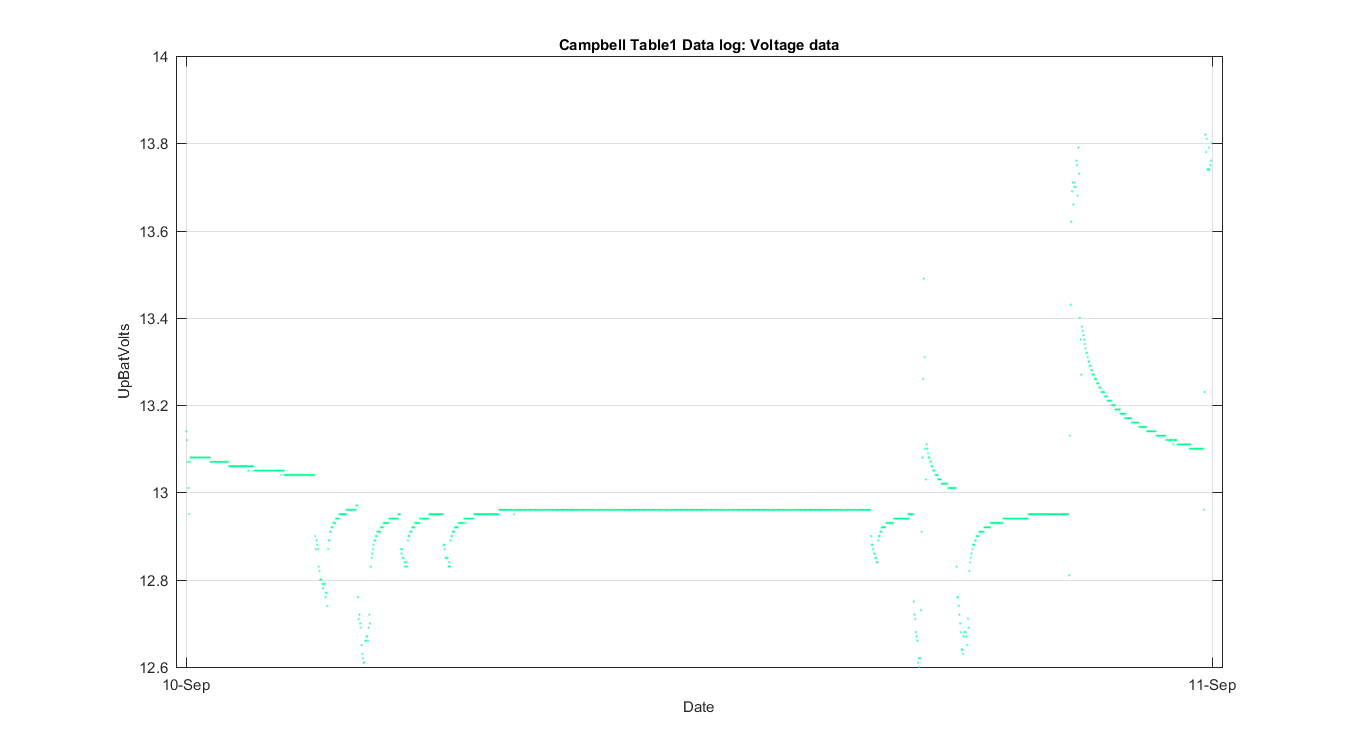

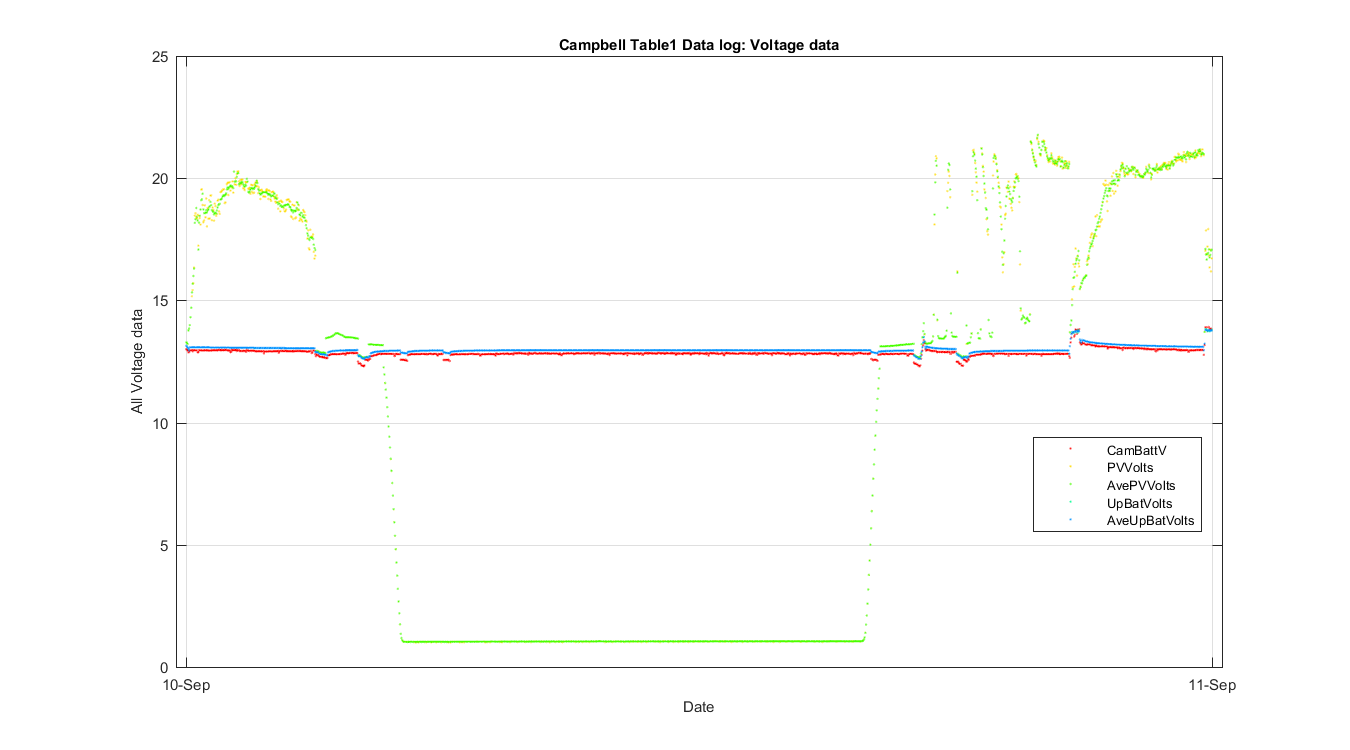

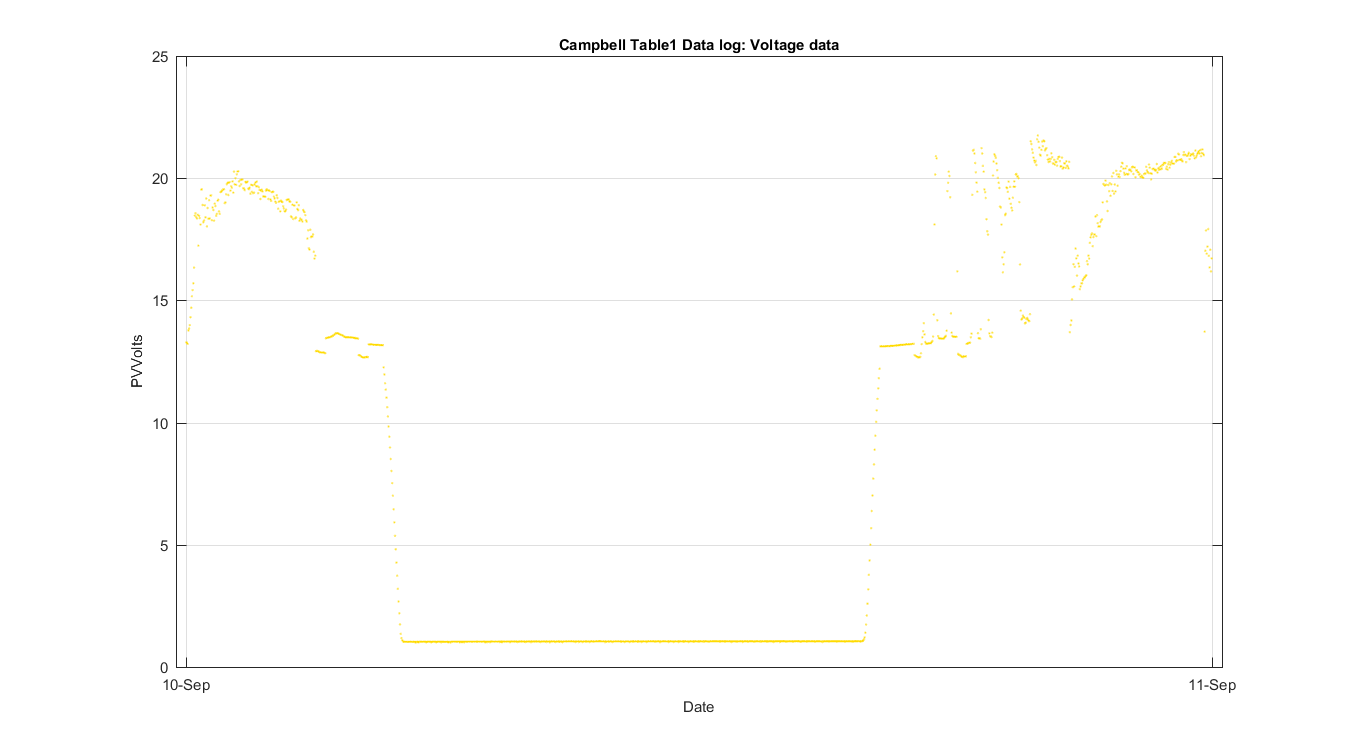

Solar panel (PhotoVoltaic cell) voltage = PVVolts


Reading for the last day of the file: 12-Oct-2022 23:59:00 to 11-Oct-2022 23:59:00 (1 day)
Measurment Mean Min Max %std
CamBattV (Volts 13.2527 12.41 13.9 2.99

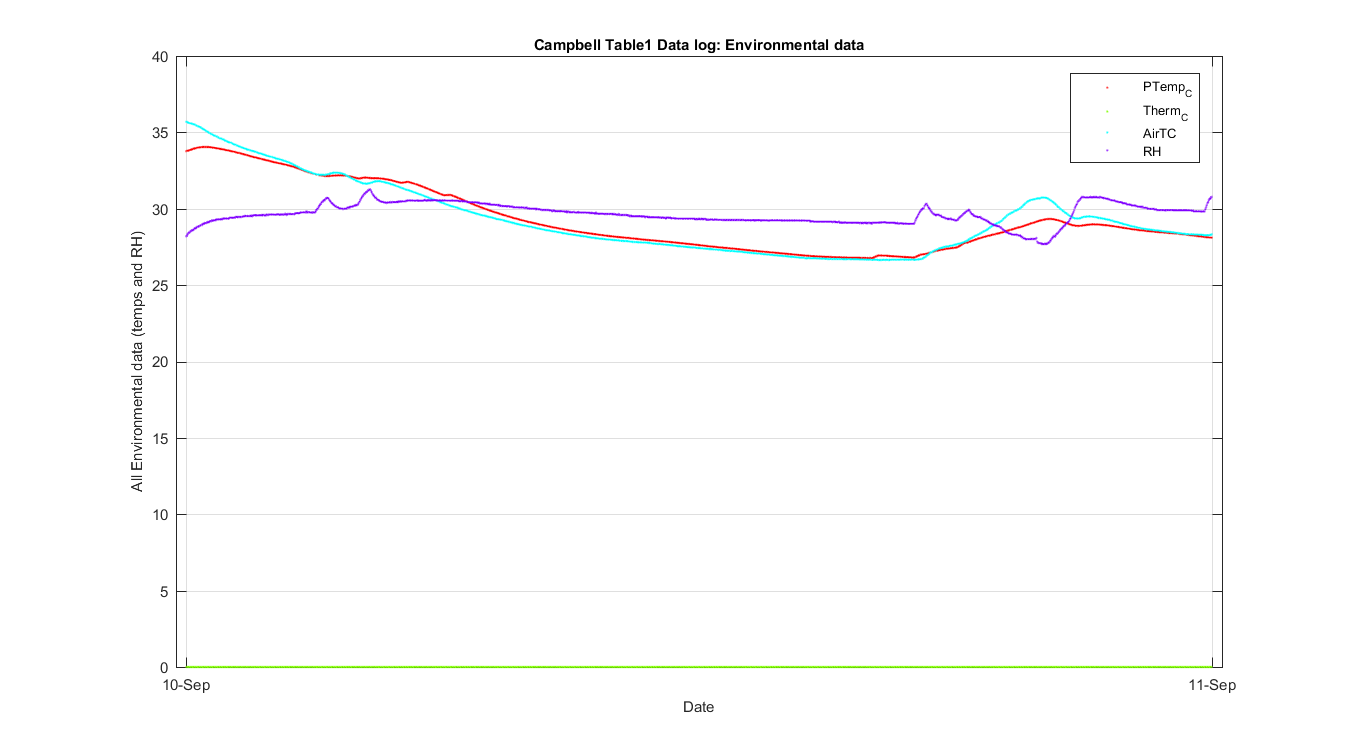

PTemp_C (Deg C) 27.6883 25.39 30.53 5.44
AirTC (Deg C) 28.0035 25.37 31.68 6.34
RH (%) 29.4275 27.96 30.71 1.70
kohms (kilohms) 14.4493 14.18 14.75 1.06
Measurment Minutes Down Minutes Up
ChargeRlyState 0 24.0167

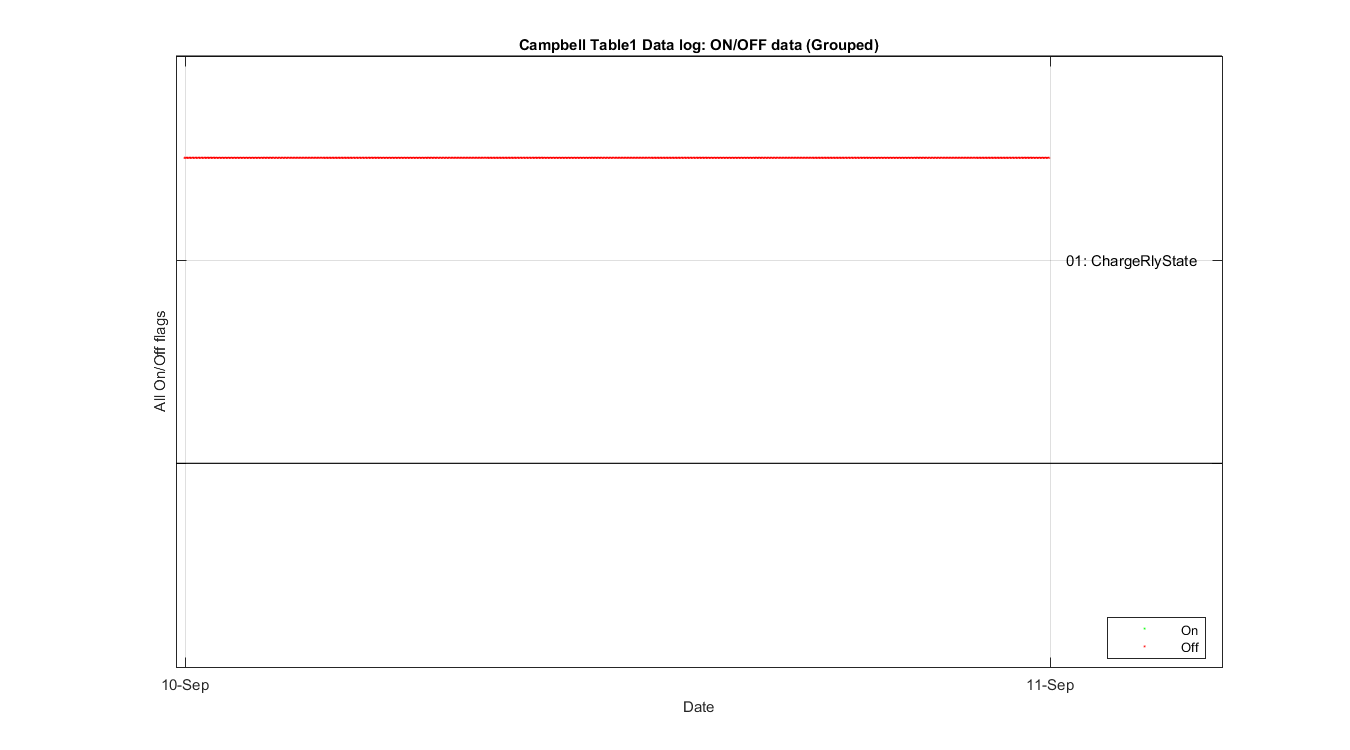

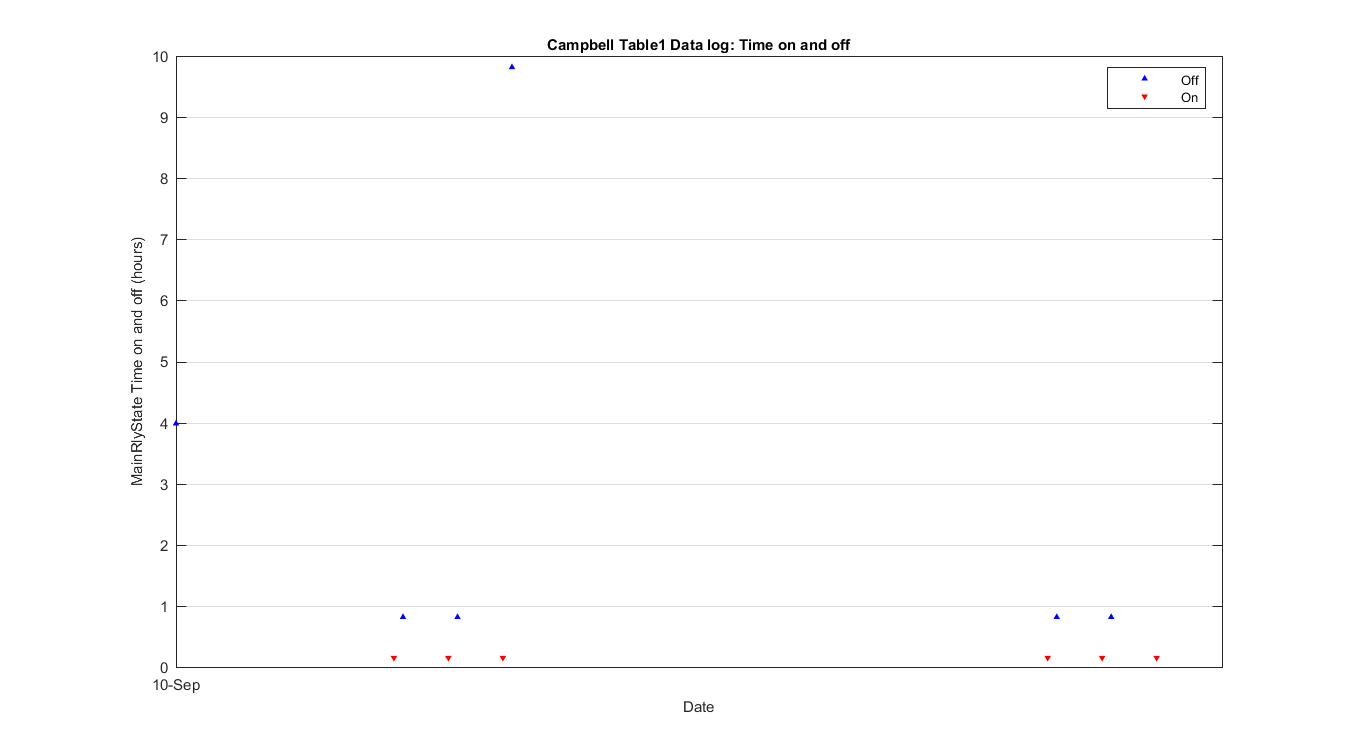

Measurment Minutes Off Minutes On
MainRlyState 21.2833 2.7333

Means for the last 10 days for each day in the file (times and days from GMT time)
Day BattV PTemp_C AirTC RH kohms
02-Oct-2022 13.2722 27.1783 27.2448 30.0857 14.4757
03-Oct-2022 13.1317 27.2507 26.9972 29.7401 14.452
04-Oct-2022 13.2146 27.2744 27.0308 29.5875 14.4607
05-Oct-2022 13.0962 27.2394 27.083 29.5643 14.4669
06-Oct-2022 13.3289 27.6585 27.4915 29.8342 14.4418
07-Oct-2022 13.2986 27.4053 27.3812 29.9378 14.4428
08-Oct-2022 12.9746 27.4775 27.664 30.0155 14.419
09-Oct-2022 13.0019 27.6648 28.0203 30.018 14.3957
10-Oct-2022 13.2235 28.0465 28.3018 30.0587 14.3672
11-Oct-2022 13.0025 27.996 28.2918 29.9593 14.3558
12-Oct-2022 13.2523 27.6863 28.0009 29.4277 14.4495

Campbell Start and Stop Times for turning on (last 20 cycles) - MainRlyState = -1
On/Off Start Time Stop Time Delta Time (hours)
Off 11-Oct-2022 03:26:00 11-Oct-2022 03:59:00 0.55
On 11-Oct-2022 04:00:00 11-Oct-2022 04:24:00 0.40
Off 11-Oct-2022 04:25:00 11-Oct-2022 16:59:00 12.57
On 11-Oct-2022 17:00:00 11-Oct-2022 17:35:00 0.58
Off 11-Oct-2022 17:36:00 11-Oct-2022 17:59:00 0.38
On 11-Oct-2022 18:00:00 11-Oct-2022 18:29:00 0.48
Off 11-Oct-2022 18:30:00 11-Oct-2022 20:37:00 2.12
On 11-Oct-2022 20:38:00 11-Oct-2022 21:07:00 0.48
Off 11-Oct-2022 21:08:00 11-Oct-2022 22:07:00 0.98
On 11-Oct-2022 22:08:00 11-Oct-2022 22:35:00 0.45
Off 11-Oct-2022 22:36:00 12-Oct-2022 02:59:00 4.38
On 12-Oct-2022 03:00:00 12-Oct-2022 03:39:00 0.65
Off 12-Oct-2022 03:40:00 12-Oct-2022 03:59:00 0.32
On 12-Oct-2022 04:00:00 12-Oct-2022 04:29:00 0.48
Off 12-Oct-2022 04:30:00 12-Oct-2022 16:59:00 12.48
On 12-Oct-2022 17:00:00 12-Oct-2022 17:28:00 0.47
Off 12-Oct-2022 17:29:00 12-Oct-2022 17:59:00 0.50
On 12-Oct-2022 18:00:00 12-Oct-2022 18:24:00 0.40
Off 12-Oct-2022 18:25:00 12-Oct-2022 22:07:00 3.70
On 12-Oct-2022 22:08:00 12-Oct-2022 22:34:00 0.43
Off 12-Oct-2022 22:35:00 12-Oct-2022 23:46:00 1.18

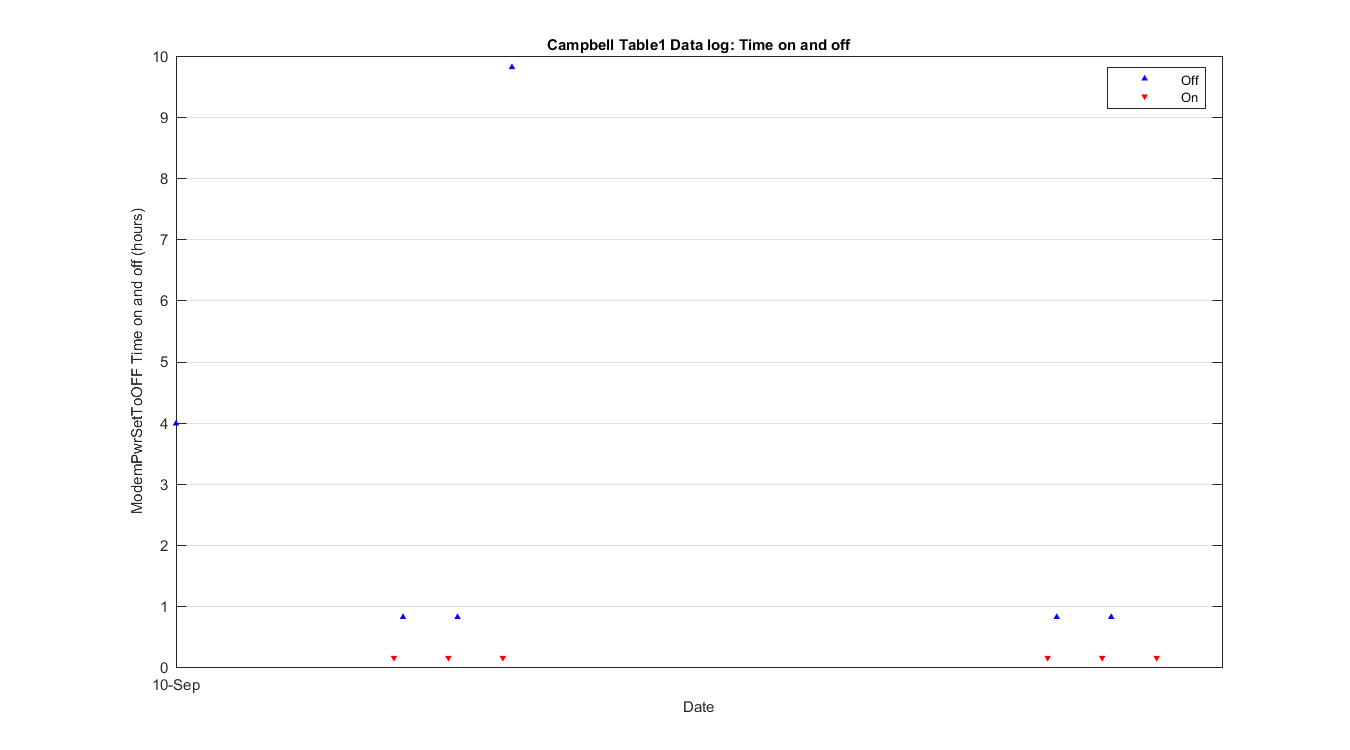

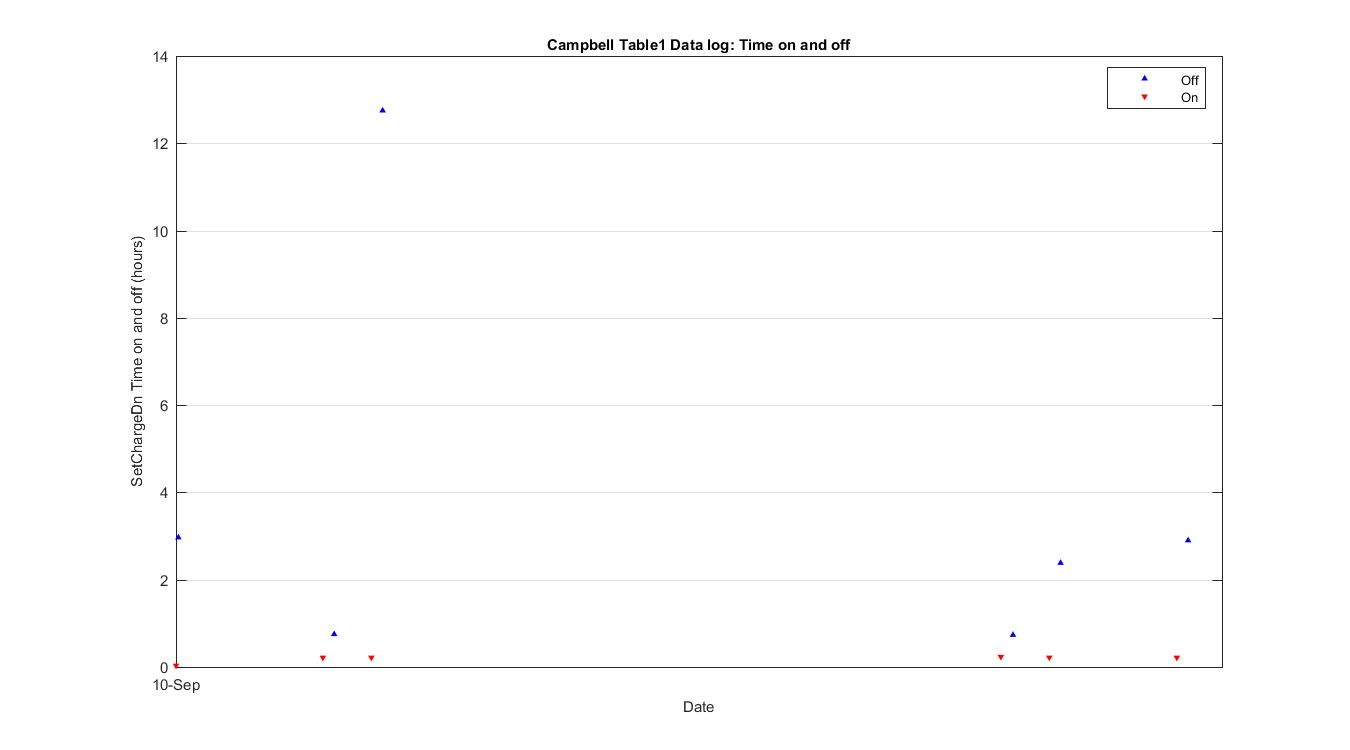

Start and Stop Times for when Falcon switches the Charge Relay (last 20 cycles) - ChargeRlyState = -1
Up/Down Start Time Stop Time Delta Time (hours)
Up 10-Oct-2022 21:04:00 10-Oct-2022 21:04:00 0.00
Down 10-Oct-2022 21:05:00 10-Oct-2022 22:17:00 1.20
Up 10-Oct-2022 22:18:00 10-Oct-2022 22:36:00 0.30
Down 10-Oct-2022 22:37:00 10-Oct-2022 23:48:00 1.18
Up 10-Oct-2022 23:49:00 11-Oct-2022 00:05:00 0.27
Down 11-Oct-2022 00:06:00 11-Oct-2022 00:06:00 0.00
Up 11-Oct-2022 00:07:00 11-Oct-2022 00:07:00 0.00
Down 11-Oct-2022 00:08:00 11-Oct-2022 03:09:00 3.02
Up 11-Oct-2022 03:10:00 11-Oct-2022 03:24:00 0.23
Down 11-Oct-2022 03:25:00 11-Oct-2022 04:01:00 0.60
Up 11-Oct-2022 04:02:00 11-Oct-2022 04:21:00 0.32
Down 11-Oct-2022 04:22:00 11-Oct-2022 17:20:00 12.97
Up 11-Oct-2022 17:21:00 11-Oct-2022 17:31:00 0.17
Down 11-Oct-2022 17:32:00 11-Oct-2022 17:32:00 0.00
Up 11-Oct-2022 17:33:00 11-Oct-2022 17:33:00 0.00
Down 11-Oct-2022 17:34:00 11-Oct-2022 18:20:00 0.77
Up 11-Oct-2022 18:21:00 11-Oct-2022 18:26:00 0.08
Down 11-Oct-2022 18:27:00 11-Oct-2022 18:27:00 0.00
Up 11-Oct-2022 18:28:00 11-Oct-2022 18:28:00 0.00
Down 11-Oct-2022 18:29:00 11-Oct-2022 21:06:00 2.62
Up 11-Oct-2022 21:07:00 12-Oct-2022 23:59:00 26.87
