Campbell Time Series

The Campbell data logger controls MOBYs functional timing. It turns on the Falcon controller computer which will do a task depending upon the time it is powered up. The Campbell is also programed to power down the buoy at programmable times to make sure the system is shutdown at least once per day to return the system to a known state. The Falcon always boots from a cold state at power up. The Campbell operates based on a proprietary CRBasic programing language. Campbell analog Inputs measure Battery voltage, Campbell unit panel temperature, Case Air Temperature, Case Humidity, state of the Falcon Main Power Relay and state of the Charge Relay. Campbell has override control of the Main Power Relay and the Charge Relay. Campbell modem power is also controlled by the Campbell. The Campbell data table contains a record of the above parameters as well as important program flow flags. The voltage monitored by the Campbell is actually the voltage of the Campbell backup battery which is diode isolated from the Campbell and the Upper Battery. Due to the isolated battery supplies, this voltage is not much use in quantitatively monitoring the health of the Upper Battery. The Campbell backup battery only powers the Campbell when the Upper Battery falls below about 11.5 volts. The Campbell will operate down to a voltage of 10.5 volts at which point it will only try to switch the Charge Really to the Upper Battery to try and gain power for the controller rather than any lower batteries.

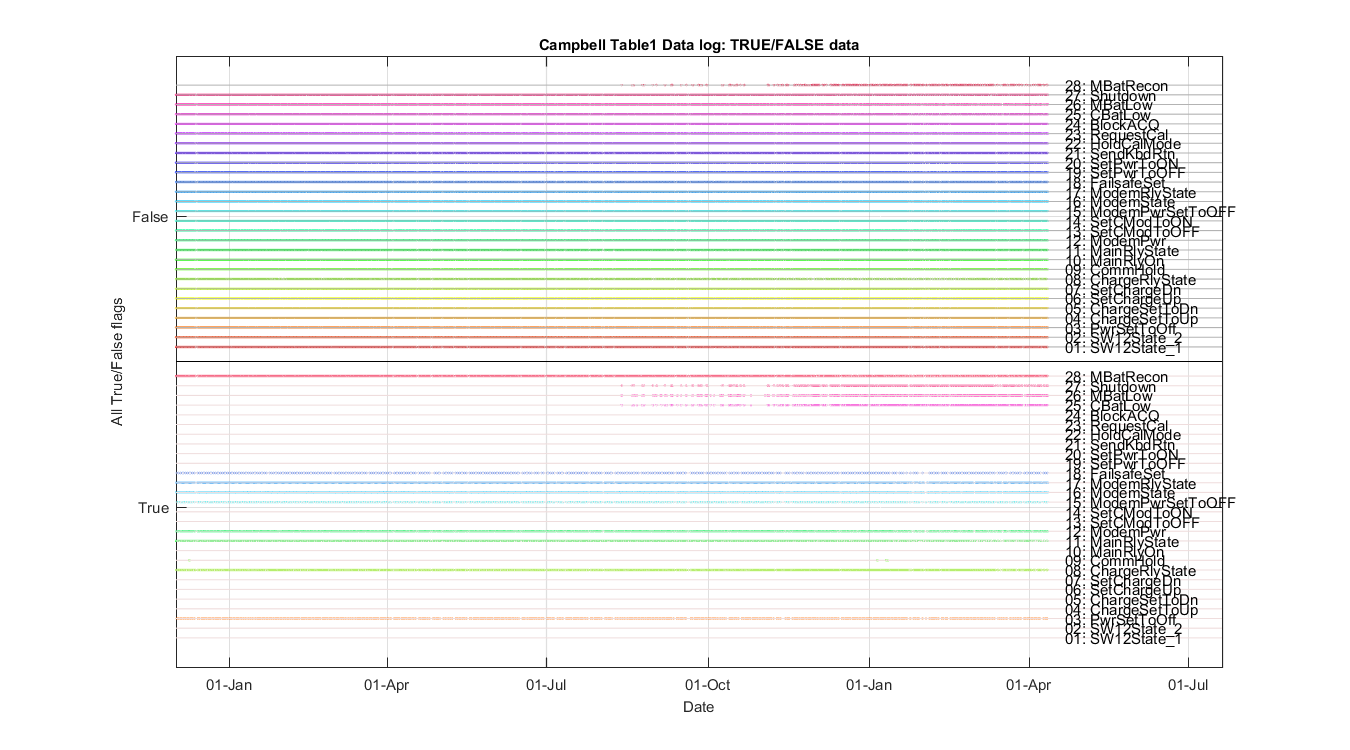

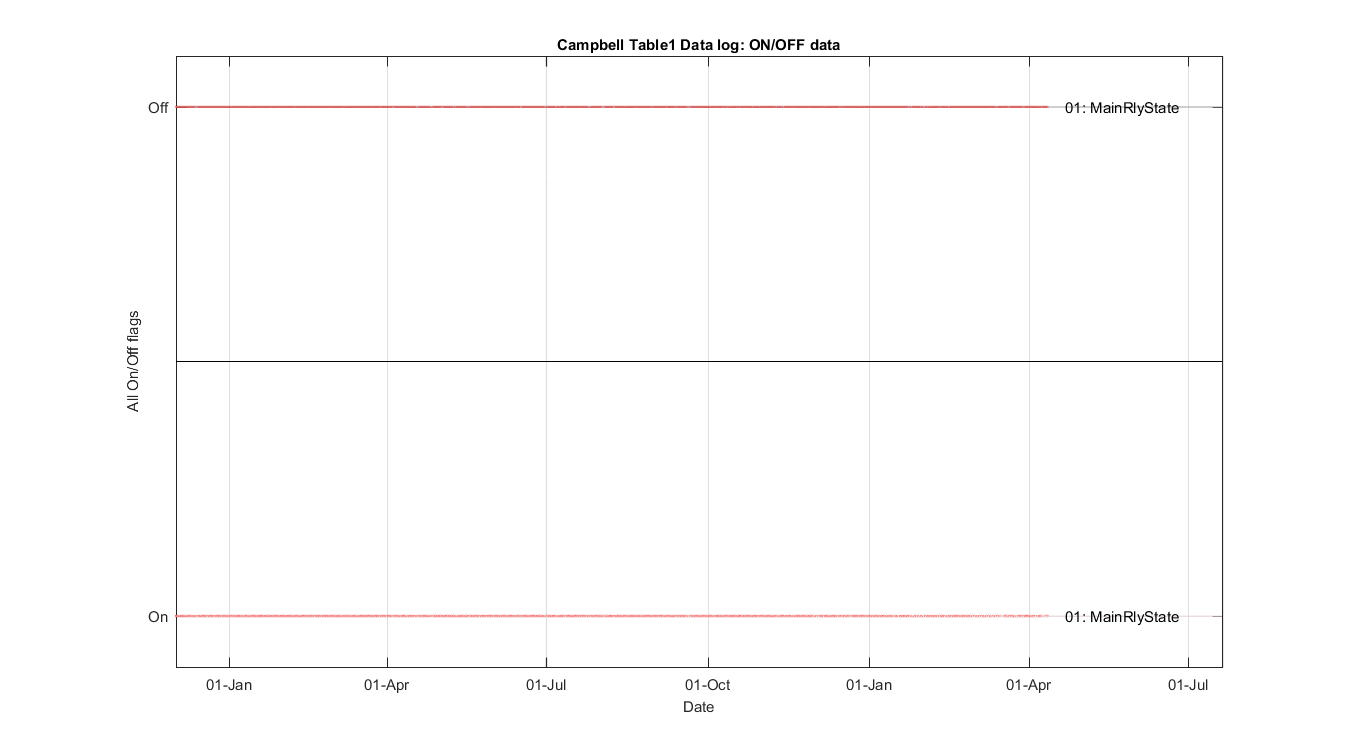

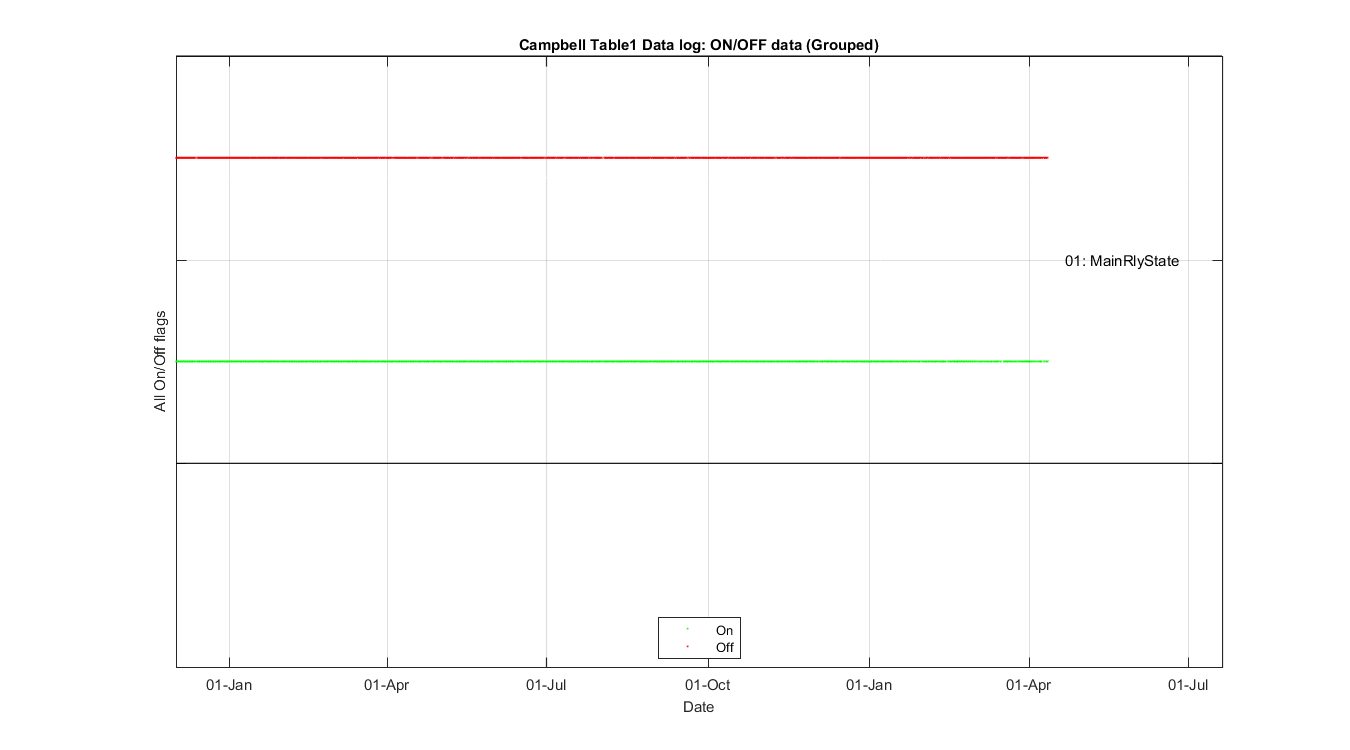

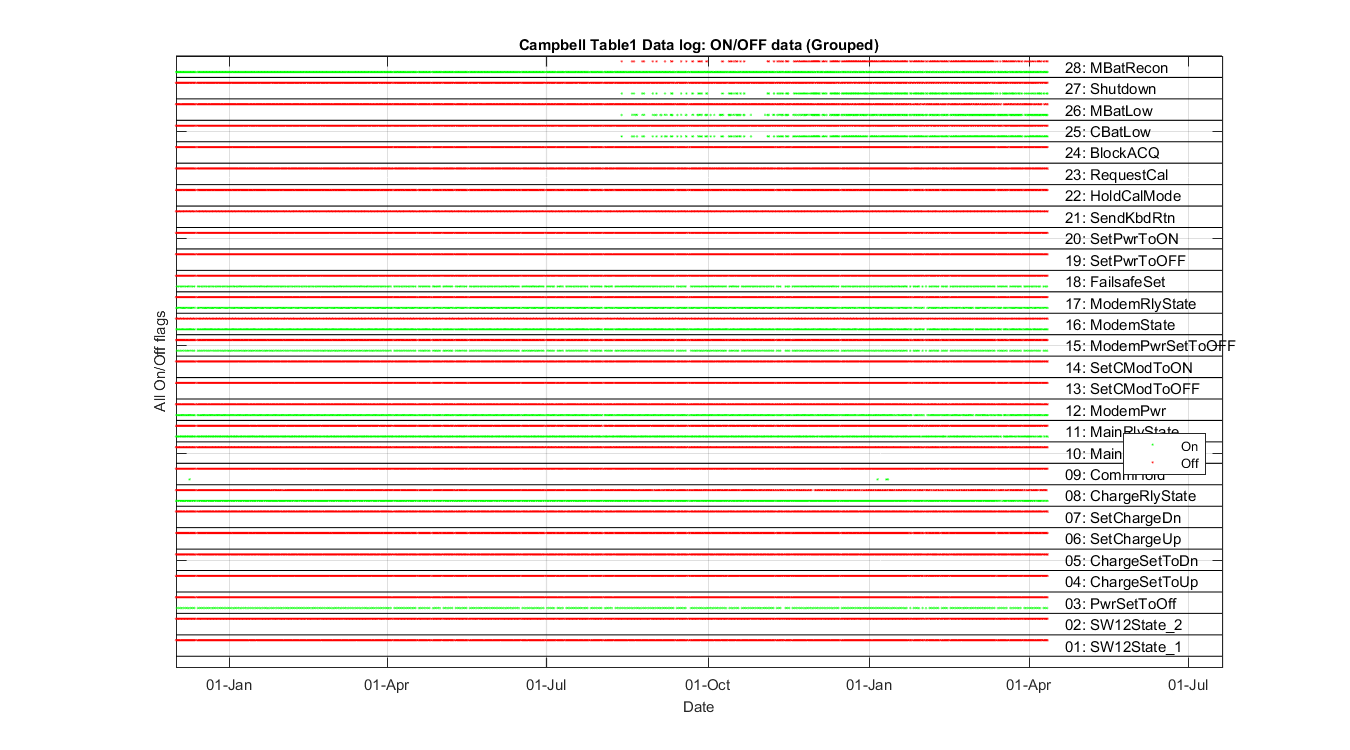

MainRlyState, 0=False=Off -1=True=On

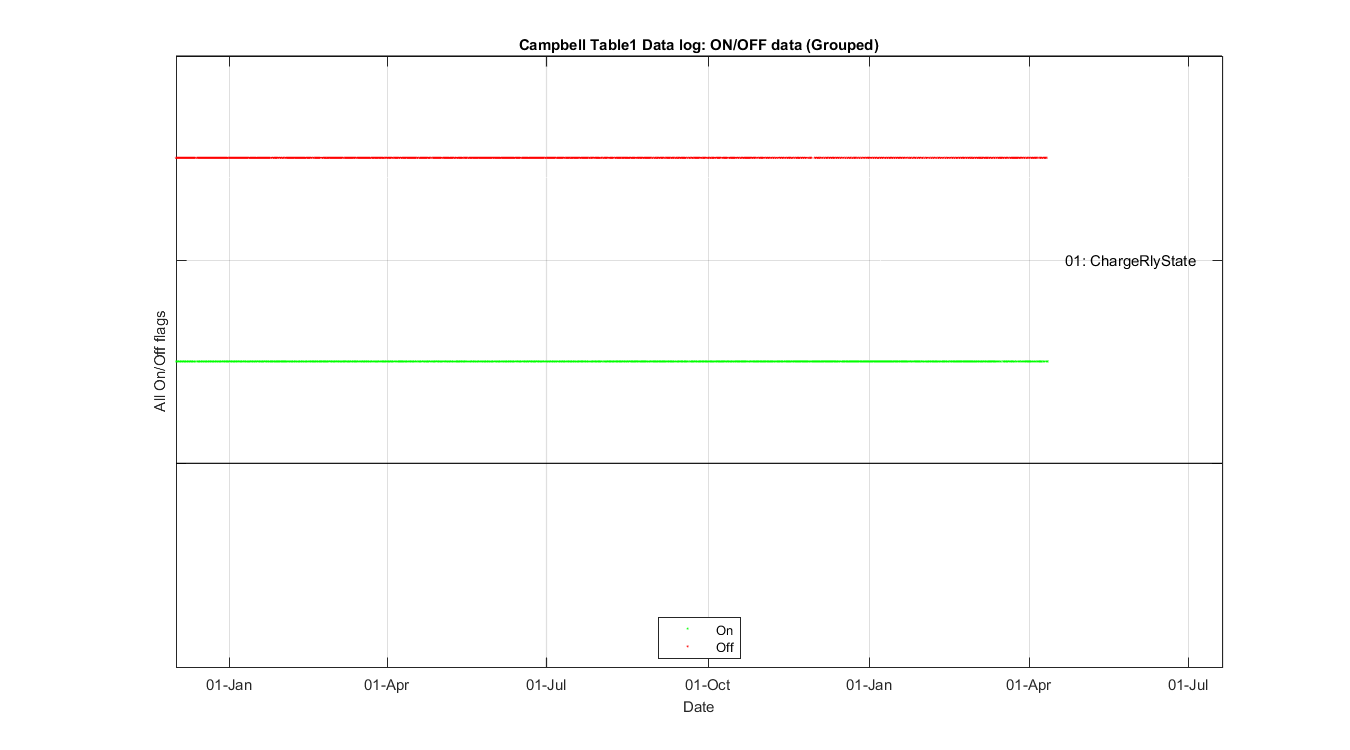

ChargeRlyState, 0=False=Down -1=True=Up
MainRlyState is the feedback from the power relay controlling the Falcon
ChargeRlyState is the feedback from the charge relay that switches the PV power to the Upper or Lower batteries

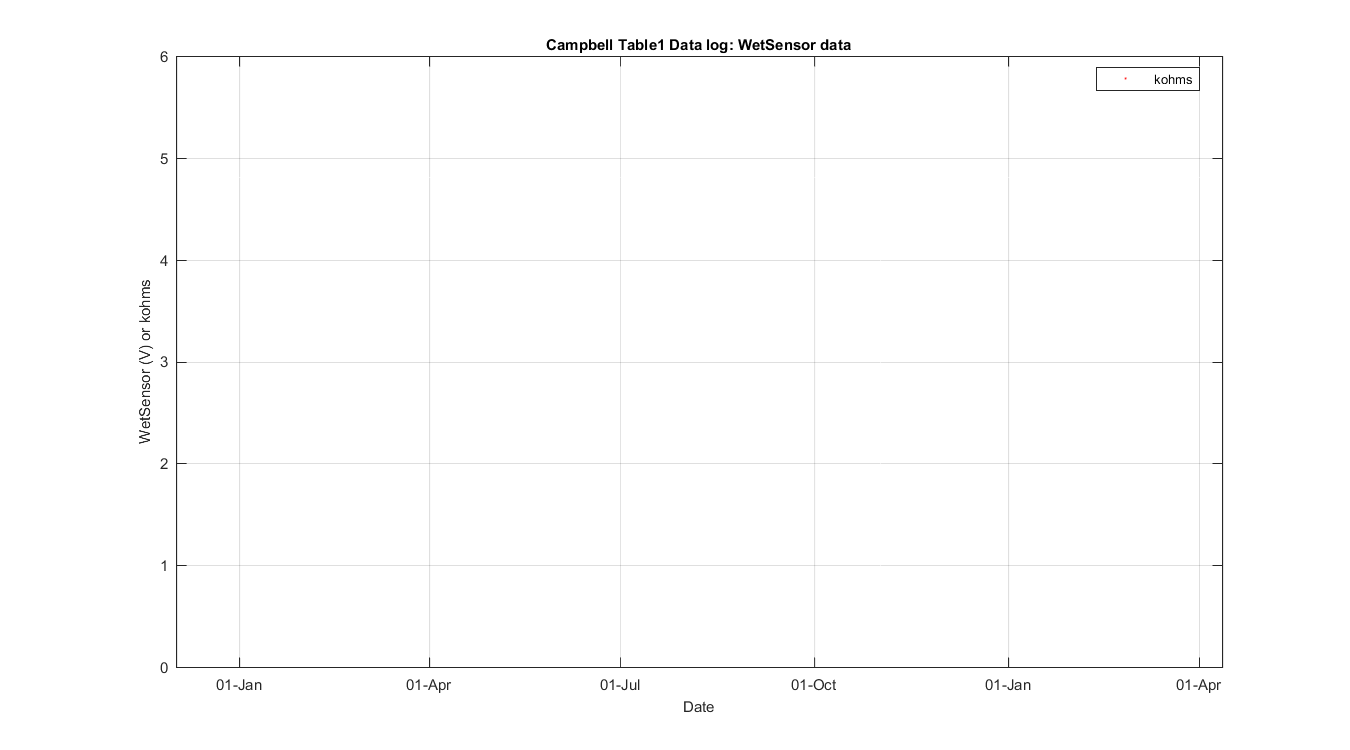

kohms is a flooding sensor, it will go below 10K if the housing contains free water

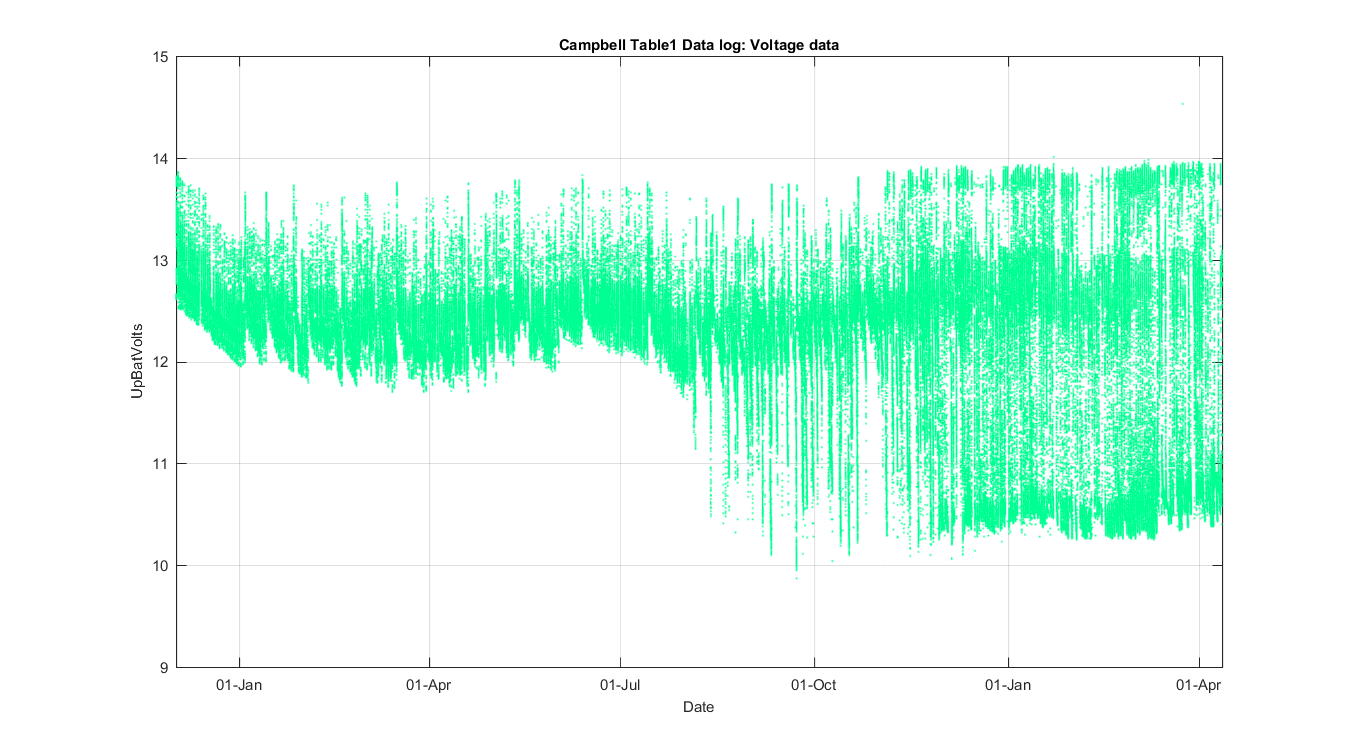

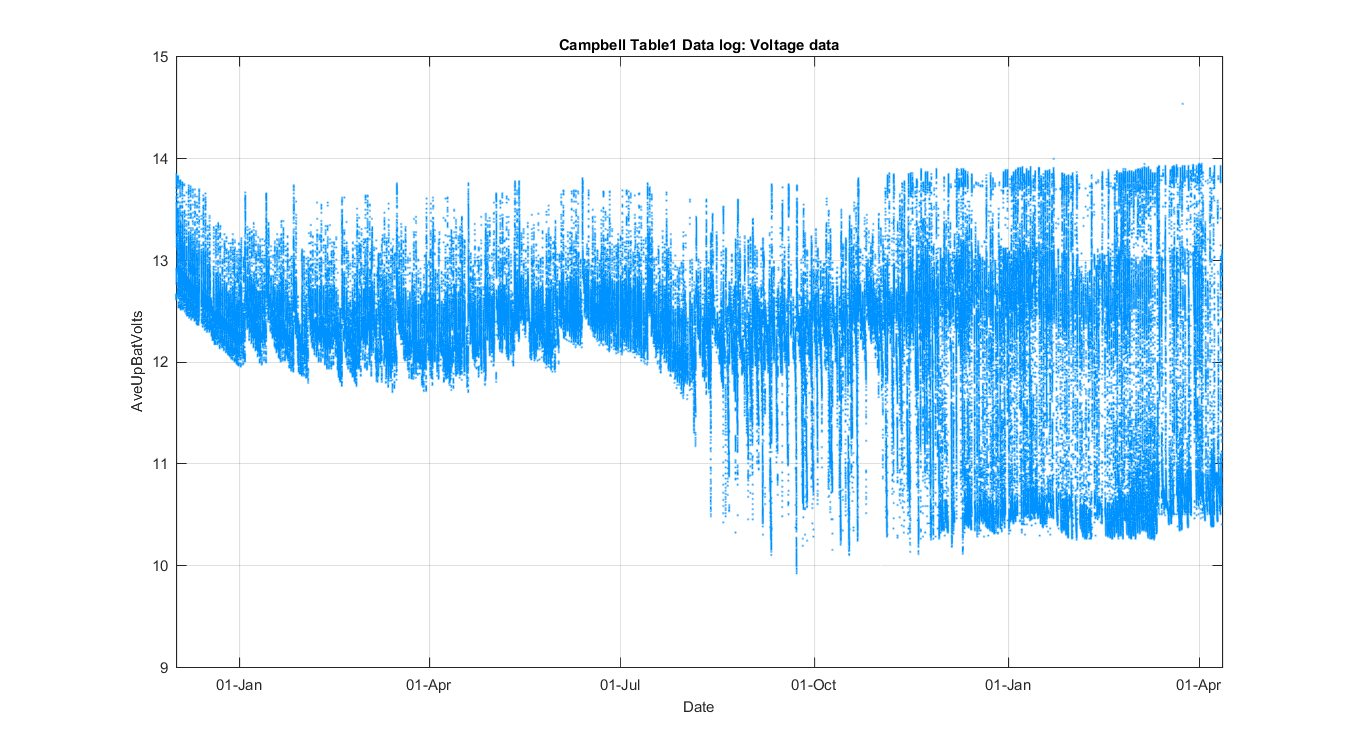

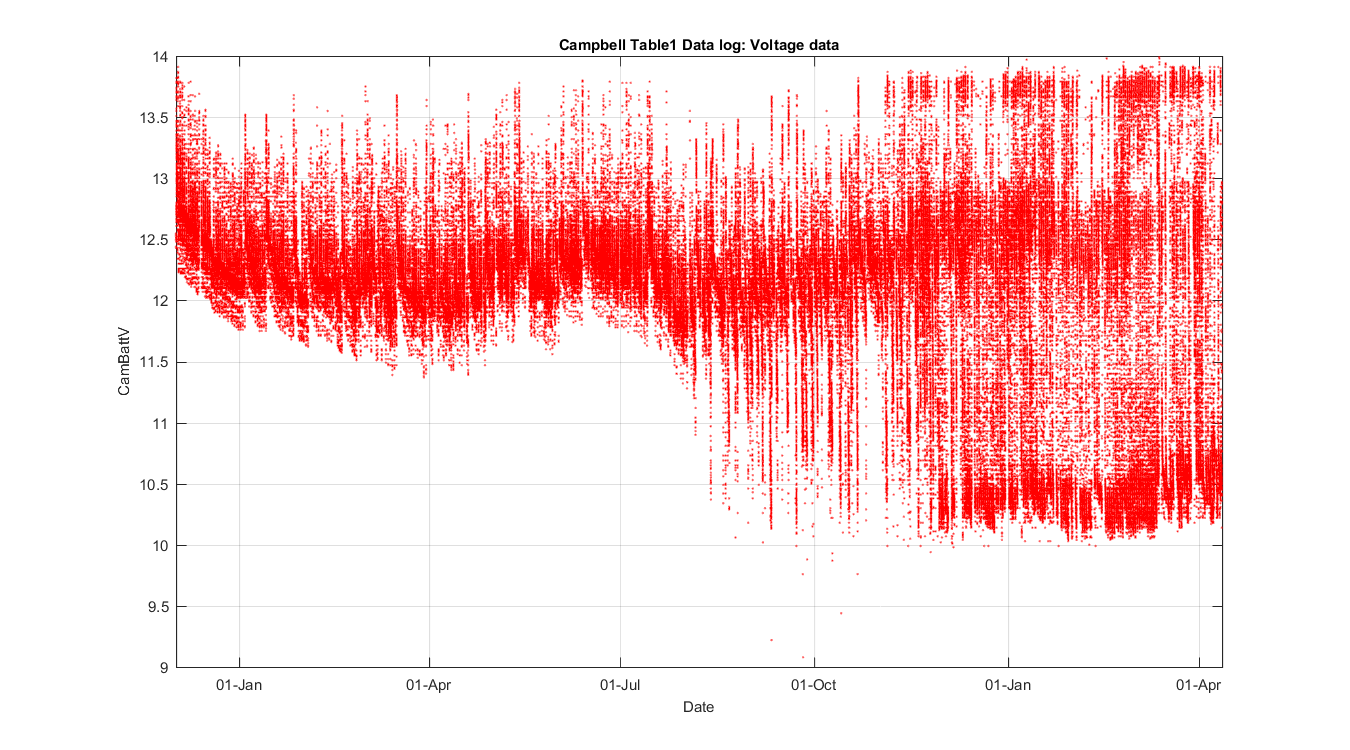

Campbell battery = BattV

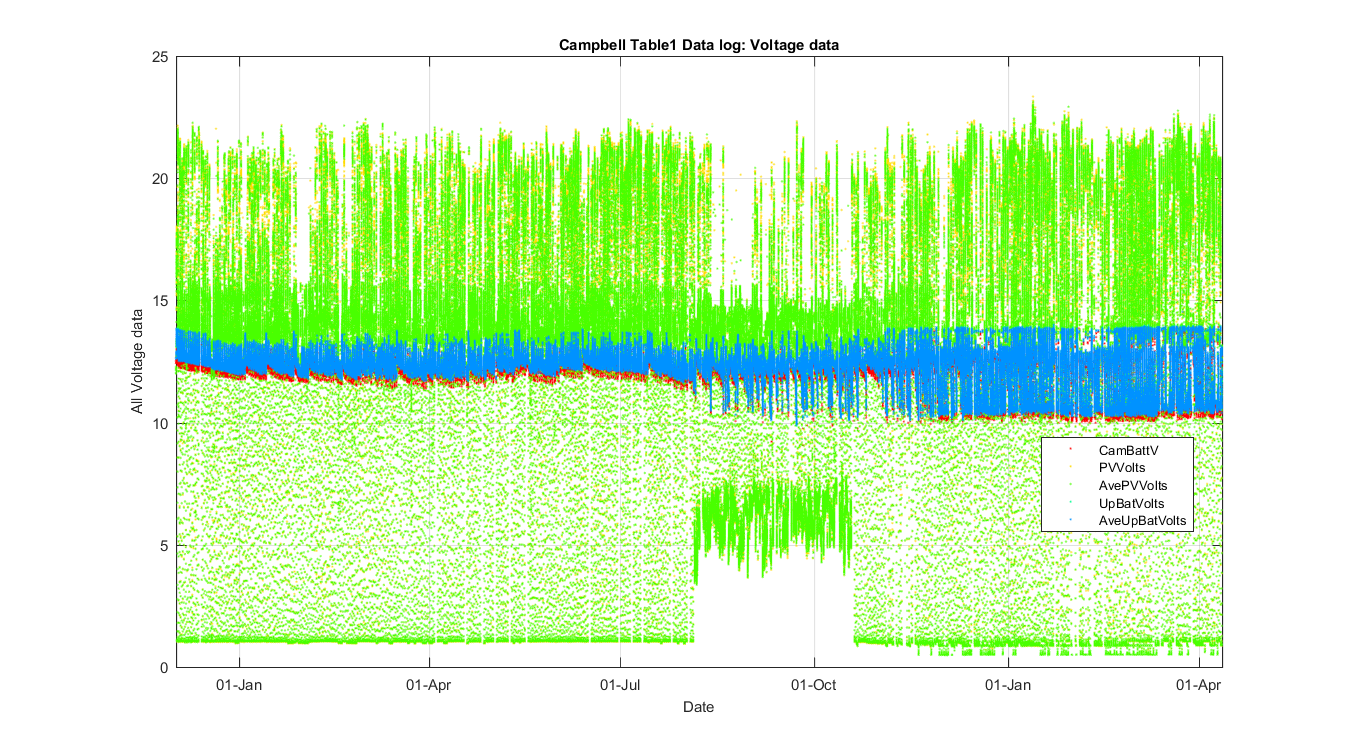

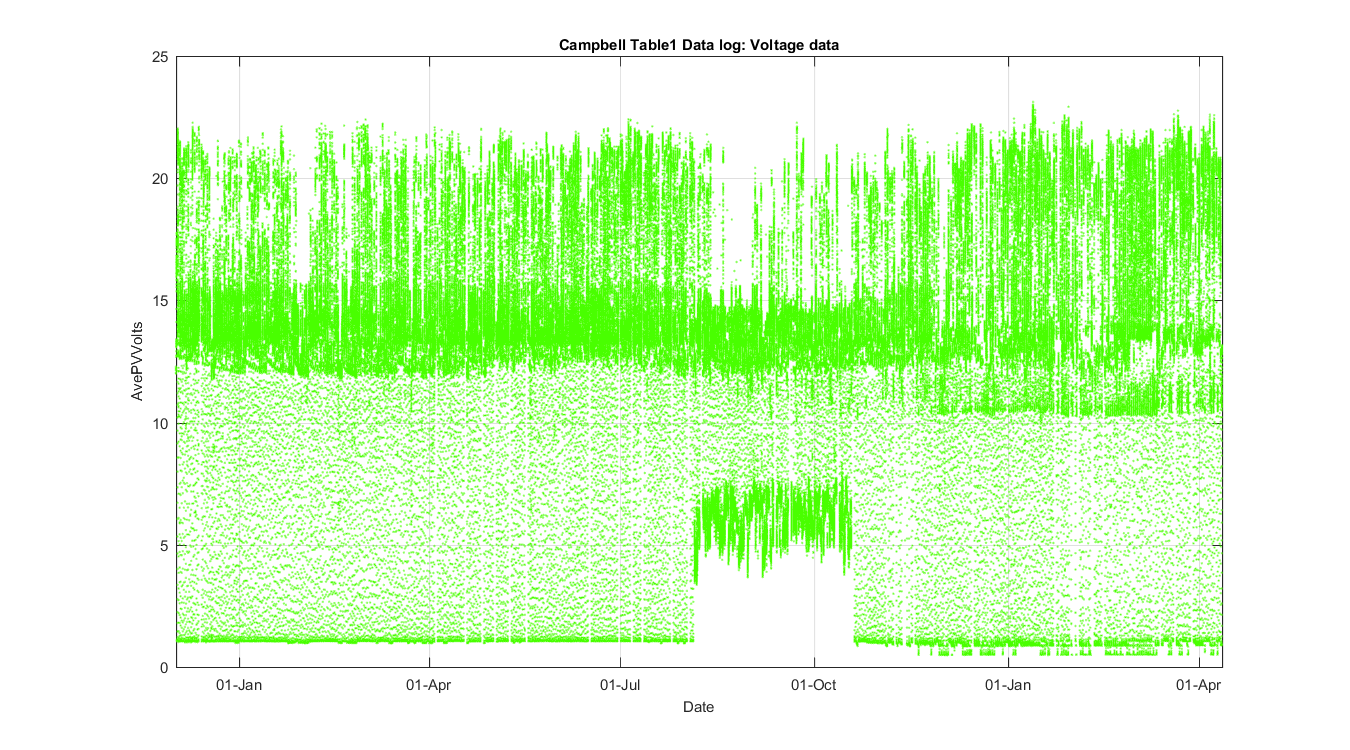

Solar panel (PhotoVoltaic cell) voltage = PVVolts


Reading for the last day of the file: 11-Apr-2024 18:02:00 to 10-Apr-2024 18:02:00 (1 day)
Measurment Mean Min Max %std
CamBattV (Volts 10.9915 10.14 13.9 8.91

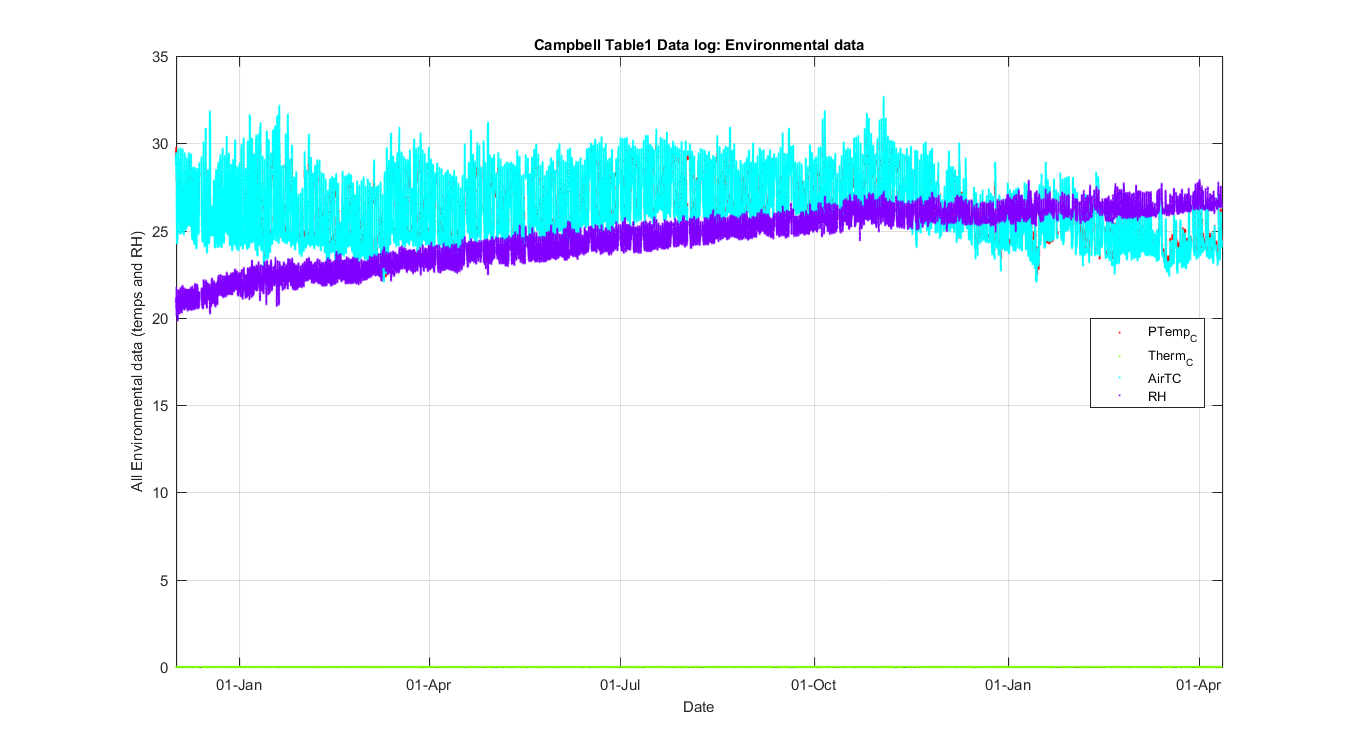

PTemp_C (Deg C) 24.7752 23.78 26.2 2.48
AirTC (Deg C) 24.587 23.61 26.04 2.44
RH (%) 26.675 26.33 27.52 0.97
kohms (kilohms) 14.6429 13.76 15.15 0.47
Measurment Minutes Down Minutes Up

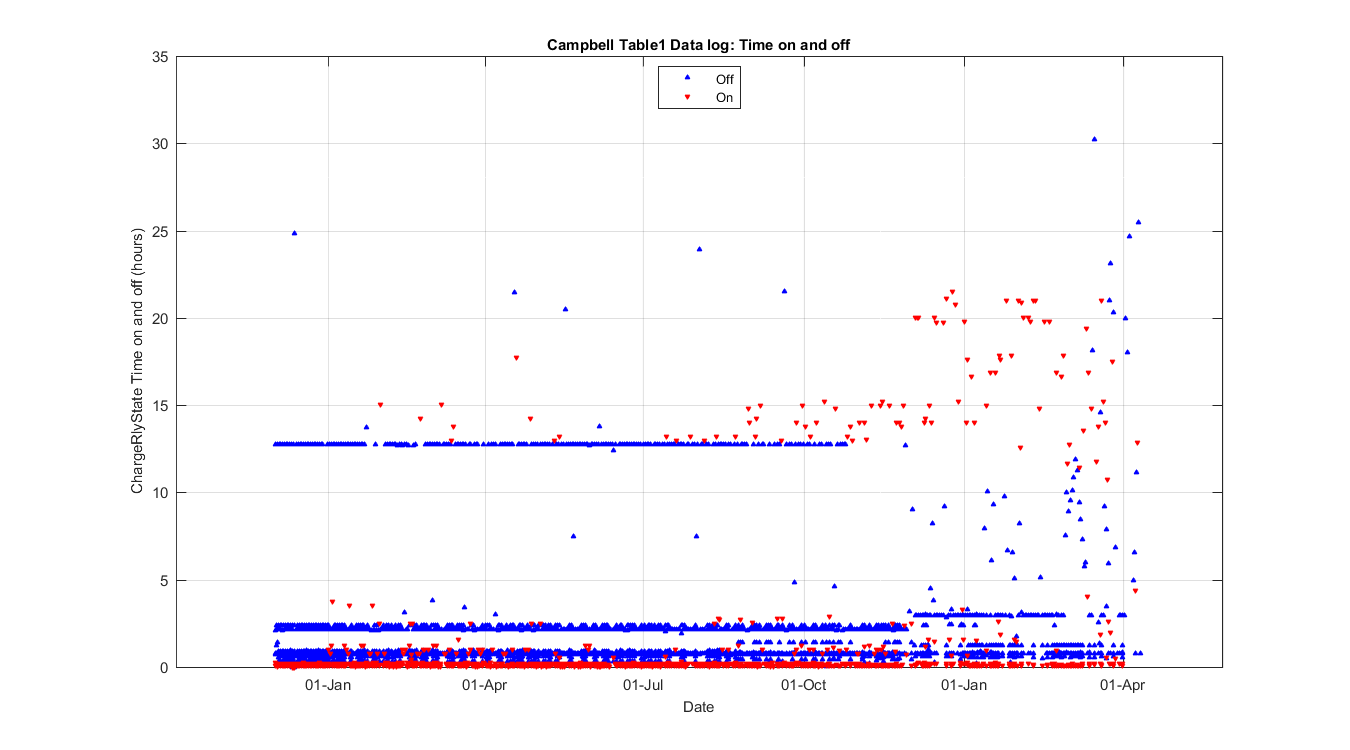

ChargeRlyState 8.3 15.7167
Measurment Minutes Off Minutes On
MainRlyState 23.3333 0.68333

Means for the last 10 days for each day in the file (times and days from GMT time)
Day BattV PTemp_C AirTC RH kohms
01-Apr-2024 11.5004 24.912 24.5559 26.7139 14.6971
02-Apr-2024 11.2462 24.7248 24.4538 26.5462 14.6775
03-Apr-2024 10.5278 24.3516 24.0643 26.3271 14.6384
04-Apr-2024 10.8054 24.6276 24.3349 26.4944 14.6699
05-Apr-2024 10.7069 24.465 24.1828 26.398 14.6491
06-Apr-2024 11.0049 24.1659 23.9374 26.3715 14.6527
07-Apr-2024 10.5775 24.1674 23.9108 26.3564 14.6381
08-Apr-2024 11.7272 24.6807 24.507 26.3856 14.6535
09-Apr-2024 10.5777 23.9722 23.627 26.4442 14.6391
10-Apr-2024 10.7537 24.6297 24.3204 26.6805 14.6516
11-Apr-2024 11.1519 25.0048 24.7853 26.6654 14.6504

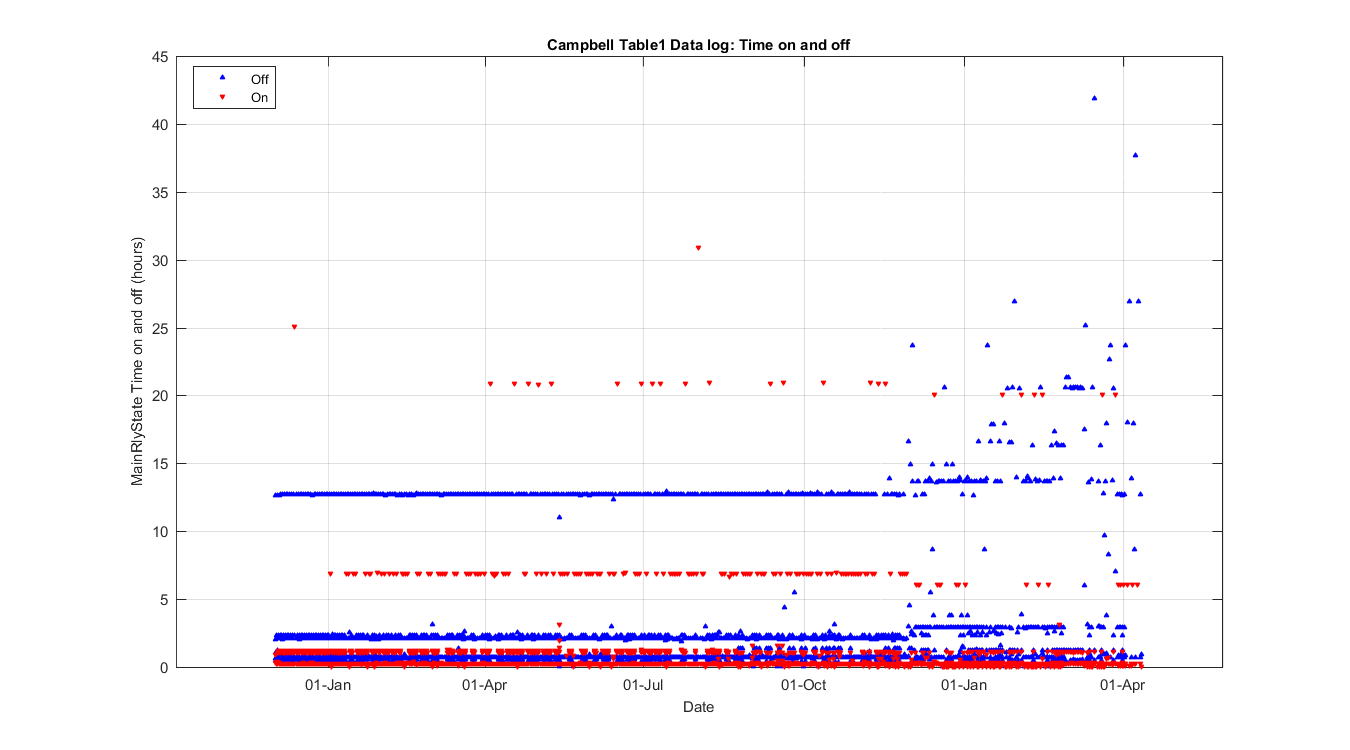

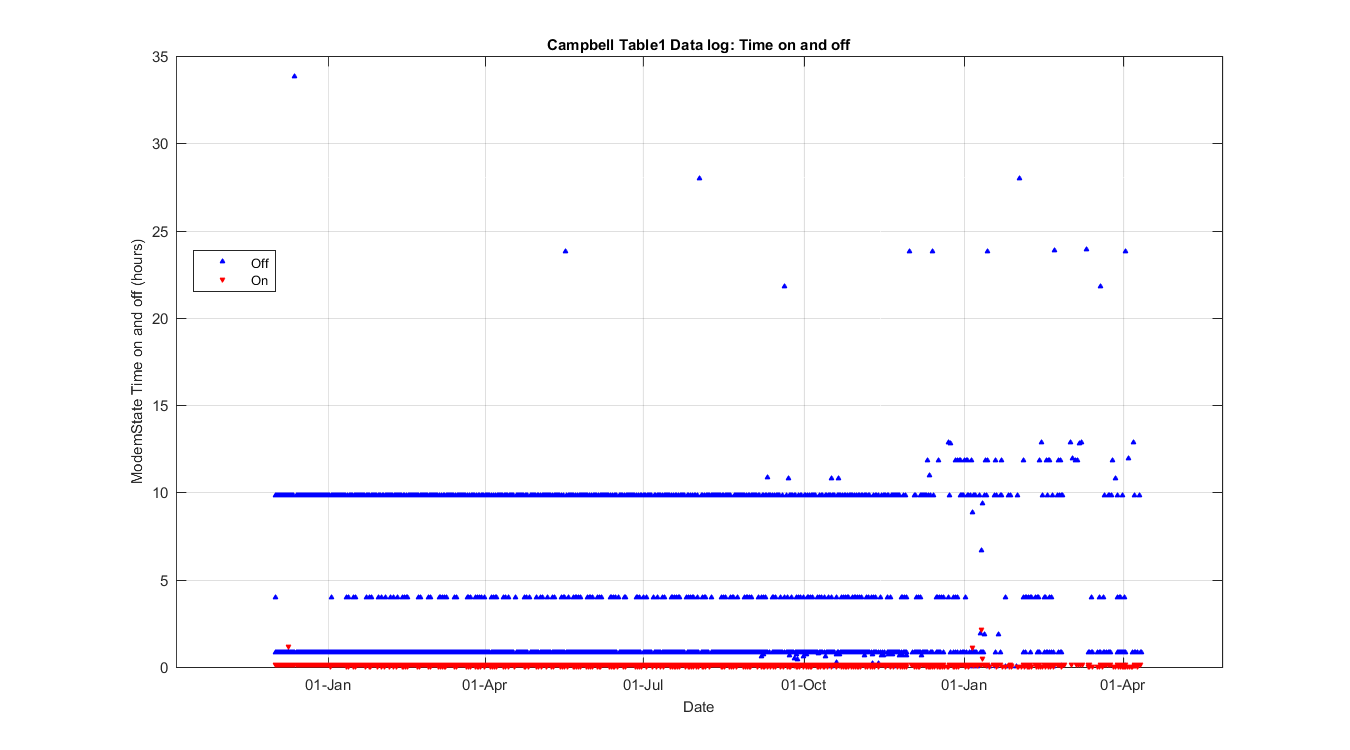

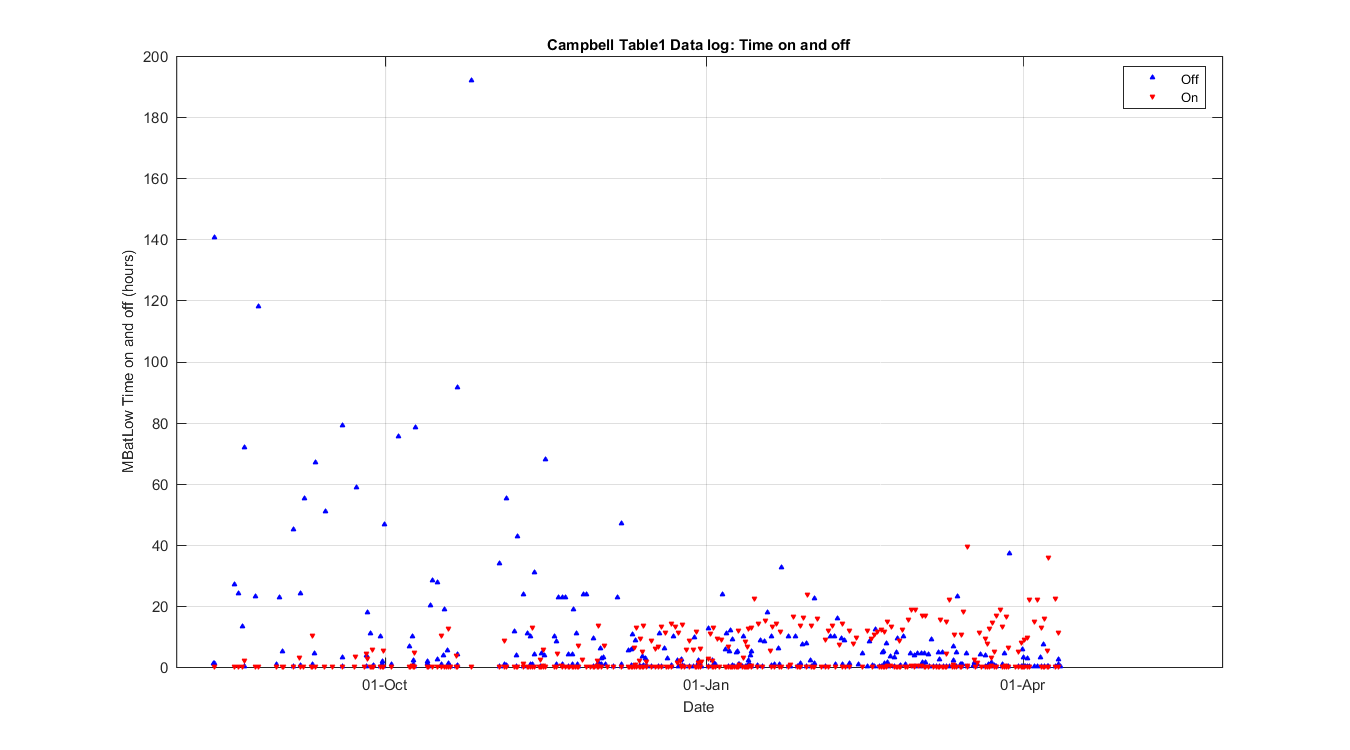

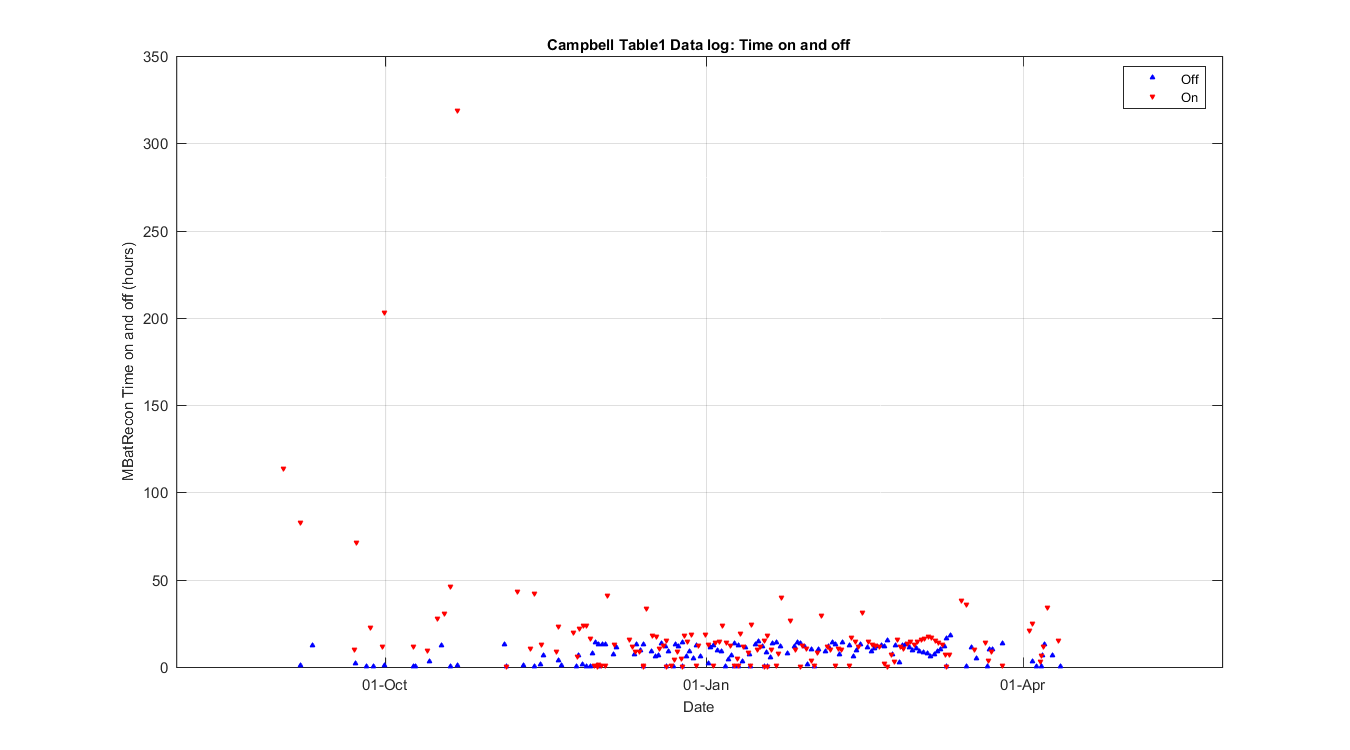

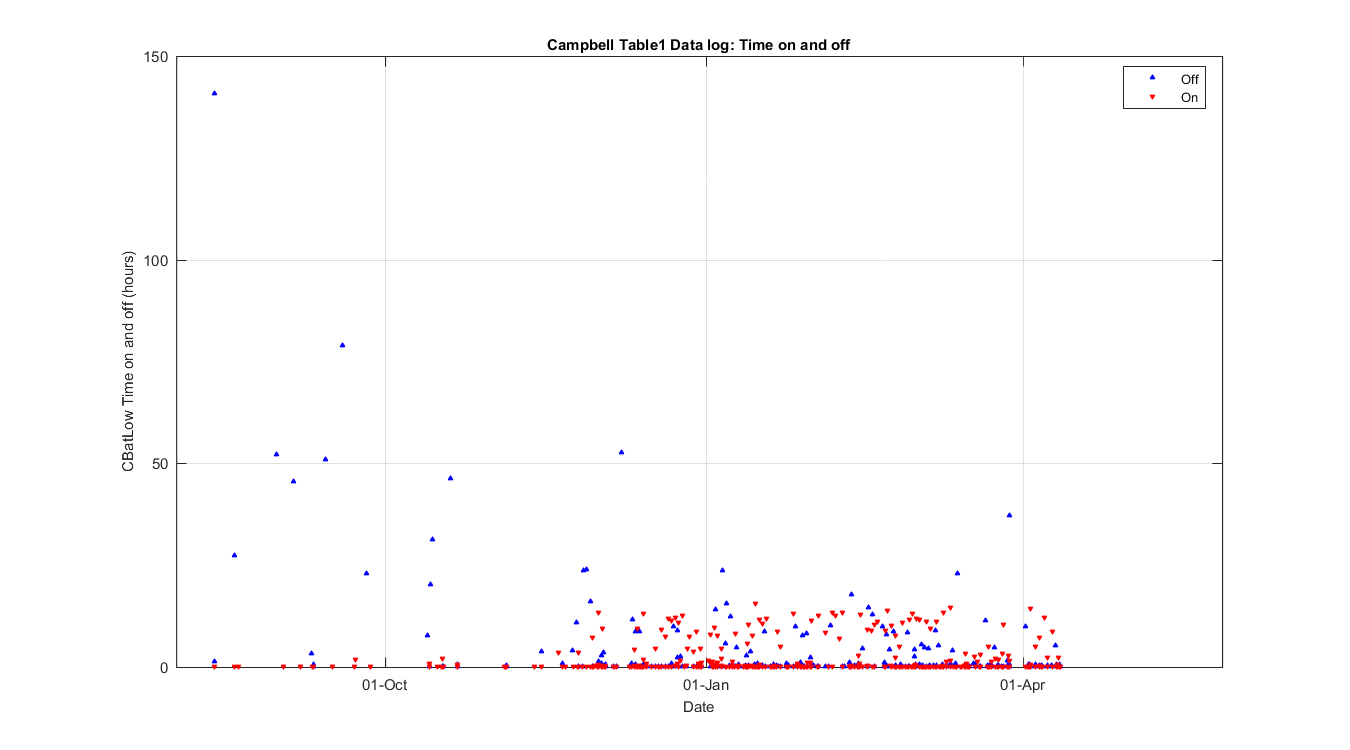

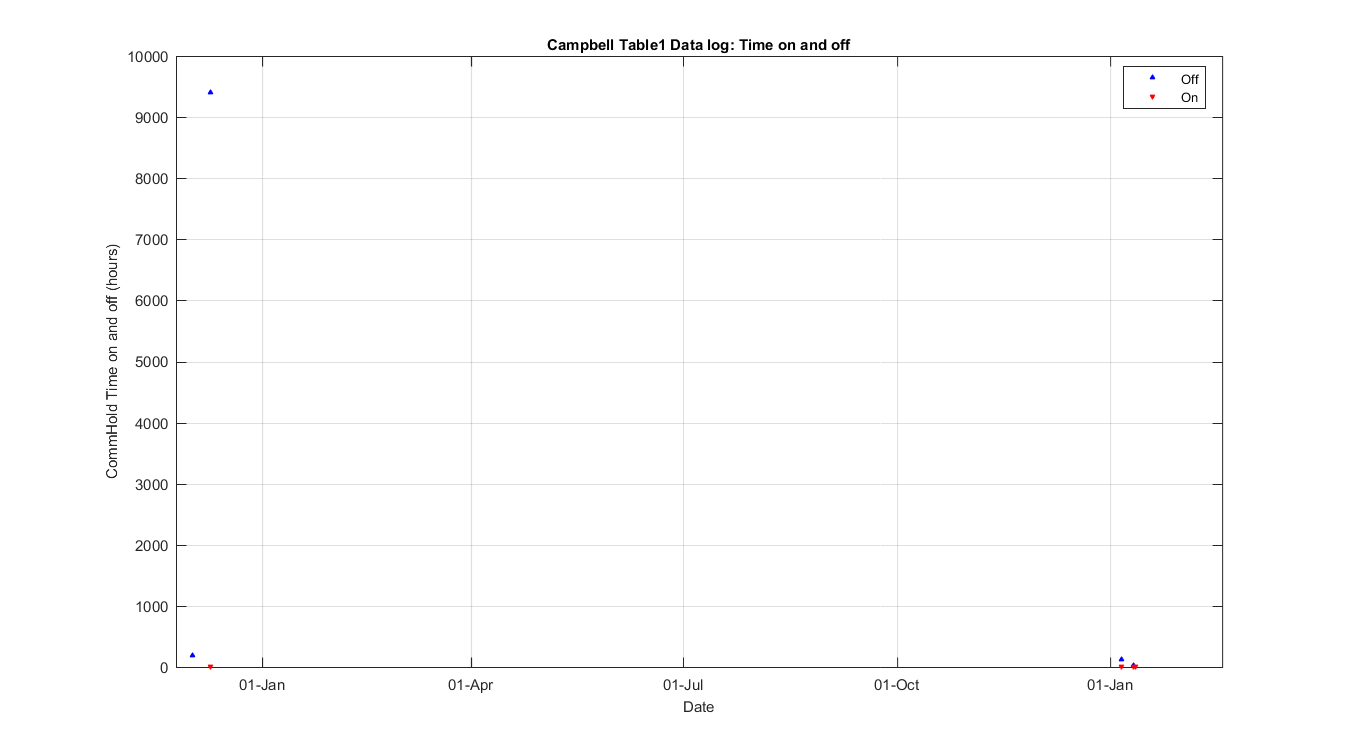

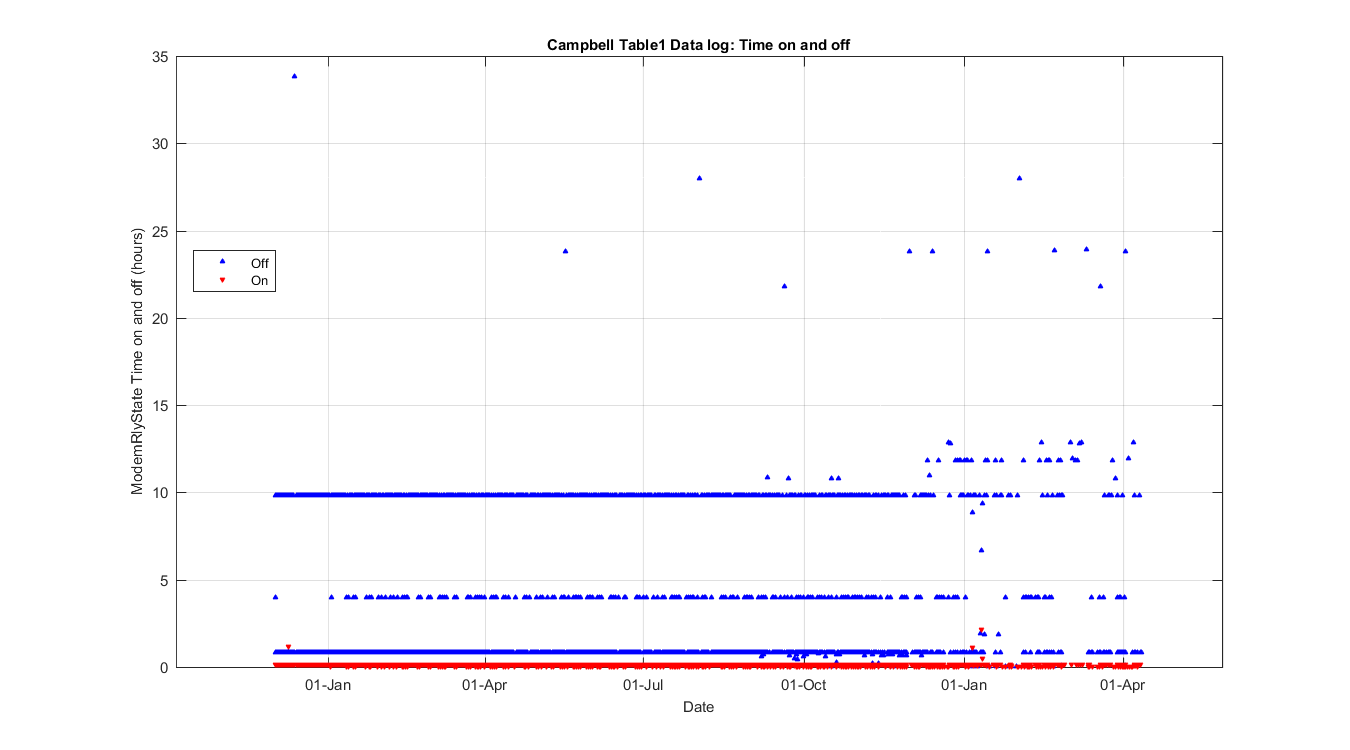

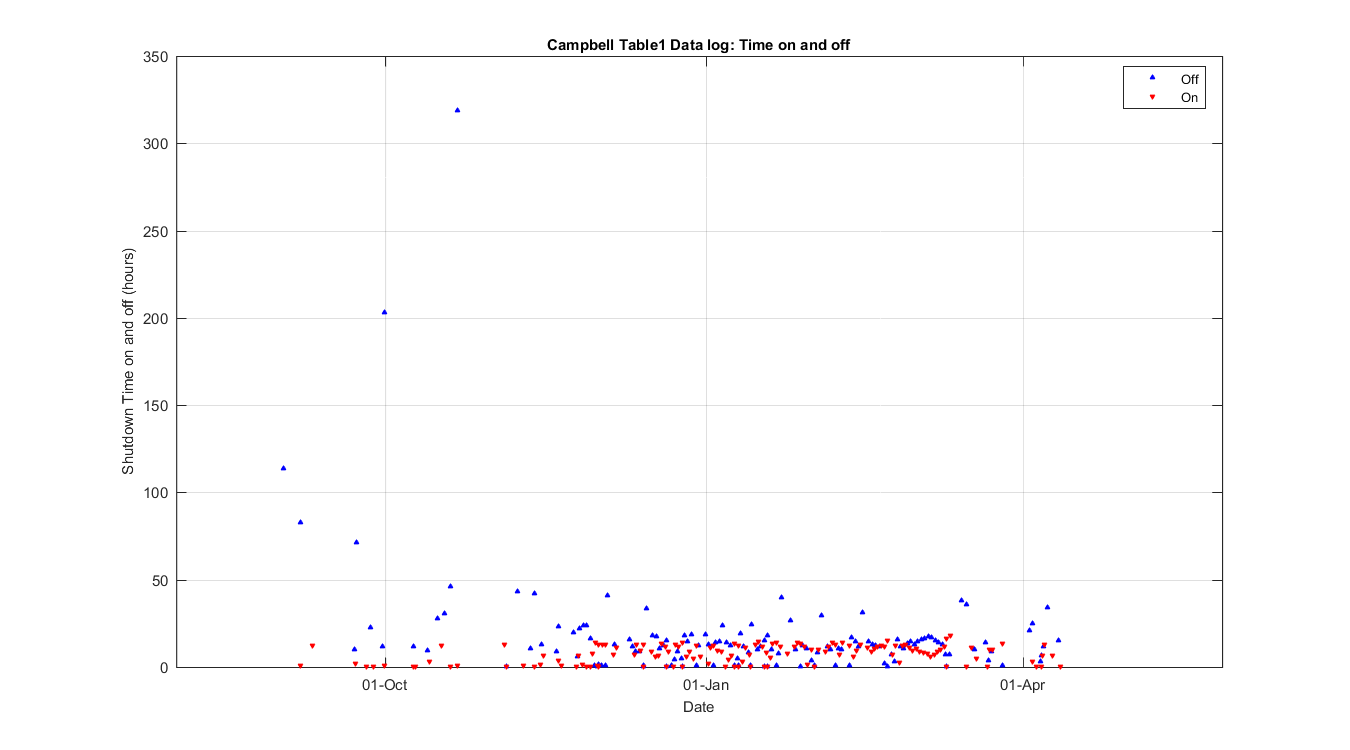

Campbell Start and Stop Times for turning on (last 20 cycles) - MainRlyState = -1
On/Off Start Time Stop Time Delta Time (hours)
Off 05-Apr-2024 00:06:00 06-Apr-2024 02:59:00 26.88
On 06-Apr-2024 03:00:00 06-Apr-2024 03:17:00 0.28
Off 06-Apr-2024 03:18:00 06-Apr-2024 03:59:00 0.68
On 06-Apr-2024 04:00:00 06-Apr-2024 04:05:00 0.08
Off 06-Apr-2024 04:06:00 06-Apr-2024 17:59:00 13.88
On 06-Apr-2024 18:00:00 07-Apr-2024 00:03:00 6.05
Off 07-Apr-2024 00:04:00 07-Apr-2024 17:59:00 17.92
On 07-Apr-2024 18:00:00 07-Apr-2024 18:17:00 0.28
Off 07-Apr-2024 18:18:00 08-Apr-2024 02:59:00 8.68
On 08-Apr-2024 03:00:00 08-Apr-2024 03:17:00 0.28
Off 08-Apr-2024 03:18:00 08-Apr-2024 03:59:00 0.68
On 08-Apr-2024 04:00:00 08-Apr-2024 04:17:00 0.28
Off 08-Apr-2024 04:18:00 09-Apr-2024 17:59:00 37.68
On 09-Apr-2024 18:00:00 10-Apr-2024 00:05:00 6.08
Off 10-Apr-2024 00:06:00 11-Apr-2024 02:59:00 26.88
On 11-Apr-2024 03:00:00 11-Apr-2024 03:17:00 0.28
Off 11-Apr-2024 03:18:00 11-Apr-2024 03:59:00 0.68
On 11-Apr-2024 04:00:00 11-Apr-2024 04:17:00 0.28
Off 11-Apr-2024 04:18:00 11-Apr-2024 16:59:00 12.68
On 11-Apr-2024 17:00:00 11-Apr-2024 17:01:00 0.02
Off 11-Apr-2024 17:02:00 11-Apr-2024 17:59:00 0.95

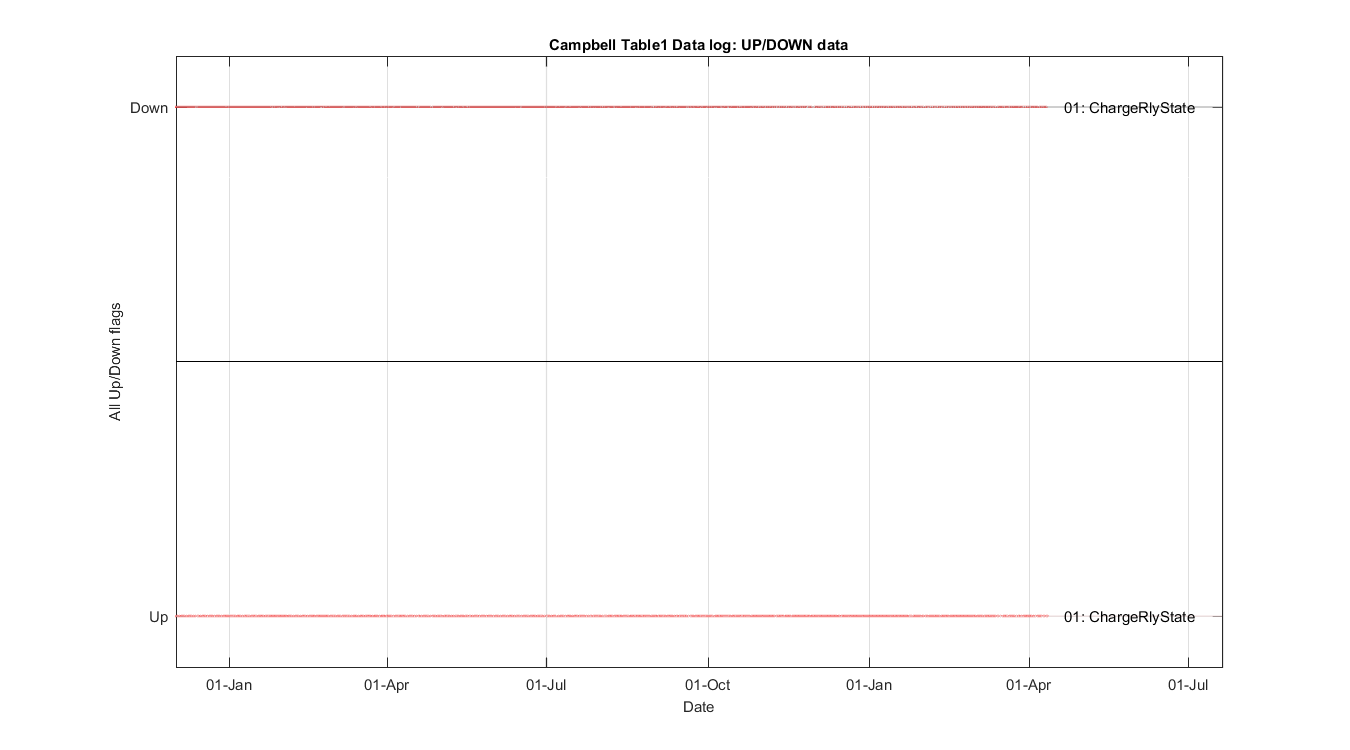

Start and Stop Times for when Falcon switches the Charge Relay (last 20 cycles) - ChargeRlyState = -1
Up/Down Start Time Stop Time Delta Time (hours)
Up 07-Apr-2024 00:02:00 07-Apr-2024 00:02:00 0.00
Down 07-Apr-2024 00:03:00 07-Apr-2024 05:01:00 4.97
Up 07-Apr-2024 05:02:00 07-Apr-2024 18:14:00 13.20
Down 07-Apr-2024 18:15:00 07-Apr-2024 18:15:00 0.00
Up 07-Apr-2024 18:16:00 07-Apr-2024 18:16:00 0.00
Down 07-Apr-2024 18:17:00 08-Apr-2024 00:50:00 6.55
Up 08-Apr-2024 00:51:00 08-Apr-2024 03:13:00 2.37
Down 08-Apr-2024 03:14:00 08-Apr-2024 03:14:00 0.00
Up 08-Apr-2024 03:15:00 08-Apr-2024 03:15:00 0.00
Down 08-Apr-2024 03:16:00 08-Apr-2024 04:01:00 0.75
Up 08-Apr-2024 04:02:00 08-Apr-2024 04:13:00 0.18
Down 08-Apr-2024 04:14:00 08-Apr-2024 04:14:00 0.00
Up 08-Apr-2024 04:15:00 08-Apr-2024 08:38:00 4.38
Down 09-Apr-2024 09-Apr-2024 11:08:00 11.13
Up 09-Apr-2024 11:09:00 10-Apr-2024 00:02:00 12.88
Down 10-Apr-2024 00:03:00 11-Apr-2024 01:32:00 25.48
Up 11-Apr-2024 01:33:00 11-Apr-2024 03:13:00 1.67
Down 11-Apr-2024 03:14:00 11-Apr-2024 03:14:00 0.00
Up 11-Apr-2024 03:15:00 11-Apr-2024 03:15:00 0.00
Down 11-Apr-2024 03:16:00 11-Apr-2024 04:01:00 0.75
Up 11-Apr-2024 04:02:00 11-Apr-2024 18:02:00 14.00
