r20120914_016_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:00:42

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120914 21:27:44 23.1403 0.75
2 20120914 21:27:48 23.1278 0.75
3 20120914 21:27:52 23.1177 0.75
4 20120914 21:27:56 23.1076 0.75
5 20120914 21:28:00 23.0976 0.75
image image

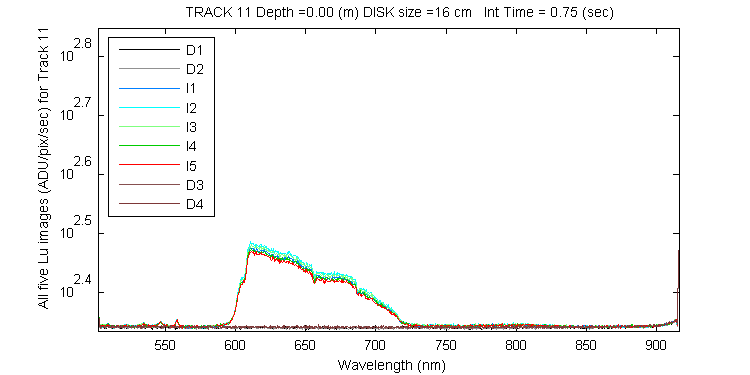

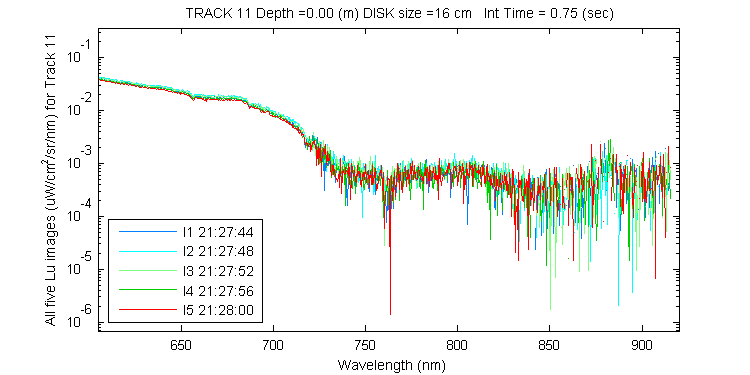

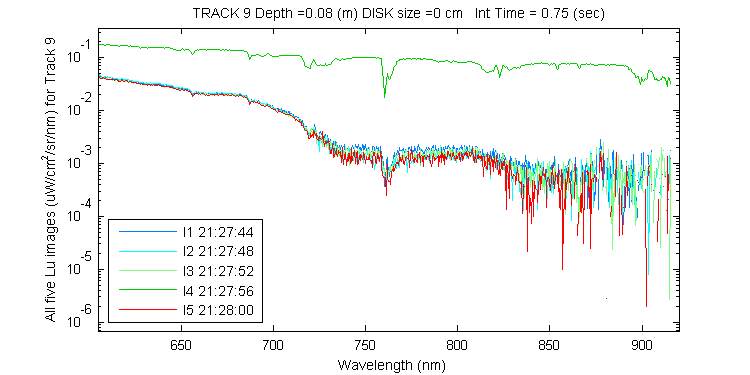

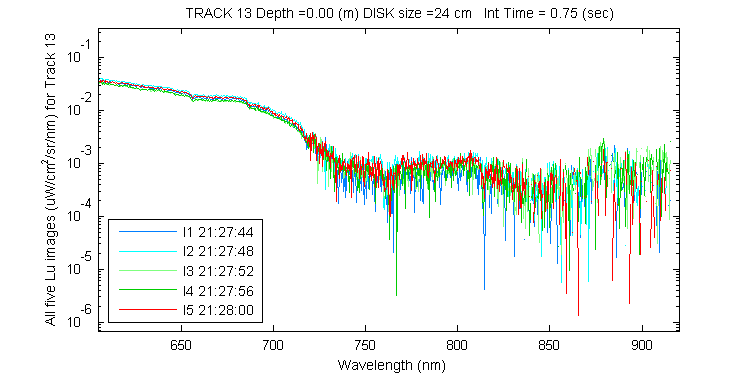

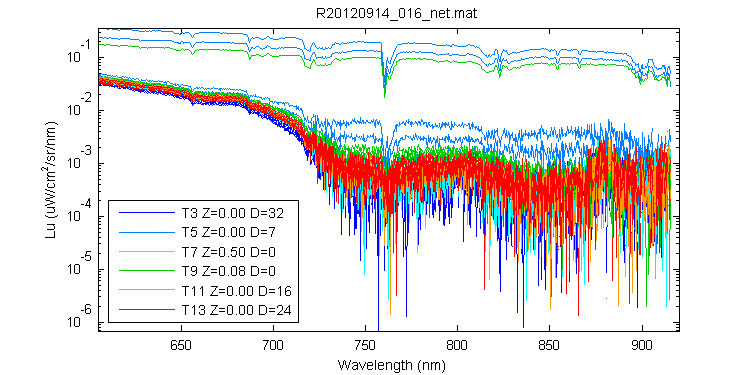

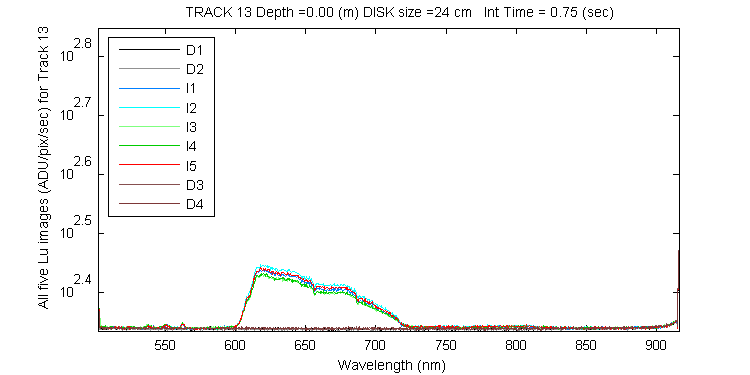

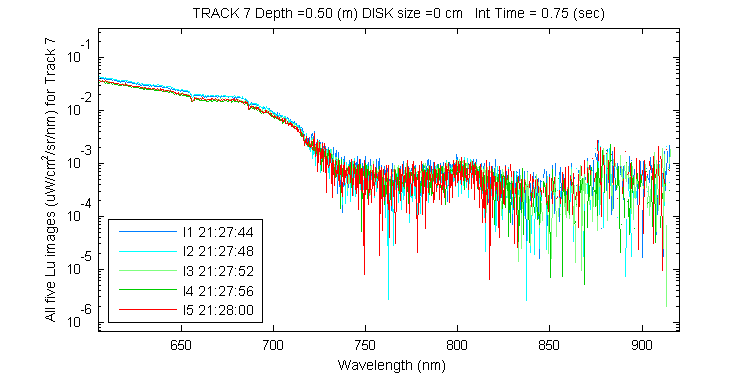

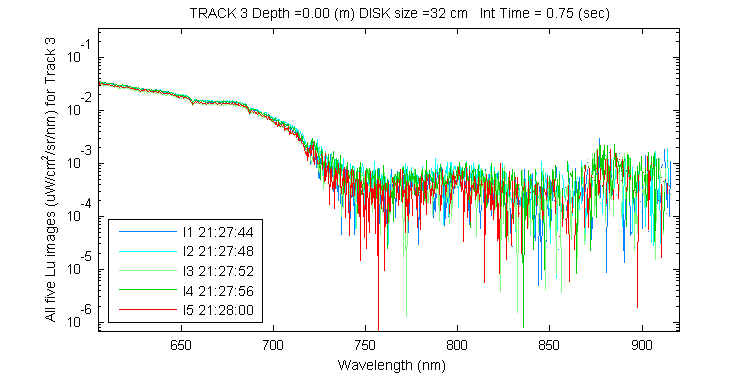

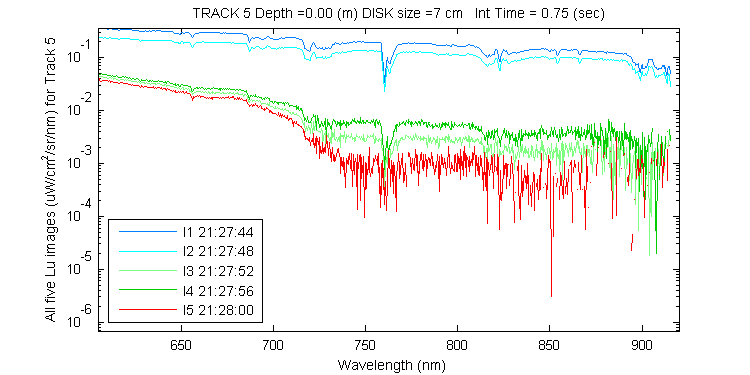

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120914_016_net

Sun Dial Photos for r20120914_016_net
Resonon Image 1
Time: 21:27:44.375 to 21:27:45.125
GoPro Time: 21:27:45
Time diff (sec) start/end : 0.63 / 0.12 		Resonon Image 2
Time: 21:27:48.500 to 21:27:49.250
GoPro Time: 21:27:49
Time diff (sec) start/end : 0.50 / 0.25 		Resonon Image 2
Time: 21:27:48.500 to 21:27:49.250
GoPro Time: 21:27:49
Time diff (sec) start/end : 0.50 / 0.25 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:53
Time diff (sec) start/end : 0.38 / 0.37 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:53
Time diff (sec) start/end : 0.38 / 0.37 		Resonon Image 4
Time: 21:27:56.781 to 21:27:57.531
GoPro Time: 21:27:57
Time diff (sec) start/end : 0.22 / 0.53 		Resonon Image 4
Time: 21:27:56.781 to 21:27:57.531
GoPro Time: 21:27:57
Time diff (sec) start/end : 0.22 / 0.53 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:01
Time diff (sec) start/end : 0.09 / 0.66 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:01
Time diff (sec) start/end : 0.09 / 0.66 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:01
Time diff (sec) start/end : 0.09 / 0.66
gopr8445_20120914_212745_gmt_sun.png gopr8448_20120914_212749_gmt_sun.png gopr8449_20120914_212749_gmt_sun.png gopr8451_20120914_212753_gmt_sun.png gopr8452_20120914_212753_gmt_sun.png gopr8456_20120914_212757_gmt_sun.png gopr8457_20120914_212757_gmt_sun.png gopr8460_20120914_212801_gmt_sun.png gopr8461_20120914_212801_gmt_sun.png gopr8462_20120914_212801_gmt_sun.png

Left side Photos for r20120914_016_net

Left side Photos for r20120914_016_net (tracks 3 -9)
Resonon Image 1
Time: 21:27:44.375 to 21:27:45.125
GoPro Time: 21:27:44
Time diff (sec) start/end : 0.38 / 1.12 		Resonon Image 1
Time: 21:27:44.375 to 21:27:45.125
GoPro Time: 21:27:44
Time diff (sec) start/end : 0.38 / 1.12 		Resonon Image 1
Time: 21:27:44.375 to 21:27:45.125
GoPro Time: 21:27:44
Time diff (sec) start/end : 0.38 / 1.12 		Resonon Image 1
Time: 21:27:44.375 to 21:27:45.125
GoPro Time: 21:27:46
Time diff (sec) start/end : 1.62 / 0.88 		Resonon Image 1
Time: 21:27:44.375 to 21:27:45.125
GoPro Time: 21:27:46
Time diff (sec) start/end : 1.62 / 0.88 		Resonon Image 2
Time: 21:27:48.500 to 21:27:49.250
GoPro Time: 21:27:48
Time diff (sec) start/end : 0.50 / 1.25 		Resonon Image 2
Time: 21:27:48.500 to 21:27:49.250
GoPro Time: 21:27:48
Time diff (sec) start/end : 0.50 / 1.25 		Resonon Image 2
Time: 21:27:48.500 to 21:27:49.250
GoPro Time: 21:27:50
Time diff (sec) start/end : 1.50 / 0.75 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:52
Time diff (sec) start/end : 0.62 / 1.37 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:52
Time diff (sec) start/end : 0.62 / 1.37 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:54
Time diff (sec) start/end : 1.38 / 0.63 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:54
Time diff (sec) start/end : 1.38 / 0.63 		Resonon Image 4
Time: 21:27:56.781 to 21:27:57.531
GoPro Time: 21:27:56
Time diff (sec) start/end : 0.78 / 1.53 		Resonon Image 4
Time: 21:27:56.781 to 21:27:57.531
GoPro Time: 21:27:58
Time diff (sec) start/end : 1.22 / 0.47 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:00
Time diff (sec) start/end : 0.91 / 1.66 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:00
Time diff (sec) start/end : 0.91 / 1.66 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:02
Time diff (sec) start/end : 1.09 / 0.34 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:02
Time diff (sec) start/end : 1.09 / 0.34
gopr8258_20120914_212744_gmt_lftside.jpg gopr8259_20120914_212744_gmt_lftside.jpg gopr8260_20120914_212744_gmt_lftside.jpg gopr8261_20120914_212746_gmt_lftside.jpg gopr8262_20120914_212746_gmt_lftside.jpg gopr8263_20120914_212748_gmt_lftside.jpg gopr8264_20120914_212748_gmt_lftside.jpg gopr8265_20120914_212750_gmt_lftside.jpg gopr8266_20120914_212752_gmt_lftside.jpg gopr8267_20120914_212752_gmt_lftside.jpg gopr8268_20120914_212754_gmt_lftside.jpg gopr8269_20120914_212754_gmt_lftside.jpg gopr8270_20120914_212756_gmt_lftside.jpg gopr8271_20120914_212758_gmt_lftside.jpg gopr8272_20120914_212800_gmt_lftside.jpg gopr8273_20120914_212800_gmt_lftside.jpg gopr8274_20120914_212802_gmt_lftside.jpg gopr8275_20120914_212802_gmt_lftside.jpg

Right side Photos for r20120914_016_net

Right side Photos for r20120914_016_net (tracks 7-13)

Sky Photos for r20120914_016_net

Sky Photos for r20120914_016_net
Resonon Image 1
Time: 21:27:44.375 to 21:27:45.125
GoPro Time: 21:27:44
Time diff (sec) start/end : 0.38 / 1.12 		Resonon Image 1
Time: 21:27:44.375 to 21:27:45.125
GoPro Time: 21:27:46
Time diff (sec) start/end : 1.62 / 0.88 		Resonon Image 2
Time: 21:27:48.500 to 21:27:49.250
GoPro Time: 21:27:48
Time diff (sec) start/end : 0.50 / 1.25 		Resonon Image 2
Time: 21:27:48.500 to 21:27:49.250
GoPro Time: 21:27:50
Time diff (sec) start/end : 1.50 / 0.75 		Resonon Image 2
Time: 21:27:48.500 to 21:27:49.250
GoPro Time: 21:27:50
Time diff (sec) start/end : 1.50 / 0.75 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:52
Time diff (sec) start/end : 0.62 / 1.37 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:52
Time diff (sec) start/end : 0.62 / 1.37 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:54
Time diff (sec) start/end : 1.38 / 0.63 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:54
Time diff (sec) start/end : 1.38 / 0.63 		Resonon Image 4
Time: 21:27:56.781 to 21:27:57.531
GoPro Time: 21:27:56
Time diff (sec) start/end : 0.78 / 1.53 		Resonon Image 4
Time: 21:27:56.781 to 21:27:57.531
GoPro Time: 21:27:58
Time diff (sec) start/end : 1.22 / 0.47 		Resonon Image 4
Time: 21:27:56.781 to 21:27:57.531
GoPro Time: 21:27:58
Time diff (sec) start/end : 1.22 / 0.47 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:00
Time diff (sec) start/end : 0.91 / 1.66 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:00
Time diff (sec) start/end : 0.91 / 1.66 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:02
Time diff (sec) start/end : 1.09 / 0.34 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:02
Time diff (sec) start/end : 1.09 / 0.34
gopr4138_20120914_212744_gmt_cam4.jpg gopr4139_20120914_212746_gmt_cam4.jpg gopr4140_20120914_212748_gmt_cam4.jpg gopr4141_20120914_212750_gmt_cam4.jpg gopr4142_20120914_212750_gmt_cam4.jpg gopr4143_20120914_212752_gmt_cam4.jpg gopr4144_20120914_212752_gmt_cam4.jpg gopr4145_20120914_212754_gmt_cam4.jpg gopr4146_20120914_212754_gmt_cam4.jpg gopr4147_20120914_212756_gmt_cam4.jpg gopr4148_20120914_212758_gmt_cam4.jpg gopr4149_20120914_212758_gmt_cam4.jpg gopr4150_20120914_212800_gmt_cam4.jpg gopr4151_20120914_212800_gmt_cam4.jpg gopr4152_20120914_212802_gmt_cam4.jpg gopr4153_20120914_212802_gmt_cam4.jpg

Horizon Photos for r20120914_016_net

Horizon and obove water fork Photos for r20120914_016_net
Resonon Image 1
Time: 21:27:44.375 to 21:27:45.125
GoPro Time: 21:27:45
Time diff (sec) start/end : 0.63 / 0.12 		Resonon Image 2
Time: 21:27:48.500 to 21:27:49.250
GoPro Time: 21:27:49
Time diff (sec) start/end : 0.50 / 0.25 		Resonon Image 2
Time: 21:27:48.500 to 21:27:49.250
GoPro Time: 21:27:49
Time diff (sec) start/end : 0.50 / 0.25 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:53
Time diff (sec) start/end : 0.38 / 0.37 		Resonon Image 3
Time: 21:27:52.625 to 21:27:53.375
GoPro Time: 21:27:53
Time diff (sec) start/end : 0.38 / 0.37 		Resonon Image 4
Time: 21:27:56.781 to 21:27:57.531
GoPro Time: 21:27:57
Time diff (sec) start/end : 0.22 / 0.53 		Resonon Image 4
Time: 21:27:56.781 to 21:27:57.531
GoPro Time: 21:27:57
Time diff (sec) start/end : 0.22 / 0.53 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:01
Time diff (sec) start/end : 0.09 / 0.66 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:01
Time diff (sec) start/end : 0.09 / 0.66 		Resonon Image 5
Time: 21:28:00.906 to 21:28:01.656
GoPro Time: 21:28:01
Time diff (sec) start/end : 0.09 / 0.66
gopr8445_20120914_212745_gmt_horizon.jpg gopr8448_20120914_212749_gmt_horizon.jpg gopr8449_20120914_212749_gmt_horizon.jpg gopr8451_20120914_212753_gmt_horizon.jpg gopr8452_20120914_212753_gmt_horizon.jpg gopr8456_20120914_212757_gmt_horizon.jpg gopr8457_20120914_212757_gmt_horizon.jpg gopr8460_20120914_212801_gmt_horizon.jpg gopr8461_20120914_212801_gmt_horizon.jpg gopr8462_20120914_212801_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:00:45
