r20120914_020_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:00:52

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

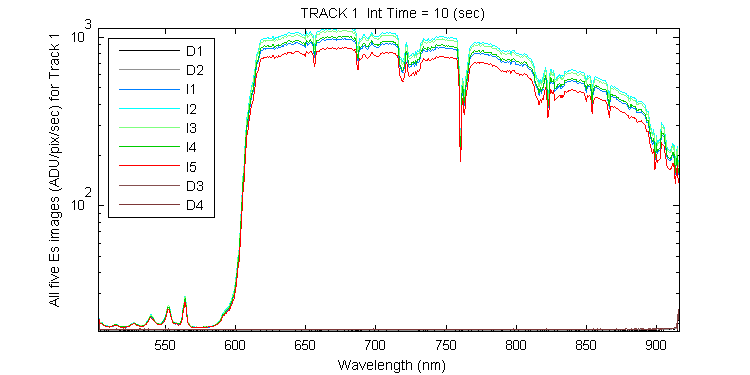

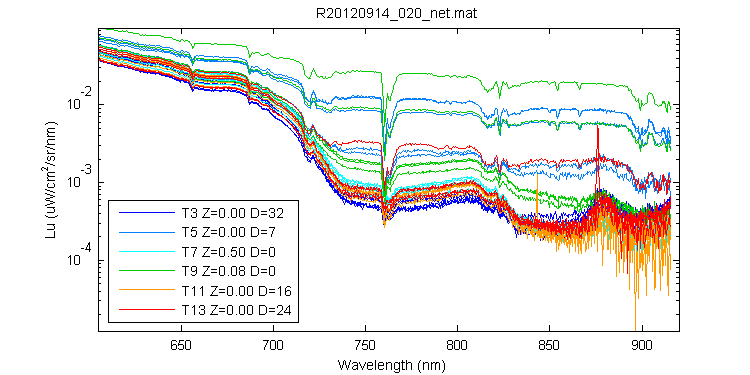

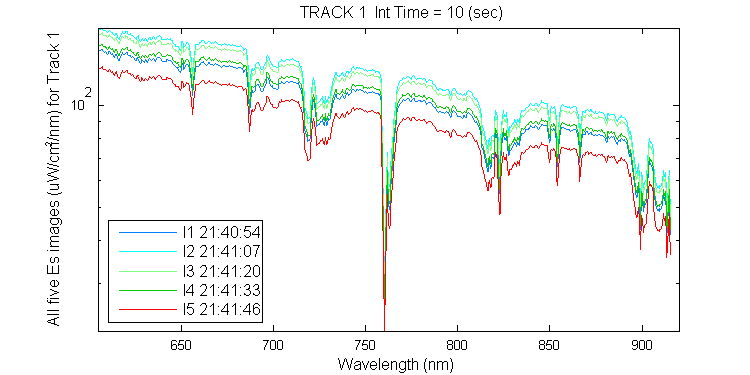

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120914 21:40:54 21.2983 10
2 20120914 21:41:07 21.2707 10
3 20120914 21:41:20 21.2411 10
4 20120914 21:41:33 21.2136 10
5 20120914 21:41:46 21.1863 10
image image

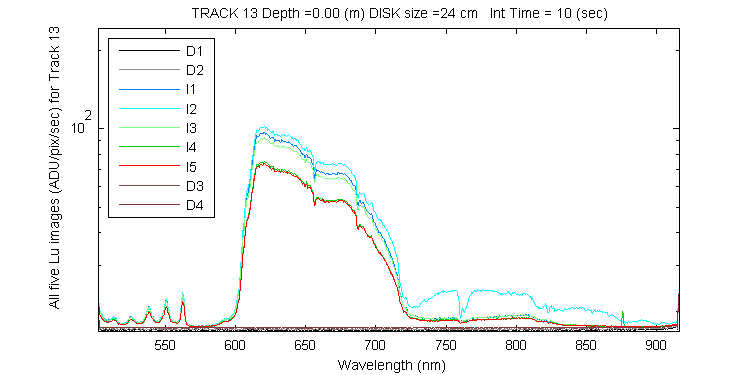

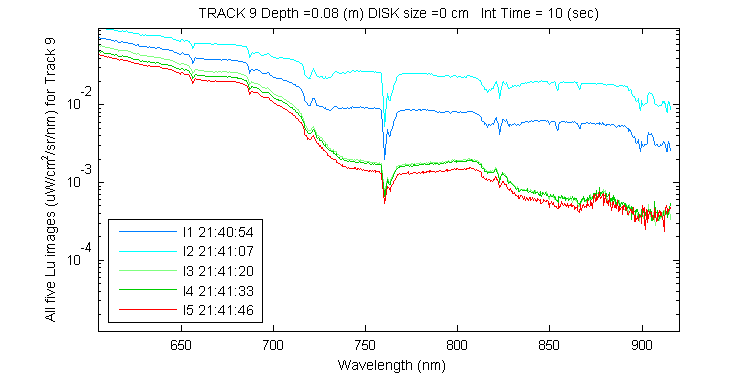

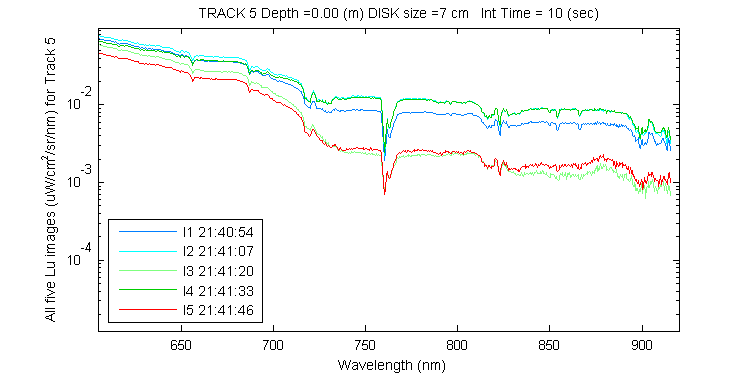

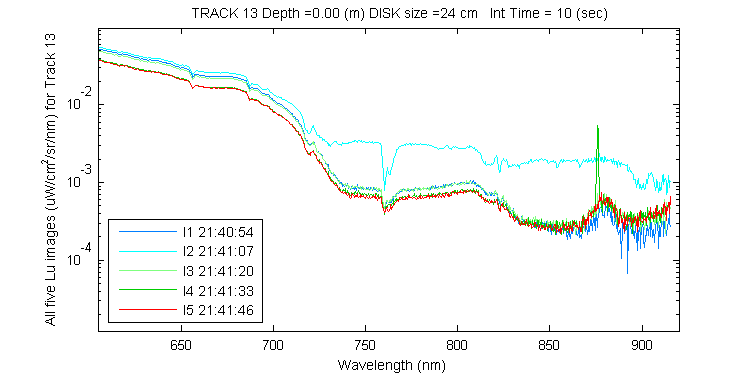

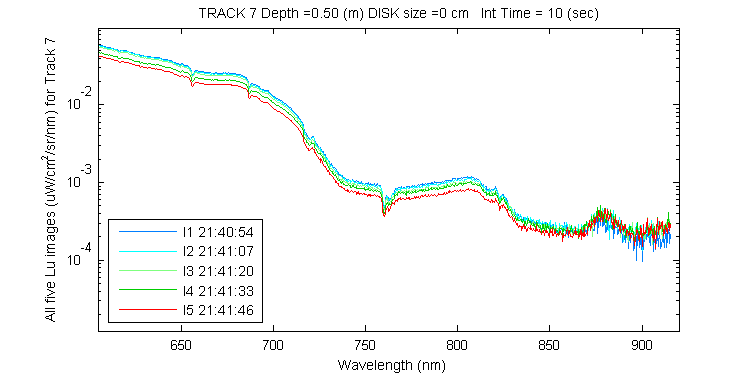

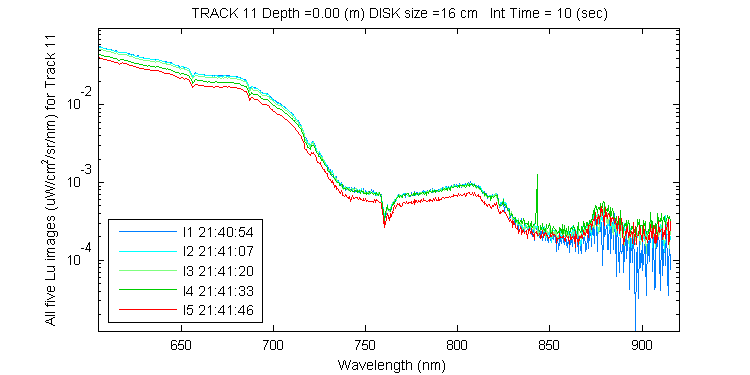

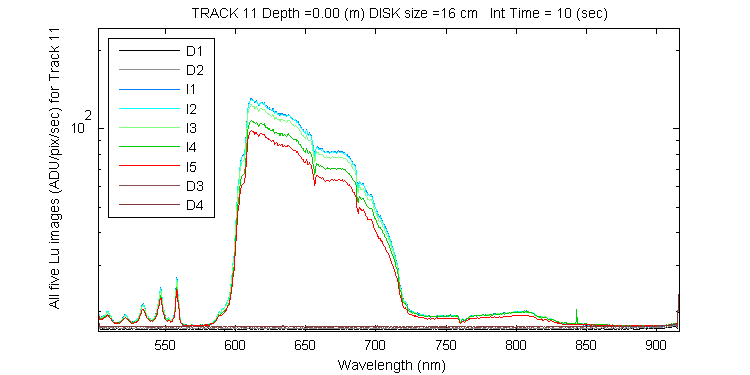

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120914_020_net

Sun Dial Photos for r20120914_020_net
Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:55
Time diff (sec) start/end : 0.67 / 9.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:55
Time diff (sec) start/end : 0.67 / 9.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:55
Time diff (sec) start/end : 0.67 / 9.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:57
Time diff (sec) start/end : 2.67 / 7.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:59
Time diff (sec) start/end : 4.67 / 5.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:59
Time diff (sec) start/end : 4.67 / 5.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:01
Time diff (sec) start/end : 6.67 / 3.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:03
Time diff (sec) start/end : 8.67 / 1.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:03
Time diff (sec) start/end : 8.67 / 1.33 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:09
Time diff (sec) start/end : 1.53 / 8.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:09
Time diff (sec) start/end : 1.53 / 8.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:11
Time diff (sec) start/end : 3.53 / 6.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:13
Time diff (sec) start/end : 5.53 / 4.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:13
Time diff (sec) start/end : 5.53 / 4.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:13
Time diff (sec) start/end : 5.53 / 4.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:15
Time diff (sec) start/end : 7.53 / 2.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:17
Time diff (sec) start/end : 9.53 / 0.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:17
Time diff (sec) start/end : 9.53 / 0.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:17
Time diff (sec) start/end : 9.53 / 0.47 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:23
Time diff (sec) start/end : 2.38 / 7.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:25
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:25
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:25
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:25
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:25
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:37
Time diff (sec) start/end : 3.24 / 6.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:39
Time diff (sec) start/end : 5.24 / 4.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:41
Time diff (sec) start/end : 7.24 / 2.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:41
Time diff (sec) start/end : 7.24 / 2.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:41
Time diff (sec) start/end : 7.24 / 2.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:41
Time diff (sec) start/end : 7.24 / 2.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:41
Time diff (sec) start/end : 7.24 / 2.76 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:47
Time diff (sec) start/end : 0.08 / 9.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:47
Time diff (sec) start/end : 0.08 / 9.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:47
Time diff (sec) start/end : 0.08 / 9.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:49
Time diff (sec) start/end : 2.08 / 7.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:51
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:51
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:51
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:53
Time diff (sec) start/end : 6.08 / 3.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:53
Time diff (sec) start/end : 6.08 / 3.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:53
Time diff (sec) start/end : 6.08 / 3.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:55
Time diff (sec) start/end : 8.08 / 1.92
gopr9120_20120914_214055_gmt_sun.png gopr9121_20120914_214055_gmt_sun.png gopr9122_20120914_214055_gmt_sun.png gopr9123_20120914_214057_gmt_sun.png gopr9124_20120914_214059_gmt_sun.png gopr9125_20120914_214059_gmt_sun.png gopr9126_20120914_214101_gmt_sun.png gopr9127_20120914_214103_gmt_sun.png gopr9128_20120914_214103_gmt_sun.png gopr9133_20120914_214109_gmt_sun.png gopr9134_20120914_214109_gmt_sun.png gopr9135_20120914_214111_gmt_sun.png gopr9136_20120914_214113_gmt_sun.png gopr9137_20120914_214113_gmt_sun.png gopr9138_20120914_214113_gmt_sun.png gopr9139_20120914_214115_gmt_sun.png gopr9140_20120914_214117_gmt_sun.png gopr9141_20120914_214117_gmt_sun.png gopr9142_20120914_214117_gmt_sun.png gopr9145_20120914_214123_gmt_sun.png gopr9146_20120914_214125_gmt_sun.png gopr9147_20120914_214125_gmt_sun.png gopr9148_20120914_214125_gmt_sun.png gopr9149_20120914_214125_gmt_sun.png gopr9150_20120914_214125_gmt_sun.png gopr9158_20120914_214137_gmt_sun.png gopr9159_20120914_214139_gmt_sun.png gopr9160_20120914_214141_gmt_sun.png gopr9161_20120914_214141_gmt_sun.png gopr9162_20120914_214141_gmt_sun.png gopr9163_20120914_214141_gmt_sun.png gopr9164_20120914_214141_gmt_sun.png gopr9165_20120914_214147_gmt_sun.png gopr9166_20120914_214147_gmt_sun.png gopr9167_20120914_214147_gmt_sun.png gopr9168_20120914_214149_gmt_sun.png gopr9169_20120914_214151_gmt_sun.png gopr9170_20120914_214151_gmt_sun.png gopr9171_20120914_214151_gmt_sun.png gopr9172_20120914_214153_gmt_sun.png gopr9173_20120914_214153_gmt_sun.png gopr9174_20120914_214153_gmt_sun.png gopr9175_20120914_214155_gmt_sun.png

Left side Photos for r20120914_020_net

Left side Photos for r20120914_020_net (tracks 3 -9)
Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:56
Time diff (sec) start/end : 1.67 / 8.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:56
Time diff (sec) start/end : 1.67 / 8.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:58
Time diff (sec) start/end : 3.67 / 6.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:58
Time diff (sec) start/end : 3.67 / 6.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:00
Time diff (sec) start/end : 5.67 / 4.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:00
Time diff (sec) start/end : 5.67 / 4.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:04
Time diff (sec) start/end : 9.67 / 0.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:04
Time diff (sec) start/end : 9.67 / 0.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:04
Time diff (sec) start/end : 9.67 / 0.33 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:10
Time diff (sec) start/end : 2.53 / 7.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:10
Time diff (sec) start/end : 2.53 / 7.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:12
Time diff (sec) start/end : 4.53 / 5.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:12
Time diff (sec) start/end : 4.53 / 5.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:12
Time diff (sec) start/end : 4.53 / 5.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:14
Time diff (sec) start/end : 6.53 / 3.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:16
Time diff (sec) start/end : 8.53 / 1.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:16
Time diff (sec) start/end : 8.53 / 1.47 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:22
Time diff (sec) start/end : 1.37 / 8.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:24
Time diff (sec) start/end : 3.38 / 6.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:24
Time diff (sec) start/end : 3.38 / 6.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:26
Time diff (sec) start/end : 5.38 / 4.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:26
Time diff (sec) start/end : 5.38 / 4.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:28
Time diff (sec) start/end : 7.38 / 2.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:28
Time diff (sec) start/end : 7.38 / 2.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:28
Time diff (sec) start/end : 7.38 / 2.62 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:34
Time diff (sec) start/end : 0.24 / 9.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:34
Time diff (sec) start/end : 0.24 / 9.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:34
Time diff (sec) start/end : 0.24 / 9.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:38
Time diff (sec) start/end : 4.24 / 5.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:38
Time diff (sec) start/end : 4.24 / 5.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:38
Time diff (sec) start/end : 4.24 / 5.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:42
Time diff (sec) start/end : 8.23 / 1.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:42
Time diff (sec) start/end : 8.23 / 1.76 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:48
Time diff (sec) start/end : 1.08 / 8.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:50
Time diff (sec) start/end : 3.08 / 6.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:52
Time diff (sec) start/end : 5.08 / 4.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:52
Time diff (sec) start/end : 5.08 / 4.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:54
Time diff (sec) start/end : 7.08 / 2.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:54
Time diff (sec) start/end : 7.08 / 2.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:56
Time diff (sec) start/end : 9.08 / 0.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:56
Time diff (sec) start/end : 9.08 / 0.92
gopr8903_20120914_214056_gmt_lftside.jpg gopr8904_20120914_214056_gmt_lftside.jpg gopr8905_20120914_214058_gmt_lftside.jpg gopr8906_20120914_214058_gmt_lftside.jpg gopr8907_20120914_214100_gmt_lftside.jpg gopr8908_20120914_214100_gmt_lftside.jpg gopr8909_20120914_214104_gmt_lftside.jpg gopr8910_20120914_214104_gmt_lftside.jpg gopr8911_20120914_214104_gmt_lftside.jpg gopr8914_20120914_214110_gmt_lftside.jpg gopr8915_20120914_214110_gmt_lftside.jpg gopr8916_20120914_214112_gmt_lftside.jpg gopr8917_20120914_214112_gmt_lftside.jpg gopr8918_20120914_214112_gmt_lftside.jpg gopr8919_20120914_214114_gmt_lftside.jpg gopr8920_20120914_214116_gmt_lftside.jpg gopr8921_20120914_214116_gmt_lftside.jpg gopr8925_20120914_214122_gmt_lftside.jpg gopr8926_20120914_214124_gmt_lftside.jpg gopr8927_20120914_214124_gmt_lftside.jpg gopr8928_20120914_214126_gmt_lftside.jpg gopr8929_20120914_214126_gmt_lftside.jpg gopr8930_20120914_214128_gmt_lftside.jpg gopr8931_20120914_214128_gmt_lftside.jpg gopr8932_20120914_214128_gmt_lftside.jpg gopr8935_20120914_214134_gmt_lftside.jpg gopr8936_20120914_214134_gmt_lftside.jpg gopr8937_20120914_214134_gmt_lftside.jpg gopr8938_20120914_214138_gmt_lftside.jpg gopr8939_20120914_214138_gmt_lftside.jpg gopr8940_20120914_214138_gmt_lftside.jpg gopr8941_20120914_214142_gmt_lftside.jpg gopr8942_20120914_214142_gmt_lftside.jpg gopr8947_20120914_214148_gmt_lftside.jpg gopr8948_20120914_214150_gmt_lftside.jpg gopr8949_20120914_214152_gmt_lftside.jpg gopr8950_20120914_214152_gmt_lftside.jpg gopr8951_20120914_214154_gmt_lftside.jpg gopr8952_20120914_214154_gmt_lftside.jpg gopr8953_20120914_214156_gmt_lftside.jpg gopr8954_20120914_214156_gmt_lftside.jpg

Right side Photos for r20120914_020_net

Right side Photos for r20120914_020_net (tracks 7-13)

Sky Photos for r20120914_020_net

Sky Photos for r20120914_020_net
Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:56
Time diff (sec) start/end : 1.67 / 8.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:56
Time diff (sec) start/end : 1.67 / 8.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:58
Time diff (sec) start/end : 3.67 / 6.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:00
Time diff (sec) start/end : 5.67 / 4.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:02
Time diff (sec) start/end : 7.67 / 2.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:04
Time diff (sec) start/end : 9.67 / 0.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:04
Time diff (sec) start/end : 9.67 / 0.33 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:08
Time diff (sec) start/end : 0.53 / 9.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:10
Time diff (sec) start/end : 2.53 / 7.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:10
Time diff (sec) start/end : 2.53 / 7.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:12
Time diff (sec) start/end : 4.53 / 5.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:14
Time diff (sec) start/end : 6.53 / 3.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:16
Time diff (sec) start/end : 8.53 / 1.47 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:22
Time diff (sec) start/end : 1.37 / 8.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:24
Time diff (sec) start/end : 3.38 / 6.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:24
Time diff (sec) start/end : 3.38 / 6.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:26
Time diff (sec) start/end : 5.38 / 4.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:28
Time diff (sec) start/end : 7.38 / 2.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:30
Time diff (sec) start/end : 9.38 / 0.62 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:34
Time diff (sec) start/end : 0.24 / 9.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:36
Time diff (sec) start/end : 2.24 / 7.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:38
Time diff (sec) start/end : 4.24 / 5.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:40
Time diff (sec) start/end : 6.23 / 3.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:40
Time diff (sec) start/end : 6.23 / 3.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:42
Time diff (sec) start/end : 8.23 / 1.76 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:48
Time diff (sec) start/end : 1.08 / 8.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:48
Time diff (sec) start/end : 1.08 / 8.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:52
Time diff (sec) start/end : 5.08 / 4.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:54
Time diff (sec) start/end : 7.08 / 2.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:54
Time diff (sec) start/end : 7.08 / 2.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:56
Time diff (sec) start/end : 9.08 / 0.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:56
Time diff (sec) start/end : 9.08 / 0.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:56
Time diff (sec) start/end : 9.08 / 0.92
gopr4687_20120914_214056_gmt_cam4.jpg gopr4688_20120914_214056_gmt_cam4.jpg gopr4689_20120914_214058_gmt_cam4.jpg gopr4690_20120914_214100_gmt_cam4.jpg gopr4691_20120914_214102_gmt_cam4.jpg gopr4692_20120914_214104_gmt_cam4.jpg gopr4693_20120914_214104_gmt_cam4.jpg gopr4695_20120914_214108_gmt_cam4.jpg gopr4696_20120914_214110_gmt_cam4.jpg gopr4697_20120914_214110_gmt_cam4.jpg gopr4698_20120914_214112_gmt_cam4.jpg gopr4699_20120914_214114_gmt_cam4.jpg gopr4700_20120914_214116_gmt_cam4.jpg gopr4704_20120914_214122_gmt_cam4.jpg gopr4705_20120914_214124_gmt_cam4.jpg gopr4706_20120914_214124_gmt_cam4.jpg gopr4707_20120914_214126_gmt_cam4.jpg gopr4708_20120914_214128_gmt_cam4.jpg gopr4709_20120914_214130_gmt_cam4.jpg gopr4712_20120914_214134_gmt_cam4.jpg gopr4713_20120914_214136_gmt_cam4.jpg gopr4714_20120914_214138_gmt_cam4.jpg gopr4715_20120914_214140_gmt_cam4.jpg gopr4716_20120914_214140_gmt_cam4.jpg gopr4717_20120914_214142_gmt_cam4.jpg gopr4722_20120914_214148_gmt_cam4.jpg gopr4723_20120914_214148_gmt_cam4.jpg gopr4724_20120914_214152_gmt_cam4.jpg gopr4725_20120914_214154_gmt_cam4.jpg gopr4726_20120914_214154_gmt_cam4.jpg gopr4727_20120914_214156_gmt_cam4.jpg gopr4728_20120914_214156_gmt_cam4.jpg gopr4729_20120914_214156_gmt_cam4.jpg

Horizon Photos for r20120914_020_net

Horizon and obove water fork Photos for r20120914_020_net
Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:55
Time diff (sec) start/end : 0.67 / 9.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:55
Time diff (sec) start/end : 0.67 / 9.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:55
Time diff (sec) start/end : 0.67 / 9.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:57
Time diff (sec) start/end : 2.67 / 7.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:59
Time diff (sec) start/end : 4.67 / 5.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:40:59
Time diff (sec) start/end : 4.67 / 5.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:01
Time diff (sec) start/end : 6.67 / 3.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:03
Time diff (sec) start/end : 8.67 / 1.33 		Resonon Image 1
Time: 21:40:54.328 to 21:41:04.328
GoPro Time: 21:41:03
Time diff (sec) start/end : 8.67 / 1.33 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:09
Time diff (sec) start/end : 1.53 / 8.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:09
Time diff (sec) start/end : 1.53 / 8.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:11
Time diff (sec) start/end : 3.53 / 6.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:13
Time diff (sec) start/end : 5.53 / 4.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:13
Time diff (sec) start/end : 5.53 / 4.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:13
Time diff (sec) start/end : 5.53 / 4.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:15
Time diff (sec) start/end : 7.53 / 2.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:17
Time diff (sec) start/end : 9.53 / 0.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:17
Time diff (sec) start/end : 9.53 / 0.47 		Resonon Image 2
Time: 21:41:07.468 to 21:41:17.468
GoPro Time: 21:41:17
Time diff (sec) start/end : 9.53 / 0.47 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:23
Time diff (sec) start/end : 2.38 / 7.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:25
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:25
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:25
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:25
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 3
Time: 21:41:20.625 to 21:41:30.625
GoPro Time: 21:41:25
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:37
Time diff (sec) start/end : 3.24 / 6.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:39
Time diff (sec) start/end : 5.24 / 4.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:41
Time diff (sec) start/end : 7.24 / 2.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:41
Time diff (sec) start/end : 7.24 / 2.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:41
Time diff (sec) start/end : 7.24 / 2.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:41
Time diff (sec) start/end : 7.24 / 2.76 		Resonon Image 4
Time: 21:41:33.765 to 21:41:43.765
GoPro Time: 21:41:41
Time diff (sec) start/end : 7.24 / 2.76 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:47
Time diff (sec) start/end : 0.08 / 9.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:47
Time diff (sec) start/end : 0.08 / 9.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:47
Time diff (sec) start/end : 0.08 / 9.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:49
Time diff (sec) start/end : 2.08 / 7.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:51
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:51
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:51
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:53
Time diff (sec) start/end : 6.08 / 3.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:53
Time diff (sec) start/end : 6.08 / 3.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:53
Time diff (sec) start/end : 6.08 / 3.92 		Resonon Image 5
Time: 21:41:46.921 to 21:41:56.921
GoPro Time: 21:41:55
Time diff (sec) start/end : 8.08 / 1.92
gopr9120_20120914_214055_gmt_horizon.jpg gopr9121_20120914_214055_gmt_horizon.jpg gopr9122_20120914_214055_gmt_horizon.jpg gopr9123_20120914_214057_gmt_horizon.jpg gopr9124_20120914_214059_gmt_horizon.jpg gopr9125_20120914_214059_gmt_horizon.jpg gopr9126_20120914_214101_gmt_horizon.jpg gopr9127_20120914_214103_gmt_horizon.jpg gopr9128_20120914_214103_gmt_horizon.jpg gopr9133_20120914_214109_gmt_horizon.jpg gopr9134_20120914_214109_gmt_horizon.jpg gopr9135_20120914_214111_gmt_horizon.jpg gopr9136_20120914_214113_gmt_horizon.jpg gopr9137_20120914_214113_gmt_horizon.jpg gopr9138_20120914_214113_gmt_horizon.jpg gopr9139_20120914_214115_gmt_horizon.jpg gopr9140_20120914_214117_gmt_horizon.jpg gopr9141_20120914_214117_gmt_horizon.jpg gopr9142_20120914_214117_gmt_horizon.jpg gopr9145_20120914_214123_gmt_horizon.jpg gopr9146_20120914_214125_gmt_horizon.jpg gopr9147_20120914_214125_gmt_horizon.jpg gopr9148_20120914_214125_gmt_horizon.jpg gopr9149_20120914_214125_gmt_horizon.jpg gopr9150_20120914_214125_gmt_horizon.jpg gopr9158_20120914_214137_gmt_horizon.jpg gopr9159_20120914_214139_gmt_horizon.jpg gopr9160_20120914_214141_gmt_horizon.jpg gopr9161_20120914_214141_gmt_horizon.jpg gopr9162_20120914_214141_gmt_horizon.jpg gopr9163_20120914_214141_gmt_horizon.jpg gopr9164_20120914_214141_gmt_horizon.jpg gopr9165_20120914_214147_gmt_horizon.jpg gopr9166_20120914_214147_gmt_horizon.jpg gopr9167_20120914_214147_gmt_horizon.jpg gopr9168_20120914_214149_gmt_horizon.jpg gopr9169_20120914_214151_gmt_horizon.jpg gopr9170_20120914_214151_gmt_horizon.jpg gopr9171_20120914_214151_gmt_horizon.jpg gopr9172_20120914_214153_gmt_horizon.jpg gopr9173_20120914_214153_gmt_horizon.jpg gopr9174_20120914_214153_gmt_horizon.jpg gopr9175_20120914_214155_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:00:55
Created from gopro_mkpages_(12)
