r20120914_029_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:01:15

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

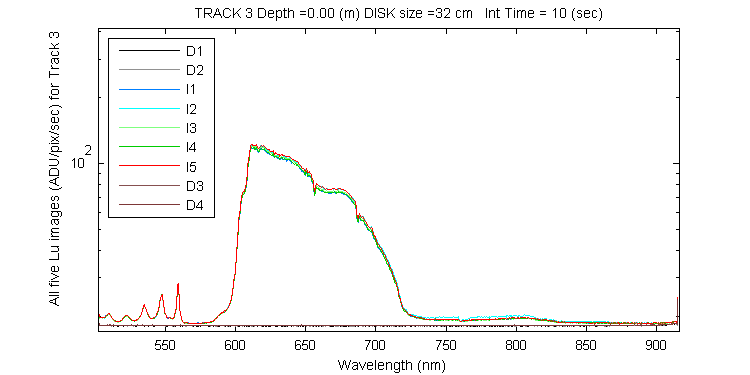

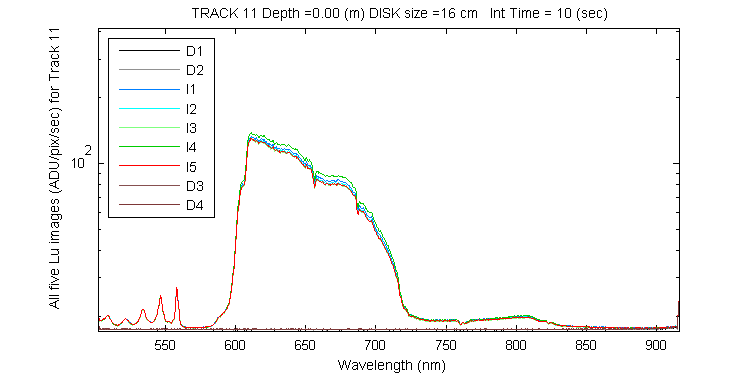

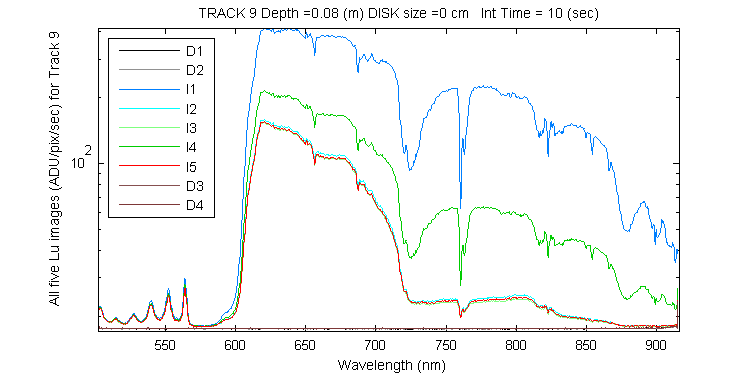

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120914 21:59:56 19.2744 10
2 20120914 22:00:09 19.2566 10
3 20120914 22:00:23 19.2389 10
4 20120914 22:00:36 19.2213 10
5 20120914 22:00:49 19.2039 10
image image

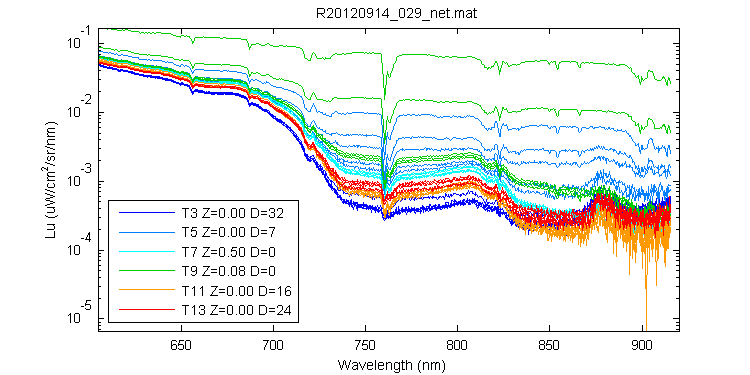

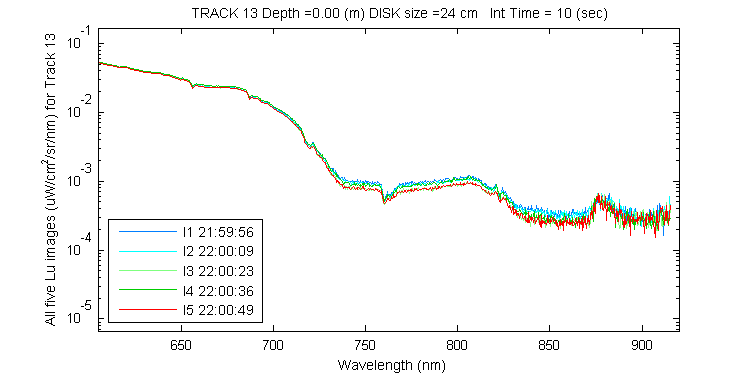

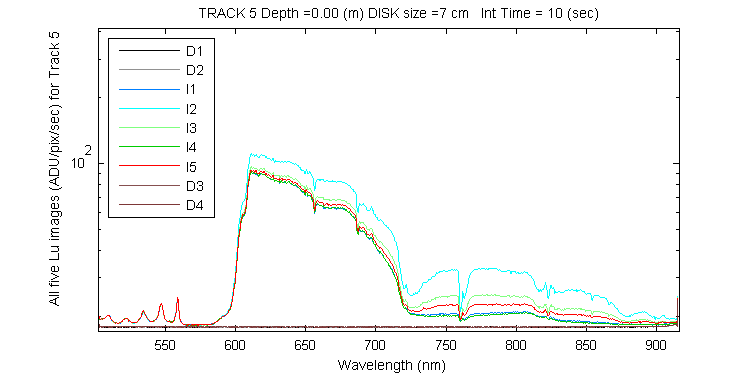

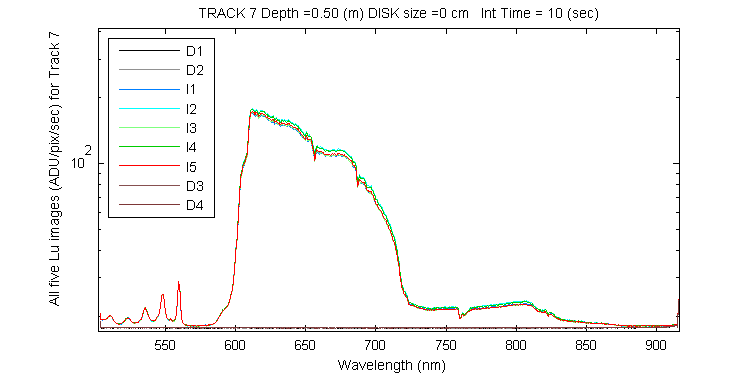

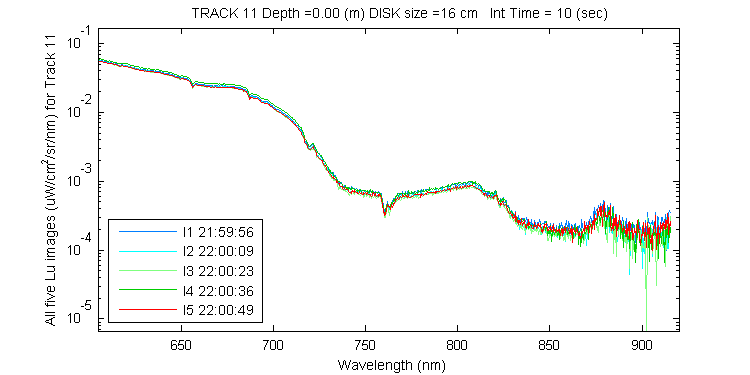

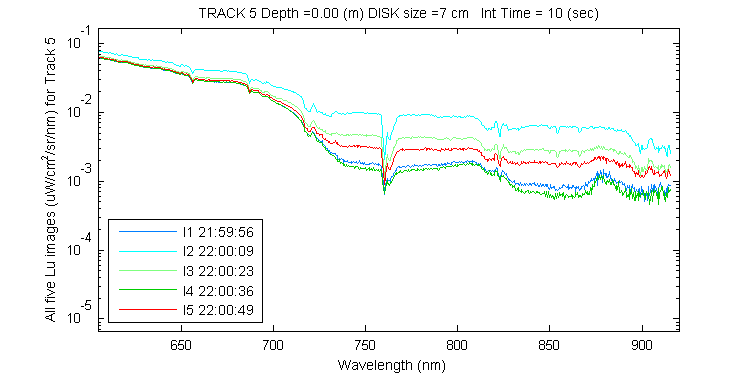

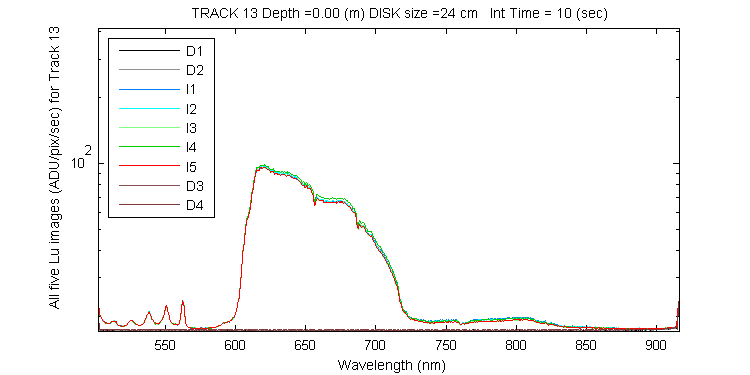

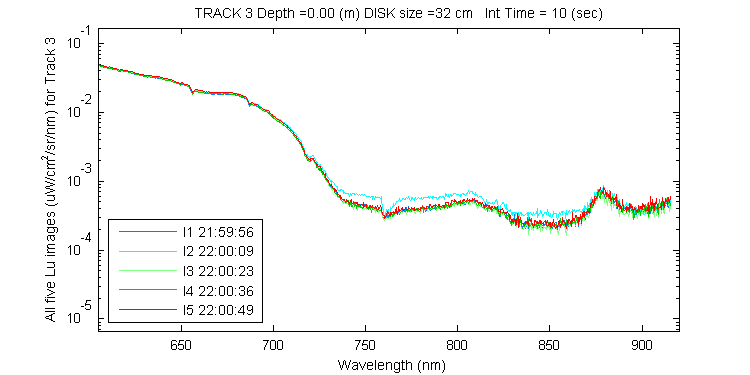

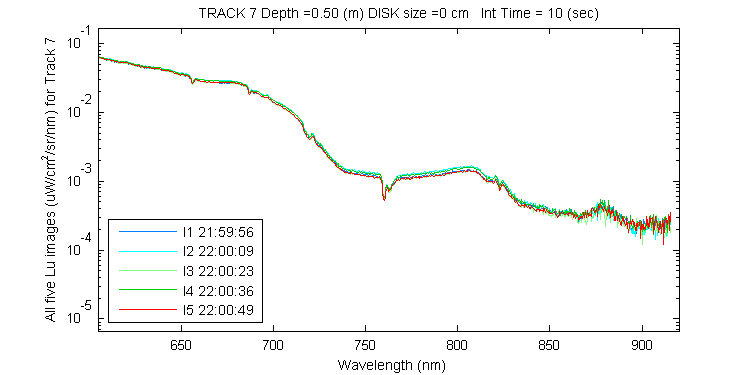

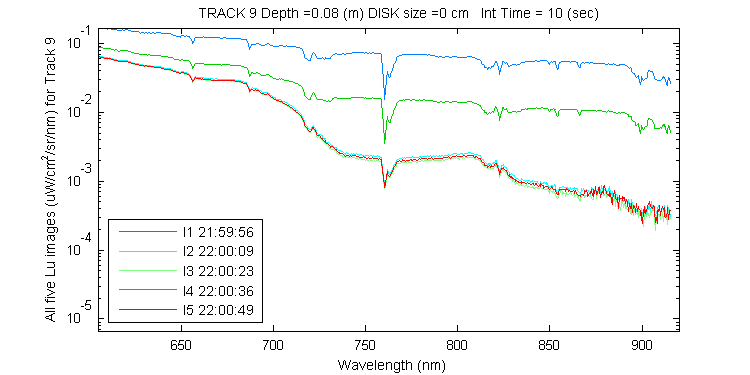

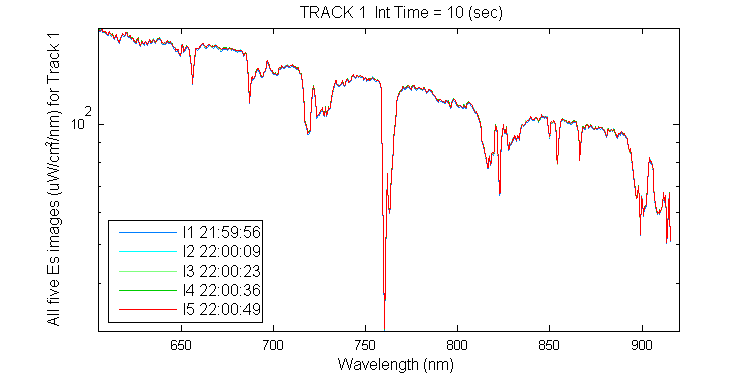

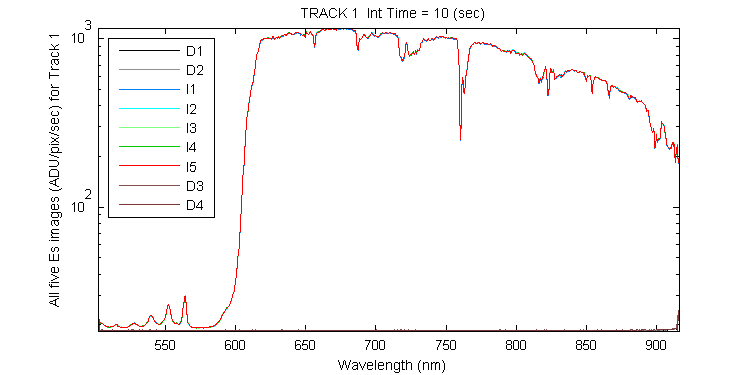

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120914_029_net

Sun Dial Photos for r20120914_029_net

Left side Photos for r20120914_029_net

Left side Photos for r20120914_029_net (tracks 3 -9)
Resonon Image 1
Time: 21:59:56.828 to 22:00:06.828
GoPro Time: 21:59:58
Time diff (sec) start/end : 1.17 / 8.83 		Resonon Image 1
Time: 21:59:56.828 to 22:00:06.828
GoPro Time: 21:59:58
Time diff (sec) start/end : 1.17 / 8.83 		Resonon Image 1
Time: 21:59:56.828 to 22:00:06.828
GoPro Time: 22:00:00
Time diff (sec) start/end : 3.17 / 6.83 		Resonon Image 1
Time: 21:59:56.828 to 22:00:06.828
GoPro Time: 22:00:00
Time diff (sec) start/end : 3.17 / 6.83 		Resonon Image 1
Time: 21:59:56.828 to 22:00:06.828
GoPro Time: 22:00:02
Time diff (sec) start/end : 5.17 / 4.83 		Resonon Image 1
Time: 21:59:56.828 to 22:00:06.828
GoPro Time: 22:00:04
Time diff (sec) start/end : 7.17 / 2.83 		Resonon Image 1
Time: 21:59:56.828 to 22:00:06.828
GoPro Time: 22:00:06
Time diff (sec) start/end : 9.17 / 0.83 		Resonon Image 1
Time: 21:59:56.828 to 22:00:06.828
GoPro Time: 22:00:06
Time diff (sec) start/end : 9.17 / 0.83 		Resonon Image 2
Time: 22:00:09.968 to 22:00:19.968
GoPro Time: 22:00:10
Time diff (sec) start/end : 0.03 / 9.97 		Resonon Image 2
Time: 22:00:09.968 to 22:00:19.968
GoPro Time: 22:00:12
Time diff (sec) start/end : 2.03 / 7.97 		Resonon Image 2
Time: 22:00:09.968 to 22:00:19.968
GoPro Time: 22:00:14
Time diff (sec) start/end : 4.03 / 5.97 		Resonon Image 2
Time: 22:00:09.968 to 22:00:19.968
GoPro Time: 22:00:14
Time diff (sec) start/end : 4.03 / 5.97 		Resonon Image 2
Time: 22:00:09.968 to 22:00:19.968
GoPro Time: 22:00:16
Time diff (sec) start/end : 6.03 / 3.97 		Resonon Image 2
Time: 22:00:09.968 to 22:00:19.968
GoPro Time: 22:00:16
Time diff (sec) start/end : 6.03 / 3.97 		Resonon Image 2
Time: 22:00:09.968 to 22:00:19.968
GoPro Time: 22:00:18
Time diff (sec) start/end : 8.03 / 1.97 		Resonon Image 2
Time: 22:00:09.968 to 22:00:19.968
GoPro Time: 22:00:18
Time diff (sec) start/end : 8.03 / 1.97 		Resonon Image 3
Time: 22:00:23.109 to 22:00:33.109
GoPro Time: 22:00:24
Time diff (sec) start/end : 0.89 / 9.11 		Resonon Image 3
Time: 22:00:23.109 to 22:00:33.109
GoPro Time: 22:00:26
Time diff (sec) start/end : 2.89 / 7.11 		Resonon Image 3
Time: 22:00:23.109 to 22:00:33.109
GoPro Time: 22:00:26
Time diff (sec) start/end : 2.89 / 7.11 		Resonon Image 3
Time: 22:00:23.109 to 22:00:33.109
GoPro Time: 22:00:26
Time diff (sec) start/end : 2.89 / 7.11 		Resonon Image 3
Time: 22:00:23.109 to 22:00:33.109
GoPro Time: 22:00:26
Time diff (sec) start/end : 2.89 / 7.11 		Resonon Image 3
Time: 22:00:23.109 to 22:00:33.109
GoPro Time: 22:00:28
Time diff (sec) start/end : 4.89 / 5.11 		Resonon Image 3
Time: 22:00:23.109 to 22:00:33.109
GoPro Time: 22:00:30
Time diff (sec) start/end : 6.89 / 3.11 		Resonon Image 3
Time: 22:00:23.109 to 22:00:33.109
GoPro Time: 22:00:32
Time diff (sec) start/end : 8.89 / 1.11 		Resonon Image 4
Time: 22:00:36.250 to 22:00:46.250
GoPro Time: 22:00:38
Time diff (sec) start/end : 1.75 / 8.25 		Resonon Image 4
Time: 22:00:36.250 to 22:00:46.250
GoPro Time: 22:00:40
Time diff (sec) start/end : 3.75 / 6.25 		Resonon Image 4
Time: 22:00:36.250 to 22:00:46.250
GoPro Time: 22:00:40
Time diff (sec) start/end : 3.75 / 6.25 		Resonon Image 4
Time: 22:00:36.250 to 22:00:46.250
GoPro Time: 22:00:42
Time diff (sec) start/end : 5.75 / 4.25 		Resonon Image 4
Time: 22:00:36.250 to 22:00:46.250
GoPro Time: 22:00:44
Time diff (sec) start/end : 7.75 / 2.25 		Resonon Image 4
Time: 22:00:36.250 to 22:00:46.250
GoPro Time: 22:00:44
Time diff (sec) start/end : 7.75 / 2.25 		Resonon Image 4
Time: 22:00:36.250 to 22:00:46.250
GoPro Time: 22:00:46
Time diff (sec) start/end : 9.75 / 0.25 		Resonon Image 4
Time: 22:00:36.250 to 22:00:46.250
GoPro Time: 22:00:46
Time diff (sec) start/end : 9.75 / 0.25 		Resonon Image 5
Time: 22:00:49.406 to 22:00:59.406
GoPro Time: 22:00:50
Time diff (sec) start/end : 0.59 / 9.41 		Resonon Image 5
Time: 22:00:49.406 to 22:00:59.406
GoPro Time: 22:00:52
Time diff (sec) start/end : 2.59 / 7.41 		Resonon Image 5
Time: 22:00:49.406 to 22:00:59.406
GoPro Time: 22:00:54
Time diff (sec) start/end : 4.59 / 5.41 		Resonon Image 5
Time: 22:00:49.406 to 22:00:59.406
GoPro Time: 22:00:54
Time diff (sec) start/end : 4.59 / 5.41 		Resonon Image 5
Time: 22:00:49.406 to 22:00:59.406
GoPro Time: 22:00:56
Time diff (sec) start/end : 6.59 / 3.41 		Resonon Image 5
Time: 22:00:49.406 to 22:00:59.406
GoPro Time: 22:00:56
Time diff (sec) start/end : 6.59 / 3.41 		Resonon Image 5
Time: 22:00:49.406 to 22:00:59.406
GoPro Time: 22:00:58
Time diff (sec) start/end : 8.59 / 1.41
gopr9872_20120914_215958_gmt_lftside.jpg gopr9873_20120914_215958_gmt_lftside.jpg gopr9874_20120914_220000_gmt_lftside.jpg gopr9875_20120914_220000_gmt_lftside.jpg gopr9876_20120914_220002_gmt_lftside.jpg gopr9877_20120914_220004_gmt_lftside.jpg gopr9878_20120914_220006_gmt_lftside.jpg gopr9879_20120914_220006_gmt_lftside.jpg gopr9882_20120914_220010_gmt_lftside.jpg gopr9883_20120914_220012_gmt_lftside.jpg gopr9884_20120914_220014_gmt_lftside.jpg gopr9885_20120914_220014_gmt_lftside.jpg gopr9886_20120914_220016_gmt_lftside.jpg gopr9887_20120914_220016_gmt_lftside.jpg gopr9888_20120914_220018_gmt_lftside.jpg gopr9889_20120914_220018_gmt_lftside.jpg gopr9893_20120914_220024_gmt_lftside.jpg gopr9894_20120914_220026_gmt_lftside.jpg gopr9895_20120914_220026_gmt_lftside.jpg gopr9896_20120914_220026_gmt_lftside.jpg gopr9897_20120914_220026_gmt_lftside.jpg gopr9898_20120914_220028_gmt_lftside.jpg gopr9899_20120914_220030_gmt_lftside.jpg gopr9900_20120914_220032_gmt_lftside.jpg gopr9905_20120914_220038_gmt_lftside.jpg gopr9906_20120914_220040_gmt_lftside.jpg gopr9907_20120914_220040_gmt_lftside.jpg gopr9908_20120914_220042_gmt_lftside.jpg gopr9909_20120914_220044_gmt_lftside.jpg gopr9910_20120914_220044_gmt_lftside.jpg gopr9911_20120914_220046_gmt_lftside.jpg gopr9912_20120914_220046_gmt_lftside.jpg gopr9915_20120914_220050_gmt_lftside.jpg gopr9916_20120914_220052_gmt_lftside.jpg gopr9917_20120914_220054_gmt_lftside.jpg gopr9918_20120914_220054_gmt_lftside.jpg gopr9919_20120914_220056_gmt_lftside.jpg gopr9920_20120914_220056_gmt_lftside.jpg gopr9921_20120914_220058_gmt_lftside.jpg
