r20120914_031_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:01:20

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120914 22:04:10 18.9509 10
2 20120914 22:04:23 18.9345 10
3 20120914 22:04:36 18.9193 10
4 20120914 22:04:49 18.9044 10
5 20120914 22:05:03 18.8895 10
image image

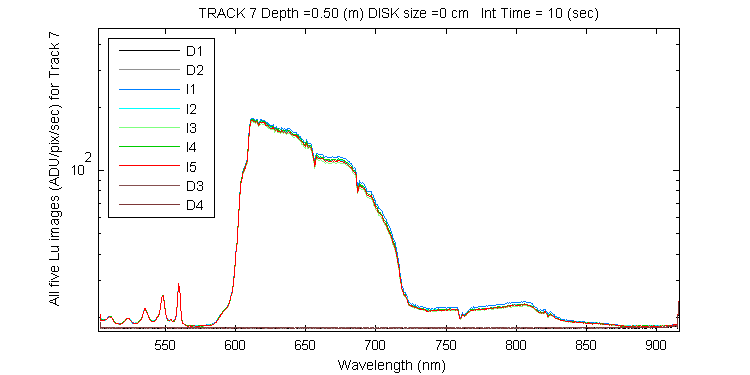

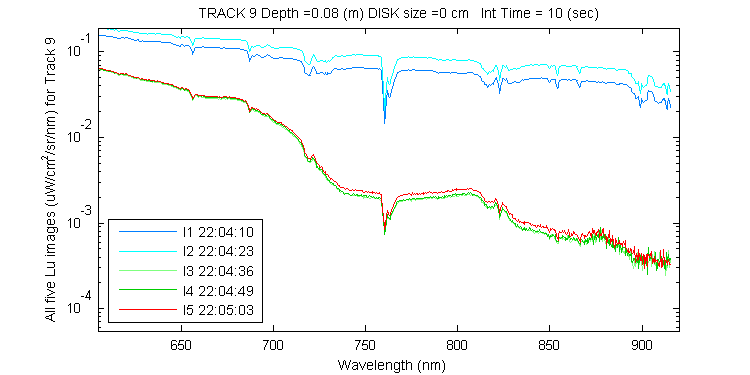

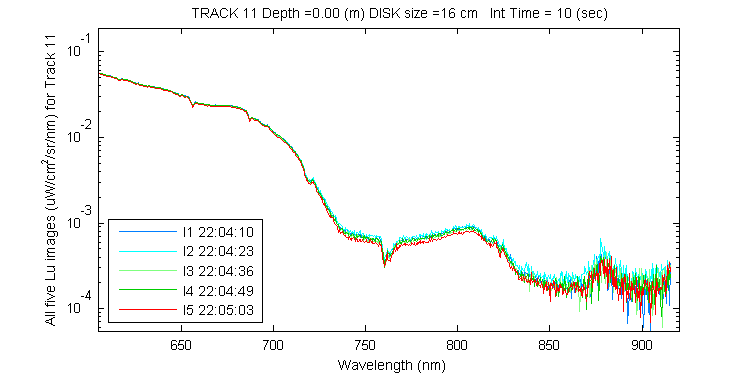

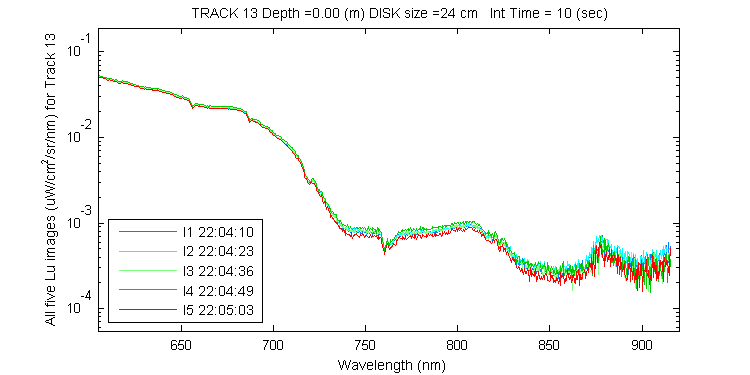

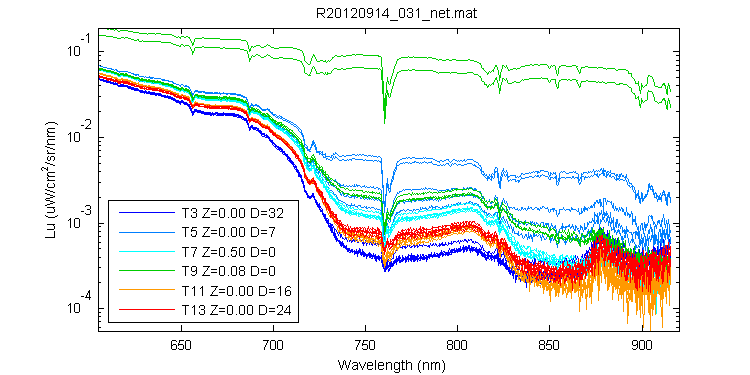

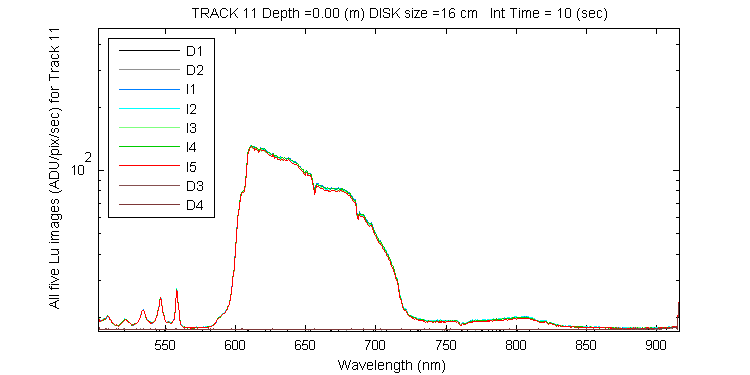

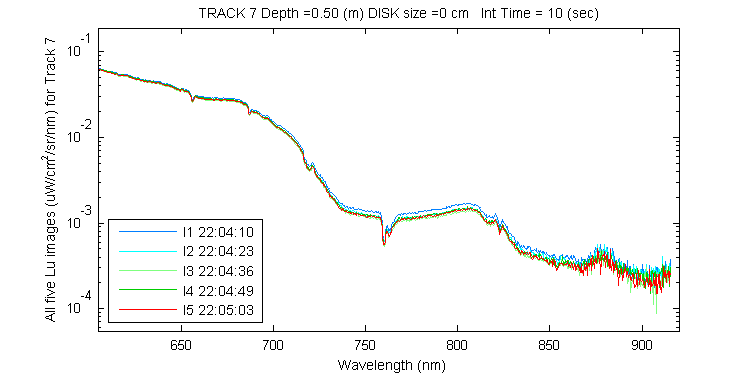

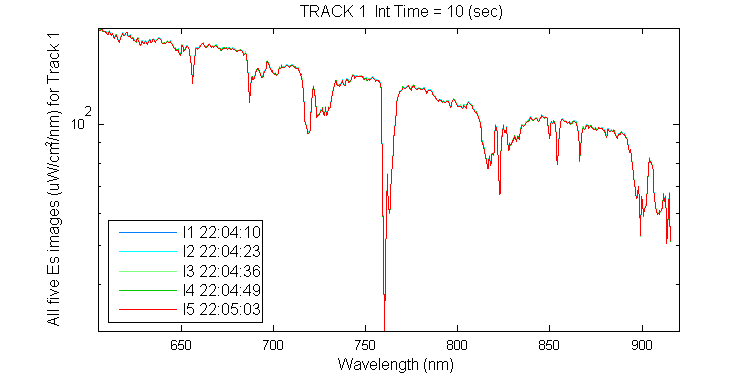

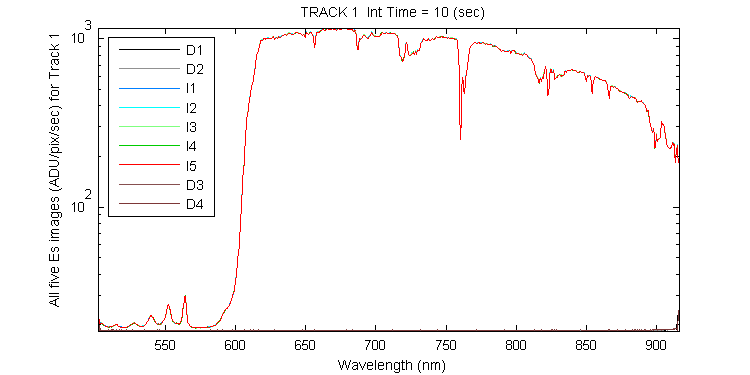

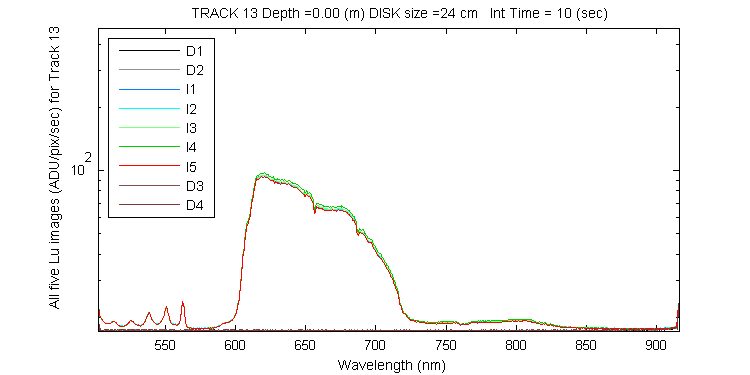

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120914_031_net

Sun Dial Photos for r20120914_031_net

Left side Photos for r20120914_031_net

Left side Photos for r20120914_031_net (tracks 3 -9)

Right side Photos for r20120914_031_net

Right side Photos for r20120914_031_net (tracks 7-13)

Sky Photos for r20120914_031_net

Sky Photos for r20120914_031_net
Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:12
Time diff (sec) start/end : 1.56 / 8.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:12
Time diff (sec) start/end : 1.56 / 8.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:14
Time diff (sec) start/end : 3.56 / 6.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:14
Time diff (sec) start/end : 3.56 / 6.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:14
Time diff (sec) start/end : 3.56 / 6.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:18
Time diff (sec) start/end : 7.56 / 2.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:20
Time diff (sec) start/end : 9.56 / 0.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:20
Time diff (sec) start/end : 9.56 / 0.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:20
Time diff (sec) start/end : 9.56 / 0.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:20
Time diff (sec) start/end : 9.56 / 0.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:20
Time diff (sec) start/end : 9.56 / 0.44 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:26
Time diff (sec) start/end : 2.41 / 7.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:26
Time diff (sec) start/end : 2.41 / 7.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:26
Time diff (sec) start/end : 2.41 / 7.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:26
Time diff (sec) start/end : 2.41 / 7.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:28
Time diff (sec) start/end : 4.41 / 5.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:30
Time diff (sec) start/end : 6.41 / 3.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:30
Time diff (sec) start/end : 6.41 / 3.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:32
Time diff (sec) start/end : 8.41 / 1.59 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:38
Time diff (sec) start/end : 1.23 / 8.76 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:40
Time diff (sec) start/end : 3.23 / 6.77 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:42
Time diff (sec) start/end : 5.23 / 4.77 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:42
Time diff (sec) start/end : 5.23 / 4.77 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:42
Time diff (sec) start/end : 5.23 / 4.77 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:44
Time diff (sec) start/end : 7.23 / 2.77 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:44
Time diff (sec) start/end : 7.23 / 2.77 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:46
Time diff (sec) start/end : 9.24 / 0.76 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:50
Time diff (sec) start/end : 0.09 / 9.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:50
Time diff (sec) start/end : 0.09 / 9.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:52
Time diff (sec) start/end : 2.09 / 7.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:54
Time diff (sec) start/end : 4.09 / 5.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:54
Time diff (sec) start/end : 4.09 / 5.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:56
Time diff (sec) start/end : 6.09 / 3.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:58
Time diff (sec) start/end : 8.09 / 1.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:58
Time diff (sec) start/end : 8.09 / 1.91 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:04
Time diff (sec) start/end : 0.95 / 9.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:04
Time diff (sec) start/end : 0.95 / 9.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:04
Time diff (sec) start/end : 0.95 / 9.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:04
Time diff (sec) start/end : 0.95 / 9.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:08
Time diff (sec) start/end : 4.95 / 5.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:10
Time diff (sec) start/end : 6.95 / 3.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:10
Time diff (sec) start/end : 6.95 / 3.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:12
Time diff (sec) start/end : 8.95 / 1.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:12
Time diff (sec) start/end : 8.95 / 1.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:12
Time diff (sec) start/end : 8.95 / 1.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:12
Time diff (sec) start/end : 8.95 / 1.05
gopr5892_20120914_220412_gmt_cam4.jpg gopr5893_20120914_220412_gmt_cam4.jpg gopr5894_20120914_220414_gmt_cam4.jpg gopr5895_20120914_220414_gmt_cam4.jpg gopr5896_20120914_220414_gmt_cam4.jpg gopr5897_20120914_220418_gmt_cam4.jpg gopr5898_20120914_220420_gmt_cam4.jpg gopr5899_20120914_220420_gmt_cam4.jpg gopr5900_20120914_220420_gmt_cam4.jpg gopr5901_20120914_220420_gmt_cam4.jpg gopr5902_20120914_220420_gmt_cam4.jpg gopr5903_20120914_220426_gmt_cam4.jpg gopr5904_20120914_220426_gmt_cam4.jpg gopr5905_20120914_220426_gmt_cam4.jpg gopr5906_20120914_220426_gmt_cam4.jpg gopr5907_20120914_220428_gmt_cam4.jpg gopr5908_20120914_220430_gmt_cam4.jpg gopr5909_20120914_220430_gmt_cam4.jpg gopr5910_20120914_220432_gmt_cam4.jpg gopr5914_20120914_220438_gmt_cam4.jpg gopr5915_20120914_220440_gmt_cam4.jpg gopr5916_20120914_220442_gmt_cam4.jpg gopr5917_20120914_220442_gmt_cam4.jpg gopr5918_20120914_220442_gmt_cam4.jpg gopr5919_20120914_220444_gmt_cam4.jpg gopr5920_20120914_220444_gmt_cam4.jpg gopr5921_20120914_220446_gmt_cam4.jpg gopr5924_20120914_220450_gmt_cam4.jpg gopr5925_20120914_220450_gmt_cam4.jpg gopr5926_20120914_220452_gmt_cam4.jpg gopr5927_20120914_220454_gmt_cam4.jpg gopr5928_20120914_220454_gmt_cam4.jpg gopr5929_20120914_220456_gmt_cam4.jpg gopr5930_20120914_220458_gmt_cam4.jpg gopr5931_20120914_220458_gmt_cam4.jpg gopr5935_20120914_220504_gmt_cam4.jpg gopr5936_20120914_220504_gmt_cam4.jpg gopr5937_20120914_220504_gmt_cam4.jpg gopr5938_20120914_220504_gmt_cam4.jpg gopr5939_20120914_220508_gmt_cam4.jpg gopr5940_20120914_220510_gmt_cam4.jpg gopr5941_20120914_220510_gmt_cam4.jpg gopr5942_20120914_220512_gmt_cam4.jpg gopr5943_20120914_220512_gmt_cam4.jpg gopr5944_20120914_220512_gmt_cam4.jpg gopr5945_20120914_220512_gmt_cam4.jpg

Horizon Photos for r20120914_031_net

Horizon and obove water fork Photos for r20120914_031_net
Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:11
Time diff (sec) start/end : 0.56 / 9.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:11
Time diff (sec) start/end : 0.56 / 9.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:13
Time diff (sec) start/end : 2.56 / 7.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:15
Time diff (sec) start/end : 4.56 / 5.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:17
Time diff (sec) start/end : 6.56 / 3.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:17
Time diff (sec) start/end : 6.56 / 3.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:19
Time diff (sec) start/end : 8.56 / 1.44 		Resonon Image 1
Time: 22:04:10.437 to 22:04:20.437
GoPro Time: 22:04:19
Time diff (sec) start/end : 8.56 / 1.44 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:25
Time diff (sec) start/end : 1.41 / 8.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:25
Time diff (sec) start/end : 1.41 / 8.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:27
Time diff (sec) start/end : 3.41 / 6.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:27
Time diff (sec) start/end : 3.41 / 6.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:27
Time diff (sec) start/end : 3.41 / 6.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:31
Time diff (sec) start/end : 7.41 / 2.59 		Resonon Image 2
Time: 22:04:23.593 to 22:04:33.593
GoPro Time: 22:04:33
Time diff (sec) start/end : 9.41 / 0.59 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:37
Time diff (sec) start/end : 0.24 / 9.76 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:37
Time diff (sec) start/end : 0.24 / 9.76 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:39
Time diff (sec) start/end : 2.24 / 7.76 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:39
Time diff (sec) start/end : 2.24 / 7.76 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:41
Time diff (sec) start/end : 4.24 / 5.76 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:41
Time diff (sec) start/end : 4.24 / 5.76 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:43
Time diff (sec) start/end : 6.23 / 3.76 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:43
Time diff (sec) start/end : 6.23 / 3.76 		Resonon Image 3
Time: 22:04:36.765 to 22:04:46.765
GoPro Time: 22:04:45
Time diff (sec) start/end : 8.23 / 1.76 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:53
Time diff (sec) start/end : 3.09 / 6.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:53
Time diff (sec) start/end : 3.09 / 6.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:55
Time diff (sec) start/end : 5.09 / 4.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:55
Time diff (sec) start/end : 5.09 / 4.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:57
Time diff (sec) start/end : 7.09 / 2.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:59
Time diff (sec) start/end : 9.09 / 0.91 		Resonon Image 4
Time: 22:04:49.906 to 22:04:59.906
GoPro Time: 22:04:59
Time diff (sec) start/end : 9.09 / 0.91 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:05
Time diff (sec) start/end : 1.95 / 8.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:07
Time diff (sec) start/end : 3.95 / 6.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:07
Time diff (sec) start/end : 3.95 / 6.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:09
Time diff (sec) start/end : 5.95 / 4.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:09
Time diff (sec) start/end : 5.95 / 4.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:09
Time diff (sec) start/end : 5.95 / 4.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:09
Time diff (sec) start/end : 5.95 / 4.05 		Resonon Image 5
Time: 22:05:03.046 to 22:05:13.046
GoPro Time: 22:05:13
Time diff (sec) start/end : 9.95 / 0.05
gopr0320_20120914_220411_gmt_horizon.jpg gopr0321_20120914_220411_gmt_horizon.jpg gopr0322_20120914_220413_gmt_horizon.jpg gopr0323_20120914_220415_gmt_horizon.jpg gopr0324_20120914_220417_gmt_horizon.jpg gopr0325_20120914_220417_gmt_horizon.jpg gopr0326_20120914_220419_gmt_horizon.jpg gopr0327_20120914_220419_gmt_horizon.jpg gopr0331_20120914_220425_gmt_horizon.jpg gopr0332_20120914_220425_gmt_horizon.jpg gopr0333_20120914_220427_gmt_horizon.jpg gopr0334_20120914_220427_gmt_horizon.jpg gopr0335_20120914_220427_gmt_horizon.jpg gopr0336_20120914_220431_gmt_horizon.jpg gopr0337_20120914_220433_gmt_horizon.jpg gopr0340_20120914_220437_gmt_horizon.jpg gopr0341_20120914_220437_gmt_horizon.jpg gopr0342_20120914_220439_gmt_horizon.jpg gopr0343_20120914_220439_gmt_horizon.jpg gopr0344_20120914_220441_gmt_horizon.jpg gopr0345_20120914_220441_gmt_horizon.jpg gopr0346_20120914_220443_gmt_horizon.jpg gopr0347_20120914_220443_gmt_horizon.jpg gopr0348_20120914_220445_gmt_horizon.jpg gopr0354_20120914_220453_gmt_horizon.jpg gopr0355_20120914_220453_gmt_horizon.jpg gopr0356_20120914_220455_gmt_horizon.jpg gopr0357_20120914_220455_gmt_horizon.jpg gopr0358_20120914_220457_gmt_horizon.jpg gopr0359_20120914_220459_gmt_horizon.jpg gopr0360_20120914_220459_gmt_horizon.jpg gopr0365_20120914_220505_gmt_horizon.jpg gopr0366_20120914_220507_gmt_horizon.jpg gopr0367_20120914_220507_gmt_horizon.jpg gopr0368_20120914_220509_gmt_horizon.jpg gopr0369_20120914_220509_gmt_horizon.jpg gopr0370_20120914_220509_gmt_horizon.jpg gopr0371_20120914_220509_gmt_horizon.jpg gopr0372_20120914_220513_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:01:22
Created from gopro_mkpages_(12)
