r20120914_036_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:01:32

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120914 22:15:18 18.3468 10
2 20120914 22:15:31 18.3382 10
3 20120914 22:15:44 18.3304 10
4 20120914 22:15:57 18.3227 10
5 20120914 22:16:11 18.3152 10
image image

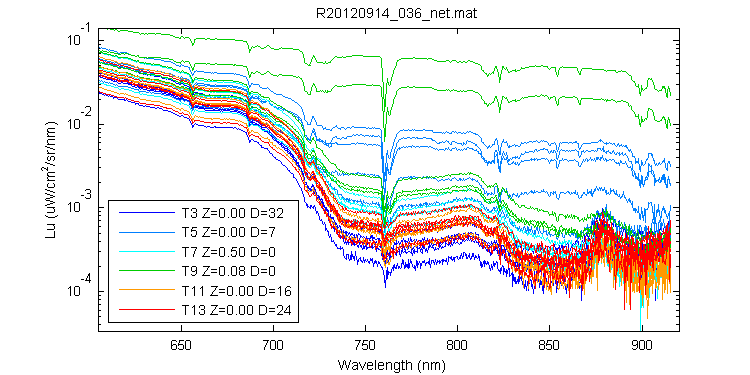

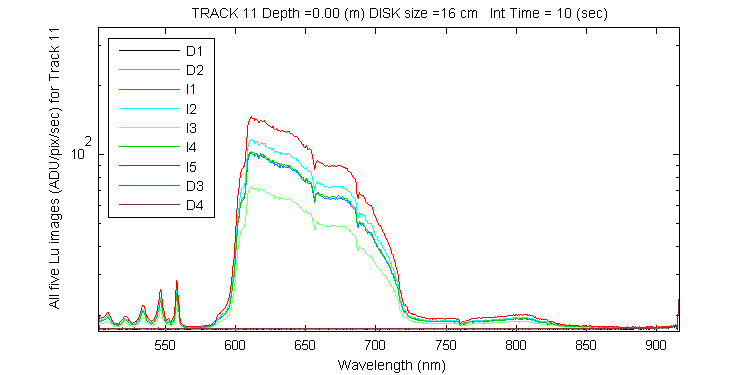

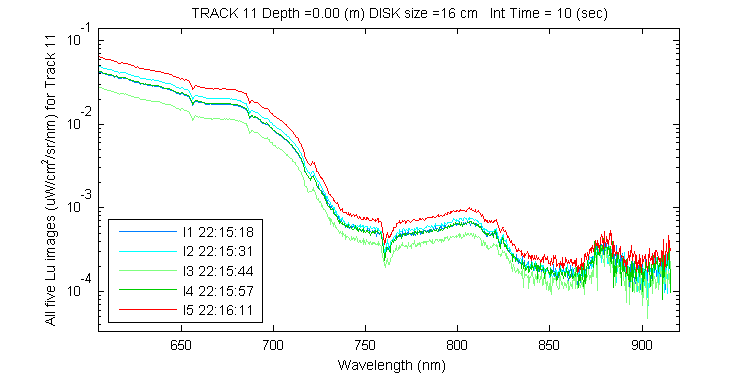

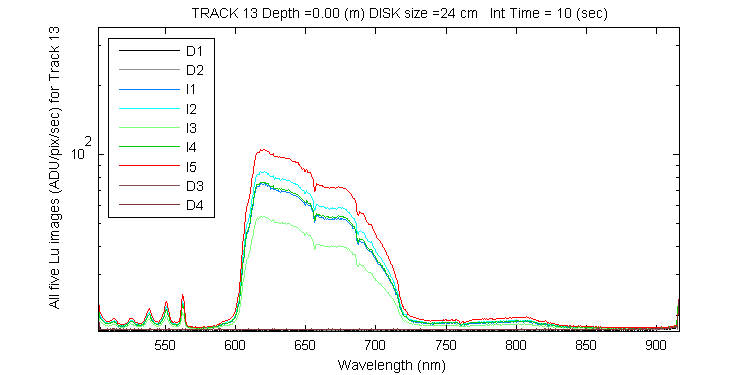

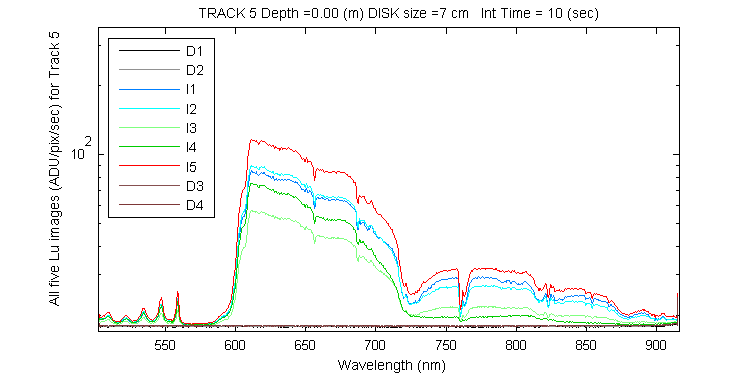

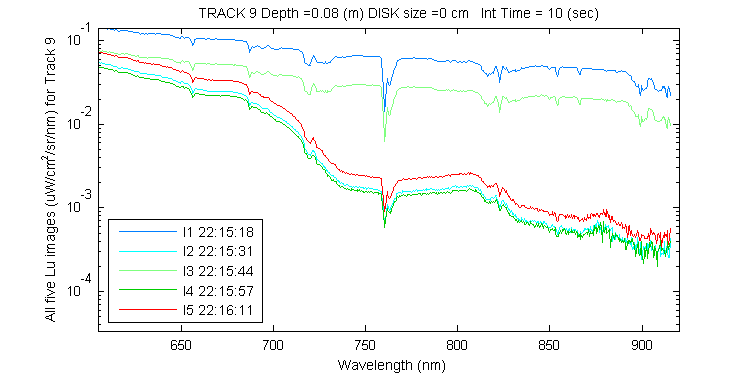

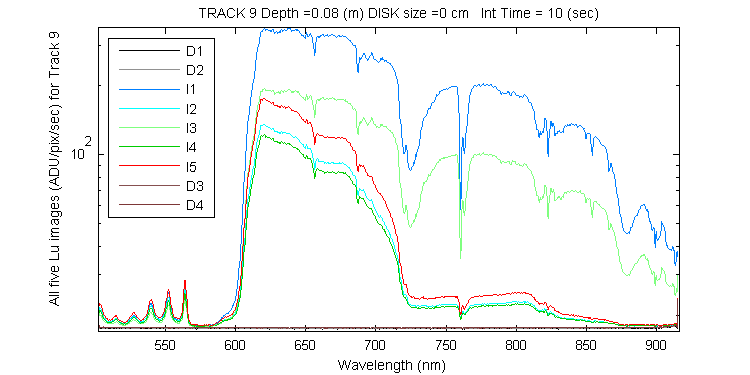

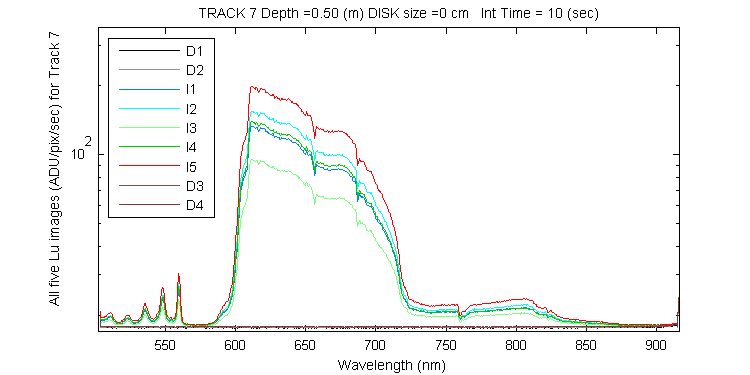

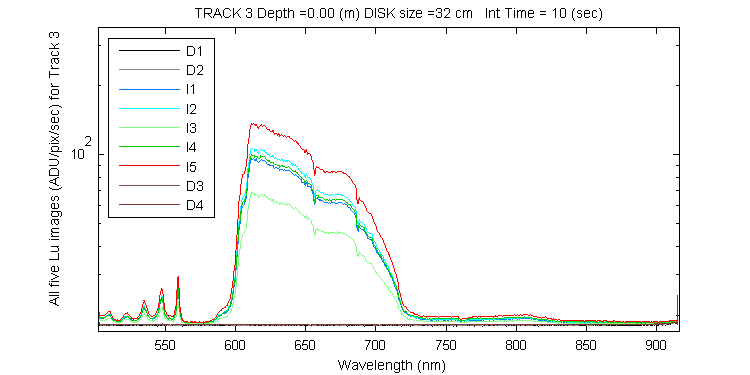

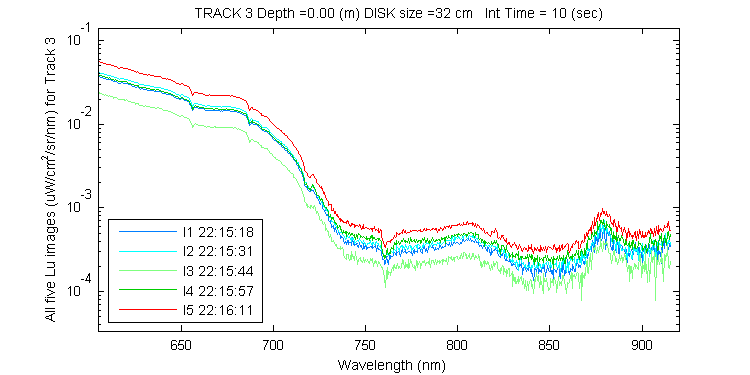

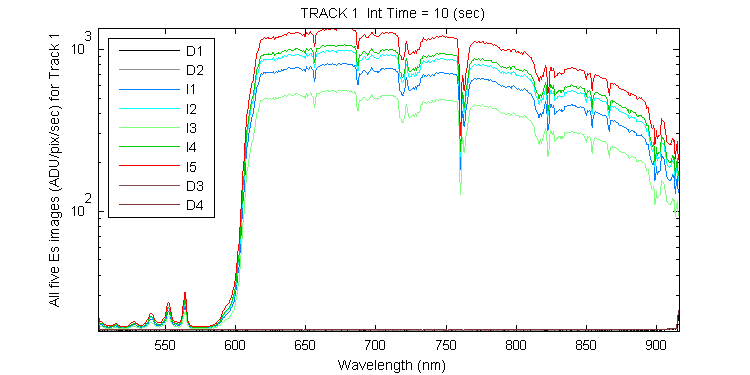

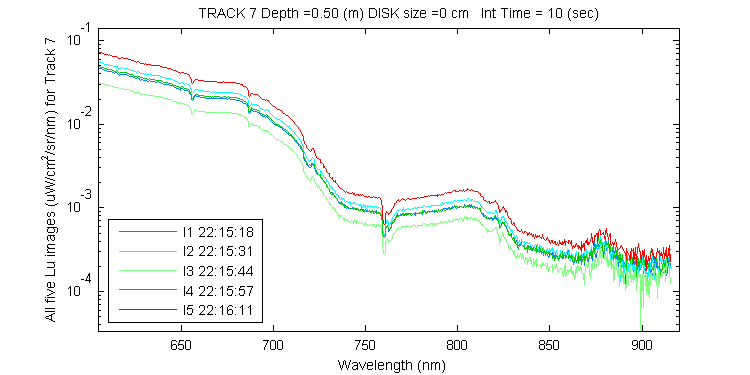

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120914_036_net

Sun Dial Photos for r20120914_036_net

Left side Photos for r20120914_036_net

Left side Photos for r20120914_036_net (tracks 3 -9)

Right side Photos for r20120914_036_net

Right side Photos for r20120914_036_net (tracks 7-13)

Sky Photos for r20120914_036_net

Sky Photos for r20120914_036_net
Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:20
Time diff (sec) start/end : 1.58 / 8.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:20
Time diff (sec) start/end : 1.58 / 8.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:20
Time diff (sec) start/end : 1.58 / 8.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:22
Time diff (sec) start/end : 3.58 / 6.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:24
Time diff (sec) start/end : 5.58 / 4.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:26
Time diff (sec) start/end : 7.58 / 2.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:28
Time diff (sec) start/end : 9.58 / 0.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:28
Time diff (sec) start/end : 9.58 / 0.42 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:32
Time diff (sec) start/end : 0.44 / 9.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:32
Time diff (sec) start/end : 0.44 / 9.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:34
Time diff (sec) start/end : 2.44 / 7.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:34
Time diff (sec) start/end : 2.44 / 7.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:36
Time diff (sec) start/end : 4.44 / 5.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:38
Time diff (sec) start/end : 6.44 / 3.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:38
Time diff (sec) start/end : 6.44 / 3.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:38
Time diff (sec) start/end : 6.44 / 3.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:40
Time diff (sec) start/end : 8.44 / 1.56 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:46
Time diff (sec) start/end : 1.30 / 8.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:46
Time diff (sec) start/end : 1.30 / 8.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:48
Time diff (sec) start/end : 3.30 / 6.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:48
Time diff (sec) start/end : 3.30 / 6.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:50
Time diff (sec) start/end : 5.30 / 4.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:50
Time diff (sec) start/end : 5.30 / 4.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:50
Time diff (sec) start/end : 5.30 / 4.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:52
Time diff (sec) start/end : 7.30 / 2.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:52
Time diff (sec) start/end : 7.30 / 2.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:54
Time diff (sec) start/end : 9.30 / 0.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:54
Time diff (sec) start/end : 9.30 / 0.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:54
Time diff (sec) start/end : 9.30 / 0.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:54
Time diff (sec) start/end : 9.30 / 0.70 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:15:58
Time diff (sec) start/end : 0.14 / 9.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:15:58
Time diff (sec) start/end : 0.14 / 9.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:00
Time diff (sec) start/end : 2.14 / 7.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:02
Time diff (sec) start/end : 4.14 / 5.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:02
Time diff (sec) start/end : 4.14 / 5.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:02
Time diff (sec) start/end : 4.14 / 5.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:04
Time diff (sec) start/end : 6.14 / 3.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:04
Time diff (sec) start/end : 6.14 / 3.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:06
Time diff (sec) start/end : 8.14 / 1.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:06
Time diff (sec) start/end : 8.14 / 1.86 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:12
Time diff (sec) start/end : 0.99 / 9.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:14
Time diff (sec) start/end : 2.99 / 7.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:14
Time diff (sec) start/end : 2.99 / 7.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:14
Time diff (sec) start/end : 2.99 / 7.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:14
Time diff (sec) start/end : 2.99 / 7.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:14
Time diff (sec) start/end : 2.99 / 7.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:20
Time diff (sec) start/end : 8.99 / 1.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:20
Time diff (sec) start/end : 8.99 / 1.01
gopr6471_20120914_221520_gmt_cam4.jpg gopr6472_20120914_221520_gmt_cam4.jpg gopr6473_20120914_221520_gmt_cam4.jpg gopr6474_20120914_221522_gmt_cam4.jpg gopr6475_20120914_221524_gmt_cam4.jpg gopr6476_20120914_221526_gmt_cam4.jpg gopr6477_20120914_221528_gmt_cam4.jpg gopr6478_20120914_221528_gmt_cam4.jpg gopr6480_20120914_221532_gmt_cam4.jpg gopr6481_20120914_221532_gmt_cam4.jpg gopr6482_20120914_221534_gmt_cam4.jpg gopr6483_20120914_221534_gmt_cam4.jpg gopr6484_20120914_221536_gmt_cam4.jpg gopr6485_20120914_221538_gmt_cam4.jpg gopr6486_20120914_221538_gmt_cam4.jpg gopr6487_20120914_221538_gmt_cam4.jpg gopr6488_20120914_221540_gmt_cam4.jpg gopr6491_20120914_221546_gmt_cam4.jpg gopr6492_20120914_221546_gmt_cam4.jpg gopr6493_20120914_221548_gmt_cam4.jpg gopr6494_20120914_221548_gmt_cam4.jpg gopr6495_20120914_221550_gmt_cam4.jpg gopr6496_20120914_221550_gmt_cam4.jpg gopr6497_20120914_221550_gmt_cam4.jpg gopr6498_20120914_221552_gmt_cam4.jpg gopr6499_20120914_221552_gmt_cam4.jpg gopr6500_20120914_221554_gmt_cam4.jpg gopr6501_20120914_221554_gmt_cam4.jpg gopr6502_20120914_221554_gmt_cam4.jpg gopr6503_20120914_221554_gmt_cam4.jpg gopr6504_20120914_221558_gmt_cam4.jpg gopr6505_20120914_221558_gmt_cam4.jpg gopr6506_20120914_221600_gmt_cam4.jpg gopr6507_20120914_221602_gmt_cam4.jpg gopr6508_20120914_221602_gmt_cam4.jpg gopr6509_20120914_221602_gmt_cam4.jpg gopr6510_20120914_221604_gmt_cam4.jpg gopr6511_20120914_221604_gmt_cam4.jpg gopr6512_20120914_221606_gmt_cam4.jpg gopr6513_20120914_221606_gmt_cam4.jpg gopr6516_20120914_221612_gmt_cam4.jpg gopr6517_20120914_221614_gmt_cam4.jpg gopr6518_20120914_221614_gmt_cam4.jpg gopr6519_20120914_221614_gmt_cam4.jpg gopr6520_20120914_221614_gmt_cam4.jpg gopr6521_20120914_221614_gmt_cam4.jpg gopr6522_20120914_221620_gmt_cam4.jpg gopr6523_20120914_221620_gmt_cam4.jpg

Horizon Photos for r20120914_036_net

Horizon and obove water fork Photos for r20120914_036_net
Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:19
Time diff (sec) start/end : 0.58 / 9.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:21
Time diff (sec) start/end : 2.58 / 7.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:21
Time diff (sec) start/end : 2.58 / 7.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:21
Time diff (sec) start/end : 2.58 / 7.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:23
Time diff (sec) start/end : 4.58 / 5.42 		Resonon Image 1
Time: 22:15:18.421 to 22:15:28.421
GoPro Time: 22:15:25
Time diff (sec) start/end : 6.58 / 3.42 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:33
Time diff (sec) start/end : 1.44 / 8.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:35
Time diff (sec) start/end : 3.44 / 6.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:37
Time diff (sec) start/end : 5.44 / 4.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:39
Time diff (sec) start/end : 7.44 / 2.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:39
Time diff (sec) start/end : 7.44 / 2.56 		Resonon Image 2
Time: 22:15:31.562 to 22:15:41.562
GoPro Time: 22:15:41
Time diff (sec) start/end : 9.44 / 0.56 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:45
Time diff (sec) start/end : 0.30 / 9.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:45
Time diff (sec) start/end : 0.30 / 9.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:45
Time diff (sec) start/end : 0.30 / 9.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:45
Time diff (sec) start/end : 0.30 / 9.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:49
Time diff (sec) start/end : 4.30 / 5.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:51
Time diff (sec) start/end : 6.30 / 3.70 		Resonon Image 3
Time: 22:15:44.703 to 22:15:54.703
GoPro Time: 22:15:53
Time diff (sec) start/end : 8.30 / 1.70 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:01
Time diff (sec) start/end : 3.14 / 6.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:03
Time diff (sec) start/end : 5.14 / 4.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:03
Time diff (sec) start/end : 5.14 / 4.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:05
Time diff (sec) start/end : 7.14 / 2.86 		Resonon Image 4
Time: 22:15:57.859 to 22:16:07.859
GoPro Time: 22:16:07
Time diff (sec) start/end : 9.14 / 0.86 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:13
Time diff (sec) start/end : 1.99 / 8.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:15
Time diff (sec) start/end : 3.99 / 6.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:17
Time diff (sec) start/end : 5.99 / 4.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:19
Time diff (sec) start/end : 7.98 / 2.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:19
Time diff (sec) start/end : 7.98 / 2.01 		Resonon Image 5
Time: 22:16:11.015 to 22:16:21.015
GoPro Time: 22:16:21
Time diff (sec) start/end : 9.98 / 0.01
gopr0803_20120914_221519_gmt_horizon.jpg gopr0804_20120914_221521_gmt_horizon.jpg gopr0805_20120914_221521_gmt_horizon.jpg gopr0806_20120914_221521_gmt_horizon.jpg gopr0807_20120914_221523_gmt_horizon.jpg gopr0808_20120914_221525_gmt_horizon.jpg gopr0814_20120914_221533_gmt_horizon.jpg gopr0815_20120914_221535_gmt_horizon.jpg gopr0816_20120914_221537_gmt_horizon.jpg gopr0817_20120914_221539_gmt_horizon.jpg gopr0818_20120914_221539_gmt_horizon.jpg gopr0819_20120914_221541_gmt_horizon.jpg gopr0821_20120914_221545_gmt_horizon.jpg gopr0822_20120914_221545_gmt_horizon.jpg gopr0823_20120914_221545_gmt_horizon.jpg gopr0824_20120914_221545_gmt_horizon.jpg gopr0825_20120914_221549_gmt_horizon.jpg gopr0826_20120914_221551_gmt_horizon.jpg gopr0827_20120914_221553_gmt_horizon.jpg gopr0834_20120914_221601_gmt_horizon.jpg gopr0835_20120914_221603_gmt_horizon.jpg gopr0836_20120914_221603_gmt_horizon.jpg gopr0837_20120914_221605_gmt_horizon.jpg gopr0838_20120914_221607_gmt_horizon.jpg gopr0842_20120914_221613_gmt_horizon.jpg gopr0843_20120914_221615_gmt_horizon.jpg gopr0844_20120914_221617_gmt_horizon.jpg gopr0845_20120914_221619_gmt_horizon.jpg gopr0846_20120914_221619_gmt_horizon.jpg gopr0847_20120914_221621_gmt_horizon.jpg
