r20120914_043_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:01:49

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

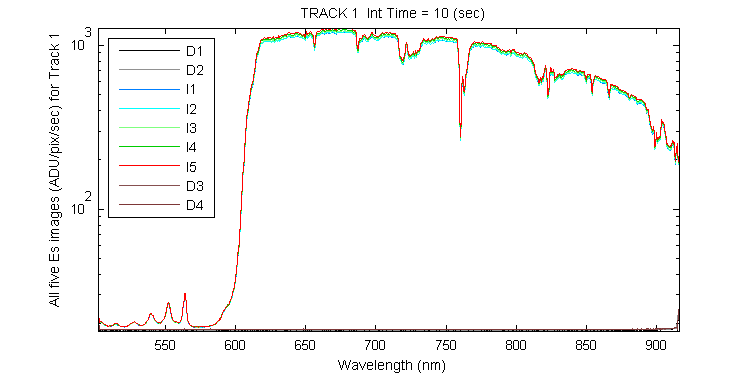

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

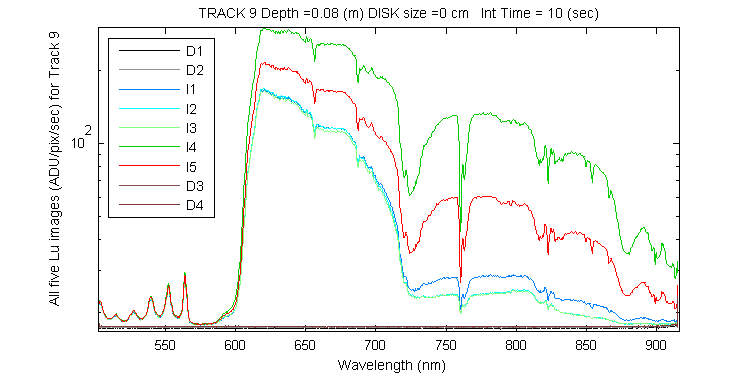

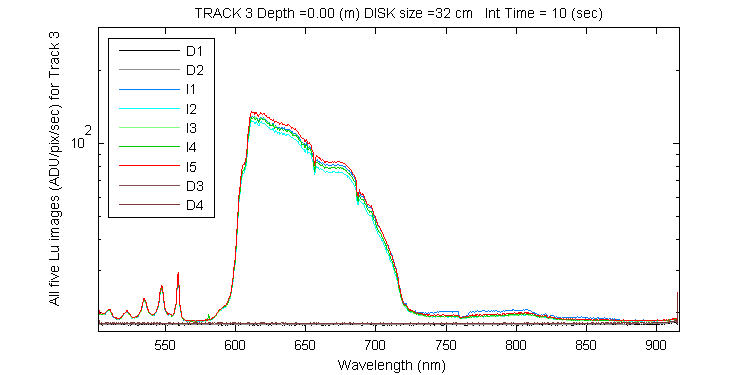

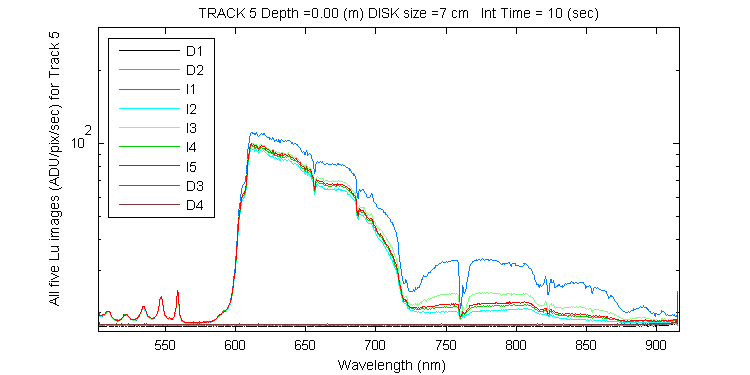

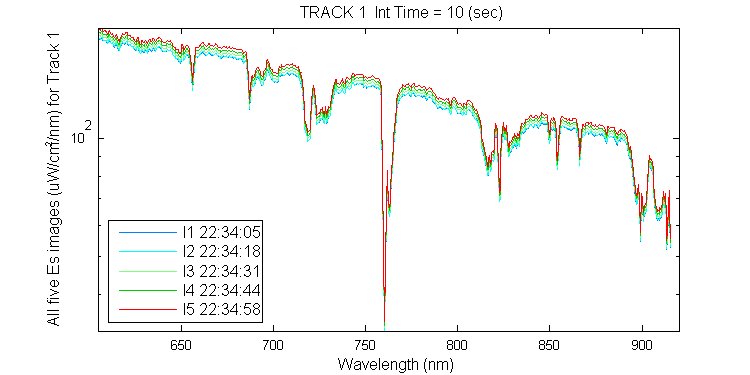

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120914 22:34:05 18.2176 10
2 20120914 22:34:18 18.2232 10
3 20120914 22:34:31 18.2286 10
4 20120914 22:34:44 18.2341 10
5 20120914 22:34:58 18.2397 10
image image

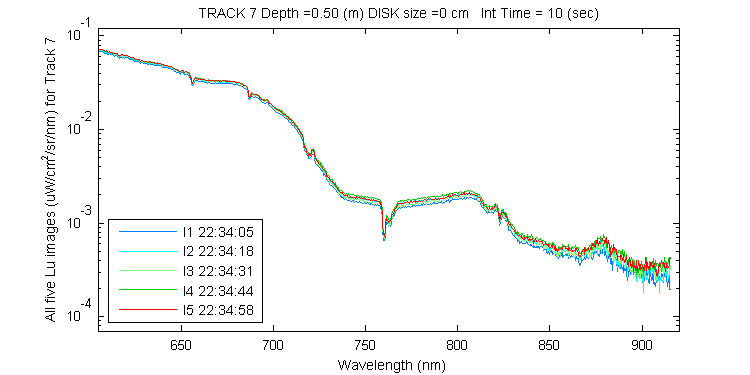

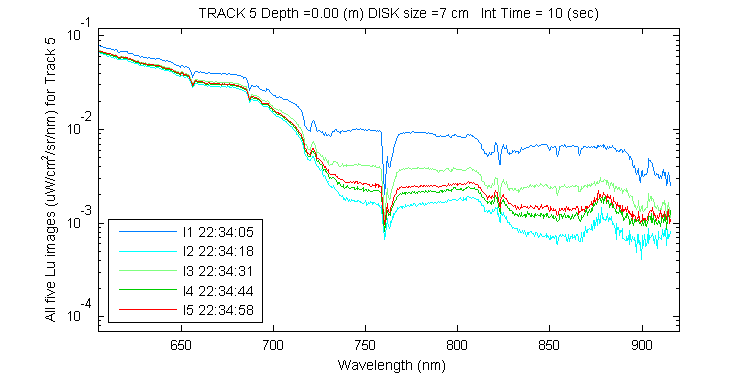

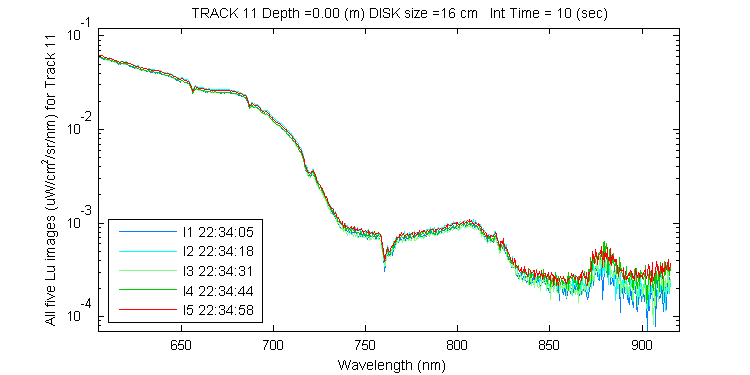

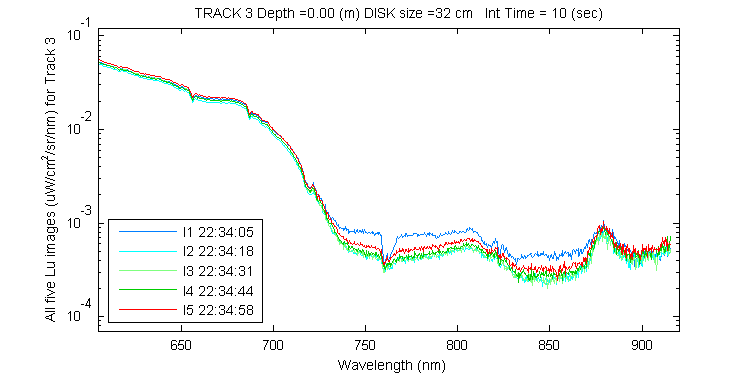

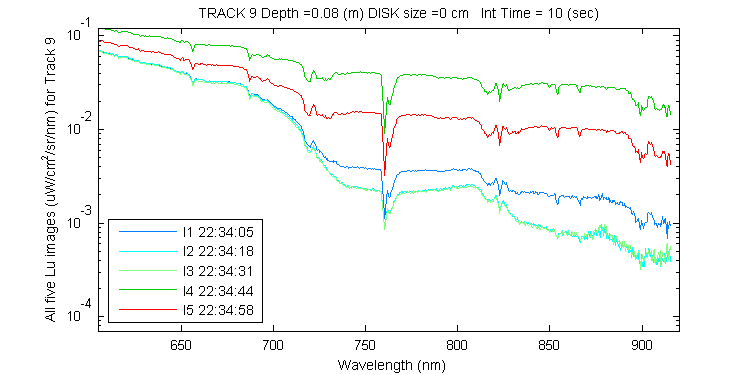

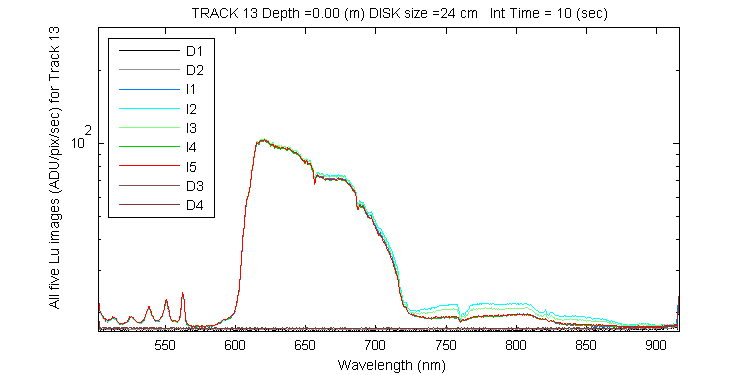

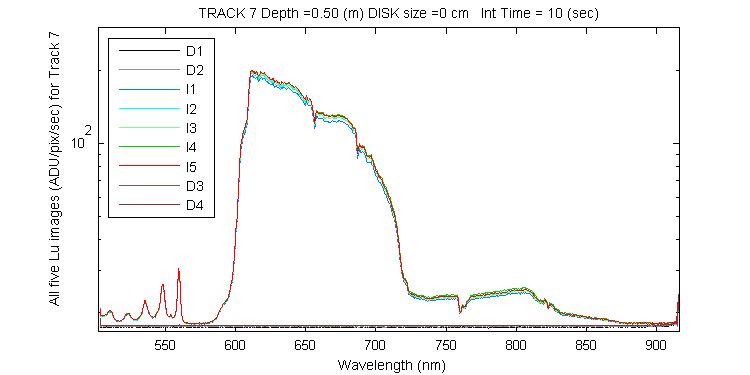

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120914_043_net

Sun Dial Photos for r20120914_043_net
Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:07
Time diff (sec) start/end : 1.52 / 8.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:09
Time diff (sec) start/end : 3.52 / 6.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:09
Time diff (sec) start/end : 3.52 / 6.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:11
Time diff (sec) start/end : 5.52 / 4.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:11
Time diff (sec) start/end : 5.52 / 4.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:11
Time diff (sec) start/end : 5.52 / 4.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:13
Time diff (sec) start/end : 7.52 / 2.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:13
Time diff (sec) start/end : 7.52 / 2.48 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:19
Time diff (sec) start/end : 0.38 / 9.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:19
Time diff (sec) start/end : 0.38 / 9.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:19
Time diff (sec) start/end : 0.38 / 9.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:21
Time diff (sec) start/end : 2.38 / 7.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:23
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:23
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:23
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:23
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:25
Time diff (sec) start/end : 6.38 / 3.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:27
Time diff (sec) start/end : 8.37 / 1.62 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:33
Time diff (sec) start/end : 1.22 / 8.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:35
Time diff (sec) start/end : 3.22 / 6.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:35
Time diff (sec) start/end : 3.22 / 6.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:35
Time diff (sec) start/end : 3.22 / 6.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:35
Time diff (sec) start/end : 3.22 / 6.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:37
Time diff (sec) start/end : 5.22 / 4.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:39
Time diff (sec) start/end : 7.22 / 2.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:39
Time diff (sec) start/end : 7.22 / 2.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:41
Time diff (sec) start/end : 9.22 / 0.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:41
Time diff (sec) start/end : 9.22 / 0.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:41
Time diff (sec) start/end : 9.22 / 0.78 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:45
Time diff (sec) start/end : 0.08 / 9.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:47
Time diff (sec) start/end : 2.08 / 7.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:47
Time diff (sec) start/end : 2.08 / 7.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:49
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:49
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:49
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:51
Time diff (sec) start/end : 6.08 / 3.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:51
Time diff (sec) start/end : 6.08 / 3.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:53
Time diff (sec) start/end : 8.08 / 1.92 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:34:59
Time diff (sec) start/end : 0.91 / 9.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:01
Time diff (sec) start/end : 2.91 / 7.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:03
Time diff (sec) start/end : 4.91 / 5.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:03
Time diff (sec) start/end : 4.91 / 5.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:05
Time diff (sec) start/end : 6.91 / 3.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:05
Time diff (sec) start/end : 6.91 / 3.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:07
Time diff (sec) start/end : 8.91 / 1.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:07
Time diff (sec) start/end : 8.91 / 1.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:07
Time diff (sec) start/end : 8.91 / 1.09
gopr1726_20120914_223407_gmt_sun.png gopr1727_20120914_223409_gmt_sun.png gopr1728_20120914_223409_gmt_sun.png gopr1729_20120914_223411_gmt_sun.png gopr1730_20120914_223411_gmt_sun.png gopr1731_20120914_223411_gmt_sun.png gopr1732_20120914_223413_gmt_sun.png gopr1733_20120914_223413_gmt_sun.png gopr1735_20120914_223419_gmt_sun.png gopr1736_20120914_223419_gmt_sun.png gopr1737_20120914_223419_gmt_sun.png gopr1738_20120914_223421_gmt_sun.png gopr1739_20120914_223423_gmt_sun.png gopr1740_20120914_223423_gmt_sun.png gopr1741_20120914_223423_gmt_sun.png gopr1742_20120914_223423_gmt_sun.png gopr1743_20120914_223425_gmt_sun.png gopr1744_20120914_223427_gmt_sun.png gopr1747_20120914_223433_gmt_sun.png gopr1748_20120914_223435_gmt_sun.png gopr1749_20120914_223435_gmt_sun.png gopr1750_20120914_223435_gmt_sun.png gopr1751_20120914_223435_gmt_sun.png gopr1752_20120914_223437_gmt_sun.png gopr1753_20120914_223439_gmt_sun.png gopr1754_20120914_223439_gmt_sun.png gopr1755_20120914_223441_gmt_sun.png gopr1756_20120914_223441_gmt_sun.png gopr1757_20120914_223441_gmt_sun.png gopr1758_20120914_223445_gmt_sun.png gopr1759_20120914_223447_gmt_sun.png gopr1760_20120914_223447_gmt_sun.png gopr1761_20120914_223449_gmt_sun.png gopr1762_20120914_223449_gmt_sun.png gopr1763_20120914_223449_gmt_sun.png gopr1764_20120914_223451_gmt_sun.png gopr1765_20120914_223451_gmt_sun.png gopr1766_20120914_223453_gmt_sun.png gopr1769_20120914_223459_gmt_sun.png gopr1770_20120914_223501_gmt_sun.png gopr1771_20120914_223503_gmt_sun.png gopr1772_20120914_223503_gmt_sun.png gopr1773_20120914_223505_gmt_sun.png gopr1774_20120914_223505_gmt_sun.png gopr1775_20120914_223507_gmt_sun.png gopr1776_20120914_223507_gmt_sun.png gopr1777_20120914_223507_gmt_sun.png

Left side Photos for r20120914_043_net

Left side Photos for r20120914_043_net (tracks 3 -9)
Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:06
Time diff (sec) start/end : 0.52 / 9.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:06
Time diff (sec) start/end : 0.52 / 9.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:08
Time diff (sec) start/end : 2.52 / 7.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:08
Time diff (sec) start/end : 2.52 / 7.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:10
Time diff (sec) start/end : 4.52 / 5.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:10
Time diff (sec) start/end : 4.52 / 5.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:12
Time diff (sec) start/end : 6.52 / 3.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:14
Time diff (sec) start/end : 8.52 / 1.48 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:22
Time diff (sec) start/end : 3.37 / 6.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:22
Time diff (sec) start/end : 3.37 / 6.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:24
Time diff (sec) start/end : 5.37 / 4.63 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:24
Time diff (sec) start/end : 5.37 / 4.63 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:26
Time diff (sec) start/end : 7.37 / 2.63 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:26
Time diff (sec) start/end : 7.37 / 2.63 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:28
Time diff (sec) start/end : 9.38 / 0.62 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:32
Time diff (sec) start/end : 0.22 / 9.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:32
Time diff (sec) start/end : 0.22 / 9.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:34
Time diff (sec) start/end : 2.22 / 7.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:34
Time diff (sec) start/end : 2.22 / 7.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:36
Time diff (sec) start/end : 4.22 / 5.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:38
Time diff (sec) start/end : 6.22 / 3.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:40
Time diff (sec) start/end : 8.22 / 1.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:40
Time diff (sec) start/end : 8.22 / 1.78 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:46
Time diff (sec) start/end : 1.08 / 8.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:48
Time diff (sec) start/end : 3.08 / 6.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:50
Time diff (sec) start/end : 5.08 / 4.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:50
Time diff (sec) start/end : 5.08 / 4.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:52
Time diff (sec) start/end : 7.08 / 2.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:52
Time diff (sec) start/end : 7.08 / 2.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:54
Time diff (sec) start/end : 9.08 / 0.92 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:00
Time diff (sec) start/end : 1.91 / 8.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:02
Time diff (sec) start/end : 3.91 / 6.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:04
Time diff (sec) start/end : 5.91 / 4.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:04
Time diff (sec) start/end : 5.91 / 4.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:06
Time diff (sec) start/end : 7.91 / 2.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:06
Time diff (sec) start/end : 7.91 / 2.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:08
Time diff (sec) start/end : 9.91 / 0.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:08
Time diff (sec) start/end : 9.91 / 0.09
gopr1574_20120914_223406_gmt_lftside.jpg gopr1575_20120914_223406_gmt_lftside.jpg gopr1576_20120914_223408_gmt_lftside.jpg gopr1577_20120914_223408_gmt_lftside.jpg gopr1578_20120914_223410_gmt_lftside.jpg gopr1579_20120914_223410_gmt_lftside.jpg gopr1580_20120914_223412_gmt_lftside.jpg gopr1581_20120914_223414_gmt_lftside.jpg gopr1586_20120914_223422_gmt_lftside.jpg gopr1587_20120914_223422_gmt_lftside.jpg gopr1588_20120914_223424_gmt_lftside.jpg gopr1589_20120914_223424_gmt_lftside.jpg gopr1590_20120914_223426_gmt_lftside.jpg gopr1591_20120914_223426_gmt_lftside.jpg gopr1592_20120914_223428_gmt_lftside.jpg gopr1594_20120914_223432_gmt_lftside.jpg gopr1595_20120914_223432_gmt_lftside.jpg gopr1596_20120914_223434_gmt_lftside.jpg gopr1597_20120914_223434_gmt_lftside.jpg gopr1598_20120914_223436_gmt_lftside.jpg gopr1599_20120914_223438_gmt_lftside.jpg gopr1600_20120914_223440_gmt_lftside.jpg gopr1601_20120914_223440_gmt_lftside.jpg gopr1606_20120914_223446_gmt_lftside.jpg gopr1607_20120914_223448_gmt_lftside.jpg gopr1608_20120914_223450_gmt_lftside.jpg gopr1609_20120914_223450_gmt_lftside.jpg gopr1610_20120914_223452_gmt_lftside.jpg gopr1611_20120914_223452_gmt_lftside.jpg gopr1612_20120914_223454_gmt_lftside.jpg gopr1616_20120914_223500_gmt_lftside.jpg gopr1617_20120914_223502_gmt_lftside.jpg gopr1618_20120914_223504_gmt_lftside.jpg gopr1619_20120914_223504_gmt_lftside.jpg gopr1620_20120914_223506_gmt_lftside.jpg gopr1621_20120914_223506_gmt_lftside.jpg gopr1622_20120914_223508_gmt_lftside.jpg gopr1623_20120914_223508_gmt_lftside.jpg

Right side Photos for r20120914_043_net

Right side Photos for r20120914_043_net (tracks 7-13)

Sky Photos for r20120914_043_net

Sky Photos for r20120914_043_net
Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:06
Time diff (sec) start/end : 0.52 / 9.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:06
Time diff (sec) start/end : 0.52 / 9.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:08
Time diff (sec) start/end : 2.52 / 7.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:08
Time diff (sec) start/end : 2.52 / 7.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:10
Time diff (sec) start/end : 4.52 / 5.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:10
Time diff (sec) start/end : 4.52 / 5.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:10
Time diff (sec) start/end : 4.52 / 5.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:10
Time diff (sec) start/end : 4.52 / 5.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:12
Time diff (sec) start/end : 6.52 / 3.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:14
Time diff (sec) start/end : 8.52 / 1.48 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:20
Time diff (sec) start/end : 1.37 / 8.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:20
Time diff (sec) start/end : 1.37 / 8.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:22
Time diff (sec) start/end : 3.37 / 6.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:24
Time diff (sec) start/end : 5.37 / 4.63 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:26
Time diff (sec) start/end : 7.37 / 2.63 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:28
Time diff (sec) start/end : 9.38 / 0.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:28
Time diff (sec) start/end : 9.38 / 0.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:28
Time diff (sec) start/end : 9.38 / 0.62 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:32
Time diff (sec) start/end : 0.22 / 9.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:34
Time diff (sec) start/end : 2.22 / 7.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:36
Time diff (sec) start/end : 4.22 / 5.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:36
Time diff (sec) start/end : 4.22 / 5.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:38
Time diff (sec) start/end : 6.22 / 3.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:40
Time diff (sec) start/end : 8.22 / 1.78 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:46
Time diff (sec) start/end : 1.08 / 8.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:48
Time diff (sec) start/end : 3.08 / 6.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:50
Time diff (sec) start/end : 5.08 / 4.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:50
Time diff (sec) start/end : 5.08 / 4.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:52
Time diff (sec) start/end : 7.08 / 2.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:52
Time diff (sec) start/end : 7.08 / 2.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:54
Time diff (sec) start/end : 9.08 / 0.92 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:00
Time diff (sec) start/end : 1.91 / 8.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:00
Time diff (sec) start/end : 1.91 / 8.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:06
Time diff (sec) start/end : 7.91 / 2.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:06
Time diff (sec) start/end : 7.91 / 2.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:06
Time diff (sec) start/end : 7.91 / 2.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:08
Time diff (sec) start/end : 9.91 / 0.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:08
Time diff (sec) start/end : 9.91 / 0.09
gopr7423_20120914_223406_gmt_cam4.jpg gopr7424_20120914_223406_gmt_cam4.jpg gopr7425_20120914_223408_gmt_cam4.jpg gopr7426_20120914_223408_gmt_cam4.jpg gopr7427_20120914_223410_gmt_cam4.jpg gopr7428_20120914_223410_gmt_cam4.jpg gopr7429_20120914_223410_gmt_cam4.jpg gopr7430_20120914_223410_gmt_cam4.jpg gopr7431_20120914_223412_gmt_cam4.jpg gopr7432_20120914_223414_gmt_cam4.jpg gopr7437_20120914_223420_gmt_cam4.jpg gopr7438_20120914_223420_gmt_cam4.jpg gopr7439_20120914_223422_gmt_cam4.jpg gopr7440_20120914_223424_gmt_cam4.jpg gopr7441_20120914_223426_gmt_cam4.jpg gopr7442_20120914_223428_gmt_cam4.jpg gopr7443_20120914_223428_gmt_cam4.jpg gopr7444_20120914_223428_gmt_cam4.jpg gopr7446_20120914_223432_gmt_cam4.jpg gopr7447_20120914_223434_gmt_cam4.jpg gopr7448_20120914_223436_gmt_cam4.jpg gopr7449_20120914_223436_gmt_cam4.jpg gopr7450_20120914_223438_gmt_cam4.jpg gopr7451_20120914_223440_gmt_cam4.jpg gopr7455_20120914_223446_gmt_cam4.jpg gopr7456_20120914_223448_gmt_cam4.jpg gopr7457_20120914_223450_gmt_cam4.jpg gopr7458_20120914_223450_gmt_cam4.jpg gopr7459_20120914_223452_gmt_cam4.jpg gopr7460_20120914_223452_gmt_cam4.jpg gopr7461_20120914_223454_gmt_cam4.jpg gopr7467_20120914_223500_gmt_cam4.jpg gopr7468_20120914_223500_gmt_cam4.jpg gopr7469_20120914_223506_gmt_cam4.jpg gopr7470_20120914_223506_gmt_cam4.jpg gopr7471_20120914_223506_gmt_cam4.jpg gopr7472_20120914_223508_gmt_cam4.jpg gopr7473_20120914_223508_gmt_cam4.jpg

Horizon Photos for r20120914_043_net

Horizon and obove water fork Photos for r20120914_043_net
Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:07
Time diff (sec) start/end : 1.52 / 8.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:09
Time diff (sec) start/end : 3.52 / 6.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:09
Time diff (sec) start/end : 3.52 / 6.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:11
Time diff (sec) start/end : 5.52 / 4.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:11
Time diff (sec) start/end : 5.52 / 4.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:11
Time diff (sec) start/end : 5.52 / 4.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:13
Time diff (sec) start/end : 7.52 / 2.48 		Resonon Image 1
Time: 22:34:05.484 to 22:34:15.484
GoPro Time: 22:34:13
Time diff (sec) start/end : 7.52 / 2.48 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:19
Time diff (sec) start/end : 0.38 / 9.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:19
Time diff (sec) start/end : 0.38 / 9.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:19
Time diff (sec) start/end : 0.38 / 9.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:21
Time diff (sec) start/end : 2.38 / 7.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:23
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:23
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:23
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:23
Time diff (sec) start/end : 4.38 / 5.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:25
Time diff (sec) start/end : 6.38 / 3.62 		Resonon Image 2
Time: 22:34:18.625 to 22:34:28.625
GoPro Time: 22:34:27
Time diff (sec) start/end : 8.37 / 1.62 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:33
Time diff (sec) start/end : 1.22 / 8.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:35
Time diff (sec) start/end : 3.22 / 6.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:35
Time diff (sec) start/end : 3.22 / 6.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:35
Time diff (sec) start/end : 3.22 / 6.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:35
Time diff (sec) start/end : 3.22 / 6.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:37
Time diff (sec) start/end : 5.22 / 4.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:39
Time diff (sec) start/end : 7.22 / 2.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:39
Time diff (sec) start/end : 7.22 / 2.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:41
Time diff (sec) start/end : 9.22 / 0.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:41
Time diff (sec) start/end : 9.22 / 0.78 		Resonon Image 3
Time: 22:34:31.781 to 22:34:41.781
GoPro Time: 22:34:41
Time diff (sec) start/end : 9.22 / 0.78 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:45
Time diff (sec) start/end : 0.08 / 9.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:47
Time diff (sec) start/end : 2.08 / 7.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:47
Time diff (sec) start/end : 2.08 / 7.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:49
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:49
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:49
Time diff (sec) start/end : 4.08 / 5.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:51
Time diff (sec) start/end : 6.08 / 3.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:51
Time diff (sec) start/end : 6.08 / 3.92 		Resonon Image 4
Time: 22:34:44.921 to 22:34:54.921
GoPro Time: 22:34:53
Time diff (sec) start/end : 8.08 / 1.92 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:34:59
Time diff (sec) start/end : 0.91 / 9.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:01
Time diff (sec) start/end : 2.91 / 7.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:03
Time diff (sec) start/end : 4.91 / 5.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:03
Time diff (sec) start/end : 4.91 / 5.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:05
Time diff (sec) start/end : 6.91 / 3.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:05
Time diff (sec) start/end : 6.91 / 3.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:07
Time diff (sec) start/end : 8.91 / 1.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:07
Time diff (sec) start/end : 8.91 / 1.09 		Resonon Image 5
Time: 22:34:58.093 to 22:35:08.093
GoPro Time: 22:35:07
Time diff (sec) start/end : 8.91 / 1.09
gopr1726_20120914_223407_gmt_horizon.jpg gopr1727_20120914_223409_gmt_horizon.jpg gopr1728_20120914_223409_gmt_horizon.jpg gopr1729_20120914_223411_gmt_horizon.jpg gopr1730_20120914_223411_gmt_horizon.jpg gopr1731_20120914_223411_gmt_horizon.jpg gopr1732_20120914_223413_gmt_horizon.jpg gopr1733_20120914_223413_gmt_horizon.jpg gopr1735_20120914_223419_gmt_horizon.jpg gopr1736_20120914_223419_gmt_horizon.jpg gopr1737_20120914_223419_gmt_horizon.jpg gopr1738_20120914_223421_gmt_horizon.jpg gopr1739_20120914_223423_gmt_horizon.jpg gopr1740_20120914_223423_gmt_horizon.jpg gopr1741_20120914_223423_gmt_horizon.jpg gopr1742_20120914_223423_gmt_horizon.jpg gopr1743_20120914_223425_gmt_horizon.jpg gopr1744_20120914_223427_gmt_horizon.jpg gopr1747_20120914_223433_gmt_horizon.jpg gopr1748_20120914_223435_gmt_horizon.jpg gopr1749_20120914_223435_gmt_horizon.jpg gopr1750_20120914_223435_gmt_horizon.jpg gopr1751_20120914_223435_gmt_horizon.jpg gopr1752_20120914_223437_gmt_horizon.jpg gopr1753_20120914_223439_gmt_horizon.jpg gopr1754_20120914_223439_gmt_horizon.jpg gopr1755_20120914_223441_gmt_horizon.jpg gopr1756_20120914_223441_gmt_horizon.jpg gopr1757_20120914_223441_gmt_horizon.jpg gopr1758_20120914_223445_gmt_horizon.jpg gopr1759_20120914_223447_gmt_horizon.jpg gopr1760_20120914_223447_gmt_horizon.jpg gopr1761_20120914_223449_gmt_horizon.jpg gopr1762_20120914_223449_gmt_horizon.jpg gopr1763_20120914_223449_gmt_horizon.jpg gopr1764_20120914_223451_gmt_horizon.jpg gopr1765_20120914_223451_gmt_horizon.jpg gopr1766_20120914_223453_gmt_horizon.jpg gopr1769_20120914_223459_gmt_horizon.jpg gopr1770_20120914_223501_gmt_horizon.jpg gopr1771_20120914_223503_gmt_horizon.jpg gopr1772_20120914_223503_gmt_horizon.jpg gopr1773_20120914_223505_gmt_horizon.jpg gopr1774_20120914_223505_gmt_horizon.jpg gopr1775_20120914_223507_gmt_horizon.jpg gopr1776_20120914_223507_gmt_horizon.jpg gopr1777_20120914_223507_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:01:51
Created from gopro_mkpages_(12)
