r20120915_029_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:03:42

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

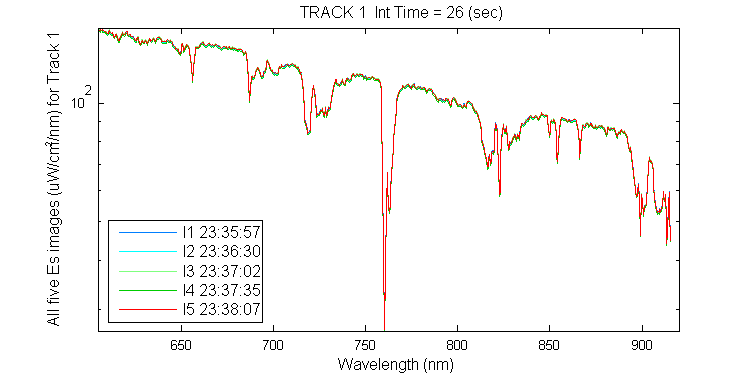

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

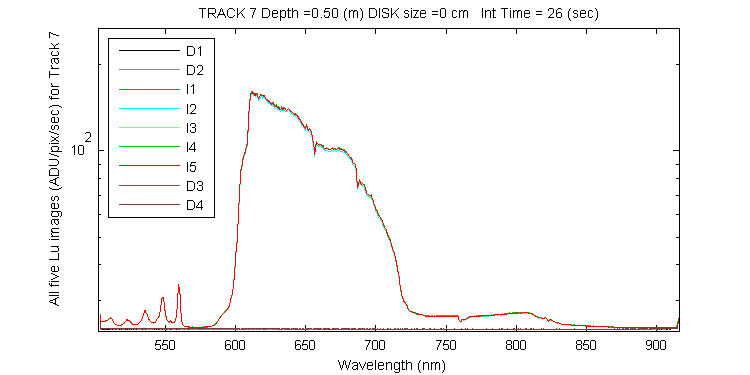

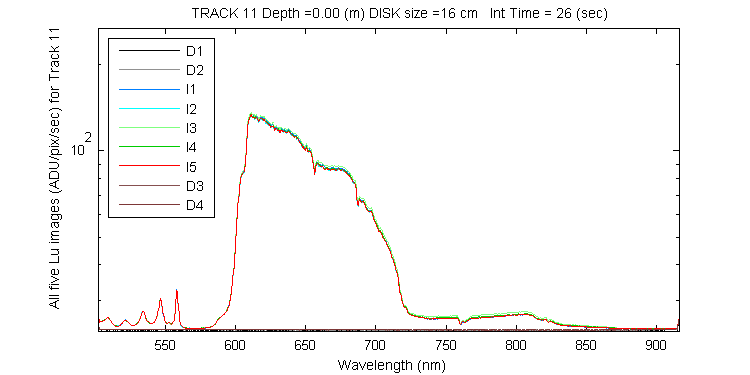

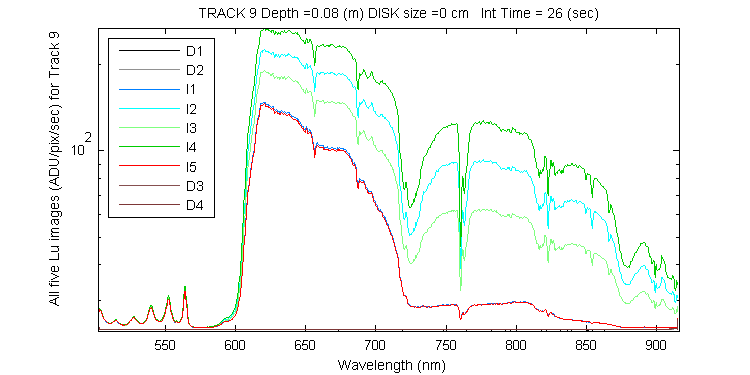

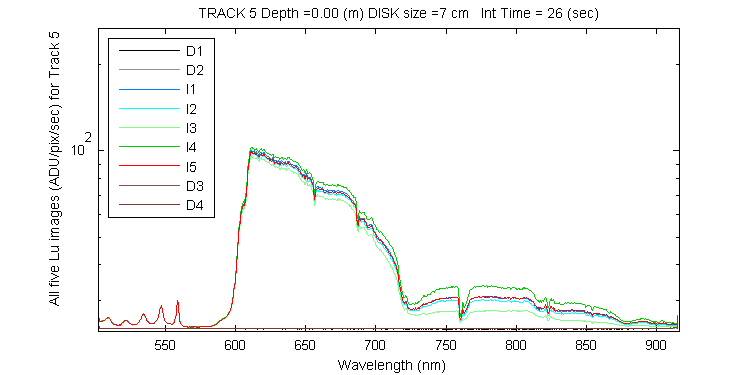

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120915 23:35:57 25.0702 26
2 20120915 23:36:30 25.1576 26
3 20120915 23:37:02 25.2481 26
4 20120915 23:37:35 25.3362 26
5 20120915 23:38:07 25.4274 26
image image

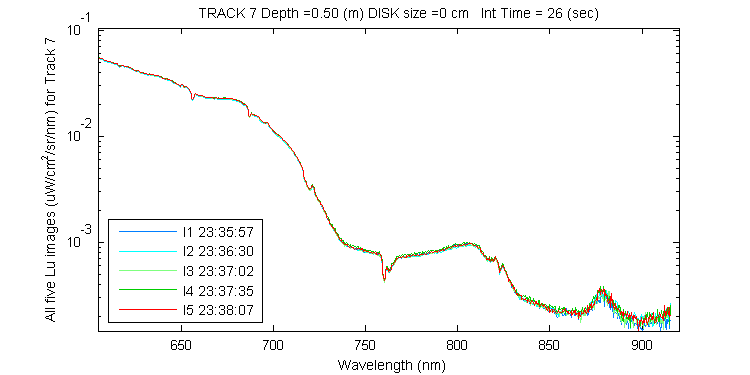

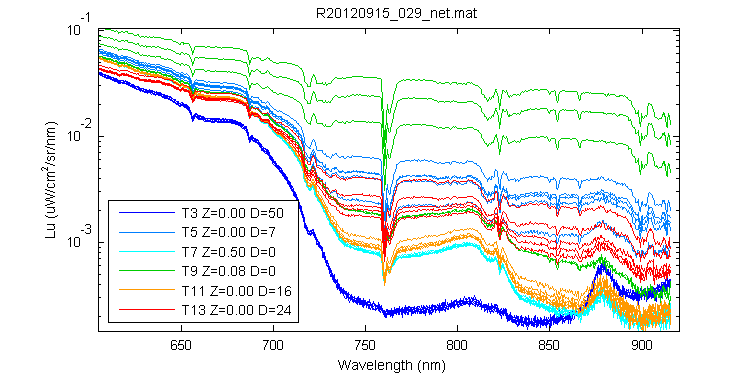

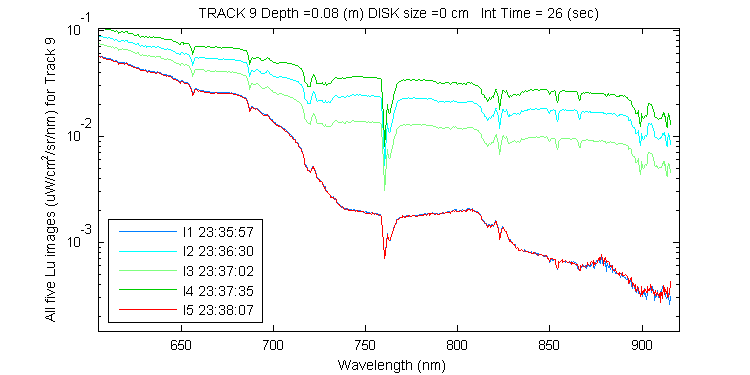

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120915_029_net

Sun Dial Photos for r20120915_029_net
Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:35:59
Time diff (sec) start/end : 1.31 / 24.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:01
Time diff (sec) start/end : 3.31 / 22.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:03
Time diff (sec) start/end : 5.31 / 20.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:03
Time diff (sec) start/end : 5.31 / 20.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:05
Time diff (sec) start/end : 7.31 / 18.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:07
Time diff (sec) start/end : 9.31 / 16.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:07
Time diff (sec) start/end : 9.31 / 16.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:07
Time diff (sec) start/end : 9.31 / 16.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:09
Time diff (sec) start/end : 11.31 / 14.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:11
Time diff (sec) start/end : 13.31 / 12.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:13
Time diff (sec) start/end : 15.31 / 10.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:13
Time diff (sec) start/end : 15.31 / 10.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:15
Time diff (sec) start/end : 17.31 / 8.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:17
Time diff (sec) start/end : 19.31 / 6.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:19
Time diff (sec) start/end : 21.31 / 4.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:21
Time diff (sec) start/end : 23.31 / 2.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:23
Time diff (sec) start/end : 25.31 / 0.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:23
Time diff (sec) start/end : 25.31 / 0.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:23
Time diff (sec) start/end : 25.31 / 0.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:23
Time diff (sec) start/end : 25.31 / 0.69 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:31
Time diff (sec) start/end : 0.78 / 25.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:33
Time diff (sec) start/end : 2.78 / 23.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:35
Time diff (sec) start/end : 4.78 / 21.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:37
Time diff (sec) start/end : 6.78 / 19.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:37
Time diff (sec) start/end : 6.78 / 19.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:39
Time diff (sec) start/end : 8.78 / 17.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:41
Time diff (sec) start/end : 10.78 / 15.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:43
Time diff (sec) start/end : 12.78 / 13.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:45
Time diff (sec) start/end : 14.78 / 11.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:47
Time diff (sec) start/end : 16.78 / 9.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:47
Time diff (sec) start/end : 16.78 / 9.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:49
Time diff (sec) start/end : 18.78 / 7.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:51
Time diff (sec) start/end : 20.78 / 5.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:53
Time diff (sec) start/end : 22.78 / 3.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:55
Time diff (sec) start/end : 24.78 / 1.22 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:03
Time diff (sec) start/end : 0.25 / 25.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:05
Time diff (sec) start/end : 2.25 / 23.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:07
Time diff (sec) start/end : 4.25 / 21.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:09
Time diff (sec) start/end : 6.25 / 19.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:09
Time diff (sec) start/end : 6.25 / 19.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:09
Time diff (sec) start/end : 6.25 / 19.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:09
Time diff (sec) start/end : 6.25 / 19.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:13
Time diff (sec) start/end : 10.25 / 15.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:15
Time diff (sec) start/end : 12.25 / 13.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:17
Time diff (sec) start/end : 14.25 / 11.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:17
Time diff (sec) start/end : 14.25 / 11.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:19
Time diff (sec) start/end : 16.25 / 9.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:21
Time diff (sec) start/end : 18.25 / 7.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:23
Time diff (sec) start/end : 20.25 / 5.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:25
Time diff (sec) start/end : 22.25 / 3.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:25
Time diff (sec) start/end : 22.25 / 3.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:27
Time diff (sec) start/end : 24.25 / 1.75 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:37
Time diff (sec) start/end : 1.69 / 24.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:39
Time diff (sec) start/end : 3.69 / 22.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:41
Time diff (sec) start/end : 5.69 / 20.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:41
Time diff (sec) start/end : 5.69 / 20.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:41
Time diff (sec) start/end : 5.69 / 20.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:43
Time diff (sec) start/end : 7.69 / 18.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:45
Time diff (sec) start/end : 9.69 / 16.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:47
Time diff (sec) start/end : 11.69 / 14.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:49
Time diff (sec) start/end : 13.69 / 12.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:51
Time diff (sec) start/end : 15.69 / 10.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:53
Time diff (sec) start/end : 17.69 / 8.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:53
Time diff (sec) start/end : 17.69 / 8.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:55
Time diff (sec) start/end : 19.69 / 6.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:57
Time diff (sec) start/end : 21.69 / 4.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:59
Time diff (sec) start/end : 23.69 / 2.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:38:01
Time diff (sec) start/end : 25.69 / 0.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:38:01
Time diff (sec) start/end : 25.69 / 0.31 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:09
Time diff (sec) start/end : 1.16 / 24.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:11
Time diff (sec) start/end : 3.16 / 22.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:11
Time diff (sec) start/end : 3.16 / 22.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:13
Time diff (sec) start/end : 5.16 / 20.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:15
Time diff (sec) start/end : 7.16 / 18.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:15
Time diff (sec) start/end : 7.16 / 18.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:17
Time diff (sec) start/end : 9.16 / 16.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:19
Time diff (sec) start/end : 11.16 / 14.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:21
Time diff (sec) start/end : 13.16 / 12.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:21
Time diff (sec) start/end : 13.16 / 12.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:23
Time diff (sec) start/end : 15.16 / 10.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:23
Time diff (sec) start/end : 15.16 / 10.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:25
Time diff (sec) start/end : 17.16 / 8.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:25
Time diff (sec) start/end : 17.16 / 8.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:25
Time diff (sec) start/end : 17.16 / 8.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:27
Time diff (sec) start/end : 19.16 / 6.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:29
Time diff (sec) start/end : 21.16 / 4.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:31
Time diff (sec) start/end : 23.16 / 2.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:33
Time diff (sec) start/end : 25.16 / 0.84
gopr8797_20120915_233559_gmt_sun.png gopr8798_20120915_233601_gmt_sun.png gopr8799_20120915_233603_gmt_sun.png gopr8800_20120915_233603_gmt_sun.png gopr8801_20120915_233605_gmt_sun.png gopr8802_20120915_233607_gmt_sun.png gopr8803_20120915_233607_gmt_sun.png gopr8804_20120915_233607_gmt_sun.png gopr8805_20120915_233609_gmt_sun.png gopr8806_20120915_233611_gmt_sun.png gopr8807_20120915_233613_gmt_sun.png gopr8808_20120915_233613_gmt_sun.png gopr8809_20120915_233615_gmt_sun.png gopr8810_20120915_233617_gmt_sun.png gopr8811_20120915_233619_gmt_sun.png gopr8812_20120915_233621_gmt_sun.png gopr8813_20120915_233623_gmt_sun.png gopr8814_20120915_233623_gmt_sun.png gopr8815_20120915_233623_gmt_sun.png gopr8816_20120915_233623_gmt_sun.png gopr8820_20120915_233631_gmt_sun.png gopr8821_20120915_233633_gmt_sun.png gopr8822_20120915_233635_gmt_sun.png gopr8823_20120915_233637_gmt_sun.png gopr8824_20120915_233637_gmt_sun.png gopr8825_20120915_233639_gmt_sun.png gopr8826_20120915_233641_gmt_sun.png gopr8827_20120915_233643_gmt_sun.png gopr8828_20120915_233645_gmt_sun.png gopr8829_20120915_233647_gmt_sun.png gopr8830_20120915_233647_gmt_sun.png gopr8831_20120915_233649_gmt_sun.png gopr8832_20120915_233651_gmt_sun.png gopr8833_20120915_233653_gmt_sun.png gopr8834_20120915_233655_gmt_sun.png gopr8839_20120915_233703_gmt_sun.png gopr8840_20120915_233705_gmt_sun.png gopr8841_20120915_233707_gmt_sun.png gopr8842_20120915_233709_gmt_sun.png gopr8843_20120915_233709_gmt_sun.png gopr8844_20120915_233709_gmt_sun.png gopr8845_20120915_233709_gmt_sun.png gopr8846_20120915_233713_gmt_sun.png gopr8847_20120915_233715_gmt_sun.png gopr8848_20120915_233717_gmt_sun.png gopr8849_20120915_233717_gmt_sun.png gopr8850_20120915_233719_gmt_sun.png gopr8851_20120915_233721_gmt_sun.png gopr8852_20120915_233723_gmt_sun.png gopr8853_20120915_233725_gmt_sun.png gopr8854_20120915_233725_gmt_sun.png gopr8855_20120915_233727_gmt_sun.png gopr8861_20120915_233737_gmt_sun.png gopr8862_20120915_233739_gmt_sun.png gopr8863_20120915_233741_gmt_sun.png gopr8864_20120915_233741_gmt_sun.png gopr8865_20120915_233741_gmt_sun.png gopr8866_20120915_233743_gmt_sun.png gopr8867_20120915_233745_gmt_sun.png gopr8868_20120915_233747_gmt_sun.png gopr8869_20120915_233749_gmt_sun.png gopr8870_20120915_233751_gmt_sun.png gopr8871_20120915_233753_gmt_sun.png gopr8872_20120915_233753_gmt_sun.png gopr8873_20120915_233755_gmt_sun.png gopr8874_20120915_233757_gmt_sun.png gopr8875_20120915_233759_gmt_sun.png gopr8876_20120915_233801_gmt_sun.png gopr8877_20120915_233801_gmt_sun.png gopr8881_20120915_233809_gmt_sun.png gopr8882_20120915_233811_gmt_sun.png gopr8883_20120915_233811_gmt_sun.png gopr8884_20120915_233813_gmt_sun.png gopr8885_20120915_233815_gmt_sun.png gopr8886_20120915_233815_gmt_sun.png gopr8887_20120915_233817_gmt_sun.png gopr8888_20120915_233819_gmt_sun.png gopr8889_20120915_233821_gmt_sun.png gopr8890_20120915_233821_gmt_sun.png gopr8891_20120915_233823_gmt_sun.png gopr8892_20120915_233823_gmt_sun.png gopr8893_20120915_233825_gmt_sun.png gopr8894_20120915_233825_gmt_sun.png gopr8895_20120915_233825_gmt_sun.png gopr8896_20120915_233827_gmt_sun.png gopr8897_20120915_233829_gmt_sun.png gopr8898_20120915_233831_gmt_sun.png gopr8899_20120915_233833_gmt_sun.png

Left side Photos for r20120915_029_net

Left side Photos for r20120915_029_net (tracks 3 -9)

Right side Photos for r20120915_029_net

Right side Photos for r20120915_029_net (tracks 7-13)
Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:35:59
Time diff (sec) start/end : 1.31 / 24.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:01
Time diff (sec) start/end : 3.31 / 22.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:01
Time diff (sec) start/end : 3.31 / 22.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:03
Time diff (sec) start/end : 5.31 / 20.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:03
Time diff (sec) start/end : 5.31 / 20.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:05
Time diff (sec) start/end : 7.31 / 18.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:05
Time diff (sec) start/end : 7.31 / 18.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:07
Time diff (sec) start/end : 9.31 / 16.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:07
Time diff (sec) start/end : 9.31 / 16.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:09
Time diff (sec) start/end : 11.31 / 14.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:11
Time diff (sec) start/end : 13.31 / 12.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:13
Time diff (sec) start/end : 15.31 / 10.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:13
Time diff (sec) start/end : 15.31 / 10.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:15
Time diff (sec) start/end : 17.31 / 8.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:15
Time diff (sec) start/end : 17.31 / 8.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:17
Time diff (sec) start/end : 19.31 / 6.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:19
Time diff (sec) start/end : 21.31 / 4.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:21
Time diff (sec) start/end : 23.31 / 2.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:21
Time diff (sec) start/end : 23.31 / 2.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:23
Time diff (sec) start/end : 25.31 / 0.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:23
Time diff (sec) start/end : 25.31 / 0.69 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:31
Time diff (sec) start/end : 0.78 / 25.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:31
Time diff (sec) start/end : 0.78 / 25.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:33
Time diff (sec) start/end : 2.78 / 23.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:33
Time diff (sec) start/end : 2.78 / 23.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:35
Time diff (sec) start/end : 4.78 / 21.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:37
Time diff (sec) start/end : 6.78 / 19.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:37
Time diff (sec) start/end : 6.78 / 19.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:39
Time diff (sec) start/end : 8.78 / 17.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:41
Time diff (sec) start/end : 10.78 / 15.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:43
Time diff (sec) start/end : 12.78 / 13.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:43
Time diff (sec) start/end : 12.78 / 13.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:45
Time diff (sec) start/end : 14.78 / 11.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:45
Time diff (sec) start/end : 14.78 / 11.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:47
Time diff (sec) start/end : 16.78 / 9.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:49
Time diff (sec) start/end : 18.78 / 7.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:49
Time diff (sec) start/end : 18.78 / 7.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:51
Time diff (sec) start/end : 20.78 / 5.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:51
Time diff (sec) start/end : 20.78 / 5.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:53
Time diff (sec) start/end : 22.78 / 3.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:53
Time diff (sec) start/end : 22.78 / 3.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:55
Time diff (sec) start/end : 24.78 / 1.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:55
Time diff (sec) start/end : 24.78 / 1.22 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:05
Time diff (sec) start/end : 2.25 / 23.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:05
Time diff (sec) start/end : 2.25 / 23.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:07
Time diff (sec) start/end : 4.25 / 21.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:07
Time diff (sec) start/end : 4.25 / 21.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:07
Time diff (sec) start/end : 4.25 / 21.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:09
Time diff (sec) start/end : 6.25 / 19.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:09
Time diff (sec) start/end : 6.25 / 19.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:11
Time diff (sec) start/end : 8.25 / 17.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:11
Time diff (sec) start/end : 8.25 / 17.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:13
Time diff (sec) start/end : 10.25 / 15.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:13
Time diff (sec) start/end : 10.25 / 15.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:15
Time diff (sec) start/end : 12.25 / 13.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:15
Time diff (sec) start/end : 12.25 / 13.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:17
Time diff (sec) start/end : 14.25 / 11.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:19
Time diff (sec) start/end : 16.25 / 9.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:19
Time diff (sec) start/end : 16.25 / 9.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:21
Time diff (sec) start/end : 18.25 / 7.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:23
Time diff (sec) start/end : 20.25 / 5.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:23
Time diff (sec) start/end : 20.25 / 5.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:25
Time diff (sec) start/end : 22.25 / 3.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:25
Time diff (sec) start/end : 22.25 / 3.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:27
Time diff (sec) start/end : 24.25 / 1.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:27
Time diff (sec) start/end : 24.25 / 1.75 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:37
Time diff (sec) start/end : 1.69 / 24.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:37
Time diff (sec) start/end : 1.69 / 24.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:41
Time diff (sec) start/end : 5.69 / 20.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:41
Time diff (sec) start/end : 5.69 / 20.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:43
Time diff (sec) start/end : 7.69 / 18.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:43
Time diff (sec) start/end : 7.69 / 18.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:45
Time diff (sec) start/end : 9.69 / 16.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:47
Time diff (sec) start/end : 11.69 / 14.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:47
Time diff (sec) start/end : 11.69 / 14.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:49
Time diff (sec) start/end : 13.69 / 12.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:49
Time diff (sec) start/end : 13.69 / 12.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:51
Time diff (sec) start/end : 15.69 / 10.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:53
Time diff (sec) start/end : 17.69 / 8.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:53
Time diff (sec) start/end : 17.69 / 8.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:55
Time diff (sec) start/end : 19.69 / 6.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:57
Time diff (sec) start/end : 21.69 / 4.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:59
Time diff (sec) start/end : 23.69 / 2.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:59
Time diff (sec) start/end : 23.69 / 2.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:38:01
Time diff (sec) start/end : 25.69 / 0.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:38:01
Time diff (sec) start/end : 25.69 / 0.31 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:09
Time diff (sec) start/end : 1.16 / 24.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:09
Time diff (sec) start/end : 1.16 / 24.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:09
Time diff (sec) start/end : 1.16 / 24.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:11
Time diff (sec) start/end : 3.16 / 22.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:11
Time diff (sec) start/end : 3.16 / 22.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:13
Time diff (sec) start/end : 5.16 / 20.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:15
Time diff (sec) start/end : 7.16 / 18.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:15
Time diff (sec) start/end : 7.16 / 18.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:15
Time diff (sec) start/end : 7.16 / 18.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:17
Time diff (sec) start/end : 9.16 / 16.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:19
Time diff (sec) start/end : 11.16 / 14.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:21
Time diff (sec) start/end : 13.16 / 12.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:23
Time diff (sec) start/end : 15.16 / 10.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:25
Time diff (sec) start/end : 17.16 / 8.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:25
Time diff (sec) start/end : 17.16 / 8.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:27
Time diff (sec) start/end : 19.16 / 6.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:27
Time diff (sec) start/end : 19.16 / 6.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:27
Time diff (sec) start/end : 19.16 / 6.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:29
Time diff (sec) start/end : 21.16 / 4.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:29
Time diff (sec) start/end : 21.16 / 4.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:31
Time diff (sec) start/end : 23.16 / 2.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:31
Time diff (sec) start/end : 23.16 / 2.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:31
Time diff (sec) start/end : 23.16 / 2.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:33
Time diff (sec) start/end : 25.16 / 0.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:33
Time diff (sec) start/end : 25.16 / 0.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:33
Time diff (sec) start/end : 25.16 / 0.84
gopr8589_20120915_233559_gmt_rghtside.jpg gopr8590_20120915_233601_gmt_rghtside.jpg gopr8591_20120915_233601_gmt_rghtside.jpg gopr8592_20120915_233603_gmt_rghtside.jpg gopr8593_20120915_233603_gmt_rghtside.jpg gopr8594_20120915_233605_gmt_rghtside.jpg gopr8595_20120915_233605_gmt_rghtside.jpg gopr8596_20120915_233607_gmt_rghtside.jpg gopr8597_20120915_233607_gmt_rghtside.jpg gopr8598_20120915_233609_gmt_rghtside.jpg gopr8599_20120915_233611_gmt_rghtside.jpg gopr8600_20120915_233613_gmt_rghtside.jpg gopr8601_20120915_233613_gmt_rghtside.jpg gopr8602_20120915_233615_gmt_rghtside.jpg gopr8603_20120915_233615_gmt_rghtside.jpg gopr8604_20120915_233617_gmt_rghtside.jpg gopr8605_20120915_233619_gmt_rghtside.jpg gopr8606_20120915_233621_gmt_rghtside.jpg gopr8607_20120915_233621_gmt_rghtside.jpg gopr8608_20120915_233623_gmt_rghtside.jpg gopr8609_20120915_233623_gmt_rghtside.jpg gopr8614_20120915_233631_gmt_rghtside.jpg gopr8615_20120915_233631_gmt_rghtside.jpg gopr8616_20120915_233633_gmt_rghtside.jpg gopr8617_20120915_233633_gmt_rghtside.jpg gopr8618_20120915_233635_gmt_rghtside.jpg gopr8619_20120915_233637_gmt_rghtside.jpg gopr8620_20120915_233637_gmt_rghtside.jpg gopr8621_20120915_233639_gmt_rghtside.jpg gopr8622_20120915_233641_gmt_rghtside.jpg gopr8623_20120915_233643_gmt_rghtside.jpg gopr8624_20120915_233643_gmt_rghtside.jpg gopr8625_20120915_233645_gmt_rghtside.jpg gopr8626_20120915_233645_gmt_rghtside.jpg gopr8627_20120915_233647_gmt_rghtside.jpg gopr8628_20120915_233649_gmt_rghtside.jpg gopr8629_20120915_233649_gmt_rghtside.jpg gopr8630_20120915_233651_gmt_rghtside.jpg gopr8631_20120915_233651_gmt_rghtside.jpg gopr8632_20120915_233653_gmt_rghtside.jpg gopr8633_20120915_233653_gmt_rghtside.jpg gopr8634_20120915_233655_gmt_rghtside.jpg gopr8635_20120915_233655_gmt_rghtside.jpg gopr8640_20120915_233705_gmt_rghtside.jpg gopr8641_20120915_233705_gmt_rghtside.jpg gopr8642_20120915_233707_gmt_rghtside.jpg gopr8643_20120915_233707_gmt_rghtside.jpg gopr8644_20120915_233707_gmt_rghtside.jpg gopr8645_20120915_233709_gmt_rghtside.jpg gopr8646_20120915_233709_gmt_rghtside.jpg gopr8647_20120915_233711_gmt_rghtside.jpg gopr8648_20120915_233711_gmt_rghtside.jpg gopr8649_20120915_233713_gmt_rghtside.jpg gopr8650_20120915_233713_gmt_rghtside.jpg gopr8651_20120915_233715_gmt_rghtside.jpg gopr8652_20120915_233715_gmt_rghtside.jpg gopr8653_20120915_233717_gmt_rghtside.jpg gopr8654_20120915_233719_gmt_rghtside.jpg gopr8655_20120915_233719_gmt_rghtside.jpg gopr8656_20120915_233721_gmt_rghtside.jpg gopr8657_20120915_233723_gmt_rghtside.jpg gopr8658_20120915_233723_gmt_rghtside.jpg gopr8659_20120915_233725_gmt_rghtside.jpg gopr8660_20120915_233725_gmt_rghtside.jpg gopr8661_20120915_233727_gmt_rghtside.jpg gopr8662_20120915_233727_gmt_rghtside.jpg gopr8669_20120915_233737_gmt_rghtside.jpg gopr8670_20120915_233737_gmt_rghtside.jpg gopr8671_20120915_233741_gmt_rghtside.jpg gopr8672_20120915_233741_gmt_rghtside.jpg gopr8673_20120915_233743_gmt_rghtside.jpg gopr8674_20120915_233743_gmt_rghtside.jpg gopr8675_20120915_233745_gmt_rghtside.jpg gopr8676_20120915_233747_gmt_rghtside.jpg gopr8677_20120915_233747_gmt_rghtside.jpg gopr8678_20120915_233749_gmt_rghtside.jpg gopr8679_20120915_233749_gmt_rghtside.jpg gopr8680_20120915_233751_gmt_rghtside.jpg gopr8681_20120915_233753_gmt_rghtside.jpg gopr8682_20120915_233753_gmt_rghtside.jpg gopr8683_20120915_233755_gmt_rghtside.jpg gopr8684_20120915_233757_gmt_rghtside.jpg gopr8685_20120915_233759_gmt_rghtside.jpg gopr8686_20120915_233759_gmt_rghtside.jpg gopr8687_20120915_233801_gmt_rghtside.jpg gopr8688_20120915_233801_gmt_rghtside.jpg gopr8693_20120915_233809_gmt_rghtside.jpg gopr8694_20120915_233809_gmt_rghtside.jpg gopr8695_20120915_233809_gmt_rghtside.jpg gopr8696_20120915_233811_gmt_rghtside.jpg gopr8697_20120915_233811_gmt_rghtside.jpg gopr8698_20120915_233813_gmt_rghtside.jpg gopr8699_20120915_233815_gmt_rghtside.jpg gopr8700_20120915_233815_gmt_rghtside.jpg gopr8701_20120915_233815_gmt_rghtside.jpg gopr8702_20120915_233817_gmt_rghtside.jpg gopr8703_20120915_233819_gmt_rghtside.jpg gopr8704_20120915_233821_gmt_rghtside.jpg gopr8705_20120915_233823_gmt_rghtside.jpg gopr8706_20120915_233825_gmt_rghtside.jpg gopr8707_20120915_233825_gmt_rghtside.jpg gopr8708_20120915_233827_gmt_rghtside.jpg gopr8709_20120915_233827_gmt_rghtside.jpg gopr8710_20120915_233827_gmt_rghtside.jpg gopr8711_20120915_233829_gmt_rghtside.jpg gopr8712_20120915_233829_gmt_rghtside.jpg gopr8713_20120915_233831_gmt_rghtside.jpg gopr8714_20120915_233831_gmt_rghtside.jpg gopr8715_20120915_233831_gmt_rghtside.jpg gopr8716_20120915_233833_gmt_rghtside.jpg gopr8717_20120915_233833_gmt_rghtside.jpg gopr8718_20120915_233833_gmt_rghtside.jpg

Sky Photos for r20120915_029_net

Sky Photos for r20120915_029_net
Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:49:25
Time diff (sec) start/end : 807.31 / 781.31 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:49:25
Time diff (sec) start/end : 774.78 / 748.78 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:49:25
Time diff (sec) start/end : 742.25 / 716.25 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:49:25
Time diff (sec) start/end : 709.69 / 683.69 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:49:25
Time diff (sec) start/end : 677.16 / 651.16
gopr0216_20120915_234925_gmt_cam4.jpg gopr0216_20120915_234925_gmt_cam4.jpg gopr0216_20120915_234925_gmt_cam4.jpg gopr0216_20120915_234925_gmt_cam4.jpg gopr0216_20120915_234925_gmt_cam4.jpg

Horizon Photos for r20120915_029_net

Horizon and obove water fork Photos for r20120915_029_net
Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:35:59
Time diff (sec) start/end : 1.31 / 24.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:01
Time diff (sec) start/end : 3.31 / 22.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:03
Time diff (sec) start/end : 5.31 / 20.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:03
Time diff (sec) start/end : 5.31 / 20.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:05
Time diff (sec) start/end : 7.31 / 18.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:07
Time diff (sec) start/end : 9.31 / 16.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:07
Time diff (sec) start/end : 9.31 / 16.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:07
Time diff (sec) start/end : 9.31 / 16.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:09
Time diff (sec) start/end : 11.31 / 14.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:11
Time diff (sec) start/end : 13.31 / 12.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:13
Time diff (sec) start/end : 15.31 / 10.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:13
Time diff (sec) start/end : 15.31 / 10.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:15
Time diff (sec) start/end : 17.31 / 8.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:17
Time diff (sec) start/end : 19.31 / 6.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:19
Time diff (sec) start/end : 21.31 / 4.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:21
Time diff (sec) start/end : 23.31 / 2.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:23
Time diff (sec) start/end : 25.31 / 0.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:23
Time diff (sec) start/end : 25.31 / 0.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:23
Time diff (sec) start/end : 25.31 / 0.69 		Resonon Image 1
Time: 23:35:57.687 to 23:36:23.687
GoPro Time: 23:36:23
Time diff (sec) start/end : 25.31 / 0.69 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:31
Time diff (sec) start/end : 0.78 / 25.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:33
Time diff (sec) start/end : 2.78 / 23.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:35
Time diff (sec) start/end : 4.78 / 21.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:37
Time diff (sec) start/end : 6.78 / 19.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:37
Time diff (sec) start/end : 6.78 / 19.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:39
Time diff (sec) start/end : 8.78 / 17.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:41
Time diff (sec) start/end : 10.78 / 15.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:43
Time diff (sec) start/end : 12.78 / 13.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:45
Time diff (sec) start/end : 14.78 / 11.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:47
Time diff (sec) start/end : 16.78 / 9.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:47
Time diff (sec) start/end : 16.78 / 9.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:49
Time diff (sec) start/end : 18.78 / 7.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:51
Time diff (sec) start/end : 20.78 / 5.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:53
Time diff (sec) start/end : 22.78 / 3.22 		Resonon Image 2
Time: 23:36:30.218 to 23:36:56.218
GoPro Time: 23:36:55
Time diff (sec) start/end : 24.78 / 1.22 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:03
Time diff (sec) start/end : 0.25 / 25.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:05
Time diff (sec) start/end : 2.25 / 23.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:07
Time diff (sec) start/end : 4.25 / 21.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:09
Time diff (sec) start/end : 6.25 / 19.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:09
Time diff (sec) start/end : 6.25 / 19.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:09
Time diff (sec) start/end : 6.25 / 19.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:09
Time diff (sec) start/end : 6.25 / 19.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:13
Time diff (sec) start/end : 10.25 / 15.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:15
Time diff (sec) start/end : 12.25 / 13.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:17
Time diff (sec) start/end : 14.25 / 11.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:17
Time diff (sec) start/end : 14.25 / 11.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:19
Time diff (sec) start/end : 16.25 / 9.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:21
Time diff (sec) start/end : 18.25 / 7.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:23
Time diff (sec) start/end : 20.25 / 5.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:25
Time diff (sec) start/end : 22.25 / 3.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:25
Time diff (sec) start/end : 22.25 / 3.75 		Resonon Image 3
Time: 23:37:02.750 to 23:37:28.750
GoPro Time: 23:37:27
Time diff (sec) start/end : 24.25 / 1.75 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:37
Time diff (sec) start/end : 1.69 / 24.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:39
Time diff (sec) start/end : 3.69 / 22.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:41
Time diff (sec) start/end : 5.69 / 20.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:41
Time diff (sec) start/end : 5.69 / 20.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:41
Time diff (sec) start/end : 5.69 / 20.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:43
Time diff (sec) start/end : 7.69 / 18.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:45
Time diff (sec) start/end : 9.69 / 16.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:47
Time diff (sec) start/end : 11.69 / 14.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:49
Time diff (sec) start/end : 13.69 / 12.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:51
Time diff (sec) start/end : 15.69 / 10.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:53
Time diff (sec) start/end : 17.69 / 8.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:53
Time diff (sec) start/end : 17.69 / 8.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:55
Time diff (sec) start/end : 19.69 / 6.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:57
Time diff (sec) start/end : 21.69 / 4.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:37:59
Time diff (sec) start/end : 23.69 / 2.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:38:01
Time diff (sec) start/end : 25.69 / 0.31 		Resonon Image 4
Time: 23:37:35.312 to 23:38:01.312
GoPro Time: 23:38:01
Time diff (sec) start/end : 25.69 / 0.31 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:09
Time diff (sec) start/end : 1.16 / 24.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:11
Time diff (sec) start/end : 3.16 / 22.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:11
Time diff (sec) start/end : 3.16 / 22.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:13
Time diff (sec) start/end : 5.16 / 20.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:15
Time diff (sec) start/end : 7.16 / 18.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:15
Time diff (sec) start/end : 7.16 / 18.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:17
Time diff (sec) start/end : 9.16 / 16.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:19
Time diff (sec) start/end : 11.16 / 14.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:21
Time diff (sec) start/end : 13.16 / 12.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:21
Time diff (sec) start/end : 13.16 / 12.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:23
Time diff (sec) start/end : 15.16 / 10.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:23
Time diff (sec) start/end : 15.16 / 10.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:25
Time diff (sec) start/end : 17.16 / 8.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:25
Time diff (sec) start/end : 17.16 / 8.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:25
Time diff (sec) start/end : 17.16 / 8.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:27
Time diff (sec) start/end : 19.16 / 6.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:29
Time diff (sec) start/end : 21.16 / 4.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:31
Time diff (sec) start/end : 23.16 / 2.84 		Resonon Image 5
Time: 23:38:07.843 to 23:38:33.843
GoPro Time: 23:38:33
Time diff (sec) start/end : 25.16 / 0.84
gopr8797_20120915_233559_gmt_horizon.jpg gopr8798_20120915_233601_gmt_horizon.jpg gopr8799_20120915_233603_gmt_horizon.jpg gopr8800_20120915_233603_gmt_horizon.jpg gopr8801_20120915_233605_gmt_horizon.jpg gopr8802_20120915_233607_gmt_horizon.jpg gopr8803_20120915_233607_gmt_horizon.jpg gopr8804_20120915_233607_gmt_horizon.jpg gopr8805_20120915_233609_gmt_horizon.jpg gopr8806_20120915_233611_gmt_horizon.jpg gopr8807_20120915_233613_gmt_horizon.jpg gopr8808_20120915_233613_gmt_horizon.jpg gopr8809_20120915_233615_gmt_horizon.jpg gopr8810_20120915_233617_gmt_horizon.jpg gopr8811_20120915_233619_gmt_horizon.jpg gopr8812_20120915_233621_gmt_horizon.jpg gopr8813_20120915_233623_gmt_horizon.jpg gopr8814_20120915_233623_gmt_horizon.jpg gopr8815_20120915_233623_gmt_horizon.jpg gopr8816_20120915_233623_gmt_horizon.jpg gopr8820_20120915_233631_gmt_horizon.jpg gopr8821_20120915_233633_gmt_horizon.jpg gopr8822_20120915_233635_gmt_horizon.jpg gopr8823_20120915_233637_gmt_horizon.jpg gopr8824_20120915_233637_gmt_horizon.jpg gopr8825_20120915_233639_gmt_horizon.jpg gopr8826_20120915_233641_gmt_horizon.jpg gopr8827_20120915_233643_gmt_horizon.jpg gopr8828_20120915_233645_gmt_horizon.jpg gopr8829_20120915_233647_gmt_horizon.jpg gopr8830_20120915_233647_gmt_horizon.jpg gopr8831_20120915_233649_gmt_horizon.jpg gopr8832_20120915_233651_gmt_horizon.jpg gopr8833_20120915_233653_gmt_horizon.jpg gopr8834_20120915_233655_gmt_horizon.jpg gopr8839_20120915_233703_gmt_horizon.jpg gopr8840_20120915_233705_gmt_horizon.jpg gopr8841_20120915_233707_gmt_horizon.jpg gopr8842_20120915_233709_gmt_horizon.jpg gopr8843_20120915_233709_gmt_horizon.jpg gopr8844_20120915_233709_gmt_horizon.jpg gopr8845_20120915_233709_gmt_horizon.jpg gopr8846_20120915_233713_gmt_horizon.jpg gopr8847_20120915_233715_gmt_horizon.jpg gopr8848_20120915_233717_gmt_horizon.jpg gopr8849_20120915_233717_gmt_horizon.jpg gopr8850_20120915_233719_gmt_horizon.jpg gopr8851_20120915_233721_gmt_horizon.jpg gopr8852_20120915_233723_gmt_horizon.jpg gopr8853_20120915_233725_gmt_horizon.jpg gopr8854_20120915_233725_gmt_horizon.jpg gopr8855_20120915_233727_gmt_horizon.jpg gopr8861_20120915_233737_gmt_horizon.jpg gopr8862_20120915_233739_gmt_horizon.jpg gopr8863_20120915_233741_gmt_horizon.jpg gopr8864_20120915_233741_gmt_horizon.jpg gopr8865_20120915_233741_gmt_horizon.jpg gopr8866_20120915_233743_gmt_horizon.jpg gopr8867_20120915_233745_gmt_horizon.jpg gopr8868_20120915_233747_gmt_horizon.jpg gopr8869_20120915_233749_gmt_horizon.jpg gopr8870_20120915_233751_gmt_horizon.jpg gopr8871_20120915_233753_gmt_horizon.jpg gopr8872_20120915_233753_gmt_horizon.jpg gopr8873_20120915_233755_gmt_horizon.jpg gopr8874_20120915_233757_gmt_horizon.jpg gopr8875_20120915_233759_gmt_horizon.jpg gopr8876_20120915_233801_gmt_horizon.jpg gopr8877_20120915_233801_gmt_horizon.jpg gopr8881_20120915_233809_gmt_horizon.jpg gopr8882_20120915_233811_gmt_horizon.jpg gopr8883_20120915_233811_gmt_horizon.jpg gopr8884_20120915_233813_gmt_horizon.jpg gopr8885_20120915_233815_gmt_horizon.jpg gopr8886_20120915_233815_gmt_horizon.jpg gopr8887_20120915_233817_gmt_horizon.jpg gopr8888_20120915_233819_gmt_horizon.jpg gopr8889_20120915_233821_gmt_horizon.jpg gopr8890_20120915_233821_gmt_horizon.jpg gopr8891_20120915_233823_gmt_horizon.jpg gopr8892_20120915_233823_gmt_horizon.jpg gopr8893_20120915_233825_gmt_horizon.jpg gopr8894_20120915_233825_gmt_horizon.jpg gopr8895_20120915_233825_gmt_horizon.jpg gopr8896_20120915_233827_gmt_horizon.jpg gopr8897_20120915_233829_gmt_horizon.jpg gopr8898_20120915_233831_gmt_horizon.jpg gopr8899_20120915_233833_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:03:46
Created from gopro_mkpages_(12)
