b20120916_020_net - BLUE SPEC

REVISION DATE: 02-Nov-2012 21:21:12

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

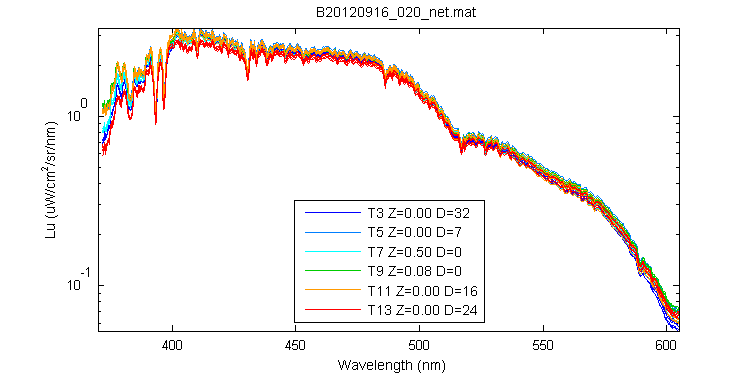

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120916 23:10:45 21.9219 1
2 20120916 23:10:56 21.946 1
3 20120916 23:11:07 21.9681 1
4 20120916 23:11:18 21.9903 1
5 20120916 23:11:30 22.0126 1
image image

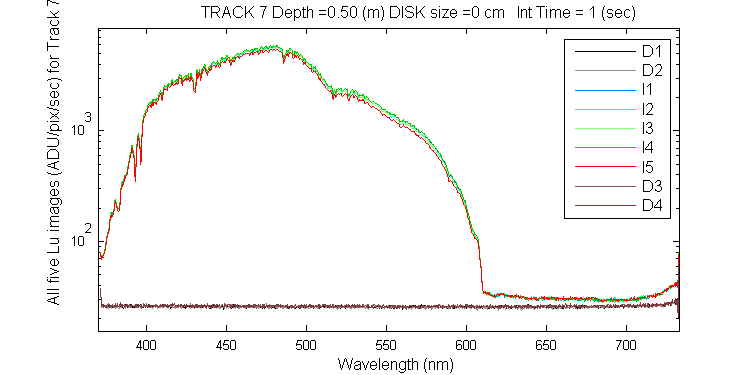

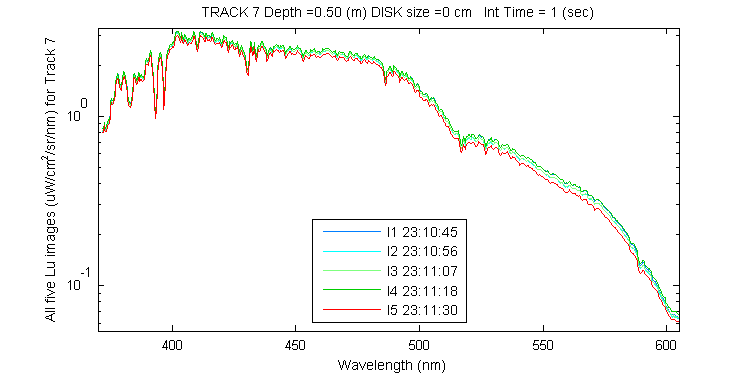

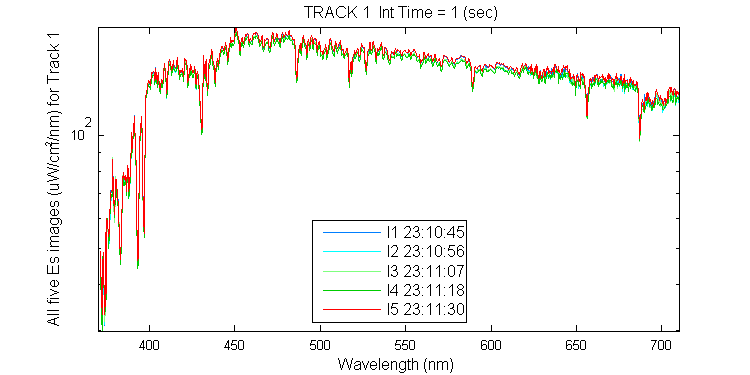

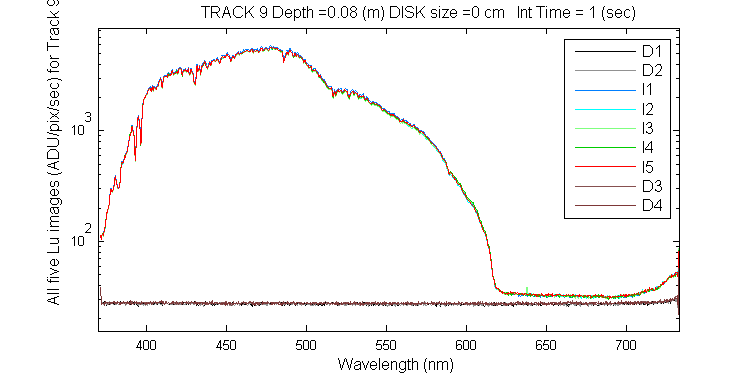

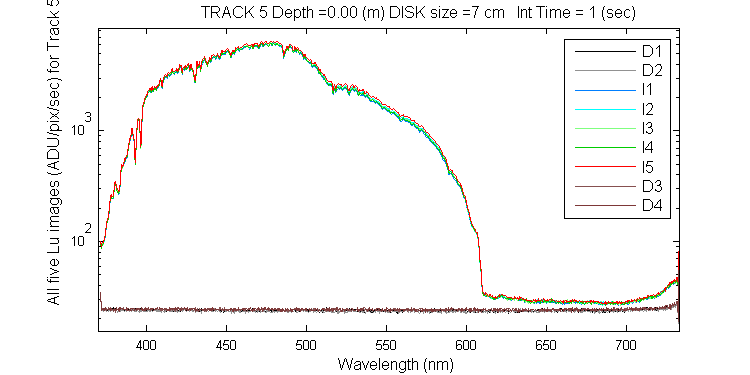

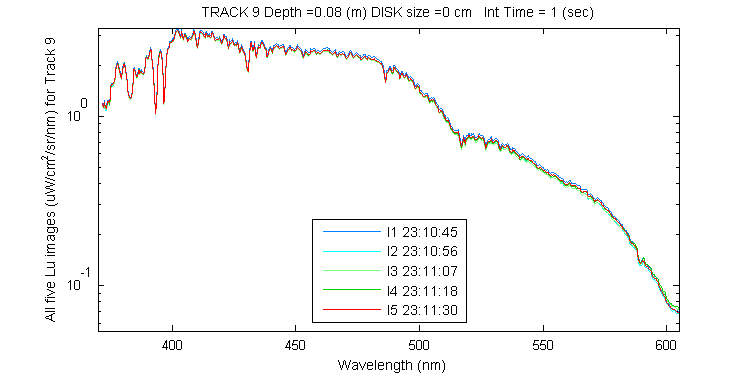

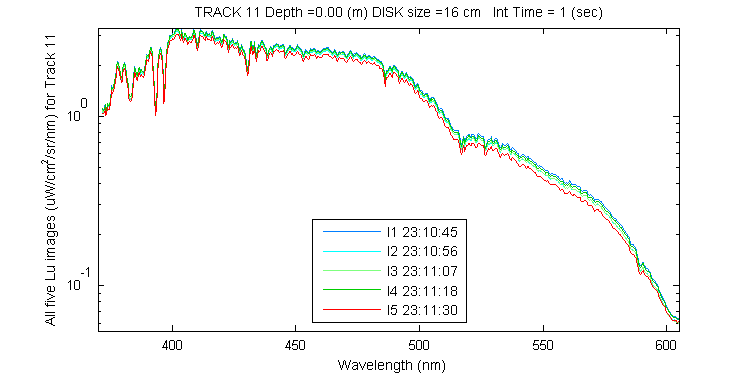

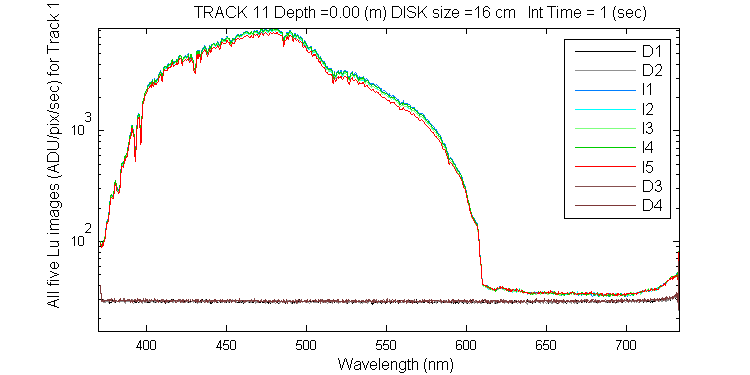

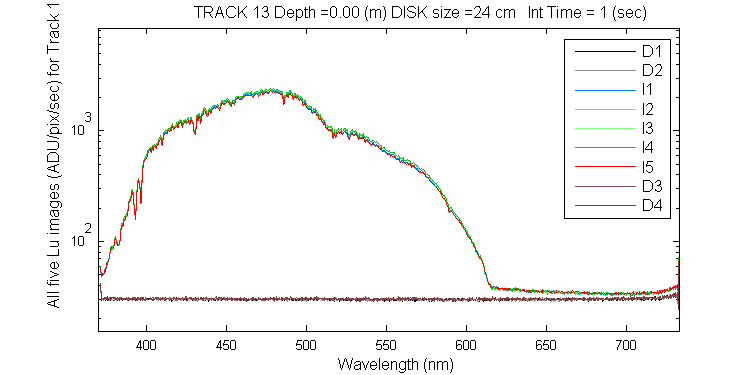

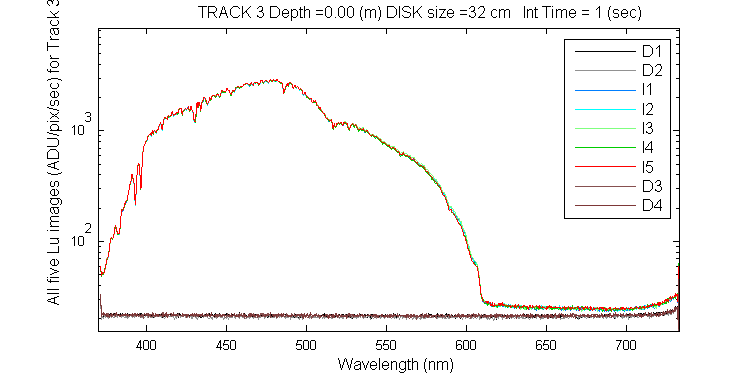

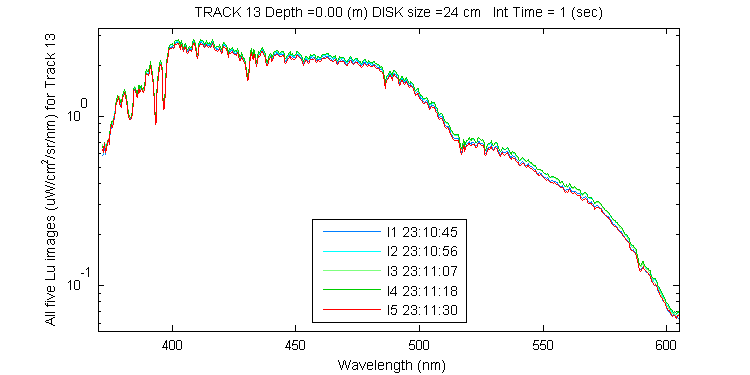

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos (sun dial, in-water, and sky) for BLUE SPEC, click on the photo or a larger view.

Sun Dial photos for b20120916_020_net

Sun Dial Photos for b20120916_020_net
Resonon Image 1
Time: 23:10:45.406 to 23:10:46.406
GoPro Time: 23:10:46
Time diff (sec) start/end : 0.59 / 0.41 		Resonon Image 1
Time: 23:10:45.406 to 23:10:46.406
GoPro Time: 23:10:46
Time diff (sec) start/end : 0.59 / 0.41 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:56
Time diff (sec) start/end : 0.58 / 1.58 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:56
Time diff (sec) start/end : 0.58 / 1.58 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:58
Time diff (sec) start/end : 1.42 / 0.42 		Resonon Image 3
Time: 23:11:07.781 to 23:11:08.781
GoPro Time: 23:11:08
Time diff (sec) start/end : 0.22 / 0.78 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:18
Time diff (sec) start/end : 0.97 / 1.97 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:18
Time diff (sec) start/end : 0.97 / 1.97 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:30
Time diff (sec) start/end : 0.19 / 1.19 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:30
Time diff (sec) start/end : 0.19 / 1.19 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:32
Time diff (sec) start/end : 1.81 / 0.81
gopr7519_20120916_231046_gmt_sun.png gopr7520_20120916_231046_gmt_sun.png gopr7529_20120916_231056_gmt_sun.png gopr7530_20120916_231056_gmt_sun.png gopr7531_20120916_231058_gmt_sun.png gopr7539_20120916_231108_gmt_sun.png gopr7546_20120916_231118_gmt_sun.png gopr7547_20120916_231118_gmt_sun.png gopr7548_20120916_231120_gmt_sun.png gopr7549_20120916_231120_gmt_sun.png gopr7550_20120916_231120_gmt_sun.png gopr7556_20120916_231130_gmt_sun.png gopr7557_20120916_231130_gmt_sun.png gopr7558_20120916_231132_gmt_sun.png

Left side Photos for b20120916_020_net

Left side Photos for b20120916_020_net (tracks 3 -9)
Resonon Image 1
Time: 23:10:45.406 to 23:10:46.406
GoPro Time: 23:10:46
Time diff (sec) start/end : 0.59 / 0.41 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:56
Time diff (sec) start/end : 0.58 / 1.58 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:56
Time diff (sec) start/end : 0.58 / 1.58 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:58
Time diff (sec) start/end : 1.42 / 0.42 		Resonon Image 3
Time: 23:11:07.781 to 23:11:08.781
GoPro Time: 23:11:08
Time diff (sec) start/end : 0.22 / 0.78 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:18
Time diff (sec) start/end : 0.97 / 1.97 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:30
Time diff (sec) start/end : 0.19 / 1.19 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:30
Time diff (sec) start/end : 0.19 / 1.19 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:32
Time diff (sec) start/end : 1.81 / 0.81
gopr2684_20120916_231046_gmt_lftside.jpg gopr2694_20120916_231056_gmt_lftside.jpg gopr2695_20120916_231056_gmt_lftside.jpg gopr2696_20120916_231058_gmt_lftside.jpg gopr2704_20120916_231108_gmt_lftside.jpg gopr2713_20120916_231118_gmt_lftside.jpg gopr2714_20120916_231120_gmt_lftside.jpg gopr2715_20120916_231120_gmt_lftside.jpg gopr2724_20120916_231130_gmt_lftside.jpg gopr2725_20120916_231130_gmt_lftside.jpg gopr2726_20120916_231132_gmt_lftside.jpg

Right side Photos for b20120916_020_net

Right side Photos for b20120916_020_net (tracks 7-13)
Resonon Image 1
Time: 23:10:45.406 to 23:10:46.406
GoPro Time: 23:10:46
Time diff (sec) start/end : 0.59 / 0.41 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:56
Time diff (sec) start/end : 0.58 / 1.58 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:56
Time diff (sec) start/end : 0.58 / 1.58 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:58
Time diff (sec) start/end : 1.42 / 0.42 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:58
Time diff (sec) start/end : 1.42 / 0.42 		Resonon Image 3
Time: 23:11:07.781 to 23:11:08.781
GoPro Time: 23:11:08
Time diff (sec) start/end : 0.22 / 0.78 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:30
Time diff (sec) start/end : 0.19 / 1.19 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:30
Time diff (sec) start/end : 0.19 / 1.19 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:32
Time diff (sec) start/end : 1.81 / 0.81 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:32
Time diff (sec) start/end : 1.81 / 0.81 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:32
Time diff (sec) start/end : 1.81 / 0.81 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:32
Time diff (sec) start/end : 1.81 / 0.81
gopr6142_20120916_231046_gmt_rghtside.jpg gopr6151_20120916_231056_gmt_rghtside.jpg gopr6152_20120916_231056_gmt_rghtside.jpg gopr6153_20120916_231058_gmt_rghtside.jpg gopr6154_20120916_231058_gmt_rghtside.jpg gopr6161_20120916_231108_gmt_rghtside.jpg gopr6171_20120916_231120_gmt_rghtside.jpg gopr6172_20120916_231120_gmt_rghtside.jpg gopr6173_20120916_231120_gmt_rghtside.jpg gopr6174_20120916_231120_gmt_rghtside.jpg gopr6182_20120916_231130_gmt_rghtside.jpg gopr6183_20120916_231130_gmt_rghtside.jpg gopr6184_20120916_231132_gmt_rghtside.jpg gopr6185_20120916_231132_gmt_rghtside.jpg gopr6186_20120916_231132_gmt_rghtside.jpg gopr6187_20120916_231132_gmt_rghtside.jpg

Sky Photos for b20120916_020_net

Sky Photos for b20120916_020_net
Resonon Image 1
Time: 23:10:45.406 to 23:10:46.406
GoPro Time: 23:10:45
Time diff (sec) start/end : 0.41 / 1.41 		Resonon Image 1
Time: 23:10:45.406 to 23:10:46.406
GoPro Time: 23:10:45
Time diff (sec) start/end : 0.41 / 1.41 		Resonon Image 1
Time: 23:10:45.406 to 23:10:46.406
GoPro Time: 23:10:45
Time diff (sec) start/end : 0.41 / 1.41 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:57
Time diff (sec) start/end : 0.42 / 0.58 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:57
Time diff (sec) start/end : 0.42 / 0.58 		Resonon Image 3
Time: 23:11:07.781 to 23:11:08.781
GoPro Time: 23:11:01
Time diff (sec) start/end : 6.78 / 7.78 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:01
Time diff (sec) start/end : 17.97 / 18.97 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:01
Time diff (sec) start/end : 29.19 / 30.19
gopr3478_20120916_231045_gmt_cam4.jpg gopr3479_20120916_231045_gmt_cam4.jpg gopr3480_20120916_231045_gmt_cam4.jpg gopr3489_20120916_231057_gmt_cam4.jpg gopr3490_20120916_231057_gmt_cam4.jpg gopr3493_20120916_231101_gmt_cam4.jpg gopr3493_20120916_231101_gmt_cam4.jpg gopr3493_20120916_231101_gmt_cam4.jpg

Horizon Photos for b20120916_020_net

Horizon and obove water fork Photos for b20120916_020_net
Resonon Image 1
Time: 23:10:45.406 to 23:10:46.406
GoPro Time: 23:10:46
Time diff (sec) start/end : 0.59 / 0.41 		Resonon Image 1
Time: 23:10:45.406 to 23:10:46.406
GoPro Time: 23:10:46
Time diff (sec) start/end : 0.59 / 0.41 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:56
Time diff (sec) start/end : 0.58 / 1.58 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:56
Time diff (sec) start/end : 0.58 / 1.58 		Resonon Image 2
Time: 23:10:56.578 to 23:10:57.578
GoPro Time: 23:10:58
Time diff (sec) start/end : 1.42 / 0.42 		Resonon Image 3
Time: 23:11:07.781 to 23:11:08.781
GoPro Time: 23:11:08
Time diff (sec) start/end : 0.22 / 0.78 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:18
Time diff (sec) start/end : 0.97 / 1.97 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:18
Time diff (sec) start/end : 0.97 / 1.97 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 4
Time: 23:11:18.968 to 23:11:19.968
GoPro Time: 23:11:20
Time diff (sec) start/end : 1.03 / 0.03 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:30
Time diff (sec) start/end : 0.19 / 1.19 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:30
Time diff (sec) start/end : 0.19 / 1.19 		Resonon Image 5
Time: 23:11:30.187 to 23:11:31.187
GoPro Time: 23:11:32
Time diff (sec) start/end : 1.81 / 0.81
gopr7519_20120916_231046_gmt_horizon.jpg gopr7520_20120916_231046_gmt_horizon.jpg gopr7529_20120916_231056_gmt_horizon.jpg gopr7530_20120916_231056_gmt_horizon.jpg gopr7531_20120916_231058_gmt_horizon.jpg gopr7539_20120916_231108_gmt_horizon.jpg gopr7546_20120916_231118_gmt_horizon.jpg gopr7547_20120916_231118_gmt_horizon.jpg gopr7548_20120916_231120_gmt_horizon.jpg gopr7549_20120916_231120_gmt_horizon.jpg gopr7550_20120916_231120_gmt_horizon.jpg gopr7556_20120916_231130_gmt_horizon.jpg gopr7557_20120916_231130_gmt_horizon.jpg gopr7558_20120916_231132_gmt_horizon.jpg
