r20120916_004_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:04:15

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

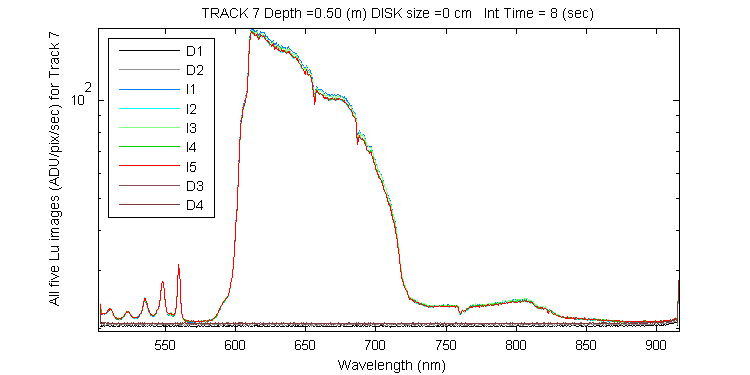

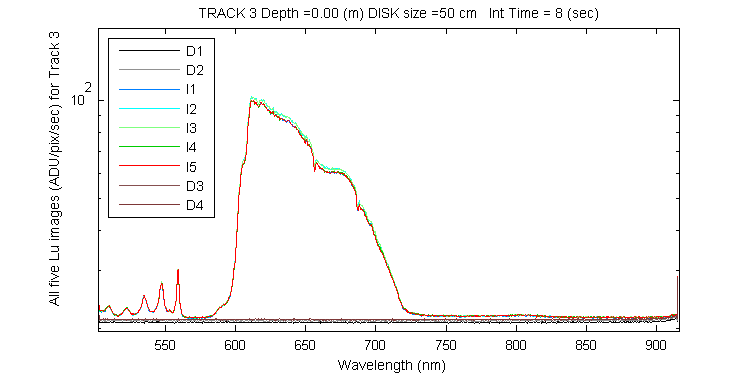

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120916 22:14:18 19.1896 8
2 20120916 22:14:30 19.1828 8
3 20120916 22:14:41 19.1761 8
4 20120916 22:14:52 19.1688 8
5 20120916 22:15:03 19.1623 8

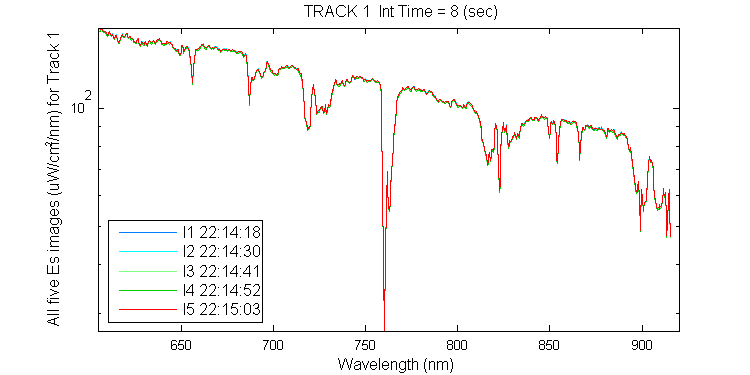

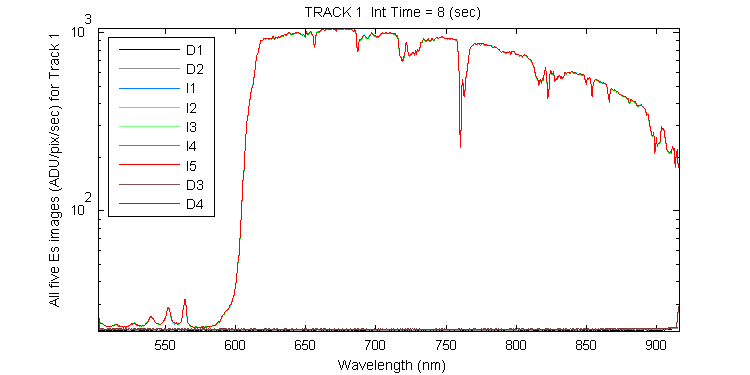

image image

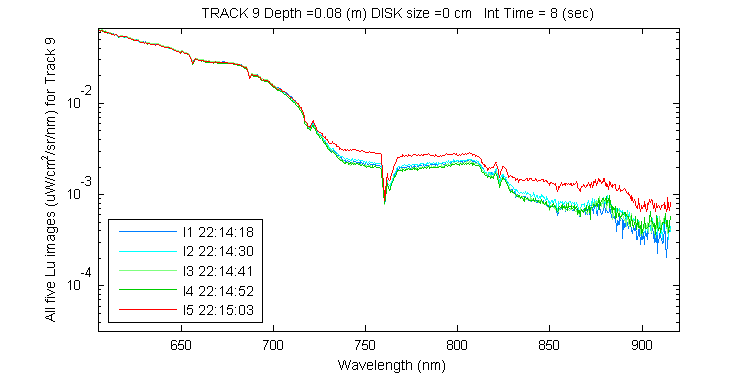

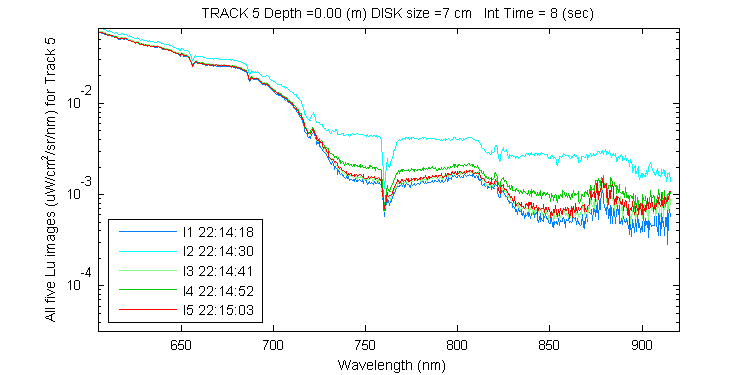

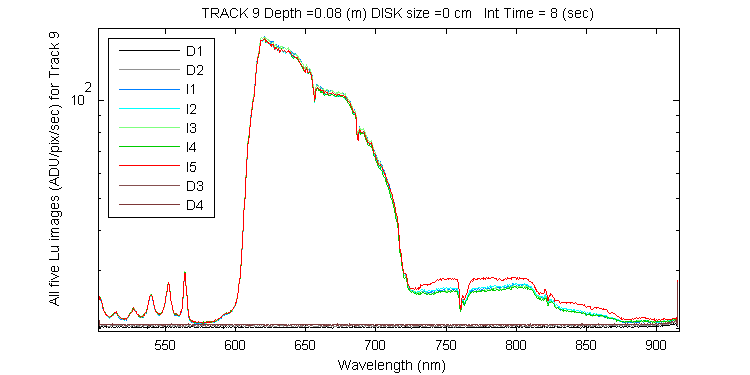

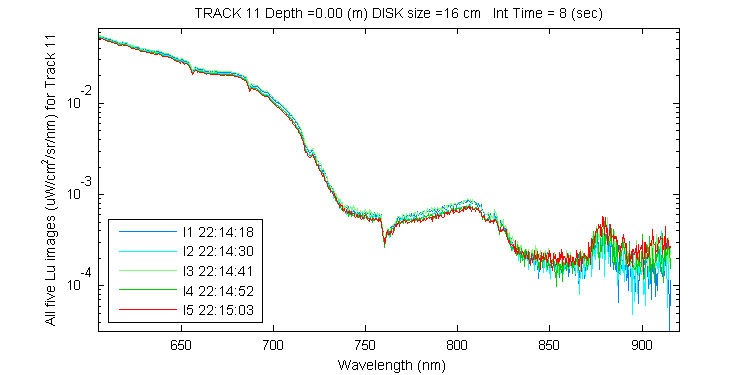

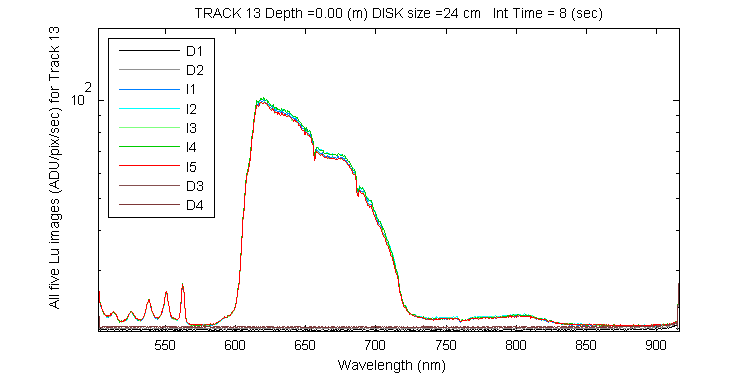

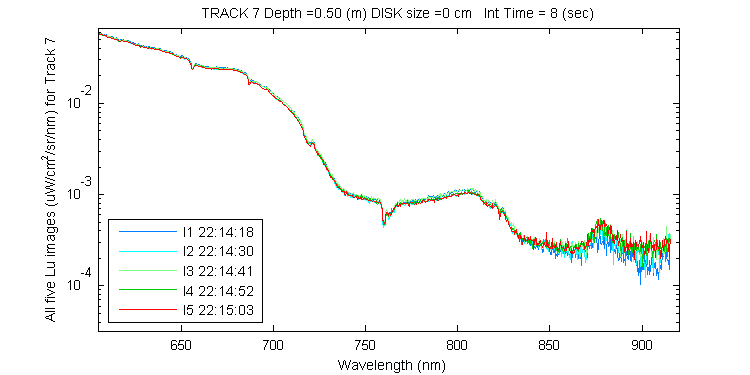

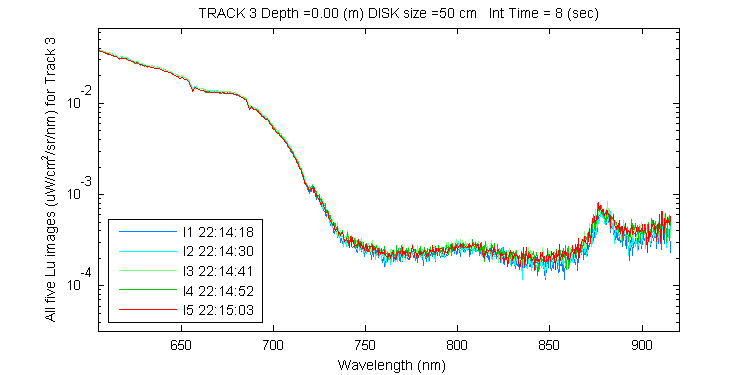

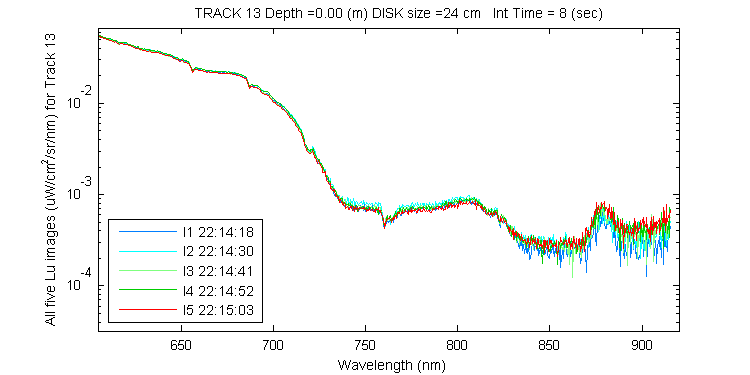

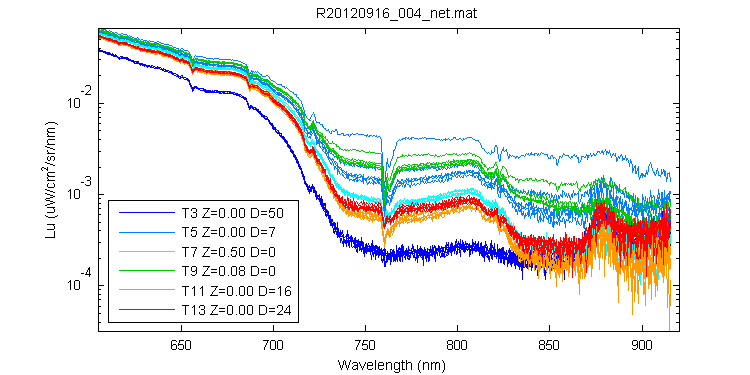

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120916_004_net

Sun Dial Photos for r20120916_004_net
Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:20
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:22
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:24
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:26
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:26
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:32
Time diff (sec) start/end : 1.81 / 6.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:34
Time diff (sec) start/end : 3.81 / 4.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:34
Time diff (sec) start/end : 3.81 / 4.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:36
Time diff (sec) start/end : 5.81 / 2.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:38
Time diff (sec) start/end : 7.81 / 0.19 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:42
Time diff (sec) start/end : 0.59 / 7.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:42
Time diff (sec) start/end : 0.59 / 7.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:44
Time diff (sec) start/end : 2.59 / 5.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:46
Time diff (sec) start/end : 4.59 / 3.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:54
Time diff (sec) start/end : 1.39 / 6.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:56
Time diff (sec) start/end : 3.39 / 4.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:56
Time diff (sec) start/end : 3.39 / 4.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:58
Time diff (sec) start/end : 5.39 / 2.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:15:00
Time diff (sec) start/end : 7.39 / 0.61 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:04
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:04
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:06
Time diff (sec) start/end : 2.14 / 5.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:08
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:10
Time diff (sec) start/end : 6.14 / 1.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:10
Time diff (sec) start/end : 6.14 / 1.86
gopr5112_20120916_221420_gmt_sun.png gopr5113_20120916_221422_gmt_sun.png gopr5114_20120916_221424_gmt_sun.png gopr5115_20120916_221426_gmt_sun.png gopr5116_20120916_221426_gmt_sun.png gopr5119_20120916_221432_gmt_sun.png gopr5120_20120916_221434_gmt_sun.png gopr5121_20120916_221434_gmt_sun.png gopr5122_20120916_221436_gmt_sun.png gopr5123_20120916_221438_gmt_sun.png gopr5125_20120916_221442_gmt_sun.png gopr5126_20120916_221442_gmt_sun.png gopr5127_20120916_221444_gmt_sun.png gopr5128_20120916_221446_gmt_sun.png gopr5129_20120916_221448_gmt_sun.png gopr5130_20120916_221448_gmt_sun.png gopr5133_20120916_221454_gmt_sun.png gopr5134_20120916_221456_gmt_sun.png gopr5135_20120916_221456_gmt_sun.png gopr5136_20120916_221458_gmt_sun.png gopr5137_20120916_221500_gmt_sun.png gopr5139_20120916_221504_gmt_sun.png gopr5140_20120916_221504_gmt_sun.png gopr5141_20120916_221506_gmt_sun.png gopr5142_20120916_221508_gmt_sun.png gopr5143_20120916_221510_gmt_sun.png gopr5144_20120916_221510_gmt_sun.png

Left side Photos for r20120916_004_net

Left side Photos for r20120916_004_net (tracks 3 -9)
Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:20
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:22
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:22
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:22
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:24
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:24
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:26
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:32
Time diff (sec) start/end : 1.81 / 6.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:32
Time diff (sec) start/end : 1.81 / 6.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:34
Time diff (sec) start/end : 3.81 / 4.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:34
Time diff (sec) start/end : 3.81 / 4.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:36
Time diff (sec) start/end : 5.81 / 2.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:36
Time diff (sec) start/end : 5.81 / 2.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:38
Time diff (sec) start/end : 7.81 / 0.19 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:42
Time diff (sec) start/end : 0.59 / 7.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:42
Time diff (sec) start/end : 0.59 / 7.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:44
Time diff (sec) start/end : 2.59 / 5.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:46
Time diff (sec) start/end : 4.59 / 3.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:46
Time diff (sec) start/end : 4.59 / 3.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:46
Time diff (sec) start/end : 4.59 / 3.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:54
Time diff (sec) start/end : 1.39 / 6.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:56
Time diff (sec) start/end : 3.39 / 4.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:56
Time diff (sec) start/end : 3.39 / 4.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:58
Time diff (sec) start/end : 5.39 / 2.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:58
Time diff (sec) start/end : 5.39 / 2.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:58
Time diff (sec) start/end : 5.39 / 2.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:58
Time diff (sec) start/end : 5.39 / 2.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:15:00
Time diff (sec) start/end : 7.39 / 0.61 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:04
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:04
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:06
Time diff (sec) start/end : 2.14 / 5.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:06
Time diff (sec) start/end : 2.14 / 5.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:08
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:10
Time diff (sec) start/end : 6.14 / 1.86
gopr9629_20120916_221420_gmt_lftside.jpg gopr9630_20120916_221422_gmt_lftside.jpg gopr9631_20120916_221422_gmt_lftside.jpg gopr9632_20120916_221422_gmt_lftside.jpg gopr9633_20120916_221424_gmt_lftside.jpg gopr9634_20120916_221424_gmt_lftside.jpg gopr9635_20120916_221426_gmt_lftside.jpg gopr9639_20120916_221432_gmt_lftside.jpg gopr9640_20120916_221432_gmt_lftside.jpg gopr9641_20120916_221434_gmt_lftside.jpg gopr9642_20120916_221434_gmt_lftside.jpg gopr9643_20120916_221436_gmt_lftside.jpg gopr9644_20120916_221436_gmt_lftside.jpg gopr9645_20120916_221438_gmt_lftside.jpg gopr9648_20120916_221442_gmt_lftside.jpg gopr9649_20120916_221442_gmt_lftside.jpg gopr9650_20120916_221444_gmt_lftside.jpg gopr9651_20120916_221446_gmt_lftside.jpg gopr9652_20120916_221446_gmt_lftside.jpg gopr9653_20120916_221446_gmt_lftside.jpg gopr9654_20120916_221448_gmt_lftside.jpg gopr9655_20120916_221448_gmt_lftside.jpg gopr9656_20120916_221448_gmt_lftside.jpg gopr9657_20120916_221448_gmt_lftside.jpg gopr9660_20120916_221454_gmt_lftside.jpg gopr9661_20120916_221456_gmt_lftside.jpg gopr9662_20120916_221456_gmt_lftside.jpg gopr9663_20120916_221458_gmt_lftside.jpg gopr9664_20120916_221458_gmt_lftside.jpg gopr9665_20120916_221458_gmt_lftside.jpg gopr9666_20120916_221458_gmt_lftside.jpg gopr9667_20120916_221500_gmt_lftside.jpg gopr9670_20120916_221504_gmt_lftside.jpg gopr9671_20120916_221504_gmt_lftside.jpg gopr9672_20120916_221506_gmt_lftside.jpg gopr9673_20120916_221506_gmt_lftside.jpg gopr9674_20120916_221508_gmt_lftside.jpg gopr9675_20120916_221510_gmt_lftside.jpg

Right side Photos for r20120916_004_net

Right side Photos for r20120916_004_net (tracks 7-13)
Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:20
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:20
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:22
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:24
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:26
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:26
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:26
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:26
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:32
Time diff (sec) start/end : 1.81 / 6.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:34
Time diff (sec) start/end : 3.81 / 4.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:34
Time diff (sec) start/end : 3.81 / 4.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:36
Time diff (sec) start/end : 5.81 / 2.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:36
Time diff (sec) start/end : 5.81 / 2.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:38
Time diff (sec) start/end : 7.81 / 0.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:38
Time diff (sec) start/end : 7.81 / 0.19 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:42
Time diff (sec) start/end : 0.59 / 7.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:44
Time diff (sec) start/end : 2.59 / 5.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:44
Time diff (sec) start/end : 2.59 / 5.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:46
Time diff (sec) start/end : 4.59 / 3.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:54
Time diff (sec) start/end : 1.39 / 6.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:54
Time diff (sec) start/end : 1.39 / 6.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:54
Time diff (sec) start/end : 1.39 / 6.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:58
Time diff (sec) start/end : 5.39 / 2.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:58
Time diff (sec) start/end : 5.39 / 2.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:15:00
Time diff (sec) start/end : 7.39 / 0.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:15:00
Time diff (sec) start/end : 7.39 / 0.61 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:04
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:04
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:04
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:06
Time diff (sec) start/end : 2.14 / 5.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:08
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:08
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:10
Time diff (sec) start/end : 6.14 / 1.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:10
Time diff (sec) start/end : 6.14 / 1.86
gopr3078_20120916_221420_gmt_rghtside.jpg gopr3079_20120916_221420_gmt_rghtside.jpg gopr3080_20120916_221422_gmt_rghtside.jpg gopr3081_20120916_221424_gmt_rghtside.jpg gopr3082_20120916_221426_gmt_rghtside.jpg gopr3083_20120916_221426_gmt_rghtside.jpg gopr3084_20120916_221426_gmt_rghtside.jpg gopr3085_20120916_221426_gmt_rghtside.jpg gopr3088_20120916_221432_gmt_rghtside.jpg gopr3089_20120916_221434_gmt_rghtside.jpg gopr3090_20120916_221434_gmt_rghtside.jpg gopr3091_20120916_221436_gmt_rghtside.jpg gopr3092_20120916_221436_gmt_rghtside.jpg gopr3093_20120916_221438_gmt_rghtside.jpg gopr3094_20120916_221438_gmt_rghtside.jpg gopr3098_20120916_221442_gmt_rghtside.jpg gopr3099_20120916_221444_gmt_rghtside.jpg gopr3100_20120916_221444_gmt_rghtside.jpg gopr3101_20120916_221446_gmt_rghtside.jpg gopr3102_20120916_221448_gmt_rghtside.jpg gopr3103_20120916_221448_gmt_rghtside.jpg gopr3104_20120916_221448_gmt_rghtside.jpg gopr3108_20120916_221454_gmt_rghtside.jpg gopr3109_20120916_221454_gmt_rghtside.jpg gopr3110_20120916_221454_gmt_rghtside.jpg gopr3111_20120916_221458_gmt_rghtside.jpg gopr3112_20120916_221458_gmt_rghtside.jpg gopr3113_20120916_221500_gmt_rghtside.jpg gopr3114_20120916_221500_gmt_rghtside.jpg gopr3117_20120916_221504_gmt_rghtside.jpg gopr3118_20120916_221504_gmt_rghtside.jpg gopr3119_20120916_221504_gmt_rghtside.jpg gopr3120_20120916_221506_gmt_rghtside.jpg gopr3121_20120916_221508_gmt_rghtside.jpg gopr3122_20120916_221508_gmt_rghtside.jpg gopr3123_20120916_221510_gmt_rghtside.jpg gopr3124_20120916_221510_gmt_rghtside.jpg

Sky Photos for r20120916_004_net

Sky Photos for r20120916_004_net
Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:19
Time diff (sec) start/end : 0.05 / 7.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:19
Time diff (sec) start/end : 0.05 / 7.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:21
Time diff (sec) start/end : 2.05 / 5.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:23
Time diff (sec) start/end : 4.05 / 3.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:23
Time diff (sec) start/end : 4.05 / 3.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:25
Time diff (sec) start/end : 6.05 / 1.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:25
Time diff (sec) start/end : 6.05 / 1.95 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:31
Time diff (sec) start/end : 0.81 / 7.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:31
Time diff (sec) start/end : 0.81 / 7.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:33
Time diff (sec) start/end : 2.81 / 5.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:35
Time diff (sec) start/end : 4.81 / 3.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:35
Time diff (sec) start/end : 4.81 / 3.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:37
Time diff (sec) start/end : 6.81 / 1.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:37
Time diff (sec) start/end : 6.81 / 1.19 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:43
Time diff (sec) start/end : 1.59 / 6.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:43
Time diff (sec) start/end : 1.59 / 6.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:43
Time diff (sec) start/end : 1.59 / 6.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:45
Time diff (sec) start/end : 3.59 / 4.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:47
Time diff (sec) start/end : 5.59 / 2.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:49
Time diff (sec) start/end : 7.59 / 0.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:49
Time diff (sec) start/end : 7.59 / 0.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:49
Time diff (sec) start/end : 7.59 / 0.41 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:55
Time diff (sec) start/end : 2.39 / 5.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:55
Time diff (sec) start/end : 2.39 / 5.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:55
Time diff (sec) start/end : 2.39 / 5.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:57
Time diff (sec) start/end : 4.39 / 3.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:57
Time diff (sec) start/end : 4.39 / 3.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:59
Time diff (sec) start/end : 6.39 / 1.61 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:07
Time diff (sec) start/end : 3.14 / 4.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:07
Time diff (sec) start/end : 3.14 / 4.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:09
Time diff (sec) start/end : 5.14 / 2.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:09
Time diff (sec) start/end : 5.14 / 2.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:09
Time diff (sec) start/end : 5.14 / 2.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:09
Time diff (sec) start/end : 5.14 / 2.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:11
Time diff (sec) start/end : 7.14 / 0.86
gopr1436_20120916_221419_gmt_cam4.jpg gopr1437_20120916_221419_gmt_cam4.jpg gopr1438_20120916_221421_gmt_cam4.jpg gopr1439_20120916_221423_gmt_cam4.jpg gopr1440_20120916_221423_gmt_cam4.jpg gopr1441_20120916_221425_gmt_cam4.jpg gopr1442_20120916_221425_gmt_cam4.jpg gopr1447_20120916_221431_gmt_cam4.jpg gopr1448_20120916_221431_gmt_cam4.jpg gopr1449_20120916_221433_gmt_cam4.jpg gopr1450_20120916_221435_gmt_cam4.jpg gopr1451_20120916_221435_gmt_cam4.jpg gopr1452_20120916_221437_gmt_cam4.jpg gopr1453_20120916_221437_gmt_cam4.jpg gopr1456_20120916_221443_gmt_cam4.jpg gopr1457_20120916_221443_gmt_cam4.jpg gopr1458_20120916_221443_gmt_cam4.jpg gopr1459_20120916_221445_gmt_cam4.jpg gopr1460_20120916_221447_gmt_cam4.jpg gopr1461_20120916_221449_gmt_cam4.jpg gopr1462_20120916_221449_gmt_cam4.jpg gopr1463_20120916_221449_gmt_cam4.jpg gopr1466_20120916_221455_gmt_cam4.jpg gopr1467_20120916_221455_gmt_cam4.jpg gopr1468_20120916_221455_gmt_cam4.jpg gopr1469_20120916_221457_gmt_cam4.jpg gopr1470_20120916_221457_gmt_cam4.jpg gopr1471_20120916_221459_gmt_cam4.jpg gopr1478_20120916_221507_gmt_cam4.jpg gopr1479_20120916_221507_gmt_cam4.jpg gopr1480_20120916_221509_gmt_cam4.jpg gopr1481_20120916_221509_gmt_cam4.jpg gopr1482_20120916_221509_gmt_cam4.jpg gopr1483_20120916_221509_gmt_cam4.jpg gopr1484_20120916_221511_gmt_cam4.jpg

Horizon Photos for r20120916_004_net

Horizon and obove water fork Photos for r20120916_004_net
Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:20
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:22
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:24
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:26
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 1
Time: 22:14:18.953 to 22:14:26.953
GoPro Time: 22:14:26
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:32
Time diff (sec) start/end : 1.81 / 6.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:34
Time diff (sec) start/end : 3.81 / 4.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:34
Time diff (sec) start/end : 3.81 / 4.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:36
Time diff (sec) start/end : 5.81 / 2.19 		Resonon Image 2
Time: 22:14:30.187 to 22:14:38.187
GoPro Time: 22:14:38
Time diff (sec) start/end : 7.81 / 0.19 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:42
Time diff (sec) start/end : 0.59 / 7.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:42
Time diff (sec) start/end : 0.59 / 7.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:44
Time diff (sec) start/end : 2.59 / 5.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:46
Time diff (sec) start/end : 4.59 / 3.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 3
Time: 22:14:41.406 to 22:14:49.406
GoPro Time: 22:14:48
Time diff (sec) start/end : 6.59 / 1.41 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:54
Time diff (sec) start/end : 1.39 / 6.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:56
Time diff (sec) start/end : 3.39 / 4.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:56
Time diff (sec) start/end : 3.39 / 4.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:14:58
Time diff (sec) start/end : 5.39 / 2.61 		Resonon Image 4
Time: 22:14:52.609 to 22:15:00.609
GoPro Time: 22:15:00
Time diff (sec) start/end : 7.39 / 0.61 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:04
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:04
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:06
Time diff (sec) start/end : 2.14 / 5.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:08
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:10
Time diff (sec) start/end : 6.14 / 1.86 		Resonon Image 5
Time: 22:15:03.859 to 22:15:11.859
GoPro Time: 22:15:10
Time diff (sec) start/end : 6.14 / 1.86
gopr5112_20120916_221420_gmt_horizon.jpg gopr5113_20120916_221422_gmt_horizon.jpg gopr5114_20120916_221424_gmt_horizon.jpg gopr5115_20120916_221426_gmt_horizon.jpg gopr5116_20120916_221426_gmt_horizon.jpg gopr5119_20120916_221432_gmt_horizon.jpg gopr5120_20120916_221434_gmt_horizon.jpg gopr5121_20120916_221434_gmt_horizon.jpg gopr5122_20120916_221436_gmt_horizon.jpg gopr5123_20120916_221438_gmt_horizon.jpg gopr5125_20120916_221442_gmt_horizon.jpg gopr5126_20120916_221442_gmt_horizon.jpg gopr5127_20120916_221444_gmt_horizon.jpg gopr5128_20120916_221446_gmt_horizon.jpg gopr5129_20120916_221448_gmt_horizon.jpg gopr5130_20120916_221448_gmt_horizon.jpg gopr5133_20120916_221454_gmt_horizon.jpg gopr5134_20120916_221456_gmt_horizon.jpg gopr5135_20120916_221456_gmt_horizon.jpg gopr5136_20120916_221458_gmt_horizon.jpg gopr5137_20120916_221500_gmt_horizon.jpg gopr5139_20120916_221504_gmt_horizon.jpg gopr5140_20120916_221504_gmt_horizon.jpg gopr5141_20120916_221506_gmt_horizon.jpg gopr5142_20120916_221508_gmt_horizon.jpg gopr5143_20120916_221510_gmt_horizon.jpg gopr5144_20120916_221510_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:04:19
Created from gopro_mkpages_(12)
