r20120916_024_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:05:33

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120916 23:24:32 23.7603 8
2 20120916 23:24:44 23.7869 8
3 20120916 23:24:55 23.8137 8
4 20120916 23:25:06 23.8404 8
5 20120916 23:25:17 23.8697 8

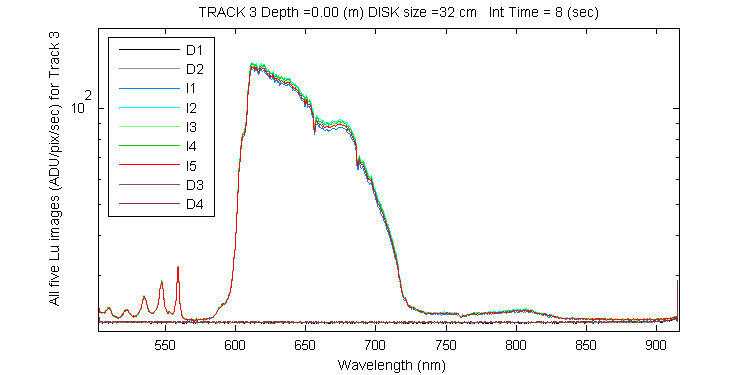

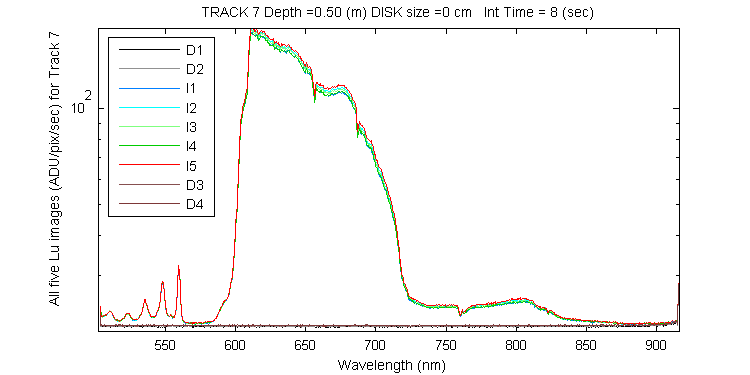

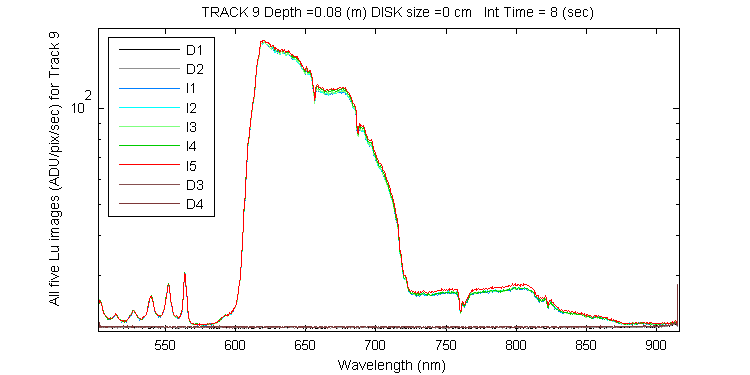

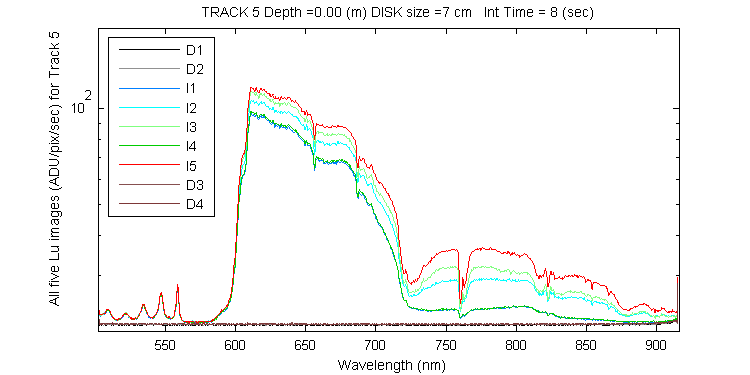

image image

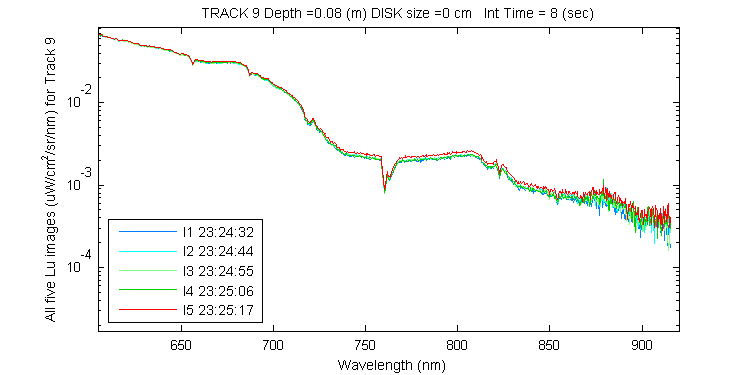

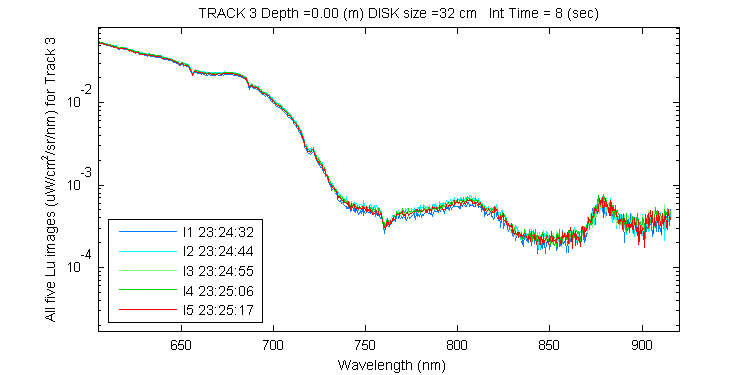

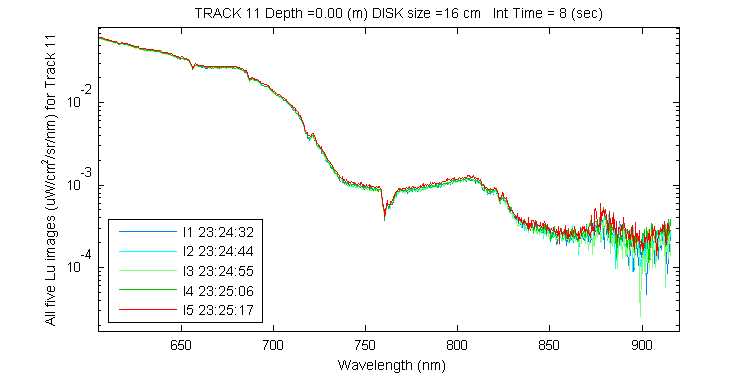

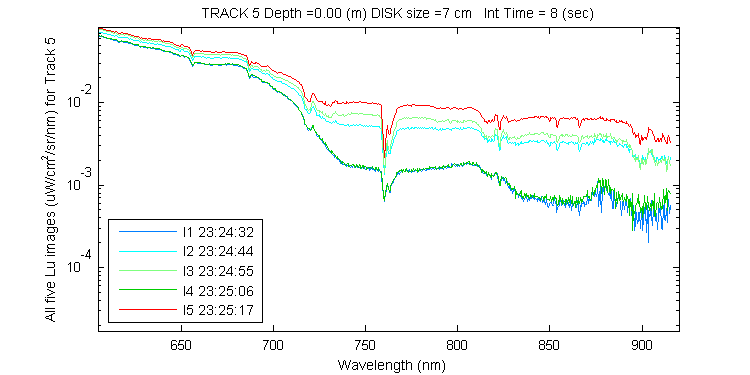

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120916_024_net

Sun Dial Photos for r20120916_024_net
Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:36
Time diff (sec) start/end : 3.16 / 4.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:36
Time diff (sec) start/end : 3.16 / 4.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:38
Time diff (sec) start/end : 5.16 / 2.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:38
Time diff (sec) start/end : 5.16 / 2.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:38
Time diff (sec) start/end : 5.16 / 2.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:38
Time diff (sec) start/end : 5.16 / 2.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:40
Time diff (sec) start/end : 7.16 / 0.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:40
Time diff (sec) start/end : 7.16 / 0.84 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:44
Time diff (sec) start/end : 0.00 / 8.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:46
Time diff (sec) start/end : 2.00 / 6.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:48
Time diff (sec) start/end : 4.00 / 4.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:50
Time diff (sec) start/end : 6.00 / 2.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:50
Time diff (sec) start/end : 6.00 / 2.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:52
Time diff (sec) start/end : 8.00 / 0.00 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:56
Time diff (sec) start/end : 0.83 / 7.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:58
Time diff (sec) start/end : 2.83 / 5.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:58
Time diff (sec) start/end : 2.83 / 5.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:00
Time diff (sec) start/end : 4.83 / 3.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:02
Time diff (sec) start/end : 6.83 / 1.17 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:08
Time diff (sec) start/end : 1.59 / 6.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:10
Time diff (sec) start/end : 3.59 / 4.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:12
Time diff (sec) start/end : 5.59 / 2.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:14
Time diff (sec) start/end : 7.59 / 0.41 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:18
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:20
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:22
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:24
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:24
Time diff (sec) start/end : 6.41 / 1.59
gopr8111_20120916_232436_gmt_sun.png gopr8112_20120916_232436_gmt_sun.png gopr8113_20120916_232438_gmt_sun.png gopr8114_20120916_232438_gmt_sun.png gopr8115_20120916_232438_gmt_sun.png gopr8116_20120916_232438_gmt_sun.png gopr8117_20120916_232440_gmt_sun.png gopr8118_20120916_232440_gmt_sun.png gopr8120_20120916_232444_gmt_sun.png gopr8121_20120916_232446_gmt_sun.png gopr8122_20120916_232448_gmt_sun.png gopr8123_20120916_232450_gmt_sun.png gopr8124_20120916_232450_gmt_sun.png gopr8125_20120916_232452_gmt_sun.png gopr8127_20120916_232456_gmt_sun.png gopr8128_20120916_232458_gmt_sun.png gopr8129_20120916_232458_gmt_sun.png gopr8130_20120916_232500_gmt_sun.png gopr8131_20120916_232502_gmt_sun.png gopr8135_20120916_232508_gmt_sun.png gopr8136_20120916_232510_gmt_sun.png gopr8137_20120916_232512_gmt_sun.png gopr8138_20120916_232514_gmt_sun.png gopr8141_20120916_232518_gmt_sun.png gopr8142_20120916_232520_gmt_sun.png gopr8143_20120916_232522_gmt_sun.png gopr8144_20120916_232524_gmt_sun.png gopr8145_20120916_232524_gmt_sun.png

Left side Photos for r20120916_024_net

Left side Photos for r20120916_024_net (tracks 3 -9)
Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:34
Time diff (sec) start/end : 1.16 / 6.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:36
Time diff (sec) start/end : 3.16 / 4.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:36
Time diff (sec) start/end : 3.16 / 4.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:38
Time diff (sec) start/end : 5.16 / 2.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:40
Time diff (sec) start/end : 7.16 / 0.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:40
Time diff (sec) start/end : 7.16 / 0.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:40
Time diff (sec) start/end : 7.16 / 0.84 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:44
Time diff (sec) start/end : 0.00 / 8.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:44
Time diff (sec) start/end : 0.00 / 8.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:46
Time diff (sec) start/end : 2.00 / 6.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:46
Time diff (sec) start/end : 2.00 / 6.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:48
Time diff (sec) start/end : 4.00 / 4.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:48
Time diff (sec) start/end : 4.00 / 4.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:50
Time diff (sec) start/end : 6.00 / 2.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:50
Time diff (sec) start/end : 6.00 / 2.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:52
Time diff (sec) start/end : 8.00 / 0.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:52
Time diff (sec) start/end : 8.00 / 0.00 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:56
Time diff (sec) start/end : 0.83 / 7.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:58
Time diff (sec) start/end : 2.83 / 5.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:58
Time diff (sec) start/end : 2.83 / 5.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:58
Time diff (sec) start/end : 2.83 / 5.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:00
Time diff (sec) start/end : 4.83 / 3.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:00
Time diff (sec) start/end : 4.83 / 3.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:02
Time diff (sec) start/end : 6.83 / 1.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:02
Time diff (sec) start/end : 6.83 / 1.17 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:08
Time diff (sec) start/end : 1.59 / 6.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:08
Time diff (sec) start/end : 1.59 / 6.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:10
Time diff (sec) start/end : 3.59 / 4.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:10
Time diff (sec) start/end : 3.59 / 4.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:10
Time diff (sec) start/end : 3.59 / 4.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:12
Time diff (sec) start/end : 5.59 / 2.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:12
Time diff (sec) start/end : 5.59 / 2.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:14
Time diff (sec) start/end : 7.59 / 0.41 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:18
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:20
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:20
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:22
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:22
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:24
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:24
Time diff (sec) start/end : 6.41 / 1.59
gopr3429_20120916_232434_gmt_lftside.jpg gopr3430_20120916_232436_gmt_lftside.jpg gopr3431_20120916_232436_gmt_lftside.jpg gopr3432_20120916_232438_gmt_lftside.jpg gopr3433_20120916_232440_gmt_lftside.jpg gopr3434_20120916_232440_gmt_lftside.jpg gopr3435_20120916_232440_gmt_lftside.jpg gopr3437_20120916_232444_gmt_lftside.jpg gopr3438_20120916_232444_gmt_lftside.jpg gopr3439_20120916_232446_gmt_lftside.jpg gopr3440_20120916_232446_gmt_lftside.jpg gopr3441_20120916_232448_gmt_lftside.jpg gopr3442_20120916_232448_gmt_lftside.jpg gopr3443_20120916_232450_gmt_lftside.jpg gopr3444_20120916_232450_gmt_lftside.jpg gopr3445_20120916_232452_gmt_lftside.jpg gopr3446_20120916_232452_gmt_lftside.jpg gopr3448_20120916_232456_gmt_lftside.jpg gopr3449_20120916_232458_gmt_lftside.jpg gopr3450_20120916_232458_gmt_lftside.jpg gopr3451_20120916_232458_gmt_lftside.jpg gopr3452_20120916_232500_gmt_lftside.jpg gopr3453_20120916_232500_gmt_lftside.jpg gopr3454_20120916_232502_gmt_lftside.jpg gopr3455_20120916_232502_gmt_lftside.jpg gopr3458_20120916_232508_gmt_lftside.jpg gopr3459_20120916_232508_gmt_lftside.jpg gopr3460_20120916_232510_gmt_lftside.jpg gopr3461_20120916_232510_gmt_lftside.jpg gopr3462_20120916_232510_gmt_lftside.jpg gopr3463_20120916_232512_gmt_lftside.jpg gopr3464_20120916_232512_gmt_lftside.jpg gopr3465_20120916_232514_gmt_lftside.jpg gopr3468_20120916_232518_gmt_lftside.jpg gopr3469_20120916_232520_gmt_lftside.jpg gopr3470_20120916_232520_gmt_lftside.jpg gopr3471_20120916_232522_gmt_lftside.jpg gopr3472_20120916_232522_gmt_lftside.jpg gopr3473_20120916_232524_gmt_lftside.jpg gopr3474_20120916_232524_gmt_lftside.jpg

Right side Photos for r20120916_024_net

Right side Photos for r20120916_024_net (tracks 7-13)
Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:34
Time diff (sec) start/end : 1.16 / 6.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:34
Time diff (sec) start/end : 1.16 / 6.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:36
Time diff (sec) start/end : 3.16 / 4.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:36
Time diff (sec) start/end : 3.16 / 4.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:38
Time diff (sec) start/end : 5.16 / 2.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:40
Time diff (sec) start/end : 7.16 / 0.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:40
Time diff (sec) start/end : 7.16 / 0.84 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:44
Time diff (sec) start/end : 0.00 / 8.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:44
Time diff (sec) start/end : 0.00 / 8.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:46
Time diff (sec) start/end : 2.00 / 6.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:46
Time diff (sec) start/end : 2.00 / 6.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:48
Time diff (sec) start/end : 4.00 / 4.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:48
Time diff (sec) start/end : 4.00 / 4.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:48
Time diff (sec) start/end : 4.00 / 4.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:50
Time diff (sec) start/end : 6.00 / 2.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:52
Time diff (sec) start/end : 8.00 / 0.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:52
Time diff (sec) start/end : 8.00 / 0.00 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:56
Time diff (sec) start/end : 0.83 / 7.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:56
Time diff (sec) start/end : 0.83 / 7.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:00
Time diff (sec) start/end : 4.83 / 3.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:00
Time diff (sec) start/end : 4.83 / 3.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:00
Time diff (sec) start/end : 4.83 / 3.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:02
Time diff (sec) start/end : 6.83 / 1.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:02
Time diff (sec) start/end : 6.83 / 1.17 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:08
Time diff (sec) start/end : 1.59 / 6.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:08
Time diff (sec) start/end : 1.59 / 6.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:10
Time diff (sec) start/end : 3.59 / 4.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:10
Time diff (sec) start/end : 3.59 / 4.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:10
Time diff (sec) start/end : 3.59 / 4.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:12
Time diff (sec) start/end : 5.59 / 2.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:12
Time diff (sec) start/end : 5.59 / 2.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:14
Time diff (sec) start/end : 7.59 / 0.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:14
Time diff (sec) start/end : 7.59 / 0.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:14
Time diff (sec) start/end : 7.59 / 0.41 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:18
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:18
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:18
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:20
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:20
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:22
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:22
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:24
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:24
Time diff (sec) start/end : 6.41 / 1.59
gopr6847_20120916_232434_gmt_rghtside.jpg gopr6848_20120916_232434_gmt_rghtside.jpg gopr6849_20120916_232436_gmt_rghtside.jpg gopr6850_20120916_232436_gmt_rghtside.jpg gopr6851_20120916_232438_gmt_rghtside.jpg gopr6852_20120916_232440_gmt_rghtside.jpg gopr6853_20120916_232440_gmt_rghtside.jpg gopr6855_20120916_232444_gmt_rghtside.jpg gopr6856_20120916_232444_gmt_rghtside.jpg gopr6857_20120916_232446_gmt_rghtside.jpg gopr6858_20120916_232446_gmt_rghtside.jpg gopr6859_20120916_232448_gmt_rghtside.jpg gopr6860_20120916_232448_gmt_rghtside.jpg gopr6861_20120916_232448_gmt_rghtside.jpg gopr6862_20120916_232450_gmt_rghtside.jpg gopr6863_20120916_232452_gmt_rghtside.jpg gopr6864_20120916_232452_gmt_rghtside.jpg gopr6868_20120916_232456_gmt_rghtside.jpg gopr6869_20120916_232456_gmt_rghtside.jpg gopr6870_20120916_232500_gmt_rghtside.jpg gopr6871_20120916_232500_gmt_rghtside.jpg gopr6872_20120916_232500_gmt_rghtside.jpg gopr6873_20120916_232502_gmt_rghtside.jpg gopr6874_20120916_232502_gmt_rghtside.jpg gopr6878_20120916_232508_gmt_rghtside.jpg gopr6879_20120916_232508_gmt_rghtside.jpg gopr6880_20120916_232510_gmt_rghtside.jpg gopr6881_20120916_232510_gmt_rghtside.jpg gopr6882_20120916_232510_gmt_rghtside.jpg gopr6883_20120916_232512_gmt_rghtside.jpg gopr6884_20120916_232512_gmt_rghtside.jpg gopr6885_20120916_232514_gmt_rghtside.jpg gopr6886_20120916_232514_gmt_rghtside.jpg gopr6887_20120916_232514_gmt_rghtside.jpg gopr6890_20120916_232518_gmt_rghtside.jpg gopr6891_20120916_232518_gmt_rghtside.jpg gopr6892_20120916_232518_gmt_rghtside.jpg gopr6893_20120916_232520_gmt_rghtside.jpg gopr6894_20120916_232520_gmt_rghtside.jpg gopr6895_20120916_232522_gmt_rghtside.jpg gopr6896_20120916_232522_gmt_rghtside.jpg gopr6897_20120916_232524_gmt_rghtside.jpg gopr6898_20120916_232524_gmt_rghtside.jpg

Sky Photos for r20120916_024_net

Sky Photos for r20120916_024_net
Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:23:47
Time diff (sec) start/end : 45.84 / 53.84 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:23:47
Time diff (sec) start/end : 57.00 / 65.00 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:23:47
Time diff (sec) start/end : 68.17 / 76.17 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:23:47
Time diff (sec) start/end : 79.41 / 87.41 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:23:47
Time diff (sec) start/end : 90.59 / 98.59
gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg

Horizon Photos for r20120916_024_net

Horizon and obove water fork Photos for r20120916_024_net
Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:36
Time diff (sec) start/end : 3.16 / 4.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:36
Time diff (sec) start/end : 3.16 / 4.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:38
Time diff (sec) start/end : 5.16 / 2.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:38
Time diff (sec) start/end : 5.16 / 2.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:38
Time diff (sec) start/end : 5.16 / 2.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:38
Time diff (sec) start/end : 5.16 / 2.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:40
Time diff (sec) start/end : 7.16 / 0.84 		Resonon Image 1
Time: 23:24:32.843 to 23:24:40.843
GoPro Time: 23:24:40
Time diff (sec) start/end : 7.16 / 0.84 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:44
Time diff (sec) start/end : 0.00 / 8.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:46
Time diff (sec) start/end : 2.00 / 6.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:48
Time diff (sec) start/end : 4.00 / 4.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:50
Time diff (sec) start/end : 6.00 / 2.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:50
Time diff (sec) start/end : 6.00 / 2.00 		Resonon Image 2
Time: 23:24:44.000 to 23:24:52.000
GoPro Time: 23:24:52
Time diff (sec) start/end : 8.00 / 0.00 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:56
Time diff (sec) start/end : 0.83 / 7.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:58
Time diff (sec) start/end : 2.83 / 5.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:24:58
Time diff (sec) start/end : 2.83 / 5.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:00
Time diff (sec) start/end : 4.83 / 3.17 		Resonon Image 3
Time: 23:24:55.171 to 23:25:03.171
GoPro Time: 23:25:02
Time diff (sec) start/end : 6.83 / 1.17 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:08
Time diff (sec) start/end : 1.59 / 6.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:10
Time diff (sec) start/end : 3.59 / 4.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:12
Time diff (sec) start/end : 5.59 / 2.41 		Resonon Image 4
Time: 23:25:06.406 to 23:25:14.406
GoPro Time: 23:25:14
Time diff (sec) start/end : 7.59 / 0.41 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:18
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:20
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:22
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:24
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 23:25:17.593 to 23:25:25.593
GoPro Time: 23:25:24
Time diff (sec) start/end : 6.41 / 1.59
gopr8111_20120916_232436_gmt_horizon.jpg gopr8112_20120916_232436_gmt_horizon.jpg gopr8113_20120916_232438_gmt_horizon.jpg gopr8114_20120916_232438_gmt_horizon.jpg gopr8115_20120916_232438_gmt_horizon.jpg gopr8116_20120916_232438_gmt_horizon.jpg gopr8117_20120916_232440_gmt_horizon.jpg gopr8118_20120916_232440_gmt_horizon.jpg gopr8120_20120916_232444_gmt_horizon.jpg gopr8121_20120916_232446_gmt_horizon.jpg gopr8122_20120916_232448_gmt_horizon.jpg gopr8123_20120916_232450_gmt_horizon.jpg gopr8124_20120916_232450_gmt_horizon.jpg gopr8125_20120916_232452_gmt_horizon.jpg gopr8127_20120916_232456_gmt_horizon.jpg gopr8128_20120916_232458_gmt_horizon.jpg gopr8129_20120916_232458_gmt_horizon.jpg gopr8130_20120916_232500_gmt_horizon.jpg gopr8131_20120916_232502_gmt_horizon.jpg gopr8135_20120916_232508_gmt_horizon.jpg gopr8136_20120916_232510_gmt_horizon.jpg gopr8137_20120916_232512_gmt_horizon.jpg gopr8138_20120916_232514_gmt_horizon.jpg gopr8141_20120916_232518_gmt_horizon.jpg gopr8142_20120916_232520_gmt_horizon.jpg gopr8143_20120916_232522_gmt_horizon.jpg gopr8144_20120916_232524_gmt_horizon.jpg gopr8145_20120916_232524_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:05:37
Created from gopro_mkpages_(12)
