r20120916_029_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:05:54

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

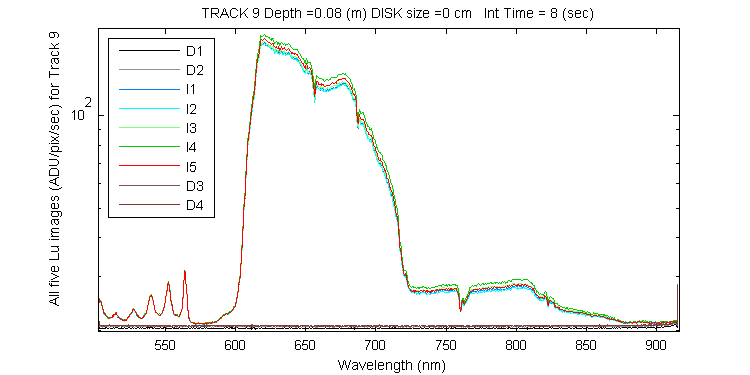

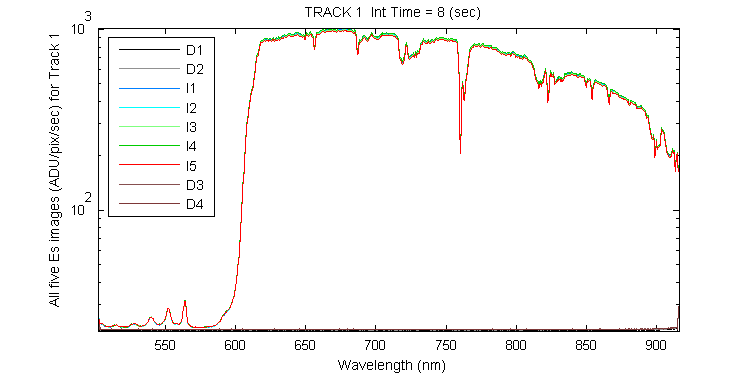

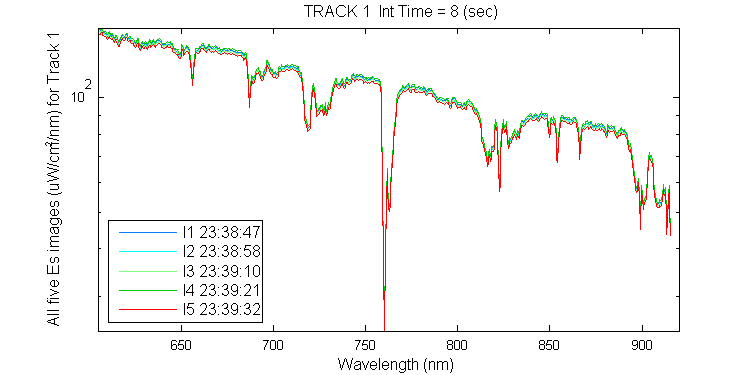

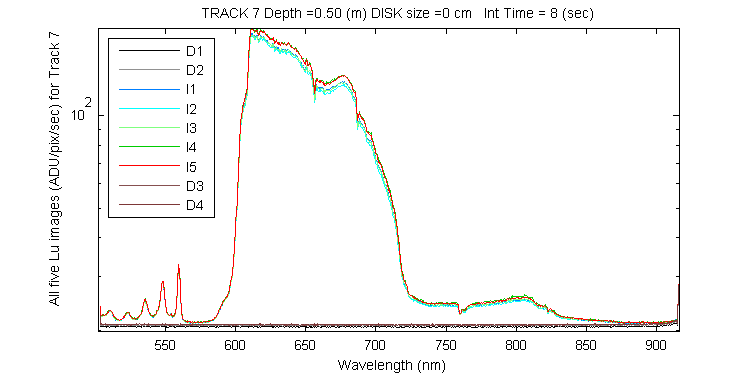

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120916 23:38:47 25.9798 8
2 20120916 23:38:58 26.0101 8
3 20120916 23:39:10 26.0405 8
4 20120916 23:39:21 26.0709 8
5 20120916 23:39:32 26.1013 8
image image

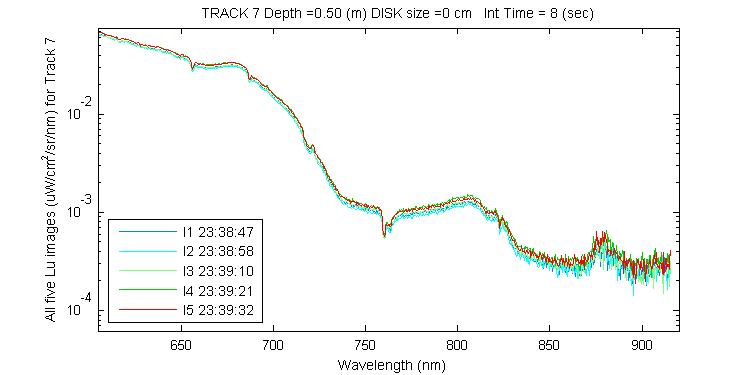

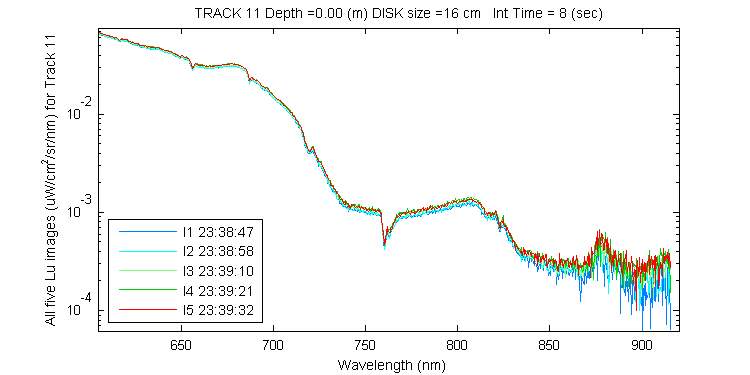

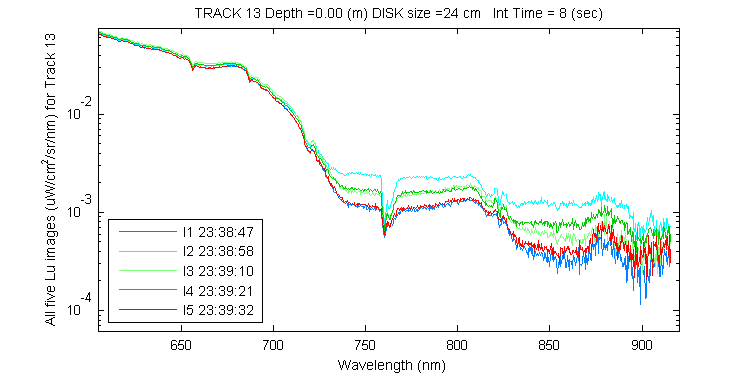

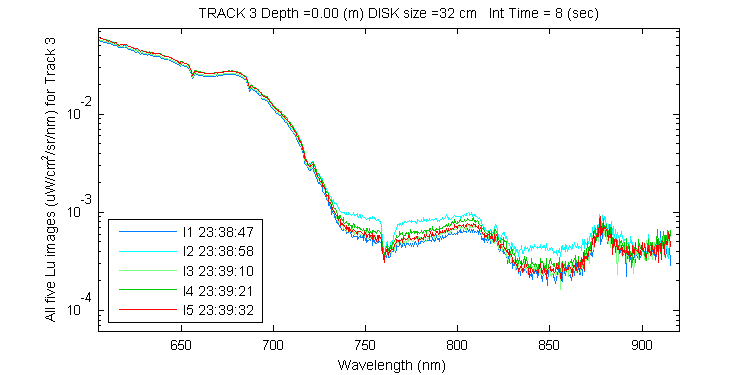

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120916_029_net

Sun Dial Photos for r20120916_029_net
Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:48
Time diff (sec) start/end : 0.20 / 7.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:50
Time diff (sec) start/end : 2.20 / 5.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:50
Time diff (sec) start/end : 2.20 / 5.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:52
Time diff (sec) start/end : 4.20 / 3.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:52
Time diff (sec) start/end : 4.20 / 3.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:52
Time diff (sec) start/end : 4.20 / 3.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:54
Time diff (sec) start/end : 6.20 / 1.80 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:00
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:00
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:02
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:02
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:04
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:06
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:12
Time diff (sec) start/end : 1.88 / 6.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:12
Time diff (sec) start/end : 1.88 / 6.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:14
Time diff (sec) start/end : 3.88 / 4.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:14
Time diff (sec) start/end : 3.88 / 4.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:14
Time diff (sec) start/end : 3.88 / 4.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:16
Time diff (sec) start/end : 5.88 / 2.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:16
Time diff (sec) start/end : 5.88 / 2.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:18
Time diff (sec) start/end : 7.88 / 0.12 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:22
Time diff (sec) start/end : 0.70 / 7.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:22
Time diff (sec) start/end : 0.70 / 7.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:24
Time diff (sec) start/end : 2.70 / 5.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:26
Time diff (sec) start/end : 4.70 / 3.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:36
Time diff (sec) start/end : 3.55 / 4.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:38
Time diff (sec) start/end : 5.55 / 2.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:40
Time diff (sec) start/end : 7.55 / 0.45
gopr8751_20120916_233848_gmt_sun.png gopr8752_20120916_233850_gmt_sun.png gopr8753_20120916_233850_gmt_sun.png gopr8754_20120916_233852_gmt_sun.png gopr8755_20120916_233852_gmt_sun.png gopr8756_20120916_233852_gmt_sun.png gopr8757_20120916_233854_gmt_sun.png gopr8761_20120916_233900_gmt_sun.png gopr8762_20120916_233900_gmt_sun.png gopr8763_20120916_233902_gmt_sun.png gopr8764_20120916_233902_gmt_sun.png gopr8765_20120916_233904_gmt_sun.png gopr8766_20120916_233906_gmt_sun.png gopr8771_20120916_233912_gmt_sun.png gopr8772_20120916_233912_gmt_sun.png gopr8773_20120916_233914_gmt_sun.png gopr8774_20120916_233914_gmt_sun.png gopr8775_20120916_233914_gmt_sun.png gopr8776_20120916_233916_gmt_sun.png gopr8777_20120916_233916_gmt_sun.png gopr8778_20120916_233918_gmt_sun.png gopr8780_20120916_233922_gmt_sun.png gopr8781_20120916_233922_gmt_sun.png gopr8782_20120916_233924_gmt_sun.png gopr8783_20120916_233926_gmt_sun.png gopr8784_20120916_233928_gmt_sun.png gopr8785_20120916_233928_gmt_sun.png gopr8786_20120916_233928_gmt_sun.png gopr8787_20120916_233928_gmt_sun.png gopr8788_20120916_233928_gmt_sun.png gopr8789_20120916_233934_gmt_sun.png gopr8790_20120916_233934_gmt_sun.png gopr8791_20120916_233934_gmt_sun.png gopr8792_20120916_233934_gmt_sun.png gopr8793_20120916_233936_gmt_sun.png gopr8794_20120916_233938_gmt_sun.png gopr8795_20120916_233940_gmt_sun.png

Left side Photos for r20120916_029_net

Left side Photos for r20120916_029_net (tracks 3 -9)
Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:48
Time diff (sec) start/end : 0.20 / 7.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:50
Time diff (sec) start/end : 2.20 / 5.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:50
Time diff (sec) start/end : 2.20 / 5.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:52
Time diff (sec) start/end : 4.20 / 3.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:52
Time diff (sec) start/end : 4.20 / 3.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:54
Time diff (sec) start/end : 6.20 / 1.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:54
Time diff (sec) start/end : 6.20 / 1.80 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:00
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:00
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:02
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:02
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:04
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:04
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:06
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:12
Time diff (sec) start/end : 1.88 / 6.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:12
Time diff (sec) start/end : 1.88 / 6.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:14
Time diff (sec) start/end : 3.88 / 4.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:14
Time diff (sec) start/end : 3.88 / 4.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:16
Time diff (sec) start/end : 5.88 / 2.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:16
Time diff (sec) start/end : 5.88 / 2.12 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:22
Time diff (sec) start/end : 0.70 / 7.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:22
Time diff (sec) start/end : 0.70 / 7.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:24
Time diff (sec) start/end : 2.70 / 5.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:26
Time diff (sec) start/end : 4.70 / 3.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:36
Time diff (sec) start/end : 3.55 / 4.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:38
Time diff (sec) start/end : 5.55 / 2.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:38
Time diff (sec) start/end : 5.55 / 2.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:38
Time diff (sec) start/end : 5.55 / 2.45
gopr4213_20120916_233848_gmt_lftside.jpg gopr4214_20120916_233850_gmt_lftside.jpg gopr4215_20120916_233850_gmt_lftside.jpg gopr4216_20120916_233852_gmt_lftside.jpg gopr4217_20120916_233852_gmt_lftside.jpg gopr4218_20120916_233854_gmt_lftside.jpg gopr4219_20120916_233854_gmt_lftside.jpg gopr4222_20120916_233900_gmt_lftside.jpg gopr4223_20120916_233900_gmt_lftside.jpg gopr4224_20120916_233902_gmt_lftside.jpg gopr4225_20120916_233902_gmt_lftside.jpg gopr4226_20120916_233904_gmt_lftside.jpg gopr4227_20120916_233904_gmt_lftside.jpg gopr4228_20120916_233906_gmt_lftside.jpg gopr4232_20120916_233912_gmt_lftside.jpg gopr4233_20120916_233912_gmt_lftside.jpg gopr4234_20120916_233914_gmt_lftside.jpg gopr4235_20120916_233914_gmt_lftside.jpg gopr4236_20120916_233916_gmt_lftside.jpg gopr4237_20120916_233916_gmt_lftside.jpg gopr4241_20120916_233922_gmt_lftside.jpg gopr4242_20120916_233922_gmt_lftside.jpg gopr4243_20120916_233924_gmt_lftside.jpg gopr4244_20120916_233926_gmt_lftside.jpg gopr4245_20120916_233928_gmt_lftside.jpg gopr4246_20120916_233928_gmt_lftside.jpg gopr4251_20120916_233934_gmt_lftside.jpg gopr4252_20120916_233934_gmt_lftside.jpg gopr4253_20120916_233936_gmt_lftside.jpg gopr4254_20120916_233938_gmt_lftside.jpg gopr4255_20120916_233938_gmt_lftside.jpg gopr4256_20120916_233938_gmt_lftside.jpg

Right side Photos for r20120916_029_net

Right side Photos for r20120916_029_net (tracks 7-13)
Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:48
Time diff (sec) start/end : 0.20 / 7.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:48
Time diff (sec) start/end : 0.20 / 7.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:50
Time diff (sec) start/end : 2.20 / 5.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:52
Time diff (sec) start/end : 4.20 / 3.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:54
Time diff (sec) start/end : 6.20 / 1.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:54
Time diff (sec) start/end : 6.20 / 1.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:54
Time diff (sec) start/end : 6.20 / 1.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:54
Time diff (sec) start/end : 6.20 / 1.80 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:00
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:00
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:02
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:02
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:04
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:04
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:06
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:12
Time diff (sec) start/end : 1.88 / 6.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:12
Time diff (sec) start/end : 1.88 / 6.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:14
Time diff (sec) start/end : 3.88 / 4.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:16
Time diff (sec) start/end : 5.88 / 2.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:18
Time diff (sec) start/end : 7.88 / 0.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:18
Time diff (sec) start/end : 7.88 / 0.12 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:22
Time diff (sec) start/end : 0.70 / 7.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:24
Time diff (sec) start/end : 2.70 / 5.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:26
Time diff (sec) start/end : 4.70 / 3.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:26
Time diff (sec) start/end : 4.70 / 3.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:38
Time diff (sec) start/end : 5.55 / 2.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:38
Time diff (sec) start/end : 5.55 / 2.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:40
Time diff (sec) start/end : 7.55 / 0.45
gopr7601_20120916_233848_gmt_rghtside.jpg gopr7602_20120916_233848_gmt_rghtside.jpg gopr7603_20120916_233850_gmt_rghtside.jpg gopr7604_20120916_233852_gmt_rghtside.jpg gopr7605_20120916_233854_gmt_rghtside.jpg gopr7606_20120916_233854_gmt_rghtside.jpg gopr7607_20120916_233854_gmt_rghtside.jpg gopr7608_20120916_233854_gmt_rghtside.jpg gopr7611_20120916_233900_gmt_rghtside.jpg gopr7612_20120916_233900_gmt_rghtside.jpg gopr7613_20120916_233902_gmt_rghtside.jpg gopr7614_20120916_233902_gmt_rghtside.jpg gopr7615_20120916_233904_gmt_rghtside.jpg gopr7616_20120916_233904_gmt_rghtside.jpg gopr7617_20120916_233906_gmt_rghtside.jpg gopr7622_20120916_233912_gmt_rghtside.jpg gopr7623_20120916_233912_gmt_rghtside.jpg gopr7624_20120916_233914_gmt_rghtside.jpg gopr7625_20120916_233916_gmt_rghtside.jpg gopr7626_20120916_233918_gmt_rghtside.jpg gopr7627_20120916_233918_gmt_rghtside.jpg gopr7630_20120916_233922_gmt_rghtside.jpg gopr7631_20120916_233924_gmt_rghtside.jpg gopr7632_20120916_233926_gmt_rghtside.jpg gopr7633_20120916_233926_gmt_rghtside.jpg gopr7634_20120916_233928_gmt_rghtside.jpg gopr7635_20120916_233928_gmt_rghtside.jpg gopr7640_20120916_233934_gmt_rghtside.jpg gopr7641_20120916_233934_gmt_rghtside.jpg gopr7642_20120916_233934_gmt_rghtside.jpg gopr7643_20120916_233934_gmt_rghtside.jpg gopr7644_20120916_233938_gmt_rghtside.jpg gopr7645_20120916_233938_gmt_rghtside.jpg gopr7646_20120916_233940_gmt_rghtside.jpg

Sky Photos for r20120916_029_net

Sky Photos for r20120916_029_net
Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:23:47
Time diff (sec) start/end : 900.80 / 908.80 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:23:47
Time diff (sec) start/end : 911.95 / 919.95 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:23:47
Time diff (sec) start/end : 923.12 / 931.12 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:23:47
Time diff (sec) start/end : 934.30 / 942.30 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:23:47
Time diff (sec) start/end : 945.45 / 953.45
gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg

Horizon Photos for r20120916_029_net

Horizon and obove water fork Photos for r20120916_029_net
Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:48
Time diff (sec) start/end : 0.20 / 7.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:50
Time diff (sec) start/end : 2.20 / 5.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:50
Time diff (sec) start/end : 2.20 / 5.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:52
Time diff (sec) start/end : 4.20 / 3.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:52
Time diff (sec) start/end : 4.20 / 3.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:52
Time diff (sec) start/end : 4.20 / 3.80 		Resonon Image 1
Time: 23:38:47.796 to 23:38:55.796
GoPro Time: 23:38:54
Time diff (sec) start/end : 6.20 / 1.80 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:00
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:00
Time diff (sec) start/end : 1.05 / 6.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:02
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:02
Time diff (sec) start/end : 3.05 / 4.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:04
Time diff (sec) start/end : 5.05 / 2.95 		Resonon Image 2
Time: 23:38:58.953 to 23:39:06.953
GoPro Time: 23:39:06
Time diff (sec) start/end : 7.05 / 0.95 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:12
Time diff (sec) start/end : 1.88 / 6.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:12
Time diff (sec) start/end : 1.88 / 6.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:14
Time diff (sec) start/end : 3.88 / 4.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:14
Time diff (sec) start/end : 3.88 / 4.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:14
Time diff (sec) start/end : 3.88 / 4.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:16
Time diff (sec) start/end : 5.88 / 2.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:16
Time diff (sec) start/end : 5.88 / 2.12 		Resonon Image 3
Time: 23:39:10.125 to 23:39:18.125
GoPro Time: 23:39:18
Time diff (sec) start/end : 7.88 / 0.12 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:22
Time diff (sec) start/end : 0.70 / 7.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:22
Time diff (sec) start/end : 0.70 / 7.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:24
Time diff (sec) start/end : 2.70 / 5.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:26
Time diff (sec) start/end : 4.70 / 3.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 4
Time: 23:39:21.296 to 23:39:29.296
GoPro Time: 23:39:28
Time diff (sec) start/end : 6.70 / 1.30 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:34
Time diff (sec) start/end : 1.55 / 6.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:36
Time diff (sec) start/end : 3.55 / 4.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:38
Time diff (sec) start/end : 5.55 / 2.45 		Resonon Image 5
Time: 23:39:32.453 to 23:39:40.453
GoPro Time: 23:39:40
Time diff (sec) start/end : 7.55 / 0.45
gopr8751_20120916_233848_gmt_horizon.jpg gopr8752_20120916_233850_gmt_horizon.jpg gopr8753_20120916_233850_gmt_horizon.jpg gopr8754_20120916_233852_gmt_horizon.jpg gopr8755_20120916_233852_gmt_horizon.jpg gopr8756_20120916_233852_gmt_horizon.jpg gopr8757_20120916_233854_gmt_horizon.jpg gopr8761_20120916_233900_gmt_horizon.jpg gopr8762_20120916_233900_gmt_horizon.jpg gopr8763_20120916_233902_gmt_horizon.jpg gopr8764_20120916_233902_gmt_horizon.jpg gopr8765_20120916_233904_gmt_horizon.jpg gopr8766_20120916_233906_gmt_horizon.jpg gopr8771_20120916_233912_gmt_horizon.jpg gopr8772_20120916_233912_gmt_horizon.jpg gopr8773_20120916_233914_gmt_horizon.jpg gopr8774_20120916_233914_gmt_horizon.jpg gopr8775_20120916_233914_gmt_horizon.jpg gopr8776_20120916_233916_gmt_horizon.jpg gopr8777_20120916_233916_gmt_horizon.jpg gopr8778_20120916_233918_gmt_horizon.jpg gopr8780_20120916_233922_gmt_horizon.jpg gopr8781_20120916_233922_gmt_horizon.jpg gopr8782_20120916_233924_gmt_horizon.jpg gopr8783_20120916_233926_gmt_horizon.jpg gopr8784_20120916_233928_gmt_horizon.jpg gopr8785_20120916_233928_gmt_horizon.jpg gopr8786_20120916_233928_gmt_horizon.jpg gopr8787_20120916_233928_gmt_horizon.jpg gopr8788_20120916_233928_gmt_horizon.jpg gopr8789_20120916_233934_gmt_horizon.jpg gopr8790_20120916_233934_gmt_horizon.jpg gopr8791_20120916_233934_gmt_horizon.jpg gopr8792_20120916_233934_gmt_horizon.jpg gopr8793_20120916_233936_gmt_horizon.jpg gopr8794_20120916_233938_gmt_horizon.jpg gopr8795_20120916_233940_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:05:57
Created from gopro_mkpages_(12)
