r20120916_032_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:06:05

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

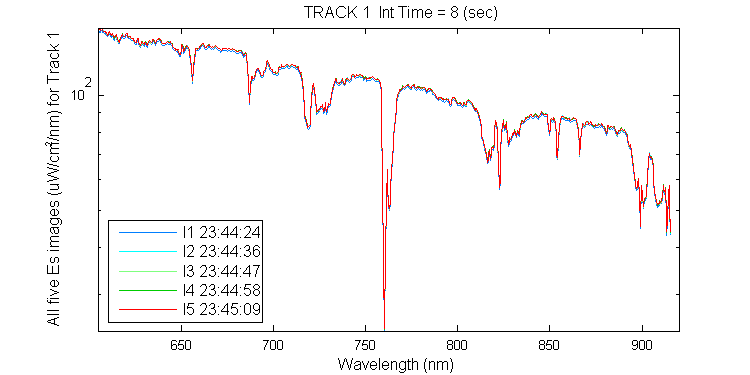

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

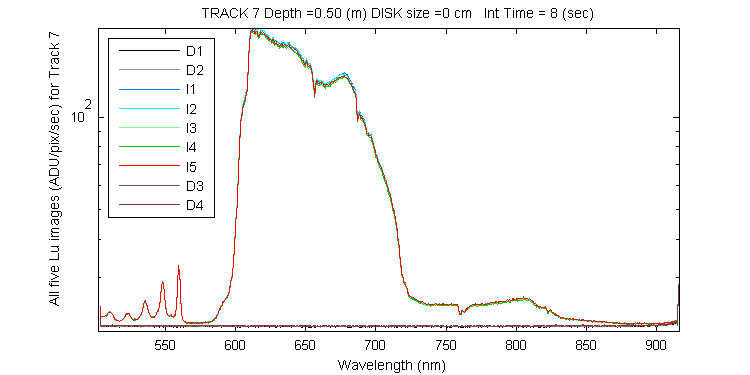

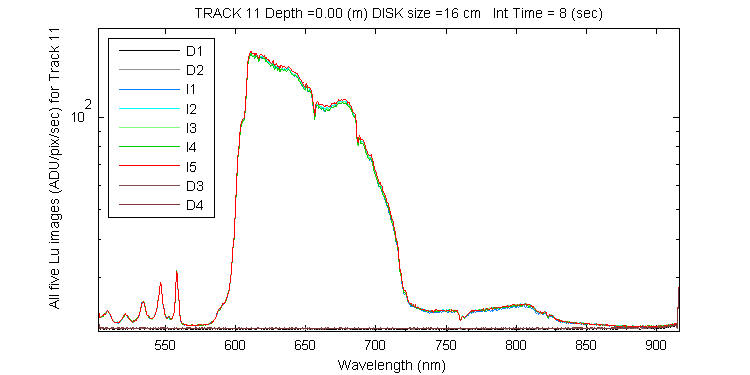

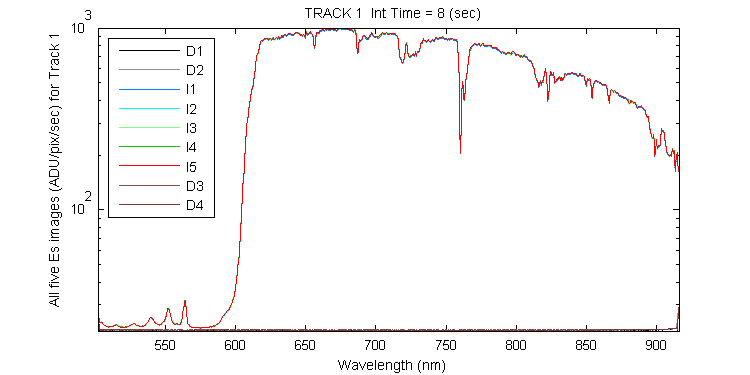

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120916 23:44:24 26.9271 8
2 20120916 23:44:36 26.9586 8
3 20120916 23:44:47 26.9902 8
4 20120916 23:44:58 27.0218 8
5 20120916 23:45:09 27.0563 8
image image

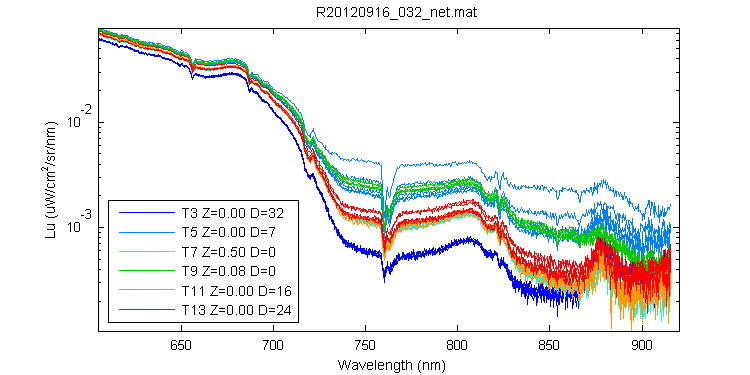

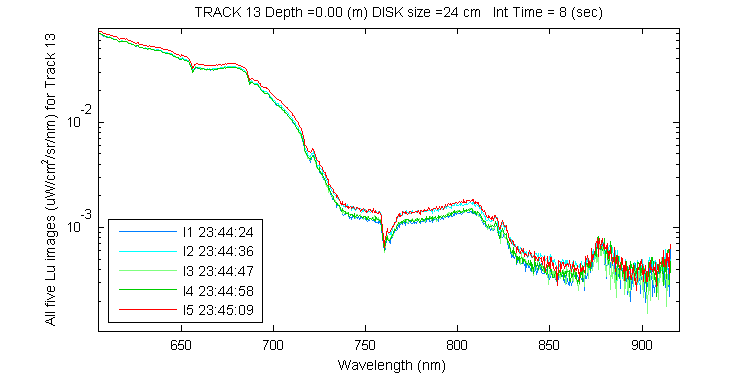

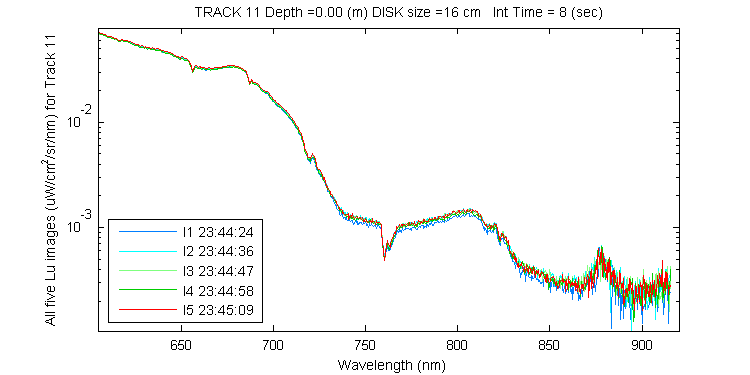

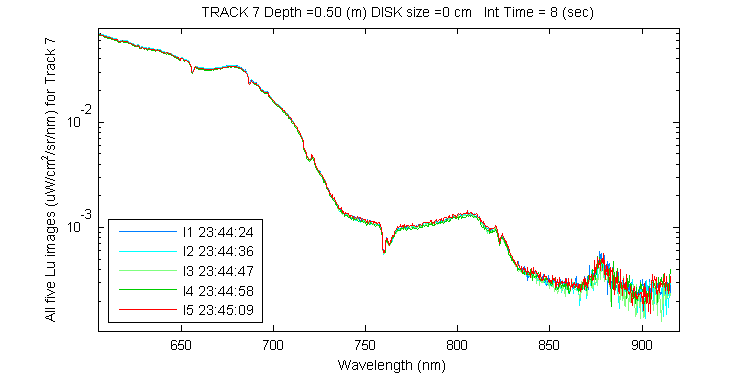

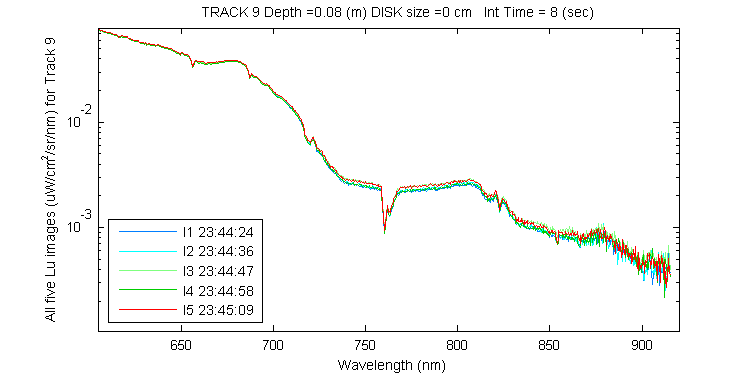

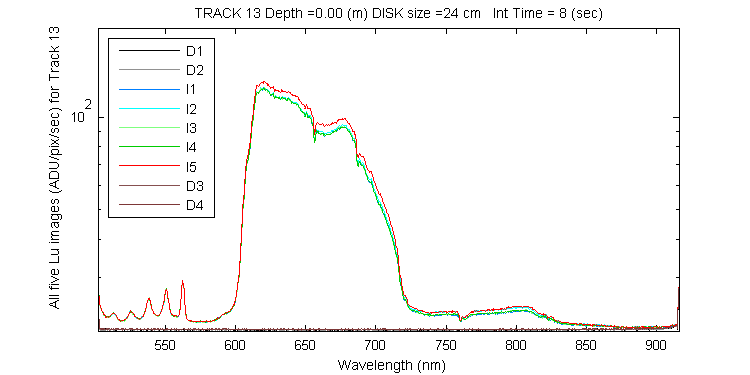

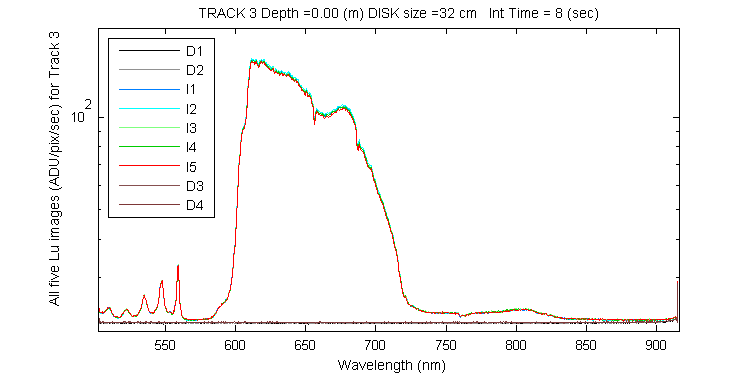

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120916_032_net

Sun Dial Photos for r20120916_032_net
Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:28
Time diff (sec) start/end : 3.06 / 4.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:30
Time diff (sec) start/end : 5.06 / 2.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:32
Time diff (sec) start/end : 7.06 / 0.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:32
Time diff (sec) start/end : 7.06 / 0.94 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:42
Time diff (sec) start/end : 5.91 / 2.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:44
Time diff (sec) start/end : 7.91 / 0.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:44
Time diff (sec) start/end : 7.91 / 0.09 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:48
Time diff (sec) start/end : 0.73 / 7.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:50
Time diff (sec) start/end : 2.73 / 5.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:52
Time diff (sec) start/end : 4.73 / 3.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:52
Time diff (sec) start/end : 4.73 / 3.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:54
Time diff (sec) start/end : 6.73 / 1.27 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:00
Time diff (sec) start/end : 1.58 / 6.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:00
Time diff (sec) start/end : 1.58 / 6.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:02
Time diff (sec) start/end : 3.58 / 4.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:04
Time diff (sec) start/end : 5.58 / 2.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:06
Time diff (sec) start/end : 7.58 / 0.42 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:10
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:12
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:14
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:16
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:16
Time diff (sec) start/end : 6.41 / 1.59
gopr8985_20120916_234426_gmt_sun.png gopr8986_20120916_234426_gmt_sun.png gopr8987_20120916_234426_gmt_sun.png gopr8988_20120916_234428_gmt_sun.png gopr8989_20120916_234430_gmt_sun.png gopr8990_20120916_234432_gmt_sun.png gopr8991_20120916_234432_gmt_sun.png gopr8994_20120916_234438_gmt_sun.png gopr8995_20120916_234438_gmt_sun.png gopr8996_20120916_234438_gmt_sun.png gopr8997_20120916_234438_gmt_sun.png gopr8998_20120916_234442_gmt_sun.png gopr8999_20120916_234444_gmt_sun.png gopr9000_20120916_234444_gmt_sun.png gopr9002_20120916_234448_gmt_sun.png gopr9003_20120916_234450_gmt_sun.png gopr9004_20120916_234452_gmt_sun.png gopr9005_20120916_234452_gmt_sun.png gopr9006_20120916_234454_gmt_sun.png gopr9009_20120916_234500_gmt_sun.png gopr9010_20120916_234500_gmt_sun.png gopr9011_20120916_234502_gmt_sun.png gopr9012_20120916_234504_gmt_sun.png gopr9013_20120916_234506_gmt_sun.png gopr9016_20120916_234510_gmt_sun.png gopr9017_20120916_234512_gmt_sun.png gopr9018_20120916_234514_gmt_sun.png gopr9019_20120916_234516_gmt_sun.png gopr9020_20120916_234516_gmt_sun.png

Left side Photos for r20120916_032_net

Left side Photos for r20120916_032_net (tracks 3 -9)
Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:28
Time diff (sec) start/end : 3.06 / 4.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:28
Time diff (sec) start/end : 3.06 / 4.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:30
Time diff (sec) start/end : 5.06 / 2.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:32
Time diff (sec) start/end : 7.06 / 0.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:32
Time diff (sec) start/end : 7.06 / 0.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:32
Time diff (sec) start/end : 7.06 / 0.94 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:40
Time diff (sec) start/end : 3.91 / 4.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:40
Time diff (sec) start/end : 3.91 / 4.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:42
Time diff (sec) start/end : 5.91 / 2.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:42
Time diff (sec) start/end : 5.91 / 2.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:42
Time diff (sec) start/end : 5.91 / 2.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:44
Time diff (sec) start/end : 7.91 / 0.09 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:48
Time diff (sec) start/end : 0.73 / 7.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:48
Time diff (sec) start/end : 0.73 / 7.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:50
Time diff (sec) start/end : 2.73 / 5.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:50
Time diff (sec) start/end : 2.73 / 5.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:52
Time diff (sec) start/end : 4.73 / 3.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:54
Time diff (sec) start/end : 6.73 / 1.27 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:00
Time diff (sec) start/end : 1.58 / 6.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:00
Time diff (sec) start/end : 1.58 / 6.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:02
Time diff (sec) start/end : 3.58 / 4.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:02
Time diff (sec) start/end : 3.58 / 4.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:04
Time diff (sec) start/end : 5.58 / 2.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:06
Time diff (sec) start/end : 7.58 / 0.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:06
Time diff (sec) start/end : 7.58 / 0.42 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:10
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:10
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:10
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:12
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:12
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:14
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:16
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:16
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:16
Time diff (sec) start/end : 6.41 / 1.59
gopr4497_20120916_234426_gmt_lftside.jpg gopr4498_20120916_234426_gmt_lftside.jpg gopr4499_20120916_234428_gmt_lftside.jpg gopr4500_20120916_234428_gmt_lftside.jpg gopr4501_20120916_234430_gmt_lftside.jpg gopr4502_20120916_234432_gmt_lftside.jpg gopr4503_20120916_234432_gmt_lftside.jpg gopr4504_20120916_234432_gmt_lftside.jpg gopr4508_20120916_234438_gmt_lftside.jpg gopr4509_20120916_234440_gmt_lftside.jpg gopr4510_20120916_234440_gmt_lftside.jpg gopr4511_20120916_234442_gmt_lftside.jpg gopr4512_20120916_234442_gmt_lftside.jpg gopr4513_20120916_234442_gmt_lftside.jpg gopr4514_20120916_234444_gmt_lftside.jpg gopr4516_20120916_234448_gmt_lftside.jpg gopr4517_20120916_234448_gmt_lftside.jpg gopr4518_20120916_234450_gmt_lftside.jpg gopr4519_20120916_234450_gmt_lftside.jpg gopr4520_20120916_234452_gmt_lftside.jpg gopr4521_20120916_234454_gmt_lftside.jpg gopr4526_20120916_234500_gmt_lftside.jpg gopr4527_20120916_234500_gmt_lftside.jpg gopr4528_20120916_234502_gmt_lftside.jpg gopr4529_20120916_234502_gmt_lftside.jpg gopr4530_20120916_234504_gmt_lftside.jpg gopr4531_20120916_234506_gmt_lftside.jpg gopr4532_20120916_234506_gmt_lftside.jpg gopr4534_20120916_234510_gmt_lftside.jpg gopr4535_20120916_234510_gmt_lftside.jpg gopr4536_20120916_234510_gmt_lftside.jpg gopr4537_20120916_234512_gmt_lftside.jpg gopr4538_20120916_234512_gmt_lftside.jpg gopr4539_20120916_234514_gmt_lftside.jpg gopr4540_20120916_234516_gmt_lftside.jpg gopr4541_20120916_234516_gmt_lftside.jpg gopr4542_20120916_234516_gmt_lftside.jpg

Right side Photos for r20120916_032_net

Right side Photos for r20120916_032_net (tracks 7-13)
Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:30
Time diff (sec) start/end : 5.06 / 2.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:30
Time diff (sec) start/end : 5.06 / 2.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:32
Time diff (sec) start/end : 7.06 / 0.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:32
Time diff (sec) start/end : 7.06 / 0.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:32
Time diff (sec) start/end : 7.06 / 0.94 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:40
Time diff (sec) start/end : 3.91 / 4.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:40
Time diff (sec) start/end : 3.91 / 4.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:42
Time diff (sec) start/end : 5.91 / 2.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:42
Time diff (sec) start/end : 5.91 / 2.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:44
Time diff (sec) start/end : 7.91 / 0.09 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:48
Time diff (sec) start/end : 0.73 / 7.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:48
Time diff (sec) start/end : 0.73 / 7.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:50
Time diff (sec) start/end : 2.73 / 5.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:50
Time diff (sec) start/end : 2.73 / 5.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:52
Time diff (sec) start/end : 4.73 / 3.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:54
Time diff (sec) start/end : 6.73 / 1.27 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:54
Time diff (sec) start/end : 6.73 / 1.27 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:54
Time diff (sec) start/end : 6.73 / 1.27 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:00
Time diff (sec) start/end : 1.58 / 6.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:02
Time diff (sec) start/end : 3.58 / 4.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:02
Time diff (sec) start/end : 3.58 / 4.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:02
Time diff (sec) start/end : 3.58 / 4.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:04
Time diff (sec) start/end : 5.58 / 2.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:04
Time diff (sec) start/end : 5.58 / 2.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:04
Time diff (sec) start/end : 5.58 / 2.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:06
Time diff (sec) start/end : 7.58 / 0.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:06
Time diff (sec) start/end : 7.58 / 0.42 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:12
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:12
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:14
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:14
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:14
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:16
Time diff (sec) start/end : 6.41 / 1.59
gopr7897_20120916_234426_gmt_rghtside.jpg gopr7898_20120916_234426_gmt_rghtside.jpg gopr7899_20120916_234426_gmt_rghtside.jpg gopr7900_20120916_234426_gmt_rghtside.jpg gopr7901_20120916_234430_gmt_rghtside.jpg gopr7902_20120916_234430_gmt_rghtside.jpg gopr7903_20120916_234432_gmt_rghtside.jpg gopr7904_20120916_234432_gmt_rghtside.jpg gopr7905_20120916_234432_gmt_rghtside.jpg gopr7910_20120916_234438_gmt_rghtside.jpg gopr7911_20120916_234438_gmt_rghtside.jpg gopr7912_20120916_234438_gmt_rghtside.jpg gopr7913_20120916_234438_gmt_rghtside.jpg gopr7914_20120916_234440_gmt_rghtside.jpg gopr7915_20120916_234440_gmt_rghtside.jpg gopr7916_20120916_234442_gmt_rghtside.jpg gopr7917_20120916_234442_gmt_rghtside.jpg gopr7918_20120916_234444_gmt_rghtside.jpg gopr7921_20120916_234448_gmt_rghtside.jpg gopr7922_20120916_234448_gmt_rghtside.jpg gopr7923_20120916_234450_gmt_rghtside.jpg gopr7924_20120916_234450_gmt_rghtside.jpg gopr7925_20120916_234452_gmt_rghtside.jpg gopr7926_20120916_234454_gmt_rghtside.jpg gopr7927_20120916_234454_gmt_rghtside.jpg gopr7928_20120916_234454_gmt_rghtside.jpg gopr7934_20120916_234500_gmt_rghtside.jpg gopr7935_20120916_234502_gmt_rghtside.jpg gopr7936_20120916_234502_gmt_rghtside.jpg gopr7937_20120916_234502_gmt_rghtside.jpg gopr7938_20120916_234504_gmt_rghtside.jpg gopr7939_20120916_234504_gmt_rghtside.jpg gopr7940_20120916_234504_gmt_rghtside.jpg gopr7941_20120916_234506_gmt_rghtside.jpg gopr7942_20120916_234506_gmt_rghtside.jpg gopr7945_20120916_234512_gmt_rghtside.jpg gopr7946_20120916_234512_gmt_rghtside.jpg gopr7947_20120916_234514_gmt_rghtside.jpg gopr7948_20120916_234514_gmt_rghtside.jpg gopr7949_20120916_234514_gmt_rghtside.jpg gopr7950_20120916_234516_gmt_rghtside.jpg

Sky Photos for r20120916_032_net

Sky Photos for r20120916_032_net
Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:23:47
Time diff (sec) start/end : 1237.94 / 1245.94 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:23:47
Time diff (sec) start/end : 1249.09 / 1257.09 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:23:47
Time diff (sec) start/end : 1260.27 / 1268.26 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:23:47
Time diff (sec) start/end : 1271.42 / 1279.42 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:23:47
Time diff (sec) start/end : 1282.59 / 1290.59
gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg gopr4180_20120916_232347_gmt_cam4.jpg

Horizon Photos for r20120916_032_net

Horizon and obove water fork Photos for r20120916_032_net
Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:26
Time diff (sec) start/end : 1.06 / 6.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:28
Time diff (sec) start/end : 3.06 / 4.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:30
Time diff (sec) start/end : 5.06 / 2.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:32
Time diff (sec) start/end : 7.06 / 0.94 		Resonon Image 1
Time: 23:44:24.937 to 23:44:32.937
GoPro Time: 23:44:32
Time diff (sec) start/end : 7.06 / 0.94 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:38
Time diff (sec) start/end : 1.91 / 6.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:42
Time diff (sec) start/end : 5.91 / 2.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:44
Time diff (sec) start/end : 7.91 / 0.09 		Resonon Image 2
Time: 23:44:36.093 to 23:44:44.093
GoPro Time: 23:44:44
Time diff (sec) start/end : 7.91 / 0.09 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:48
Time diff (sec) start/end : 0.73 / 7.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:50
Time diff (sec) start/end : 2.73 / 5.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:52
Time diff (sec) start/end : 4.73 / 3.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:52
Time diff (sec) start/end : 4.73 / 3.26 		Resonon Image 3
Time: 23:44:47.265 to 23:44:55.265
GoPro Time: 23:44:54
Time diff (sec) start/end : 6.73 / 1.27 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:00
Time diff (sec) start/end : 1.58 / 6.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:00
Time diff (sec) start/end : 1.58 / 6.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:02
Time diff (sec) start/end : 3.58 / 4.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:04
Time diff (sec) start/end : 5.58 / 2.42 		Resonon Image 4
Time: 23:44:58.421 to 23:45:06.421
GoPro Time: 23:45:06
Time diff (sec) start/end : 7.58 / 0.42 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:10
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:12
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:14
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:16
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 23:45:09.593 to 23:45:17.593
GoPro Time: 23:45:16
Time diff (sec) start/end : 6.41 / 1.59
gopr8985_20120916_234426_gmt_horizon.jpg gopr8986_20120916_234426_gmt_horizon.jpg gopr8987_20120916_234426_gmt_horizon.jpg gopr8988_20120916_234428_gmt_horizon.jpg gopr8989_20120916_234430_gmt_horizon.jpg gopr8990_20120916_234432_gmt_horizon.jpg gopr8991_20120916_234432_gmt_horizon.jpg gopr8994_20120916_234438_gmt_horizon.jpg gopr8995_20120916_234438_gmt_horizon.jpg gopr8996_20120916_234438_gmt_horizon.jpg gopr8997_20120916_234438_gmt_horizon.jpg gopr8998_20120916_234442_gmt_horizon.jpg gopr8999_20120916_234444_gmt_horizon.jpg gopr9000_20120916_234444_gmt_horizon.jpg gopr9002_20120916_234448_gmt_horizon.jpg gopr9003_20120916_234450_gmt_horizon.jpg gopr9004_20120916_234452_gmt_horizon.jpg gopr9005_20120916_234452_gmt_horizon.jpg gopr9006_20120916_234454_gmt_horizon.jpg gopr9009_20120916_234500_gmt_horizon.jpg gopr9010_20120916_234500_gmt_horizon.jpg gopr9011_20120916_234502_gmt_horizon.jpg gopr9012_20120916_234504_gmt_horizon.jpg gopr9013_20120916_234506_gmt_horizon.jpg gopr9016_20120916_234510_gmt_horizon.jpg gopr9017_20120916_234512_gmt_horizon.jpg gopr9018_20120916_234514_gmt_horizon.jpg gopr9019_20120916_234516_gmt_horizon.jpg gopr9020_20120916_234516_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:06:08
Created from gopro_mkpages_(12)
