b20120917_009_net - BLUE SPEC

REVISION DATE: 02-Nov-2012 21:22:08

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120917 22:26:56 19.4321 1
2 20120917 22:27:07 19.4327 1
3 20120917 22:27:18 19.4335 1
4 20120917 22:27:28 19.4344 1
5 20120917 22:27:39 19.4353 1
image image

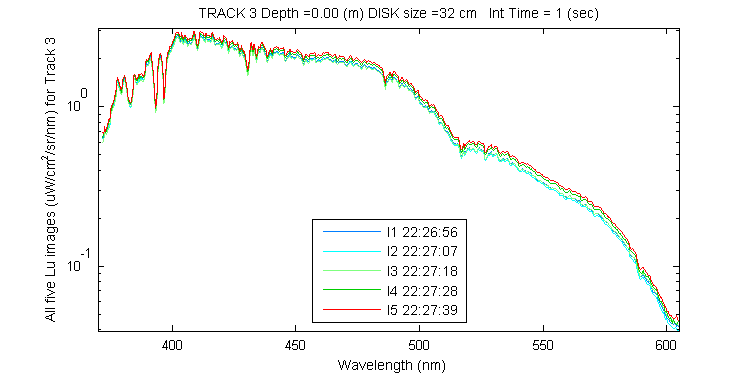

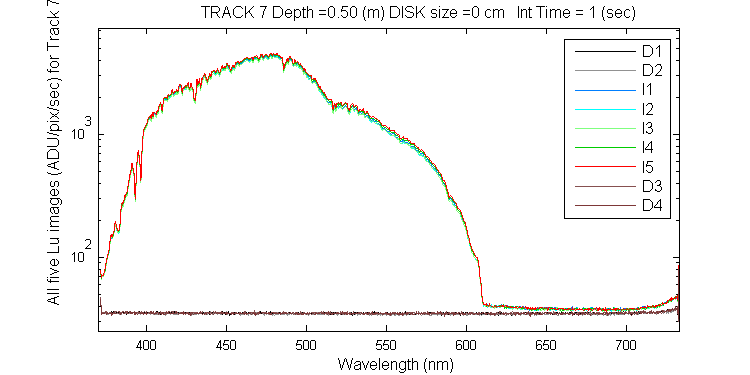

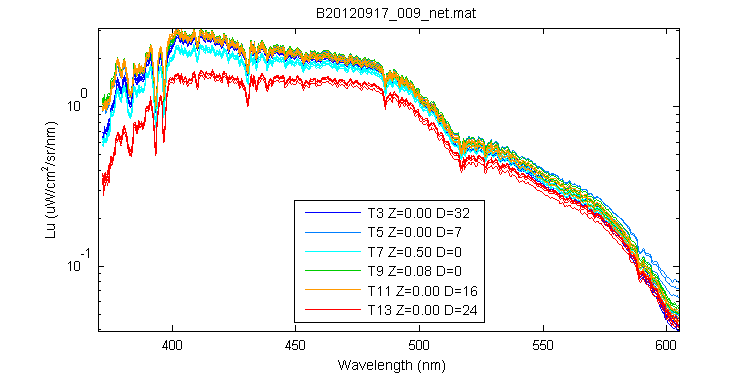

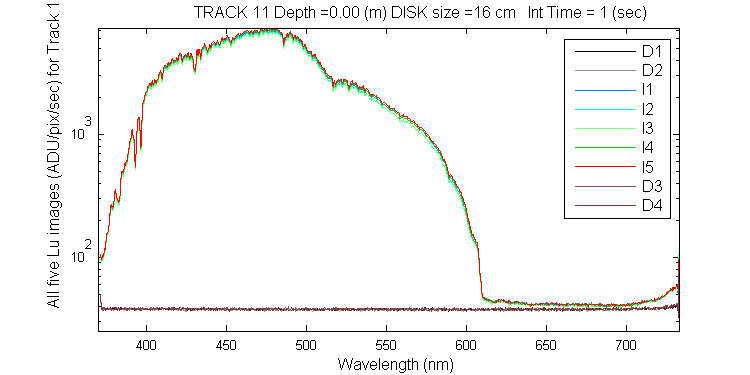

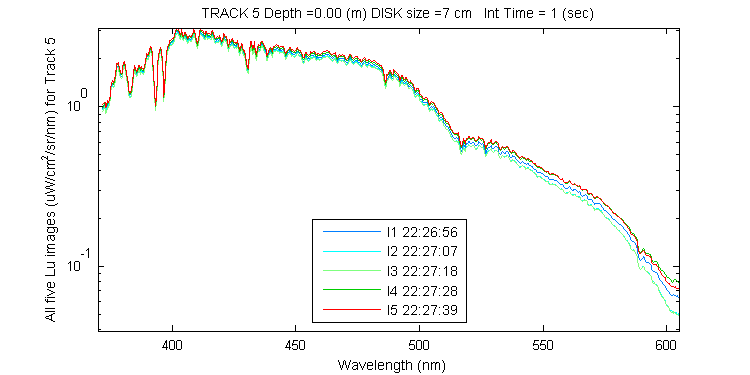

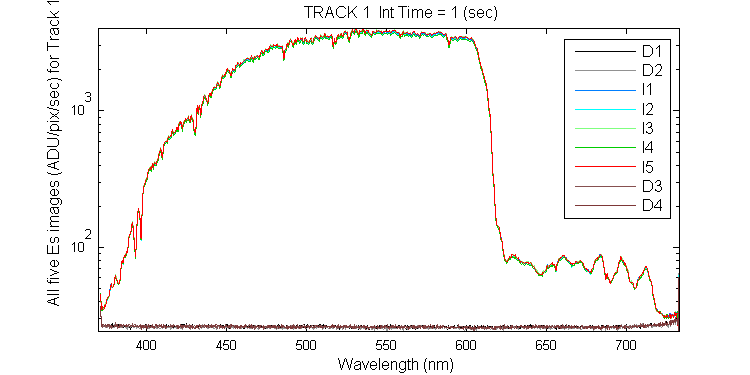

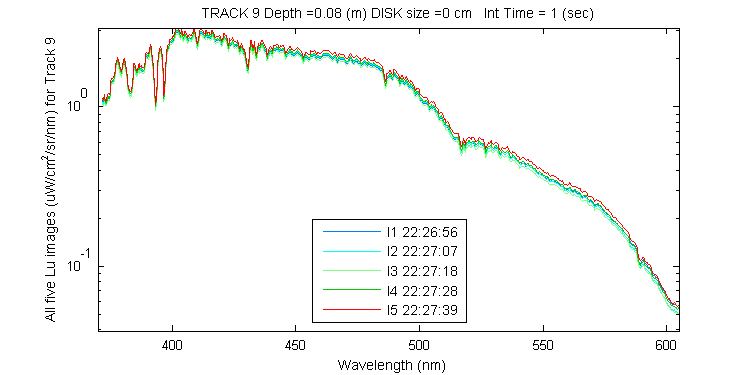

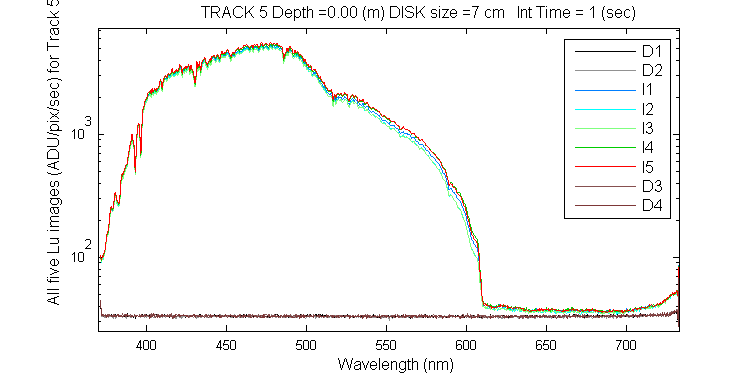

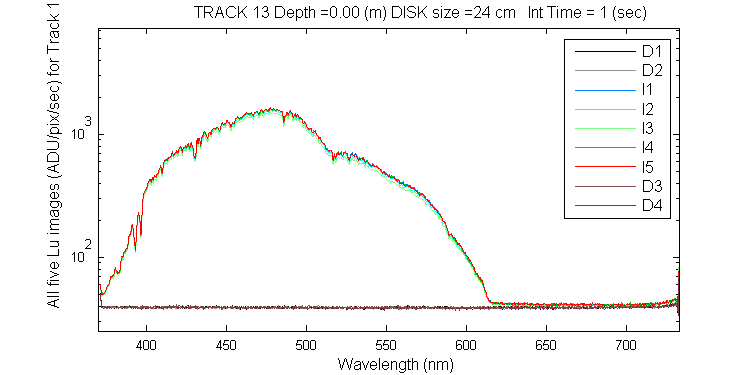

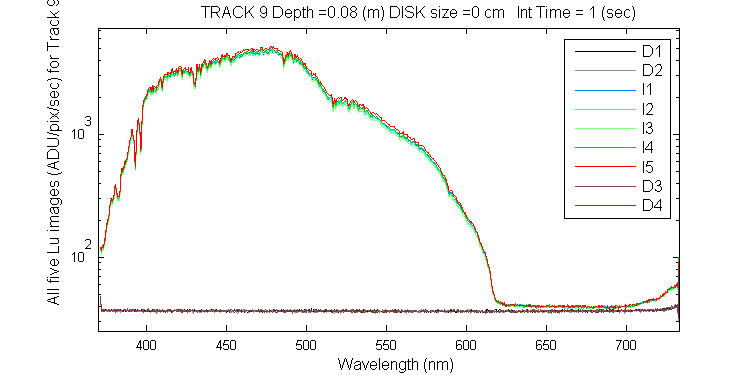

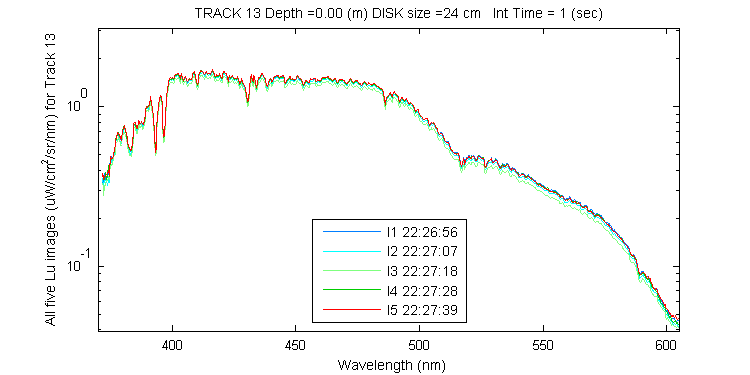

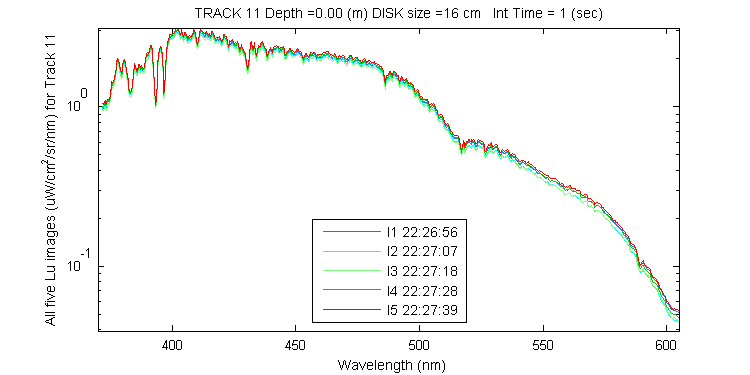

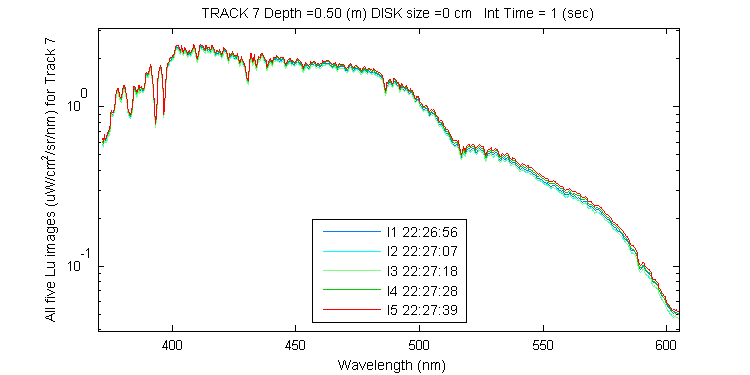

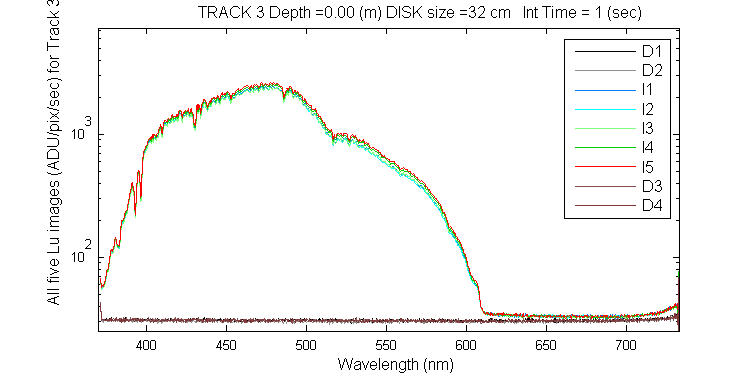

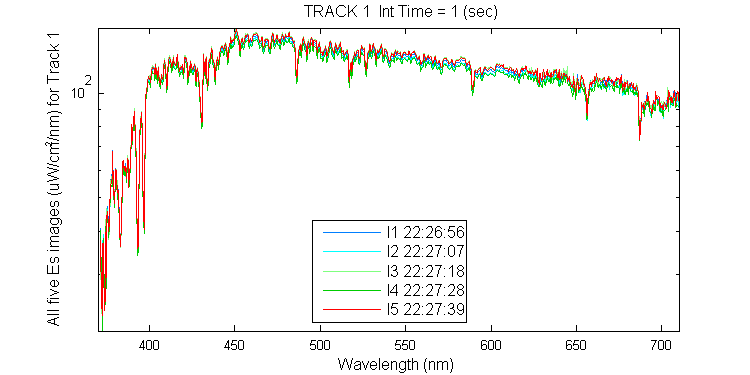

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos (sun dial, in-water, and sky) for BLUE SPEC, click on the photo or a larger view.

Sun Dial photos for b20120917_009_net

Sun Dial Photos for b20120917_009_net
Resonon Image 1
Time: 22:26:56.281 to 22:26:57.281
GoPro Time: 22:26:57
Time diff (sec) start/end : 0.72 / 0.28 		Resonon Image 1
Time: 22:26:56.281 to 22:26:57.281
GoPro Time: 22:26:57
Time diff (sec) start/end : 0.72 / 0.28 		Resonon Image 2
Time: 22:27:07.156 to 22:27:08.156
GoPro Time: 22:27:05
Time diff (sec) start/end : 2.16 / 3.16 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:19
Time diff (sec) start/end : 0.98 / 0.02 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:19
Time diff (sec) start/end : 0.98 / 0.02 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:29
Time diff (sec) start/end : 0.11 / 0.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:29
Time diff (sec) start/end : 0.11 / 0.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:29
Time diff (sec) start/end : 0.11 / 0.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:29
Time diff (sec) start/end : 0.11 / 0.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:29
Time diff (sec) start/end : 0.11 / 0.89 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:39
Time diff (sec) start/end : 0.75 / 1.75 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:41
Time diff (sec) start/end : 1.25 / 0.25 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:41
Time diff (sec) start/end : 1.25 / 0.25 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:41
Time diff (sec) start/end : 1.25 / 0.25 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:41
Time diff (sec) start/end : 1.25 / 0.25
gopr4431_20120917_222657_gmt_sun.png gopr4432_20120917_222657_gmt_sun.png gopr4438_20120917_222705_gmt_sun.png gopr4451_20120917_222719_gmt_sun.png gopr4452_20120917_222719_gmt_sun.png gopr4459_20120917_222729_gmt_sun.png gopr4460_20120917_222729_gmt_sun.png gopr4461_20120917_222729_gmt_sun.png gopr4462_20120917_222729_gmt_sun.png gopr4463_20120917_222729_gmt_sun.png gopr4468_20120917_222739_gmt_sun.png gopr4469_20120917_222741_gmt_sun.png gopr4470_20120917_222741_gmt_sun.png gopr4471_20120917_222741_gmt_sun.png gopr4472_20120917_222741_gmt_sun.png

Left side Photos for b20120917_009_net

Left side Photos for b20120917_009_net (tracks 3 -9)
Resonon Image 1
Time: 22:26:56.281 to 22:26:57.281
GoPro Time: 22:26:56
Time diff (sec) start/end : 0.28 / 1.28 		Resonon Image 1
Time: 22:26:56.281 to 22:26:57.281
GoPro Time: 22:26:56
Time diff (sec) start/end : 0.28 / 1.28 		Resonon Image 1
Time: 22:26:56.281 to 22:26:57.281
GoPro Time: 22:26:58
Time diff (sec) start/end : 1.72 / 0.72 		Resonon Image 1
Time: 22:26:56.281 to 22:26:57.281
GoPro Time: 22:26:58
Time diff (sec) start/end : 1.72 / 0.72 		Resonon Image 2
Time: 22:27:07.156 to 22:27:08.156
GoPro Time: 22:27:06
Time diff (sec) start/end : 1.16 / 2.16 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:18
Time diff (sec) start/end : 0.01 / 1.02 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:18
Time diff (sec) start/end : 0.01 / 1.02 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:20
Time diff (sec) start/end : 1.99 / 0.98 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:28
Time diff (sec) start/end : 0.89 / 1.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:28
Time diff (sec) start/end : 0.89 / 1.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:28
Time diff (sec) start/end : 0.89 / 1.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:30
Time diff (sec) start/end : 1.11 / 0.11 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:42
Time diff (sec) start/end : 2.25 / 1.25
gopr9738_20120917_222656_gmt_lftside.jpg gopr9739_20120917_222656_gmt_lftside.jpg gopr9740_20120917_222658_gmt_lftside.jpg gopr9741_20120917_222658_gmt_lftside.jpg gopr9746_20120917_222706_gmt_lftside.jpg gopr9756_20120917_222718_gmt_lftside.jpg gopr9757_20120917_222718_gmt_lftside.jpg gopr9758_20120917_222720_gmt_lftside.jpg gopr9765_20120917_222728_gmt_lftside.jpg gopr9766_20120917_222728_gmt_lftside.jpg gopr9767_20120917_222728_gmt_lftside.jpg gopr9768_20120917_222730_gmt_lftside.jpg gopr9776_20120917_222742_gmt_lftside.jpg

Right side Photos for b20120917_009_net

Right side Photos for b20120917_009_net (tracks 7-13)

Sky Photos for b20120917_009_net

Sky Photos for b20120917_009_net
Resonon Image 1
Time: 22:26:56.281 to 22:26:57.281
GoPro Time: 22:26:58
Time diff (sec) start/end : 1.72 / 0.72 		Resonon Image 1
Time: 22:26:56.281 to 22:26:57.281
GoPro Time: 22:26:58
Time diff (sec) start/end : 1.72 / 0.72 		Resonon Image 2
Time: 22:27:07.156 to 22:27:08.156
GoPro Time: 22:27:08
Time diff (sec) start/end : 0.84 / 0.16 		Resonon Image 2
Time: 22:27:07.156 to 22:27:08.156
GoPro Time: 22:27:08
Time diff (sec) start/end : 0.84 / 0.16 		Resonon Image 2
Time: 22:27:07.156 to 22:27:08.156
GoPro Time: 22:27:08
Time diff (sec) start/end : 0.84 / 0.16 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:18
Time diff (sec) start/end : 0.01 / 1.02 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:18
Time diff (sec) start/end : 0.01 / 1.02 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:18
Time diff (sec) start/end : 0.01 / 1.02 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:20
Time diff (sec) start/end : 1.99 / 0.98 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:28
Time diff (sec) start/end : 0.89 / 1.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:30
Time diff (sec) start/end : 1.11 / 0.11 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:30
Time diff (sec) start/end : 1.11 / 0.11 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:30
Time diff (sec) start/end : 1.11 / 0.11 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:40
Time diff (sec) start/end : 0.25 / 0.75
gopr8945_20120917_222658_gmt_cam4.jpg gopr8946_20120917_222658_gmt_cam4.jpg gopr8953_20120917_222708_gmt_cam4.jpg gopr8954_20120917_222708_gmt_cam4.jpg gopr8955_20120917_222708_gmt_cam4.jpg gopr8963_20120917_222718_gmt_cam4.jpg gopr8964_20120917_222718_gmt_cam4.jpg gopr8965_20120917_222718_gmt_cam4.jpg gopr8966_20120917_222720_gmt_cam4.jpg gopr8972_20120917_222728_gmt_cam4.jpg gopr8973_20120917_222730_gmt_cam4.jpg gopr8974_20120917_222730_gmt_cam4.jpg gopr8975_20120917_222730_gmt_cam4.jpg gopr8984_20120917_222740_gmt_cam4.jpg

Horizon Photos for b20120917_009_net

Horizon and obove water fork Photos for b20120917_009_net
Resonon Image 1
Time: 22:26:56.281 to 22:26:57.281
GoPro Time: 22:26:57
Time diff (sec) start/end : 0.72 / 0.28 		Resonon Image 1
Time: 22:26:56.281 to 22:26:57.281
GoPro Time: 22:26:57
Time diff (sec) start/end : 0.72 / 0.28 		Resonon Image 2
Time: 22:27:07.156 to 22:27:08.156
GoPro Time: 22:27:05
Time diff (sec) start/end : 2.16 / 3.16 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:19
Time diff (sec) start/end : 0.98 / 0.02 		Resonon Image 3
Time: 22:27:18.015 to 22:27:19.015
GoPro Time: 22:27:19
Time diff (sec) start/end : 0.98 / 0.02 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:29
Time diff (sec) start/end : 0.11 / 0.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:29
Time diff (sec) start/end : 0.11 / 0.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:29
Time diff (sec) start/end : 0.11 / 0.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:29
Time diff (sec) start/end : 0.11 / 0.89 		Resonon Image 4
Time: 22:27:28.890 to 22:27:29.890
GoPro Time: 22:27:29
Time diff (sec) start/end : 0.11 / 0.89 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:39
Time diff (sec) start/end : 0.75 / 1.75 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:41
Time diff (sec) start/end : 1.25 / 0.25 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:41
Time diff (sec) start/end : 1.25 / 0.25 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:41
Time diff (sec) start/end : 1.25 / 0.25 		Resonon Image 5
Time: 22:27:39.750 to 22:27:40.750
GoPro Time: 22:27:41
Time diff (sec) start/end : 1.25 / 0.25
gopr4431_20120917_222657_gmt_horizon.jpg gopr4432_20120917_222657_gmt_horizon.jpg gopr4438_20120917_222705_gmt_horizon.jpg gopr4451_20120917_222719_gmt_horizon.jpg gopr4452_20120917_222719_gmt_horizon.jpg gopr4459_20120917_222729_gmt_horizon.jpg gopr4460_20120917_222729_gmt_horizon.jpg gopr4461_20120917_222729_gmt_horizon.jpg gopr4462_20120917_222729_gmt_horizon.jpg gopr4463_20120917_222729_gmt_horizon.jpg gopr4468_20120917_222739_gmt_horizon.jpg gopr4469_20120917_222741_gmt_horizon.jpg gopr4470_20120917_222741_gmt_horizon.jpg gopr4471_20120917_222741_gmt_horizon.jpg gopr4472_20120917_222741_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 02-Nov-2012 21:22:09
Created from gopro_mkpages_(11)
