r20120917_002_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:06:18

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

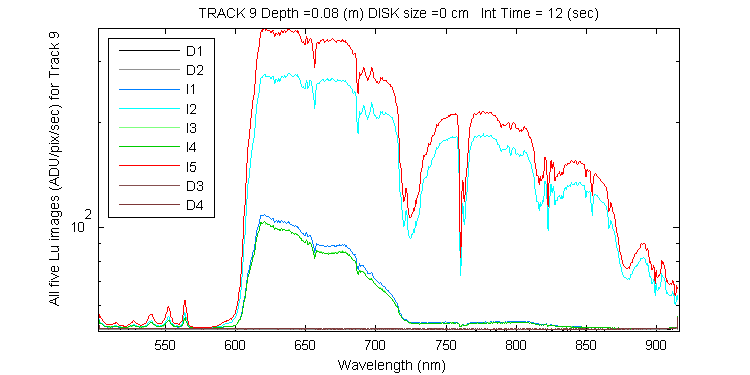

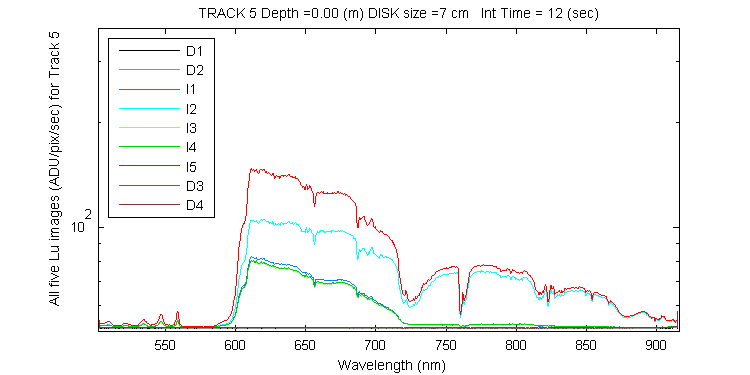

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120917 21:40:50 22.3052 12
2 20120917 21:41:05 22.2733 12
3 20120917 21:41:21 22.2436 12
4 20120917 21:41:36 22.212 12
5 20120917 21:41:52 22.1805 12
image image

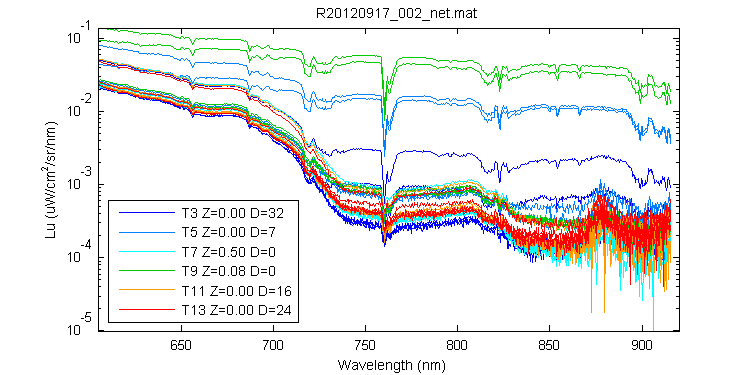

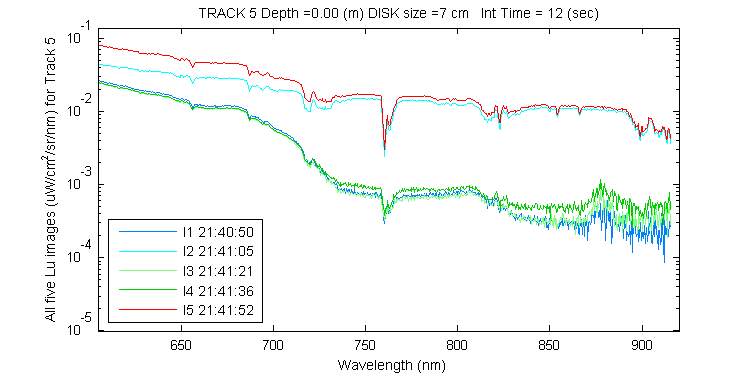

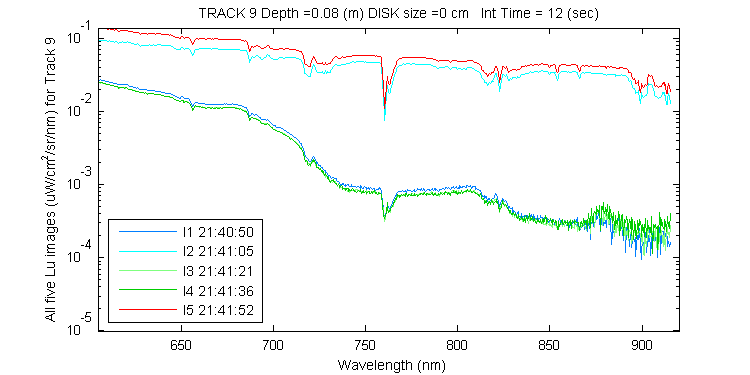

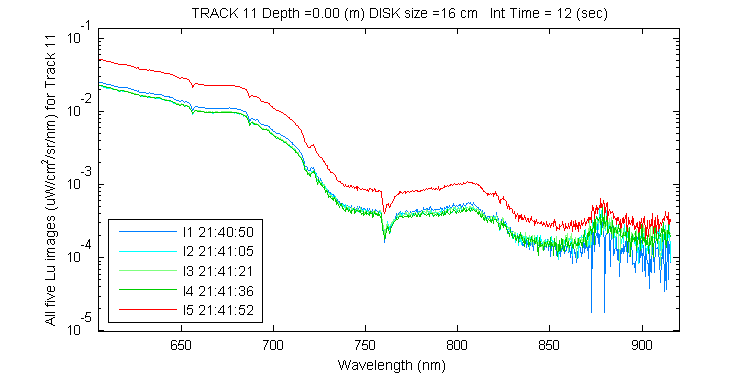

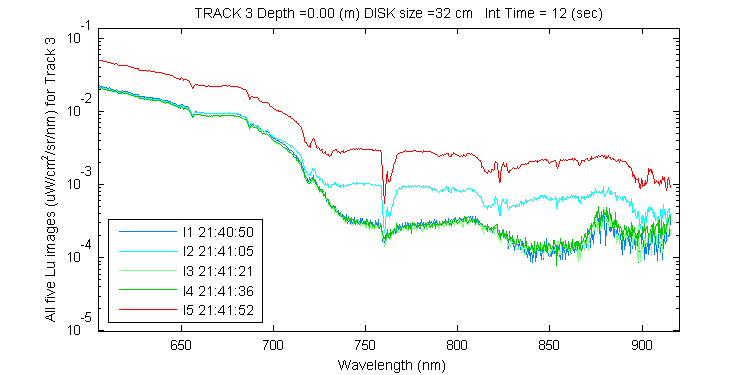

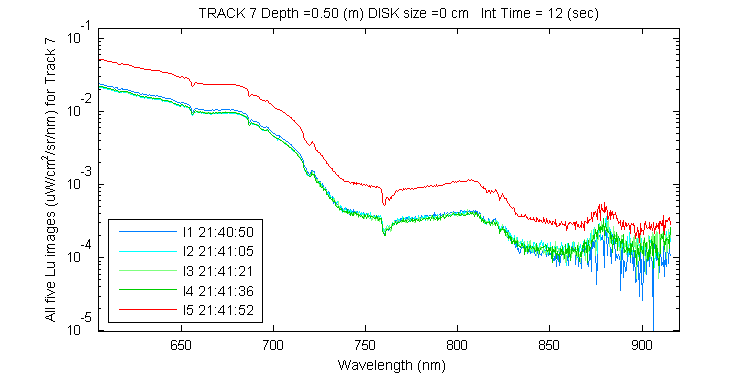

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120917_002_net

Sun Dial Photos for r20120917_002_net
Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:51
Time diff (sec) start/end : 0.99 / 11.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:53
Time diff (sec) start/end : 2.99 / 9.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:55
Time diff (sec) start/end : 4.99 / 7.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:55
Time diff (sec) start/end : 4.99 / 7.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:55
Time diff (sec) start/end : 4.99 / 7.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:57
Time diff (sec) start/end : 6.99 / 5.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:57
Time diff (sec) start/end : 6.99 / 5.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:57
Time diff (sec) start/end : 6.99 / 5.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:57
Time diff (sec) start/end : 6.99 / 5.01 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:07
Time diff (sec) start/end : 1.36 / 10.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:09
Time diff (sec) start/end : 3.36 / 8.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:09
Time diff (sec) start/end : 3.36 / 8.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:11
Time diff (sec) start/end : 5.36 / 6.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:11
Time diff (sec) start/end : 5.36 / 6.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:13
Time diff (sec) start/end : 7.36 / 4.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:15
Time diff (sec) start/end : 9.36 / 2.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:15
Time diff (sec) start/end : 9.36 / 2.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:17
Time diff (sec) start/end : 11.36 / 0.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:17
Time diff (sec) start/end : 11.36 / 0.64 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:25
Time diff (sec) start/end : 3.72 / 8.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:25
Time diff (sec) start/end : 3.72 / 8.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:27
Time diff (sec) start/end : 5.72 / 6.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:27
Time diff (sec) start/end : 5.72 / 6.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:29
Time diff (sec) start/end : 7.72 / 4.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:31
Time diff (sec) start/end : 9.72 / 2.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:31
Time diff (sec) start/end : 9.72 / 2.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:31
Time diff (sec) start/end : 9.72 / 2.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:31
Time diff (sec) start/end : 9.72 / 2.28 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:37
Time diff (sec) start/end : 0.08 / 11.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:39
Time diff (sec) start/end : 2.08 / 9.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:39
Time diff (sec) start/end : 2.08 / 9.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:41
Time diff (sec) start/end : 4.08 / 7.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:41
Time diff (sec) start/end : 4.08 / 7.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:43
Time diff (sec) start/end : 6.08 / 5.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:43
Time diff (sec) start/end : 6.08 / 5.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:45
Time diff (sec) start/end : 8.08 / 3.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:45
Time diff (sec) start/end : 8.08 / 3.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:47
Time diff (sec) start/end : 10.08 / 1.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:47
Time diff (sec) start/end : 10.08 / 1.92 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:53
Time diff (sec) start/end : 0.45 / 11.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:53
Time diff (sec) start/end : 0.45 / 11.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:55
Time diff (sec) start/end : 2.45 / 9.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:57
Time diff (sec) start/end : 4.45 / 7.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:57
Time diff (sec) start/end : 4.45 / 7.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:59
Time diff (sec) start/end : 6.45 / 5.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:01
Time diff (sec) start/end : 8.45 / 3.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:01
Time diff (sec) start/end : 8.45 / 3.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:03
Time diff (sec) start/end : 10.45 / 1.55
gopr2106_20120917_214051_gmt_sun.png gopr2107_20120917_214053_gmt_sun.png gopr2108_20120917_214055_gmt_sun.png gopr2109_20120917_214055_gmt_sun.png gopr2110_20120917_214055_gmt_sun.png gopr2111_20120917_214057_gmt_sun.png gopr2112_20120917_214057_gmt_sun.png gopr2113_20120917_214057_gmt_sun.png gopr2114_20120917_214057_gmt_sun.png gopr2120_20120917_214107_gmt_sun.png gopr2121_20120917_214109_gmt_sun.png gopr2122_20120917_214109_gmt_sun.png gopr2123_20120917_214111_gmt_sun.png gopr2124_20120917_214111_gmt_sun.png gopr2125_20120917_214113_gmt_sun.png gopr2126_20120917_214115_gmt_sun.png gopr2127_20120917_214115_gmt_sun.png gopr2128_20120917_214117_gmt_sun.png gopr2129_20120917_214117_gmt_sun.png gopr2135_20120917_214125_gmt_sun.png gopr2136_20120917_214125_gmt_sun.png gopr2137_20120917_214127_gmt_sun.png gopr2138_20120917_214127_gmt_sun.png gopr2139_20120917_214129_gmt_sun.png gopr2140_20120917_214131_gmt_sun.png gopr2141_20120917_214131_gmt_sun.png gopr2142_20120917_214131_gmt_sun.png gopr2143_20120917_214131_gmt_sun.png gopr2146_20120917_214137_gmt_sun.png gopr2147_20120917_214139_gmt_sun.png gopr2148_20120917_214139_gmt_sun.png gopr2149_20120917_214141_gmt_sun.png gopr2150_20120917_214141_gmt_sun.png gopr2151_20120917_214143_gmt_sun.png gopr2152_20120917_214143_gmt_sun.png gopr2153_20120917_214145_gmt_sun.png gopr2154_20120917_214145_gmt_sun.png gopr2155_20120917_214147_gmt_sun.png gopr2156_20120917_214147_gmt_sun.png gopr2161_20120917_214153_gmt_sun.png gopr2162_20120917_214153_gmt_sun.png gopr2163_20120917_214155_gmt_sun.png gopr2164_20120917_214157_gmt_sun.png gopr2165_20120917_214157_gmt_sun.png gopr2166_20120917_214159_gmt_sun.png gopr2167_20120917_214201_gmt_sun.png gopr2168_20120917_214201_gmt_sun.png gopr2169_20120917_214203_gmt_sun.png

Left side Photos for r20120917_002_net

Left side Photos for r20120917_002_net (tracks 3 -9)
Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:52
Time diff (sec) start/end : 1.99 / 10.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:54
Time diff (sec) start/end : 3.99 / 8.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:54
Time diff (sec) start/end : 3.99 / 8.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:56
Time diff (sec) start/end : 5.99 / 6.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:58
Time diff (sec) start/end : 7.99 / 4.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:41:00
Time diff (sec) start/end : 9.99 / 2.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:41:00
Time diff (sec) start/end : 9.99 / 2.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:41:02
Time diff (sec) start/end : 11.99 / 0.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:41:02
Time diff (sec) start/end : 11.99 / 0.01 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:08
Time diff (sec) start/end : 2.36 / 9.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:08
Time diff (sec) start/end : 2.36 / 9.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:10
Time diff (sec) start/end : 4.36 / 7.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:10
Time diff (sec) start/end : 4.36 / 7.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:12
Time diff (sec) start/end : 6.36 / 5.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:12
Time diff (sec) start/end : 6.36 / 5.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:14
Time diff (sec) start/end : 8.36 / 3.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:16
Time diff (sec) start/end : 10.36 / 1.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:16
Time diff (sec) start/end : 10.36 / 1.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:16
Time diff (sec) start/end : 10.36 / 1.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:16
Time diff (sec) start/end : 10.36 / 1.64 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:22
Time diff (sec) start/end : 0.72 / 11.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:24
Time diff (sec) start/end : 2.72 / 9.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:26
Time diff (sec) start/end : 4.72 / 7.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:26
Time diff (sec) start/end : 4.72 / 7.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:28
Time diff (sec) start/end : 6.72 / 5.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:28
Time diff (sec) start/end : 6.72 / 5.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:30
Time diff (sec) start/end : 8.72 / 3.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:32
Time diff (sec) start/end : 10.72 / 1.28 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:38
Time diff (sec) start/end : 1.08 / 10.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:40
Time diff (sec) start/end : 3.08 / 8.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:42
Time diff (sec) start/end : 5.08 / 6.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:42
Time diff (sec) start/end : 5.08 / 6.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:42
Time diff (sec) start/end : 5.08 / 6.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:46
Time diff (sec) start/end : 9.08 / 2.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:46
Time diff (sec) start/end : 9.08 / 2.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:48
Time diff (sec) start/end : 11.08 / 0.92 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:54
Time diff (sec) start/end : 1.45 / 10.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:54
Time diff (sec) start/end : 1.45 / 10.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:54
Time diff (sec) start/end : 1.45 / 10.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:56
Time diff (sec) start/end : 3.45 / 8.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:56
Time diff (sec) start/end : 3.45 / 8.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:58
Time diff (sec) start/end : 5.45 / 6.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:58
Time diff (sec) start/end : 5.45 / 6.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:02
Time diff (sec) start/end : 9.45 / 2.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:02
Time diff (sec) start/end : 9.45 / 2.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:02
Time diff (sec) start/end : 9.45 / 2.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:04
Time diff (sec) start/end : 11.45 / 0.55
gopr7463_20120917_214052_gmt_lftside.jpg gopr7464_20120917_214054_gmt_lftside.jpg gopr7465_20120917_214054_gmt_lftside.jpg gopr7466_20120917_214056_gmt_lftside.jpg gopr7467_20120917_214058_gmt_lftside.jpg gopr7468_20120917_214100_gmt_lftside.jpg gopr7469_20120917_214100_gmt_lftside.jpg gopr7470_20120917_214102_gmt_lftside.jpg gopr7471_20120917_214102_gmt_lftside.jpg gopr7474_20120917_214108_gmt_lftside.jpg gopr7475_20120917_214108_gmt_lftside.jpg gopr7476_20120917_214110_gmt_lftside.jpg gopr7477_20120917_214110_gmt_lftside.jpg gopr7478_20120917_214112_gmt_lftside.jpg gopr7479_20120917_214112_gmt_lftside.jpg gopr7480_20120917_214114_gmt_lftside.jpg gopr7481_20120917_214116_gmt_lftside.jpg gopr7482_20120917_214116_gmt_lftside.jpg gopr7483_20120917_214116_gmt_lftside.jpg gopr7484_20120917_214116_gmt_lftside.jpg gopr7486_20120917_214122_gmt_lftside.jpg gopr7487_20120917_214124_gmt_lftside.jpg gopr7488_20120917_214126_gmt_lftside.jpg gopr7489_20120917_214126_gmt_lftside.jpg gopr7490_20120917_214128_gmt_lftside.jpg gopr7491_20120917_214128_gmt_lftside.jpg gopr7492_20120917_214130_gmt_lftside.jpg gopr7493_20120917_214132_gmt_lftside.jpg gopr7498_20120917_214138_gmt_lftside.jpg gopr7499_20120917_214140_gmt_lftside.jpg gopr7500_20120917_214142_gmt_lftside.jpg gopr7501_20120917_214142_gmt_lftside.jpg gopr7502_20120917_214142_gmt_lftside.jpg gopr7503_20120917_214146_gmt_lftside.jpg gopr7504_20120917_214146_gmt_lftside.jpg gopr7505_20120917_214148_gmt_lftside.jpg gopr7511_20120917_214154_gmt_lftside.jpg gopr7512_20120917_214154_gmt_lftside.jpg gopr7513_20120917_214154_gmt_lftside.jpg gopr7514_20120917_214156_gmt_lftside.jpg gopr7515_20120917_214156_gmt_lftside.jpg gopr7516_20120917_214158_gmt_lftside.jpg gopr7517_20120917_214158_gmt_lftside.jpg gopr7518_20120917_214202_gmt_lftside.jpg gopr7519_20120917_214202_gmt_lftside.jpg gopr7520_20120917_214202_gmt_lftside.jpg gopr7521_20120917_214204_gmt_lftside.jpg

Right side Photos for r20120917_002_net

Right side Photos for r20120917_002_net (tracks 7-13)

Sky Photos for r20120917_002_net

Sky Photos for r20120917_002_net
Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:52
Time diff (sec) start/end : 1.99 / 10.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:52
Time diff (sec) start/end : 1.99 / 10.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:54
Time diff (sec) start/end : 3.99 / 8.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:54
Time diff (sec) start/end : 3.99 / 8.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:56
Time diff (sec) start/end : 5.99 / 6.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:56
Time diff (sec) start/end : 5.99 / 6.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:58
Time diff (sec) start/end : 7.99 / 4.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:58
Time diff (sec) start/end : 7.99 / 4.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:41:00
Time diff (sec) start/end : 9.99 / 2.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:41:02
Time diff (sec) start/end : 11.99 / 0.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:41:02
Time diff (sec) start/end : 11.99 / 0.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:41:02
Time diff (sec) start/end : 11.99 / 0.01 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:06
Time diff (sec) start/end : 0.36 / 11.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:08
Time diff (sec) start/end : 2.36 / 9.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:08
Time diff (sec) start/end : 2.36 / 9.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:08
Time diff (sec) start/end : 2.36 / 9.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:10
Time diff (sec) start/end : 4.36 / 7.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:12
Time diff (sec) start/end : 6.36 / 5.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:14
Time diff (sec) start/end : 8.36 / 3.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:14
Time diff (sec) start/end : 8.36 / 3.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:14
Time diff (sec) start/end : 8.36 / 3.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:14
Time diff (sec) start/end : 8.36 / 3.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:16
Time diff (sec) start/end : 10.36 / 1.64 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:22
Time diff (sec) start/end : 0.72 / 11.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:24
Time diff (sec) start/end : 2.72 / 9.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:24
Time diff (sec) start/end : 2.72 / 9.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:26
Time diff (sec) start/end : 4.72 / 7.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:28
Time diff (sec) start/end : 6.72 / 5.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:28
Time diff (sec) start/end : 6.72 / 5.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:28
Time diff (sec) start/end : 6.72 / 5.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:32
Time diff (sec) start/end : 10.72 / 1.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:32
Time diff (sec) start/end : 10.72 / 1.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:32
Time diff (sec) start/end : 10.72 / 1.28 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:38
Time diff (sec) start/end : 1.08 / 10.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:40
Time diff (sec) start/end : 3.08 / 8.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:40
Time diff (sec) start/end : 3.08 / 8.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:40
Time diff (sec) start/end : 3.08 / 8.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:42
Time diff (sec) start/end : 5.08 / 6.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:42
Time diff (sec) start/end : 5.08 / 6.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:44
Time diff (sec) start/end : 7.08 / 4.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:44
Time diff (sec) start/end : 7.08 / 4.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:46
Time diff (sec) start/end : 9.08 / 2.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:46
Time diff (sec) start/end : 9.08 / 2.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:48
Time diff (sec) start/end : 11.08 / 0.92 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:54
Time diff (sec) start/end : 1.45 / 10.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:54
Time diff (sec) start/end : 1.45 / 10.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:54
Time diff (sec) start/end : 1.45 / 10.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:58
Time diff (sec) start/end : 5.45 / 6.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:58
Time diff (sec) start/end : 5.45 / 6.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:58
Time diff (sec) start/end : 5.45 / 6.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:00
Time diff (sec) start/end : 7.45 / 4.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:02
Time diff (sec) start/end : 9.45 / 2.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:02
Time diff (sec) start/end : 9.45 / 2.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:04
Time diff (sec) start/end : 11.45 / 0.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:04
Time diff (sec) start/end : 11.45 / 0.55
gopr6978_20120917_214052_gmt_cam4.jpg gopr6979_20120917_214052_gmt_cam4.jpg gopr6980_20120917_214054_gmt_cam4.jpg gopr6981_20120917_214054_gmt_cam4.jpg gopr6982_20120917_214056_gmt_cam4.jpg gopr6983_20120917_214056_gmt_cam4.jpg gopr6984_20120917_214058_gmt_cam4.jpg gopr6985_20120917_214058_gmt_cam4.jpg gopr6986_20120917_214100_gmt_cam4.jpg gopr6987_20120917_214102_gmt_cam4.jpg gopr6988_20120917_214102_gmt_cam4.jpg gopr6989_20120917_214102_gmt_cam4.jpg gopr6992_20120917_214106_gmt_cam4.jpg gopr6993_20120917_214108_gmt_cam4.jpg gopr6994_20120917_214108_gmt_cam4.jpg gopr6995_20120917_214108_gmt_cam4.jpg gopr6996_20120917_214110_gmt_cam4.jpg gopr6997_20120917_214112_gmt_cam4.jpg gopr6998_20120917_214114_gmt_cam4.jpg gopr6999_20120917_214114_gmt_cam4.jpg gopr7000_20120917_214114_gmt_cam4.jpg gopr7001_20120917_214114_gmt_cam4.jpg gopr7002_20120917_214116_gmt_cam4.jpg gopr7007_20120917_214122_gmt_cam4.jpg gopr7008_20120917_214124_gmt_cam4.jpg gopr7009_20120917_214124_gmt_cam4.jpg gopr7010_20120917_214126_gmt_cam4.jpg gopr7011_20120917_214128_gmt_cam4.jpg gopr7012_20120917_214128_gmt_cam4.jpg gopr7013_20120917_214128_gmt_cam4.jpg gopr7014_20120917_214132_gmt_cam4.jpg gopr7015_20120917_214132_gmt_cam4.jpg gopr7016_20120917_214132_gmt_cam4.jpg gopr7021_20120917_214138_gmt_cam4.jpg gopr7022_20120917_214140_gmt_cam4.jpg gopr7023_20120917_214140_gmt_cam4.jpg gopr7024_20120917_214140_gmt_cam4.jpg gopr7025_20120917_214142_gmt_cam4.jpg gopr7026_20120917_214142_gmt_cam4.jpg gopr7027_20120917_214144_gmt_cam4.jpg gopr7028_20120917_214144_gmt_cam4.jpg gopr7029_20120917_214146_gmt_cam4.jpg gopr7030_20120917_214146_gmt_cam4.jpg gopr7031_20120917_214148_gmt_cam4.jpg gopr7036_20120917_214154_gmt_cam4.jpg gopr7037_20120917_214154_gmt_cam4.jpg gopr7038_20120917_214154_gmt_cam4.jpg gopr7039_20120917_214158_gmt_cam4.jpg gopr7040_20120917_214158_gmt_cam4.jpg gopr7041_20120917_214158_gmt_cam4.jpg gopr7042_20120917_214200_gmt_cam4.jpg gopr7043_20120917_214202_gmt_cam4.jpg gopr7044_20120917_214202_gmt_cam4.jpg gopr7045_20120917_214204_gmt_cam4.jpg gopr7046_20120917_214204_gmt_cam4.jpg

Horizon Photos for r20120917_002_net

Horizon and obove water fork Photos for r20120917_002_net
Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:51
Time diff (sec) start/end : 0.99 / 11.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:53
Time diff (sec) start/end : 2.99 / 9.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:55
Time diff (sec) start/end : 4.99 / 7.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:55
Time diff (sec) start/end : 4.99 / 7.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:55
Time diff (sec) start/end : 4.99 / 7.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:57
Time diff (sec) start/end : 6.99 / 5.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:57
Time diff (sec) start/end : 6.99 / 5.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:57
Time diff (sec) start/end : 6.99 / 5.01 		Resonon Image 1
Time: 21:40:50.015 to 21:41:02.015
GoPro Time: 21:40:57
Time diff (sec) start/end : 6.99 / 5.01 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:07
Time diff (sec) start/end : 1.36 / 10.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:09
Time diff (sec) start/end : 3.36 / 8.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:09
Time diff (sec) start/end : 3.36 / 8.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:11
Time diff (sec) start/end : 5.36 / 6.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:11
Time diff (sec) start/end : 5.36 / 6.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:13
Time diff (sec) start/end : 7.36 / 4.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:15
Time diff (sec) start/end : 9.36 / 2.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:15
Time diff (sec) start/end : 9.36 / 2.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:17
Time diff (sec) start/end : 11.36 / 0.64 		Resonon Image 2
Time: 21:41:05.640 to 21:41:17.640
GoPro Time: 21:41:17
Time diff (sec) start/end : 11.36 / 0.64 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:25
Time diff (sec) start/end : 3.72 / 8.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:25
Time diff (sec) start/end : 3.72 / 8.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:27
Time diff (sec) start/end : 5.72 / 6.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:27
Time diff (sec) start/end : 5.72 / 6.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:29
Time diff (sec) start/end : 7.72 / 4.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:31
Time diff (sec) start/end : 9.72 / 2.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:31
Time diff (sec) start/end : 9.72 / 2.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:31
Time diff (sec) start/end : 9.72 / 2.28 		Resonon Image 3
Time: 21:41:21.281 to 21:41:33.281
GoPro Time: 21:41:31
Time diff (sec) start/end : 9.72 / 2.28 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:37
Time diff (sec) start/end : 0.08 / 11.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:39
Time diff (sec) start/end : 2.08 / 9.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:39
Time diff (sec) start/end : 2.08 / 9.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:41
Time diff (sec) start/end : 4.08 / 7.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:41
Time diff (sec) start/end : 4.08 / 7.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:43
Time diff (sec) start/end : 6.08 / 5.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:43
Time diff (sec) start/end : 6.08 / 5.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:45
Time diff (sec) start/end : 8.08 / 3.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:45
Time diff (sec) start/end : 8.08 / 3.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:47
Time diff (sec) start/end : 10.08 / 1.92 		Resonon Image 4
Time: 21:41:36.921 to 21:41:48.921
GoPro Time: 21:41:47
Time diff (sec) start/end : 10.08 / 1.92 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:53
Time diff (sec) start/end : 0.45 / 11.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:53
Time diff (sec) start/end : 0.45 / 11.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:55
Time diff (sec) start/end : 2.45 / 9.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:57
Time diff (sec) start/end : 4.45 / 7.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:57
Time diff (sec) start/end : 4.45 / 7.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:41:59
Time diff (sec) start/end : 6.45 / 5.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:01
Time diff (sec) start/end : 8.45 / 3.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:01
Time diff (sec) start/end : 8.45 / 3.55 		Resonon Image 5
Time: 21:41:52.546 to 21:42:04.546
GoPro Time: 21:42:03
Time diff (sec) start/end : 10.45 / 1.55
gopr2106_20120917_214051_gmt_horizon.jpg gopr2107_20120917_214053_gmt_horizon.jpg gopr2108_20120917_214055_gmt_horizon.jpg gopr2109_20120917_214055_gmt_horizon.jpg gopr2110_20120917_214055_gmt_horizon.jpg gopr2111_20120917_214057_gmt_horizon.jpg gopr2112_20120917_214057_gmt_horizon.jpg gopr2113_20120917_214057_gmt_horizon.jpg gopr2114_20120917_214057_gmt_horizon.jpg gopr2120_20120917_214107_gmt_horizon.jpg gopr2121_20120917_214109_gmt_horizon.jpg gopr2122_20120917_214109_gmt_horizon.jpg gopr2123_20120917_214111_gmt_horizon.jpg gopr2124_20120917_214111_gmt_horizon.jpg gopr2125_20120917_214113_gmt_horizon.jpg gopr2126_20120917_214115_gmt_horizon.jpg gopr2127_20120917_214115_gmt_horizon.jpg gopr2128_20120917_214117_gmt_horizon.jpg gopr2129_20120917_214117_gmt_horizon.jpg gopr2135_20120917_214125_gmt_horizon.jpg gopr2136_20120917_214125_gmt_horizon.jpg gopr2137_20120917_214127_gmt_horizon.jpg gopr2138_20120917_214127_gmt_horizon.jpg gopr2139_20120917_214129_gmt_horizon.jpg gopr2140_20120917_214131_gmt_horizon.jpg gopr2141_20120917_214131_gmt_horizon.jpg gopr2142_20120917_214131_gmt_horizon.jpg gopr2143_20120917_214131_gmt_horizon.jpg gopr2146_20120917_214137_gmt_horizon.jpg gopr2147_20120917_214139_gmt_horizon.jpg gopr2148_20120917_214139_gmt_horizon.jpg gopr2149_20120917_214141_gmt_horizon.jpg gopr2150_20120917_214141_gmt_horizon.jpg gopr2151_20120917_214143_gmt_horizon.jpg gopr2152_20120917_214143_gmt_horizon.jpg gopr2153_20120917_214145_gmt_horizon.jpg gopr2154_20120917_214145_gmt_horizon.jpg gopr2155_20120917_214147_gmt_horizon.jpg gopr2156_20120917_214147_gmt_horizon.jpg gopr2161_20120917_214153_gmt_horizon.jpg gopr2162_20120917_214153_gmt_horizon.jpg gopr2163_20120917_214155_gmt_horizon.jpg gopr2164_20120917_214157_gmt_horizon.jpg gopr2165_20120917_214157_gmt_horizon.jpg gopr2166_20120917_214159_gmt_horizon.jpg gopr2167_20120917_214201_gmt_horizon.jpg gopr2168_20120917_214201_gmt_horizon.jpg gopr2169_20120917_214203_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:06:19
Created from gopro_mkpages_(12)
