r20120917_006_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:06:24

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120917 22:19:32 19.491 8
2 20120917 22:19:44 19.4875 8
3 20120917 22:19:55 19.4841 8
4 20120917 22:20:06 19.4808 8
5 20120917 22:20:17 19.4774 8
image image

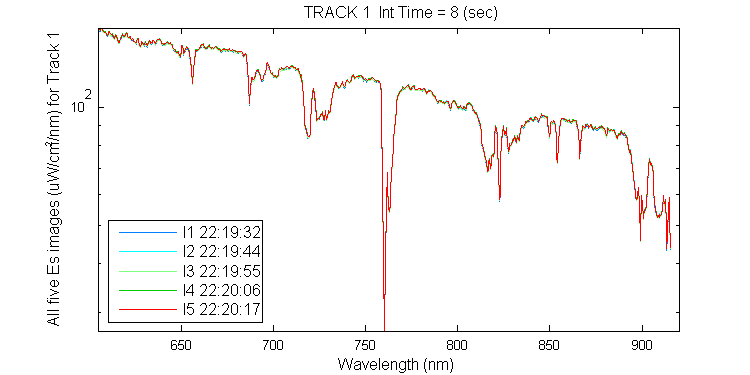

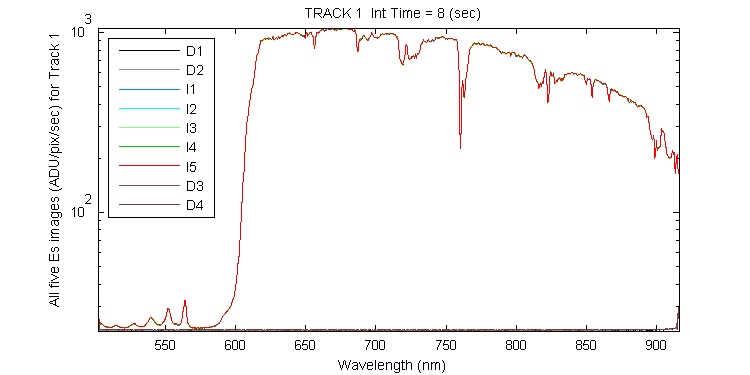

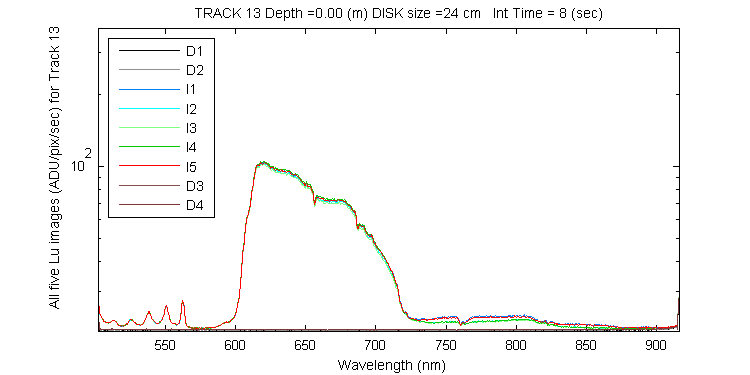

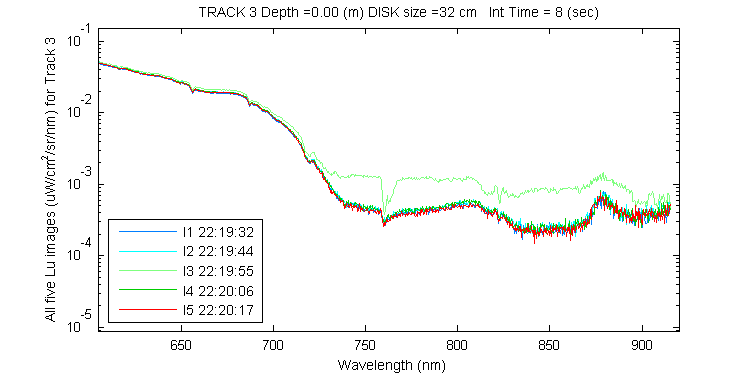

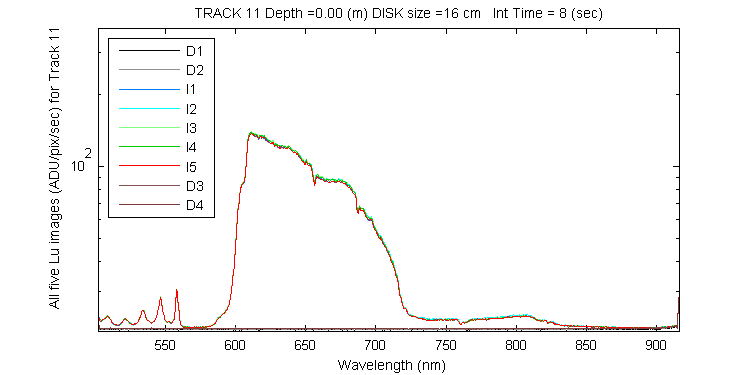

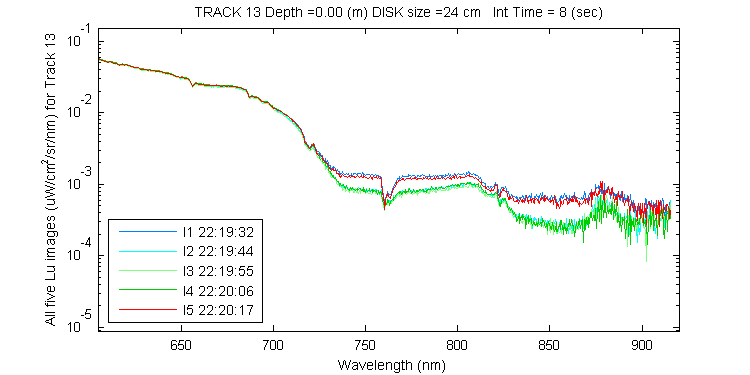

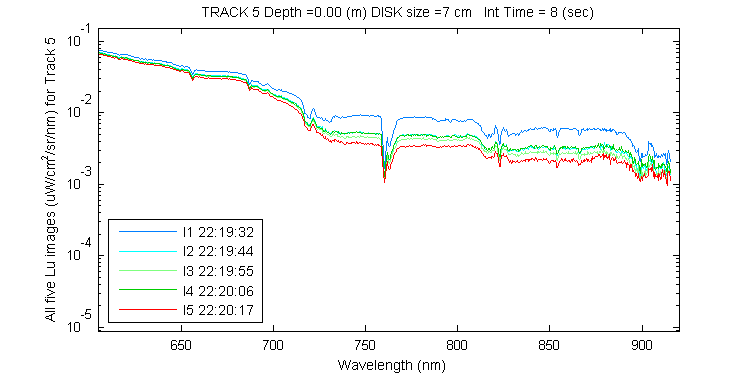

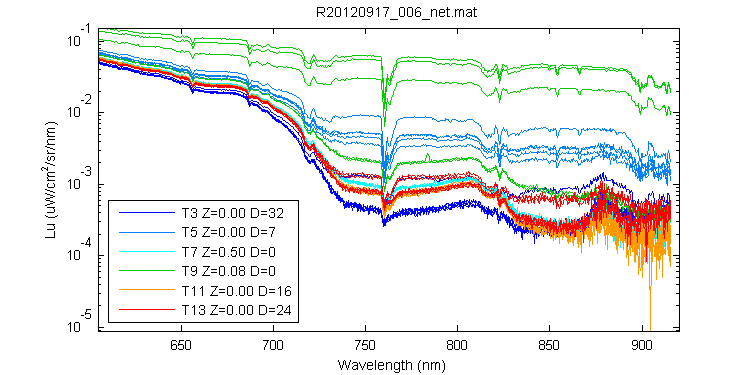

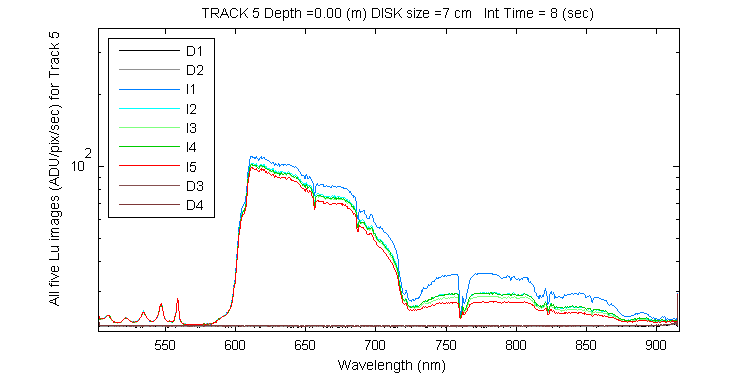

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120917_006_net

Sun Dial Photos for r20120917_006_net
Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:33
Time diff (sec) start/end : 0.13 / 7.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:35
Time diff (sec) start/end : 2.13 / 5.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:35
Time diff (sec) start/end : 2.13 / 5.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:37
Time diff (sec) start/end : 4.13 / 3.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:37
Time diff (sec) start/end : 4.13 / 3.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:37
Time diff (sec) start/end : 4.13 / 3.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:37
Time diff (sec) start/end : 4.13 / 3.87 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:47
Time diff (sec) start/end : 2.95 / 5.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:47
Time diff (sec) start/end : 2.95 / 5.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:49
Time diff (sec) start/end : 4.95 / 3.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:51
Time diff (sec) start/end : 6.95 / 1.05 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:19:57
Time diff (sec) start/end : 1.78 / 6.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:19:57
Time diff (sec) start/end : 1.78 / 6.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:19:57
Time diff (sec) start/end : 1.78 / 6.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:20:01
Time diff (sec) start/end : 5.78 / 2.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:20:03
Time diff (sec) start/end : 7.78 / 0.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:20:03
Time diff (sec) start/end : 7.78 / 0.22 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:07
Time diff (sec) start/end : 0.61 / 7.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:09
Time diff (sec) start/end : 2.61 / 5.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:09
Time diff (sec) start/end : 2.61 / 5.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:11
Time diff (sec) start/end : 4.61 / 3.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:11
Time diff (sec) start/end : 4.61 / 3.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:13
Time diff (sec) start/end : 6.61 / 1.39 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:19
Time diff (sec) start/end : 1.45 / 6.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:21
Time diff (sec) start/end : 3.45 / 4.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:23
Time diff (sec) start/end : 5.45 / 2.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:25
Time diff (sec) start/end : 7.45 / 0.55
gopr4052_20120917_221933_gmt_sun.png gopr4053_20120917_221935_gmt_sun.png gopr4054_20120917_221935_gmt_sun.png gopr4055_20120917_221937_gmt_sun.png gopr4056_20120917_221937_gmt_sun.png gopr4057_20120917_221937_gmt_sun.png gopr4058_20120917_221937_gmt_sun.png gopr4064_20120917_221947_gmt_sun.png gopr4065_20120917_221947_gmt_sun.png gopr4066_20120917_221949_gmt_sun.png gopr4067_20120917_221951_gmt_sun.png gopr4072_20120917_221957_gmt_sun.png gopr4073_20120917_221957_gmt_sun.png gopr4074_20120917_221957_gmt_sun.png gopr4075_20120917_222001_gmt_sun.png gopr4076_20120917_222003_gmt_sun.png gopr4077_20120917_222003_gmt_sun.png gopr4081_20120917_222007_gmt_sun.png gopr4082_20120917_222009_gmt_sun.png gopr4083_20120917_222009_gmt_sun.png gopr4084_20120917_222011_gmt_sun.png gopr4085_20120917_222011_gmt_sun.png gopr4086_20120917_222013_gmt_sun.png gopr4091_20120917_222019_gmt_sun.png gopr4092_20120917_222021_gmt_sun.png gopr4093_20120917_222023_gmt_sun.png gopr4094_20120917_222025_gmt_sun.png

Left side Photos for r20120917_006_net

Left side Photos for r20120917_006_net (tracks 3 -9)
Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:34
Time diff (sec) start/end : 1.12 / 6.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:34
Time diff (sec) start/end : 1.12 / 6.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:36
Time diff (sec) start/end : 3.13 / 4.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:36
Time diff (sec) start/end : 3.13 / 4.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:38
Time diff (sec) start/end : 5.13 / 2.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:40
Time diff (sec) start/end : 7.13 / 0.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:40
Time diff (sec) start/end : 7.13 / 0.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:40
Time diff (sec) start/end : 7.13 / 0.87 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:46
Time diff (sec) start/end : 1.95 / 6.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:46
Time diff (sec) start/end : 1.95 / 6.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:46
Time diff (sec) start/end : 1.95 / 6.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:48
Time diff (sec) start/end : 3.95 / 4.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:48
Time diff (sec) start/end : 3.95 / 4.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:50
Time diff (sec) start/end : 5.95 / 2.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:50
Time diff (sec) start/end : 5.95 / 2.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:52
Time diff (sec) start/end : 7.95 / 0.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:52
Time diff (sec) start/end : 7.95 / 0.05 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:19:56
Time diff (sec) start/end : 0.78 / 7.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:19:56
Time diff (sec) start/end : 0.78 / 7.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:19:56
Time diff (sec) start/end : 0.78 / 7.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:19:58
Time diff (sec) start/end : 2.78 / 5.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:20:00
Time diff (sec) start/end : 4.78 / 3.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:20:02
Time diff (sec) start/end : 6.78 / 1.22 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:08
Time diff (sec) start/end : 1.61 / 6.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:08
Time diff (sec) start/end : 1.61 / 6.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:10
Time diff (sec) start/end : 3.61 / 4.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:10
Time diff (sec) start/end : 3.61 / 4.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:12
Time diff (sec) start/end : 5.61 / 2.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:12
Time diff (sec) start/end : 5.61 / 2.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:14
Time diff (sec) start/end : 7.61 / 0.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:14
Time diff (sec) start/end : 7.61 / 0.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:14
Time diff (sec) start/end : 7.61 / 0.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:14
Time diff (sec) start/end : 7.61 / 0.39 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:18
Time diff (sec) start/end : 0.45 / 7.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:18
Time diff (sec) start/end : 0.45 / 7.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:20
Time diff (sec) start/end : 2.45 / 5.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:20
Time diff (sec) start/end : 2.45 / 5.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:20
Time diff (sec) start/end : 2.45 / 5.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:20
Time diff (sec) start/end : 2.45 / 5.55
gopr9354_20120917_221934_gmt_lftside.jpg gopr9355_20120917_221934_gmt_lftside.jpg gopr9356_20120917_221936_gmt_lftside.jpg gopr9357_20120917_221936_gmt_lftside.jpg gopr9358_20120917_221938_gmt_lftside.jpg gopr9359_20120917_221940_gmt_lftside.jpg gopr9360_20120917_221940_gmt_lftside.jpg gopr9361_20120917_221940_gmt_lftside.jpg gopr9364_20120917_221946_gmt_lftside.jpg gopr9365_20120917_221946_gmt_lftside.jpg gopr9366_20120917_221946_gmt_lftside.jpg gopr9367_20120917_221948_gmt_lftside.jpg gopr9368_20120917_221948_gmt_lftside.jpg gopr9369_20120917_221950_gmt_lftside.jpg gopr9370_20120917_221950_gmt_lftside.jpg gopr9371_20120917_221952_gmt_lftside.jpg gopr9372_20120917_221952_gmt_lftside.jpg gopr9374_20120917_221956_gmt_lftside.jpg gopr9375_20120917_221956_gmt_lftside.jpg gopr9376_20120917_221956_gmt_lftside.jpg gopr9377_20120917_221958_gmt_lftside.jpg gopr9378_20120917_222000_gmt_lftside.jpg gopr9379_20120917_222002_gmt_lftside.jpg gopr9384_20120917_222008_gmt_lftside.jpg gopr9385_20120917_222008_gmt_lftside.jpg gopr9386_20120917_222010_gmt_lftside.jpg gopr9387_20120917_222010_gmt_lftside.jpg gopr9388_20120917_222012_gmt_lftside.jpg gopr9389_20120917_222012_gmt_lftside.jpg gopr9390_20120917_222014_gmt_lftside.jpg gopr9391_20120917_222014_gmt_lftside.jpg gopr9392_20120917_222014_gmt_lftside.jpg gopr9393_20120917_222014_gmt_lftside.jpg gopr9394_20120917_222018_gmt_lftside.jpg gopr9395_20120917_222018_gmt_lftside.jpg gopr9396_20120917_222020_gmt_lftside.jpg gopr9397_20120917_222020_gmt_lftside.jpg gopr9398_20120917_222020_gmt_lftside.jpg gopr9399_20120917_222020_gmt_lftside.jpg

Right side Photos for r20120917_006_net

Right side Photos for r20120917_006_net (tracks 7-13)

Sky Photos for r20120917_006_net

Sky Photos for r20120917_006_net
Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:23:42
Time diff (sec) start/end : 249.13 / 241.13 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:23:42
Time diff (sec) start/end : 237.95 / 229.95 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:23:42
Time diff (sec) start/end : 226.78 / 218.78 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:23:42
Time diff (sec) start/end : 215.61 / 207.61 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:23:42
Time diff (sec) start/end : 204.45 / 196.45
gopr8772_20120917_222342_gmt_cam4.jpg gopr8772_20120917_222342_gmt_cam4.jpg gopr8772_20120917_222342_gmt_cam4.jpg gopr8772_20120917_222342_gmt_cam4.jpg gopr8772_20120917_222342_gmt_cam4.jpg

Horizon Photos for r20120917_006_net

Horizon and obove water fork Photos for r20120917_006_net
Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:33
Time diff (sec) start/end : 0.13 / 7.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:35
Time diff (sec) start/end : 2.13 / 5.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:35
Time diff (sec) start/end : 2.13 / 5.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:37
Time diff (sec) start/end : 4.13 / 3.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:37
Time diff (sec) start/end : 4.13 / 3.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:37
Time diff (sec) start/end : 4.13 / 3.87 		Resonon Image 1
Time: 22:19:32.875 to 22:19:40.875
GoPro Time: 22:19:37
Time diff (sec) start/end : 4.13 / 3.87 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:47
Time diff (sec) start/end : 2.95 / 5.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:47
Time diff (sec) start/end : 2.95 / 5.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:49
Time diff (sec) start/end : 4.95 / 3.05 		Resonon Image 2
Time: 22:19:44.046 to 22:19:52.046
GoPro Time: 22:19:51
Time diff (sec) start/end : 6.95 / 1.05 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:19:57
Time diff (sec) start/end : 1.78 / 6.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:19:57
Time diff (sec) start/end : 1.78 / 6.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:19:57
Time diff (sec) start/end : 1.78 / 6.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:20:01
Time diff (sec) start/end : 5.78 / 2.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:20:03
Time diff (sec) start/end : 7.78 / 0.22 		Resonon Image 3
Time: 22:19:55.218 to 22:20:03.218
GoPro Time: 22:20:03
Time diff (sec) start/end : 7.78 / 0.22 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:07
Time diff (sec) start/end : 0.61 / 7.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:09
Time diff (sec) start/end : 2.61 / 5.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:09
Time diff (sec) start/end : 2.61 / 5.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:11
Time diff (sec) start/end : 4.61 / 3.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:11
Time diff (sec) start/end : 4.61 / 3.39 		Resonon Image 4
Time: 22:20:06.390 to 22:20:14.390
GoPro Time: 22:20:13
Time diff (sec) start/end : 6.61 / 1.39 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:19
Time diff (sec) start/end : 1.45 / 6.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:21
Time diff (sec) start/end : 3.45 / 4.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:23
Time diff (sec) start/end : 5.45 / 2.55 		Resonon Image 5
Time: 22:20:17.546 to 22:20:25.546
GoPro Time: 22:20:25
Time diff (sec) start/end : 7.45 / 0.55
gopr4052_20120917_221933_gmt_horizon.jpg gopr4053_20120917_221935_gmt_horizon.jpg gopr4054_20120917_221935_gmt_horizon.jpg gopr4055_20120917_221937_gmt_horizon.jpg gopr4056_20120917_221937_gmt_horizon.jpg gopr4057_20120917_221937_gmt_horizon.jpg gopr4058_20120917_221937_gmt_horizon.jpg gopr4064_20120917_221947_gmt_horizon.jpg gopr4065_20120917_221947_gmt_horizon.jpg gopr4066_20120917_221949_gmt_horizon.jpg gopr4067_20120917_221951_gmt_horizon.jpg gopr4072_20120917_221957_gmt_horizon.jpg gopr4073_20120917_221957_gmt_horizon.jpg gopr4074_20120917_221957_gmt_horizon.jpg gopr4075_20120917_222001_gmt_horizon.jpg gopr4076_20120917_222003_gmt_horizon.jpg gopr4077_20120917_222003_gmt_horizon.jpg gopr4081_20120917_222007_gmt_horizon.jpg gopr4082_20120917_222009_gmt_horizon.jpg gopr4083_20120917_222009_gmt_horizon.jpg gopr4084_20120917_222011_gmt_horizon.jpg gopr4085_20120917_222011_gmt_horizon.jpg gopr4086_20120917_222013_gmt_horizon.jpg gopr4091_20120917_222019_gmt_horizon.jpg gopr4092_20120917_222021_gmt_horizon.jpg gopr4093_20120917_222023_gmt_horizon.jpg gopr4094_20120917_222025_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:06:25
Created from gopro_mkpages_(12)
