r20120917_013_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:06:34

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

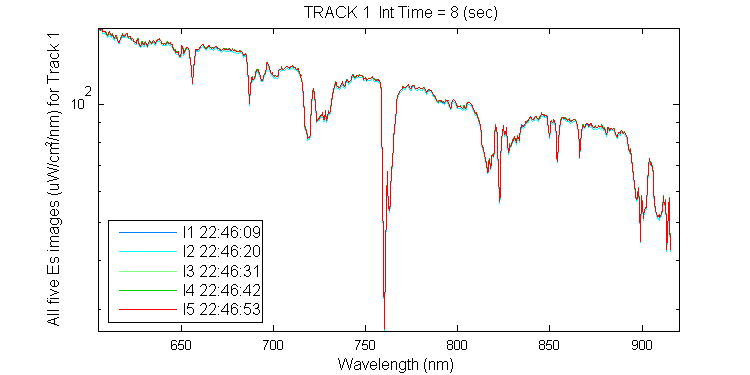

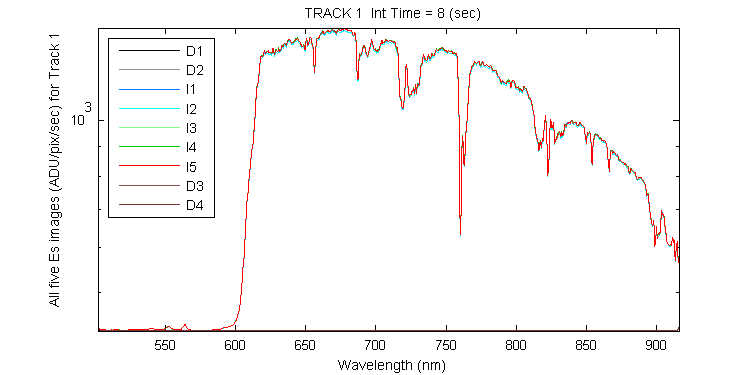

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120917 22:46:09 20.0509 8
2 20120917 22:46:20 20.0609 8
3 20120917 22:46:31 20.0721 8
4 20120917 22:46:42 20.0833 8
5 20120917 22:46:53 20.0947 8
image image

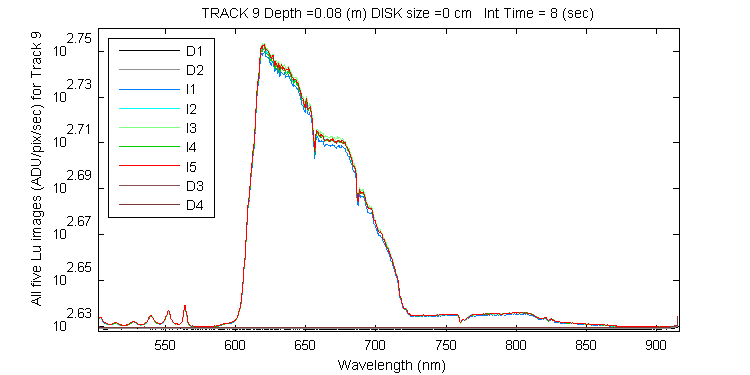

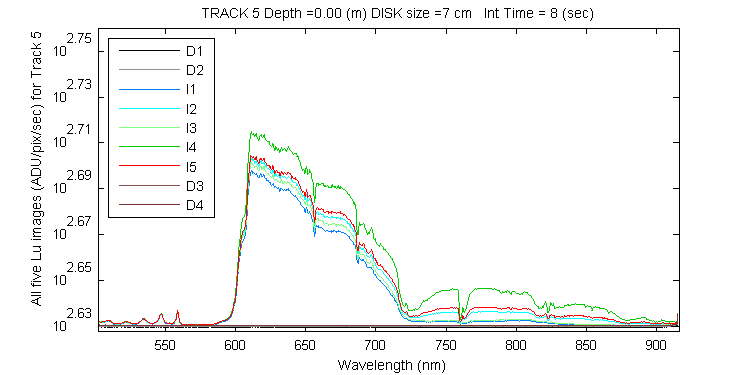

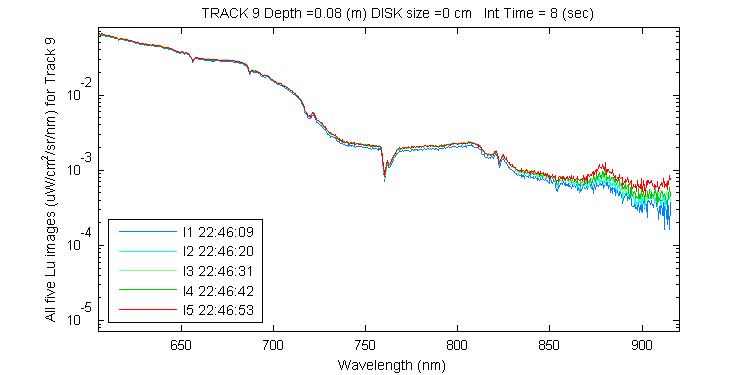

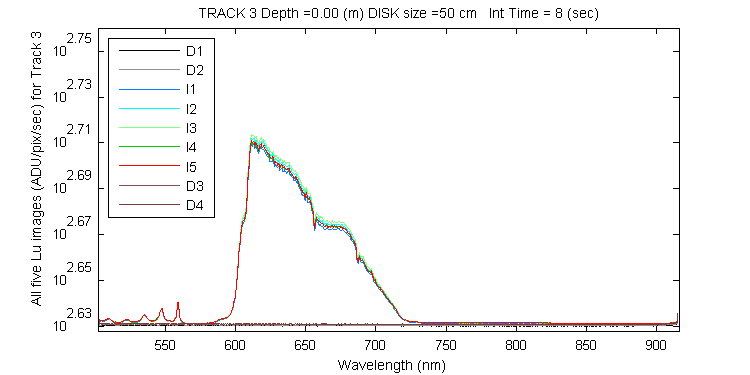

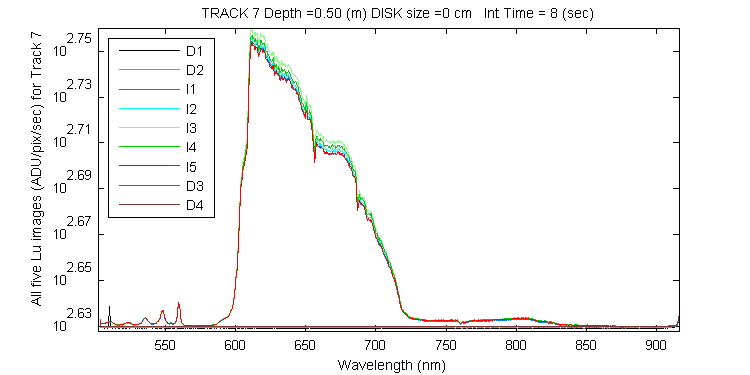

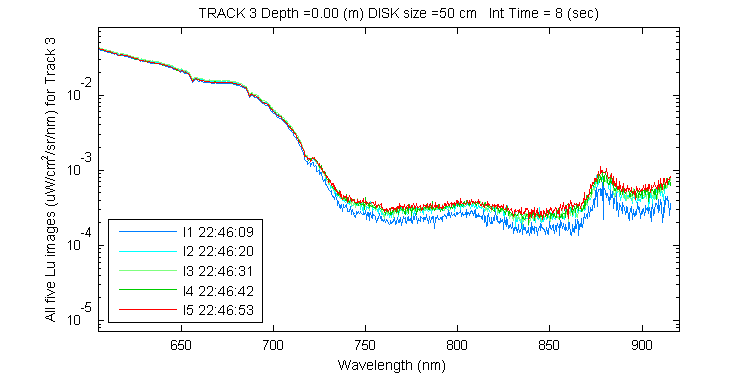

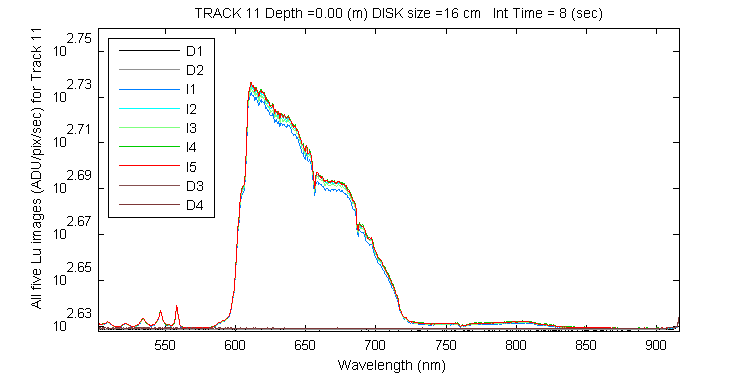

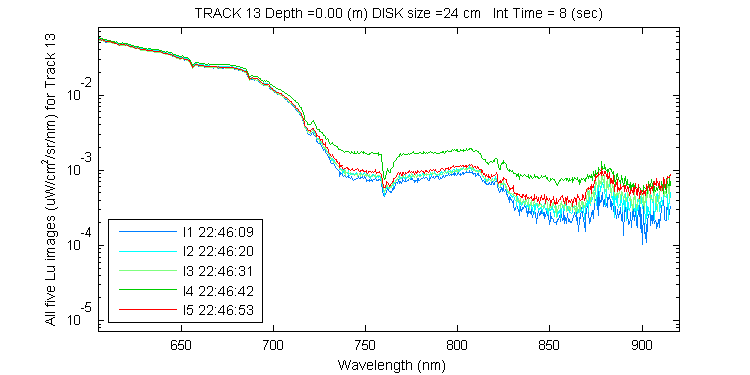

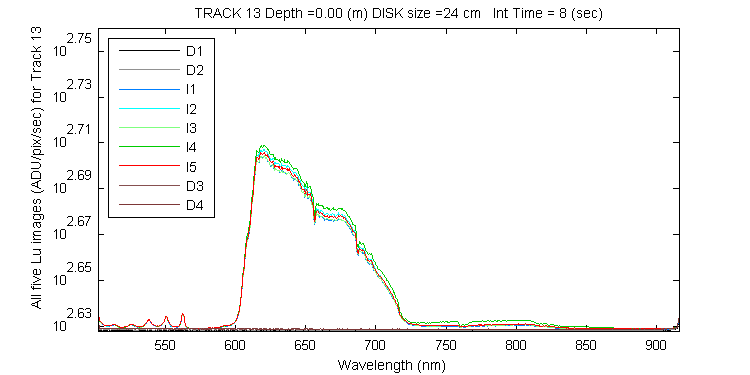

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120917_013_net

Sun Dial Photos for r20120917_013_net
Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:11
Time diff (sec) start/end : 1.45 / 6.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:11
Time diff (sec) start/end : 1.45 / 6.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:15
Time diff (sec) start/end : 5.45 / 2.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:15
Time diff (sec) start/end : 5.45 / 2.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:17
Time diff (sec) start/end : 7.45 / 0.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:17
Time diff (sec) start/end : 7.45 / 0.55 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:21
Time diff (sec) start/end : 0.58 / 7.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:21
Time diff (sec) start/end : 0.58 / 7.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:23
Time diff (sec) start/end : 2.58 / 5.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:23
Time diff (sec) start/end : 2.58 / 5.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:25
Time diff (sec) start/end : 4.58 / 3.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:25
Time diff (sec) start/end : 4.58 / 3.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:27
Time diff (sec) start/end : 6.58 / 1.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:27
Time diff (sec) start/end : 6.58 / 1.42 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:33
Time diff (sec) start/end : 1.72 / 6.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:35
Time diff (sec) start/end : 3.72 / 4.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:37
Time diff (sec) start/end : 5.72 / 2.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:37
Time diff (sec) start/end : 5.72 / 2.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:39
Time diff (sec) start/end : 7.72 / 0.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:39
Time diff (sec) start/end : 7.72 / 0.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:39
Time diff (sec) start/end : 7.72 / 0.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:39
Time diff (sec) start/end : 7.72 / 0.28 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:43
Time diff (sec) start/end : 0.84 / 7.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:45
Time diff (sec) start/end : 2.84 / 5.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:45
Time diff (sec) start/end : 2.84 / 5.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:47
Time diff (sec) start/end : 4.84 / 3.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:47
Time diff (sec) start/end : 4.84 / 3.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:49
Time diff (sec) start/end : 6.84 / 1.16 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:55
Time diff (sec) start/end : 1.97 / 6.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:57
Time diff (sec) start/end : 3.97 / 4.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:57
Time diff (sec) start/end : 3.97 / 4.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:59
Time diff (sec) start/end : 5.97 / 2.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:59
Time diff (sec) start/end : 5.97 / 2.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:47:01
Time diff (sec) start/end : 7.97 / 0.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:47:01
Time diff (sec) start/end : 7.97 / 0.03
gopr5325_20120917_224611_gmt_sun.png gopr5326_20120917_224611_gmt_sun.png gopr5327_20120917_224615_gmt_sun.png gopr5328_20120917_224615_gmt_sun.png gopr5329_20120917_224617_gmt_sun.png gopr5330_20120917_224617_gmt_sun.png gopr5332_20120917_224621_gmt_sun.png gopr5333_20120917_224621_gmt_sun.png gopr5334_20120917_224623_gmt_sun.png gopr5335_20120917_224623_gmt_sun.png gopr5336_20120917_224625_gmt_sun.png gopr5337_20120917_224625_gmt_sun.png gopr5338_20120917_224627_gmt_sun.png gopr5339_20120917_224627_gmt_sun.png gopr5345_20120917_224633_gmt_sun.png gopr5346_20120917_224635_gmt_sun.png gopr5347_20120917_224637_gmt_sun.png gopr5348_20120917_224637_gmt_sun.png gopr5349_20120917_224639_gmt_sun.png gopr5350_20120917_224639_gmt_sun.png gopr5351_20120917_224639_gmt_sun.png gopr5352_20120917_224639_gmt_sun.png gopr5353_20120917_224643_gmt_sun.png gopr5354_20120917_224645_gmt_sun.png gopr5355_20120917_224645_gmt_sun.png gopr5356_20120917_224647_gmt_sun.png gopr5357_20120917_224647_gmt_sun.png gopr5358_20120917_224649_gmt_sun.png gopr5364_20120917_224655_gmt_sun.png gopr5365_20120917_224657_gmt_sun.png gopr5366_20120917_224657_gmt_sun.png gopr5367_20120917_224659_gmt_sun.png gopr5368_20120917_224659_gmt_sun.png gopr5369_20120917_224701_gmt_sun.png gopr5370_20120917_224701_gmt_sun.png

Left side Photos for r20120917_013_net

Left side Photos for r20120917_013_net (tracks 3 -9)
Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:10
Time diff (sec) start/end : 0.45 / 7.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:10
Time diff (sec) start/end : 0.45 / 7.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:12
Time diff (sec) start/end : 2.45 / 5.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:14
Time diff (sec) start/end : 4.45 / 3.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:14
Time diff (sec) start/end : 4.45 / 3.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:16
Time diff (sec) start/end : 6.45 / 1.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:16
Time diff (sec) start/end : 6.45 / 1.55 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:22
Time diff (sec) start/end : 1.58 / 6.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:24
Time diff (sec) start/end : 3.58 / 4.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:24
Time diff (sec) start/end : 3.58 / 4.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:26
Time diff (sec) start/end : 5.58 / 2.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:26
Time diff (sec) start/end : 5.58 / 2.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:28
Time diff (sec) start/end : 7.58 / 0.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:28
Time diff (sec) start/end : 7.58 / 0.42 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:34
Time diff (sec) start/end : 2.72 / 5.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:36
Time diff (sec) start/end : 4.72 / 3.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:36
Time diff (sec) start/end : 4.72 / 3.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:38
Time diff (sec) start/end : 6.72 / 1.28 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:44
Time diff (sec) start/end : 1.84 / 6.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:44
Time diff (sec) start/end : 1.84 / 6.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:48
Time diff (sec) start/end : 5.84 / 2.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:48
Time diff (sec) start/end : 5.84 / 2.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:50
Time diff (sec) start/end : 7.84 / 0.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:50
Time diff (sec) start/end : 7.84 / 0.16 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:56
Time diff (sec) start/end : 2.97 / 5.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:56
Time diff (sec) start/end : 2.97 / 5.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:58
Time diff (sec) start/end : 4.97 / 3.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:58
Time diff (sec) start/end : 4.97 / 3.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:47:00
Time diff (sec) start/end : 6.97 / 1.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:47:00
Time diff (sec) start/end : 6.97 / 1.03
gopr6986_20120917_224610_gmt_lftside.jpg gopr6987_20120917_224610_gmt_lftside.jpg gopr6988_20120917_224612_gmt_lftside.jpg gopr6989_20120917_224614_gmt_lftside.jpg gopr6990_20120917_224614_gmt_lftside.jpg gopr6991_20120917_224616_gmt_lftside.jpg gopr6992_20120917_224616_gmt_lftside.jpg gopr6996_20120917_224622_gmt_lftside.jpg gopr6997_20120917_224624_gmt_lftside.jpg gopr6998_20120917_224624_gmt_lftside.jpg gopr6999_20120917_224626_gmt_lftside.jpg gopr7000_20120917_224626_gmt_lftside.jpg gopr7001_20120917_224628_gmt_lftside.jpg gopr7002_20120917_224628_gmt_lftside.jpg gopr7006_20120917_224634_gmt_lftside.jpg gopr7007_20120917_224636_gmt_lftside.jpg gopr7008_20120917_224636_gmt_lftside.jpg gopr7009_20120917_224638_gmt_lftside.jpg gopr7013_20120917_224644_gmt_lftside.jpg gopr7014_20120917_224644_gmt_lftside.jpg gopr7015_20120917_224648_gmt_lftside.jpg gopr7016_20120917_224648_gmt_lftside.jpg gopr7017_20120917_224650_gmt_lftside.jpg gopr7018_20120917_224650_gmt_lftside.jpg gopr7023_20120917_224656_gmt_lftside.jpg gopr7024_20120917_224656_gmt_lftside.jpg gopr7025_20120917_224658_gmt_lftside.jpg gopr7026_20120917_224658_gmt_lftside.jpg gopr7027_20120917_224700_gmt_lftside.jpg gopr7028_20120917_224700_gmt_lftside.jpg

Right side Photos for r20120917_013_net

Right side Photos for r20120917_013_net (tracks 7-13)
Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:11
Time diff (sec) start/end : 1.45 / 6.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:13
Time diff (sec) start/end : 3.45 / 4.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:13
Time diff (sec) start/end : 3.45 / 4.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:15
Time diff (sec) start/end : 5.45 / 2.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:15
Time diff (sec) start/end : 5.45 / 2.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:17
Time diff (sec) start/end : 7.45 / 0.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:17
Time diff (sec) start/end : 7.45 / 0.55 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:23
Time diff (sec) start/end : 2.58 / 5.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:23
Time diff (sec) start/end : 2.58 / 5.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:25
Time diff (sec) start/end : 4.58 / 3.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:25
Time diff (sec) start/end : 4.58 / 3.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:27
Time diff (sec) start/end : 6.58 / 1.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:27
Time diff (sec) start/end : 6.58 / 1.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:27
Time diff (sec) start/end : 6.58 / 1.42 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:33
Time diff (sec) start/end : 1.72 / 6.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:37
Time diff (sec) start/end : 5.72 / 2.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:37
Time diff (sec) start/end : 5.72 / 2.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:39
Time diff (sec) start/end : 7.72 / 0.28 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:43
Time diff (sec) start/end : 0.84 / 7.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:43
Time diff (sec) start/end : 0.84 / 7.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:45
Time diff (sec) start/end : 2.84 / 5.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:47
Time diff (sec) start/end : 4.84 / 3.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:49
Time diff (sec) start/end : 6.84 / 1.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:49
Time diff (sec) start/end : 6.84 / 1.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:49
Time diff (sec) start/end : 6.84 / 1.16 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:55
Time diff (sec) start/end : 1.97 / 6.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:55
Time diff (sec) start/end : 1.97 / 6.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:57
Time diff (sec) start/end : 3.97 / 4.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:57
Time diff (sec) start/end : 3.97 / 4.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:59
Time diff (sec) start/end : 5.97 / 2.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:59
Time diff (sec) start/end : 5.97 / 2.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:47:01
Time diff (sec) start/end : 7.97 / 0.03
gopr0953_20120917_224611_gmt_rghtside.jpg gopr0954_20120917_224613_gmt_rghtside.jpg gopr0955_20120917_224613_gmt_rghtside.jpg gopr0956_20120917_224615_gmt_rghtside.jpg gopr0957_20120917_224615_gmt_rghtside.jpg gopr0958_20120917_224617_gmt_rghtside.jpg gopr0959_20120917_224617_gmt_rghtside.jpg gopr0962_20120917_224623_gmt_rghtside.jpg gopr0963_20120917_224623_gmt_rghtside.jpg gopr0964_20120917_224625_gmt_rghtside.jpg gopr0965_20120917_224625_gmt_rghtside.jpg gopr0966_20120917_224627_gmt_rghtside.jpg gopr0967_20120917_224627_gmt_rghtside.jpg gopr0968_20120917_224627_gmt_rghtside.jpg gopr0973_20120917_224633_gmt_rghtside.jpg gopr0974_20120917_224637_gmt_rghtside.jpg gopr0975_20120917_224637_gmt_rghtside.jpg gopr0976_20120917_224639_gmt_rghtside.jpg gopr0979_20120917_224643_gmt_rghtside.jpg gopr0980_20120917_224643_gmt_rghtside.jpg gopr0981_20120917_224645_gmt_rghtside.jpg gopr0982_20120917_224647_gmt_rghtside.jpg gopr0983_20120917_224649_gmt_rghtside.jpg gopr0984_20120917_224649_gmt_rghtside.jpg gopr0985_20120917_224649_gmt_rghtside.jpg gopr0988_20120917_224655_gmt_rghtside.jpg gopr0989_20120917_224655_gmt_rghtside.jpg gopr0990_20120917_224657_gmt_rghtside.jpg gopr0991_20120917_224657_gmt_rghtside.jpg gopr0992_20120917_224659_gmt_rghtside.jpg gopr0993_20120917_224659_gmt_rghtside.jpg gopr0994_20120917_224701_gmt_rghtside.jpg

Sky Photos for r20120917_013_net

Sky Photos for r20120917_013_net
Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:53:08
Time diff (sec) start/end : 418.45 / 410.45 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:53:08
Time diff (sec) start/end : 407.58 / 399.58 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:53:08
Time diff (sec) start/end : 396.72 / 388.72 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:53:08
Time diff (sec) start/end : 385.84 / 377.84 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:53:08
Time diff (sec) start/end : 374.97 / 366.97
gopr9800_20120917_225308_gmt_cam4.jpg gopr9800_20120917_225308_gmt_cam4.jpg gopr9800_20120917_225308_gmt_cam4.jpg gopr9800_20120917_225308_gmt_cam4.jpg gopr9800_20120917_225308_gmt_cam4.jpg

Horizon Photos for r20120917_013_net

Horizon and obove water fork Photos for r20120917_013_net
Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:11
Time diff (sec) start/end : 1.45 / 6.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:11
Time diff (sec) start/end : 1.45 / 6.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:15
Time diff (sec) start/end : 5.45 / 2.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:15
Time diff (sec) start/end : 5.45 / 2.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:17
Time diff (sec) start/end : 7.45 / 0.55 		Resonon Image 1
Time: 22:46:09.546 to 22:46:17.546
GoPro Time: 22:46:17
Time diff (sec) start/end : 7.45 / 0.55 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:21
Time diff (sec) start/end : 0.58 / 7.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:21
Time diff (sec) start/end : 0.58 / 7.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:23
Time diff (sec) start/end : 2.58 / 5.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:23
Time diff (sec) start/end : 2.58 / 5.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:25
Time diff (sec) start/end : 4.58 / 3.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:25
Time diff (sec) start/end : 4.58 / 3.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:27
Time diff (sec) start/end : 6.58 / 1.42 		Resonon Image 2
Time: 22:46:20.421 to 22:46:28.421
GoPro Time: 22:46:27
Time diff (sec) start/end : 6.58 / 1.42 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:33
Time diff (sec) start/end : 1.72 / 6.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:35
Time diff (sec) start/end : 3.72 / 4.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:37
Time diff (sec) start/end : 5.72 / 2.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:37
Time diff (sec) start/end : 5.72 / 2.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:39
Time diff (sec) start/end : 7.72 / 0.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:39
Time diff (sec) start/end : 7.72 / 0.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:39
Time diff (sec) start/end : 7.72 / 0.28 		Resonon Image 3
Time: 22:46:31.281 to 22:46:39.281
GoPro Time: 22:46:39
Time diff (sec) start/end : 7.72 / 0.28 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:43
Time diff (sec) start/end : 0.84 / 7.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:45
Time diff (sec) start/end : 2.84 / 5.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:45
Time diff (sec) start/end : 2.84 / 5.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:47
Time diff (sec) start/end : 4.84 / 3.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:47
Time diff (sec) start/end : 4.84 / 3.16 		Resonon Image 4
Time: 22:46:42.156 to 22:46:50.156
GoPro Time: 22:46:49
Time diff (sec) start/end : 6.84 / 1.16 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:55
Time diff (sec) start/end : 1.97 / 6.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:57
Time diff (sec) start/end : 3.97 / 4.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:57
Time diff (sec) start/end : 3.97 / 4.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:59
Time diff (sec) start/end : 5.97 / 2.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:46:59
Time diff (sec) start/end : 5.97 / 2.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:47:01
Time diff (sec) start/end : 7.97 / 0.03 		Resonon Image 5
Time: 22:46:53.031 to 22:47:01.031
GoPro Time: 22:47:01
Time diff (sec) start/end : 7.97 / 0.03
gopr5325_20120917_224611_gmt_horizon.jpg gopr5326_20120917_224611_gmt_horizon.jpg gopr5327_20120917_224615_gmt_horizon.jpg gopr5328_20120917_224615_gmt_horizon.jpg gopr5329_20120917_224617_gmt_horizon.jpg gopr5330_20120917_224617_gmt_horizon.jpg gopr5332_20120917_224621_gmt_horizon.jpg gopr5333_20120917_224621_gmt_horizon.jpg gopr5334_20120917_224623_gmt_horizon.jpg gopr5335_20120917_224623_gmt_horizon.jpg gopr5336_20120917_224625_gmt_horizon.jpg gopr5337_20120917_224625_gmt_horizon.jpg gopr5338_20120917_224627_gmt_horizon.jpg gopr5339_20120917_224627_gmt_horizon.jpg gopr5345_20120917_224633_gmt_horizon.jpg gopr5346_20120917_224635_gmt_horizon.jpg gopr5347_20120917_224637_gmt_horizon.jpg gopr5348_20120917_224637_gmt_horizon.jpg gopr5349_20120917_224639_gmt_horizon.jpg gopr5350_20120917_224639_gmt_horizon.jpg gopr5351_20120917_224639_gmt_horizon.jpg gopr5352_20120917_224639_gmt_horizon.jpg gopr5353_20120917_224643_gmt_horizon.jpg gopr5354_20120917_224645_gmt_horizon.jpg gopr5355_20120917_224645_gmt_horizon.jpg gopr5356_20120917_224647_gmt_horizon.jpg gopr5357_20120917_224647_gmt_horizon.jpg gopr5358_20120917_224649_gmt_horizon.jpg gopr5364_20120917_224655_gmt_horizon.jpg gopr5365_20120917_224657_gmt_horizon.jpg gopr5366_20120917_224657_gmt_horizon.jpg gopr5367_20120917_224659_gmt_horizon.jpg gopr5368_20120917_224659_gmt_horizon.jpg gopr5369_20120917_224701_gmt_horizon.jpg gopr5370_20120917_224701_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:06:36
Created from gopro_mkpages_(12)
