r20120917_014_net - RED SPEC

REVISION DATE: 05-Nov-2012 12:06:36

The purpose of this page is to show the GoPro data collected for each Resonon data set for the red or blue spec. There where 4 camera collecting data. Cam1 was looking at a sundial above water to get the sun position. Cam2 was looking at the 32/56 cm disk, the 7 cm disk and sometimes the bare fibers (or left side of the fork). Cam3 was looking at the 26 and 24 cm disks and could occationally see the bare fibered arm. Cam4 was on the ship looking at the sky.

When the Resonon was collecting data it would take the BSG data (short int times) and once the BSG was done it would take the RSG data (long integration times). So the individual date sets were collected in this order [BSG_dark RSG_dark] repeat the [BSG_lite RSG_lite] repeated 4 more times and [BSG_dark RSG_dark] repeat one more time. The BSG and RSG are then written to separate files. Each file has 2 dark image 5 lite images followed by 2 dark images. Normal processing would average the 5 lite images (by track) but for this webpage we want to keep each of the lite data separate so we get 5 lite data sets per files per track rather than 1. The idea will be to show the image only when a lite image was being taken.

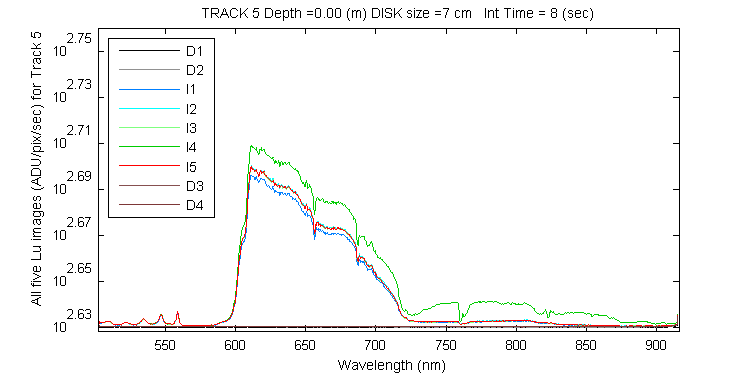

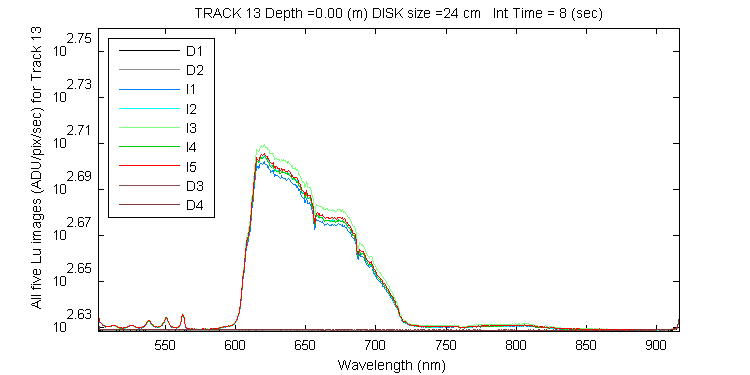

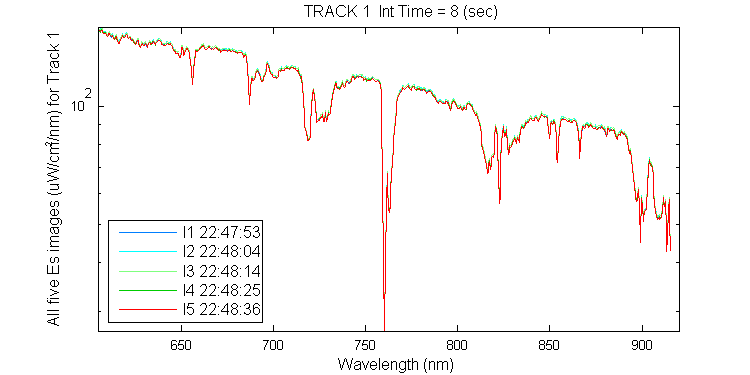

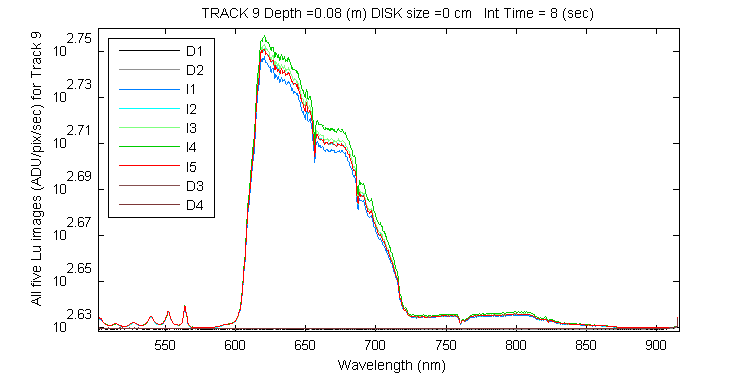

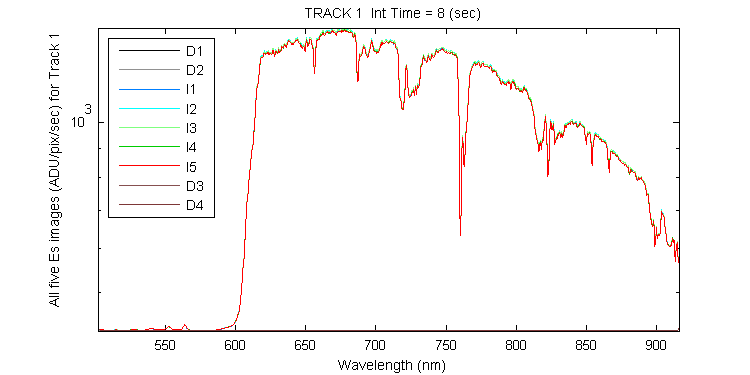

The data below is dark subtracted (mean of 4 darks) and divided by integration time and then converted to radiance using the 20120913B_OL455 system response file. Only track 1 (Es) and tracks 3,5,7,9,11 and 13 are shown below.

Note that the GoPro Photos times have be converted to GMT time, but the original GoPro times were only good to 3 secs or so.

Fork Track Disk Size Camera
1 3 32/56 2
2 5 7 2
3 7 Bare Fiber Deep 2/3
4 9 Bare Fiber shallow 2/3
5 11 16 3
6 13 24 3
Image Date Time Zenith Int Time (sec)
1 20120917 22:47:53 20.1582 8
2 20120917 22:48:04 20.1701 8
3 20120917 22:48:14 20.1822 8
4 20120917 22:48:25 20.1943 8
5 20120917 22:48:36 20.2065 8
image image

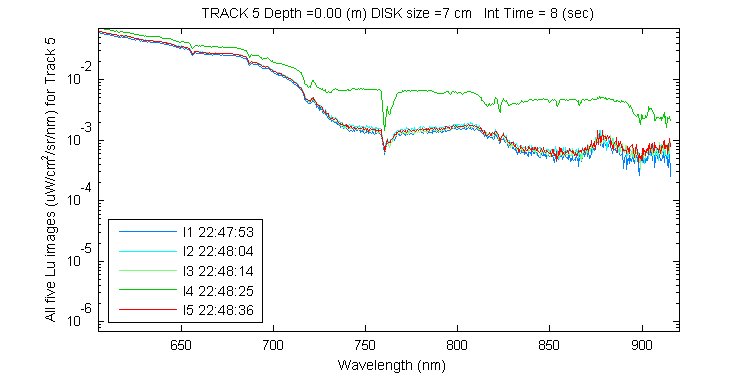

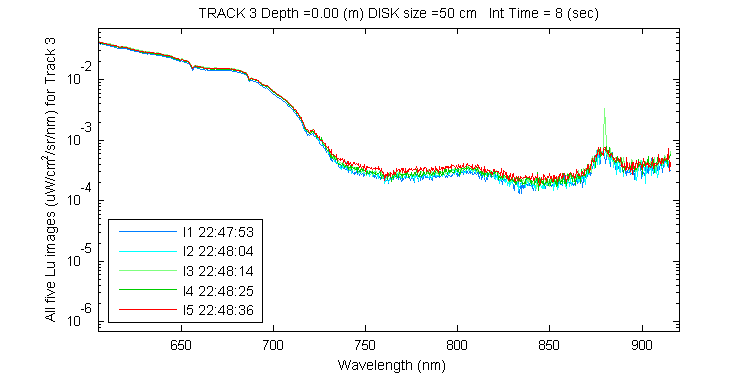

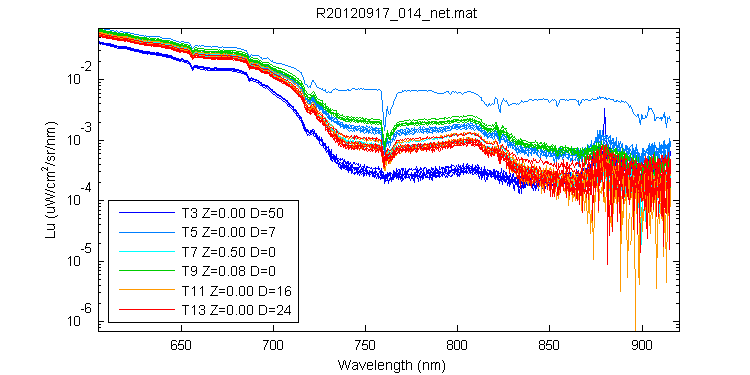

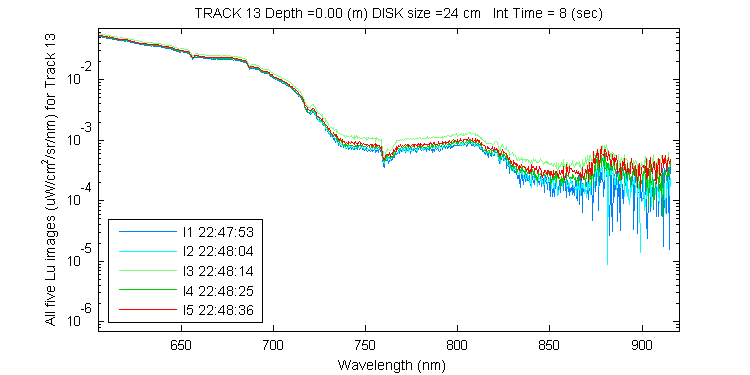

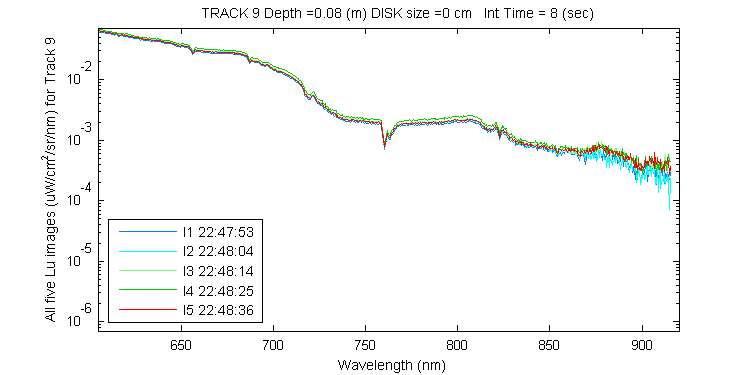

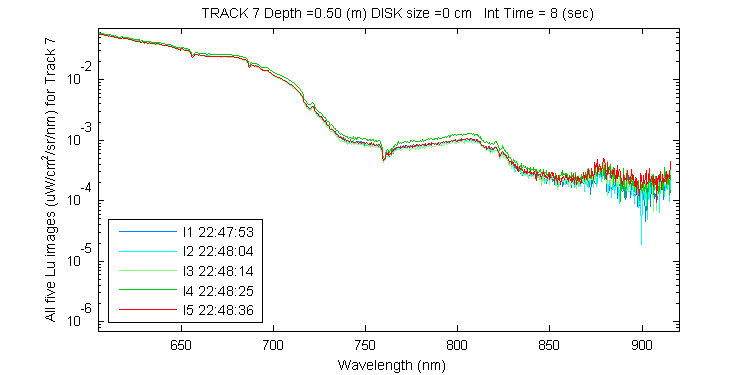

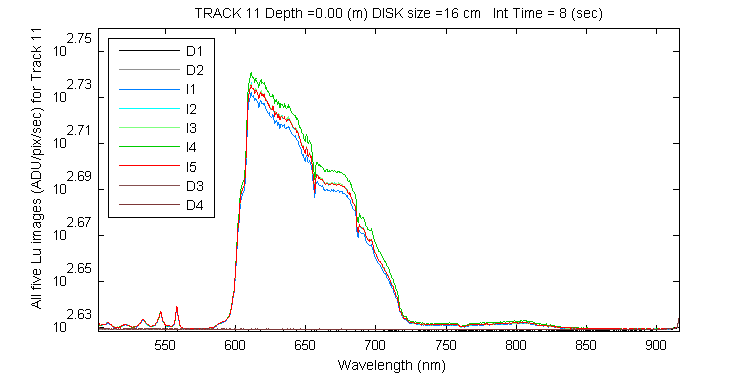

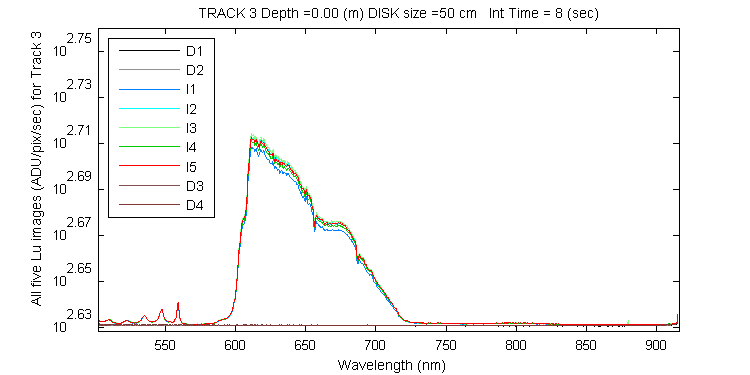

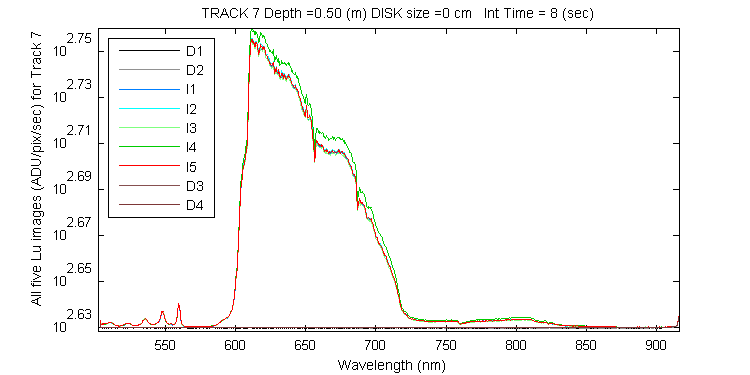

Lu data for tracks 3,5,7,9,11 and 13 for each image (ie all Lu data in the file) Es data from track1 for each image (ie the Es data for each Lu image)
image image image image image image image
image image image image image image image

All Photos for RED SPEC, click on the photo or a larger view.

Sun Dial Photos for r20120917_014_net

Sun Dial Photos for r20120917_014_net
Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:57
Time diff (sec) start/end : 3.94 / 4.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:59
Time diff (sec) start/end : 5.94 / 2.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:48:01
Time diff (sec) start/end : 7.94 / 0.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:48:01
Time diff (sec) start/end : 7.94 / 0.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:48:01
Time diff (sec) start/end : 7.94 / 0.06 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:05
Time diff (sec) start/end : 1.00 / 7.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:07
Time diff (sec) start/end : 3.00 / 5.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:07
Time diff (sec) start/end : 3.00 / 5.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:09
Time diff (sec) start/end : 5.00 / 3.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:09
Time diff (sec) start/end : 5.00 / 3.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:11
Time diff (sec) start/end : 7.00 / 1.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:11
Time diff (sec) start/end : 7.00 / 1.00 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:15
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:17
Time diff (sec) start/end : 2.14 / 5.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:17
Time diff (sec) start/end : 2.14 / 5.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:19
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:19
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:21
Time diff (sec) start/end : 6.14 / 1.86 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:27
Time diff (sec) start/end : 1.28 / 6.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:29
Time diff (sec) start/end : 3.28 / 4.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:29
Time diff (sec) start/end : 3.28 / 4.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:31
Time diff (sec) start/end : 5.28 / 2.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:39
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:39
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:41
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:41
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:43
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:43
Time diff (sec) start/end : 6.41 / 1.59
gopr5416_20120917_224755_gmt_sun.png gopr5417_20120917_224755_gmt_sun.png gopr5418_20120917_224755_gmt_sun.png gopr5419_20120917_224755_gmt_sun.png gopr5420_20120917_224757_gmt_sun.png gopr5421_20120917_224759_gmt_sun.png gopr5422_20120917_224801_gmt_sun.png gopr5423_20120917_224801_gmt_sun.png gopr5424_20120917_224801_gmt_sun.png gopr5426_20120917_224805_gmt_sun.png gopr5427_20120917_224807_gmt_sun.png gopr5428_20120917_224807_gmt_sun.png gopr5429_20120917_224809_gmt_sun.png gopr5430_20120917_224809_gmt_sun.png gopr5431_20120917_224811_gmt_sun.png gopr5432_20120917_224811_gmt_sun.png gopr5435_20120917_224815_gmt_sun.png gopr5436_20120917_224817_gmt_sun.png gopr5437_20120917_224817_gmt_sun.png gopr5438_20120917_224819_gmt_sun.png gopr5439_20120917_224819_gmt_sun.png gopr5440_20120917_224821_gmt_sun.png gopr5445_20120917_224827_gmt_sun.png gopr5446_20120917_224829_gmt_sun.png gopr5447_20120917_224829_gmt_sun.png gopr5448_20120917_224831_gmt_sun.png gopr5449_20120917_224833_gmt_sun.png gopr5450_20120917_224833_gmt_sun.png gopr5451_20120917_224833_gmt_sun.png gopr5452_20120917_224833_gmt_sun.png gopr5453_20120917_224833_gmt_sun.png gopr5454_20120917_224839_gmt_sun.png gopr5455_20120917_224839_gmt_sun.png gopr5456_20120917_224841_gmt_sun.png gopr5457_20120917_224841_gmt_sun.png gopr5458_20120917_224843_gmt_sun.png gopr5459_20120917_224843_gmt_sun.png

Left side Photos for r20120917_014_net

Left side Photos for r20120917_014_net (tracks 3 -9)
Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:54
Time diff (sec) start/end : 0.94 / 7.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:54
Time diff (sec) start/end : 0.94 / 7.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:56
Time diff (sec) start/end : 2.94 / 5.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:56
Time diff (sec) start/end : 2.94 / 5.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:58
Time diff (sec) start/end : 4.94 / 3.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:58
Time diff (sec) start/end : 4.94 / 3.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:48:00
Time diff (sec) start/end : 6.94 / 1.06 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:04
Time diff (sec) start/end : 0.00 / 8.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:04
Time diff (sec) start/end : 0.00 / 8.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:06
Time diff (sec) start/end : 2.00 / 6.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:06
Time diff (sec) start/end : 2.00 / 6.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:08
Time diff (sec) start/end : 4.00 / 4.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:08
Time diff (sec) start/end : 4.00 / 4.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:10
Time diff (sec) start/end : 6.00 / 2.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:12
Time diff (sec) start/end : 8.00 / 0.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:12
Time diff (sec) start/end : 8.00 / 0.00 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:16
Time diff (sec) start/end : 1.14 / 6.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:16
Time diff (sec) start/end : 1.14 / 6.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:16
Time diff (sec) start/end : 1.14 / 6.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:18
Time diff (sec) start/end : 3.14 / 4.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:18
Time diff (sec) start/end : 3.14 / 4.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:20
Time diff (sec) start/end : 5.14 / 2.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:22
Time diff (sec) start/end : 7.14 / 0.86 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:26
Time diff (sec) start/end : 0.28 / 7.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:26
Time diff (sec) start/end : 0.28 / 7.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:28
Time diff (sec) start/end : 2.28 / 5.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:28
Time diff (sec) start/end : 2.28 / 5.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:28
Time diff (sec) start/end : 2.28 / 5.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:32
Time diff (sec) start/end : 6.28 / 1.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:32
Time diff (sec) start/end : 6.28 / 1.72 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:38
Time diff (sec) start/end : 1.41 / 6.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:40
Time diff (sec) start/end : 3.41 / 4.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:40
Time diff (sec) start/end : 3.41 / 4.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:42
Time diff (sec) start/end : 5.41 / 2.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:42
Time diff (sec) start/end : 5.41 / 2.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:44
Time diff (sec) start/end : 7.41 / 0.59
gopr7071_20120917_224754_gmt_lftside.jpg gopr7072_20120917_224754_gmt_lftside.jpg gopr7073_20120917_224756_gmt_lftside.jpg gopr7074_20120917_224756_gmt_lftside.jpg gopr7075_20120917_224758_gmt_lftside.jpg gopr7076_20120917_224758_gmt_lftside.jpg gopr7077_20120917_224800_gmt_lftside.jpg gopr7079_20120917_224804_gmt_lftside.jpg gopr7080_20120917_224804_gmt_lftside.jpg gopr7081_20120917_224806_gmt_lftside.jpg gopr7082_20120917_224806_gmt_lftside.jpg gopr7083_20120917_224808_gmt_lftside.jpg gopr7084_20120917_224808_gmt_lftside.jpg gopr7085_20120917_224810_gmt_lftside.jpg gopr7086_20120917_224812_gmt_lftside.jpg gopr7087_20120917_224812_gmt_lftside.jpg gopr7089_20120917_224816_gmt_lftside.jpg gopr7090_20120917_224816_gmt_lftside.jpg gopr7091_20120917_224816_gmt_lftside.jpg gopr7092_20120917_224818_gmt_lftside.jpg gopr7093_20120917_224818_gmt_lftside.jpg gopr7094_20120917_224820_gmt_lftside.jpg gopr7095_20120917_224822_gmt_lftside.jpg gopr7098_20120917_224826_gmt_lftside.jpg gopr7099_20120917_224826_gmt_lftside.jpg gopr7100_20120917_224828_gmt_lftside.jpg gopr7101_20120917_224828_gmt_lftside.jpg gopr7102_20120917_224828_gmt_lftside.jpg gopr7103_20120917_224832_gmt_lftside.jpg gopr7104_20120917_224832_gmt_lftside.jpg gopr7109_20120917_224838_gmt_lftside.jpg gopr7110_20120917_224840_gmt_lftside.jpg gopr7111_20120917_224840_gmt_lftside.jpg gopr7112_20120917_224842_gmt_lftside.jpg gopr7113_20120917_224842_gmt_lftside.jpg gopr7114_20120917_224844_gmt_lftside.jpg

Right side Photos for r20120917_014_net

Right side Photos for r20120917_014_net (tracks 7-13)
Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:57
Time diff (sec) start/end : 3.94 / 4.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:59
Time diff (sec) start/end : 5.94 / 2.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:48:01
Time diff (sec) start/end : 7.94 / 0.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:48:01
Time diff (sec) start/end : 7.94 / 0.06 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:05
Time diff (sec) start/end : 1.00 / 7.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:05
Time diff (sec) start/end : 1.00 / 7.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:07
Time diff (sec) start/end : 3.00 / 5.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:07
Time diff (sec) start/end : 3.00 / 5.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:09
Time diff (sec) start/end : 5.00 / 3.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:09
Time diff (sec) start/end : 5.00 / 3.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:11
Time diff (sec) start/end : 7.00 / 1.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:11
Time diff (sec) start/end : 7.00 / 1.00 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:15
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:17
Time diff (sec) start/end : 2.14 / 5.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:19
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:19
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:21
Time diff (sec) start/end : 6.14 / 1.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:21
Time diff (sec) start/end : 6.14 / 1.86 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:27
Time diff (sec) start/end : 1.28 / 6.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:27
Time diff (sec) start/end : 1.28 / 6.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:27
Time diff (sec) start/end : 1.28 / 6.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:31
Time diff (sec) start/end : 5.28 / 2.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:31
Time diff (sec) start/end : 5.28 / 2.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:37
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:37
Time diff (sec) start/end : 0.41 / 7.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:41
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:41
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:43
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:43
Time diff (sec) start/end : 6.41 / 1.59
gopr1038_20120917_224755_gmt_rghtside.jpg gopr1039_20120917_224755_gmt_rghtside.jpg gopr1040_20120917_224755_gmt_rghtside.jpg gopr1041_20120917_224757_gmt_rghtside.jpg gopr1042_20120917_224759_gmt_rghtside.jpg gopr1043_20120917_224801_gmt_rghtside.jpg gopr1044_20120917_224801_gmt_rghtside.jpg gopr1047_20120917_224805_gmt_rghtside.jpg gopr1048_20120917_224805_gmt_rghtside.jpg gopr1049_20120917_224807_gmt_rghtside.jpg gopr1050_20120917_224807_gmt_rghtside.jpg gopr1051_20120917_224809_gmt_rghtside.jpg gopr1052_20120917_224809_gmt_rghtside.jpg gopr1053_20120917_224811_gmt_rghtside.jpg gopr1054_20120917_224811_gmt_rghtside.jpg gopr1057_20120917_224815_gmt_rghtside.jpg gopr1058_20120917_224817_gmt_rghtside.jpg gopr1059_20120917_224819_gmt_rghtside.jpg gopr1060_20120917_224819_gmt_rghtside.jpg gopr1061_20120917_224821_gmt_rghtside.jpg gopr1062_20120917_224821_gmt_rghtside.jpg gopr1066_20120917_224827_gmt_rghtside.jpg gopr1067_20120917_224827_gmt_rghtside.jpg gopr1068_20120917_224827_gmt_rghtside.jpg gopr1069_20120917_224831_gmt_rghtside.jpg gopr1070_20120917_224831_gmt_rghtside.jpg gopr1071_20120917_224833_gmt_rghtside.jpg gopr1072_20120917_224833_gmt_rghtside.jpg gopr1075_20120917_224837_gmt_rghtside.jpg gopr1076_20120917_224837_gmt_rghtside.jpg gopr1077_20120917_224841_gmt_rghtside.jpg gopr1078_20120917_224841_gmt_rghtside.jpg gopr1079_20120917_224843_gmt_rghtside.jpg gopr1080_20120917_224843_gmt_rghtside.jpg

Sky Photos for r20120917_014_net

Sky Photos for r20120917_014_net
Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:53:08
Time diff (sec) start/end : 314.94 / 306.94 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:53:08
Time diff (sec) start/end : 304.00 / 296.00 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:53:08
Time diff (sec) start/end : 293.14 / 285.14 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:53:08
Time diff (sec) start/end : 282.28 / 274.28 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:53:08
Time diff (sec) start/end : 271.41 / 263.41
gopr9800_20120917_225308_gmt_cam4.jpg gopr9800_20120917_225308_gmt_cam4.jpg gopr9800_20120917_225308_gmt_cam4.jpg gopr9800_20120917_225308_gmt_cam4.jpg gopr9800_20120917_225308_gmt_cam4.jpg

Horizon Photos for r20120917_014_net

Horizon and obove water fork Photos for r20120917_014_net
Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:55
Time diff (sec) start/end : 1.94 / 6.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:57
Time diff (sec) start/end : 3.94 / 4.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:47:59
Time diff (sec) start/end : 5.94 / 2.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:48:01
Time diff (sec) start/end : 7.94 / 0.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:48:01
Time diff (sec) start/end : 7.94 / 0.06 		Resonon Image 1
Time: 22:47:53.062 to 22:48:01.062
GoPro Time: 22:48:01
Time diff (sec) start/end : 7.94 / 0.06 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:05
Time diff (sec) start/end : 1.00 / 7.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:07
Time diff (sec) start/end : 3.00 / 5.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:07
Time diff (sec) start/end : 3.00 / 5.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:09
Time diff (sec) start/end : 5.00 / 3.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:09
Time diff (sec) start/end : 5.00 / 3.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:11
Time diff (sec) start/end : 7.00 / 1.00 		Resonon Image 2
Time: 22:48:04.000 to 22:48:12.000
GoPro Time: 22:48:11
Time diff (sec) start/end : 7.00 / 1.00 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:15
Time diff (sec) start/end : 0.14 / 7.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:17
Time diff (sec) start/end : 2.14 / 5.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:17
Time diff (sec) start/end : 2.14 / 5.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:19
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:19
Time diff (sec) start/end : 4.14 / 3.86 		Resonon Image 3
Time: 22:48:14.859 to 22:48:22.859
GoPro Time: 22:48:21
Time diff (sec) start/end : 6.14 / 1.86 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:27
Time diff (sec) start/end : 1.28 / 6.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:29
Time diff (sec) start/end : 3.28 / 4.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:29
Time diff (sec) start/end : 3.28 / 4.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:31
Time diff (sec) start/end : 5.28 / 2.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 4
Time: 22:48:25.718 to 22:48:33.718
GoPro Time: 22:48:33
Time diff (sec) start/end : 7.28 / 0.72 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:39
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:39
Time diff (sec) start/end : 2.41 / 5.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:41
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:41
Time diff (sec) start/end : 4.41 / 3.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:43
Time diff (sec) start/end : 6.41 / 1.59 		Resonon Image 5
Time: 22:48:36.593 to 22:48:44.593
GoPro Time: 22:48:43
Time diff (sec) start/end : 6.41 / 1.59
gopr5416_20120917_224755_gmt_horizon.jpg gopr5417_20120917_224755_gmt_horizon.jpg gopr5418_20120917_224755_gmt_horizon.jpg gopr5419_20120917_224755_gmt_horizon.jpg gopr5420_20120917_224757_gmt_horizon.jpg gopr5421_20120917_224759_gmt_horizon.jpg gopr5422_20120917_224801_gmt_horizon.jpg gopr5423_20120917_224801_gmt_horizon.jpg gopr5424_20120917_224801_gmt_horizon.jpg gopr5426_20120917_224805_gmt_horizon.jpg gopr5427_20120917_224807_gmt_horizon.jpg gopr5428_20120917_224807_gmt_horizon.jpg gopr5429_20120917_224809_gmt_horizon.jpg gopr5430_20120917_224809_gmt_horizon.jpg gopr5431_20120917_224811_gmt_horizon.jpg gopr5432_20120917_224811_gmt_horizon.jpg gopr5435_20120917_224815_gmt_horizon.jpg gopr5436_20120917_224817_gmt_horizon.jpg gopr5437_20120917_224817_gmt_horizon.jpg gopr5438_20120917_224819_gmt_horizon.jpg gopr5439_20120917_224819_gmt_horizon.jpg gopr5440_20120917_224821_gmt_horizon.jpg gopr5445_20120917_224827_gmt_horizon.jpg gopr5446_20120917_224829_gmt_horizon.jpg gopr5447_20120917_224829_gmt_horizon.jpg gopr5448_20120917_224831_gmt_horizon.jpg gopr5449_20120917_224833_gmt_horizon.jpg gopr5450_20120917_224833_gmt_horizon.jpg gopr5451_20120917_224833_gmt_horizon.jpg gopr5452_20120917_224833_gmt_horizon.jpg gopr5453_20120917_224833_gmt_horizon.jpg gopr5454_20120917_224839_gmt_horizon.jpg gopr5455_20120917_224839_gmt_horizon.jpg gopr5456_20120917_224841_gmt_horizon.jpg gopr5457_20120917_224841_gmt_horizon.jpg gopr5458_20120917_224843_gmt_horizon.jpg gopr5459_20120917_224843_gmt_horizon.jpg

pwd: G:\zflora\mldata\MOBY2\html\20120903_shadowing\gopro
Date: 05-Nov-2012 12:06:37
Created from gopro_mkpages_(12)
