091120_Carol_Bob\all_14_white_light11 Raw data/header listing
alternative exposure, in sec: 2
Gain: 2
ADC rate: 6
date[DATEMAX]: 20Nov2009
Experiment Local Timing: 195819 (hhmmss or 0)
Experiment UTC Timing: 195819 (hhmmss or 0)
Shutter Control: 1 (Normal, Disabled Open, Disabled Close)
experiment datatype: 3 (ushort)
Number of Frames in File: 1
Number of Accumulations: 1
Experiment readout time: 9678.37
BackGround Applied: 0 (1 if background subraction done )
Auto Clean Active T/F: 0
flat Field Applied: 0 (1 if flat field was applied)
Set to 1 if blemish removal applied: 0
Set to 1 if comsic raw removal applied: 0
Hardware Version: 0
Definition of OutPut BNC: 1
Amp Switching Mode: 0
Detector x dimension chip: 1024
timing mode: 1
alternative exposure, in sec: 2
Virtual Chip X dim: 0
Virtual Chip Y dim: 0
y dim of CCD or detector: 1024
date[DATEMAX]: 20Nov2009
Virtual Chip Flag On/Off: 0
Old numer of scans: -1 (should always be -1)
Used with Asiny Mode: 0
Shutter Control: 1 (Normal, Disabled Open, Disabled Close)
Absorb Live (On/Off): 0
Reference Strip or File: 0
Able to do Virtual Chip: 0
Threshold Min Live: 0 (On/Off)
Threshold Minimun Value: 0
Threshold Max Live: 0 (On/Off)
Threshold Maximum Value: 0
T/F Spectrograph Used: 0
Center Wavelength (nm): 0
T/F file is Glued: 0
Starting Wavelength (nm): 0
Ending Wavelength (nm): 0
Minimum Overlap (nm): 0
Final Resolution (nm): 0
Pulser Type: 0 (0 = None, PG200 = 1, PTG=2, DG535=3)
T/F Custom Chip Used: 0
Pre Pixel in X direction: 0
Post Pixels in X direction: 8
Pre Pixel in Y direction: 24
Post Pixels in Y direction: 24
asynchron enable flag: 0 (0=off)
experiment datatype: 3 (ushort)
Repetitive/Sequential: 0
Num PTG On-Chip Accums: 0
Num Exp Repeats: 0 (Pulser SW Accum)
Width Value for Rep. Pulse: 0 (usec)
Delay? for Rep. Pulse: 0 (usec)
Start Width for Seq. pulse: 0 (usec)
End Width for Seq. pulse: 0 (usec)
Start Delay for Seq. pulse: 0 (usec)
End Delay for Seq. pulse: 0 (usec)
Increments: 0 (1 = fixed, 2 = Exponential)
PI-Max type controller flag: 0
PI-max mode: 0
PI-max gain: 0
BackGround Applied: 0 (1 if background subraction done )
T/F PI-max 2ns Board Used: 0
min # of strips per skips: 4
# of min-blocks before geo skps: 250
Spectro Mirror Location: 0 0 (0 = Not Present)
Spectro Slit Location: 0 0 0 0 (0 = Not Present)
T/F Custom Timing Used: 0
Experiment Local Timing: 195819 (hhmmss or 0)
Experiment UTC Timing: 195819 (hhmmss or 0)
User Units for Exposure: 3
ADC offset: 1856
ADC rate: 6
ADC type: 9
ADC resolution: 4
ADC bit adjust: 0
Gain: 2
File comments 1:
File comments 2:
File comments 3:
File comments 4:
File comments 5:
geometric ops: 0 (rotate 0x01, reverse 0x02, flip 0x04)
intensity display string: Pixel
cleans: 1
number of skips per clean: 1024
Spectrograph Mirror Positions: 0 0
Spectrograph Slit Positions: 0 0 0 0
Auto Clean Active T/F: 0
UseContCleanActive T/F: 0
Absorb Strip Number: 0
Spectrograph Slit Pos. Units: 0
Spectrograph Grating Grooves: 0
# of source comp. diodes: 0
y dimension of raw data: 1024
0 = scrambled, 1 = unscramble: 1
T/F Continuous Cleans Timing Option: 0
T/F External Trigger Timing Option: 0
Number of scans (Early WinX): -1
Number of Accumulations: 1
Experiment readout time: 9678.37
T/F Triggered Timing Option: 0
Spare 2:
Version of SW creating this file: 2.5.25 Mar2009
Type: 22 (This type does not exist)
flat Field Applied: 0 (1 if flat field was applied)
Spare_3:
Kinetics Trigger Mode: 1
Data Label: Intensity
Spare_4:
Name of Pulser File: (with Pulse Widths/Delays (for Z-Slice))
Name of Absorbtance File: (if FIle Mode)
Number of time experiment repeated: 0
Number of time experiment accumulated: 0
Set to 1 if this file contains YT data: 0
Vert Clock Speed in micro_sec: 0
Set to 1 if accum done by Hardware: 0
Set to 1 if store sync used: 1
Set to 1 if blemish removal applied: 0
Set to 1 if comsic raw removal applied: 0
if cosmic ray applied, this is type: 0
Threshold of cosmiv ray removal: 50
Number of Frames in File: 1
max intensity data (future): 0
min intensity data (future): 0
y axis label: Strip
shutter type: 6
shutter compensation time: 0
readout mode: 1 (full, kinetic, etc)
window size for knietics only: 0
clock speed for kinetics and frame transfer: 0
computer interface : 22 (isa-taxi,pci, eisa, etc.)
Num of ROI: May be more than the 10 allowed in this header (if 0 assume 1)
Num ROIs In Experiment: 1 (May be more than the 10 allowed in this header (if 0 assume 1))
Spare_5:
Controller Num: 1 (if multiple controllers system will have controller number data came from. This is a future item)
Which software package created this file: 1
number of ROIs used: 1 (if 0, assume 1)
left x start value: 1 0 0 0 0 0 0 0 0 0
right x start value: 1024 0 0 0 0 0 0 0 0 0
amount x is binned in hw: 1 0 0 0 0 0 0 0 0 0
top y start value: 1 0 0 0 0 0 0 0 0 0
bottom y start value: 1024 0 0 0 0 0 0 0 0 0
amount y is binned/grouped in hw: 1 0 0 0 0 0 0 0 0 0
Flat field file name:
background sub. file name: C:\BlueInLine_Dec2009\20Nov2009\Back.SPE
blemish file name:
version of this file header: 2.2
Reserved for YT information:
0x01234567L if file created by WinX: 1.90887e+007
=======================================================
X Calibration data
offset for absolute scaling: 0
factor for absolute scaling: 0
select scaling unit: 1
reserved: NOT SHOWN
special string for scaling: NOT SHOWN
reserved: NOT SHOW
flag if calibration if valid: 1
current input values for "calib_value": 0
linear UNIT and used in the "poly_coeff": 1
ORDER of calibration POLYNOM: 1
valid calibration data pairs: 0
pixelpos. of calibration data: 0 0 0 0 0 0 0 0 0 0
calibration VALUE as above pos: 0 0 0 0 0 0 0 0 0 0
polynom COEFFICIENTS: 1 1 0 0 0 0
laser wavenumber for reative WN: 0
reserved: 0
If set to 200, valid label below: 0
Caliobration label (NULL term'd): NOT SHOWN
Calibration Expansion area: NOT SHOWN
=======================================================
Y Calibration data
offset for absolute scaling: 0
factor for absolute scaling: 0
select scaling unit: 0
reserved: NOT SHOWN
special string for scaling: NOT SHOWN
reserved: NOT SHOW
flag if calibration if valid: 0
current input values for "calib_value": 0
linear UNIT and used in the "poly_coeff": 0
ORDER of calibration POLYNOM: 0
valid calibration data pairs: 0
pixelpos. of calibration data: 0 0 0 0 0 0 0 0 0 0
calibration VALUE as above pos: 0 0 0 0 0 0 0 0 0 0
polynom COEFFICIENTS: 0 0 0 0 0 0
laser wavenumber for reative WN: 0
reserved: 0
If set to 200, valid label below: 0
Caliobration label (NULL term'd): NOT SHOWN
Calibration Expansion area: NOT SHOWN
End cal info=======================================================
If set to 200, valid label below: 0
special intensity scaling string: NOT SHOWN
Spare: NOT SHOWN
spectrometer type: 0 (acton, spex, etc)
spectrograph model: 0 (type dependent)
pulser burst mode: 0 (on/off)
pulser triggers per burst: 0
pulser burst period: 0 (usec)
pulser bracket pulsing: 0 (on/off)
pulser bracket pulsing type: 0
pulser fast exponential time constant: 0 (usec)
pulser fast exponential amplitude constant: 0 (usec)
pulser slow exponential time constant: 0 (usec)
pulser slow exponential amplitude constant: 0 (usec)
analog gain was used: 0
avalanche gain was used: 0
avalanche gain value: 0
Always the LAST value in the header: 21845
End HEADER=======================================================

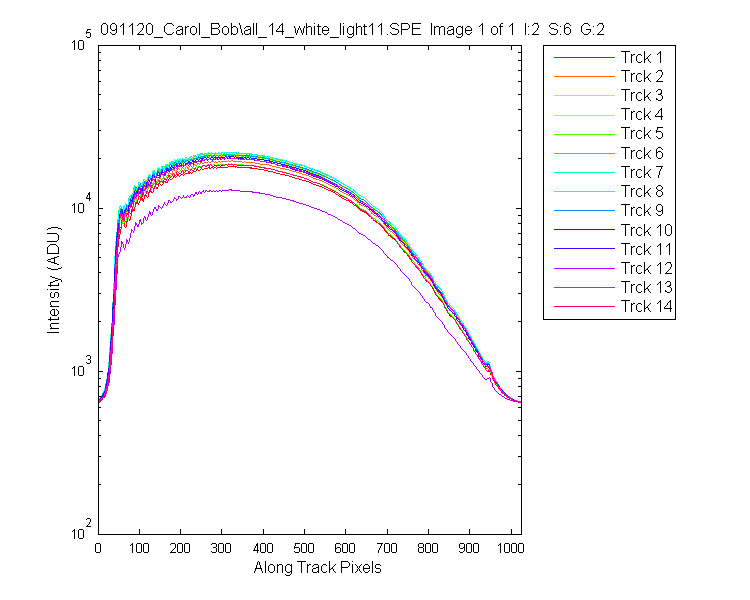

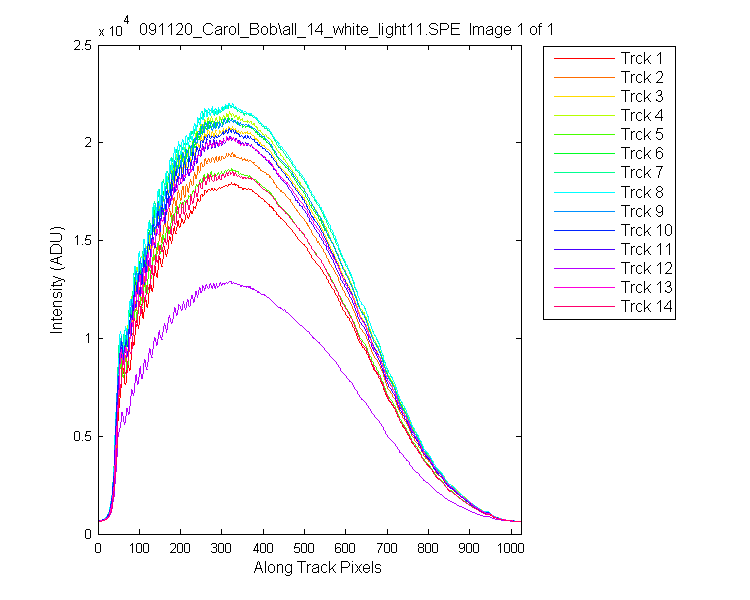

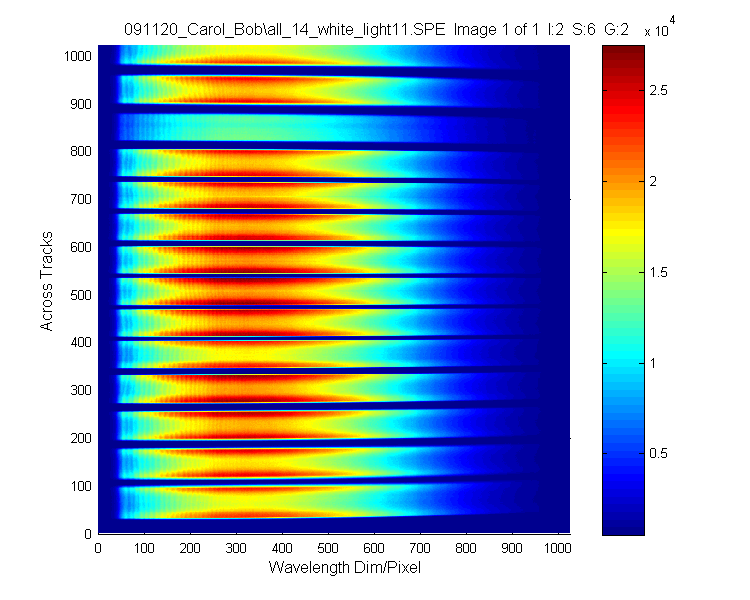

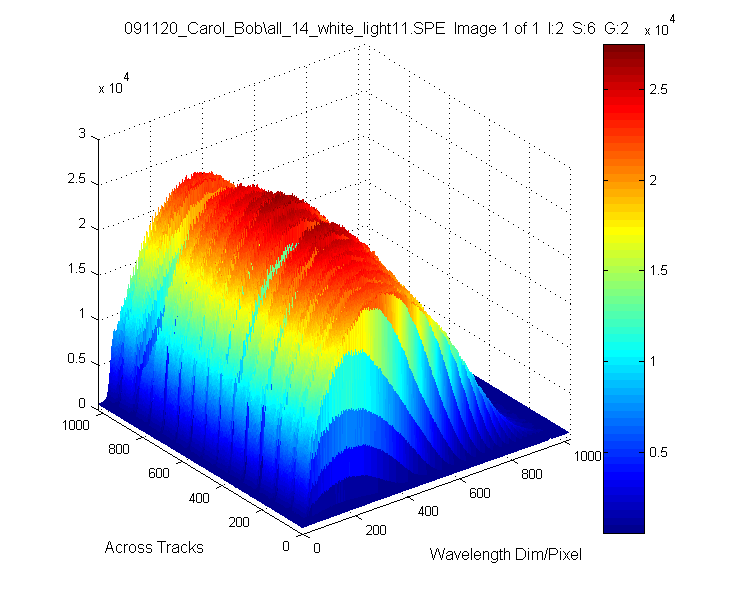

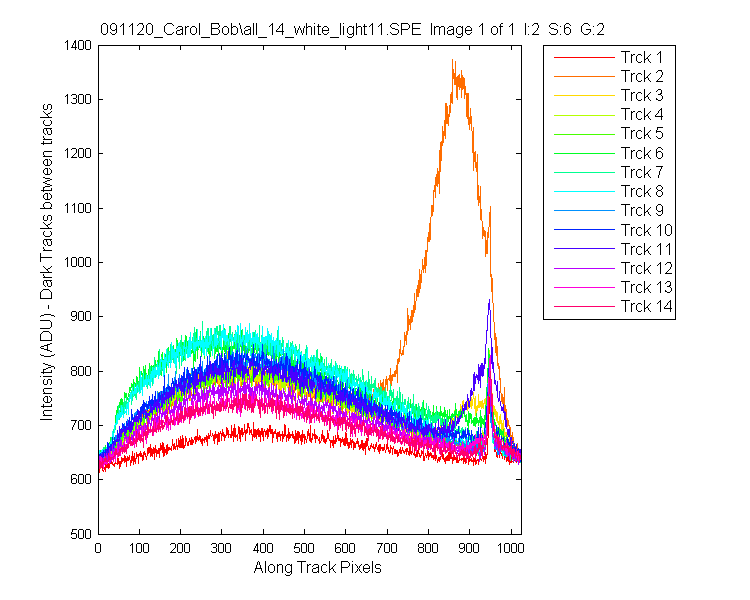

1048576 Data values Read in as uint16
Data reshaped to 1024 by 1024 by 1 and converted to double
Some Data ----------------------------------------------------------------
Row Column
1 101 201 301 401 501 601 701 801 901 1001
0001 538 642 662 682 678 692 673 659 640 629 636
0051 560 10408 15976 17717 17529 15114 11939 7678 3973 1674 666
0101 553 2132 4410 6827 8846 10046 10213 8369 4309 1600 669
0151 583 11529 15854 17751 17119 14903 11509 6973 3489 1481 689
0201 592 16453 23246 25241 24231 20238 14434 7199 1980 652 647
0251 589 17076 23736 25467 24759 20845 15720 9447 4475 1722 678
0301 586 12291 18384 19657 19237 16713 12395 7630 3820 1579 685
0351 590 14514 20331 22962 22222 19183 14248 8846 4124 1198 646
0401 587 15765 22051 23696 22580 18953 14463 8580 4165 1659 686
0451 597 13596 18397 20408 19609 16785 12766 7816 3821 1543 670
0501 588 13420 18443 19899 19288 16590 12818 7820 3754 1553 662
0551 603 17111 23083 26151 24415 21329 16157 9584 4685 1810 691
0601 576 5215 5231 4835 3999 3061 2248 1451 902 690 653
0651 587 13350 17978 19988 19443 16771 12923 7782 3954 1615 686
0701 588 13145 18166 20019 18968 16400 12060 7466 3639 1429 667
0751 597 14873 22506 24103 23262 19732 14654 9031 4234 1683 676
0801 575 15745 21122 23804 22432 18539 12704 4846 808 660 649
0851 563 8183 11097 12183 11746 10105 7676 4856 2541 1155 668
0901 574 11657 17222 19469 20194 19019 15001 8956 4207 1635 665
0951 567 14723 21133 24005 22818 19674 14690 8344 2847 715 638
1001 575 11553 16344 17711 16983 14429 11039 6633 3368 1412 669
