The purpose of this page is to show which pixels were used to define each dark track between the light tracks. The data in this page has had the background subtracted and is divided by integration time. The first set of graphs show where the dark tracks are defined. These will be used to monitor straylight changes between tracks. You can see that for some of the tracks there is not 1 row of pixels which are always dark from one end of the array to the other. This is most evident on track 2.

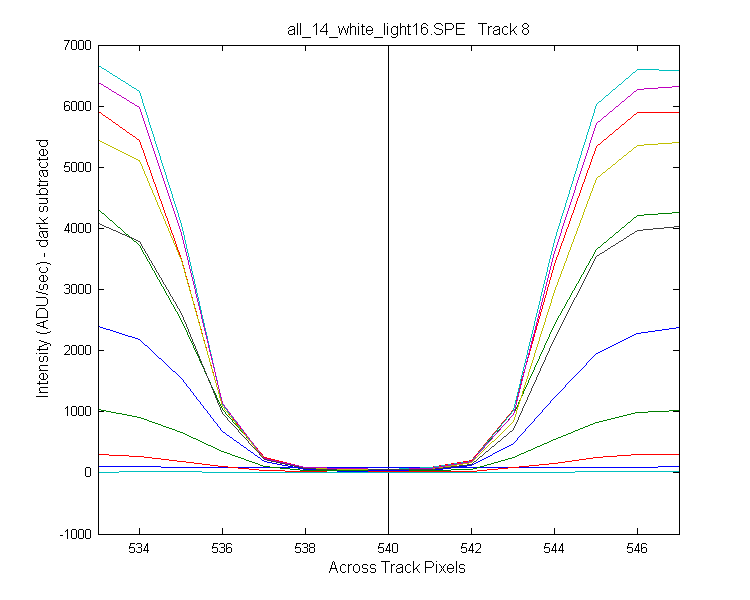

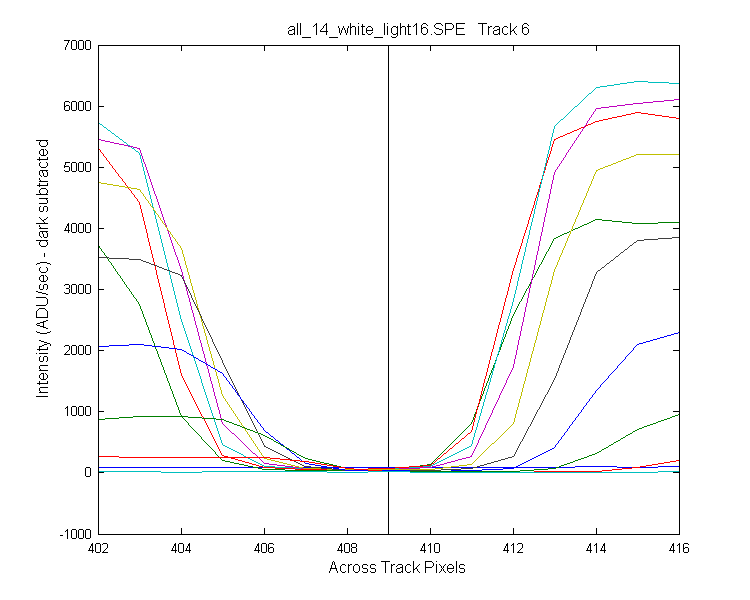

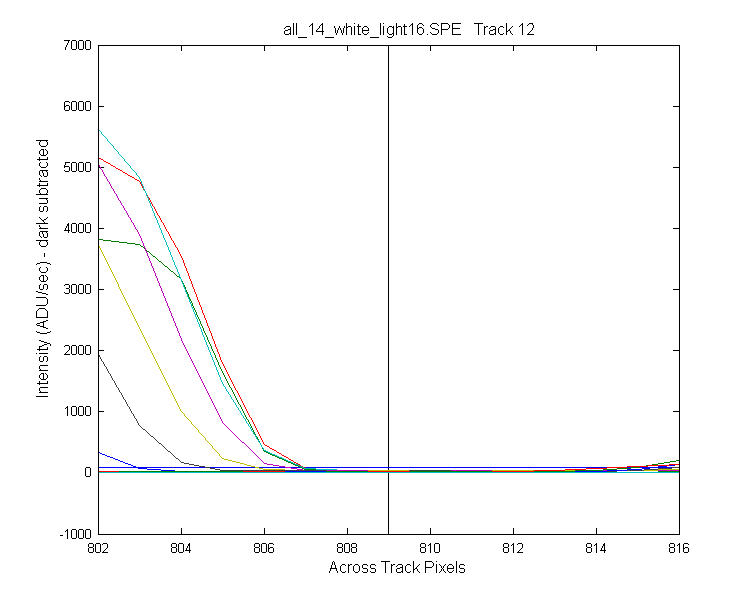

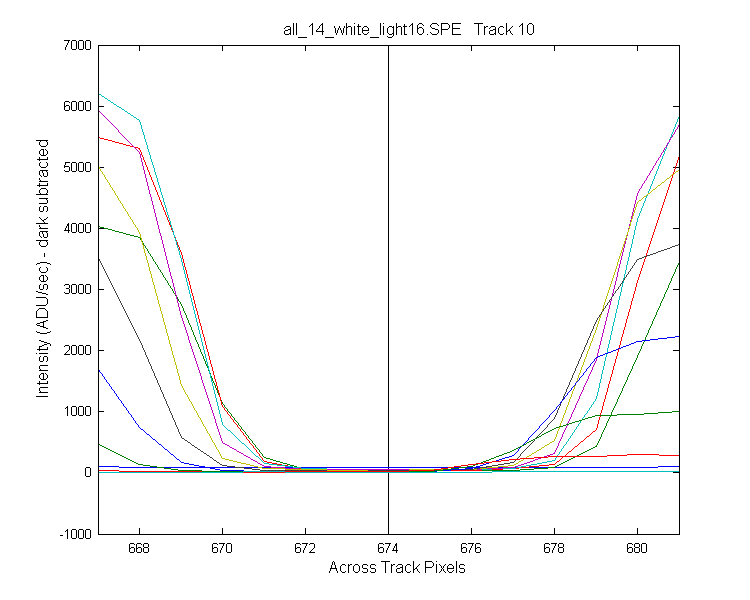

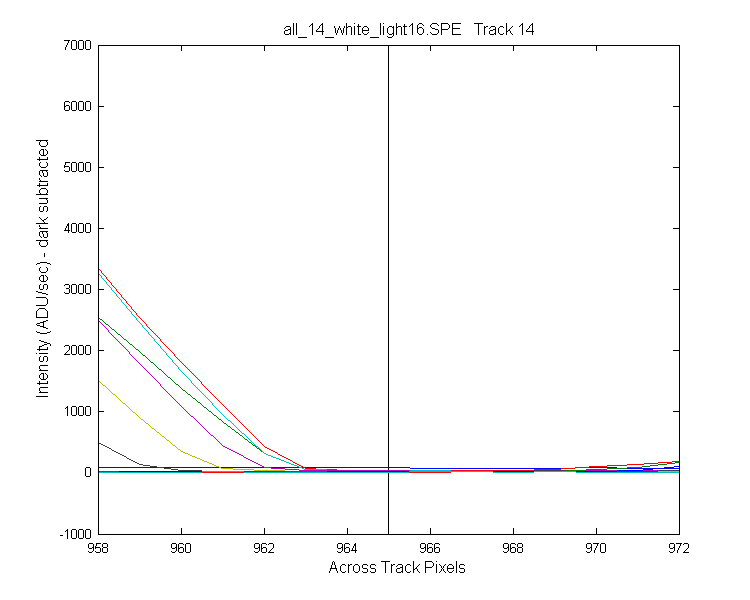

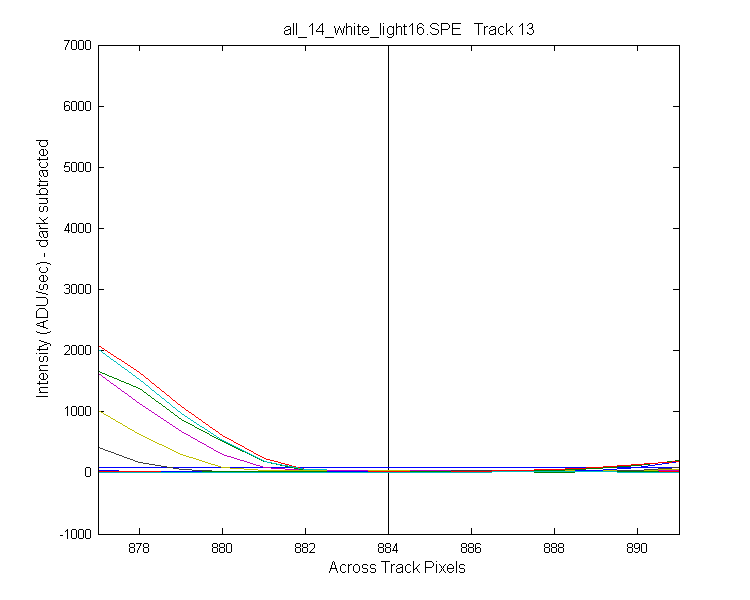

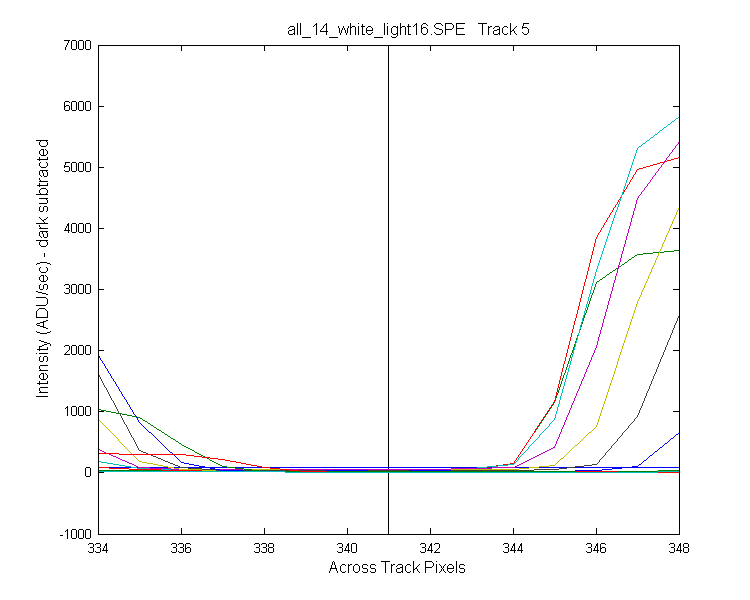

The rest of the graphs are to show the dark scans relative to the light scans around them.

Center Pixel: [10 109 190 267 341 409 474 540 606 674 740 809 884 965]
Delta Pixel: [0 0 0 0 0 0 0 0 0 0 0 0 0 0]
LEFT EDGE : [10 109 190 267 341 409 474 540 606 674 740 809 884 965]
RIGHT EDGE: [10 109 190 267 341 409 474 540 606 674 740 809 884 965]

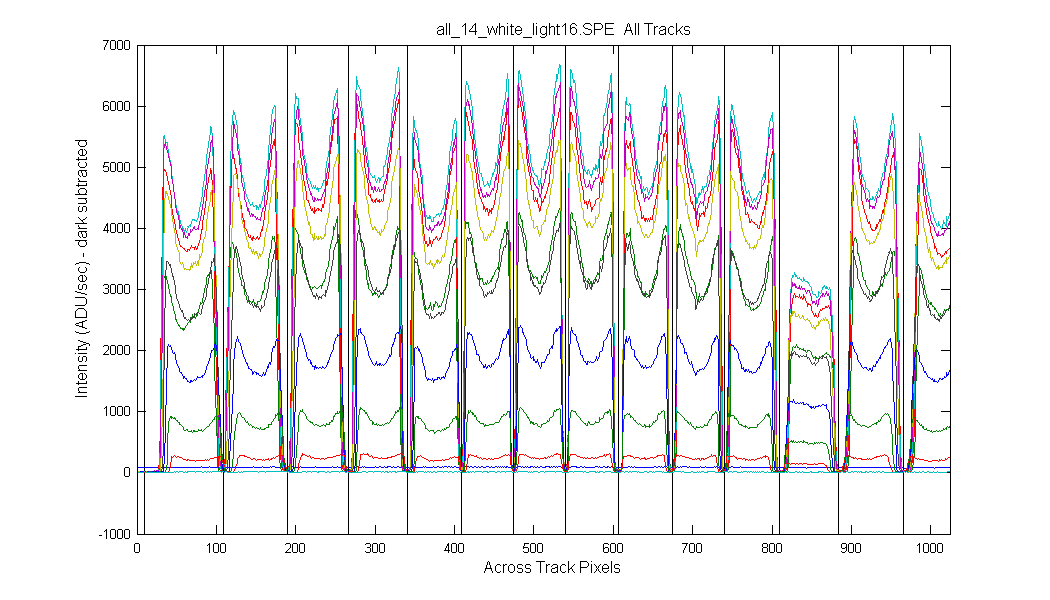

Position of all between light dark tracks.

Position of individual between light dark tracks.

Dark Tracks in ADU/sec and background subtrcated

To get a percent, I divided each dark track by the mean of the light scans around it.

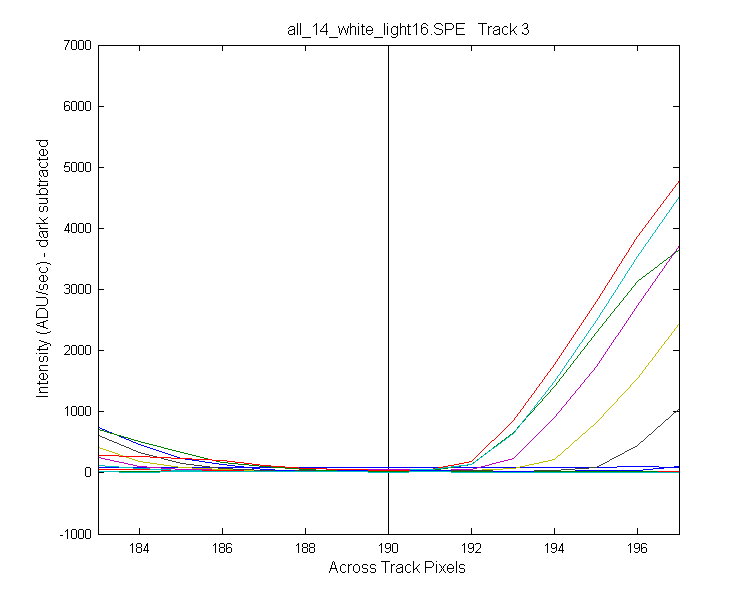

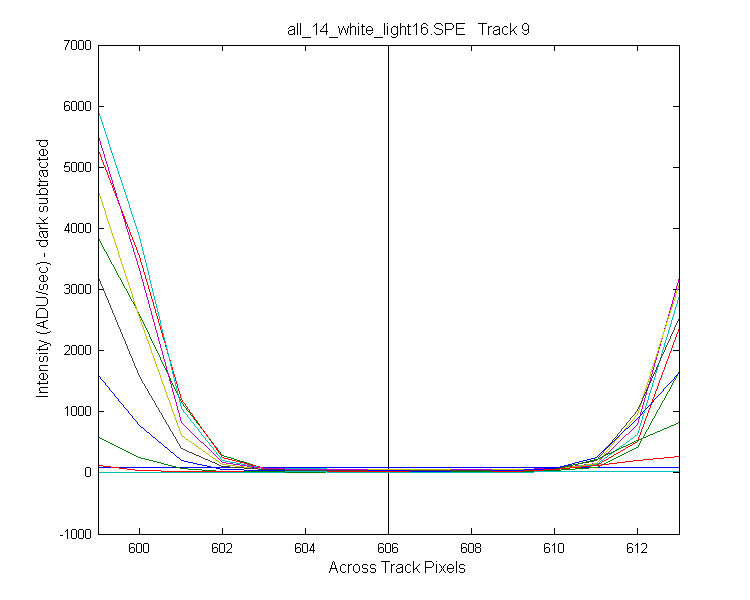

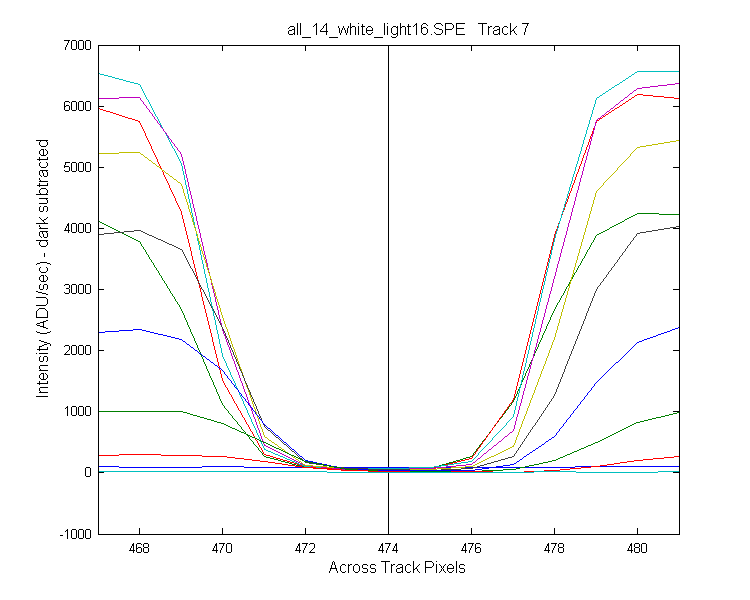

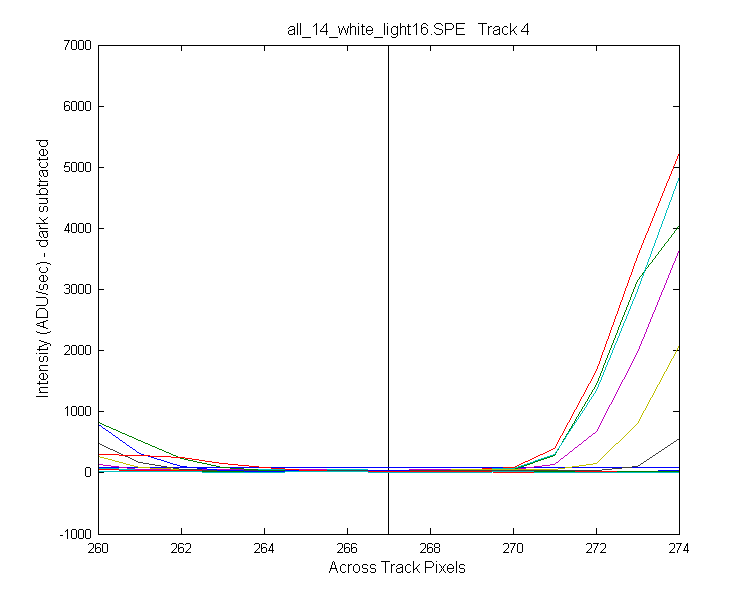

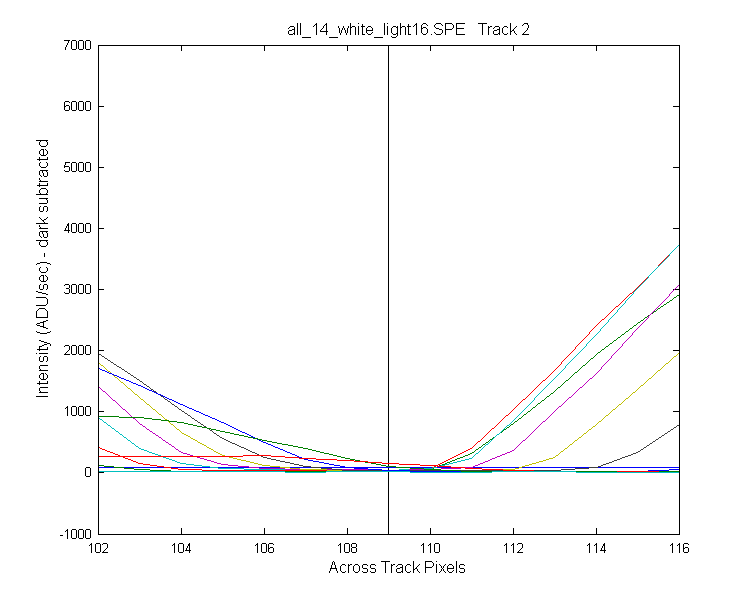

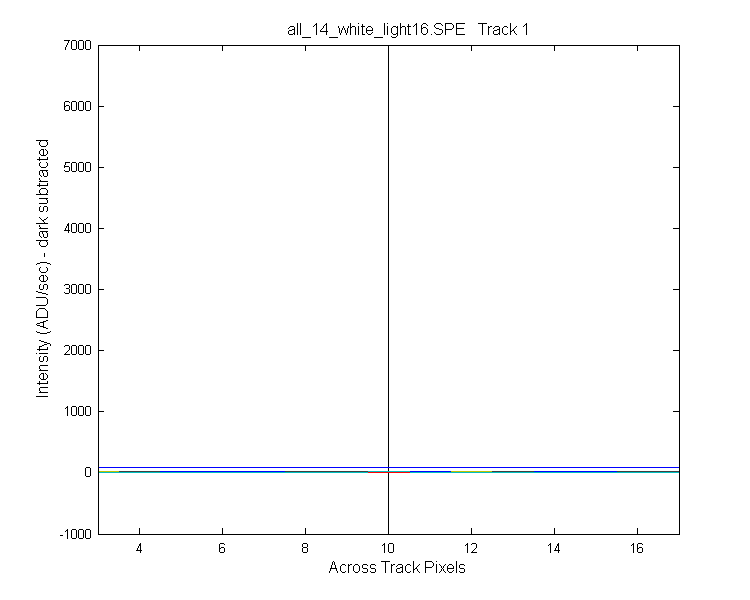

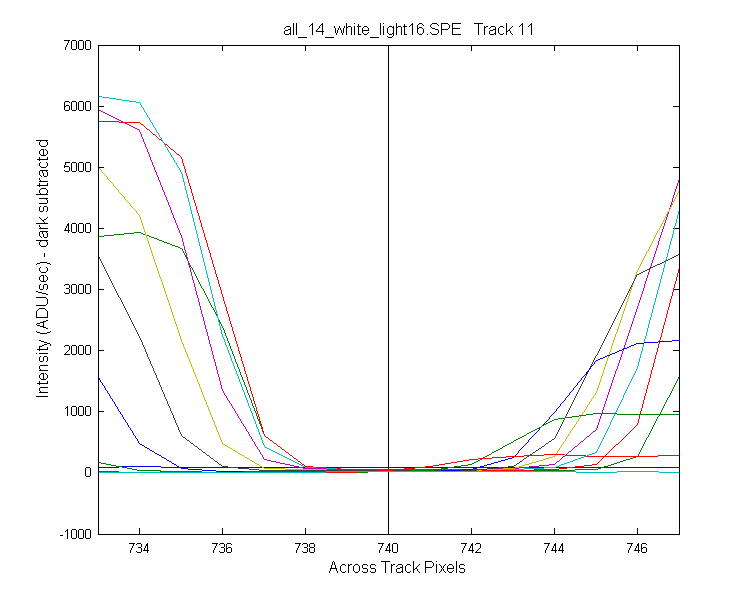

To look at the variablity around the row chosen for the dark track I plot the 6 "dark" rows around the row chosen for darks for each track.
