091120_Carol_Bob\white_light8 Raw data/header listing
alternative exposure, in sec: 1
Gain: 3
ADC rate: 6
date[DATEMAX]: 20Nov2009
Experiment Local Timing: 205824 (hhmmss or 0)
Experiment UTC Timing: 205824 (hhmmss or 0)
Shutter Control: 1 (Normal, Disabled Open, Disabled Close)
experiment datatype: 3 (ushort)
Number of Frames in File: 1
Number of Accumulations: 1
Experiment readout time: 9678.37
BackGround Applied: 0 (1 if background subraction done )
Auto Clean Active T/F: 0
flat Field Applied: 0 (1 if flat field was applied)
Set to 1 if blemish removal applied: 0
Set to 1 if comsic raw removal applied: 0
Hardware Version: 0
Definition of OutPut BNC: 1
Amp Switching Mode: 0
Detector x dimension chip: 1024
timing mode: 1
alternative exposure, in sec: 1
Virtual Chip X dim: 0
Virtual Chip Y dim: 0
y dim of CCD or detector: 1024
date[DATEMAX]: 20Nov2009
Virtual Chip Flag On/Off: 0
Old numer of scans: -1 (should always be -1)
Used with Asiny Mode: 0
Shutter Control: 1 (Normal, Disabled Open, Disabled Close)
Absorb Live (On/Off): 0
Reference Strip or File: 0
Able to do Virtual Chip: 0
Threshold Min Live: 0 (On/Off)
Threshold Minimun Value: 0
Threshold Max Live: 0 (On/Off)
Threshold Maximum Value: 0
T/F Spectrograph Used: 0
Center Wavelength (nm): 0
T/F file is Glued: 0
Starting Wavelength (nm): 0
Ending Wavelength (nm): 0
Minimum Overlap (nm): 0
Final Resolution (nm): 0
Pulser Type: 0 (0 = None, PG200 = 1, PTG=2, DG535=3)
T/F Custom Chip Used: 0
Pre Pixel in X direction: 0
Post Pixels in X direction: 8
Pre Pixel in Y direction: 24
Post Pixels in Y direction: 24
asynchron enable flag: 0 (0=off)
experiment datatype: 3 (ushort)
Repetitive/Sequential: 0
Num PTG On-Chip Accums: 0
Num Exp Repeats: 0 (Pulser SW Accum)
Width Value for Rep. Pulse: 0 (usec)
Delay? for Rep. Pulse: 0 (usec)
Start Width for Seq. pulse: 0 (usec)
End Width for Seq. pulse: 0 (usec)
Start Delay for Seq. pulse: 0 (usec)
End Delay for Seq. pulse: 0 (usec)
Increments: 0 (1 = fixed, 2 = Exponential)
PI-Max type controller flag: 0
PI-max mode: 0
PI-max gain: 0
BackGround Applied: 0 (1 if background subraction done )
T/F PI-max 2ns Board Used: 0
min # of strips per skips: 4
# of min-blocks before geo skps: 250
Spectro Mirror Location: 0 0 (0 = Not Present)
Spectro Slit Location: 0 0 0 0 (0 = Not Present)
T/F Custom Timing Used: 0
Experiment Local Timing: 205824 (hhmmss or 0)
Experiment UTC Timing: 205824 (hhmmss or 0)
User Units for Exposure: 3
ADC offset: 1878
ADC rate: 6
ADC type: 9
ADC resolution: 4
ADC bit adjust: 0
Gain: 3
File comments 1:
File comments 2:
File comments 3:
File comments 4:
File comments 5:
geometric ops: 0 (rotate 0x01, reverse 0x02, flip 0x04)
intensity display string: Pixel
cleans: 1
number of skips per clean: 1024
Spectrograph Mirror Positions: 0 0
Spectrograph Slit Positions: 0 0 0 0
Auto Clean Active T/F: 0
UseContCleanActive T/F: 0
Absorb Strip Number: 0
Spectrograph Slit Pos. Units: 0
Spectrograph Grating Grooves: 0
# of source comp. diodes: 0
y dimension of raw data: 1024
0 = scrambled, 1 = unscramble: 1
T/F Continuous Cleans Timing Option: 0
T/F External Trigger Timing Option: 0
Number of scans (Early WinX): -1
Number of Accumulations: 1
Experiment readout time: 9678.37
T/F Triggered Timing Option: 0
Spare 2:
Version of SW creating this file: 2.5.25 Mar2009
Type: 22 (This type does not exist)
flat Field Applied: 0 (1 if flat field was applied)
Spare_3:
Kinetics Trigger Mode: 1
Data Label: Intensity
Spare_4:
Name of Pulser File: (with Pulse Widths/Delays (for Z-Slice))
Name of Absorbtance File: (if FIle Mode)
Number of time experiment repeated: 0
Number of time experiment accumulated: 0
Set to 1 if this file contains YT data: 0
Vert Clock Speed in micro_sec: 0
Set to 1 if accum done by Hardware: 0
Set to 1 if store sync used: 1
Set to 1 if blemish removal applied: 0
Set to 1 if comsic raw removal applied: 0
if cosmic ray applied, this is type: 0
Threshold of cosmiv ray removal: 50
Number of Frames in File: 1
max intensity data (future): 0
min intensity data (future): 0
y axis label: Strip
shutter type: 6
shutter compensation time: 0
readout mode: 1 (full, kinetic, etc)
window size for knietics only: 0
clock speed for kinetics and frame transfer: 0
computer interface : 22 (isa-taxi,pci, eisa, etc.)
Num of ROI: May be more than the 10 allowed in this header (if 0 assume 1)
Num ROIs In Experiment: 1 (May be more than the 10 allowed in this header (if 0 assume 1))
Spare_5:
Controller Num: 1 (if multiple controllers system will have controller number data came from. This is a future item)
Which software package created this file: 1
number of ROIs used: 1 (if 0, assume 1)
left x start value: 1 0 0 0 0 0 0 0 0 0
right x start value: 1024 0 0 0 0 0 0 0 0 0
amount x is binned in hw: 1 0 0 0 0 0 0 0 0 0
top y start value: 1 0 0 0 0 0 0 0 0 0
bottom y start value: 1024 0 0 0 0 0 0 0 0 0
amount y is binned/grouped in hw: 1 0 0 0 0 0 0 0 0 0
Flat field file name:
background sub. file name: C:\BlueInLine_Dec2009\20Nov2009\Back.SPE
blemish file name:
version of this file header: 2.2
Reserved for YT information:
0x01234567L if file created by WinX: 1.90887e+007
=======================================================
X Calibration data
offset for absolute scaling: 0
factor for absolute scaling: 0
select scaling unit: 1
reserved: NOT SHOWN
special string for scaling: NOT SHOWN
reserved: NOT SHOW
flag if calibration if valid: 1
current input values for "calib_value": 0
linear UNIT and used in the "poly_coeff": 1
ORDER of calibration POLYNOM: 1
valid calibration data pairs: 0
pixelpos. of calibration data: 0 0 0 0 0 0 0 0 0 0
calibration VALUE as above pos: 0 0 0 0 0 0 0 0 0 0
polynom COEFFICIENTS: 1 1 0 0 0 0
laser wavenumber for reative WN: 0
reserved: 0
If set to 200, valid label below: 0
Caliobration label (NULL term'd): NOT SHOWN
Calibration Expansion area: NOT SHOWN
=======================================================
Y Calibration data
offset for absolute scaling: 0
factor for absolute scaling: 0
select scaling unit: 0
reserved: NOT SHOWN
special string for scaling: NOT SHOWN
reserved: NOT SHOW
flag if calibration if valid: 0
current input values for "calib_value": 0
linear UNIT and used in the "poly_coeff": 0
ORDER of calibration POLYNOM: 0
valid calibration data pairs: 0
pixelpos. of calibration data: 0 0 0 0 0 0 0 0 0 0
calibration VALUE as above pos: 0 0 0 0 0 0 0 0 0 0
polynom COEFFICIENTS: 0 0 0 0 0 0
laser wavenumber for reative WN: 0
reserved: 0
If set to 200, valid label below: 0
Caliobration label (NULL term'd): NOT SHOWN
Calibration Expansion area: NOT SHOWN
End cal info=======================================================
If set to 200, valid label below: 0
special intensity scaling string: NOT SHOWN
Spare: NOT SHOWN
spectrometer type: 0 (acton, spex, etc)
spectrograph model: 0 (type dependent)
pulser burst mode: 0 (on/off)
pulser triggers per burst: 0
pulser burst period: 0 (usec)
pulser bracket pulsing: 0 (on/off)
pulser bracket pulsing type: 0
pulser fast exponential time constant: 0 (usec)
pulser fast exponential amplitude constant: 0 (usec)
pulser slow exponential time constant: 0 (usec)
pulser slow exponential amplitude constant: 0 (usec)
analog gain was used: 0
avalanche gain was used: 0
avalanche gain value: 0
Always the LAST value in the header: 21845
End HEADER=======================================================
1048576 Data values Read in as uint16
Data reshaped to 1024 by 1024 by 1 and converted to double

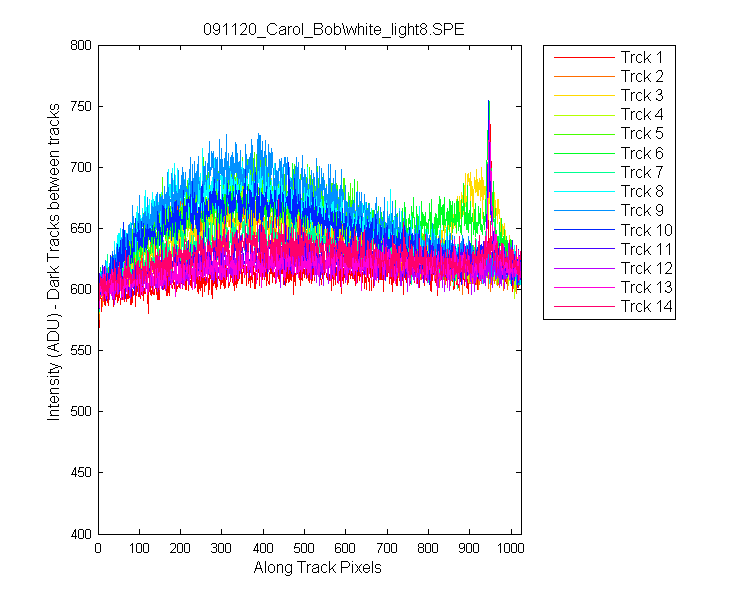

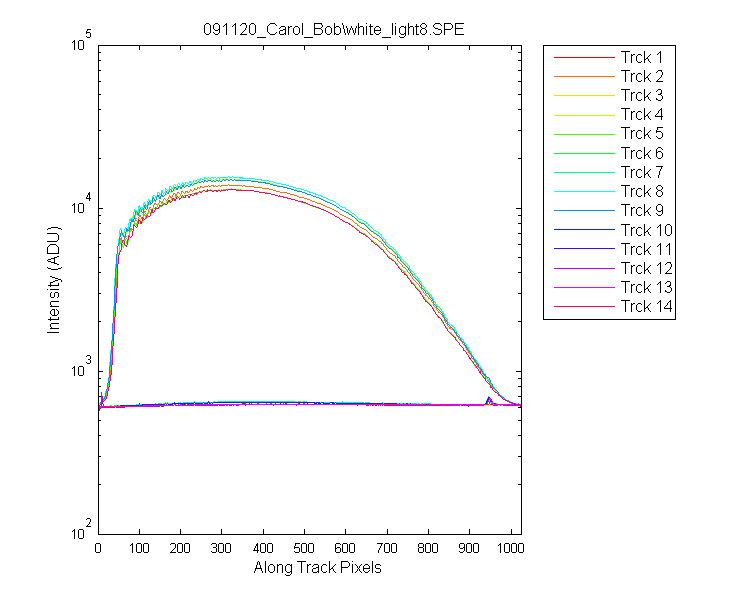

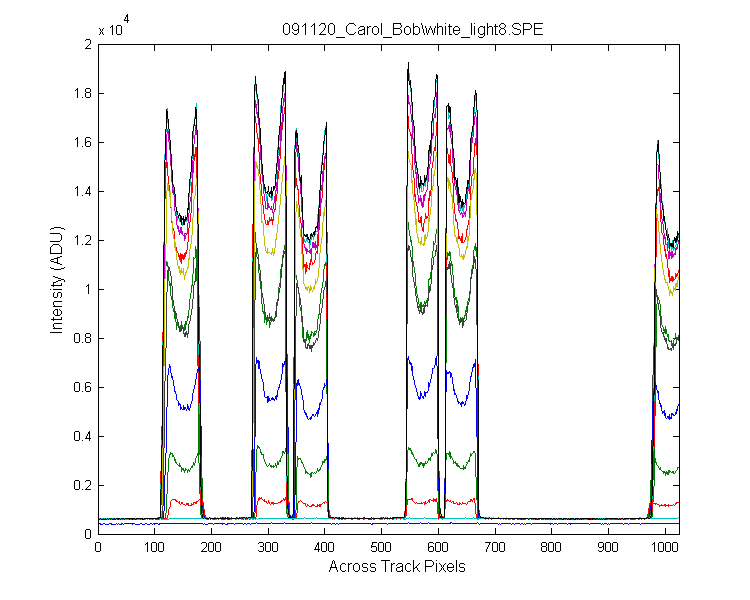

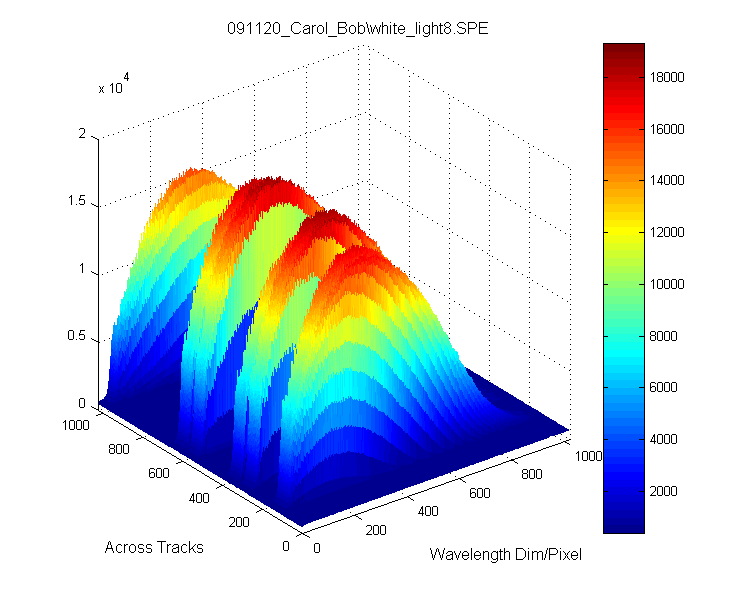

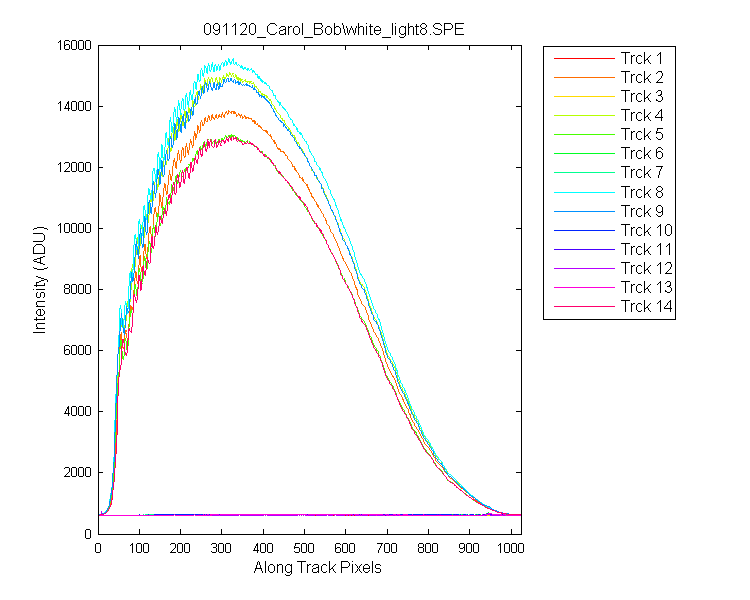

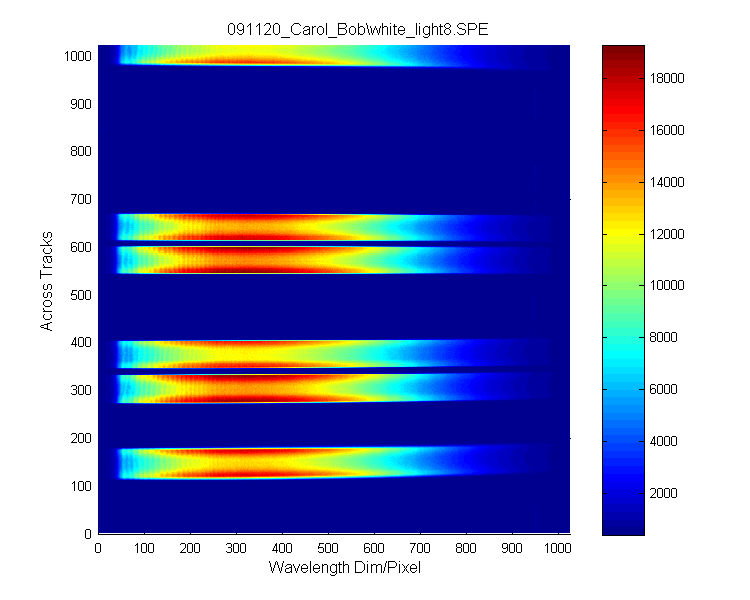

Some Data ----------------------------------------------------------------
Row Column
1 101 201 301 401 501 601 701 801 901 1001
0001 412 600 606 612 616 608 608 614 613 612 605
0051 413 608 606 614 622 619 624 611 607 609 612
0101 406 622 627 633 624 624 640 642 616 616 615
0151 421 8385 11227 12788 12221 10628 8293 5237 2678 1188 641
0201 417 617 651 652 656 637 645 645 615 616 618
0251 410 636 643 667 651 655 632 634 620 614 616
0301 427 8814 12647 13926 13489 11522 8780 5422 2792 1357 636
0351 431 10251 14091 16038 15568 13328 10195 6092 3025 1008 603
0401 425 11092 15394 16652 15581 13633 10228 6069 3045 1328 628
0451 419 630 630 644 646 644 638 643 639 630 616
0501 421 644 640 655 647 634 620 624 635 628 614
0551 448 11969 16306 18188 17347 15143 11441 6996 3497 1431 647
0601 427 3815 3818 3512 2879 2214 1655 1153 787 646 608
0651 435 9454 12441 13979 13758 11816 9243 5560 2925 1256 629
0701 420 636 629 650 627 626 646 630 616 622 620
0751 416 626 610 619 611 629 628 619 618 615 630
0801 414 633 619 626 618 621 628 617 611 620 620
0851 418 613 612 616 616 626 615 623 620 606 625
0901 406 607 626 615 619 621 622 622 608 622 610
0951 433 619 634 619 638 637 628 626 619 638 615
1001 429 8480 11367 12556 11824 10303 7869 4807 2379 1199 620
