NOTE: I have changed the dark used on this data to the back1 file collected on 20 Nov 2009 The SIRCUS_550_27 file previusly used were higher than the light scans at the edges making them negative. All the "dark" scan collected during the laser work are higher than the light scans , they were also collected with 10 accumulations. Could this make them higher? Not sure but the back1 file makes the data look much more resonable.

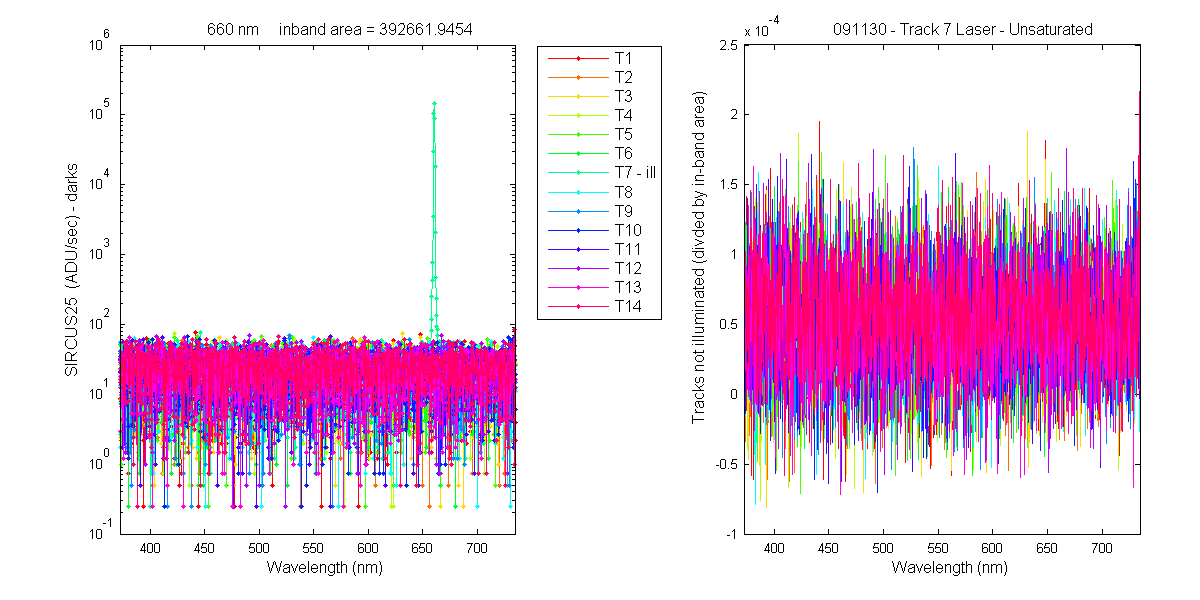

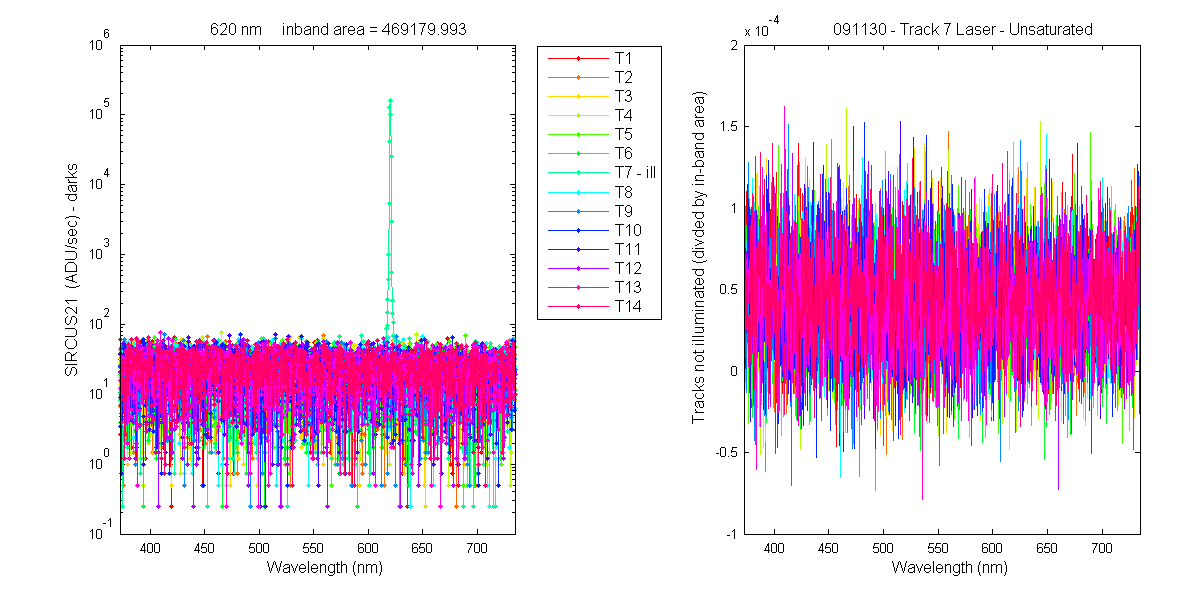

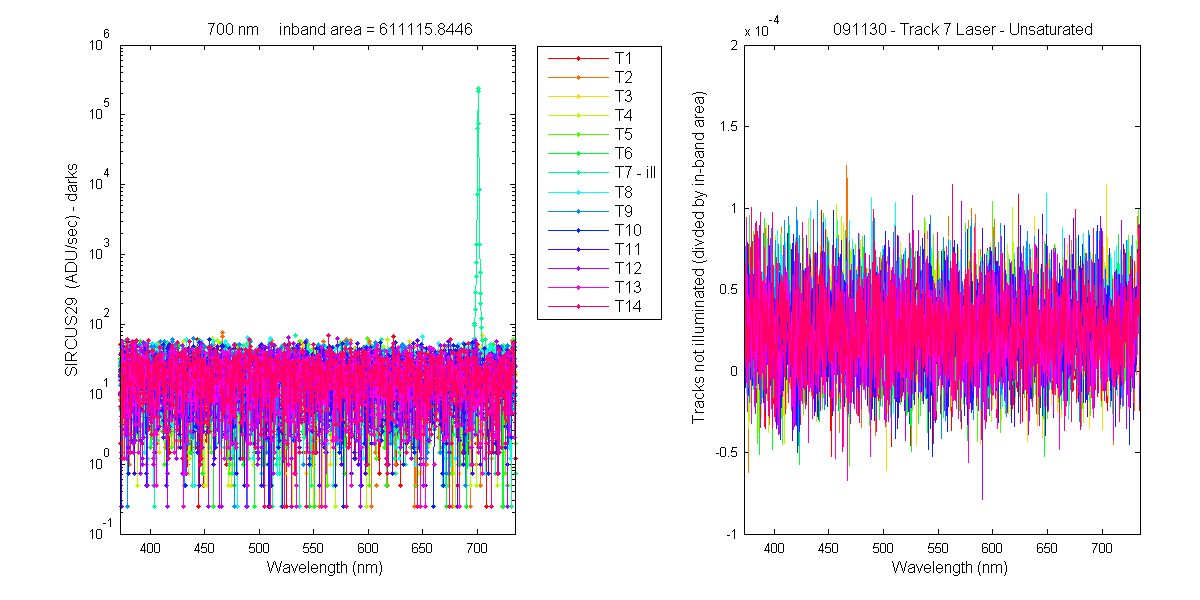

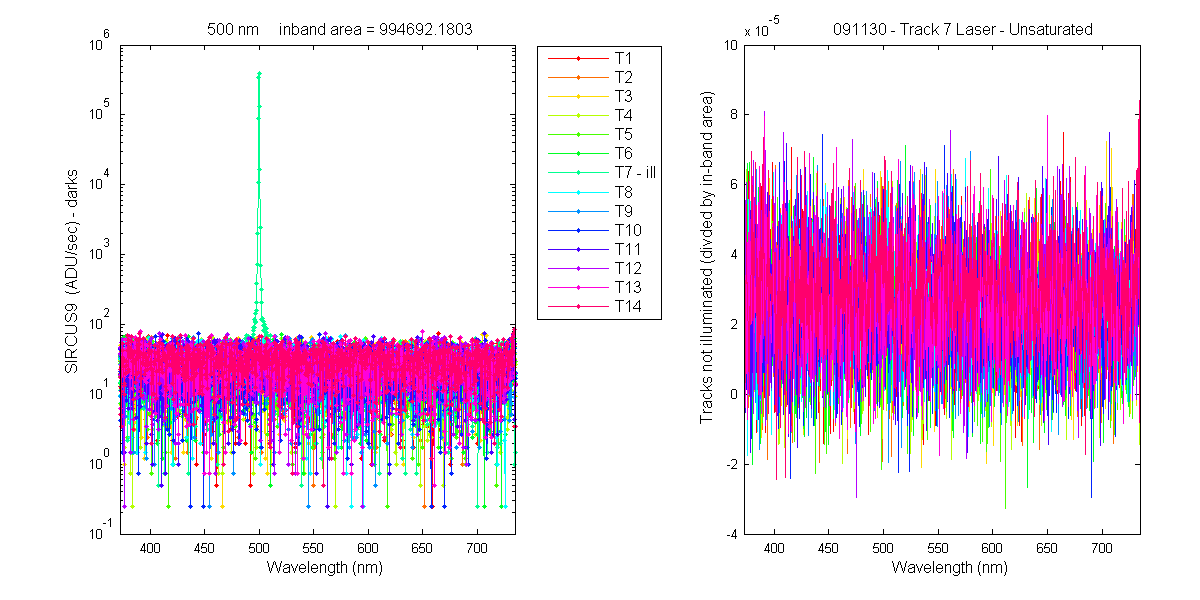

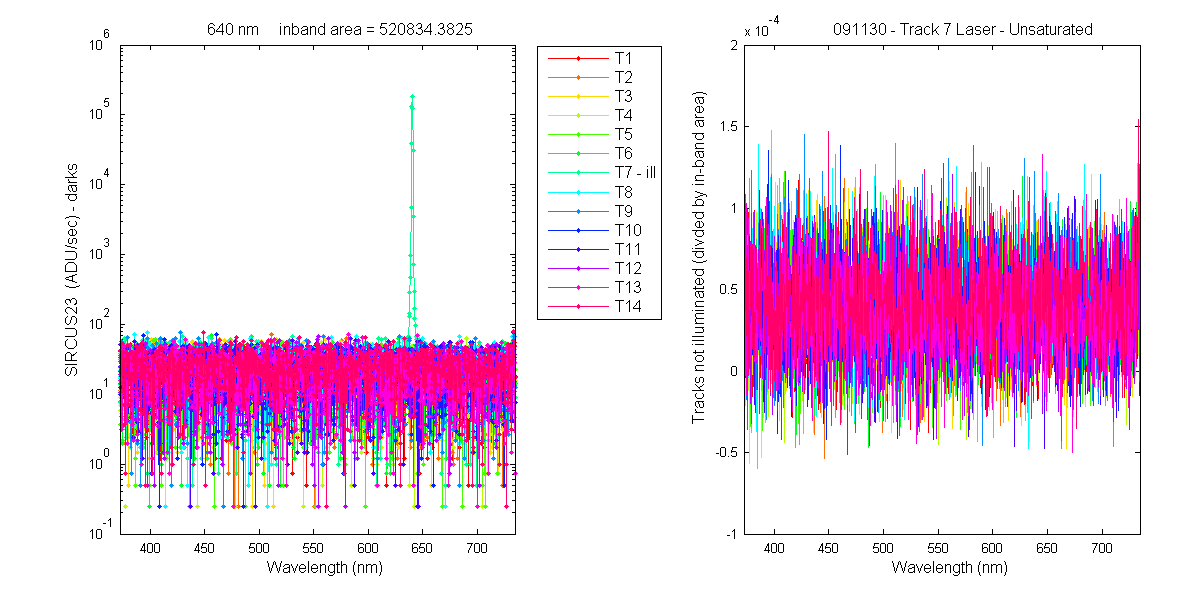

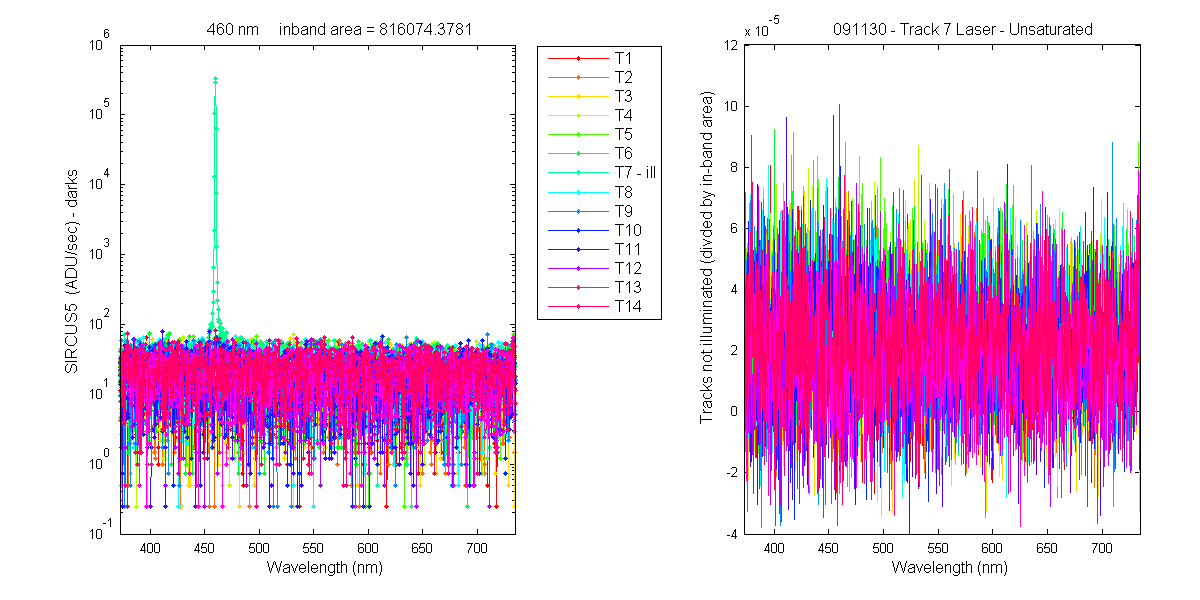

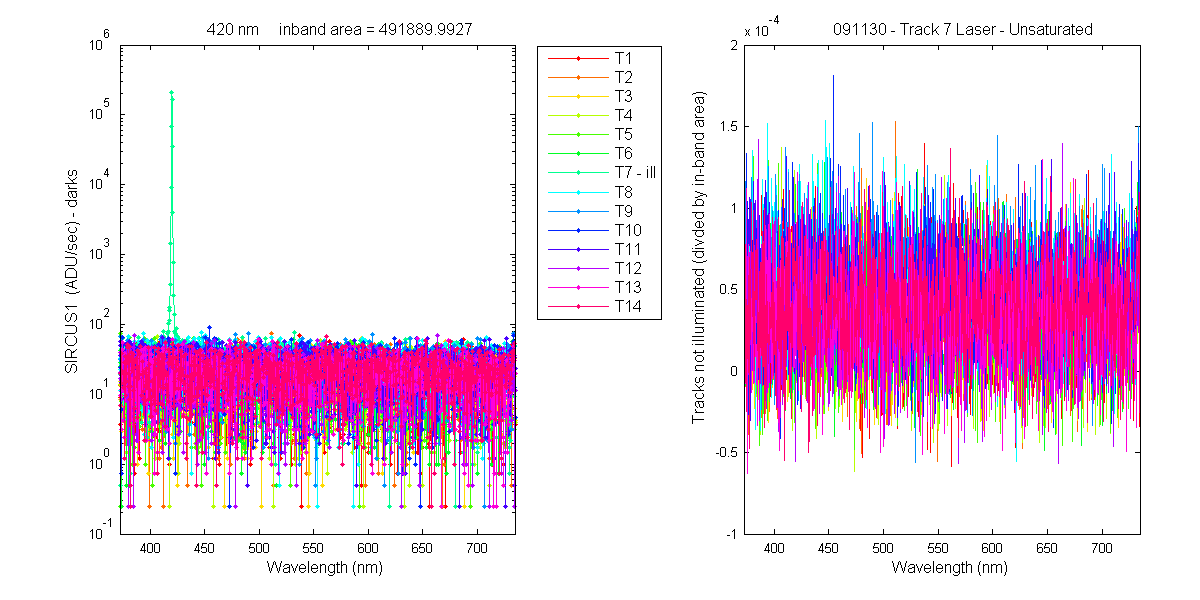

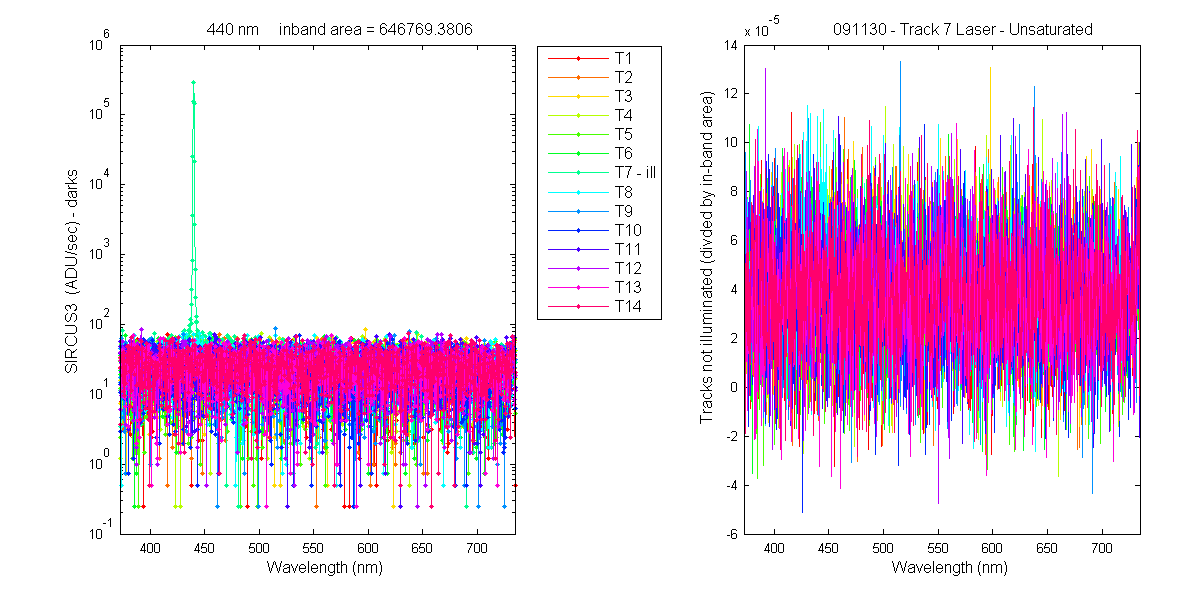

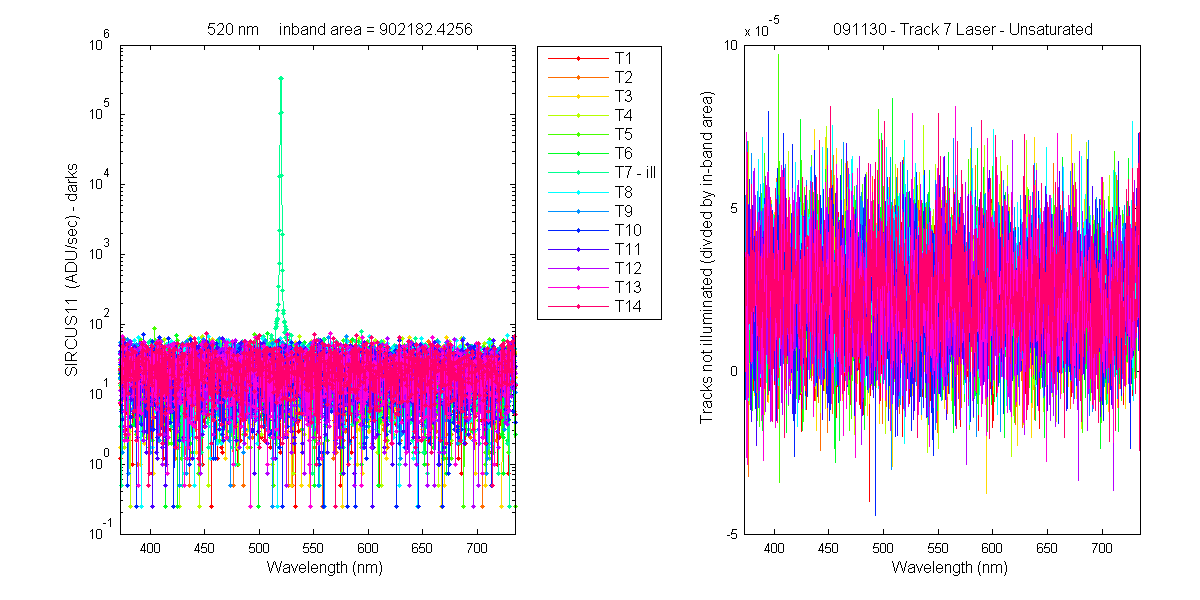

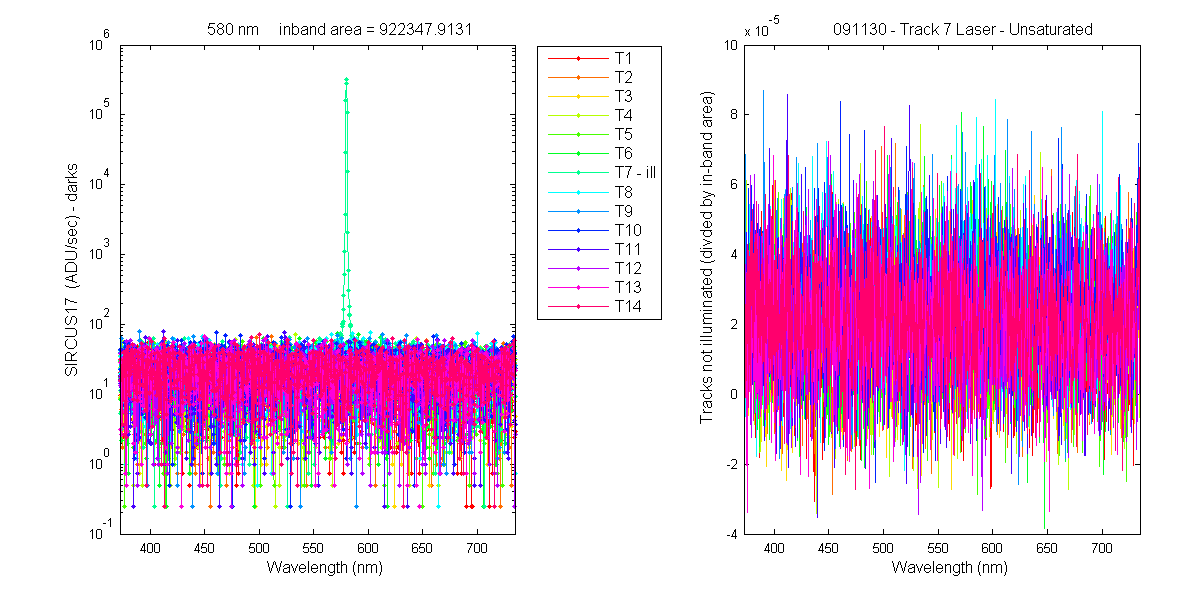

Track to Track stray light using the Track 7 laser data. Data is divided by int time and dark subtracted.

It should be noted that the data below is the low gain data (ie not saturated) so you are not going to see very much cross track light. The high gain (saturated) data has way too much bleeding into other tracks to be used. See Exp nums: 7.81 and 7.92.

Each files data, note the extra peak about 400 nm (same place a laser 550 nm laser data)
