091302\WT_rand5 Raw data/header listing
alternative exposure, in sec: 0.2
Gain: 3
ADC rate: 12
date[DATEMAX]: 03Dec2009
Experiment Local Timing: 222902 (hhmmss or 0)
Experiment UTC Timing: 222902 (hhmmss or 0)
Shutter Control: 1 (Normal, Disabled Open, Disabled Close)
experiment datatype: 3 (ushort)
Number of Frames in File: 1
Number of Accumulations: 1
Experiment readout time: 582
BackGround Applied: 0 (1 if background subraction done )
Auto Clean Active T/F: 0
flat Field Applied: 0 (1 if flat field was applied)
Set to 1 if blemish removal applied: 0
Set to 1 if comsic raw removal applied: 0
Hardware Version: 0
Definition of OutPut BNC: 1
Amp Switching Mode: 0
Detector x dimension chip: 1024
timing mode: 1
alternative exposure, in sec: 0.2
Virtual Chip X dim: 0
Virtual Chip Y dim: 0
y dim of CCD or detector: 1024
date[DATEMAX]: 03Dec2009
Virtual Chip Flag On/Off: 0
Old numer of scans: -1 (should always be -1)
Used with Asiny Mode: 0
Shutter Control: 1 (Normal, Disabled Open, Disabled Close)
Absorb Live (On/Off): 0
Reference Strip or File: 0
Able to do Virtual Chip: 0
Threshold Min Live: 0 (On/Off)
Threshold Minimun Value: 0
Threshold Max Live: 0 (On/Off)
Threshold Maximum Value: 0
T/F Spectrograph Used: 0
Center Wavelength (nm): 0
T/F file is Glued: 0
Starting Wavelength (nm): 0
Ending Wavelength (nm): 0
Minimum Overlap (nm): 0
Final Resolution (nm): 0
Pulser Type: 0 (0 = None, PG200 = 1, PTG=2, DG535=3)
T/F Custom Chip Used: 0
Pre Pixel in X direction: 0
Post Pixels in X direction: 8
Pre Pixel in Y direction: 24
Post Pixels in Y direction: 24
asynchron enable flag: 0 (0=off)
experiment datatype: 3 (ushort)
Repetitive/Sequential: 0
Num PTG On-Chip Accums: 0
Num Exp Repeats: 0 (Pulser SW Accum)
Width Value for Rep. Pulse: 0 (usec)
Delay? for Rep. Pulse: 0 (usec)
Start Width for Seq. pulse: 0 (usec)
End Width for Seq. pulse: 0 (usec)
Start Delay for Seq. pulse: 0 (usec)
End Delay for Seq. pulse: 0 (usec)
Increments: 0 (1 = fixed, 2 = Exponential)
PI-Max type controller flag: 0
PI-max mode: 0
PI-max gain: 0
BackGround Applied: 0 (1 if background subraction done )
T/F PI-max 2ns Board Used: 0
min # of strips per skips: 4
# of min-blocks before geo skps: 250
Spectro Mirror Location: 0 0 (0 = Not Present)
Spectro Slit Location: 0 0 0 0 (0 = Not Present)
T/F Custom Timing Used: 0
Experiment Local Timing: 222902 (hhmmss or 0)
Experiment UTC Timing: 222902 (hhmmss or 0)
User Units for Exposure: 3
ADC offset: 1187
ADC rate: 12
ADC type: 8
ADC resolution: 4
ADC bit adjust: 0
Gain: 3
File comments 1:
File comments 2:
File comments 3:
File comments 4:
File comments 5:
geometric ops: 0 (rotate 0x01, reverse 0x02, flip 0x04)
intensity display string: Pixel
cleans: 1
number of skips per clean: 1024
Spectrograph Mirror Positions: 0 0
Spectrograph Slit Positions: 0 0 0 0
Auto Clean Active T/F: 0
UseContCleanActive T/F: 0
Absorb Strip Number: 0
Spectrograph Slit Pos. Units: 0
Spectrograph Grating Grooves: 0
# of source comp. diodes: 0
y dimension of raw data: 1024
0 = scrambled, 1 = unscramble: 1
T/F Continuous Cleans Timing Option: 0
T/F External Trigger Timing Option: 0
Number of scans (Early WinX): -1
Number of Accumulations: 1
Experiment readout time: 582
T/F Triggered Timing Option: 0
Spare 2:
Version of SW creating this file: 2.5.25 Mar2009
Type: 22 (This type does not exist)
flat Field Applied: 0 (1 if flat field was applied)
Spare_3:
Kinetics Trigger Mode: 1
Data Label: Intensity
Spare_4:
Name of Pulser File: (with Pulse Widths/Delays (for Z-Slice))
Name of Absorbtance File: (if FIle Mode)
Number of time experiment repeated: 0
Number of time experiment accumulated: 0
Set to 1 if this file contains YT data: 0
Vert Clock Speed in micro_sec: 0
Set to 1 if accum done by Hardware: 0
Set to 1 if store sync used: 1
Set to 1 if blemish removal applied: 0
Set to 1 if comsic raw removal applied: 0
if cosmic ray applied, this is type: 0
Threshold of cosmiv ray removal: 50
Number of Frames in File: 1
max intensity data (future): 0
min intensity data (future): 0
y axis label: Strip
shutter type: 6
shutter compensation time: 0
readout mode: 1 (full, kinetic, etc)
window size for knietics only: 0
clock speed for kinetics and frame transfer: 0
computer interface : 22 (isa-taxi,pci, eisa, etc.)
Num of ROI: May be more than the 10 allowed in this header (if 0 assume 1)
Num ROIs In Experiment: 1 (May be more than the 10 allowed in this header (if 0 assume 1))
Spare_5:
Controller Num: 1 (if multiple controllers system will have controller number data came from. This is a future item)
Which software package created this file: 1
number of ROIs used: 1 (if 0, assume 1)
left x start value: 1 0 0 0 0 0 0 0 0 0
right x start value: 1024 0 0 0 0 0 0 0 0 0
amount x is binned in hw: 1 0 0 0 0 0 0 0 0 0
top y start value: 1 0 0 0 0 0 0 0 0 0
bottom y start value: 1024 0 0 0 0 0 0 0 0 0
amount y is binned/grouped in hw: 1 0 0 0 0 0 0 0 0 0
Flat field file name:
background sub. file name:
blemish file name:
version of this file header: 2.2
Reserved for YT information:
0x01234567L if file created by WinX: 1.90887e+007
=======================================================
X Calibration data
offset for absolute scaling: 0
factor for absolute scaling: 0
select scaling unit: 1
reserved: NOT SHOWN
special string for scaling: NOT SHOWN
reserved: NOT SHOW
flag if calibration if valid: 1
current input values for "calib_value": 0
linear UNIT and used in the "poly_coeff": 1
ORDER of calibration POLYNOM: 1
valid calibration data pairs: 0
pixelpos. of calibration data: 0 0 0 0 0 0 0 0 0 0
calibration VALUE as above pos: 0 0 0 0 0 0 0 0 0 0
polynom COEFFICIENTS: 1 1 0 0 0 0
laser wavenumber for reative WN: 0
reserved: 0
If set to 200, valid label below: 0
Caliobration label (NULL term'd): NOT SHOWN
Calibration Expansion area: NOT SHOWN
=======================================================
Y Calibration data
offset for absolute scaling: 0
factor for absolute scaling: 0
select scaling unit: 0
reserved: NOT SHOWN
special string for scaling: NOT SHOWN
reserved: NOT SHOW
flag if calibration if valid: 0
current input values for "calib_value": 0
linear UNIT and used in the "poly_coeff": 0
ORDER of calibration POLYNOM: 0
valid calibration data pairs: 0
pixelpos. of calibration data: 0 0 0 0 0 0 0 0 0 0
calibration VALUE as above pos: 0 0 0 0 0 0 0 0 0 0
polynom COEFFICIENTS: 0 0 0 0 0 0
laser wavenumber for reative WN: 0
reserved: 0
If set to 200, valid label below: 0
Caliobration label (NULL term'd): NOT SHOWN
Calibration Expansion area: NOT SHOWN
End cal info=======================================================
If set to 200, valid label below: 0
special intensity scaling string: NOT SHOWN
Spare: NOT SHOWN
spectrometer type: 0 (acton, spex, etc)
spectrograph model: 0 (type dependent)
pulser burst mode: 0 (on/off)
pulser triggers per burst: 0
pulser burst period: 0 (usec)
pulser bracket pulsing: 0 (on/off)
pulser bracket pulsing type: 0
pulser fast exponential time constant: 0 (usec)
pulser fast exponential amplitude constant: 0 (usec)
pulser slow exponential time constant: 0 (usec)
pulser slow exponential amplitude constant: 0 (usec)
analog gain was used: 0
avalanche gain was used: 0
avalanche gain value: 0
Always the LAST value in the header: 21845
End HEADER=======================================================

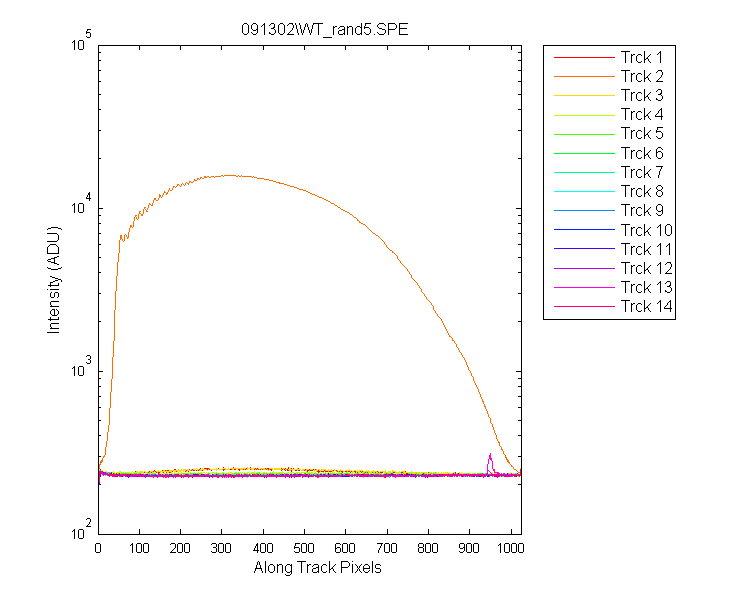

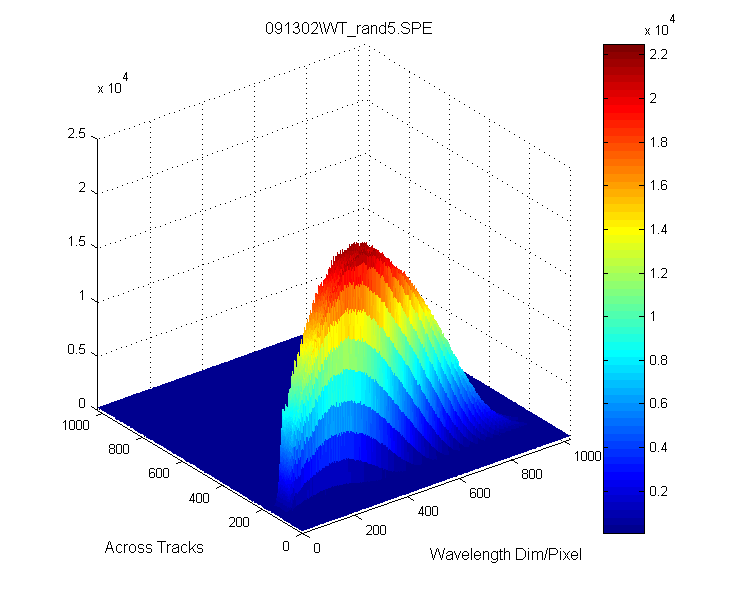

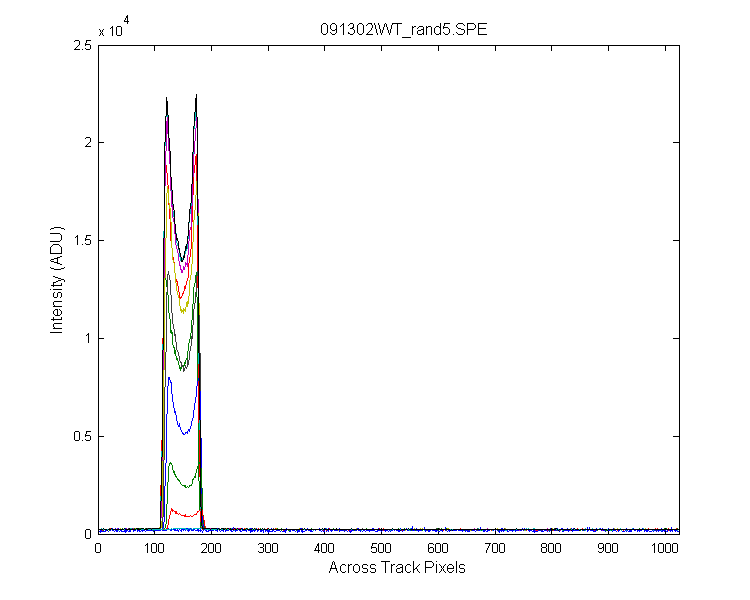

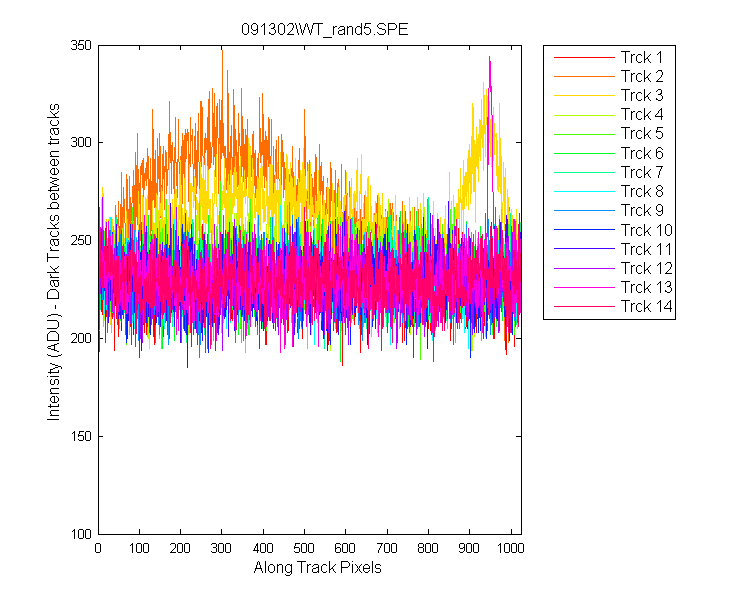

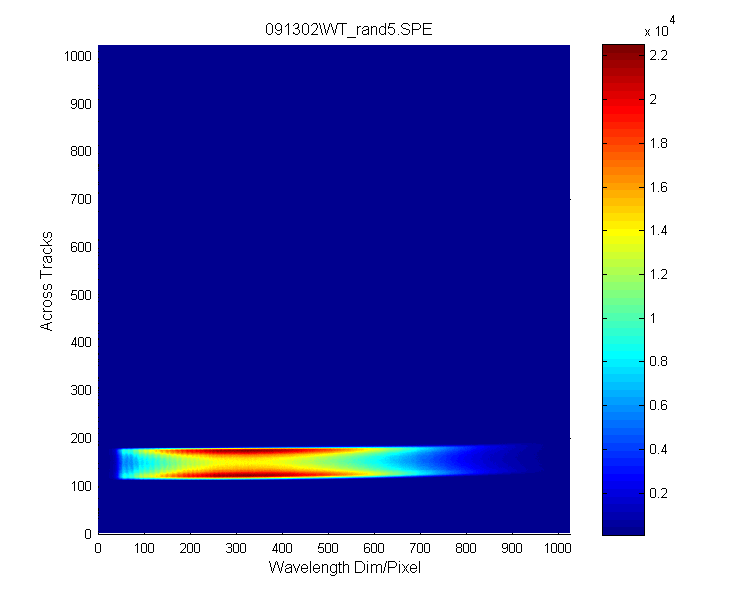

1048576 Data values Read in as uint16
Data reshaped to 1024 by 1024 by 1 and converted to double
Some Data ----------------------------------------------------------------
Row Column
1 101 201 301 401 501 601 701 801 901 1001
0001 163 222 231 245 256 234 216 233 237 217 221
0051 142 217 238 250 256 234 232 228 249 221 250
0101 183 239 267 249 254 260 275 276 253 241 205
0151 290 8532 12416 14054 13620 11548 8308 5115 2464 956 275
0201 226 247 255 251 267 272 266 259 261 253 211
0251 131 226 234 234 231 237 231 252 228 234 228
0301 209 227 225 235 229 229 240 223 245 224 250
0351 208 260 233 241 220 233 226 258 219 252 226
0401 256 248 240 243 224 232 216 231 224 249 229
0451 174 234 231 230 223 234 214 232 229 209 229
0501 118 239 256 240 223 242 239 234 214 229 263
0551 184 237 236 256 229 238 229 228 248 248 219
0601 235 202 234 226 234 226 225 228 225 226 210
0651 154 230 227 219 243 227 231 236 201 244 215
0701 184 241 212 234 230 225 249 245 245 246 248
0751 267 236 214 210 194 242 226 235 206 231 218
0801 160 225 238 234 241 274 202 236 214 237 229
0851 203 234 234 238 231 232 218 224 204 213 237
0901 146 231 221 218 212 222 219 228 228 240 240
0951 138 242 217 217 230 248 230 237 230 242 233
1001 181 216 247 229 245 249 235 234 235 248 226
