091212\3d_100K_G3_cleaning_10_10BI_02_1 Raw data/header listing
alternative exposure, in sec: 0.28
Gain: 3
ADC rate: 6
date[DATEMAX]: 12Dec2009
Experiment Local Timing: 172428 (hhmmss or 0)
Experiment UTC Timing: 172428 (hhmmss or 0)
Shutter Control: 2 (Normal, Disabled Open, Disabled Close)
experiment datatype: 3 (ushort)
Number of Frames in File: 10
Number of Accumulations: 1
Experiment readout time: 9678.37
BackGround Applied: 0 (1 if background subraction done )
Auto Clean Active T/F: 0
flat Field Applied: 0 (1 if flat field was applied)
Set to 1 if blemish removal applied: 0
Set to 1 if comsic raw removal applied: 0
Hardware Version: 0
Definition of OutPut BNC: 1
Amp Switching Mode: 0
Detector x dimension chip: 1024
timing mode: 1
alternative exposure, in sec: 0.28
Virtual Chip X dim: 0
Virtual Chip Y dim: 0
y dim of CCD or detector: 1024
date[DATEMAX]: 12Dec2009
Virtual Chip Flag On/Off: 0
Old numer of scans: -1 (should always be -1)
Used with Asiny Mode: 0
Shutter Control: 2 (Normal, Disabled Open, Disabled Close)
Absorb Live (On/Off): 0
Reference Strip or File: 0
Able to do Virtual Chip: 0
Threshold Min Live: 0 (On/Off)
Threshold Minimun Value: 0
Threshold Max Live: 0 (On/Off)
Threshold Maximum Value: 0
T/F Spectrograph Used: 0
Center Wavelength (nm): 0
T/F file is Glued: 0
Starting Wavelength (nm): 0
Ending Wavelength (nm): 0
Minimum Overlap (nm): 0
Final Resolution (nm): 0
Pulser Type: 0 (0 = None, PG200 = 1, PTG=2, DG535=3)
T/F Custom Chip Used: 0
Pre Pixel in X direction: 0
Post Pixels in X direction: 8
Pre Pixel in Y direction: 24
Post Pixels in Y direction: 24
asynchron enable flag: 0 (0=off)
experiment datatype: 3 (ushort)
Repetitive/Sequential: 0
Num PTG On-Chip Accums: 0
Num Exp Repeats: 0 (Pulser SW Accum)
Width Value for Rep. Pulse: 0 (usec)
Delay? for Rep. Pulse: 0 (usec)
Start Width for Seq. pulse: 0 (usec)
End Width for Seq. pulse: 0 (usec)
Start Delay for Seq. pulse: 0 (usec)
End Delay for Seq. pulse: 0 (usec)
Increments: 0 (1 = fixed, 2 = Exponential)
PI-Max type controller flag: 0
PI-max mode: 0
PI-max gain: 0
BackGround Applied: 0 (1 if background subraction done )
T/F PI-max 2ns Board Used: 0
min # of strips per skips: 4
# of min-blocks before geo skps: 250
Spectro Mirror Location: 0 0 (0 = Not Present)
Spectro Slit Location: 0 0 0 0 (0 = Not Present)
T/F Custom Timing Used: 0
Experiment Local Timing: 172428 (hhmmss or 0)
Experiment UTC Timing: 172428 (hhmmss or 0)
User Units for Exposure: 3
ADC offset: 1878
ADC rate: 6
ADC type: 9
ADC resolution: 4
ADC bit adjust: 0
Gain: 3
File comments 1:
File comments 2:
File comments 3:
File comments 4:
File comments 5:
geometric ops: 0 (rotate 0x01, reverse 0x02, flip 0x04)
intensity display string: Pixel
cleans: 10
number of skips per clean: 1024
Spectrograph Mirror Positions: 0 0
Spectrograph Slit Positions: 0 0 0 0
Auto Clean Active T/F: 0
UseContCleanActive T/F: 0
Absorb Strip Number: 0
Spectrograph Slit Pos. Units: 0
Spectrograph Grating Grooves: 0
# of source comp. diodes: 0
y dimension of raw data: 1024
0 = scrambled, 1 = unscramble: 1
T/F Continuous Cleans Timing Option: 0
T/F External Trigger Timing Option: 0
Number of scans (Early WinX): -1
Number of Accumulations: 1
Experiment readout time: 9678.37
T/F Triggered Timing Option: 0
Spare 2:
Version of SW creating this file: 2.5.25 Mar2009
Type: 22 (This type does not exist)
flat Field Applied: 0 (1 if flat field was applied)
Spare_3:
Kinetics Trigger Mode: 1
Data Label: Intensity
Spare_4:
Name of Pulser File: (with Pulse Widths/Delays (for Z-Slice))
Name of Absorbtance File: (if FIle Mode)
Number of time experiment repeated: 0
Number of time experiment accumulated: 0
Set to 1 if this file contains YT data: 0
Vert Clock Speed in micro_sec: 0
Set to 1 if accum done by Hardware: 0
Set to 1 if store sync used: 1
Set to 1 if blemish removal applied: 0
Set to 1 if comsic raw removal applied: 0
if cosmic ray applied, this is type: 0
Threshold of cosmiv ray removal: 50
Number of Frames in File: 10
max intensity data (future): 0
min intensity data (future): 0
y axis label: Strip
shutter type: 6
shutter compensation time: 0
readout mode: 1 (full, kinetic, etc)
window size for knietics only: 0
clock speed for kinetics and frame transfer: 0
computer interface : 22 (isa-taxi,pci, eisa, etc.)
Num of ROI: May be more than the 10 allowed in this header (if 0 assume 1)
Num ROIs In Experiment: 1 (May be more than the 10 allowed in this header (if 0 assume 1))
Spare_5:
Controller Num: 1 (if multiple controllers system will have controller number data came from. This is a future item)
Which software package created this file: 1
number of ROIs used: 1 (if 0, assume 1)
left x start value: 1 0 0 0 0 0 0 0 0 0
right x start value: 1024 0 0 0 0 0 0 0 0 0
amount x is binned in hw: 1 0 0 0 0 0 0 0 0 0
top y start value: 1 0 0 0 0 0 0 0 0 0
bottom y start value: 1024 0 0 0 0 0 0 0 0 0
amount y is binned/grouped in hw: 1 0 0 0 0 0 0 0 0 0
Flat field file name:
background sub. file name:
blemish file name:
version of this file header: 2.2
Reserved for YT information:
0x01234567L if file created by WinX: 1.90887e+007
=======================================================
X Calibration data
offset for absolute scaling: 0
factor for absolute scaling: 0
select scaling unit: 1
reserved: NOT SHOWN
special string for scaling: NOT SHOWN
reserved: NOT SHOW
flag if calibration if valid: 1
current input values for "calib_value": 0
linear UNIT and used in the "poly_coeff": 1
ORDER of calibration POLYNOM: 1
valid calibration data pairs: 0
pixelpos. of calibration data: 0 0 0 0 0 0 0 0 0 0
calibration VALUE as above pos: 0 0 0 0 0 0 0 0 0 0
polynom COEFFICIENTS: 1 1 0 0 0 0
laser wavenumber for reative WN: 0
reserved: 0
If set to 200, valid label below: 0
Caliobration label (NULL term'd): NOT SHOWN
Calibration Expansion area: NOT SHOWN
=======================================================
Y Calibration data
offset for absolute scaling: 0
factor for absolute scaling: 0
select scaling unit: 0
reserved: NOT SHOWN
special string for scaling: NOT SHOWN
reserved: NOT SHOW
flag if calibration if valid: 0
current input values for "calib_value": 0
linear UNIT and used in the "poly_coeff": 0
ORDER of calibration POLYNOM: 0
valid calibration data pairs: 0
pixelpos. of calibration data: 0 0 0 0 0 0 0 0 0 0
calibration VALUE as above pos: 0 0 0 0 0 0 0 0 0 0
polynom COEFFICIENTS: 0 0 0 0 0 0
laser wavenumber for reative WN: 0
reserved: 0
If set to 200, valid label below: 0
Caliobration label (NULL term'd): NOT SHOWN
Calibration Expansion area: NOT SHOWN
End cal info=======================================================
If set to 200, valid label below: 0
special intensity scaling string: NOT SHOWN
Spare: NOT SHOWN
spectrometer type: 0 (acton, spex, etc)
spectrograph model: 0 (type dependent)
pulser burst mode: 0 (on/off)
pulser triggers per burst: 0
pulser burst period: 0 (usec)
pulser bracket pulsing: 0 (on/off)
pulser bracket pulsing type: 0
pulser fast exponential time constant: 0 (usec)
pulser fast exponential amplitude constant: 0 (usec)
pulser slow exponential time constant: 0 (usec)
pulser slow exponential amplitude constant: 0 (usec)
analog gain was used: 0
avalanche gain was used: 0
avalanche gain value: 0
Always the LAST value in the header: 21845
End HEADER=======================================================
10485760 Data values Read in as uint16
Data reshaped to 1024 by 1024 by 10 and converted to double

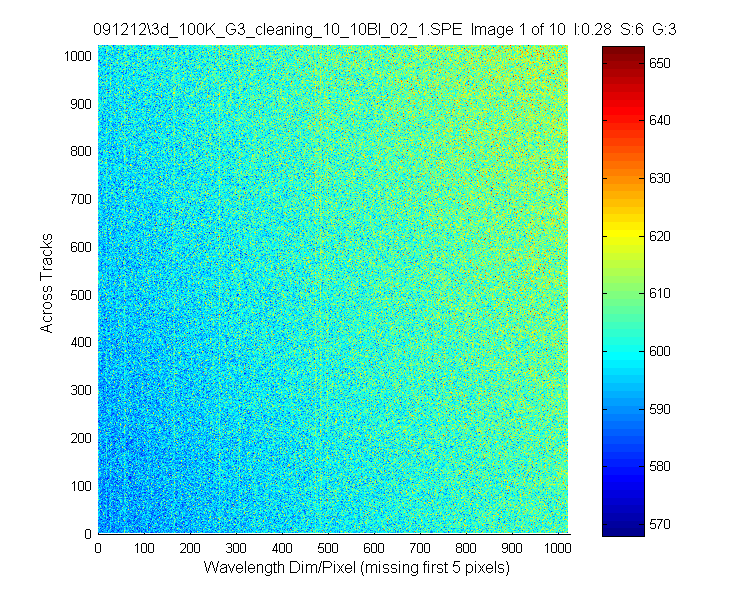

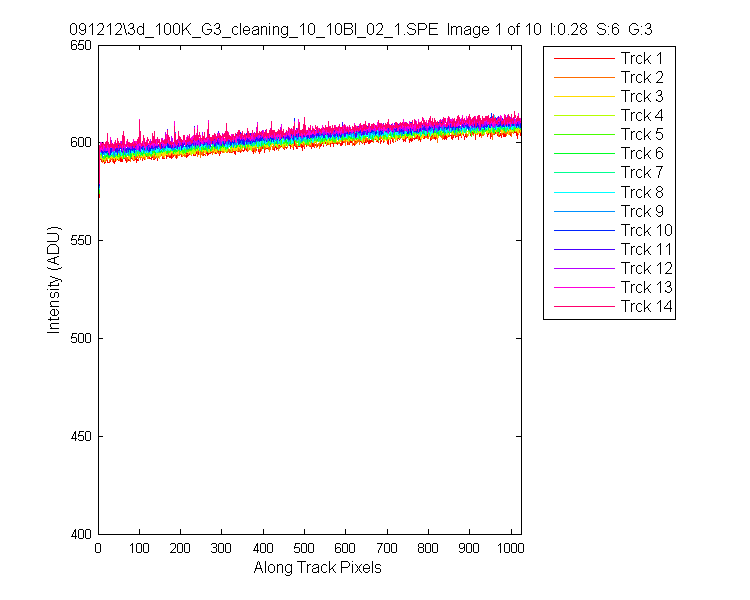

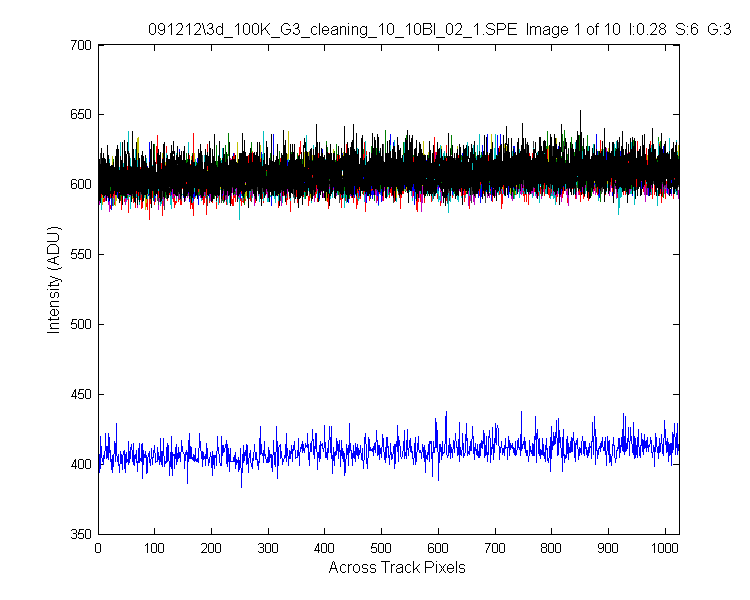

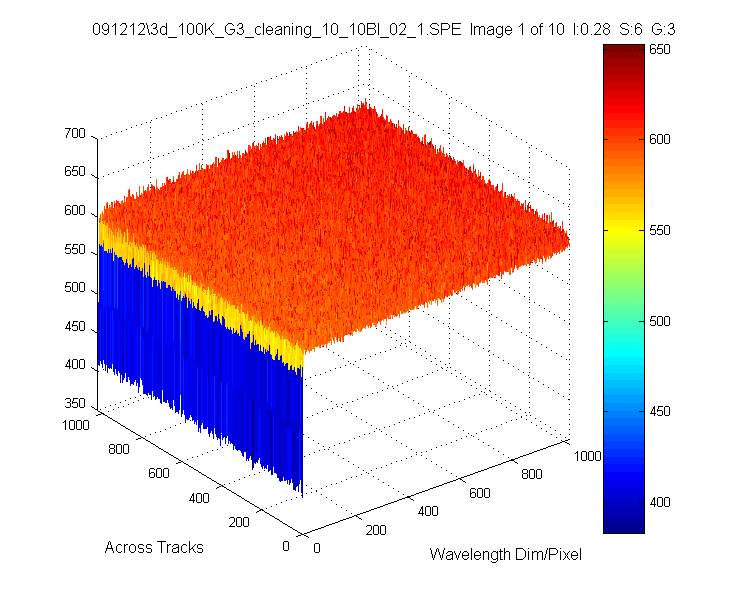

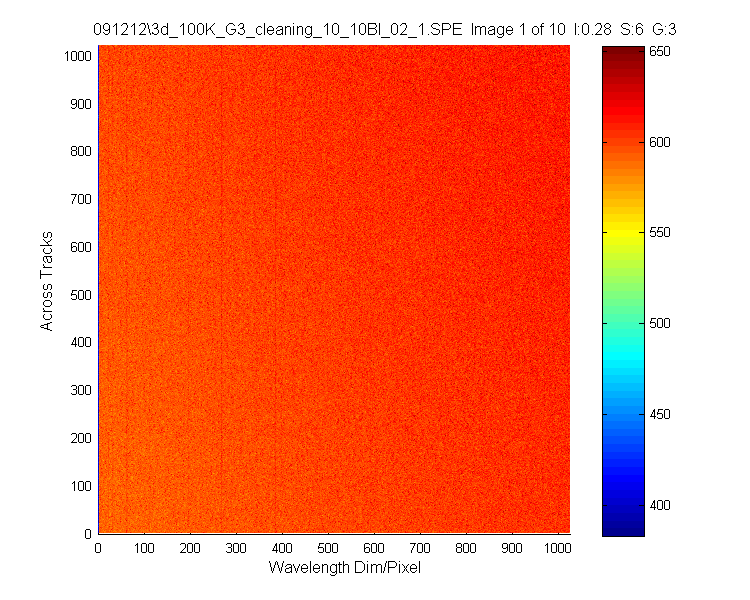

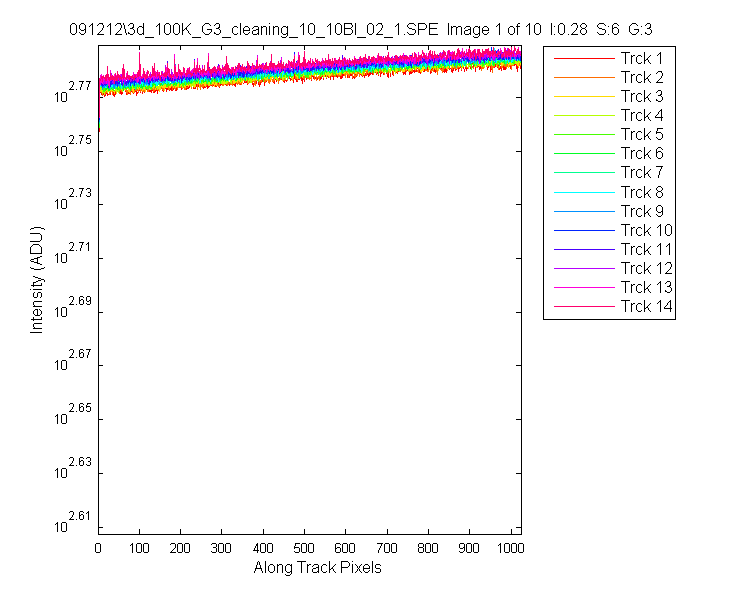

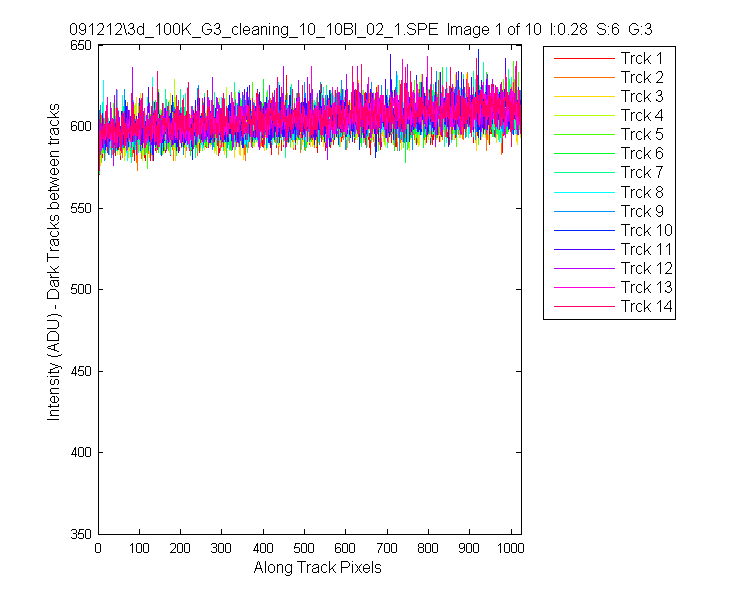

Some Data ----------------------------------------------------------------
Row Column
1 101 201 301 401 501 601 701 801 901 1001
0001 391 603 597 595 597 598 597 607 625 606 594
0051 401 601 596 588 595 609 600 602 616 614 614
0101 403 608 590 597 601 594 598 600 603 600 591
0151 408 600 619 599 599 607 600 593 604 603 614
0201 392 592 587 600 607 599 600 605 607 613 612
0251 410 599 595 593 599 607 598 590 597 605 619
0301 412 611 606 588 596 602 601 597 594 606 602
0351 405 615 602 596 604 615 601 606 622 587 605
0401 405 608 599 609 600 610 602 604 599 603 618
0451 413 599 587 600 598 616 608 607 602 606 608
0501 413 613 594 601 589 620 599 620 600 605 608
0551 418 623 598 600 624 610 600 605 601 612 611
0601 388 611 601 588 599 607 599 596 613 604 612
0651 418 604 596 596 604 609 605 610 617 612 630
0701 416 610 622 598 605 607 603 600 598 615 607
0751 411 615 588 594 602 621 595 607 620 608 606
0801 416 626 601 594 609 610 627 604 617 619 597
0851 411 608 601 609 597 615 596 603 612 607 600
0901 417 626 597 605 602 620 606 606 610 598 620
0951 405 607 600 603 599 607 609 609 603 601 613
1001 425 613 590 599 605 608 616 610 615 616 622
