091228\1a_1LI_01s_1 Raw data/header listing
alternative exposure, in sec: 0.1
Gain: 3
ADC rate: 12
date[DATEMAX]: 28Dec2009
Experiment Local Timing: 212634 (hhmmss or 0)
Experiment UTC Timing: 212634 (hhmmss or 0)
Shutter Control: 1 (Normal, Disabled Open, Disabled Close)
experiment datatype: 3 (ushort)
Number of Frames in File: 1
Number of Accumulations: 1
Experiment readout time: 582
BackGround Applied: 0 (1 if background subraction done )
Auto Clean Active T/F: 0
flat Field Applied: 0 (1 if flat field was applied)
Set to 1 if blemish removal applied: 0
Set to 1 if comsic raw removal applied: 0
Hardware Version: 0
Definition of OutPut BNC: 1
Amp Switching Mode: 0
Detector x dimension chip: 1024
timing mode: 1
alternative exposure, in sec: 0.1
Virtual Chip X dim: 0
Virtual Chip Y dim: 0
y dim of CCD or detector: 1024
date[DATEMAX]: 28Dec2009
Virtual Chip Flag On/Off: 0
Old numer of scans: -1 (should always be -1)
Used with Asiny Mode: 0
Shutter Control: 1 (Normal, Disabled Open, Disabled Close)
Absorb Live (On/Off): 0
Reference Strip or File: 0
Able to do Virtual Chip: 0
Threshold Min Live: 0 (On/Off)
Threshold Minimun Value: 0
Threshold Max Live: 0 (On/Off)
Threshold Maximum Value: 0
T/F Spectrograph Used: 0
Center Wavelength (nm): 0
T/F file is Glued: 0
Starting Wavelength (nm): 0
Ending Wavelength (nm): 0
Minimum Overlap (nm): 0
Final Resolution (nm): 0
Pulser Type: 0 (0 = None, PG200 = 1, PTG=2, DG535=3)
T/F Custom Chip Used: 0
Pre Pixel in X direction: 0
Post Pixels in X direction: 8
Pre Pixel in Y direction: 24
Post Pixels in Y direction: 24
asynchron enable flag: 0 (0=off)
experiment datatype: 3 (ushort)
Repetitive/Sequential: 0
Num PTG On-Chip Accums: 0
Num Exp Repeats: 0 (Pulser SW Accum)
Width Value for Rep. Pulse: 0 (usec)
Delay? for Rep. Pulse: 0 (usec)
Start Width for Seq. pulse: 0 (usec)
End Width for Seq. pulse: 0 (usec)
Start Delay for Seq. pulse: 0 (usec)
End Delay for Seq. pulse: 0 (usec)
Increments: 0 (1 = fixed, 2 = Exponential)
PI-Max type controller flag: 0
PI-max mode: 0
PI-max gain: 0
BackGround Applied: 0 (1 if background subraction done )
T/F PI-max 2ns Board Used: 0
min # of strips per skips: 4
# of min-blocks before geo skps: 250
Spectro Mirror Location: 0 0 (0 = Not Present)
Spectro Slit Location: 0 0 0 0 (0 = Not Present)
T/F Custom Timing Used: 0
Experiment Local Timing: 212634 (hhmmss or 0)
Experiment UTC Timing: 212634 (hhmmss or 0)
User Units for Exposure: 3
ADC offset: 1187
ADC rate: 12
ADC type: 8
ADC resolution: 4
ADC bit adjust: 0
Gain: 3
File comments 1:
File comments 2:
File comments 3:
File comments 4:
File comments 5:
geometric ops: 0 (rotate 0x01, reverse 0x02, flip 0x04)
intensity display string: Pixel
cleans: 1
number of skips per clean: 1024
Spectrograph Mirror Positions: 0 0
Spectrograph Slit Positions: 0 0 0 0
Auto Clean Active T/F: 0
UseContCleanActive T/F: 0
Absorb Strip Number: 0
Spectrograph Slit Pos. Units: 0
Spectrograph Grating Grooves: 0
# of source comp. diodes: 0
y dimension of raw data: 1024
0 = scrambled, 1 = unscramble: 1
T/F Continuous Cleans Timing Option: 0
T/F External Trigger Timing Option: 0
Number of scans (Early WinX): -1
Number of Accumulations: 1
Experiment readout time: 582
T/F Triggered Timing Option: 0
Spare 2:
Version of SW creating this file: 2.5.25 Mar2009
Type: 22 (This type does not exist)
flat Field Applied: 0 (1 if flat field was applied)
Spare_3:
Kinetics Trigger Mode: 1
Data Label: Intensity
Spare_4:
Name of Pulser File: (with Pulse Widths/Delays (for Z-Slice))
Name of Absorbtance File: (if FIle Mode)
Number of time experiment repeated: 0
Number of time experiment accumulated: 0
Set to 1 if this file contains YT data: 0
Vert Clock Speed in micro_sec: 0
Set to 1 if accum done by Hardware: 0
Set to 1 if store sync used: 1
Set to 1 if blemish removal applied: 0
Set to 1 if comsic raw removal applied: 0
if cosmic ray applied, this is type: 0
Threshold of cosmiv ray removal: 50
Number of Frames in File: 1
max intensity data (future): 0
min intensity data (future): 0
y axis label: Strip
shutter type: 6
shutter compensation time: 0
readout mode: 1 (full, kinetic, etc)
window size for knietics only: 0
clock speed for kinetics and frame transfer: 0
computer interface : 22 (isa-taxi,pci, eisa, etc.)
Num of ROI: May be more than the 10 allowed in this header (if 0 assume 1)
Num ROIs In Experiment: 1 (May be more than the 10 allowed in this header (if 0 assume 1))
Spare_5:
Controller Num: 1 (if multiple controllers system will have controller number data came from. This is a future item)
Which software package created this file: 1
number of ROIs used: 1 (if 0, assume 1)
left x start value: 1 0 0 0 0 0 0 0 0 0
right x start value: 1024 0 0 0 0 0 0 0 0 0
amount x is binned in hw: 1 0 0 0 0 0 0 0 0 0
top y start value: 1 0 0 0 0 0 0 0 0 0
bottom y start value: 1024 0 0 0 0 0 0 0 0 0
amount y is binned/grouped in hw: 1 0 0 0 0 0 0 0 0 0
Flat field file name:
background sub. file name:
blemish file name:
version of this file header: 2.2
Reserved for YT information:
0x01234567L if file created by WinX: 1.90887e+007
=======================================================
X Calibration data
offset for absolute scaling: 0
factor for absolute scaling: 0
select scaling unit: 1
reserved: NOT SHOWN
special string for scaling: NOT SHOWN
reserved: NOT SHOW
flag if calibration if valid: 1
current input values for "calib_value": 0
linear UNIT and used in the "poly_coeff": 1
ORDER of calibration POLYNOM: 1
valid calibration data pairs: 0
pixelpos. of calibration data: 0 0 0 0 0 0 0 0 0 0
calibration VALUE as above pos: 0 0 0 0 0 0 0 0 0 0
polynom COEFFICIENTS: 1 1 0 0 0 0
laser wavenumber for reative WN: 0
reserved: 0
If set to 200, valid label below: 0
Caliobration label (NULL term'd): NOT SHOWN
Calibration Expansion area: NOT SHOWN
=======================================================
Y Calibration data
offset for absolute scaling: 0
factor for absolute scaling: 0
select scaling unit: 0
reserved: NOT SHOWN
special string for scaling: NOT SHOWN
reserved: NOT SHOW
flag if calibration if valid: 0
current input values for "calib_value": 0
linear UNIT and used in the "poly_coeff": 0
ORDER of calibration POLYNOM: 0
valid calibration data pairs: 0
pixelpos. of calibration data: 0 0 0 0 0 0 0 0 0 0
calibration VALUE as above pos: 0 0 0 0 0 0 0 0 0 0
polynom COEFFICIENTS: 0 0 0 0 0 0
laser wavenumber for reative WN: 0
reserved: 0
If set to 200, valid label below: 0
Caliobration label (NULL term'd): NOT SHOWN
Calibration Expansion area: NOT SHOWN
End cal info=======================================================
If set to 200, valid label below: 0
special intensity scaling string: NOT SHOWN
Spare: NOT SHOWN
spectrometer type: 0 (acton, spex, etc)
spectrograph model: 0 (type dependent)
pulser burst mode: 0 (on/off)
pulser triggers per burst: 0
pulser burst period: 0 (usec)
pulser bracket pulsing: 0 (on/off)
pulser bracket pulsing type: 0
pulser fast exponential time constant: 0 (usec)
pulser fast exponential amplitude constant: 0 (usec)
pulser slow exponential time constant: 0 (usec)
pulser slow exponential amplitude constant: 0 (usec)
analog gain was used: 0
avalanche gain was used: 0
avalanche gain value: 0
Always the LAST value in the header: 21845
End HEADER=======================================================
1048576 Data values Read in as uint16
Data reshaped to 1024 by 1024 by 1 and converted to double

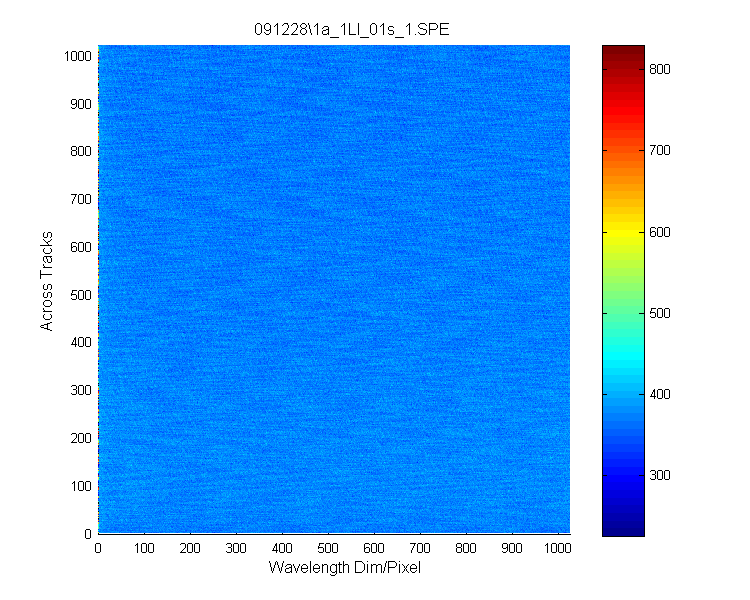

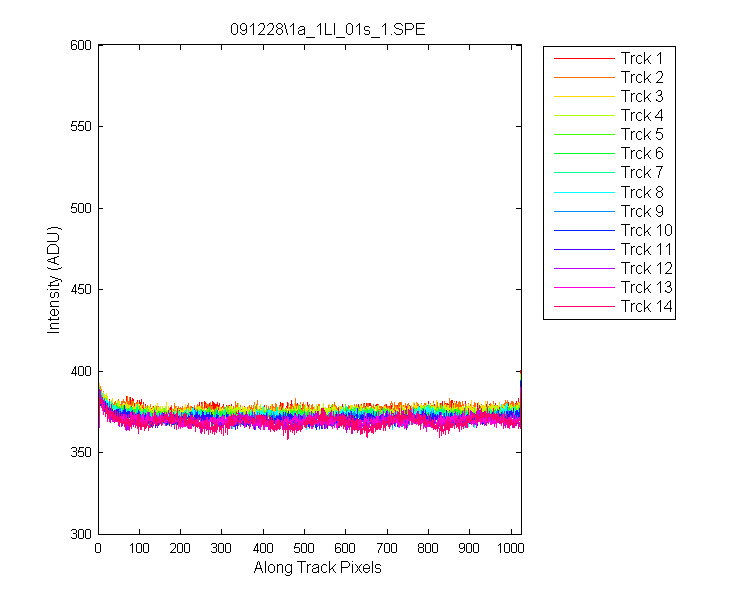

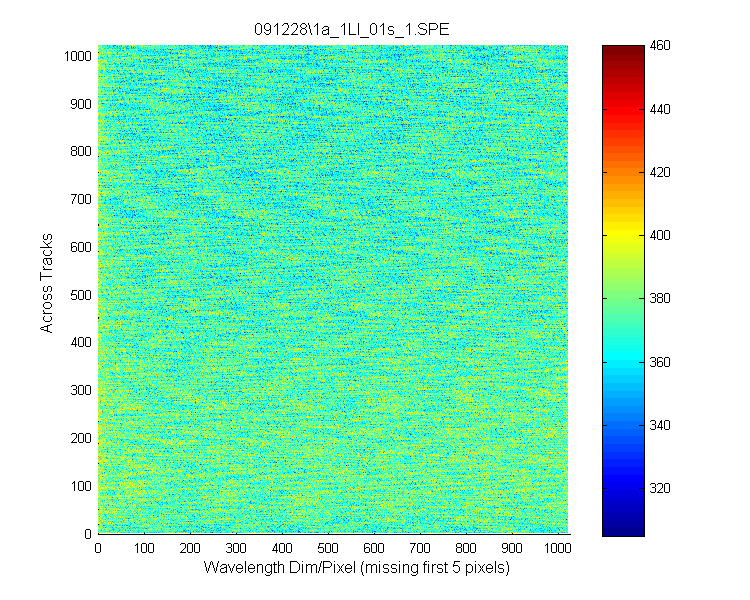

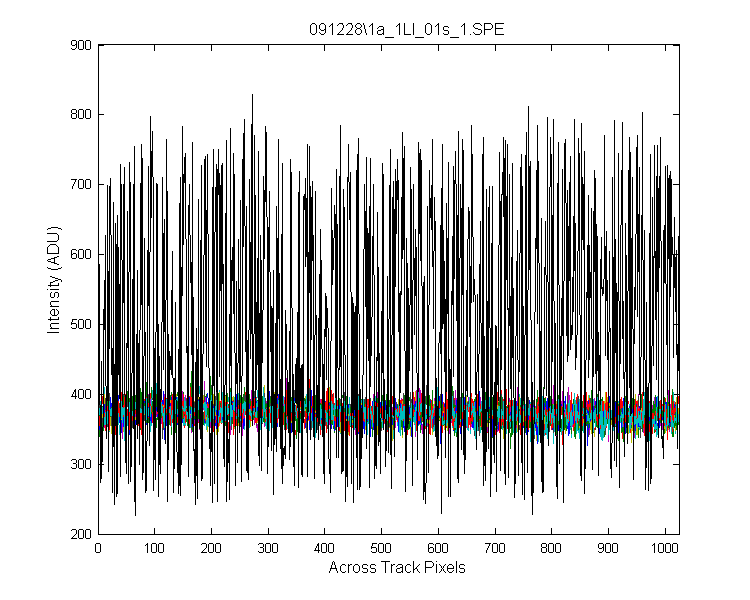

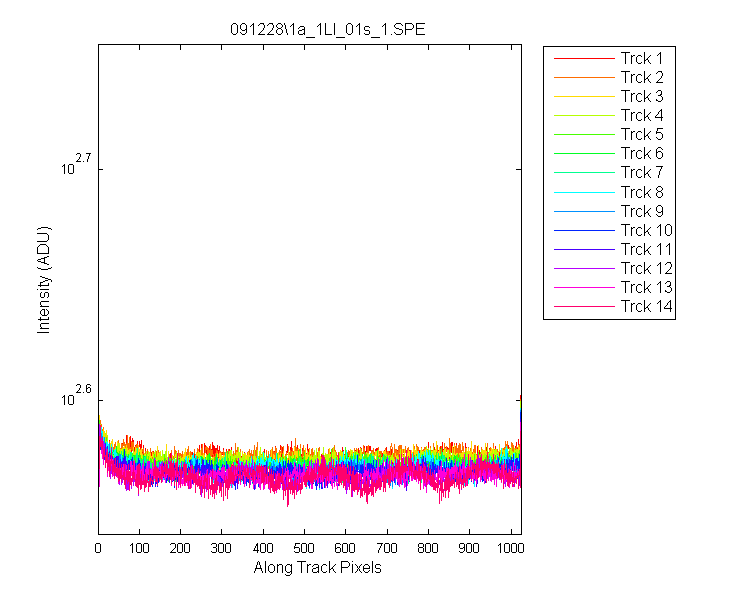

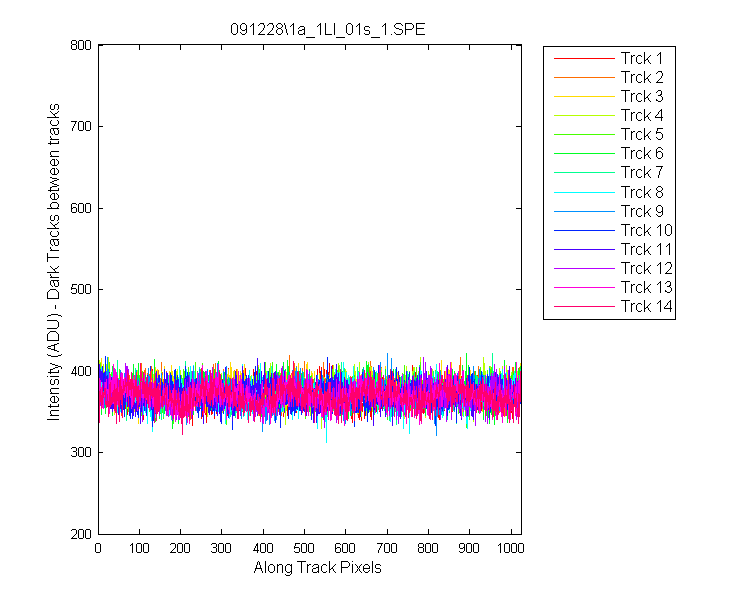

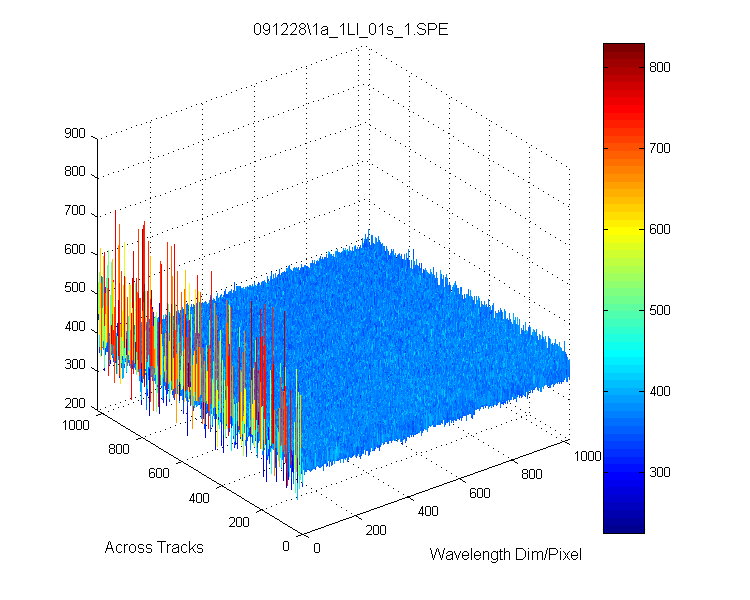

Some Data ----------------------------------------------------------------
Row Column
1 101 201 301 401 501 601 701 801 901 1001
0001 400 389 396 388 361 378 375 377 352 384 379
0051 286 358 369 374 367 392 378 355 393 373 372
0101 403 390 369 396 369 376 374 399 371 377 371
0151 715 374 386 376 388 387 386 372 366 400 377
0201 245 366 365 375 379 363 383 358 381 367 374
0251 678 373 371 354 372 381 354 367 385 378 361
0301 639 378 382 375 386 384 374 396 393 373 362
0351 517 379 381 356 372 359 366 380 357 371 387
0401 544 387 363 367 368 368 369 390 365 388 374
0451 245 373 357 382 353 385 363 363 362 396 375
0501 431 398 377 352 365 369 372 364 387 366 385
0551 724 388 388 366 368 341 402 359 376 372 380
0601 458 402 366 369 354 381 398 373 362 374 359
0651 397 374 372 360 358 384 366 369 367 377 354
0701 448 401 342 378 381 383 383 394 357 374 379
0751 308 379 364 357 387 346 379 367 408 365 383
0801 520 367 370 386 376 368 375 350 386 352 376
0851 496 379 342 373 350 368 359 344 359 374 378
0901 605 376 369 349 374 364 374 388 383 381 363
0951 511 345 366 354 377 391 373 364 363 390 357
1001 576 354 394 371 368 365 376 370 378 368 359
