REVISION DATE: 06-Jun-2012 14:02:29

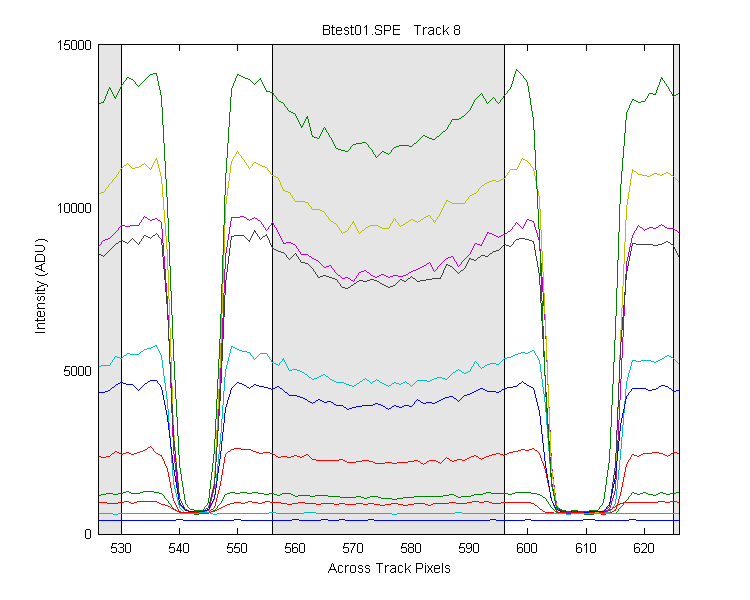

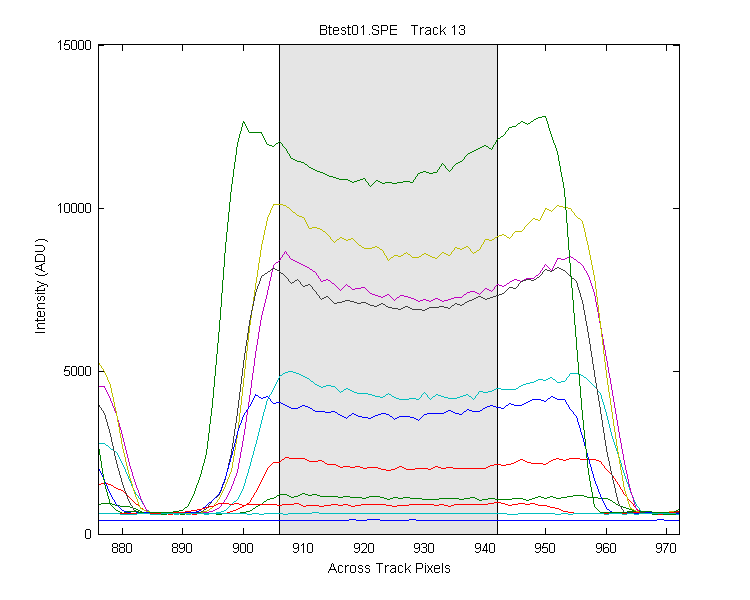

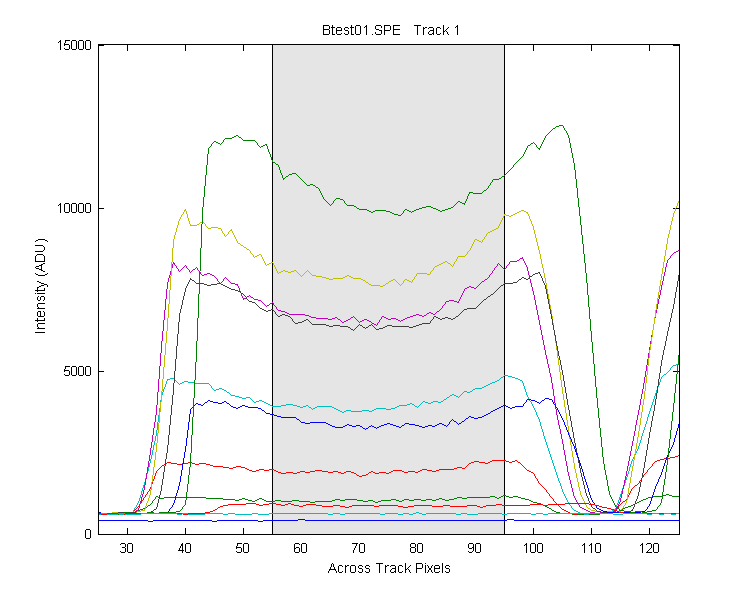

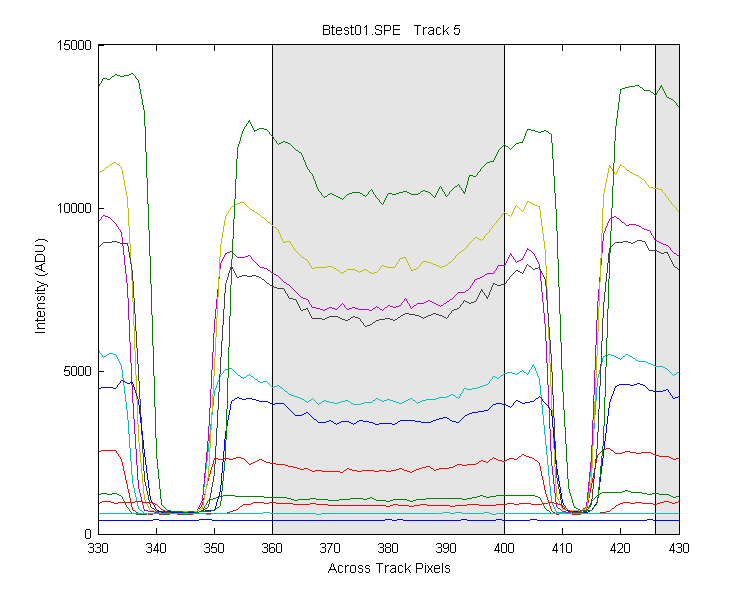

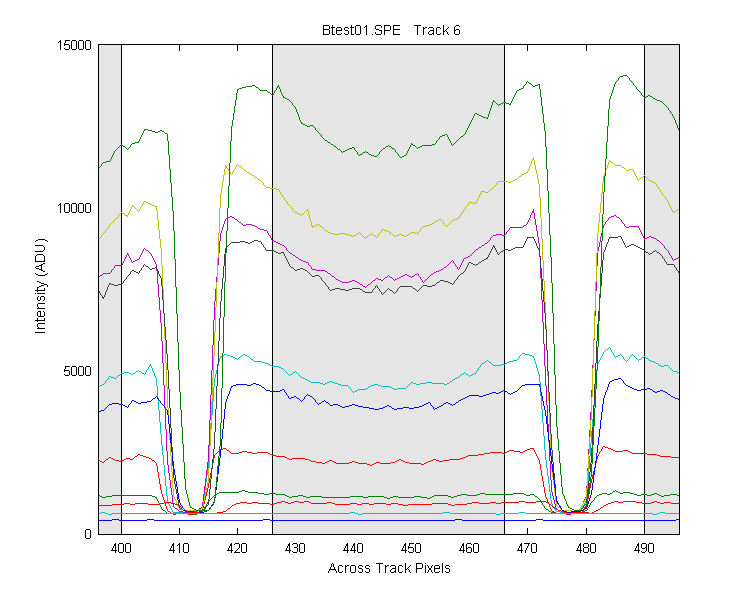

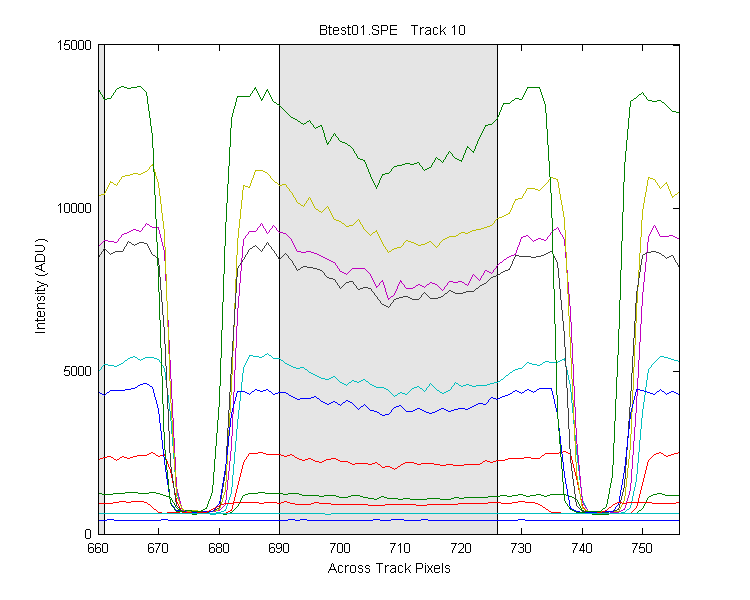

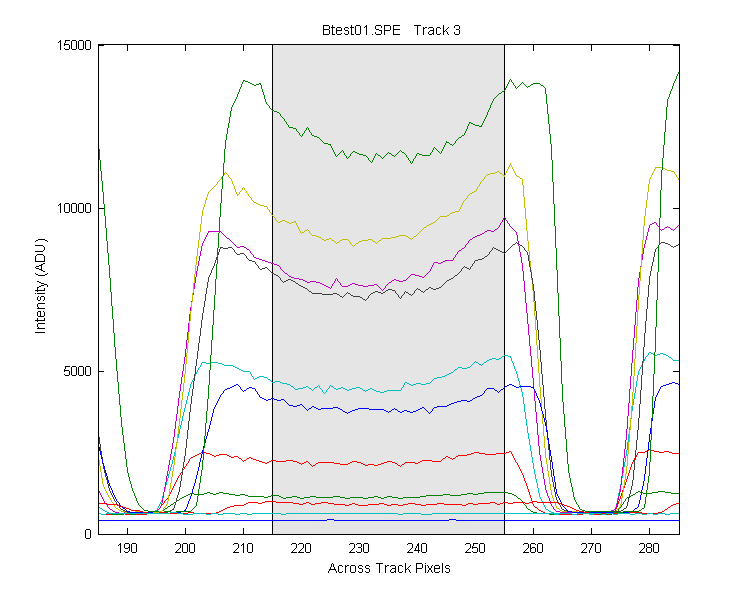

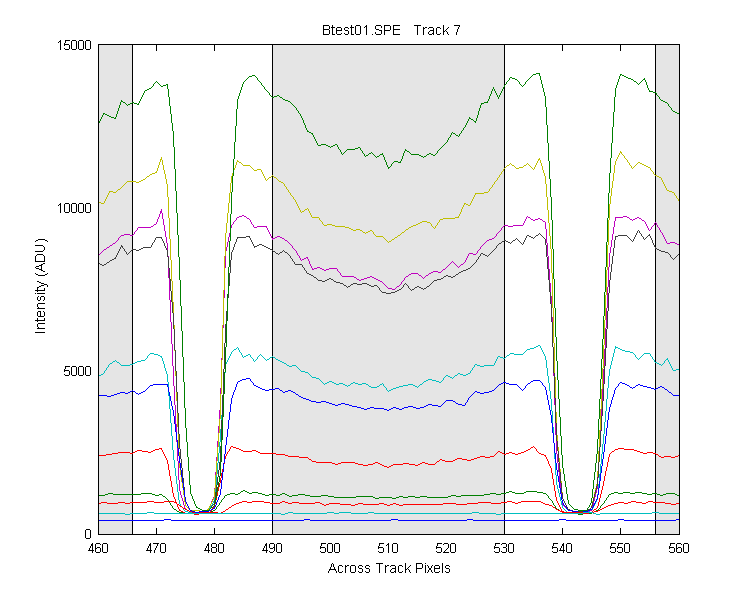

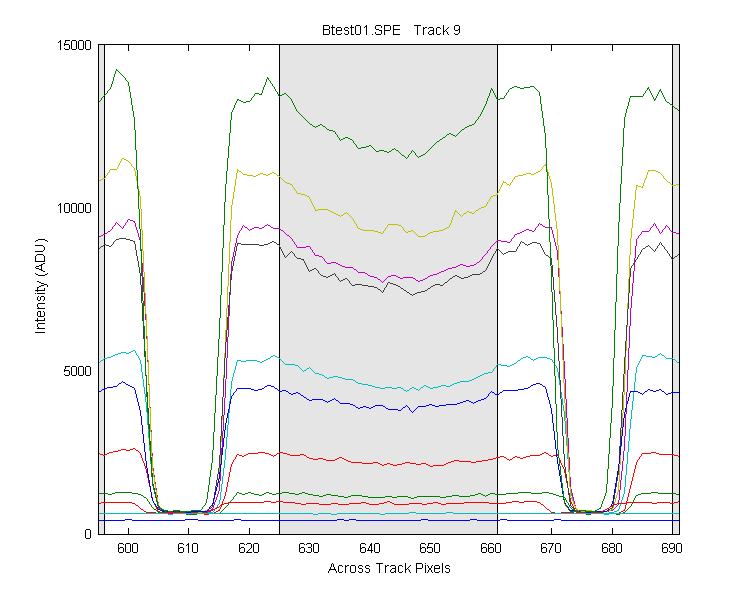

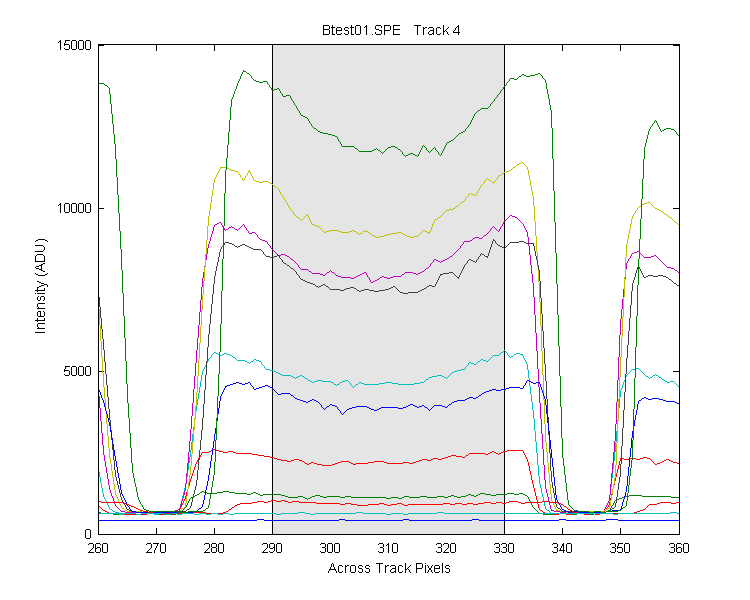

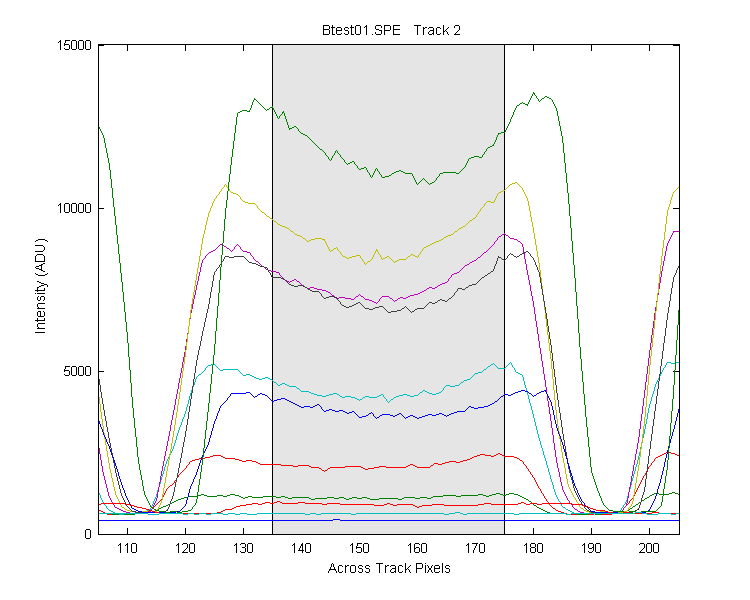

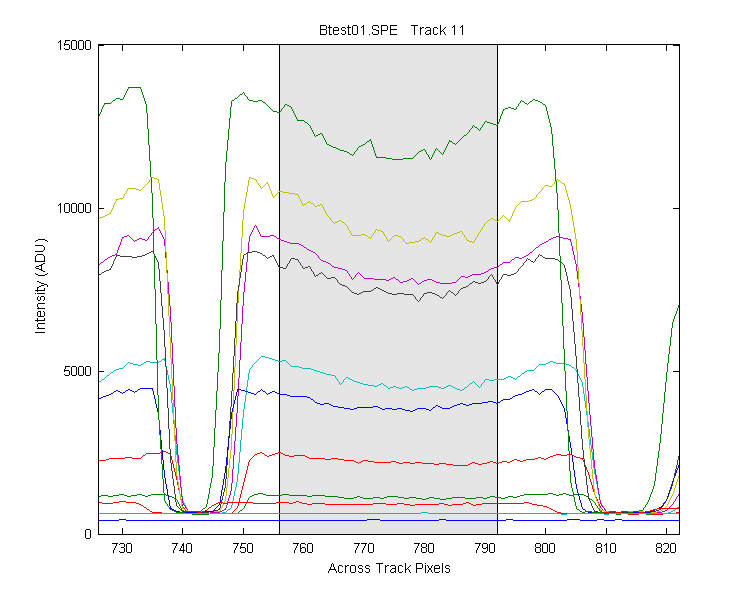

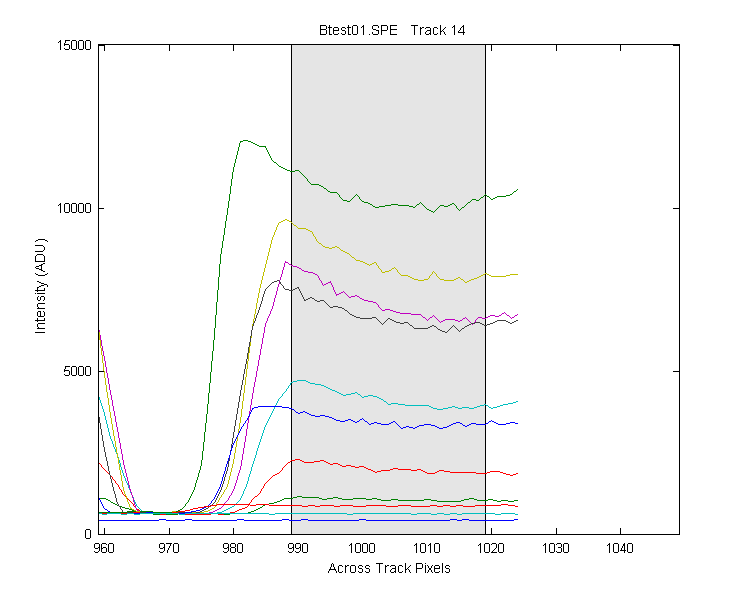

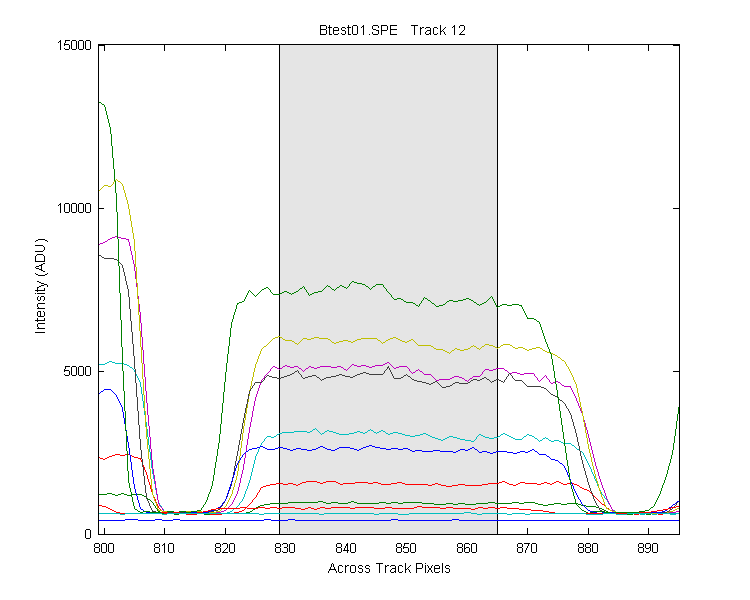

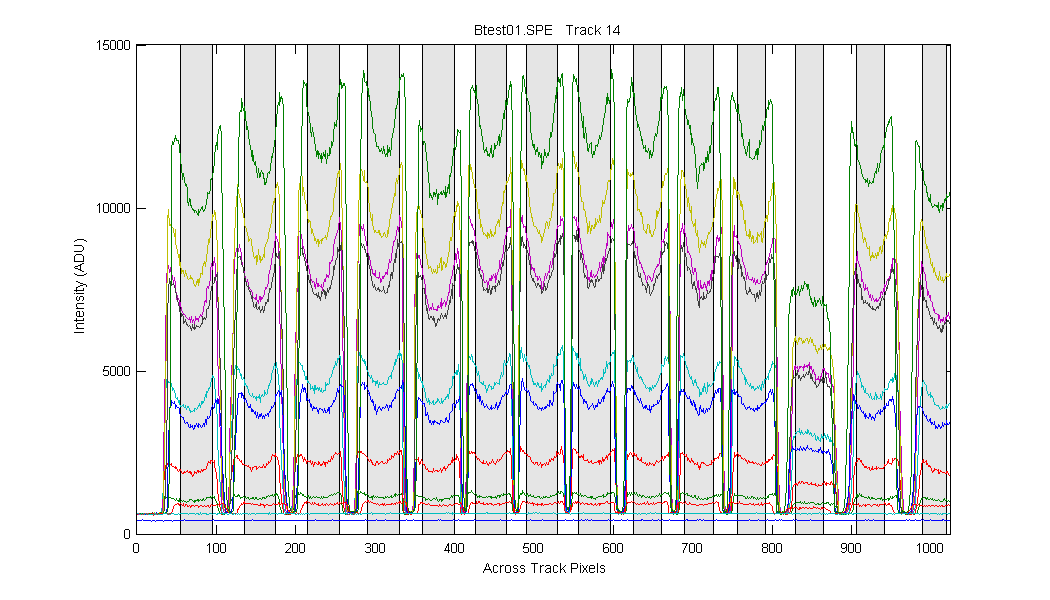

Originally I was going to use the track definitions from the 2009 data but after comparing the data sets it was clear the tracks had moved. So I have come up with new track definition for the 2012 data. I should not the tracks moved more on the Blue spec than on the red. The purpose of this page is to show which pixels were used to define each track. The data is in ADU and has not had darks subtracted.

Center Pixel: [75 155 235 310 380 446 510 576 643 708 774 847 924 1004]
Delta Pixel: [20 20 20 20 20 20 20 20 18 18 18 18 18 15]
LEFT EDGE : [55 135 215 290 360 426 490 556 625 690 756 829 906 989]
RIGHT EDGE: [95 175 255 330 400 466 530 596 661 726 792 865 942 1019]
