REVISION DATE: 24-Jul-2018 10:50:55

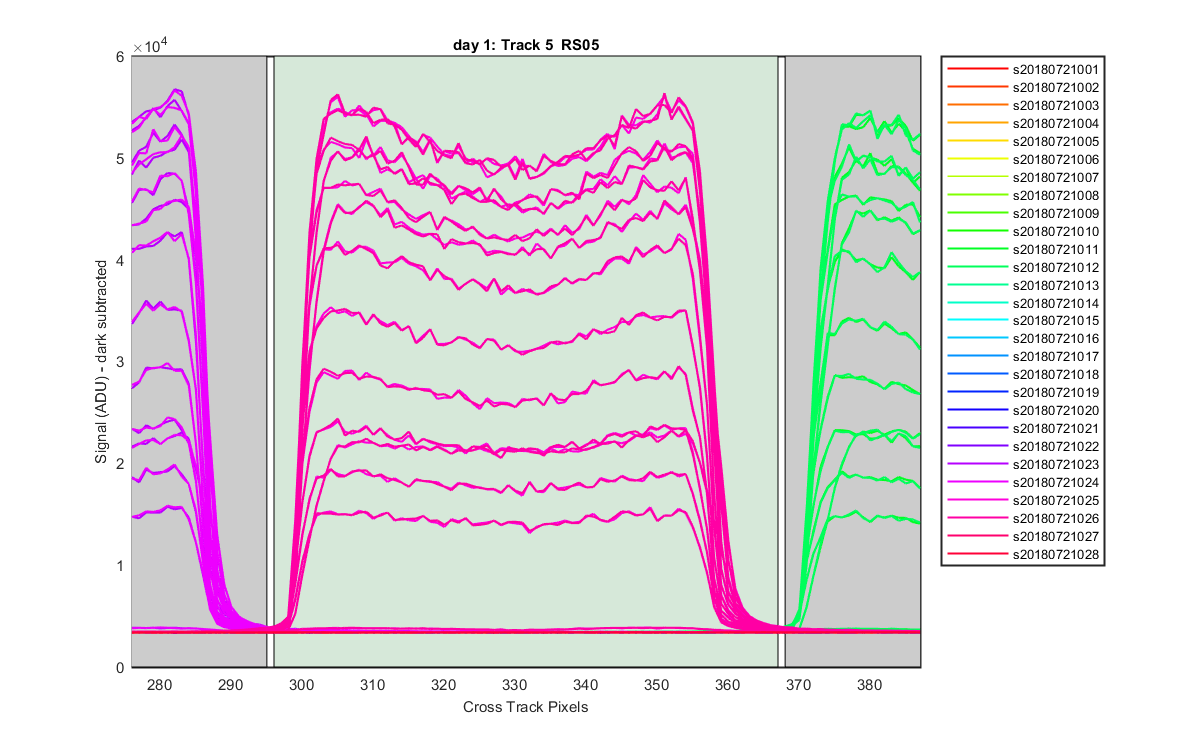

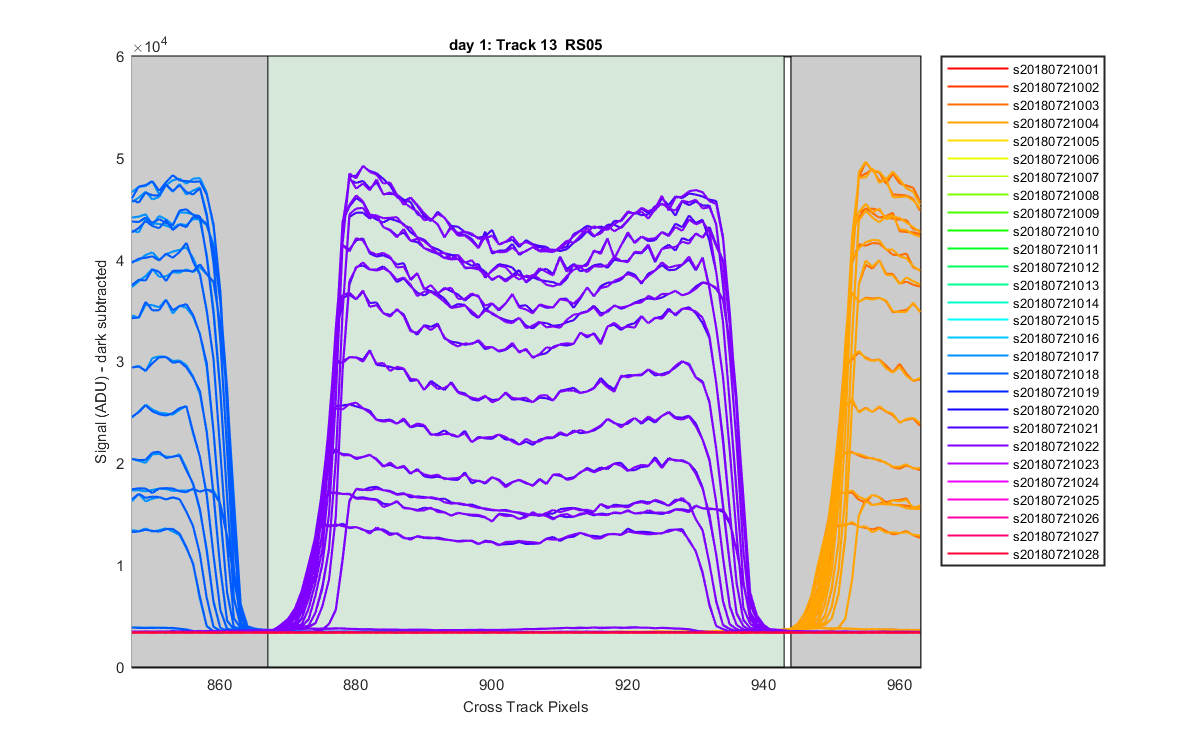

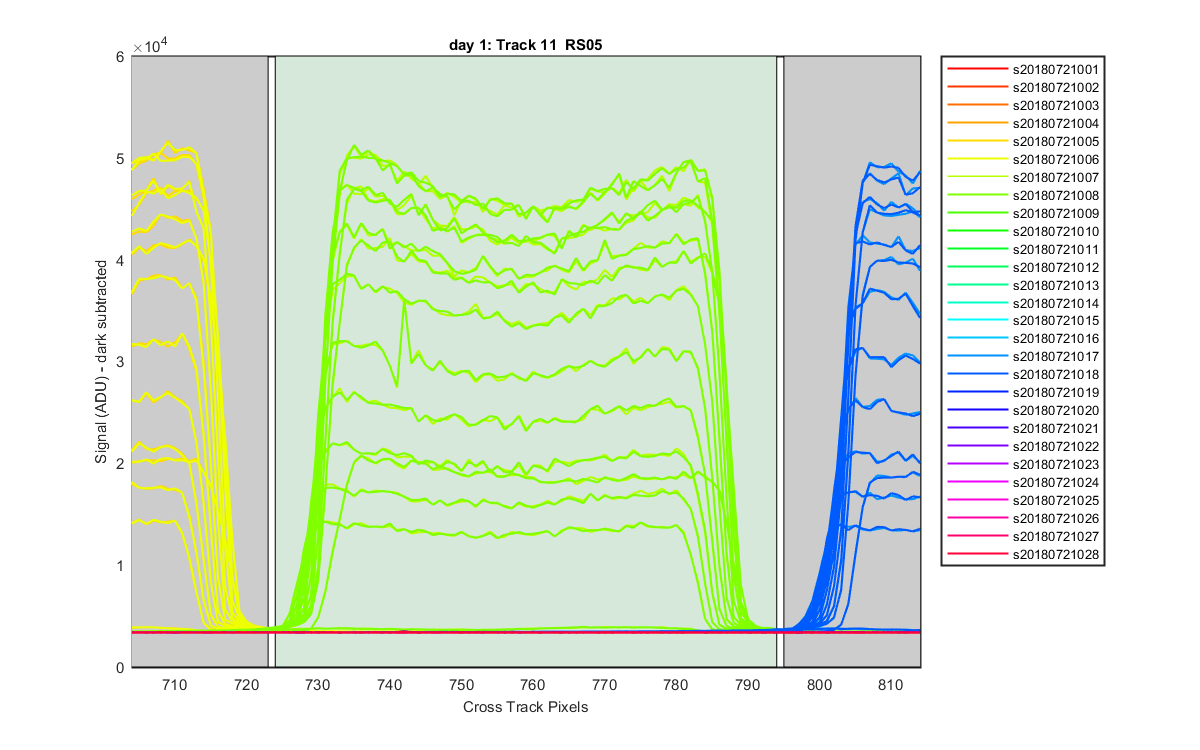

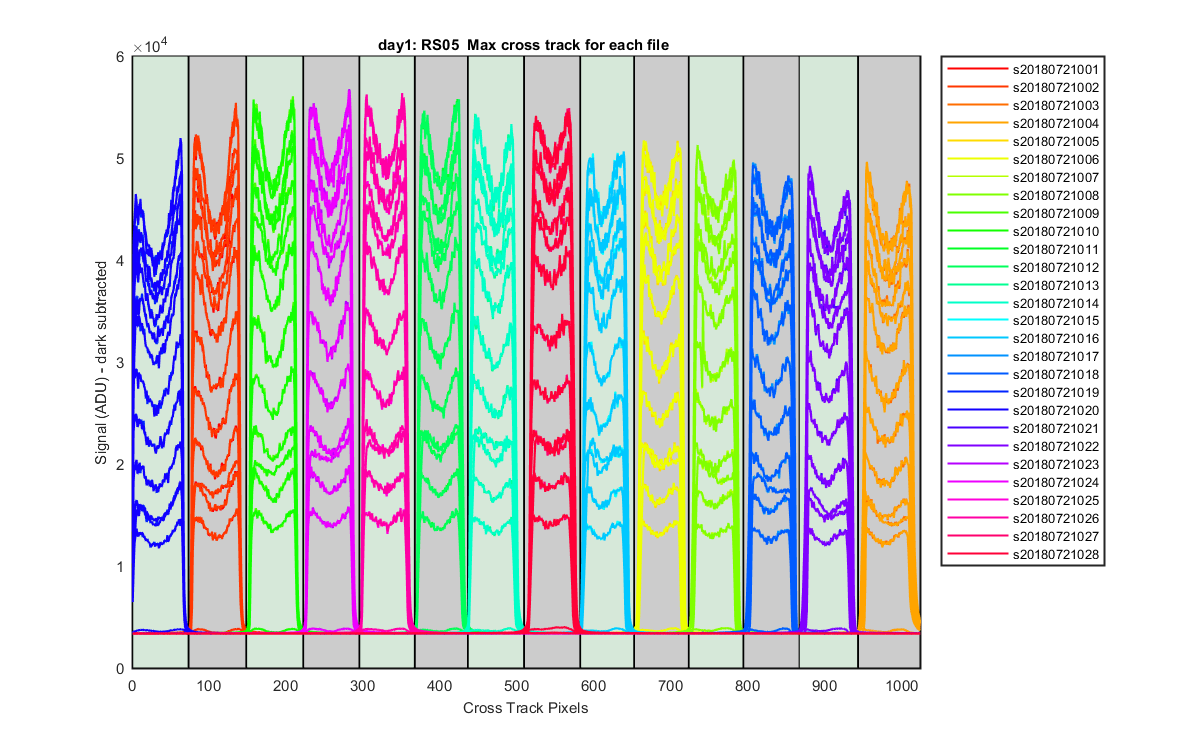

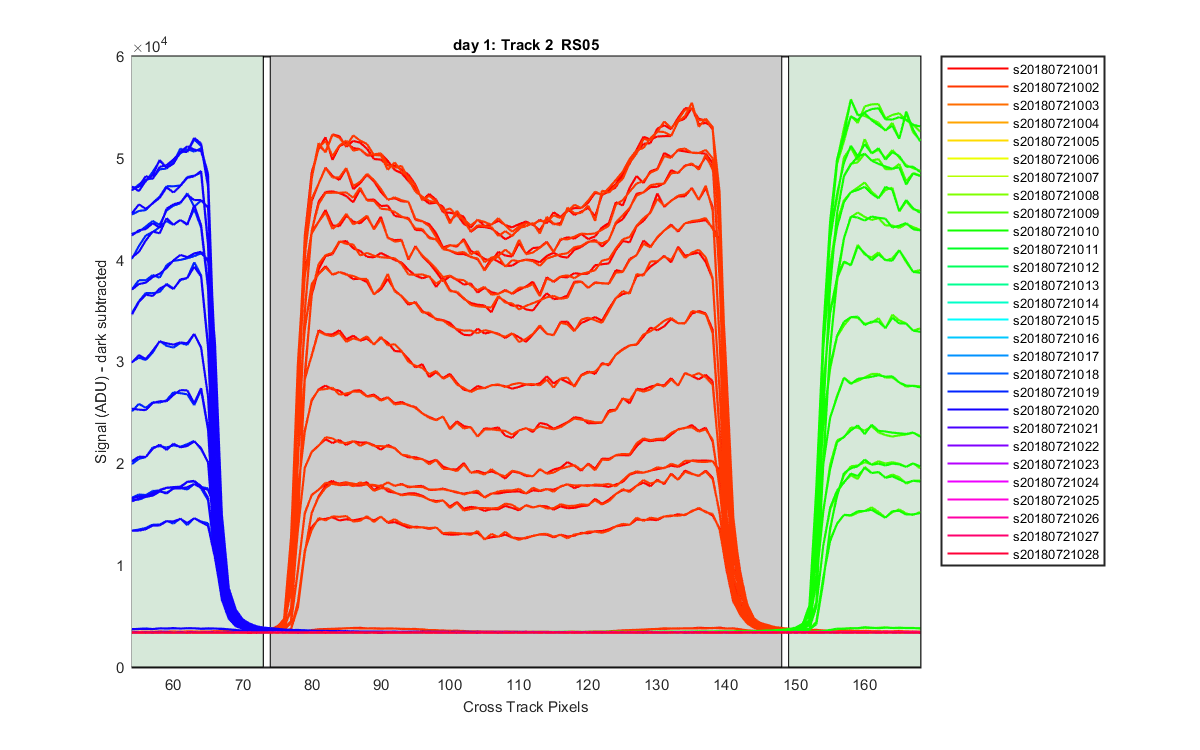

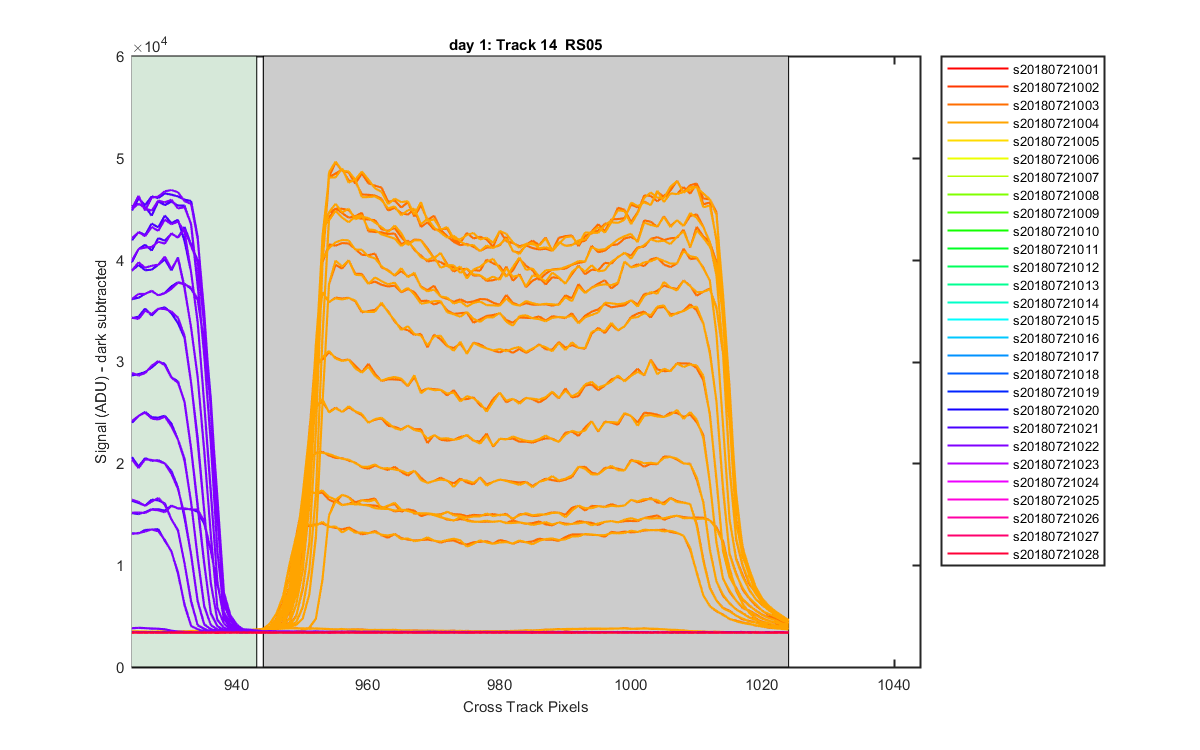

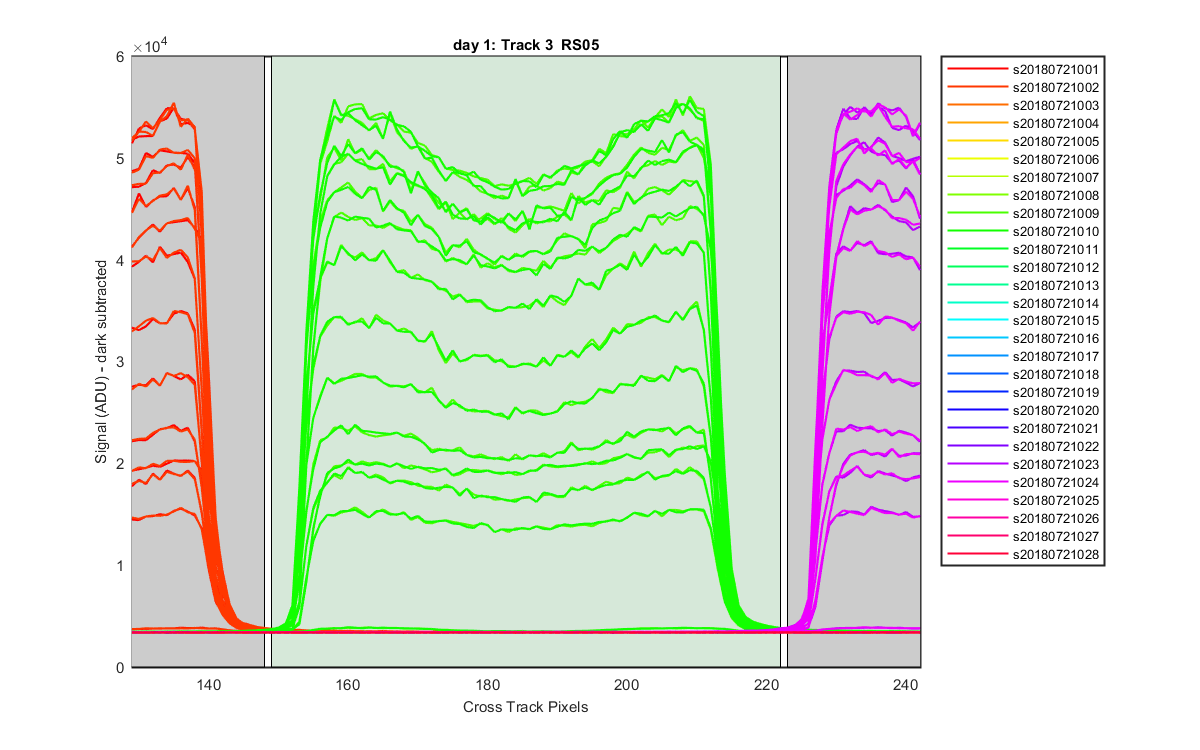

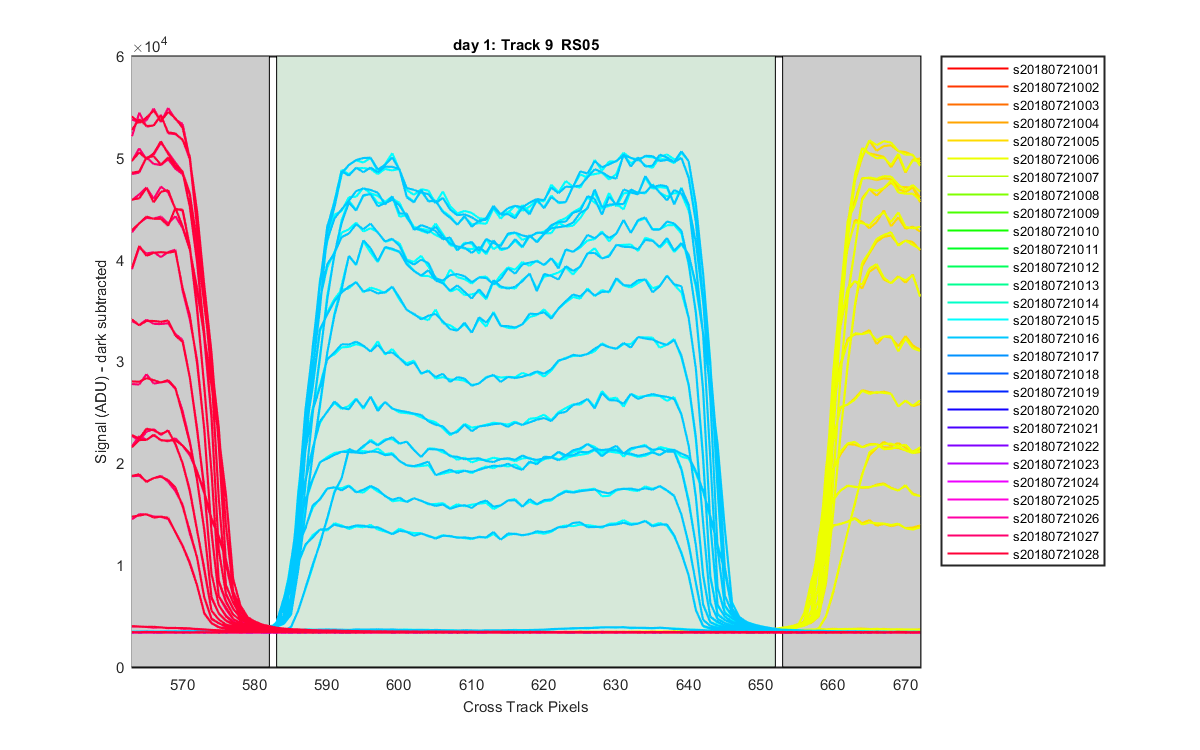

The graphs below show how I defined the tracks. Grey/green patches are what is averaged for each track.


Track pixels:
Track:  1       2       3       4       5       6       7       8       9      10      11      12      13      14
Left:   1      74     149     223     296     368     437     510     583     653     724     795     867     944
Right:  73     148     222     295     367     436     509     582     652     723     794     867     943    1024

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Figure 15
