REVISION DATE: 08-Feb-2018 11:17:16

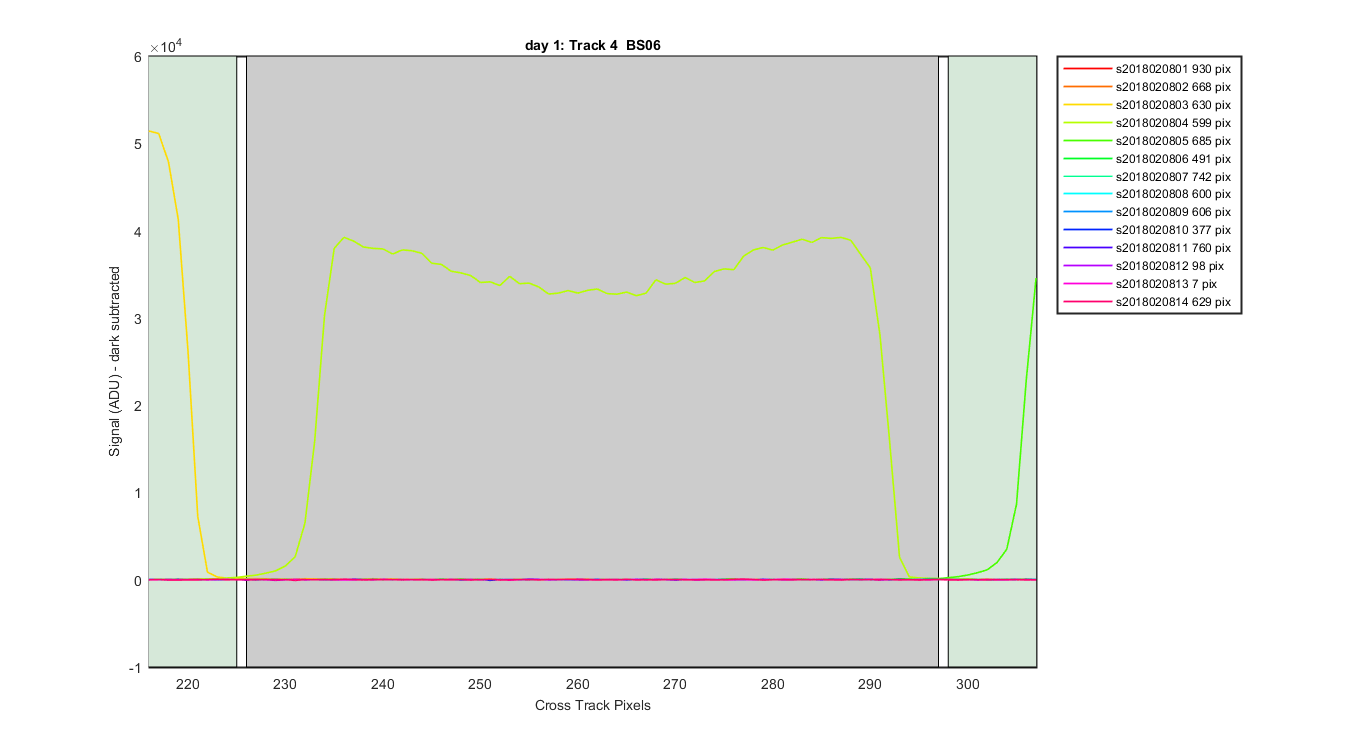

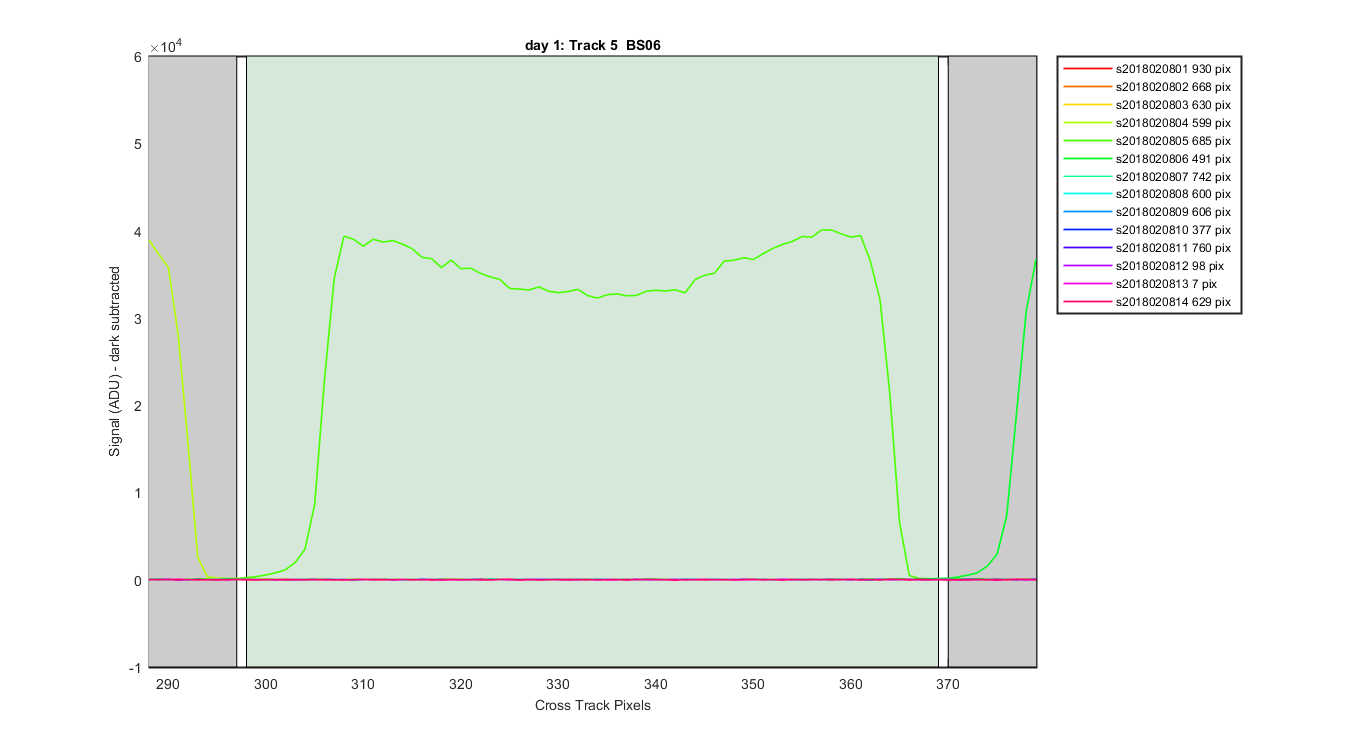

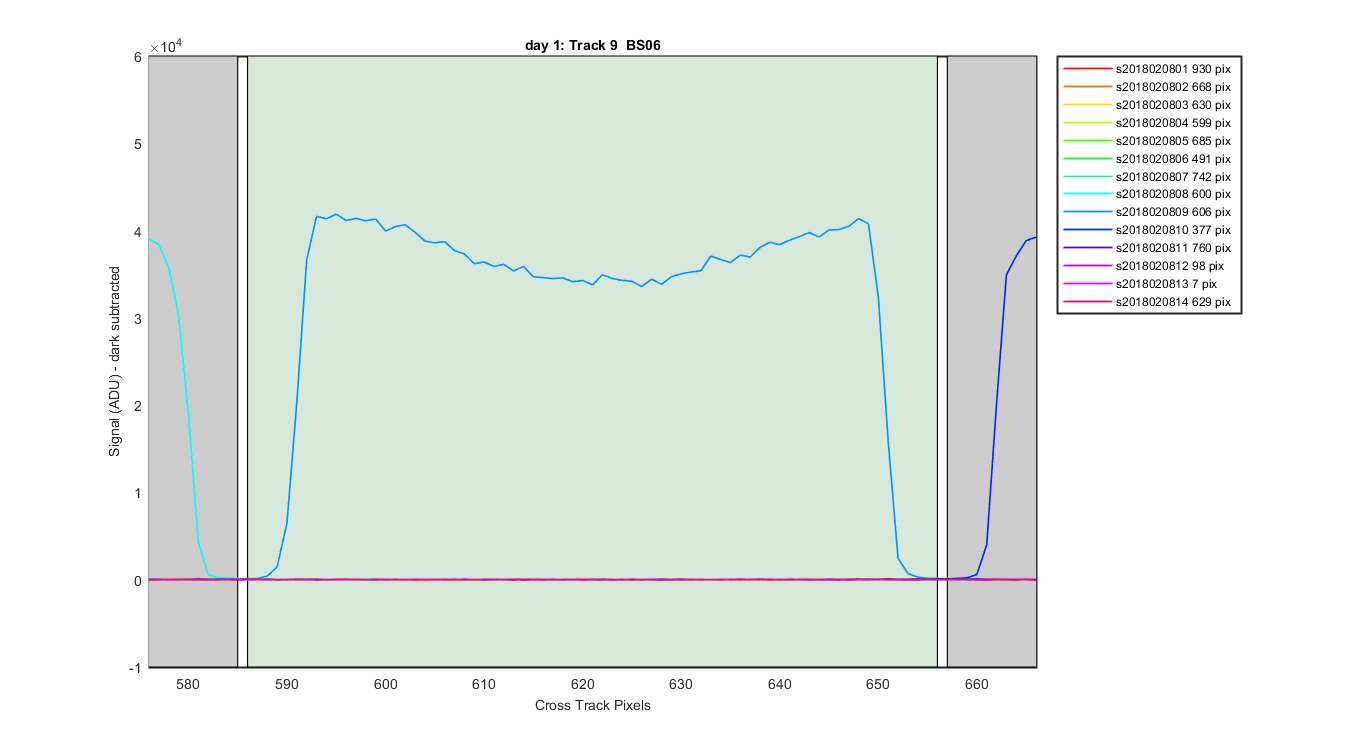

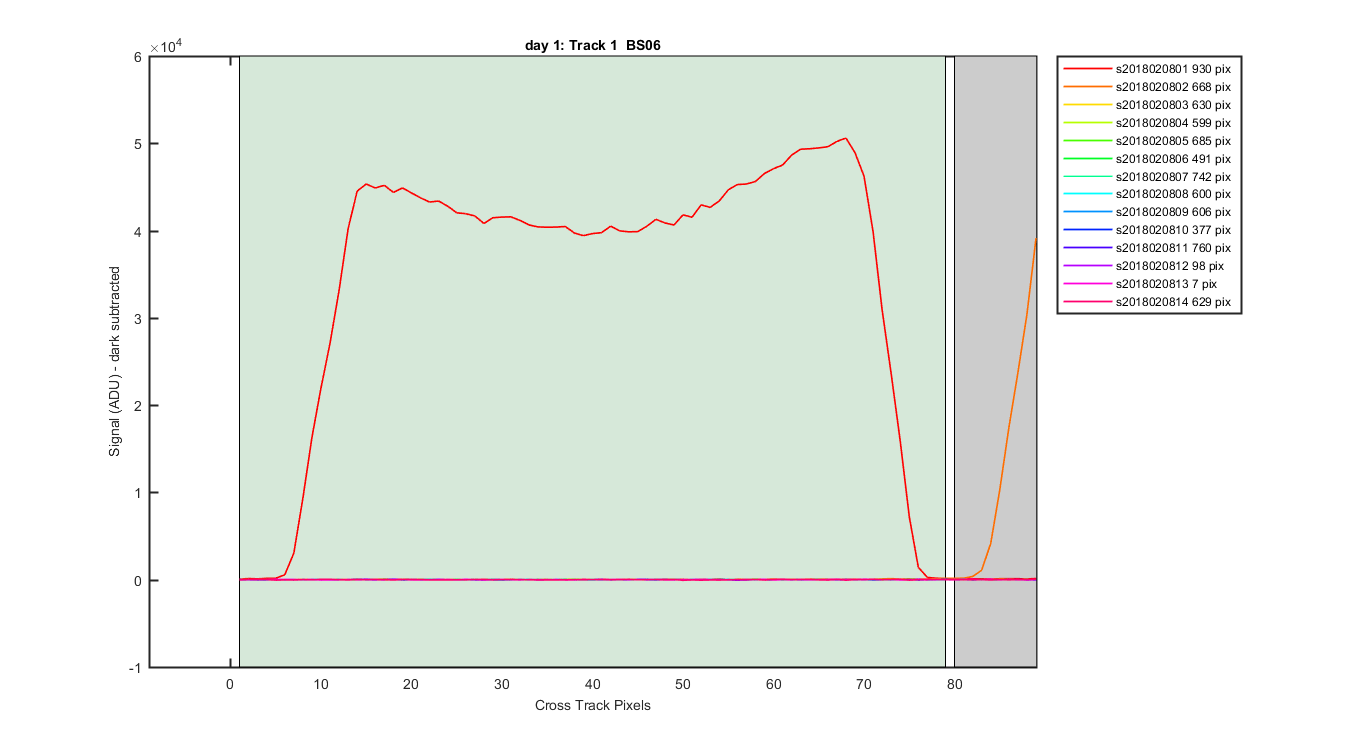

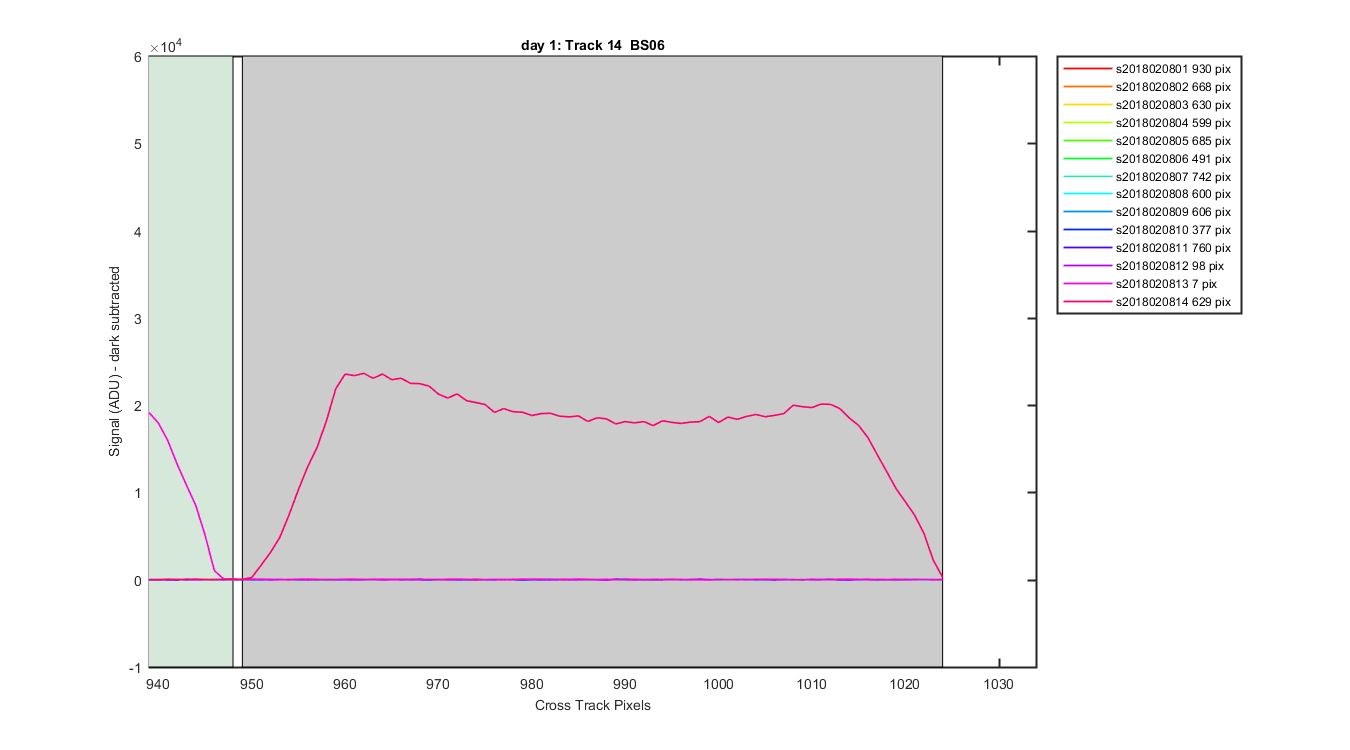

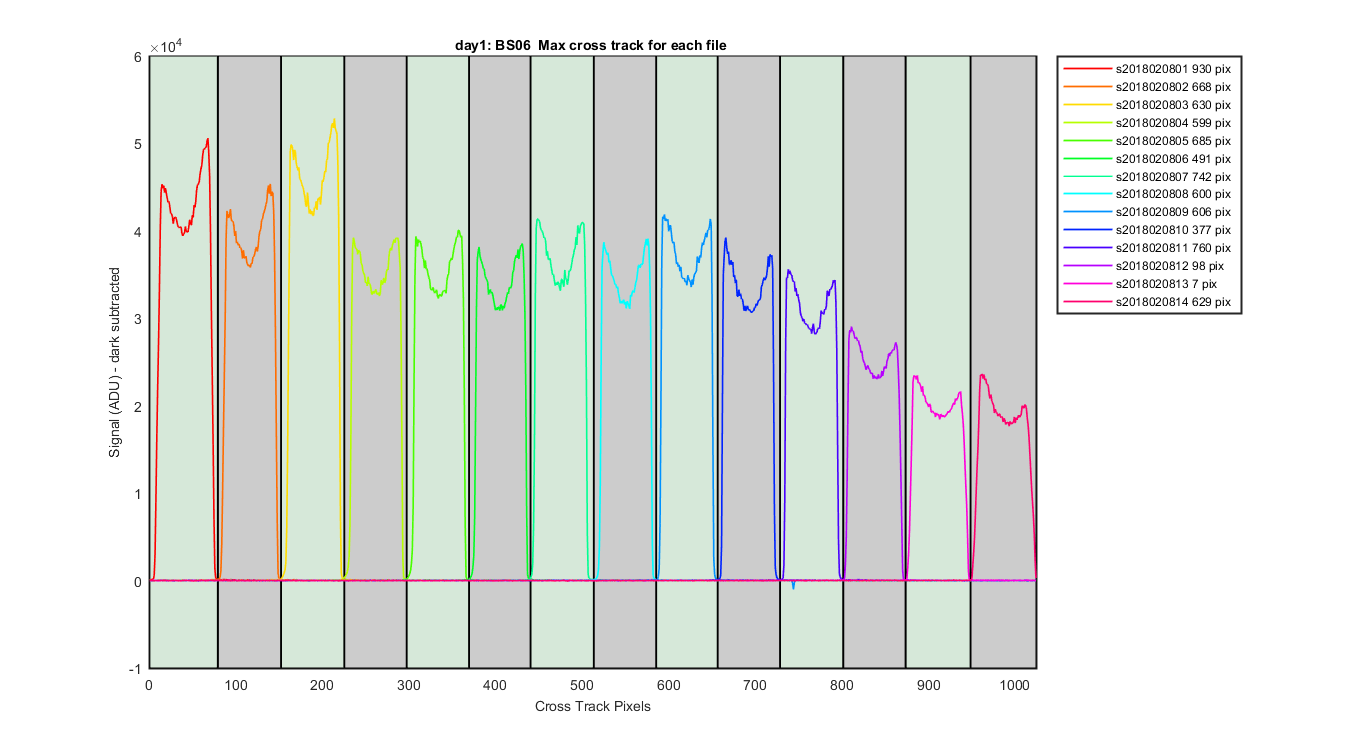

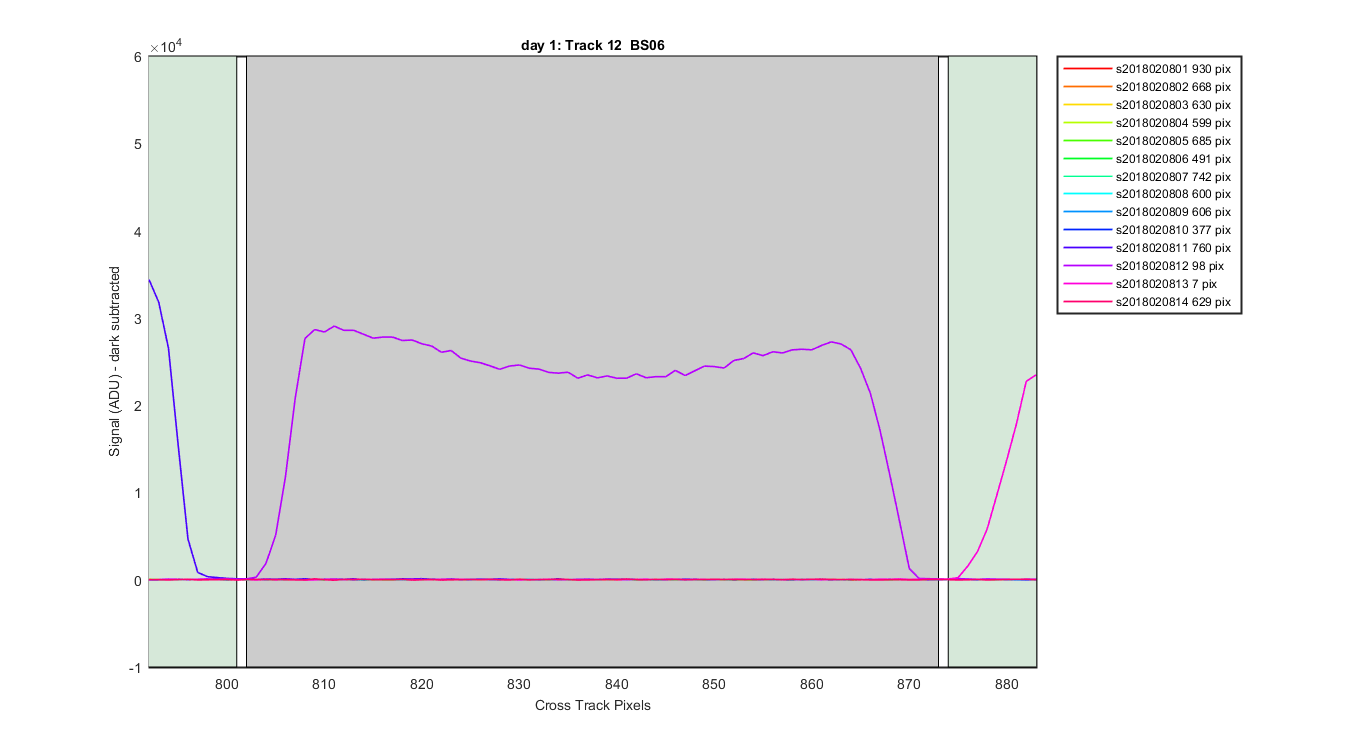

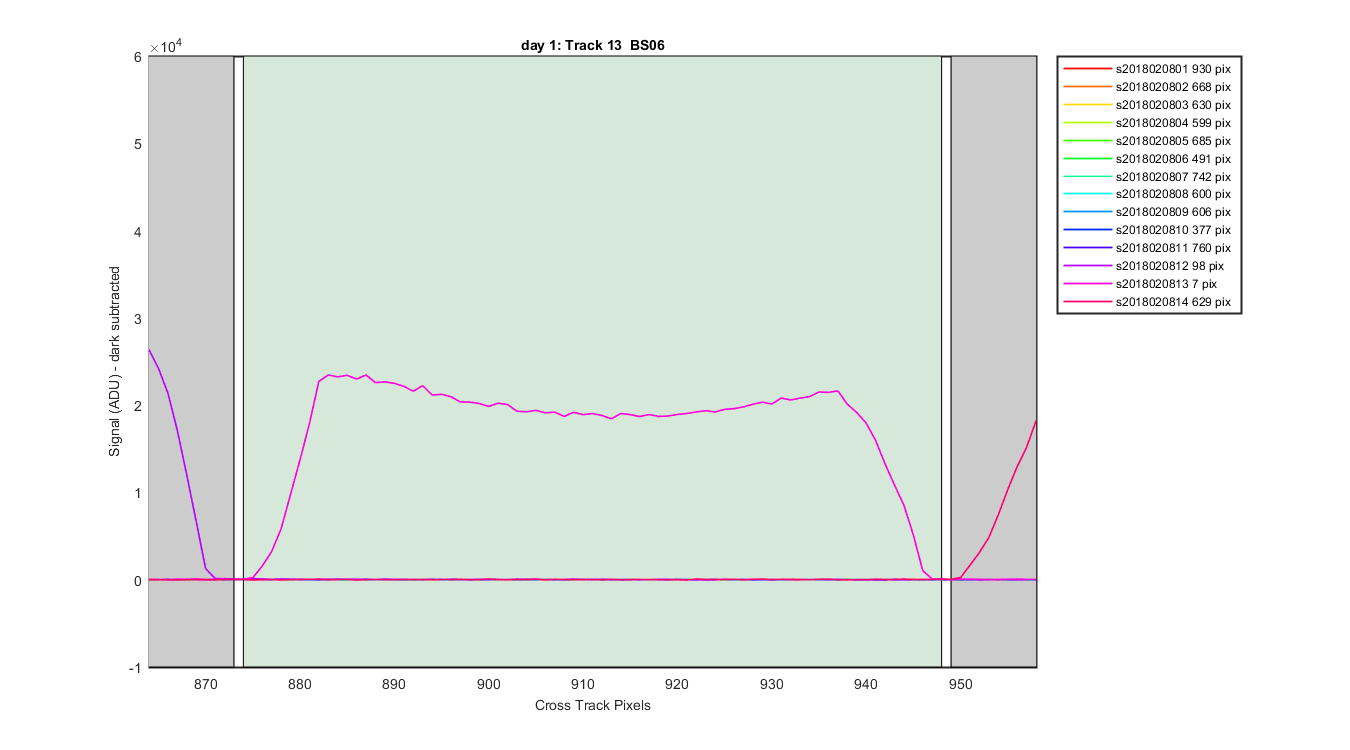

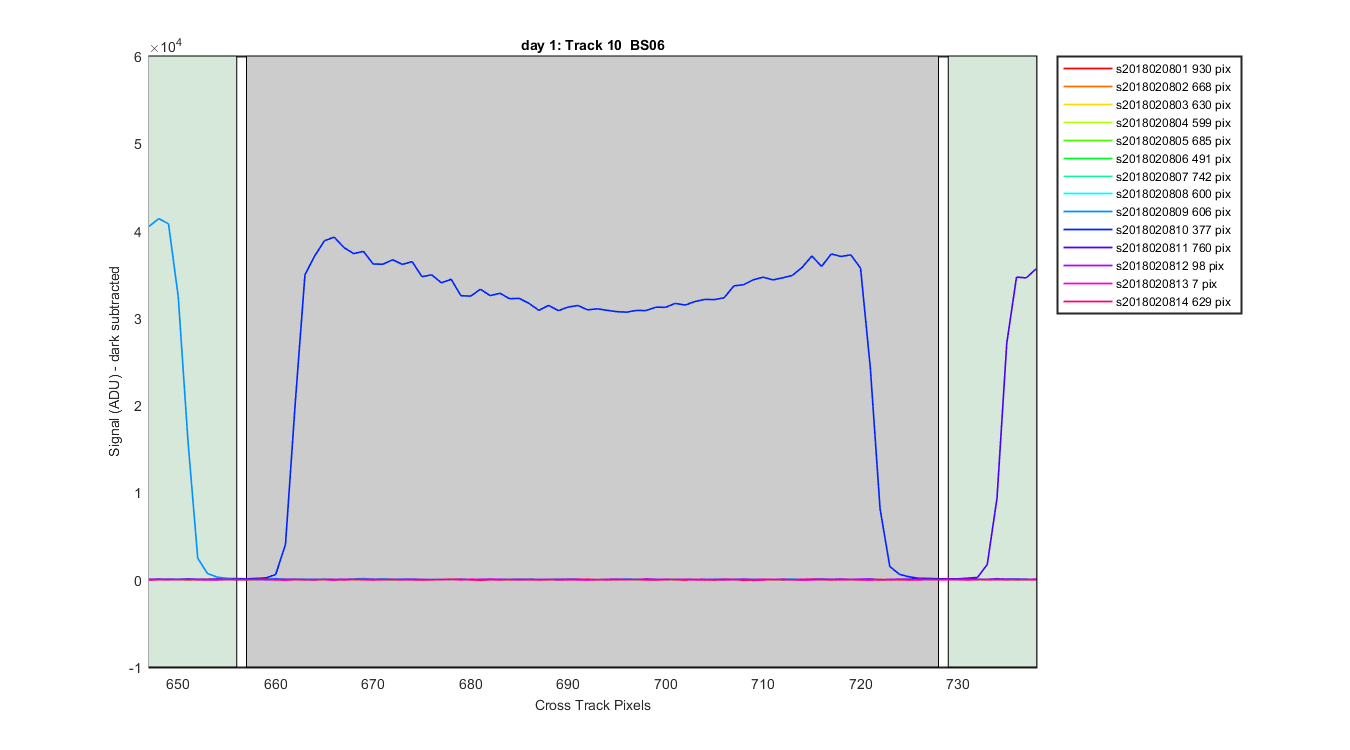

The graphs below show how I defined the tracks. Grey/green patches are what is averaged for each track.


Track pixels:
Track:  1       2       3       4       5       6       7       8       9      10      11      12      13      14
Left:   1      80     153     226     298     370     441     514     586     657     729     802     874     949
Right:  79     152     225     297     369     440     513     585     656     728     801     873     948    1024

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Figure 15
