The purpose of this web page is to look at the SQM data that are matched with the CAS start and stop times in the Excel file supplied by Carol. The Excel file contains rows of CAS file information. Each two rows makes a pair. I have added a Pair Number column to make it clear which pairs go together. For each Pair I find the SQM file (a data rows) that were collected betweem the "Start Time" of the first CAS file in the pair and the "End Time" in the second CAS file in the pair. The first 7 graphs show the SQM data means and standard deviations (std) for each CAS pair. The CAS pair number is the x-axis for these data sets.

XLSfile: CAS XLS Matchup file

CAS Data Type meanings in the table below
10 = means this was a transition, e.g. the SQM current was changing between levels while the CAS was taking data
15 = means the SQM was at full current but perhaps had not stabilized fully, and the CAS was taking data
20 = means I thought the SQM was fully stabilized and expect these CAS data, and the SQM photodiode data, to be repeatable.

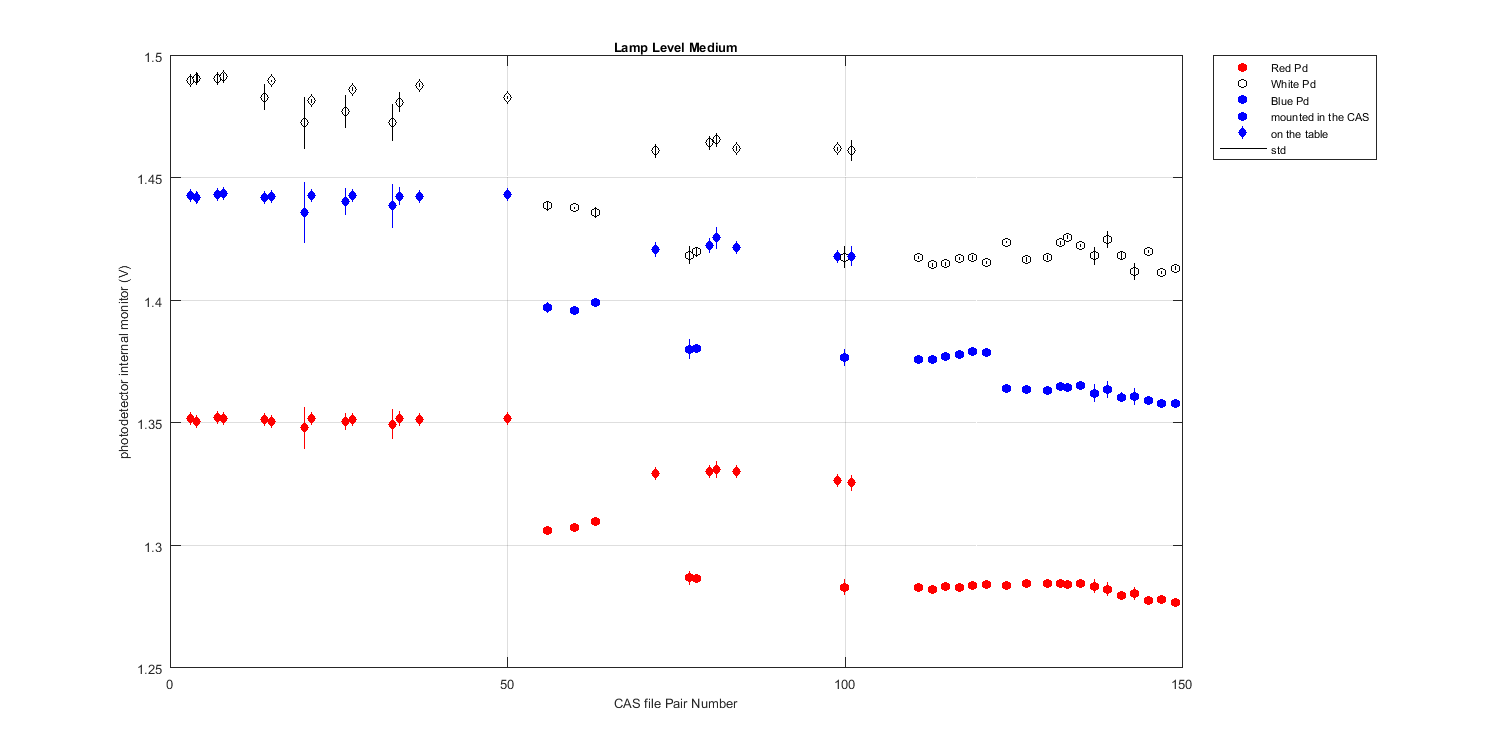

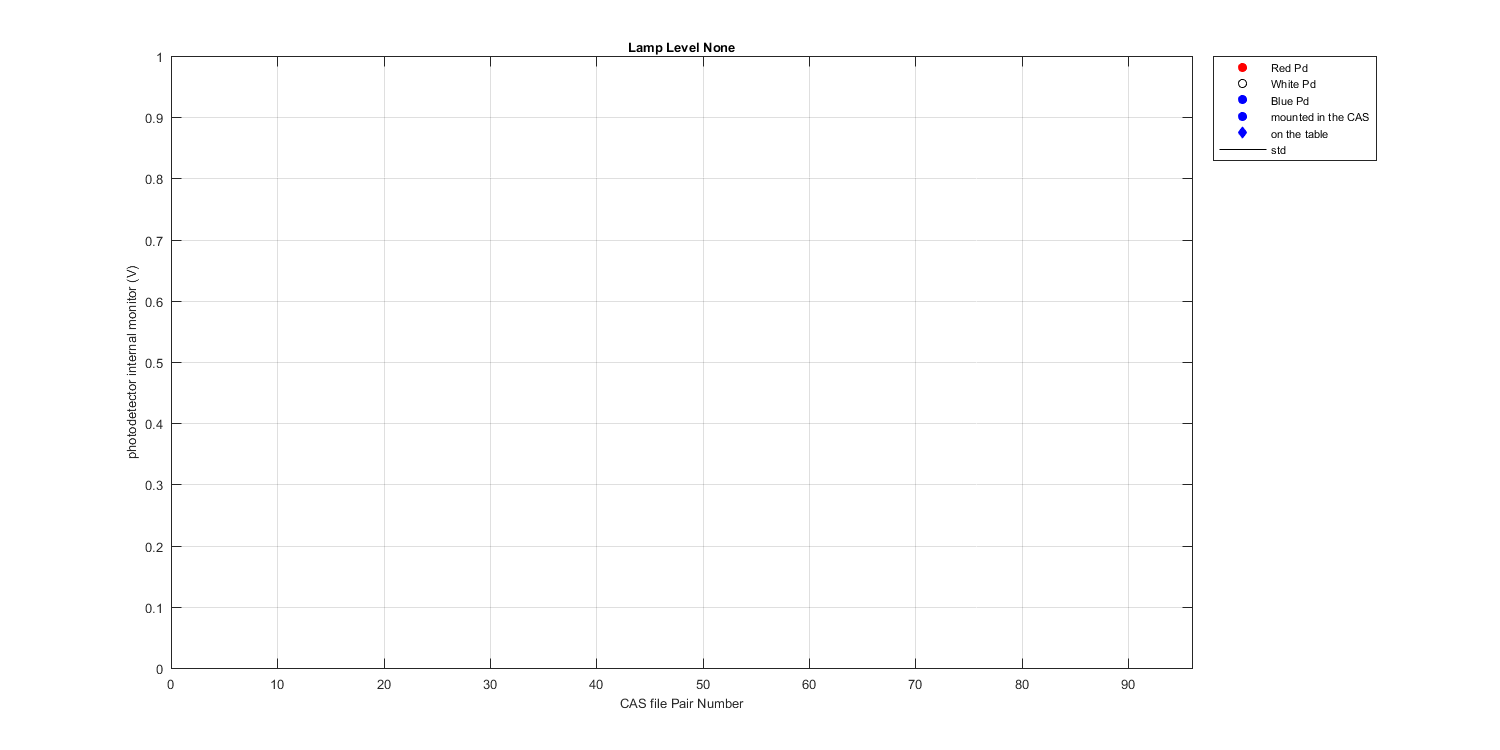

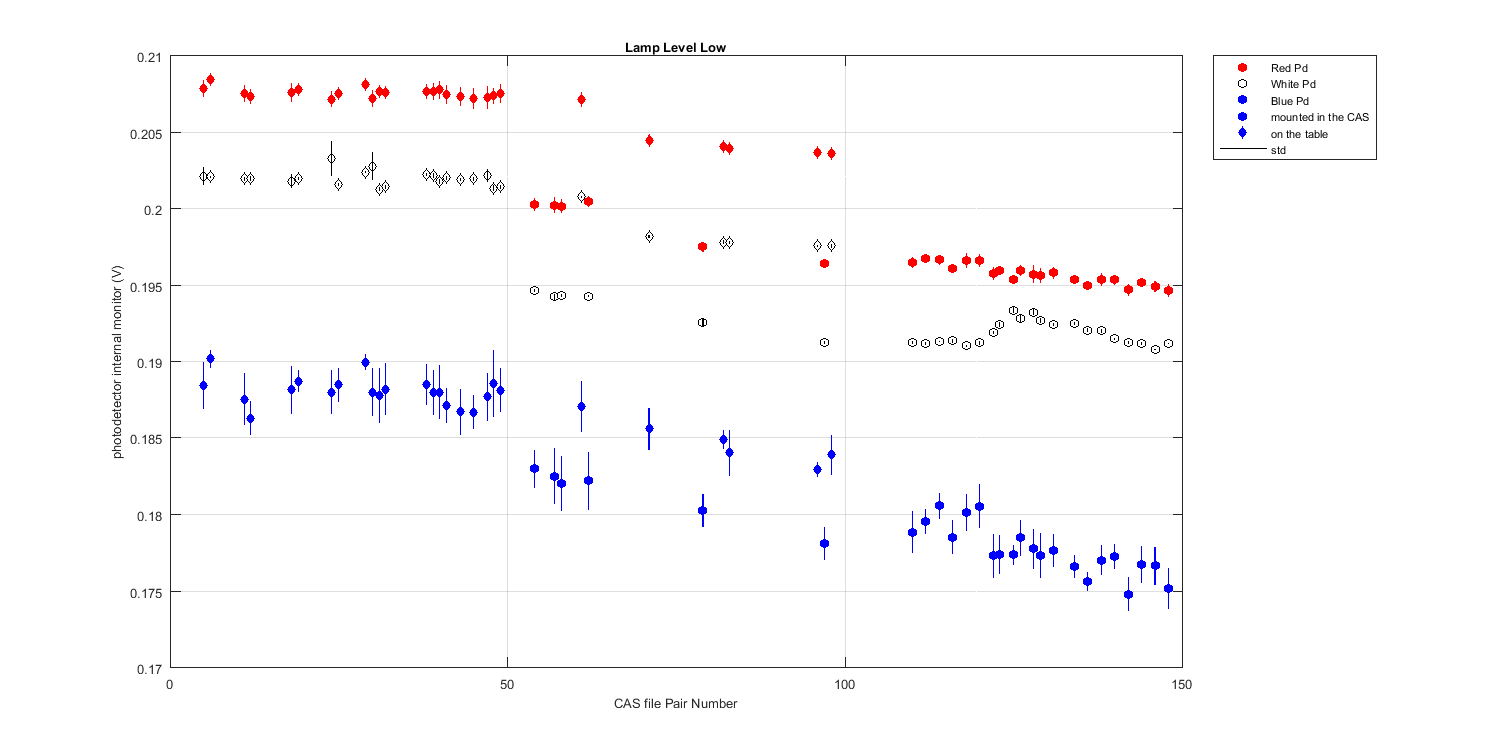

Data Type 10 is not plotted in the group plots.

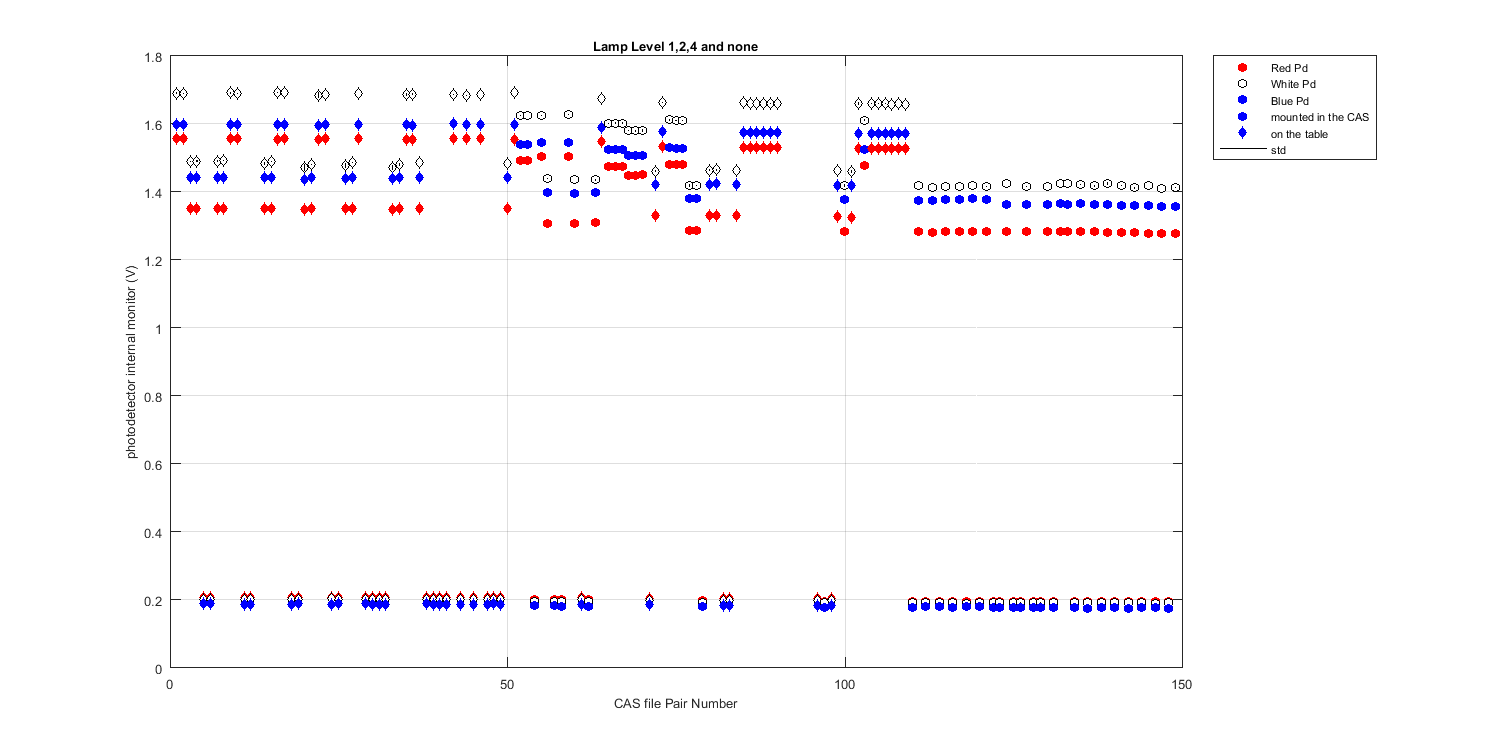

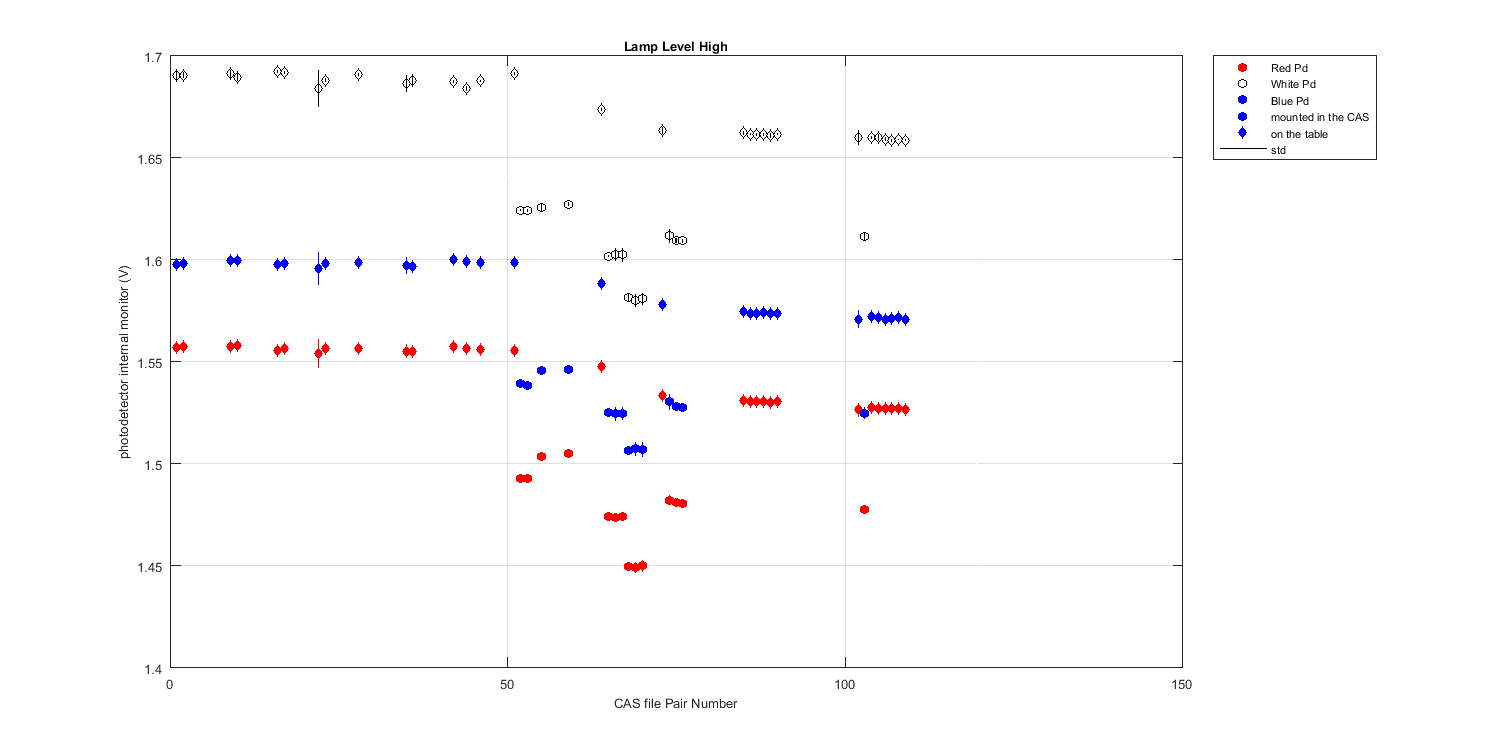

CAS Positions meanings in the table below
There are other parameters we could denote. An interesting one is if the CAS was in the SQM or on the table.
"on the table" = 20 for distance of about 20cm and "mounted in the CAS" = 0 (zero). In the plots the "on the table" are diamonds and
the "mounted in the CAS" data are circles.

Top of table
Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby
Minutes		 CAS Strt
->
Lamp On
Minutes		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std

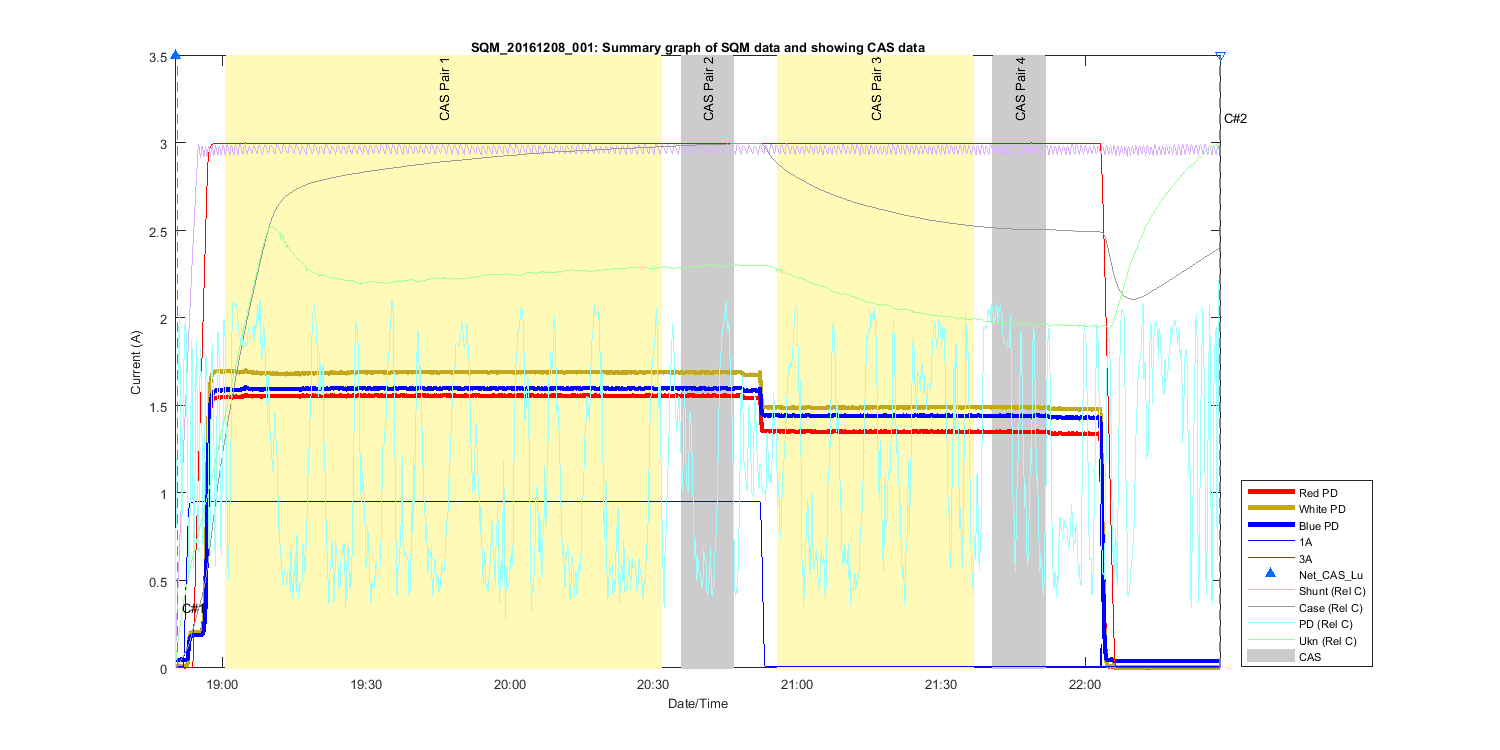

1 SQM_20161208_001 08-Dec-2016 19:00:46 -> 20:31:38 90.9 8.6 7.0 15 on the table 4.0 1.557 0.125 1.690 0.191 1.598 0.167
2 SQM_20161208_001 08-Dec-2016 20:35:46 -> 20:46:38 10.9 103.6 102.1 20 on the table 4.0 1.557 0.083 1.691 0.087 1.598 0.128
3 SQM_20161208_001 08-Dec-2016 20:55:46 -> 21:36:38 40.9 123.6 2.8 15 on the table 2.0 1.352 0.089 1.490 0.112 1.443 0.124
4 SQM_20161208_001 08-Dec-2016 21:40:46 -> 21:51:39 10.9 168.6 47.8 20 on the table 2.0 1.351 0.105 1.491 0.126 1.442 0.147

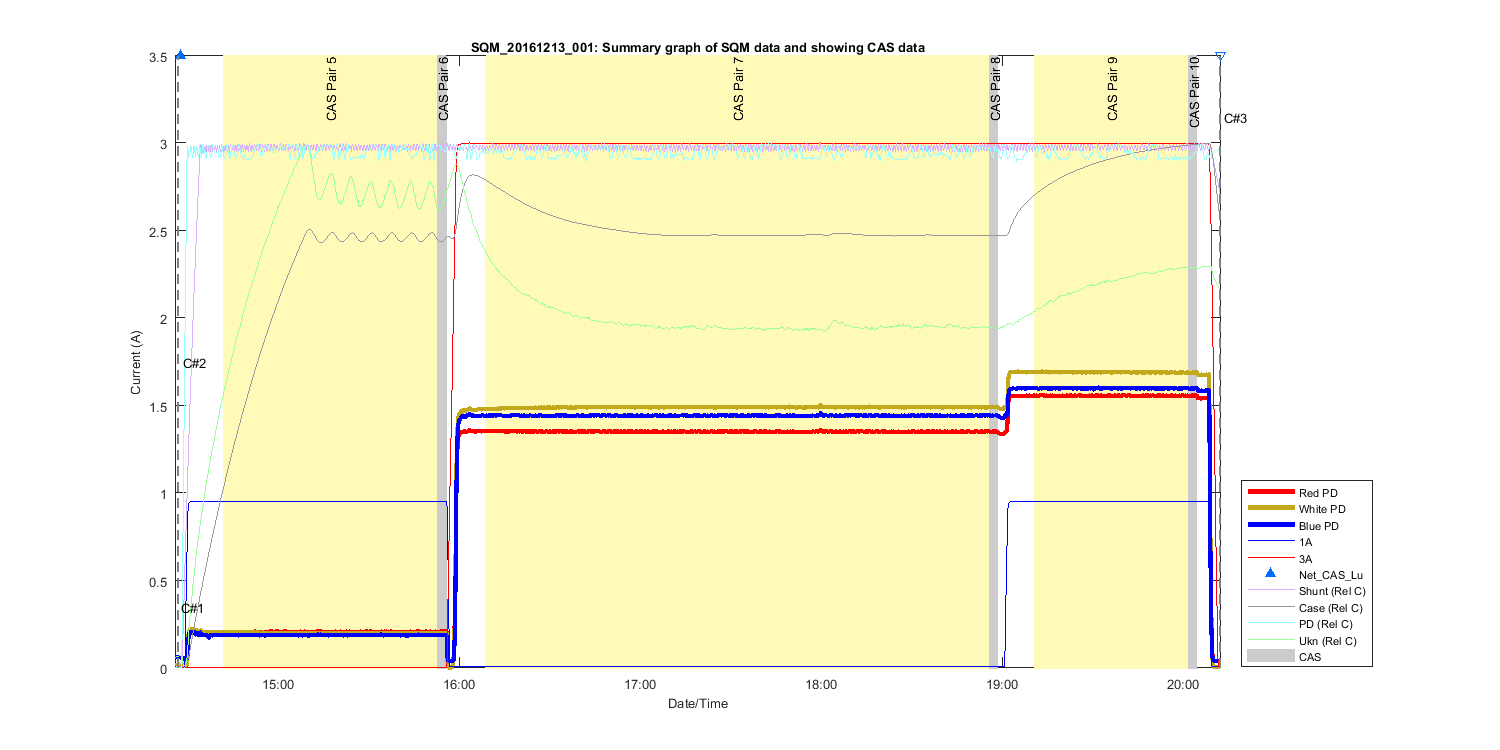

5 SQM_20161213_001 13-Dec-2016 14:41:47 -> 15:52:39 70.9 14.3 13.0 15 on the table 1.0 0.208 0.257 0.202 0.284 0.188 0.814
6 SQM_20161213_001 13-Dec-2016 15:52:46 -> 15:55:38 2.9 85.3 83.9 20 on the table 1.0 0.208 0.146 0.202 0.037 0.190 0.316
7 SQM_20161213_001 13-Dec-2016 16:08:46 -> 18:55:38 166.9 101.3 12.3 15 on the table 2.0 1.352 0.093 1.491 0.171 1.444 0.125
8 SQM_20161213_001 13-Dec-2016 18:55:46 -> 18:58:38 2.9 268.3 179.2 20 on the table 2.0 1.352 0.101 1.491 0.100 1.444 0.126
9 SQM_20161213_001 13-Dec-2016 19:10:46 -> 20:01:38 50.9 283.3 10.0 15 on the table 4.0 1.558 0.089 1.691 0.117 1.600 0.127
10 SQM_20161213_001 13-Dec-2016 20:01:46 -> 20:04:38 2.9 334.3 61.0 20 on the table 4.0 1.558 0.093 1.690 0.107 1.600 0.132

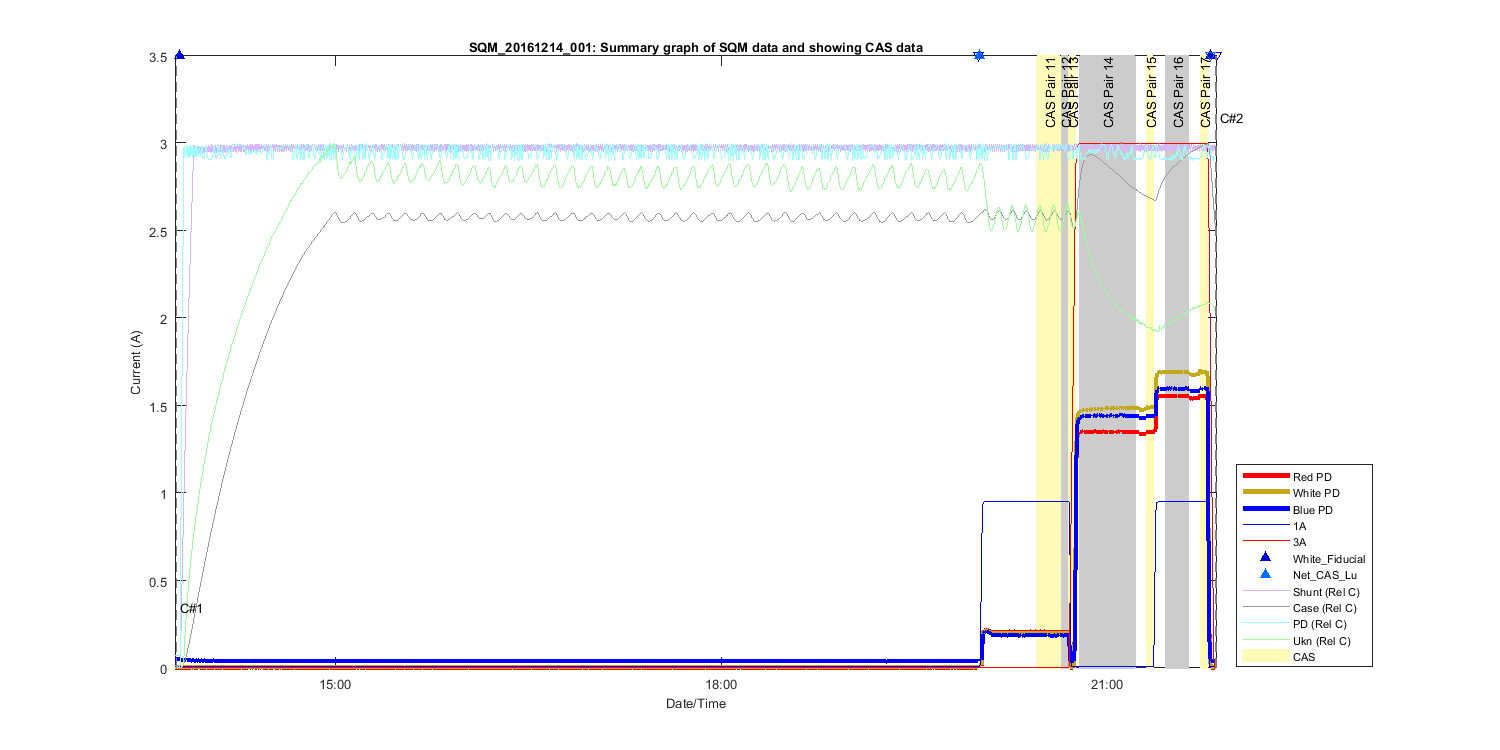

11 SQM_20161214_001 14-Dec-2016 20:27:22 -> 20:38:25 11.0 399.7 26.6 15 on the table 1.0 0.208 0.262 0.202 0.068 0.188 0.899
12 SQM_20161214_001 14-Dec-2016 20:38:52 -> 20:42:01 3.2 411.2 38.0 20 on the table 1.0 0.207 0.246 0.202 0.074 0.186 0.583
13 SQM_20161214_001 14-Dec-2016 20:42:23 -> 20:45:32 3.1 414.7 NaN 10 on the table 2.7 0.118 173.83 0.116 181.377 0.117 136.470
14 SQM_20161214_001 14-Dec-2016 20:47:22 -> 21:13:25 26.1 419.7 4.0 15 on the table 2.0 1.351 0.119 1.483 0.354 1.442 0.177
15 SQM_20161214_001 14-Dec-2016 21:18:40 -> 21:21:48 3.1 451.0 35.4 20 on the table 2.0 1.351 0.038 1.490 0.032 1.442 0.076
16 SQM_20161214_001 14-Dec-2016 21:27:22 -> 21:38:24 11.0 459.7 5.4 15 on the table 4.0 1.556 0.041 1.692 0.042 1.598 0.069
17 SQM_20161214_001 14-Dec-2016 21:43:48 -> 21:46:57 3.2 476.2 21.9 20 on the table 4.0 1.556 0.044 1.692 0.044 1.598 0.063

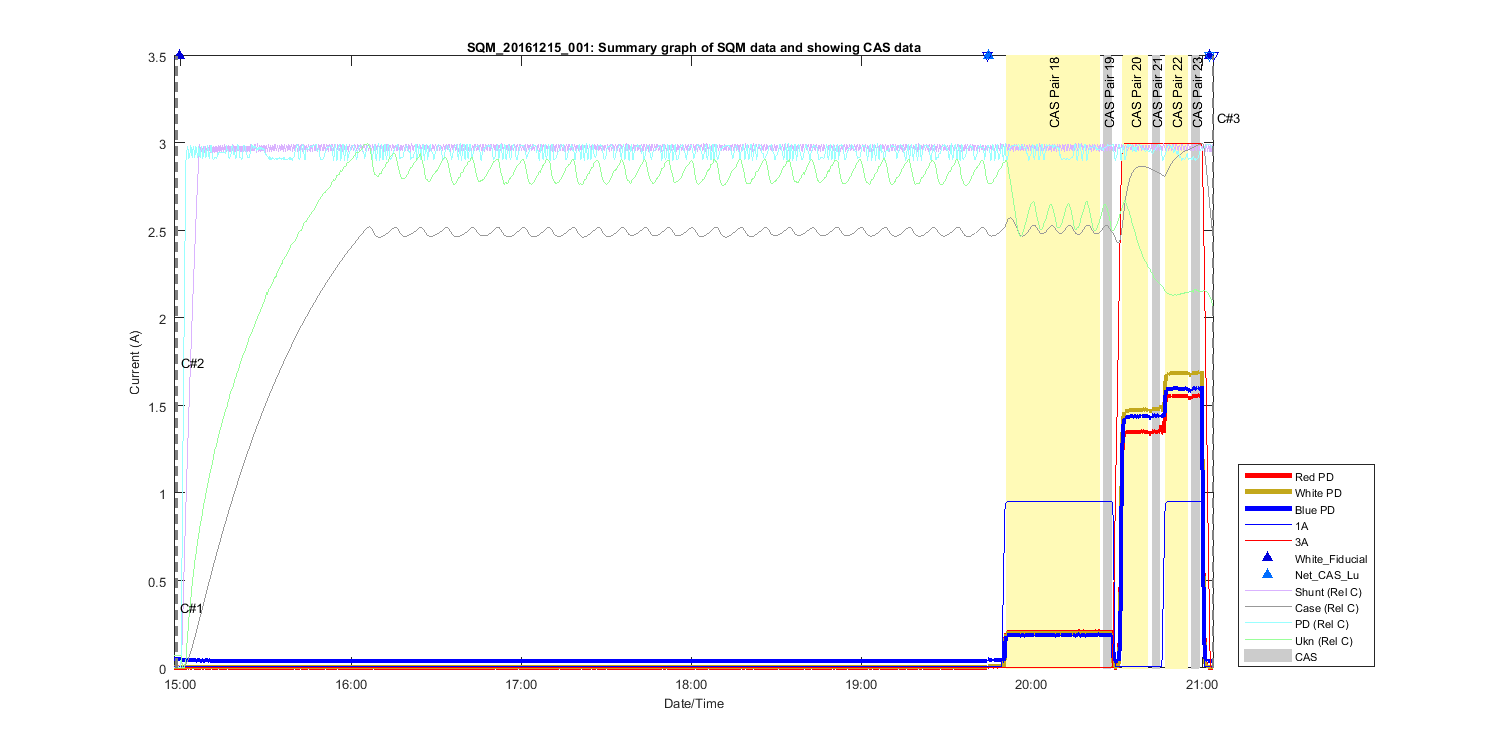

18 SQM_20161215_001 15-Dec-2016 19:51:13 -> 20:24:05 32.9 291.1 1.8 15 on the table 1.0 0.208 0.292 0.202 0.221 0.188 0.830
19 SQM_20161215_001 15-Dec-2016 20:25:36 -> 20:28:13 2.6 325.5 36.1 20 on the table 1.0 0.208 0.072 0.202 0.059 0.189 0.375
20 SQM_20161215_001 15-Dec-2016 20:32:13 -> 20:41:05 8.9 332.1 2.8 15 on the table 2.0 1.348 0.634 1.473 0.725 1.436 0.874
21 SQM_20161215_001 15-Dec-2016 20:42:39 -> 20:45:17 2.6 342.6 13.2 20 on the table 2.0 1.352 0.046 1.482 0.067 1.443 0.053
22 SQM_20161215_001 15-Dec-2016 20:47:13 -> 20:55:05 7.9 347.1 1.2 15 on the table 4.0 1.554 0.447 1.684 0.528 1.596 0.510
23 SQM_20161215_001 15-Dec-2016 20:56:35 -> 20:59:12 2.6 356.5 10.7 20 on the table 4.0 1.557 0.063 1.688 0.060 1.598 0.102

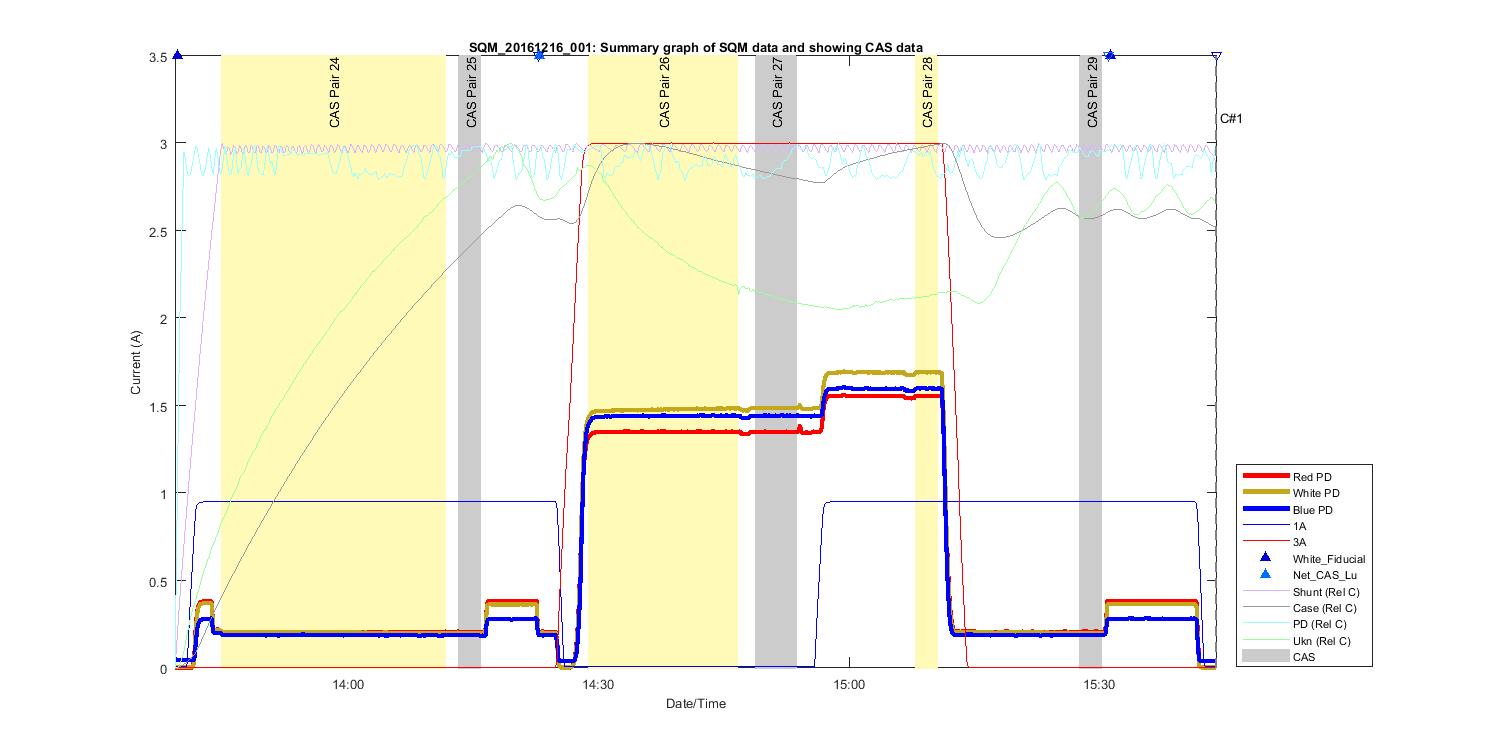

24 SQM_20161216_001 16-Dec-2016 13:44:50 -> 14:11:42 26.9 6.3 4.2 15 on the table 1.0 0.207 0.255 0.203 0.569 0.188 0.771
25 SQM_20161216_001 16-Dec-2016 14:13:15 -> 14:15:53 2.6 34.7 32.6 20 on the table 1.0 0.208 0.095 0.202 0.045 0.188 0.572
26 SQM_20161216_001 16-Dec-2016 14:28:50 -> 14:46:42 17.9 50.3 3.2 15 on the table 2.0 1.351 0.246 1.477 0.462 1.441 0.373
27 SQM_20161216_001 16-Dec-2016 14:48:50 -> 14:53:42 4.9 70.3 23.1 20 on the table 2.0 1.351 0.040 1.486 0.060 1.443 0.096
28 SQM_20161216_001 16-Dec-2016 15:07:58 -> 15:10:36 2.6 89.4 12.3 20 on the table 4.0 1.556 0.037 1.691 0.041 1.599 0.050
29 SQM_20161216_001 16-Dec-2016 15:27:39 -> 15:30:17 2.6 109.1 13.8 20 on the table 1.0 0.208 0.178 0.202 0.033 0.190 0.273

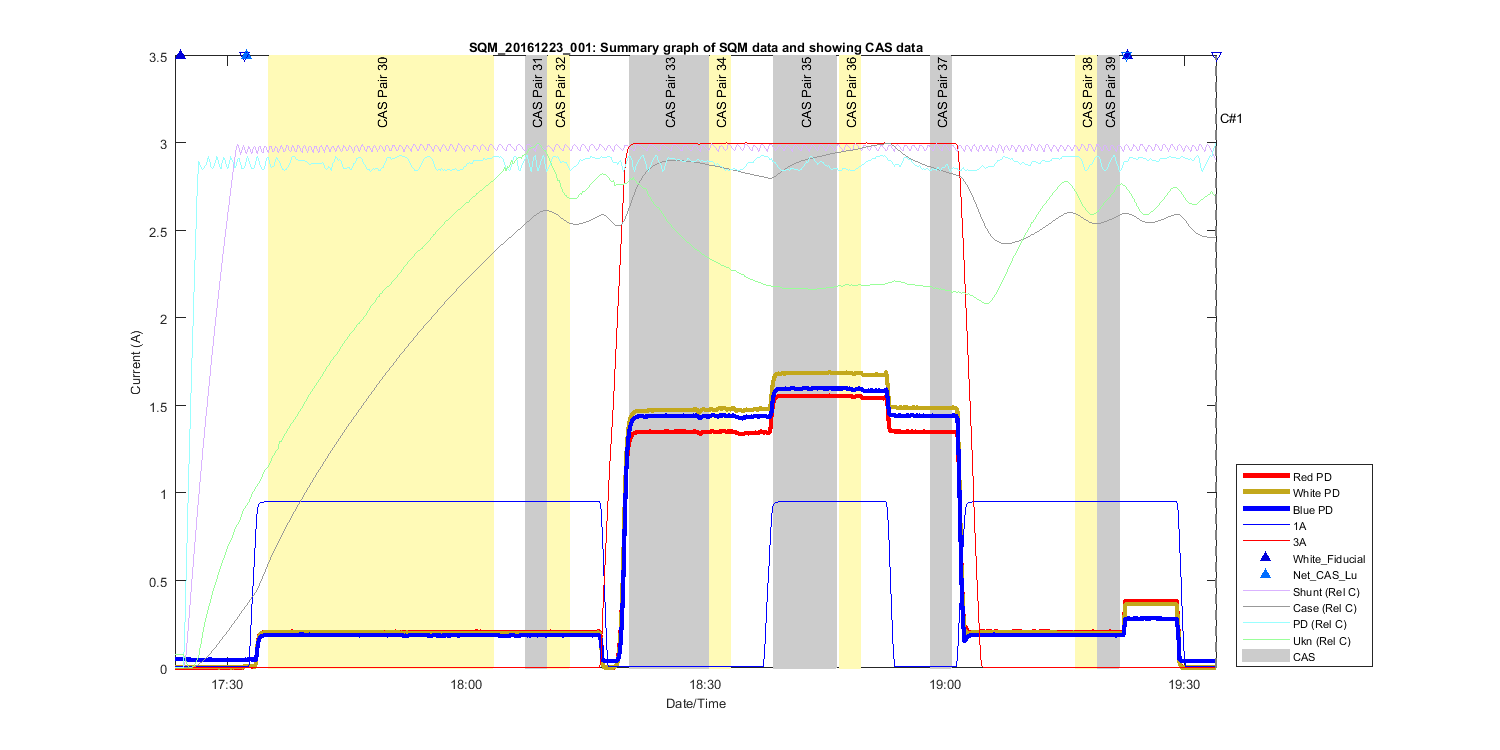

30 SQM_20161223_001 23-Dec-2016 17:35:17 -> 18:03:24 28.1 10.8 2.8 15 on the table 1.0 0.207 0.278 0.203 0.437 0.188 0.836
31 SQM_20161223_001 23-Dec-2016 18:07:29 -> 18:10:09 2.7 43.0 34.9 20 on the table 1.0 0.208 0.156 0.201 0.061 0.188 0.954
32 SQM_20161223_001 23-Dec-2016 18:10:17 -> 18:12:57 2.7 45.8 37.8 20 on the table 1.0 0.208 0.167 0.201 0.067 0.188 0.910
33 SQM_20161223_001 23-Dec-2016 18:20:32 -> 18:30:25 9.9 56.0 3.0 15 on the table 2.0 1.350 0.451 1.473 0.523 1.439 0.620
34 SQM_20161223_001 23-Dec-2016 18:30:33 -> 18:33:12 2.7 66.1 13.0 20 on the table 2.0 1.352 0.225 1.481 0.283 1.443 0.257
35 SQM_20161223_001 23-Dec-2016 18:38:32 -> 18:46:25 7.9 74.0 1.4 15 on the table 4.0 1.555 0.219 1.687 0.250 1.597 0.263
36 SQM_20161223_001 23-Dec-2016 18:46:49 -> 18:49:28 2.7 82.3 9.6 20 on the table 4.0 1.555 0.138 1.688 0.130 1.597 0.204
37 SQM_20161223_001 23-Dec-2016 18:58:12 -> 19:00:51 2.6 93.7 4.7 20 on the table 2.0 1.351 0.037 1.488 0.054 1.443 0.053
38 SQM_20161223_001 23-Dec-2016 19:16:24 -> 19:19:03 2.6 111.9 12.1 20 on the table 1.0 0.208 0.237 0.202 0.046 0.189 0.717
39 SQM_20161223_001 23-Dec-2016 19:19:14 -> 19:21:54 2.7 114.7 14.9 20 on the table 1.0 0.208 0.265 0.202 0.079 0.188 0.787

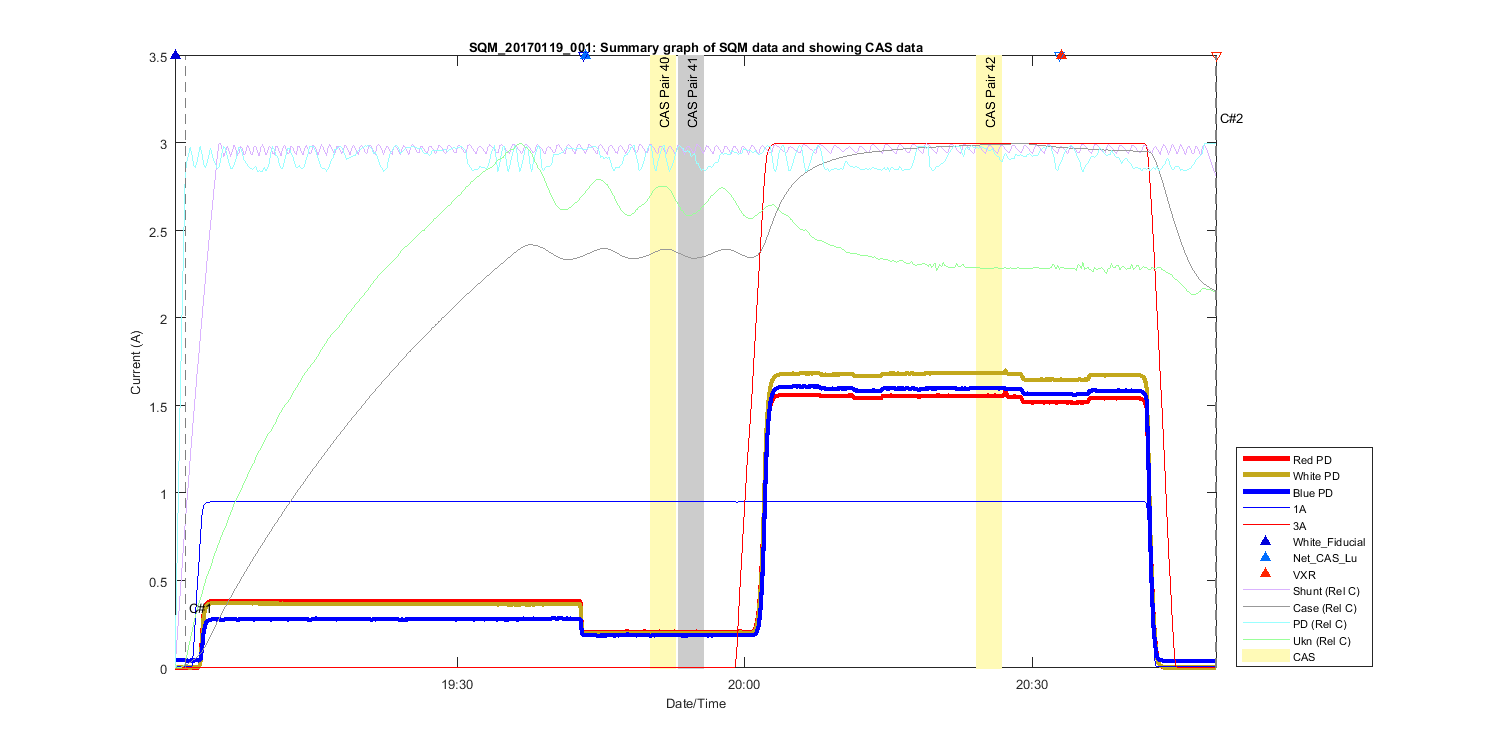

40 SQM_20170119_001 19-Jan-2017 19:50:11 -> 19:52:50 2.7 49.9 47.8 20 on the table 1.0 0.208 0.284 0.202 0.078 0.188 0.924
41 SQM_20170119_001 19-Jan-2017 19:53:06 -> 19:55:44 2.6 52.9 50.8 20 on the table 1.0 0.207 0.287 0.202 0.067 0.187 0.604
42 SQM_20170119_001 19-Jan-2017 20:24:10 -> 20:26:48 2.6 83.9 25.2 20 on the table 4.0 1.557 0.042 1.687 0.051 1.600 0.063

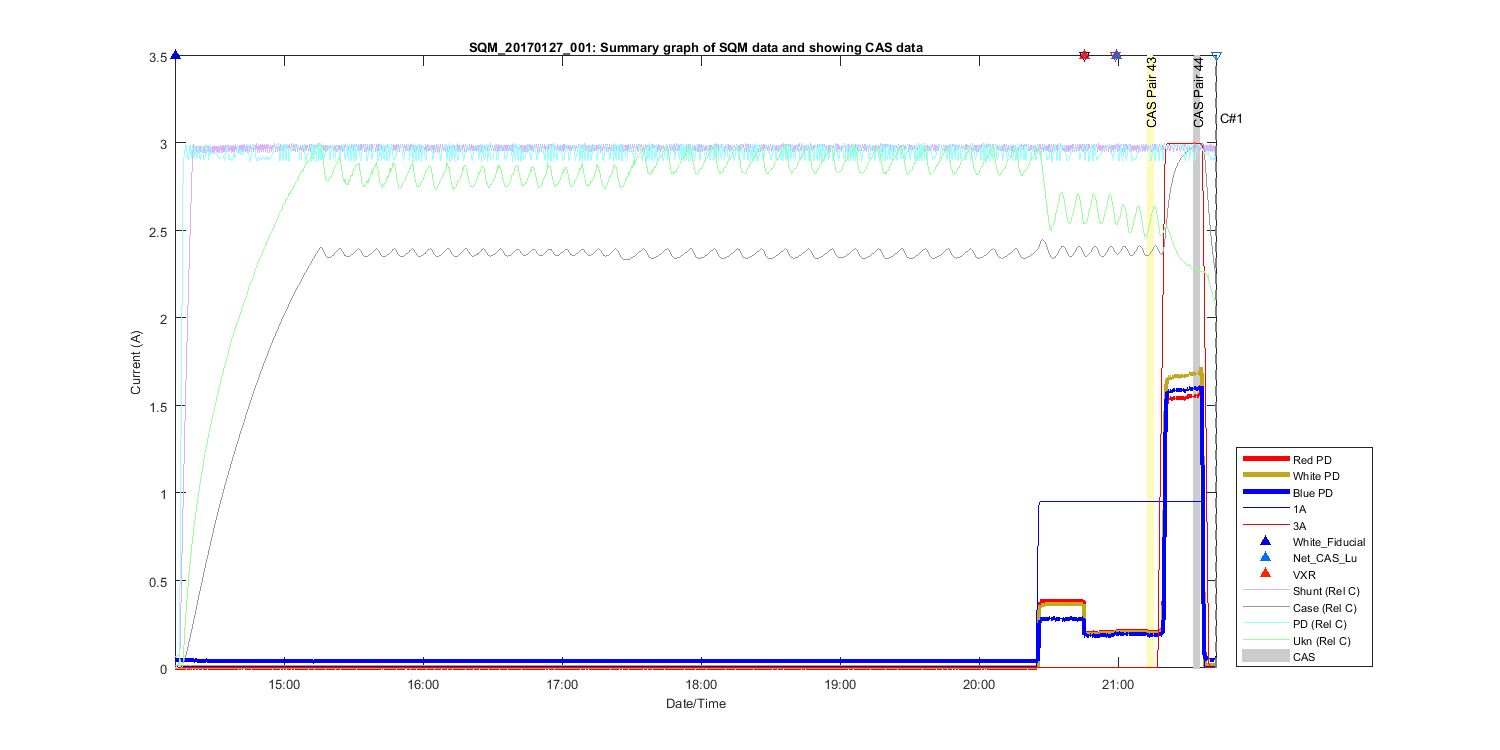

43 SQM_20170127_001 27-Jan-2017 21:12:45 -> 21:15:22 2.6 418.4 48.0 20 on the table 1.0 0.207 0.302 0.202 0.045 0.187 0.808
44 SQM_20170127_001 27-Jan-2017 21:32:56 -> 21:35:33 2.6 438.5 15.8 20 on the table 4.0 1.557 0.066 1.684 0.078 1.599 0.077

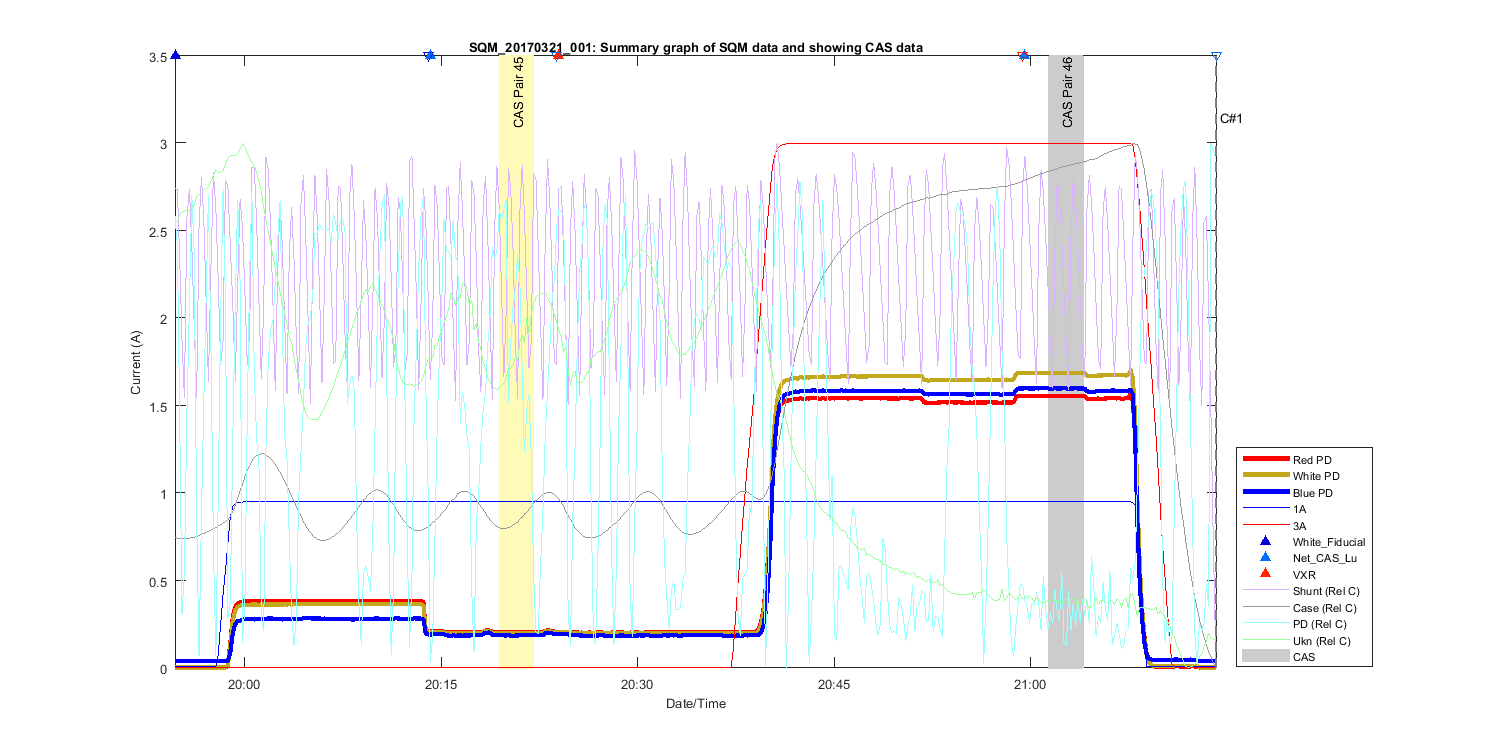

45 SQM_20170321_001 21-Mar-2017 20:19:28 -> 20:22:06 2.6 168.5 21.8 20 on the table 1.0 0.207 0.333 0.202 0.059 0.187 0.608
46 SQM_20170321_001 21-Mar-2017 21:01:24 -> 21:04:02 2.6 210.4 24.4 20 on the table 4.0 1.556 0.029 1.688 0.035 1.599 0.114

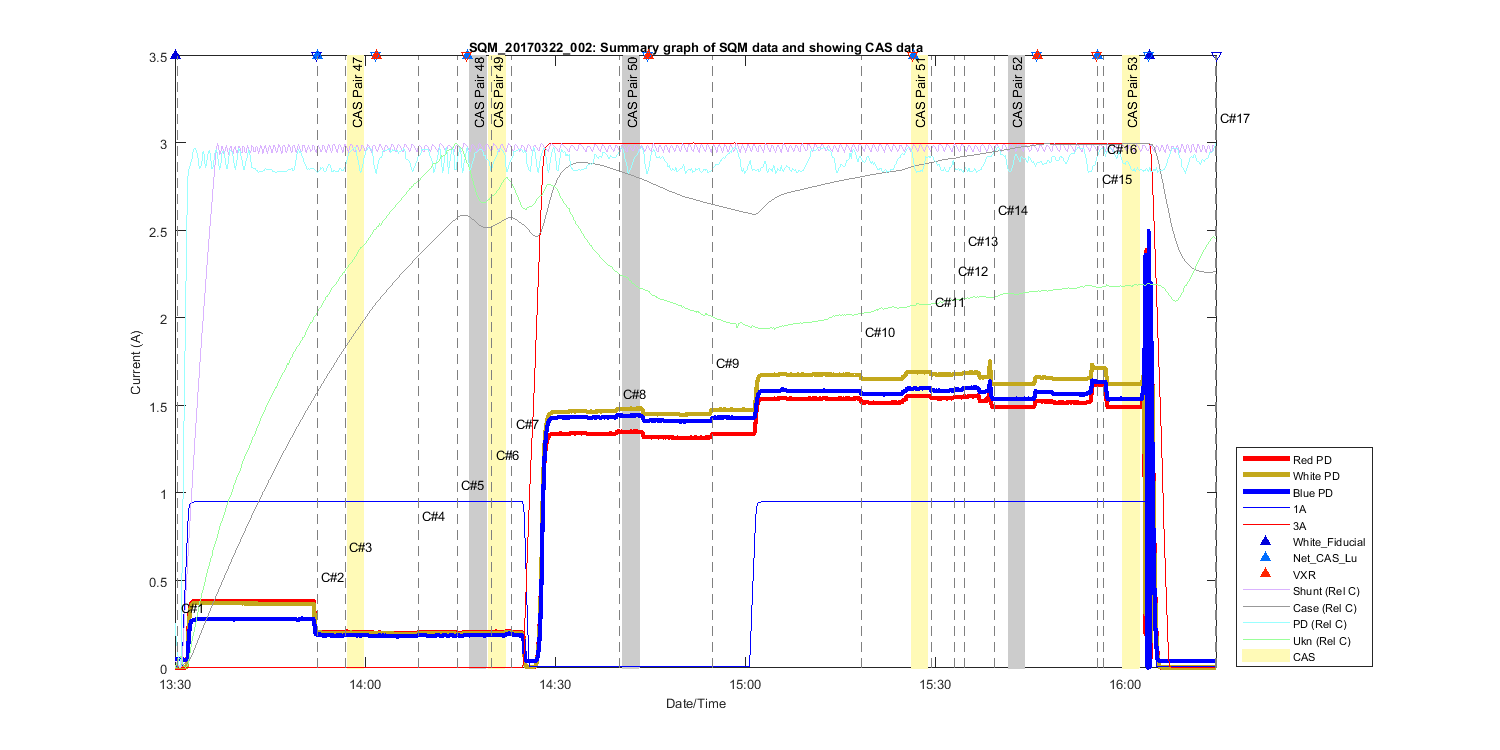

47 SQM_20170322_002 22-Mar-2017 13:57:10 -> 13:59:48 2.6 26.2 26.3 20 on the table 1.0 0.207 0.369 0.202 0.149 0.188 0.829
48 SQM_20170322_002 22-Mar-2017 14:16:27 -> 14:19:05 2.6 45.5 45.5 20 on the table 1.0 0.207 0.255 0.201 0.097 0.189 1.168
49 SQM_20170322_002 22-Mar-2017 14:19:32 -> 14:22:09 2.6 48.5 48.7 20 on the table 1.0 0.208 0.299 0.201 0.060 0.188 0.775
50 SQM_20170322_002 22-Mar-2017 14:40:38 -> 14:43:15 2.6 69.7 15.1 20 on the table 2.0 1.352 0.051 1.483 0.050 1.443 0.083
51 SQM_20170322_002 22-Mar-2017 15:26:11 -> 15:28:48 2.6 115.2 25.6 20 on the table 4.0 1.556 0.046 1.691 0.045 1.599 0.090
52 SQM_20170322_002 22-Mar-2017 15:41:30 -> 15:44:08 2.6 130.5 41.0 20 mounted in the CAS 4.0 1.493 0.054 1.624 0.035 1.539 0.095
53 SQM_20170322_002 22-Mar-2017 15:59:31 -> 16:02:13 2.7 148.5 59.0 20 mounted in the CAS 4.0 1.493 0.035 1.624 0.043 1.539 0.060

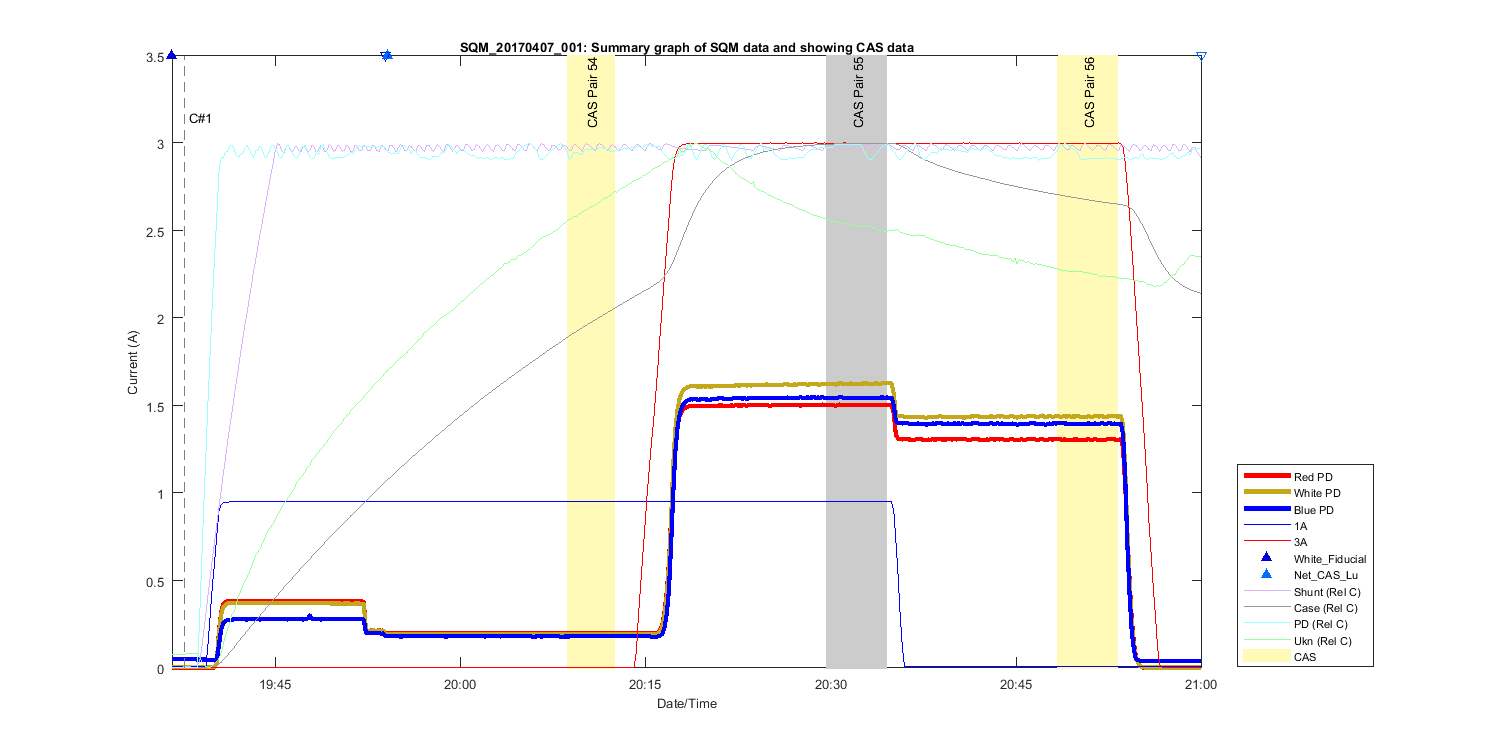

54 SQM_20170407_001 07-Apr-2017 20:08:39 -> 20:12:31 3.9 30.0 29.4 20 mounted in the CAS 1.0 0.200 0.207 0.195 0.052 0.183 0.691
55 SQM_20170407_001 07-Apr-2017 20:29:40 -> 20:34:32 4.9 51.0 15.6 20 mounted in the CAS 4.0 1.504 0.089 1.626 0.122 1.546 0.100
56 SQM_20170407_001 07-Apr-2017 20:48:23 -> 20:53:15 4.9 69.8 12.6 20 mounted in the CAS 2.0 1.306 0.114 1.439 0.145 1.397 0.150

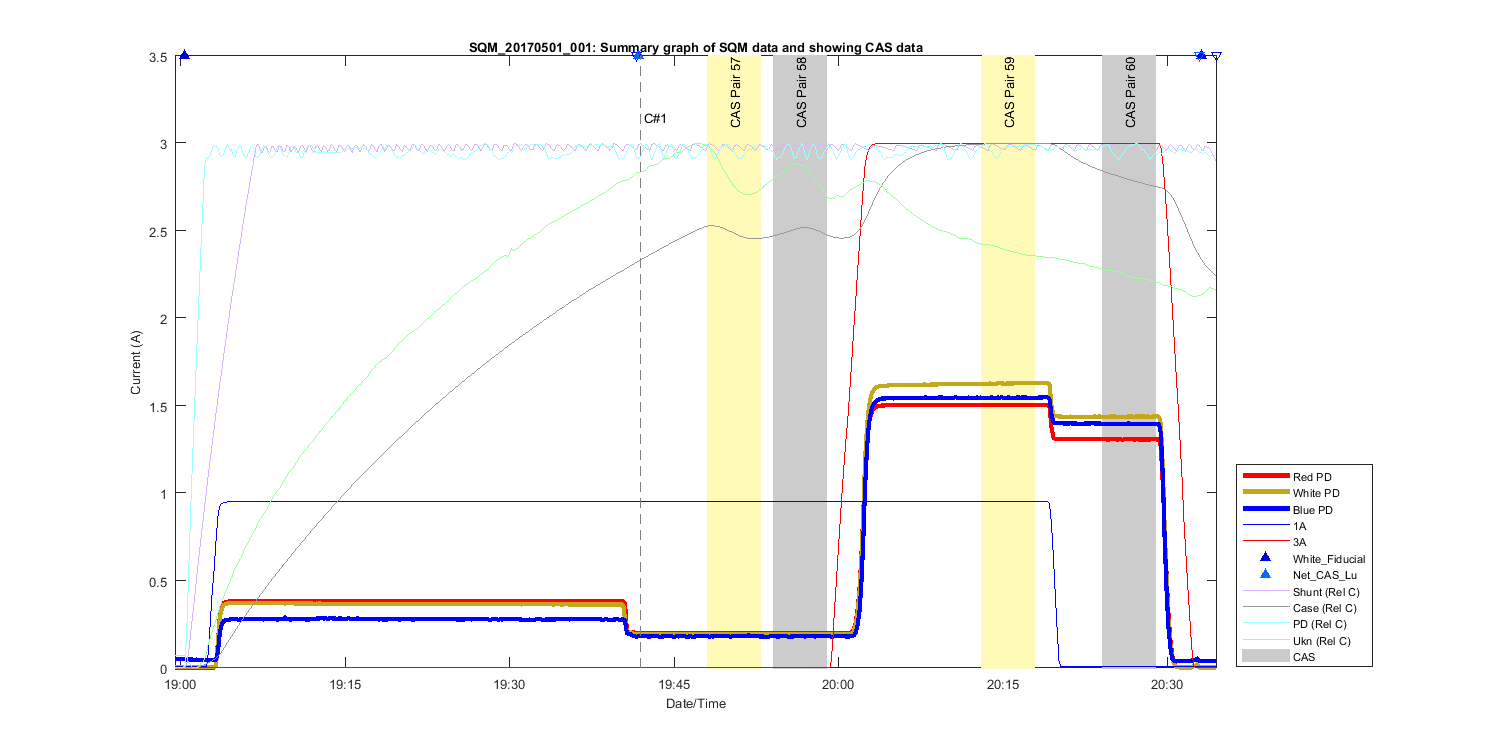

57 SQM_20170501_001 01-May-2017 19:48:05 -> 19:52:57 4.9 47.5 45.7 20 mounted in the CAS 1.0 0.200 0.264 0.194 0.105 0.183 1.003
58 SQM_20170501_001 01-May-2017 19:54:05 -> 19:58:57 4.9 53.5 51.9 20 mounted in the CAS 1.0 0.200 0.228 0.194 0.061 0.182 0.996
59 SQM_20170501_001 01-May-2017 20:13:05 -> 20:17:57 4.9 72.5 13.8 20 mounted in the CAS 4.0 1.505 0.029 1.627 0.064 1.546 0.056
60 SQM_20170501_001 01-May-2017 20:24:05 -> 20:28:57 4.9 83.5 4.0 20 mounted in the CAS 2.0 1.307 0.044 1.438 0.038 1.396 0.082

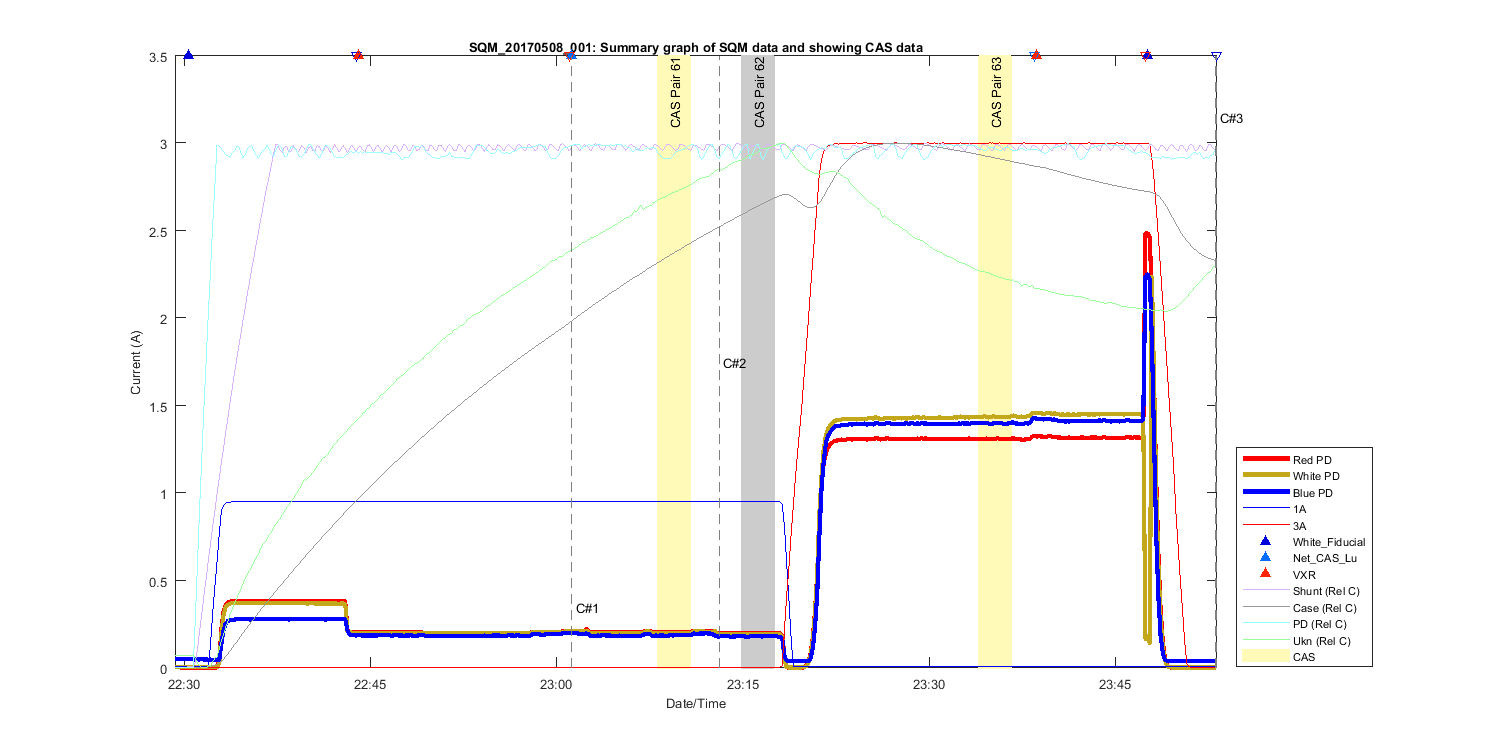

61 SQM_20170508_001 08-May-2017 23:08:11 -> 23:10:48 2.6 37.6 36.3 20 on the table 1.0 0.207 0.226 0.201 0.030 0.187 0.904
62 SQM_20170508_001 08-May-2017 23:14:54 -> 23:17:32 2.6 44.3 43.1 20 mounted in the CAS 1.0 0.200 0.188 0.194 0.031 0.182 1.035
63 SQM_20170508_001 08-May-2017 23:34:01 -> 23:36:38 2.6 63.4 15.3 20 mounted in the CAS 2.0 1.310 0.139 1.436 0.165 1.399 0.136

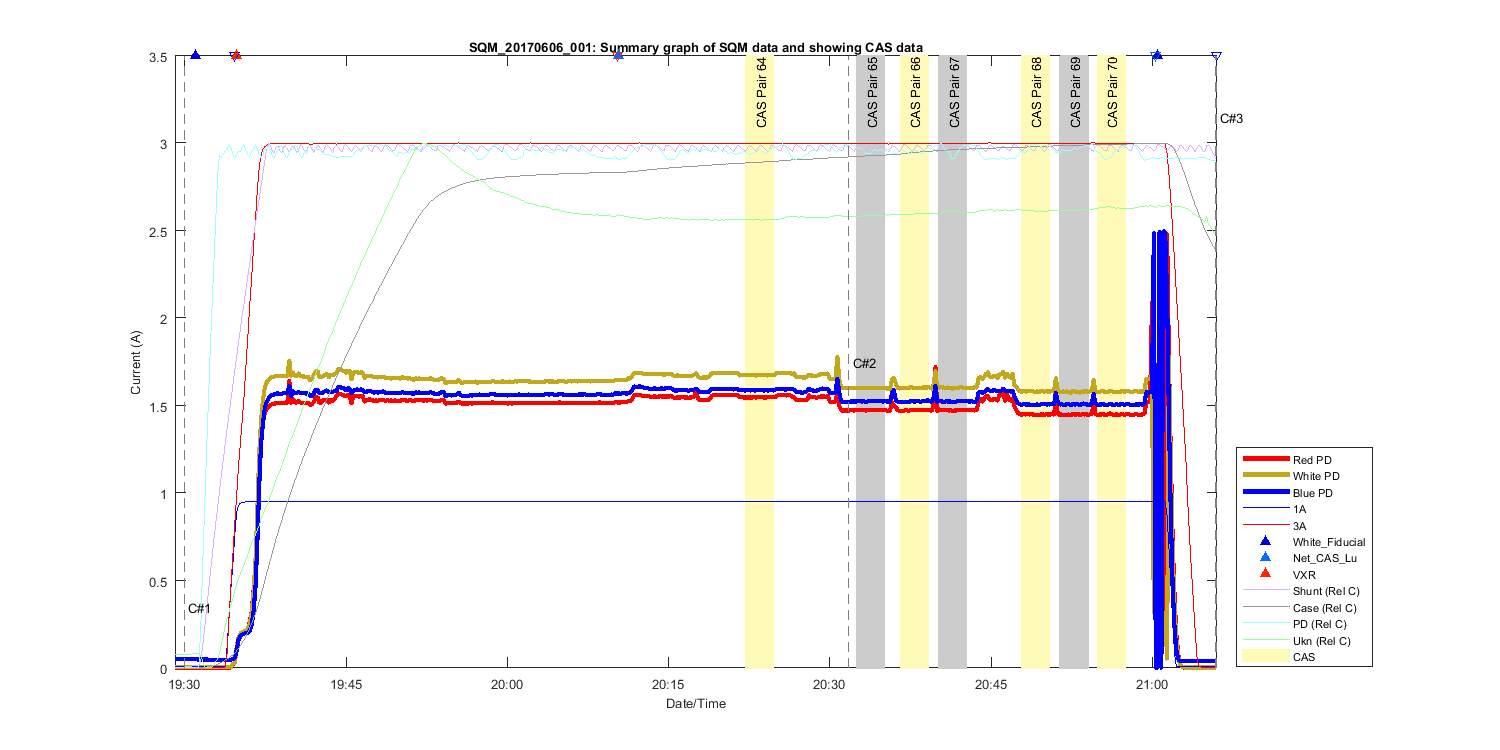

64 SQM_20170606_001 06-Jun-2017 20:22:14 -> 20:24:51 2.6 51.0 48.5 20 on the table 4.0 1.548 0.030 1.674 0.033 1.588 0.076
65 SQM_20170606_001 06-Jun-2017 20:32:32 -> 20:35:10 2.6 61.3 58.9 20 mounted in the CAS 4.0 1.474 0.042 1.602 0.031 1.525 0.106
66 SQM_20170606_001 06-Jun-2017 20:36:35 -> 20:39:13 2.6 65.3 62.9 20 mounted in the CAS 4.0 1.474 0.139 1.603 0.194 1.525 0.225
67 SQM_20170606_001 06-Jun-2017 20:40:10 -> 20:42:48 2.6 68.9 66.4 20 mounted in the CAS 4.0 1.474 0.150 1.603 0.214 1.525 0.201
68 SQM_20170606_001 06-Jun-2017 20:47:52 -> 20:50:29 2.6 76.6 74.1 20 mounted in the CAS 4.0 1.450 0.086 1.581 0.112 1.507 0.139
69 SQM_20170606_001 06-Jun-2017 20:51:27 -> 20:54:04 2.6 80.2 77.8 20 mounted in the CAS 4.0 1.449 0.174 1.580 0.212 1.507 0.239
70 SQM_20170606_001 06-Jun-2017 20:54:55 -> 20:57:33 2.6 83.6 81.1 20 mounted in the CAS 4.0 1.450 0.190 1.581 0.190 1.507 0.242

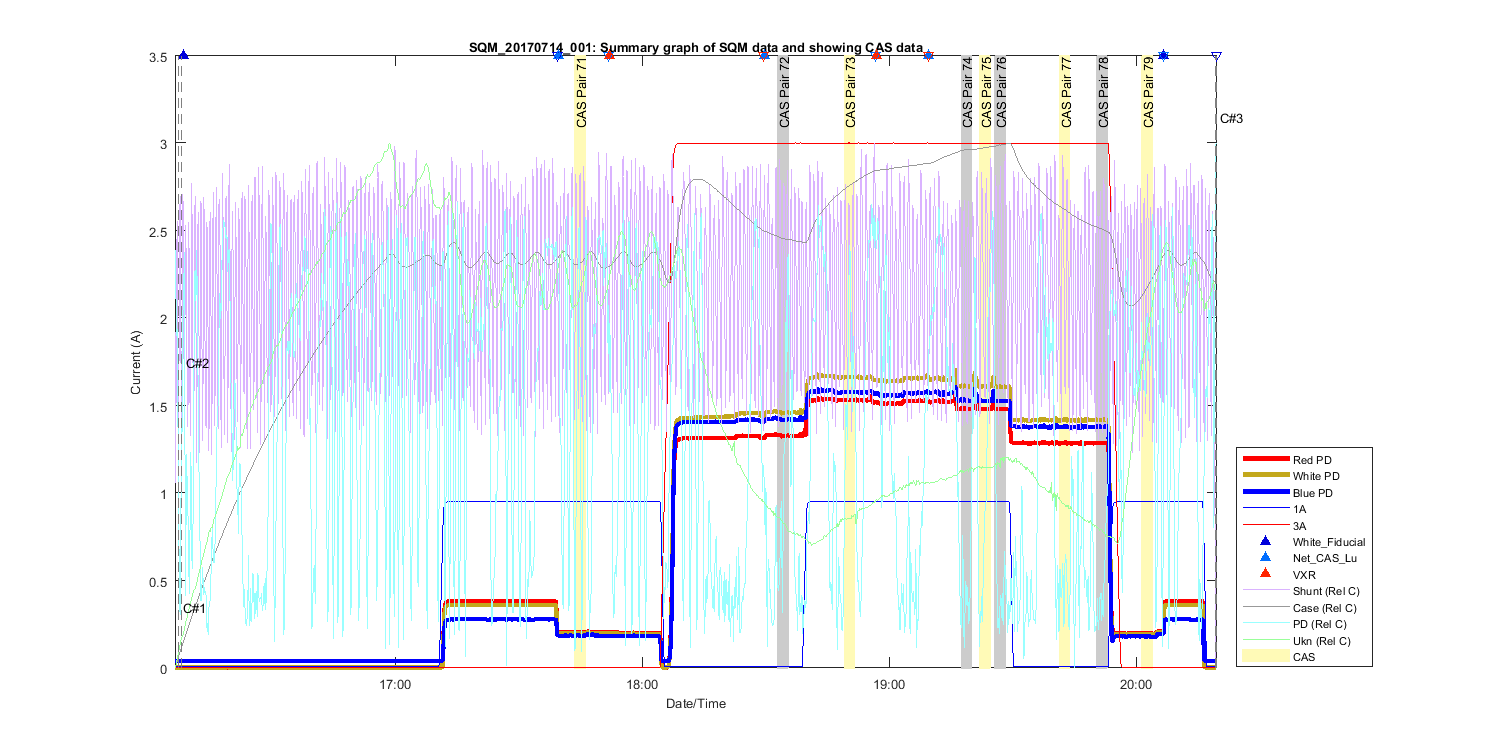

71 SQM_20170714_001 14-Jul-2017 17:43:39 -> 17:46:16 2.6 116.6 33.1 20 on the table 1.0 0.204 0.156 0.198 0.040 0.186 0.729
72 SQM_20170714_001 14-Jul-2017 18:32:58 -> 18:35:35 2.6 166.0 27.9 20 on the table 2.0 1.329 0.179 1.461 0.197 1.421 0.214
73 SQM_20170714_001 14-Jul-2017 18:49:06 -> 18:51:44 2.6 182.1 10.3 20 on the table 4.0 1.533 0.080 1.664 0.101 1.578 0.100
74 SQM_20170714_001 14-Jul-2017 19:17:33 -> 19:20:10 2.6 210.6 38.7 20 mounted in the CAS 4.0 1.482 0.166 1.612 0.207 1.530 0.259
75 SQM_20170714_001 14-Jul-2017 19:21:58 -> 19:24:36 2.6 215.0 43.1 20 mounted in the CAS 4.0 1.481 0.069 1.610 0.080 1.528 0.078
76 SQM_20170714_001 14-Jul-2017 19:25:46 -> 19:28:23 2.6 218.8 47.0 20 mounted in the CAS 4.0 1.481 0.039 1.610 0.058 1.528 0.050
77 SQM_20170714_001 14-Jul-2017 19:41:24 -> 19:44:01 2.6 234.4 11.2 20 mounted in the CAS 2.0 1.287 0.231 1.419 0.260 1.380 0.296
78 SQM_20170714_001 14-Jul-2017 19:50:30 -> 19:53:07 2.6 243.5 20.3 20 mounted in the CAS 2.0 1.286 0.119 1.420 0.139 1.380 0.134
79 SQM_20170714_001 14-Jul-2017 20:01:30 -> 20:04:08 2.6 254.5 5.2 20 mounted in the CAS 1.0 0.198 0.164 0.193 0.128 0.180 0.597

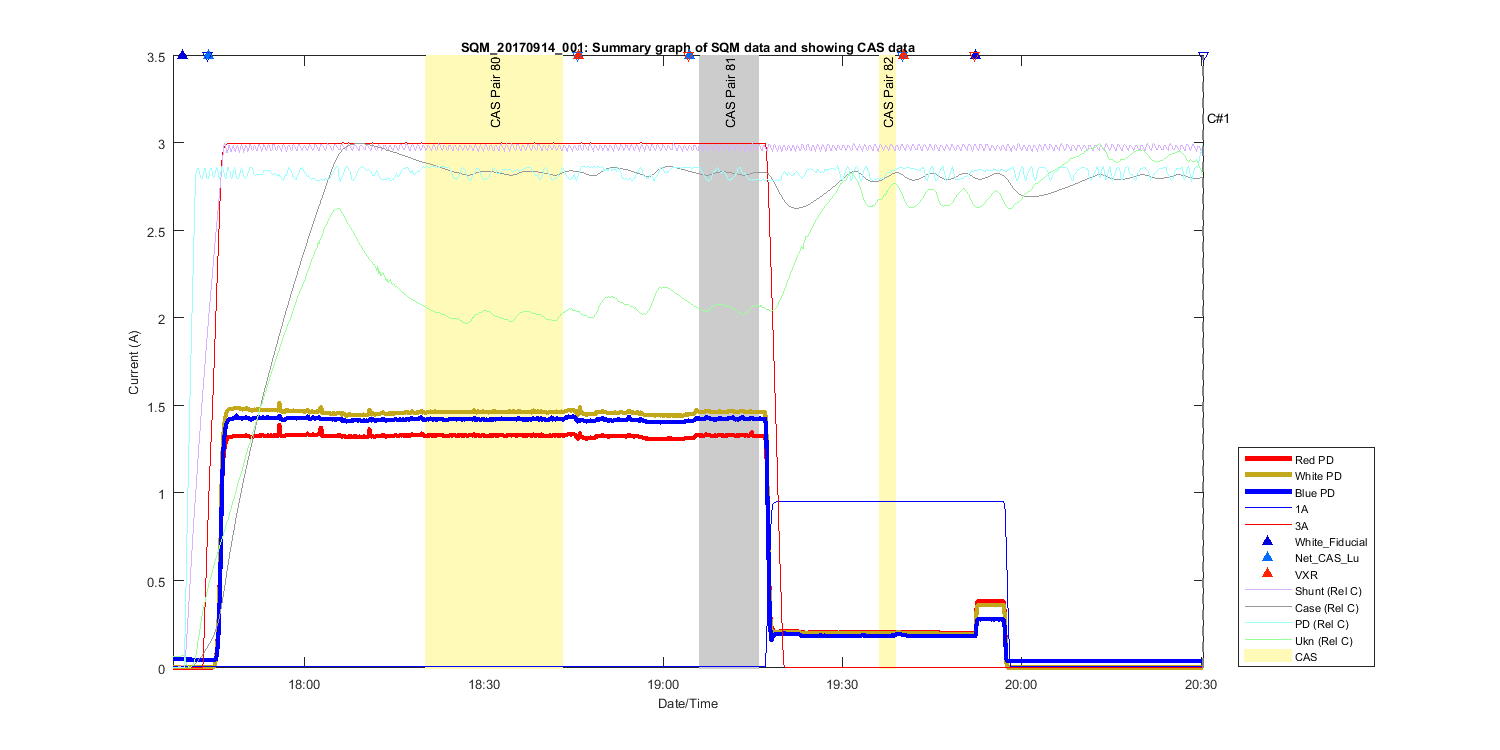

80 SQM_20170914_001 14-Sep-2017 18:20:21 -> 18:43:13 22.9 40.5 37.5 15 on the table 2.0 1.330 0.177 1.464 0.203 1.423 0.214
81 SQM_20170914_001 14-Sep-2017 19:06:10 -> 19:16:03 9.9 86.4 83.4 20 on the table 2.0 1.331 0.265 1.466 0.202 1.426 0.315
82 SQM_20170914_001 14-Sep-2017 19:36:14 -> 19:38:52 2.6 116.4 16.3 20 on the table 1.0 0.204 0.141 0.198 0.070 0.185 0.338

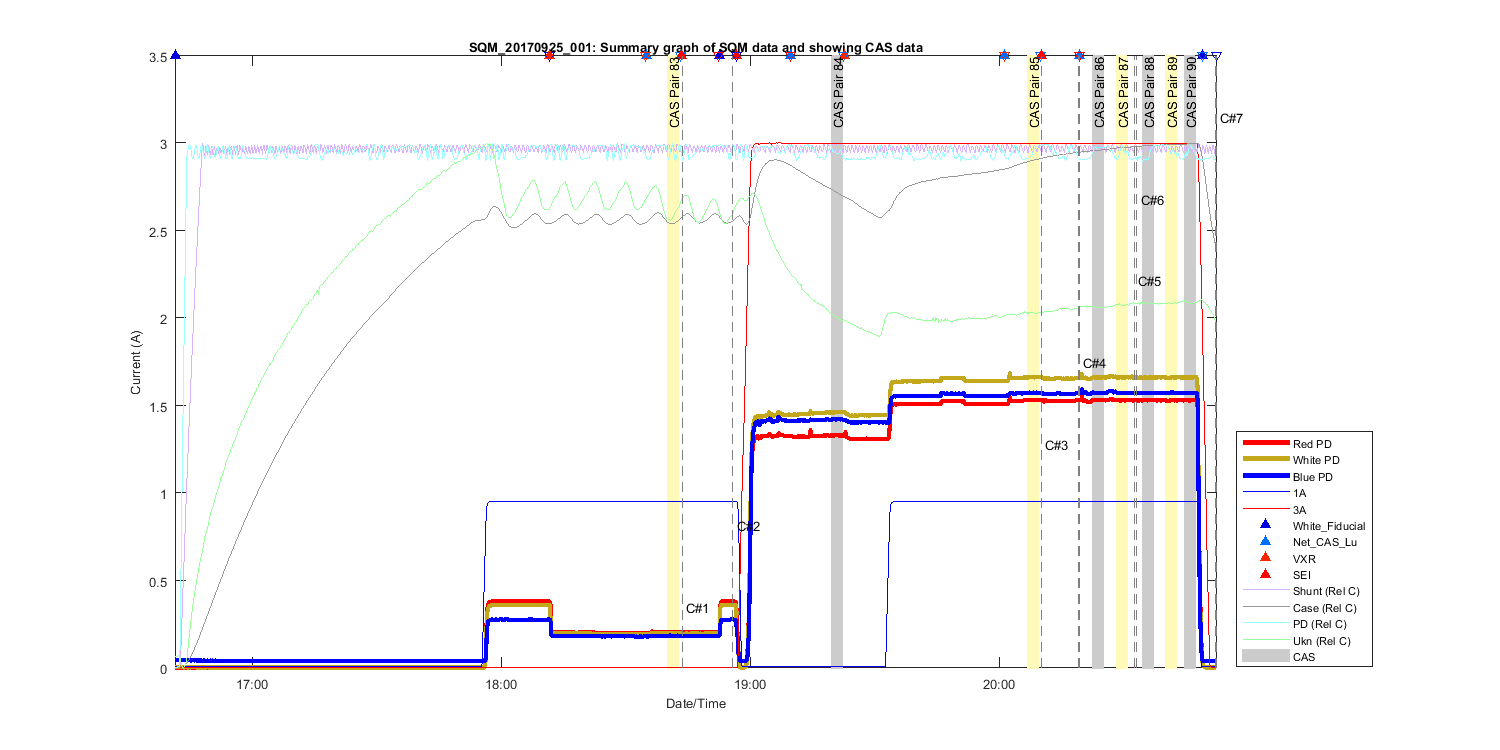

83 SQM_20170925_001 25-Sep-2017 18:40:10 -> 18:42:47 2.6 116.9 44.8 20 on the table 1.0 0.204 0.197 0.198 0.050 0.184 0.819
84 SQM_20170925_001 25-Sep-2017 19:19:45 -> 19:22:23 2.6 156.5 21.9 20 on the table 2.0 1.330 0.061 1.462 0.060 1.422 0.059
85 SQM_20170925_001 25-Sep-2017 20:06:47 -> 20:09:25 2.6 203.5 34.2 20 on the table 4.0 1.531 0.031 1.662 0.045 1.575 0.073
86 SQM_20170925_001 25-Sep-2017 20:22:32 -> 20:25:10 2.6 219.3 49.9 20 on the table 4.0 1.531 0.028 1.662 0.033 1.574 0.046
87 SQM_20170925_001 25-Sep-2017 20:28:13 -> 20:30:51 2.6 225.0 55.7 20 on the table 4.0 1.530 0.041 1.662 0.049 1.574 0.066
88 SQM_20170925_001 25-Sep-2017 20:34:31 -> 20:37:09 2.6 231.3 62.0 20 on the table 4.0 1.531 0.037 1.661 0.047 1.574 0.052
89 SQM_20170925_001 25-Sep-2017 20:40:00 -> 20:42:37 2.6 236.7 67.4 20 on the table 4.0 1.530 0.068 1.661 0.066 1.574 0.111
90 SQM_20170925_001 25-Sep-2017 20:44:32 -> 20:47:09 2.6 241.3 72.0 20 on the table 4.0 1.531 0.031 1.662 0.026 1.574 0.075
91 SQM_20170929_001 29-Sep-2017 19:10:03 -> 19:12:40 2.6 207.7 0.0 20 on the table NaN NaN NaN NaN NaN NaN NaN
92 SQM_20170929_001 29-Sep-2017 19:20:50 -> 19:23:28 2.6 218.5 0.0 20 on the table NaN NaN NaN NaN NaN NaN NaN
93 SQM_20170929_001 29-Sep-2017 19:31:14 -> 19:33:52 2.6 228.9 0.0 20 on the table NaN NaN NaN NaN NaN NaN NaN
94 SQM_20170929_001 29-Sep-2017 19:47:08 -> 19:49:45 2.6 244.8 0.0 20 on the table NaN NaN NaN NaN NaN NaN NaN
95 SQM_20170929_001 29-Sep-2017 19:57:25 -> 20:00:02 2.6 255.1 0.0 20 on the table NaN NaN NaN NaN NaN NaN NaN

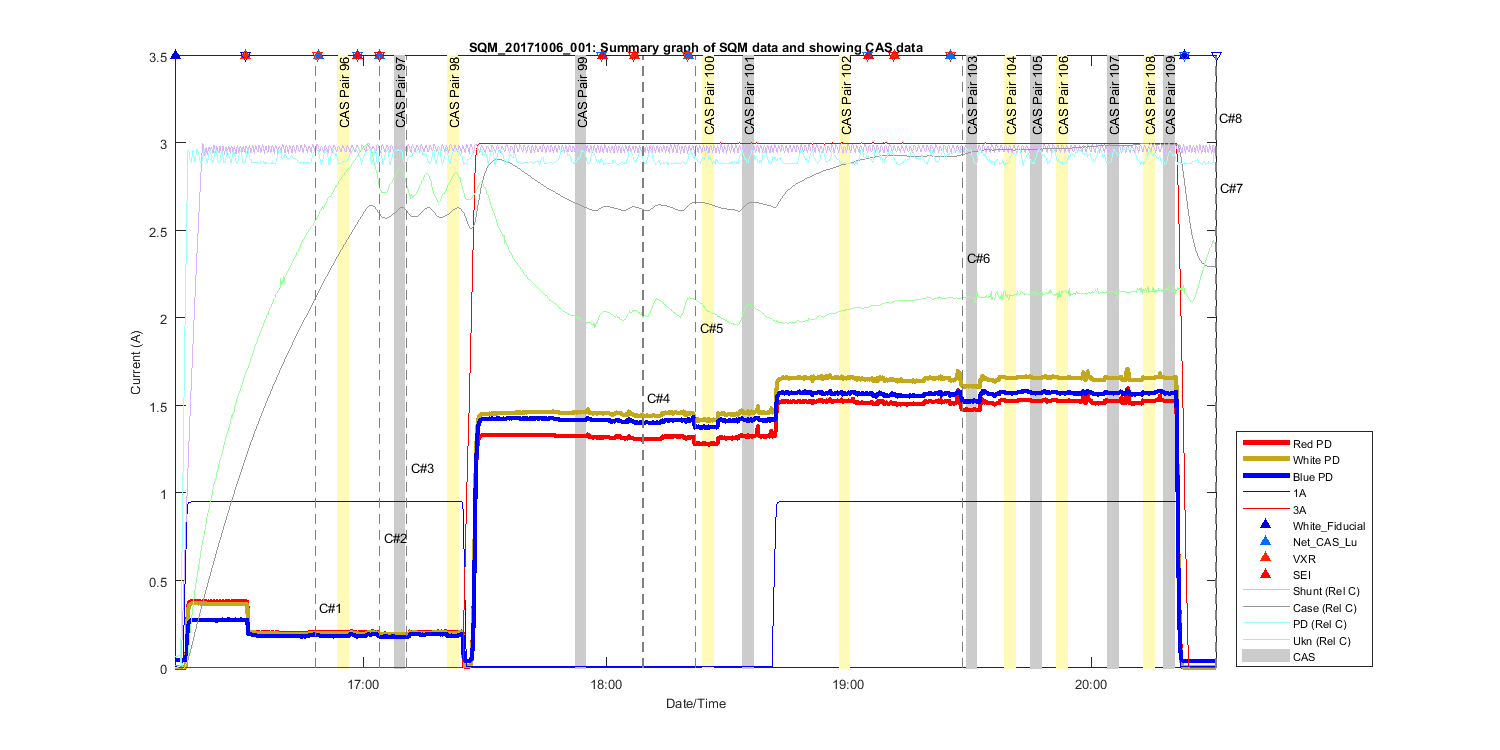

96 SQM_20171006_001 06-Oct-2017 16:53:50 -> 16:56:28 2.6 39.0 38.4 20 on the table 1.0 0.204 0.072 0.198 0.036 0.183 0.269
97 SQM_20171006_001 06-Oct-2017 17:07:45 -> 17:10:22 2.6 52.9 52.4 20 mounted in the CAS 1.0 0.196 0.126 0.191 0.047 0.178 0.600
98 SQM_20171006_001 06-Oct-2017 17:20:55 -> 17:23:33 2.6 66.0 65.5 20 on the table 1.0 0.204 0.141 0.198 0.073 0.184 0.706
99 SQM_20171006_001 06-Oct-2017 17:52:31 -> 17:55:08 2.6 97.6 27.2 20 on the table 2.0 1.327 0.037 1.462 0.054 1.418 0.079
100 SQM_20171006_001 06-Oct-2017 18:24:04 -> 18:26:43 2.7 129.2 58.7 20 mounted in the CAS 2.0 1.283 0.249 1.418 0.311 1.377 0.239
101 SQM_20171006_001 06-Oct-2017 18:33:57 -> 18:36:34 2.6 139.1 68.7 20 on the table 2.0 1.326 0.250 1.461 0.302 1.418 0.274
102 SQM_20171006_001 06-Oct-2017 18:57:45 -> 19:00:23 2.6 162.9 16.8 20 on the table 4.0 1.526 0.233 1.660 0.223 1.571 0.280
103 SQM_20171006_001 06-Oct-2017 19:29:04 -> 19:31:42 2.6 194.2 48.2 20 mounted in the CAS 4.0 1.478 0.147 1.611 0.135 1.525 0.191
104 SQM_20171006_001 06-Oct-2017 19:38:41 -> 19:41:19 2.6 203.8 57.8 20 on the table 4.0 1.528 0.038 1.660 0.046 1.572 0.105
105 SQM_20171006_001 06-Oct-2017 19:45:05 -> 19:47:43 2.6 210.2 64.1 20 on the table 4.0 1.527 0.048 1.660 0.116 1.572 0.106
106 SQM_20171006_001 06-Oct-2017 19:51:26 -> 19:54:04 2.6 216.5 70.6 20 on the table 4.0 1.527 0.052 1.659 0.064 1.571 0.081
107 SQM_20171006_001 06-Oct-2017 20:03:59 -> 20:06:38 2.7 229.1 83.0 20 on the table 4.0 1.527 0.037 1.659 0.040 1.571 0.068
108 SQM_20171006_001 06-Oct-2017 20:12:58 -> 20:15:36 2.6 238.1 92.1 20 on the table 4.0 1.527 0.033 1.659 0.020 1.572 0.071
109 SQM_20171006_001 06-Oct-2017 20:17:54 -> 20:20:32 2.6 243.0 97.0 20 on the table 4.0 1.527 0.041 1.659 0.038 1.571 0.101
110 SQM_20171013_002 13-Oct-2017 19:17:14 -> 19:19:51 2.6 66.1 22.9 20 mounted in the CAS 1.0 0.197 0.180 0.191 0.045 0.179 0.772
111 SQM_20171013_002 13-Oct-2017 20:15:28 -> 20:18:05 2.6 124.3 35.9 20 mounted in the CAS 2.0 1.283 0.042 1.418 0.046 1.376 0.060

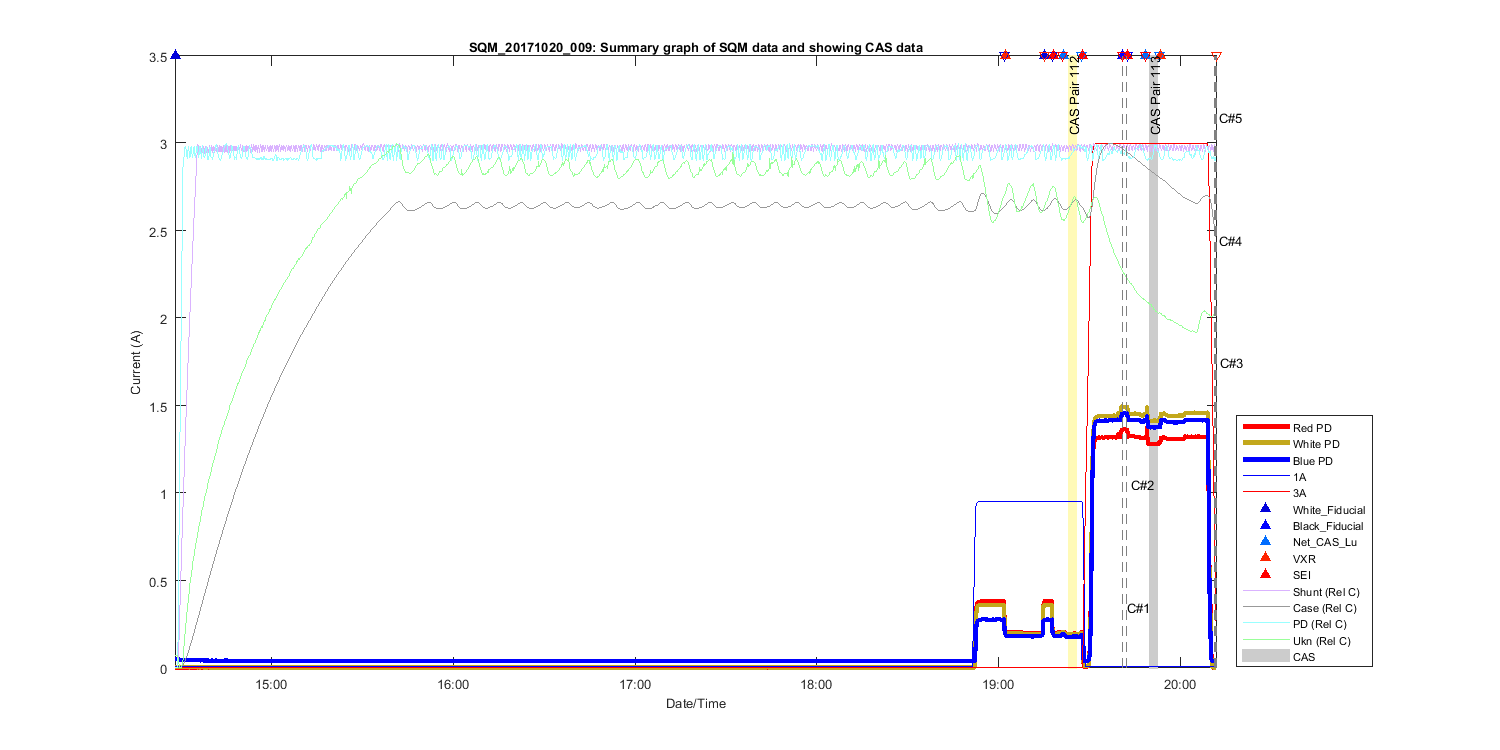

112 SQM_20171020_009 20-Oct-2017 19:23:15 -> 19:25:53 2.6 294.0 31.9 20 mounted in the CAS 1.0 0.197 0.099 0.191 0.047 0.180 0.447
113 SQM_20171020_009 20-Oct-2017 19:49:59 -> 19:52:36 2.6 320.7 21.5 20 mounted in the CAS 2.0 1.282 0.099 1.415 0.058 1.376 0.057
114 SQM_20171027_001 27-Oct-2017 19:33:27 -> 19:36:04 2.6 392.9 35.9 20 mounted in the CAS 1.0 0.197 0.158 0.191 0.022 0.181 0.476
115 SQM_20171027_001 27-Oct-2017 20:01:06 -> 20:03:43 2.6 420.5 22.4 20 mounted in the CAS 2.0 1.283 0.029 1.415 0.061 1.377 0.079

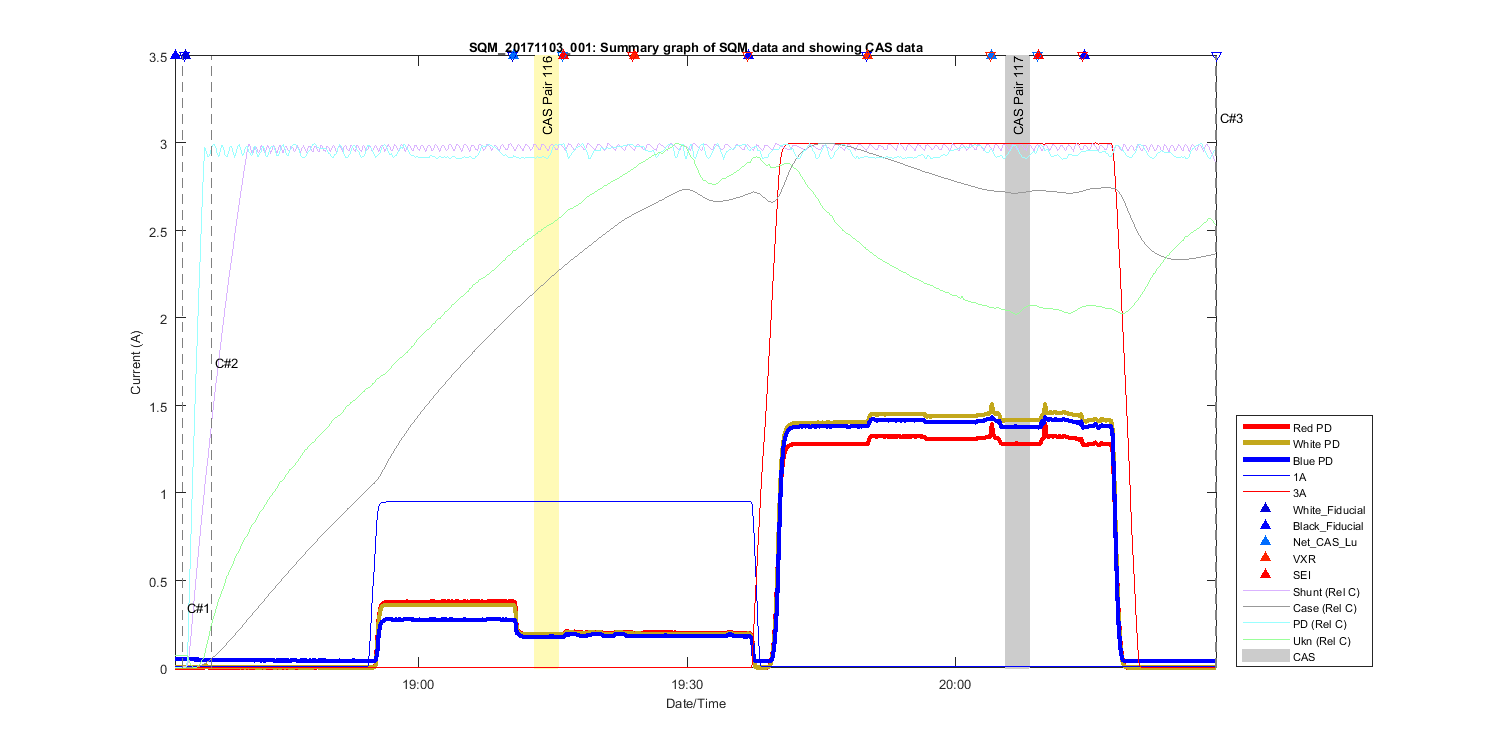

116 SQM_20171103_001 03-Nov-2017 19:12:59 -> 19:15:36 2.6 39.0 18.7 20 mounted in the CAS 1.0 0.196 0.138 0.191 0.059 0.179 0.621
117 SQM_20171103_001 03-Nov-2017 20:05:37 -> 20:08:16 2.7 91.6 27.5 20 mounted in the CAS 2.0 1.283 0.053 1.417 0.049 1.378 0.127

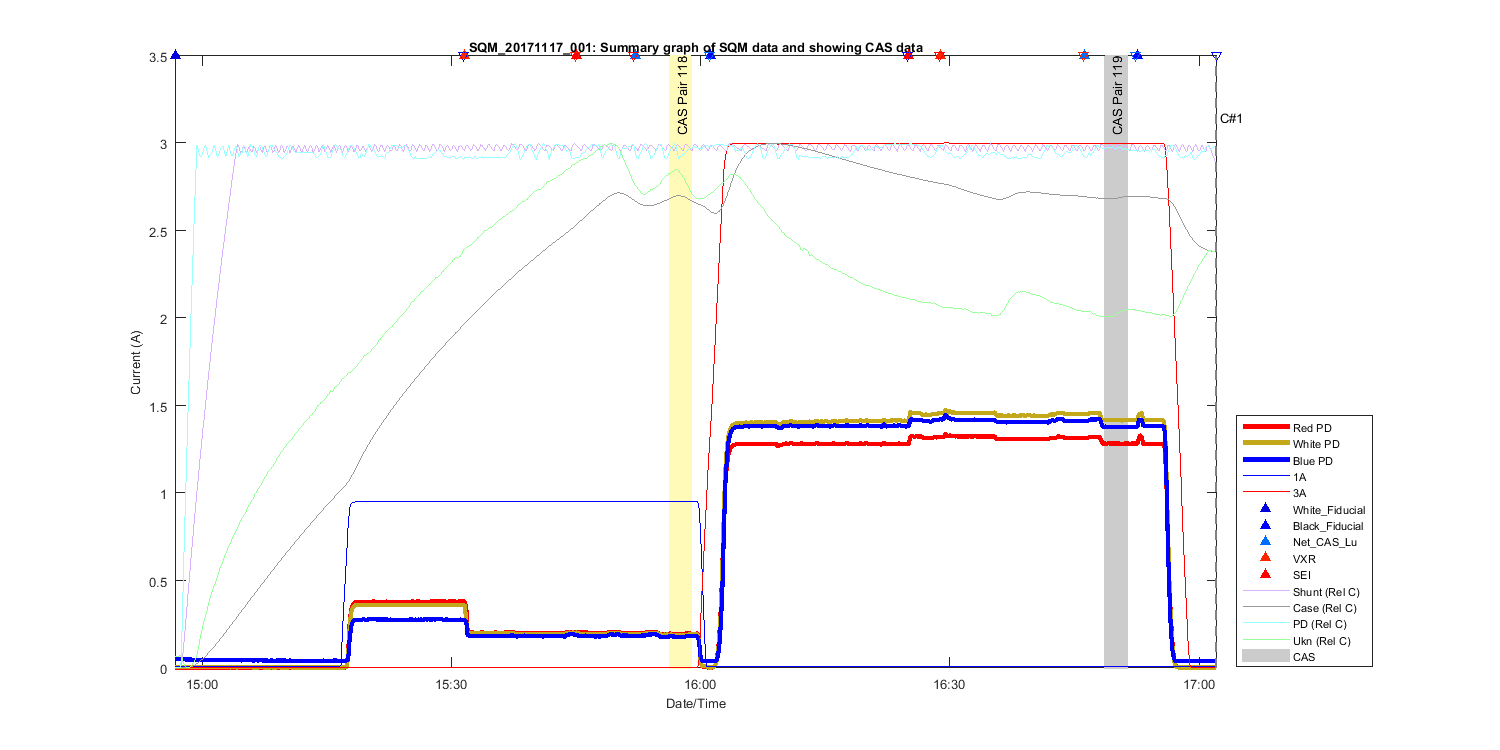

118 SQM_20171117_001 17-Nov-2017 15:56:20 -> 15:58:57 2.6 58.9 39.8 20 mounted in the CAS 1.0 0.197 0.251 0.191 0.026 0.180 0.667
119 SQM_20171117_001 17-Nov-2017 16:48:42 -> 16:51:28 2.8 111.3 48.2 20 mounted in the CAS 2.0 1.284 0.055 1.418 0.074 1.379 0.070

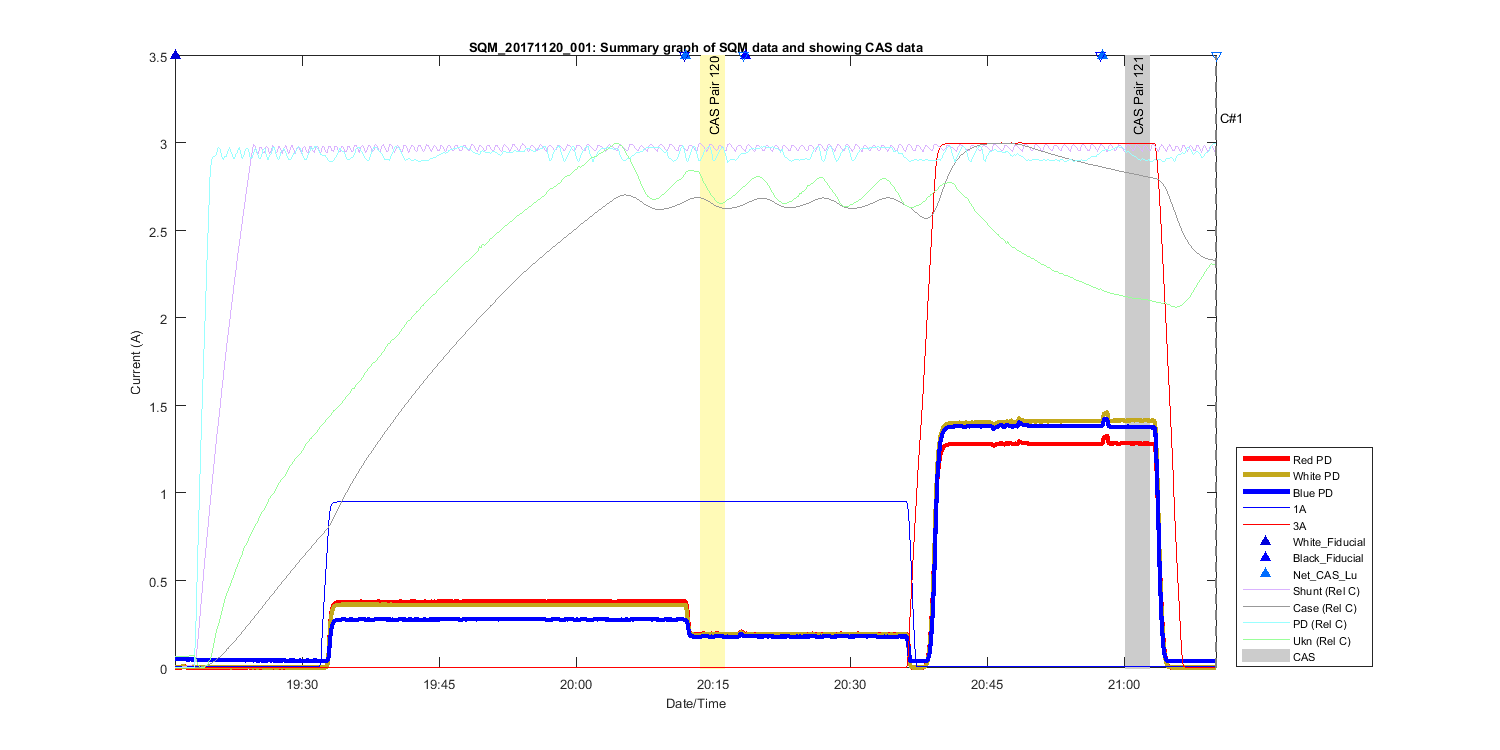

120 SQM_20171120_001 20-Nov-2017 20:13:40 -> 20:16:18 2.6 55.5 41.9 20 mounted in the CAS 1.0 0.197 0.203 0.191 0.064 0.181 0.781
121 SQM_20171120_001 20-Nov-2017 21:00:07 -> 21:02:46 2.6 102.0 23.1 20 mounted in the CAS 2.0 1.284 0.044 1.416 0.039 1.379 0.085

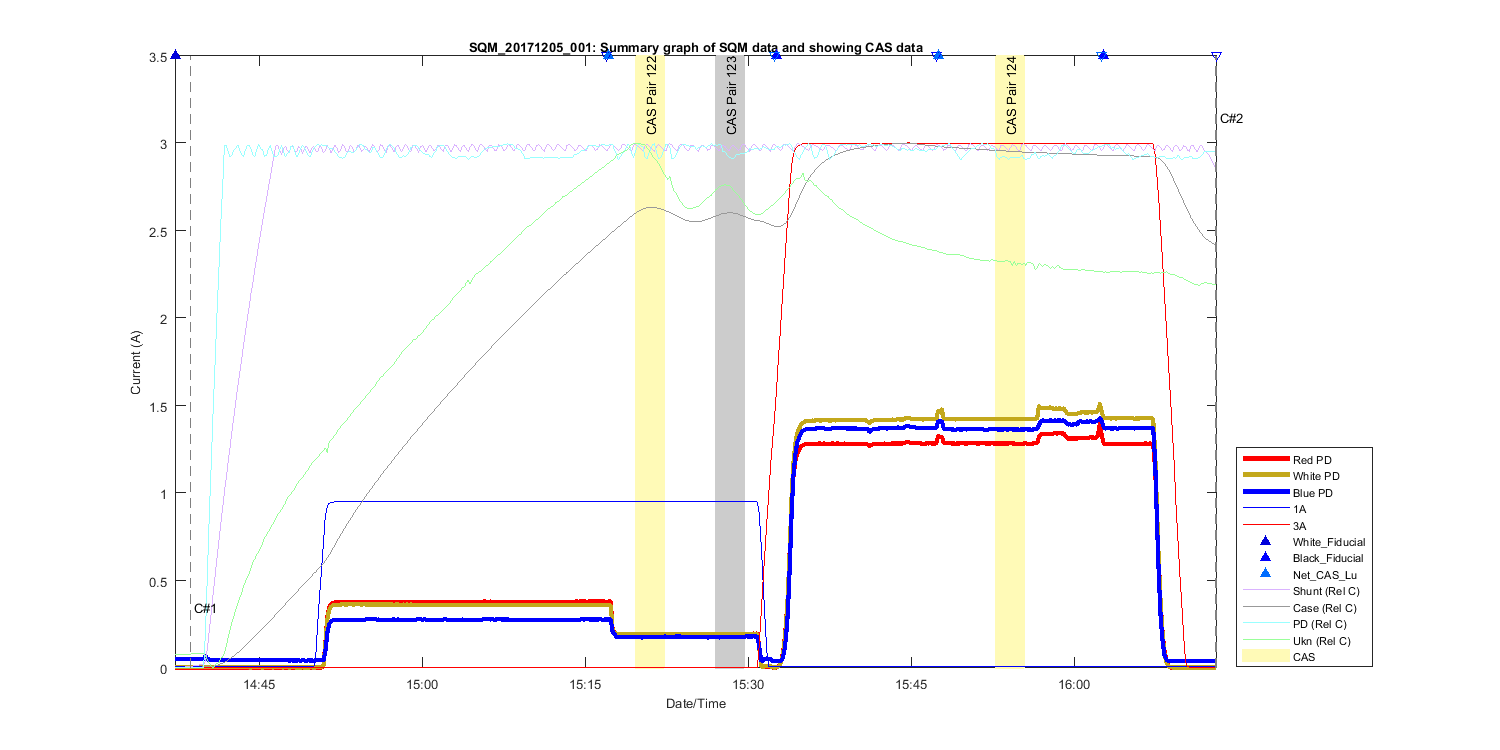

122 SQM_20171205_001 05-Dec-2017 15:19:41 -> 15:22:18 2.6 39.8 29.8 20 mounted in the CAS 1.0 0.196 0.216 0.192 0.048 0.177 0.804
123 SQM_20171205_001 05-Dec-2017 15:27:04 -> 15:29:41 2.6 47.2 37.1 20 mounted in the CAS 1.0 0.196 0.159 0.192 0.079 0.177 0.723
124 SQM_20171205_001 05-Dec-2017 15:52:49 -> 15:55:26 2.6 73.0 21.2 20 mounted in the CAS 2.0 1.284 0.065 1.424 0.037 1.364 0.048

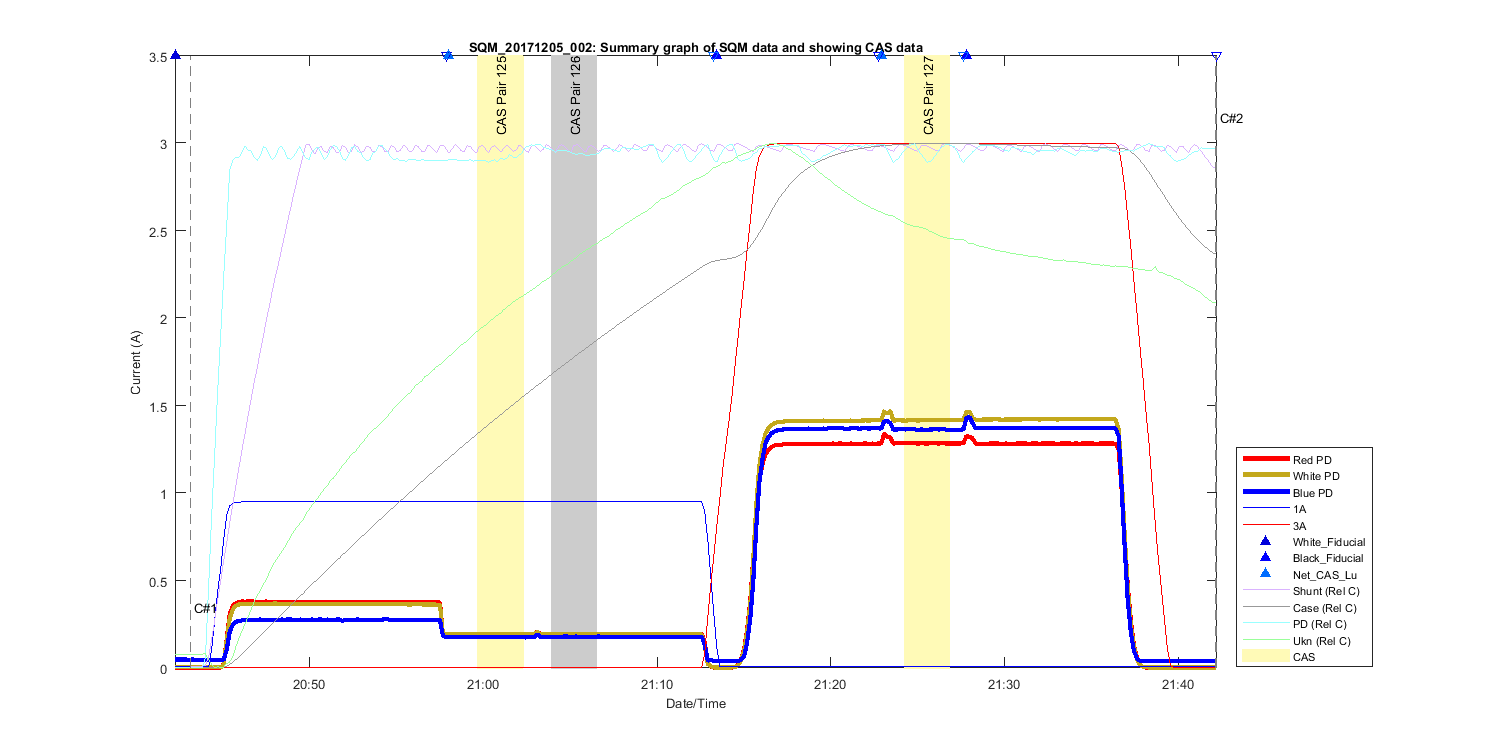

125 SQM_20171205_002 05-Dec-2017 20:59:42 -> 21:02:19 2.6 15.8 15.6 20 mounted in the CAS 1.0 0.195 0.110 0.193 0.095 0.177 0.380
126 SQM_20171205_002 05-Dec-2017 21:03:57 -> 21:06:34 2.6 20.0 19.8 20 mounted in the CAS 1.0 0.196 0.194 0.193 0.127 0.179 0.657
127 SQM_20171205_002 05-Dec-2017 21:24:16 -> 21:26:53 2.6 40.4 10.9 20 mounted in the CAS 2.0 1.285 0.043 1.417 0.074 1.364 0.123

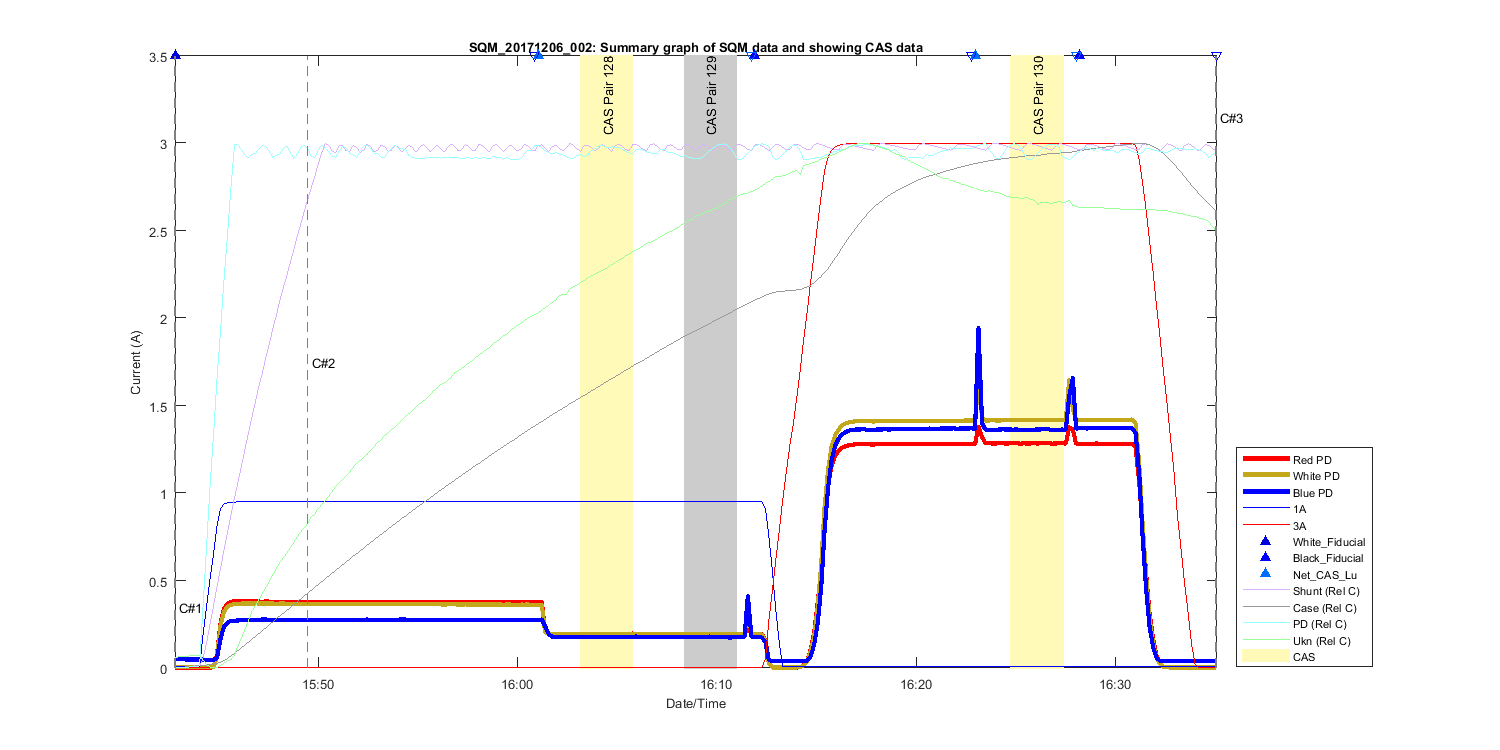

128 SQM_20171206_002 06-Dec-2017 16:03:11 -> 16:05:49 2.6 19.4 19.5 20 mounted in the CAS 1.0 0.196 0.291 0.193 0.101 0.178 0.726
129 SQM_20171206_002 06-Dec-2017 16:08:23 -> 16:11:01 2.6 24.6 24.5 20 mounted in the CAS 1.0 0.196 0.243 0.193 0.097 0.177 0.819
130 SQM_20171206_002 06-Dec-2017 16:24:46 -> 16:27:25 2.6 41.0 11.7 20 mounted in the CAS 2.0 1.284 0.049 1.418 0.073 1.363 0.086

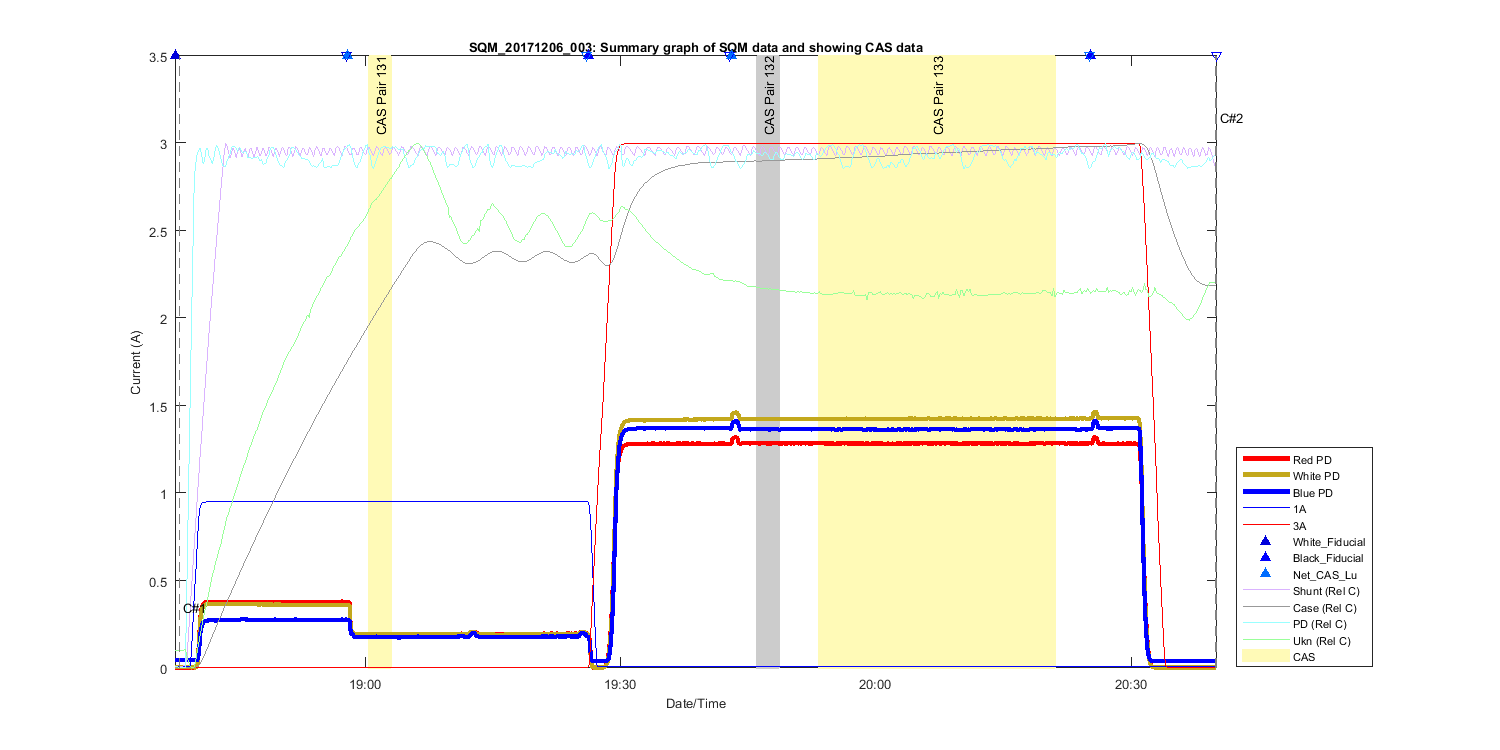

131 SQM_20171206_003 06-Dec-2017 19:00:29 -> 19:03:07 2.6 21.7 21.0 20 mounted in the CAS 1.0 0.196 0.196 0.192 0.059 0.178 0.599
132 SQM_20171206_003 06-Dec-2017 19:46:06 -> 19:48:44 2.6 67.3 19.1 20 mounted in the CAS 2.0 1.284 0.035 1.424 0.049 1.365 0.081
133 SQM_20171206_003 06-Dec-2017 19:53:17 -> 20:21:09 27.9 74.5 26.3 20 mounted in the CAS 2.0 1.284 0.046 1.426 0.054 1.364 0.105

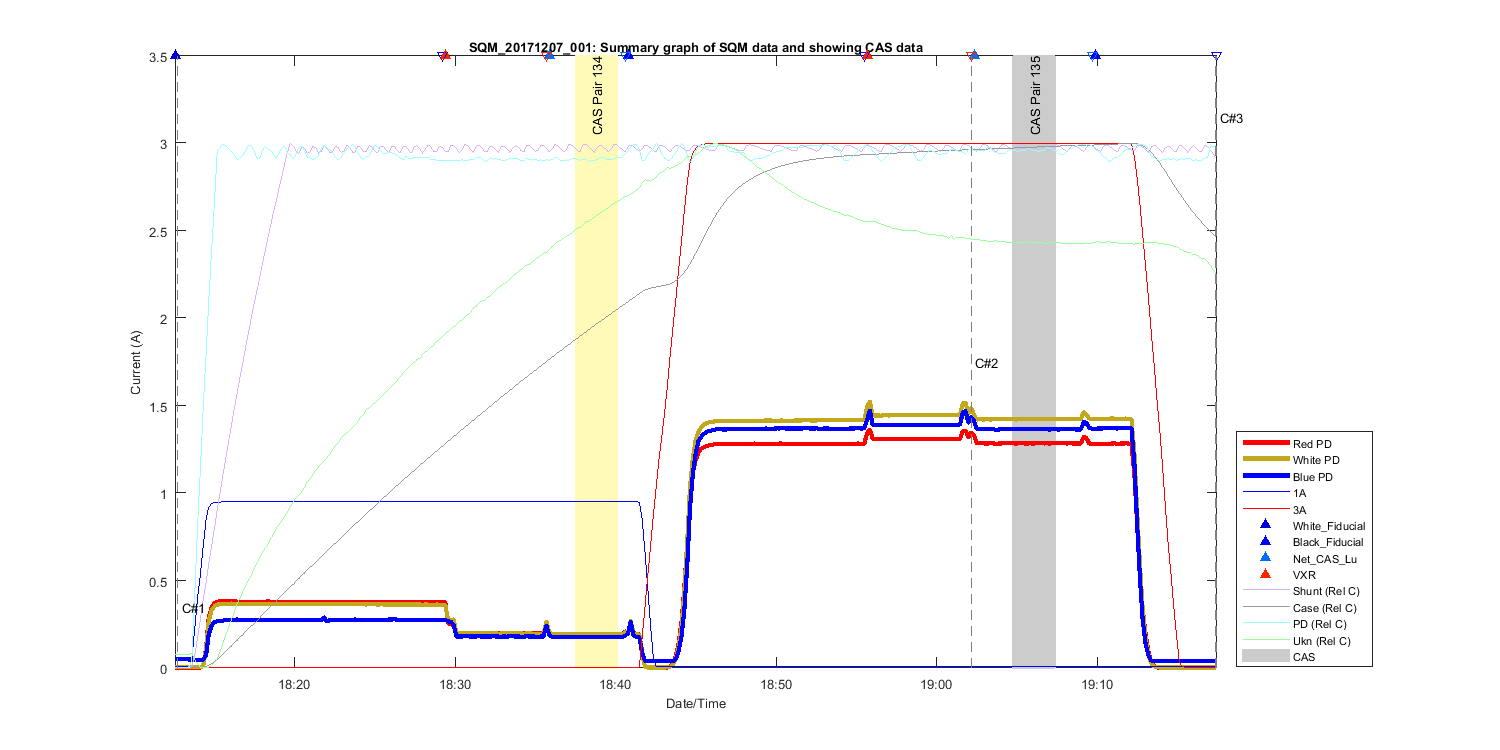

134 SQM_20171207_001 07-Dec-2017 18:37:31 -> 18:40:09 2.6 23.7 24.2 20 mounted in the CAS 1.0 0.195 0.134 0.193 0.057 0.177 0.413
135 SQM_20171207_001 07-Dec-2017 19:04:46 -> 19:07:24 2.6 50.9 22.4 20 mounted in the CAS 2.0 1.285 0.050 1.423 0.044 1.365 0.066

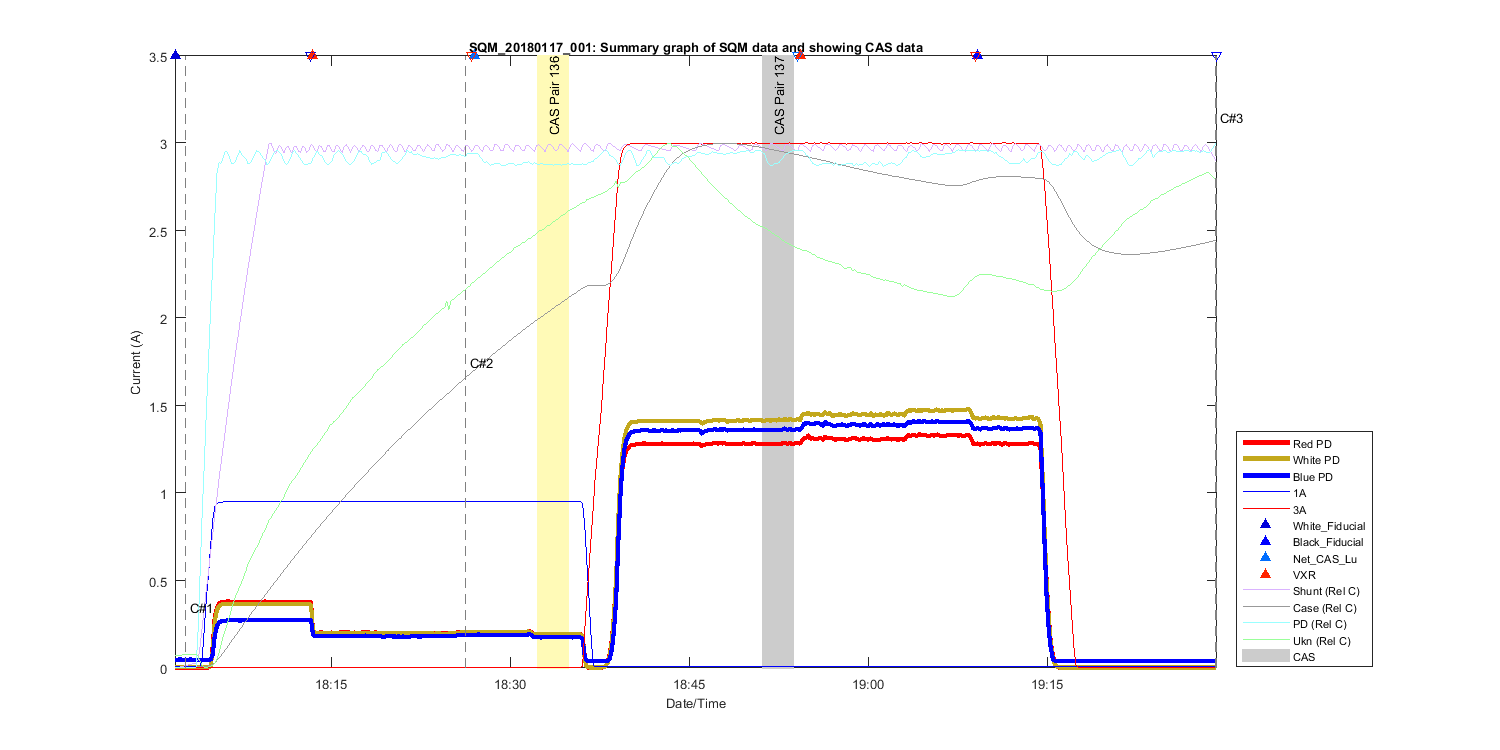

136 SQM_20180117_001 17-Jan-2018 18:32:18 -> 18:34:56 2.6 28.7 28.4 20 mounted in the CAS 1.0 0.195 0.105 0.192 0.064 0.176 0.358
137 SQM_20180117_001 17-Jan-2018 18:51:11 -> 18:53:49 2.6 47.5 14.4 20 mounted in the CAS 2.0 1.283 0.229 1.418 0.256 1.362 0.271

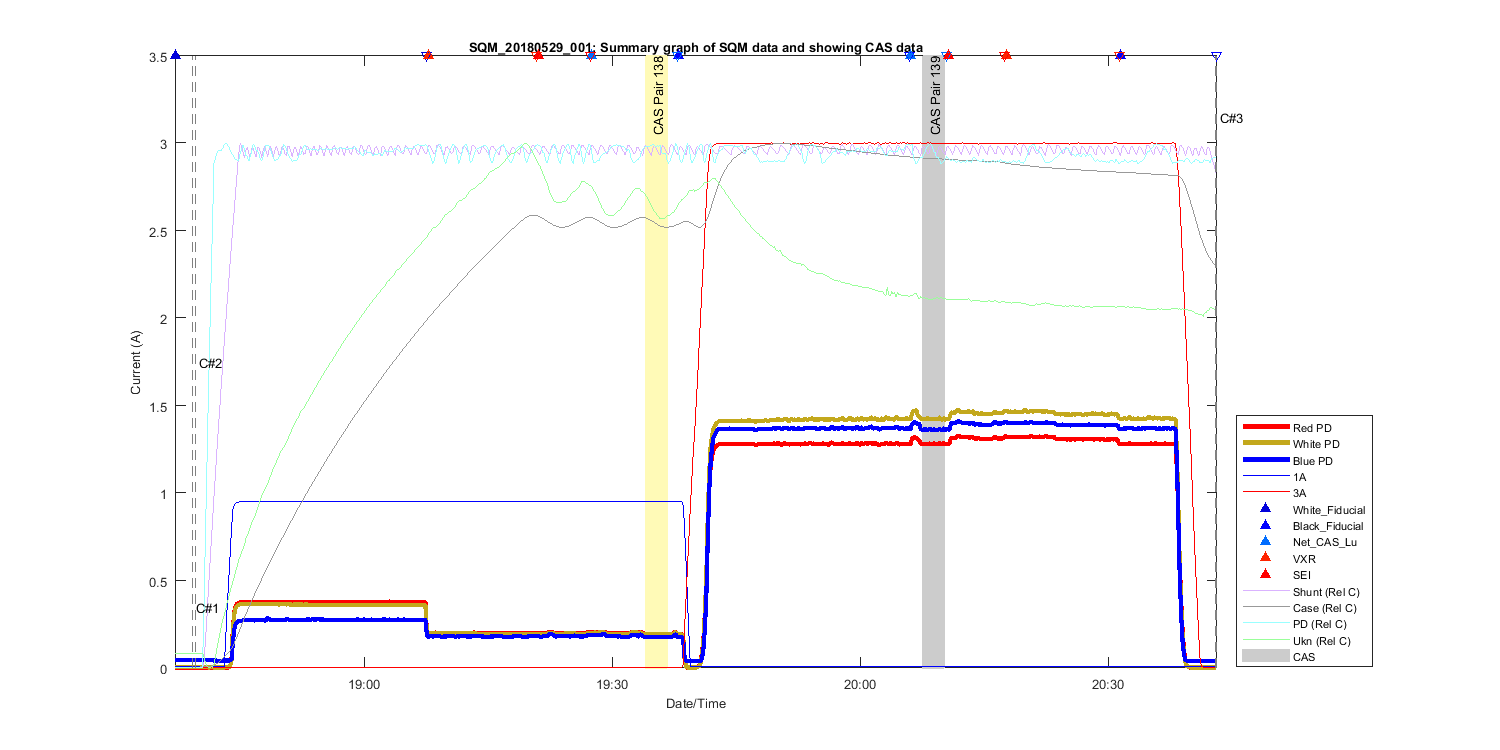

138 SQM_20180529_001 29-May-2018 19:34:07 -> 19:36:44 2.6 53.7 51.3 20 mounted in the CAS 1.0 0.195 0.213 0.192 0.073 0.177 0.562
139 SQM_20180529_001 29-May-2018 20:07:37 -> 20:10:15 2.6 87.2 28.4 20 mounted in the CAS 2.0 1.282 0.222 1.425 0.256 1.364 0.257

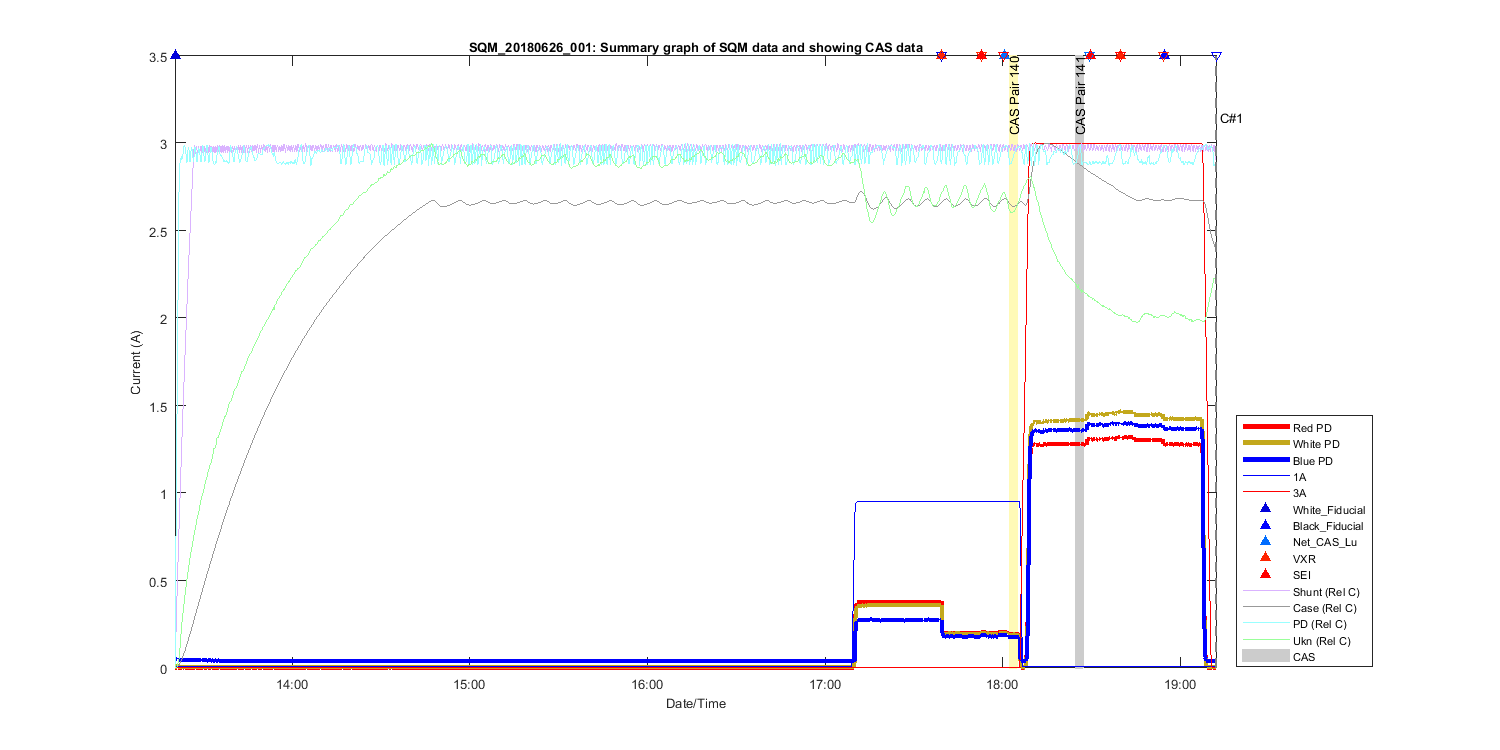

140 SQM_20180626_001 26-Jun-2018 18:02:24 -> 18:05:02 2.6 282.2 53.3 20 mounted in the CAS 1.0 0.195 0.162 0.192 0.037 0.177 0.461
141 SQM_20180626_001 26-Jun-2018 18:24:44 -> 18:27:22 2.6 304.6 18.0 20 mounted in the CAS 2.0 1.280 0.102 1.418 0.099 1.361 0.143

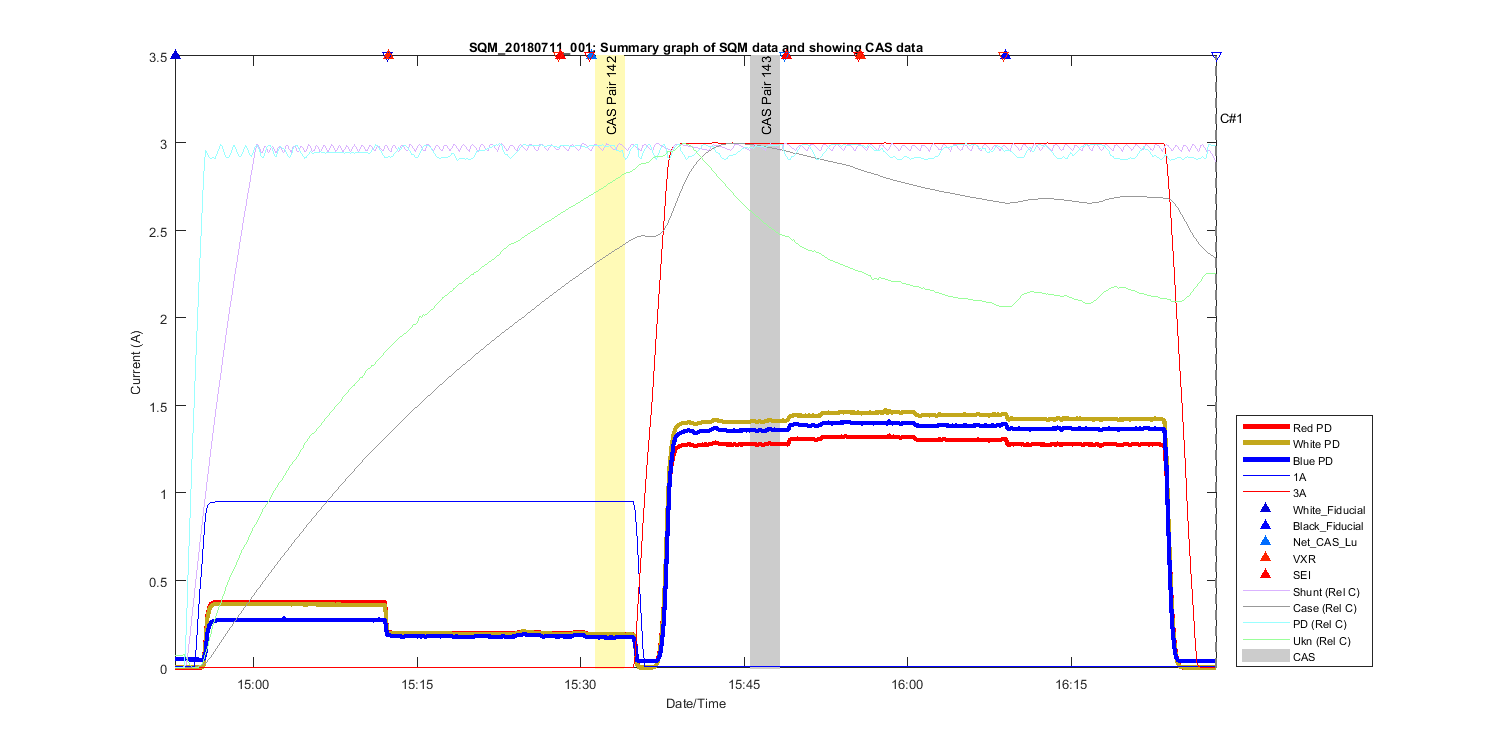

142 SQM_20180711_001 11-Jul-2018 15:31:25 -> 15:34:03 2.6 37.6 37.0 20 mounted in the CAS 1.0 0.195 0.195 0.191 0.048 0.175 0.643
143 SQM_20180711_001 11-Jul-2018 15:45:40 -> 15:48:18 2.6 51.8 10.0 20 mounted in the CAS 2.0 1.280 0.198 1.412 0.246 1.361 0.262

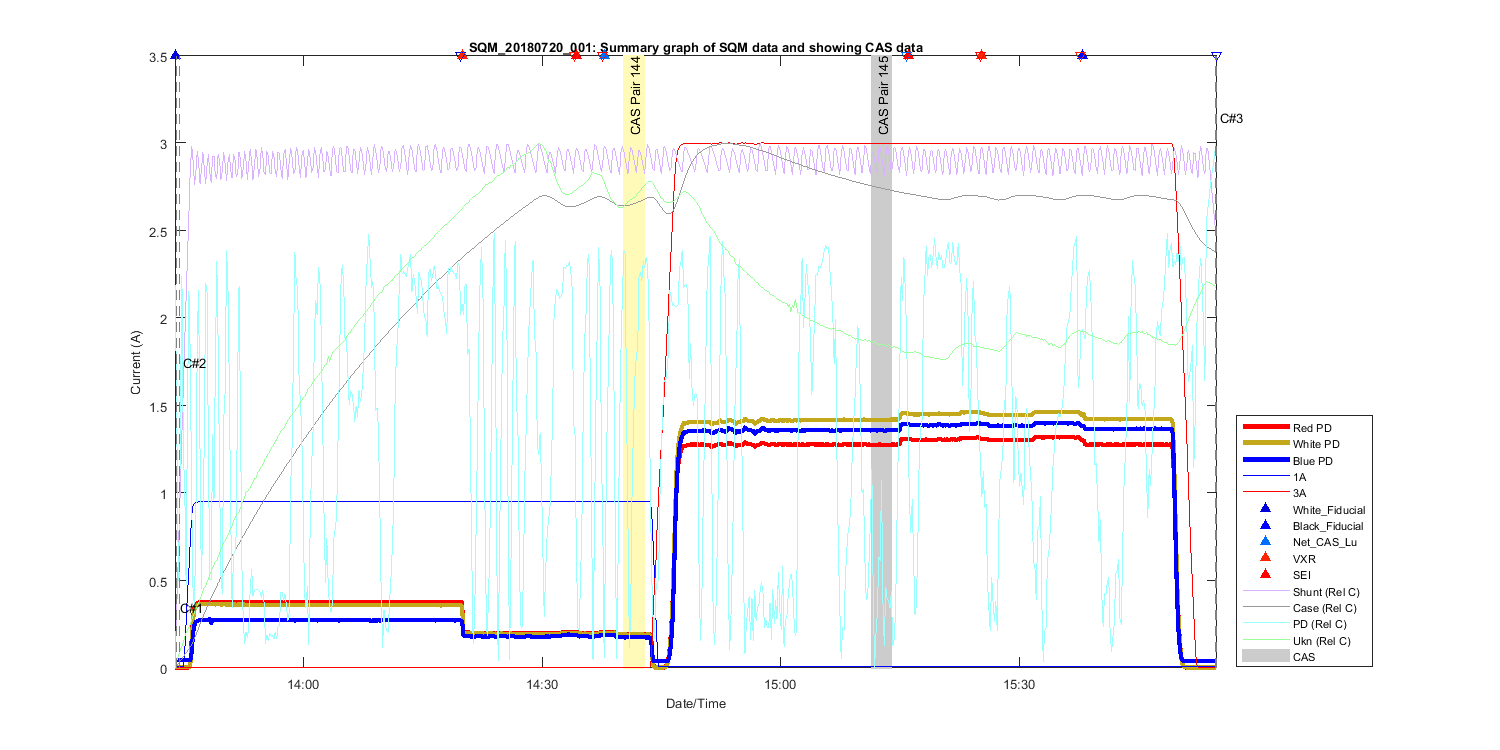

144 SQM_20180720_001 20-Jul-2018 14:40:16 -> 14:42:54 2.6 61.3 55.4 20 mounted in the CAS 1.0 0.195 0.131 0.191 0.049 0.177 0.676
145 SQM_20180720_001 20-Jul-2018 15:11:25 -> 15:14:02 2.6 92.4 27.0 20 mounted in the CAS 2.0 1.277 0.046 1.420 0.047 1.359 0.085

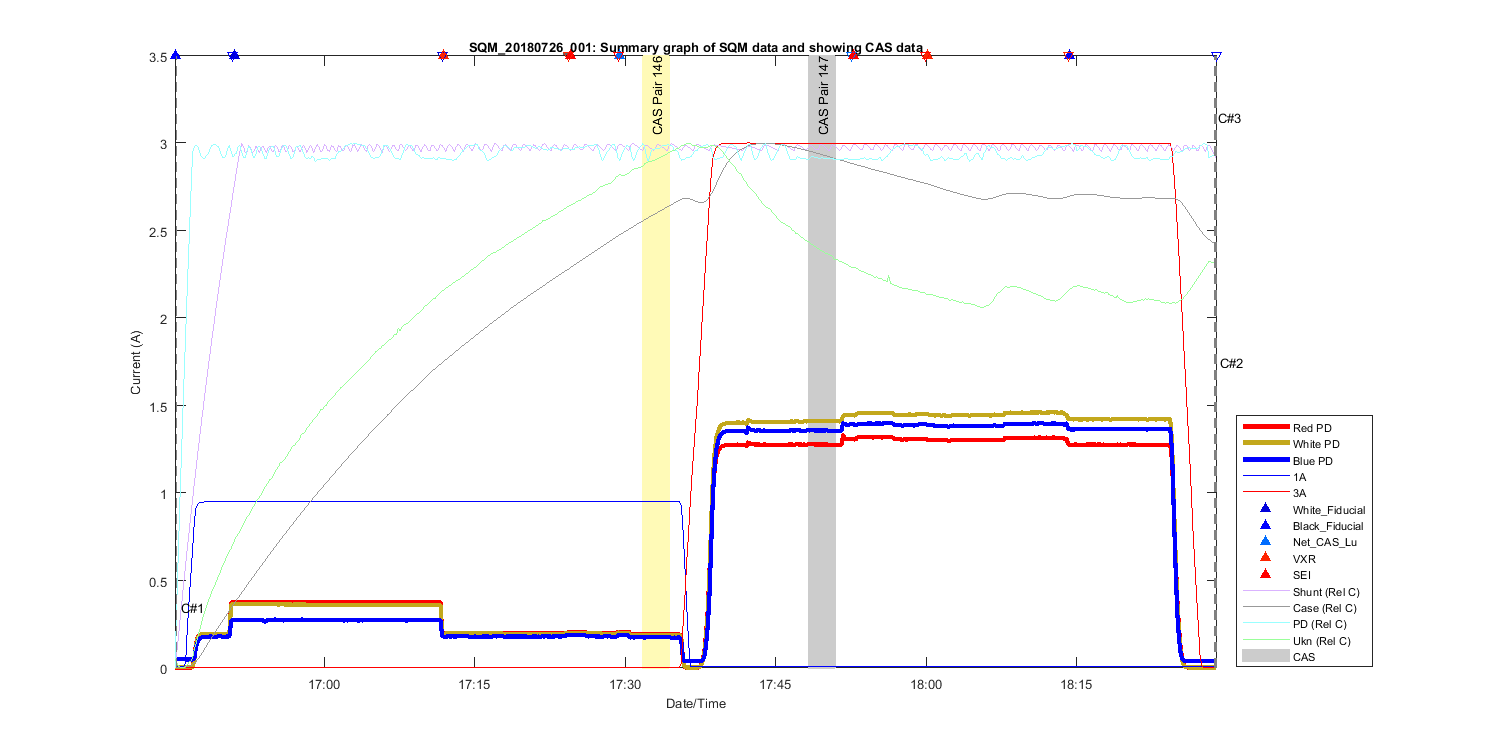

146 SQM_20180726_001 26-Jul-2018 17:31:47 -> 17:34:25 2.6 46.8 45.9 20 mounted in the CAS 1.0 0.195 0.179 0.191 0.024 0.177 0.715
147 SQM_20180726_001 26-Jul-2018 17:48:19 -> 17:50:57 2.6 63.3 12.1 20 mounted in the CAS 2.0 1.278 0.059 1.412 0.043 1.358 0.096

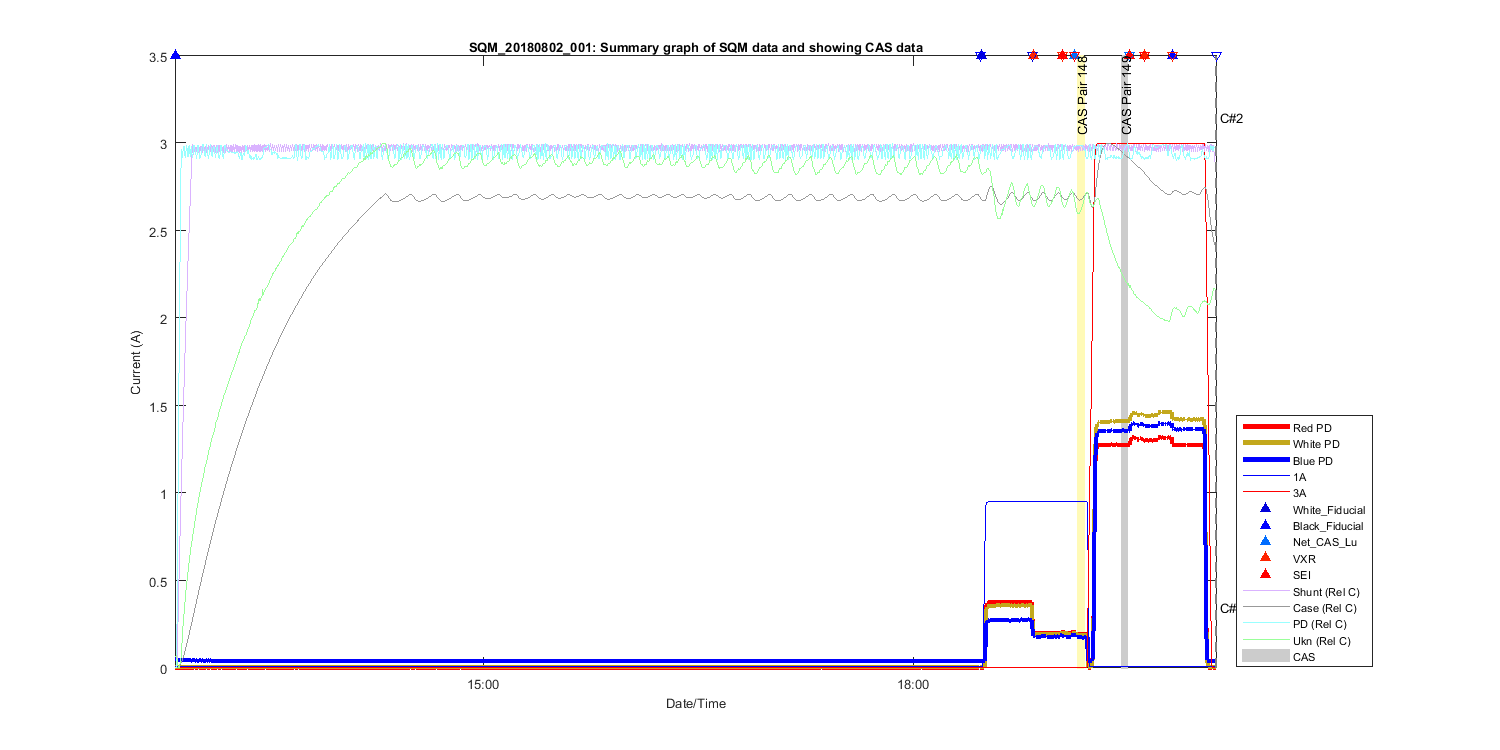

148 SQM_20180802_001 02-Aug-2018 19:08:52 -> 19:11:31 2.7 377.3 39.8 20 mounted in the CAS 1.0 0.195 0.218 0.191 0.024 0.175 0.755
149 SQM_20180802_001 02-Aug-2018 19:27:12 -> 19:29:50 2.6 395.7 13.7 20 mounted in the CAS 2.0 1.277 0.054 1.413 0.059 1.358 0.071

Means and std for each CAS pair (x-axis) and each of the photodiodes (red, white and blue) for all the lamp levels (y-axis).


LAMP LEVEL LOW: Means and std for each CAS pair (x-axis) and each of the photodiodes (red, white and blue) (y-axis)


LAMP LEVEL MEDUIM Means and std for each CAS pair (x-axis) and each of the photodiodes (red, white and blue) (y-axis)


LAMP LEVEL HIGH: Means and std for each CAS pair (x-axis) and each of the photodiodes (red, white and blue) (y-axis)


LAMP LEVEL UNKNOWN: Means and std for each CAS pair (x-axis) and each of the photodiodes (red, white and blue) (y-axis)


Means and std for each CAS pair (x-axis) and each of the 1A and 3A lamp currents for all the lamp levels.


Means and std for each CAS pair (x-axis) and each of the mean Lamp level (1= Low, 2 = Medium, 4 = High, 0 = unknown).


The detailed view of each SQM file with has a associated CAS data set. The grey and yellow patches show the time of the CAS data.

Summary Figure for sqm_20161208_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
1 SQM_20161208_001 08-Dec-2016 19:00:46 -> 20:31:38 90.9 8.6 7.0 15 on the table 4.0 1.557 0.125 1.690 0.191 1.598 0.167
2 SQM_20161208_001 08-Dec-2016 20:35:46 -> 20:46:38 10.9 103.6 102.1 20 on the table 4.0 1.557 0.083 1.691 0.087 1.598 0.128
3 SQM_20161208_001 08-Dec-2016 20:55:46 -> 21:36:38 40.9 123.6 2.8 15 on the table 2.0 1.352 0.089 1.490 0.112 1.443 0.124
4 SQM_20161208_001 08-Dec-2016 21:40:46 -> 21:51:39 10.9 168.6 47.8 20 on the table 2.0 1.351 0.105 1.491 0.126 1.442 0.147

Summary Figure for sqm_20161213_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
5 SQM_20161213_001 13-Dec-2016 14:41:47 -> 15:52:39 70.9 14.3 13.0 15 on the table 1.0 0.208 0.257 0.202 0.284 0.188 0.814
6 SQM_20161213_001 13-Dec-2016 15:52:46 -> 15:55:38 2.9 85.3 83.9 20 on the table 1.0 0.208 0.146 0.202 0.037 0.190 0.316
7 SQM_20161213_001 13-Dec-2016 16:08:46 -> 18:55:38 166.9 101.3 12.3 15 on the table 2.0 1.352 0.093 1.491 0.171 1.444 0.125
8 SQM_20161213_001 13-Dec-2016 18:55:46 -> 18:58:38 2.9 268.3 179.2 20 on the table 2.0 1.352 0.101 1.491 0.100 1.444 0.126
9 SQM_20161213_001 13-Dec-2016 19:10:46 -> 20:01:38 50.9 283.3 10.0 15 on the table 4.0 1.558 0.089 1.691 0.117 1.600 0.127
10 SQM_20161213_001 13-Dec-2016 20:01:46 -> 20:04:38 2.9 334.3 61.0 20 on the table 4.0 1.558 0.093 1.690 0.107 1.600 0.132

Summary Figure for sqm_20161214_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
11 SQM_20161214_001 14-Dec-2016 20:27:22 -> 20:38:25 11.0 399.7 26.6 15 on the table 1.0 0.208 0.262 0.202 0.068 0.188 0.899
12 SQM_20161214_001 14-Dec-2016 20:38:52 -> 20:42:01 3.2 411.2 38.0 20 on the table 1.0 0.207 0.246 0.202 0.074 0.186 0.583
13 SQM_20161214_001 14-Dec-2016 20:42:23 -> 20:45:32 3.1 414.7 NaN 10 on the table 2.7 0.118 173.83 0.116 181.377 0.117 136.470
14 SQM_20161214_001 14-Dec-2016 20:47:22 -> 21:13:25 26.1 419.7 4.0 15 on the table 2.0 1.351 0.119 1.483 0.354 1.442 0.177
15 SQM_20161214_001 14-Dec-2016 21:18:40 -> 21:21:48 3.1 451.0 35.4 20 on the table 2.0 1.351 0.038 1.490 0.032 1.442 0.076
16 SQM_20161214_001 14-Dec-2016 21:27:22 -> 21:38:24 11.0 459.7 5.4 15 on the table 4.0 1.556 0.041 1.692 0.042 1.598 0.069
17 SQM_20161214_001 14-Dec-2016 21:43:48 -> 21:46:57 3.2 476.2 21.9 20 on the table 4.0 1.556 0.044 1.692 0.044 1.598 0.063

Summary Figure for sqm_20161215_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
18 SQM_20161215_001 15-Dec-2016 19:51:13 -> 20:24:05 32.9 291.1 1.8 15 on the table 1.0 0.208 0.292 0.202 0.221 0.188 0.830
19 SQM_20161215_001 15-Dec-2016 20:25:36 -> 20:28:13 2.6 325.5 36.1 20 on the table 1.0 0.208 0.072 0.202 0.059 0.189 0.375
20 SQM_20161215_001 15-Dec-2016 20:32:13 -> 20:41:05 8.9 332.1 2.8 15 on the table 2.0 1.348 0.634 1.473 0.725 1.436 0.874
21 SQM_20161215_001 15-Dec-2016 20:42:39 -> 20:45:17 2.6 342.6 13.2 20 on the table 2.0 1.352 0.046 1.482 0.067 1.443 0.053
22 SQM_20161215_001 15-Dec-2016 20:47:13 -> 20:55:05 7.9 347.1 1.2 15 on the table 4.0 1.554 0.447 1.684 0.528 1.596 0.510
23 SQM_20161215_001 15-Dec-2016 20:56:35 -> 20:59:12 2.6 356.5 10.7 20 on the table 4.0 1.557 0.063 1.688 0.060 1.598 0.102

Summary Figure for sqm_20161216_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
24 SQM_20161216_001 16-Dec-2016 13:44:50 -> 14:11:42 26.9 6.3 4.2 15 on the table 1.0 0.207 0.255 0.203 0.569 0.188 0.771
25 SQM_20161216_001 16-Dec-2016 14:13:15 -> 14:15:53 2.6 34.7 32.6 20 on the table 1.0 0.208 0.095 0.202 0.045 0.188 0.572
26 SQM_20161216_001 16-Dec-2016 14:28:50 -> 14:46:42 17.9 50.3 3.2 15 on the table 2.0 1.351 0.246 1.477 0.462 1.441 0.373
27 SQM_20161216_001 16-Dec-2016 14:48:50 -> 14:53:42 4.9 70.3 23.1 20 on the table 2.0 1.351 0.040 1.486 0.060 1.443 0.096
28 SQM_20161216_001 16-Dec-2016 15:07:58 -> 15:10:36 2.6 89.4 12.3 20 on the table 4.0 1.556 0.037 1.691 0.041 1.599 0.050
29 SQM_20161216_001 16-Dec-2016 15:27:39 -> 15:30:17 2.6 109.1 13.8 20 on the table 1.0 0.208 0.178 0.202 0.033 0.190 0.273

Summary Figure for sqm_20161223_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
30 SQM_20161223_001 23-Dec-2016 17:35:17 -> 18:03:24 28.1 10.8 2.8 15 on the table 1.0 0.207 0.278 0.203 0.437 0.188 0.836
31 SQM_20161223_001 23-Dec-2016 18:07:29 -> 18:10:09 2.7 43.0 34.9 20 on the table 1.0 0.208 0.156 0.201 0.061 0.188 0.954
32 SQM_20161223_001 23-Dec-2016 18:10:17 -> 18:12:57 2.7 45.8 37.8 20 on the table 1.0 0.208 0.167 0.201 0.067 0.188 0.910
33 SQM_20161223_001 23-Dec-2016 18:20:32 -> 18:30:25 9.9 56.0 3.0 15 on the table 2.0 1.350 0.451 1.473 0.523 1.439 0.620
34 SQM_20161223_001 23-Dec-2016 18:30:33 -> 18:33:12 2.7 66.1 13.0 20 on the table 2.0 1.352 0.225 1.481 0.283 1.443 0.257
35 SQM_20161223_001 23-Dec-2016 18:38:32 -> 18:46:25 7.9 74.0 1.4 15 on the table 4.0 1.555 0.219 1.687 0.250 1.597 0.263
36 SQM_20161223_001 23-Dec-2016 18:46:49 -> 18:49:28 2.7 82.3 9.6 20 on the table 4.0 1.555 0.138 1.688 0.130 1.597 0.204
37 SQM_20161223_001 23-Dec-2016 18:58:12 -> 19:00:51 2.6 93.7 4.7 20 on the table 2.0 1.351 0.037 1.488 0.054 1.443 0.053
38 SQM_20161223_001 23-Dec-2016 19:16:24 -> 19:19:03 2.6 111.9 12.1 20 on the table 1.0 0.208 0.237 0.202 0.046 0.189 0.717
39 SQM_20161223_001 23-Dec-2016 19:19:14 -> 19:21:54 2.7 114.7 14.9 20 on the table 1.0 0.208 0.265 0.202 0.079 0.188 0.787

Summary Figure for sqm_20170119_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
40 SQM_20170119_001 19-Jan-2017 19:50:11 -> 19:52:50 2.7 49.9 47.8 20 on the table 1.0 0.208 0.284 0.202 0.078 0.188 0.924
41 SQM_20170119_001 19-Jan-2017 19:53:06 -> 19:55:44 2.6 52.9 50.8 20 on the table 1.0 0.207 0.287 0.202 0.067 0.187 0.604
42 SQM_20170119_001 19-Jan-2017 20:24:10 -> 20:26:48 2.6 83.9 25.2 20 on the table 4.0 1.557 0.042 1.687 0.051 1.600 0.063

Summary Figure for sqm_20170127_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
43 SQM_20170127_001 27-Jan-2017 21:12:45 -> 21:15:22 2.6 418.4 48.0 20 on the table 1.0 0.207 0.302 0.202 0.045 0.187 0.808
44 SQM_20170127_001 27-Jan-2017 21:32:56 -> 21:35:33 2.6 438.5 15.8 20 on the table 4.0 1.557 0.066 1.684 0.078 1.599 0.077

Summary Figure for sqm_20170321_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
45 SQM_20170321_001 21-Mar-2017 20:19:28 -> 20:22:06 2.6 168.5 21.8 20 on the table 1.0 0.207 0.333 0.202 0.059 0.187 0.608
46 SQM_20170321_001 21-Mar-2017 21:01:24 -> 21:04:02 2.6 210.4 24.4 20 on the table 4.0 1.556 0.029 1.688 0.035 1.599 0.114

Summary Figure for sqm_20170322_002


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
47 SQM_20170322_002 22-Mar-2017 13:57:10 -> 13:59:48 2.6 26.2 26.3 20 on the table 1.0 0.207 0.369 0.202 0.149 0.188 0.829
48 SQM_20170322_002 22-Mar-2017 14:16:27 -> 14:19:05 2.6 45.5 45.5 20 on the table 1.0 0.207 0.255 0.201 0.097 0.189 1.168
49 SQM_20170322_002 22-Mar-2017 14:19:32 -> 14:22:09 2.6 48.5 48.7 20 on the table 1.0 0.208 0.299 0.201 0.060 0.188 0.775
50 SQM_20170322_002 22-Mar-2017 14:40:38 -> 14:43:15 2.6 69.7 15.1 20 on the table 2.0 1.352 0.051 1.483 0.050 1.443 0.083
51 SQM_20170322_002 22-Mar-2017 15:26:11 -> 15:28:48 2.6 115.2 25.6 20 on the table 4.0 1.556 0.046 1.691 0.045 1.599 0.090
52 SQM_20170322_002 22-Mar-2017 15:41:30 -> 15:44:08 2.6 130.5 41.0 20 mounted in the CAS 4.0 1.493 0.054 1.624 0.035 1.539 0.095
53 SQM_20170322_002 22-Mar-2017 15:59:31 -> 16:02:13 2.7 148.5 59.0 20 mounted in the CAS 4.0 1.493 0.035 1.624 0.043 1.539 0.060

Summary Figure for sqm_20170407_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
54 SQM_20170407_001 07-Apr-2017 20:08:39 -> 20:12:31 3.9 30.0 29.4 20 mounted in the CAS 1.0 0.200 0.207 0.195 0.052 0.183 0.691
55 SQM_20170407_001 07-Apr-2017 20:29:40 -> 20:34:32 4.9 51.0 15.6 20 mounted in the CAS 4.0 1.504 0.089 1.626 0.122 1.546 0.100
56 SQM_20170407_001 07-Apr-2017 20:48:23 -> 20:53:15 4.9 69.8 12.6 20 mounted in the CAS 2.0 1.306 0.114 1.439 0.145 1.397 0.150

Summary Figure for sqm_20170501_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
57 SQM_20170501_001 01-May-2017 19:48:05 -> 19:52:57 4.9 47.5 45.7 20 mounted in the CAS 1.0 0.200 0.264 0.194 0.105 0.183 1.003
58 SQM_20170501_001 01-May-2017 19:54:05 -> 19:58:57 4.9 53.5 51.9 20 mounted in the CAS 1.0 0.200 0.228 0.194 0.061 0.182 0.996
59 SQM_20170501_001 01-May-2017 20:13:05 -> 20:17:57 4.9 72.5 13.8 20 mounted in the CAS 4.0 1.505 0.029 1.627 0.064 1.546 0.056
60 SQM_20170501_001 01-May-2017 20:24:05 -> 20:28:57 4.9 83.5 4.0 20 mounted in the CAS 2.0 1.307 0.044 1.438 0.038 1.396 0.082

Summary Figure for sqm_20170508_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
61 SQM_20170508_001 08-May-2017 23:08:11 -> 23:10:48 2.6 37.6 36.3 20 on the table 1.0 0.207 0.226 0.201 0.030 0.187 0.904
62 SQM_20170508_001 08-May-2017 23:14:54 -> 23:17:32 2.6 44.3 43.1 20 mounted in the CAS 1.0 0.200 0.188 0.194 0.031 0.182 1.035
63 SQM_20170508_001 08-May-2017 23:34:01 -> 23:36:38 2.6 63.4 15.3 20 mounted in the CAS 2.0 1.310 0.139 1.436 0.165 1.399 0.136

Summary Figure for sqm_20170606_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
64 SQM_20170606_001 06-Jun-2017 20:22:14 -> 20:24:51 2.6 51.0 48.5 20 on the table 4.0 1.548 0.030 1.674 0.033 1.588 0.076
65 SQM_20170606_001 06-Jun-2017 20:32:32 -> 20:35:10 2.6 61.3 58.9 20 mounted in the CAS 4.0 1.474 0.042 1.602 0.031 1.525 0.106
66 SQM_20170606_001 06-Jun-2017 20:36:35 -> 20:39:13 2.6 65.3 62.9 20 mounted in the CAS 4.0 1.474 0.139 1.603 0.194 1.525 0.225
67 SQM_20170606_001 06-Jun-2017 20:40:10 -> 20:42:48 2.6 68.9 66.4 20 mounted in the CAS 4.0 1.474 0.150 1.603 0.214 1.525 0.201
68 SQM_20170606_001 06-Jun-2017 20:47:52 -> 20:50:29 2.6 76.6 74.1 20 mounted in the CAS 4.0 1.450 0.086 1.581 0.112 1.507 0.139
69 SQM_20170606_001 06-Jun-2017 20:51:27 -> 20:54:04 2.6 80.2 77.8 20 mounted in the CAS 4.0 1.449 0.174 1.580 0.212 1.507 0.239
70 SQM_20170606_001 06-Jun-2017 20:54:55 -> 20:57:33 2.6 83.6 81.1 20 mounted in the CAS 4.0 1.450 0.190 1.581 0.190 1.507 0.242

Summary Figure for sqm_20170714_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
71 SQM_20170714_001 14-Jul-2017 17:43:39 -> 17:46:16 2.6 116.6 33.1 20 on the table 1.0 0.204 0.156 0.198 0.040 0.186 0.729
72 SQM_20170714_001 14-Jul-2017 18:32:58 -> 18:35:35 2.6 166.0 27.9 20 on the table 2.0 1.329 0.179 1.461 0.197 1.421 0.214
73 SQM_20170714_001 14-Jul-2017 18:49:06 -> 18:51:44 2.6 182.1 10.3 20 on the table 4.0 1.533 0.080 1.664 0.101 1.578 0.100
74 SQM_20170714_001 14-Jul-2017 19:17:33 -> 19:20:10 2.6 210.6 38.7 20 mounted in the CAS 4.0 1.482 0.166 1.612 0.207 1.530 0.259
75 SQM_20170714_001 14-Jul-2017 19:21:58 -> 19:24:36 2.6 215.0 43.1 20 mounted in the CAS 4.0 1.481 0.069 1.610 0.080 1.528 0.078
76 SQM_20170714_001 14-Jul-2017 19:25:46 -> 19:28:23 2.6 218.8 47.0 20 mounted in the CAS 4.0 1.481 0.039 1.610 0.058 1.528 0.050
77 SQM_20170714_001 14-Jul-2017 19:41:24 -> 19:44:01 2.6 234.4 11.2 20 mounted in the CAS 2.0 1.287 0.231 1.419 0.260 1.380 0.296
78 SQM_20170714_001 14-Jul-2017 19:50:30 -> 19:53:07 2.6 243.5 20.3 20 mounted in the CAS 2.0 1.286 0.119 1.420 0.139 1.380 0.134
79 SQM_20170714_001 14-Jul-2017 20:01:30 -> 20:04:08 2.6 254.5 5.2 20 mounted in the CAS 1.0 0.198 0.164 0.193 0.128 0.180 0.597

Summary Figure for sqm_20170914_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
80 SQM_20170914_001 14-Sep-2017 18:20:21 -> 18:43:13 22.9 40.5 37.5 15 on the table 2.0 1.330 0.177 1.464 0.203 1.423 0.214
81 SQM_20170914_001 14-Sep-2017 19:06:10 -> 19:16:03 9.9 86.4 83.4 20 on the table 2.0 1.331 0.265 1.466 0.202 1.426 0.315
82 SQM_20170914_001 14-Sep-2017 19:36:14 -> 19:38:52 2.6 116.4 16.3 20 on the table 1.0 0.204 0.141 0.198 0.070 0.185 0.338

Summary Figure for sqm_20170925_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
83 SQM_20170925_001 25-Sep-2017 18:40:10 -> 18:42:47 2.6 116.9 44.8 20 on the table 1.0 0.204 0.197 0.198 0.050 0.184 0.819
84 SQM_20170925_001 25-Sep-2017 19:19:45 -> 19:22:23 2.6 156.5 21.9 20 on the table 2.0 1.330 0.061 1.462 0.060 1.422 0.059
85 SQM_20170925_001 25-Sep-2017 20:06:47 -> 20:09:25 2.6 203.5 34.2 20 on the table 4.0 1.531 0.031 1.662 0.045 1.575 0.073
86 SQM_20170925_001 25-Sep-2017 20:22:32 -> 20:25:10 2.6 219.3 49.9 20 on the table 4.0 1.531 0.028 1.662 0.033 1.574 0.046
87 SQM_20170925_001 25-Sep-2017 20:28:13 -> 20:30:51 2.6 225.0 55.7 20 on the table 4.0 1.530 0.041 1.662 0.049 1.574 0.066
88 SQM_20170925_001 25-Sep-2017 20:34:31 -> 20:37:09 2.6 231.3 62.0 20 on the table 4.0 1.531 0.037 1.661 0.047 1.574 0.052
89 SQM_20170925_001 25-Sep-2017 20:40:00 -> 20:42:37 2.6 236.7 67.4 20 on the table 4.0 1.530 0.068 1.661 0.066 1.574 0.111
90 SQM_20170925_001 25-Sep-2017 20:44:32 -> 20:47:09 2.6 241.3 72.0 20 on the table 4.0 1.531 0.031 1.662 0.026 1.574 0.075

Summary Figure for sqm_20171006_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
96 SQM_20171006_001 06-Oct-2017 16:53:50 -> 16:56:28 2.6 39.0 38.4 20 on the table 1.0 0.204 0.072 0.198 0.036 0.183 0.269
97 SQM_20171006_001 06-Oct-2017 17:07:45 -> 17:10:22 2.6 52.9 52.4 20 mounted in the CAS 1.0 0.196 0.126 0.191 0.047 0.178 0.600
98 SQM_20171006_001 06-Oct-2017 17:20:55 -> 17:23:33 2.6 66.0 65.5 20 on the table 1.0 0.204 0.141 0.198 0.073 0.184 0.706
99 SQM_20171006_001 06-Oct-2017 17:52:31 -> 17:55:08 2.6 97.6 27.2 20 on the table 2.0 1.327 0.037 1.462 0.054 1.418 0.079
100 SQM_20171006_001 06-Oct-2017 18:24:04 -> 18:26:43 2.7 129.2 58.7 20 mounted in the CAS 2.0 1.283 0.249 1.418 0.311 1.377 0.239
101 SQM_20171006_001 06-Oct-2017 18:33:57 -> 18:36:34 2.6 139.1 68.7 20 on the table 2.0 1.326 0.250 1.461 0.302 1.418 0.274
102 SQM_20171006_001 06-Oct-2017 18:57:45 -> 19:00:23 2.6 162.9 16.8 20 on the table 4.0 1.526 0.233 1.660 0.223 1.571 0.280
103 SQM_20171006_001 06-Oct-2017 19:29:04 -> 19:31:42 2.6 194.2 48.2 20 mounted in the CAS 4.0 1.478 0.147 1.611 0.135 1.525 0.191
104 SQM_20171006_001 06-Oct-2017 19:38:41 -> 19:41:19 2.6 203.8 57.8 20 on the table 4.0 1.528 0.038 1.660 0.046 1.572 0.105
105 SQM_20171006_001 06-Oct-2017 19:45:05 -> 19:47:43 2.6 210.2 64.1 20 on the table 4.0 1.527 0.048 1.660 0.116 1.572 0.106
106 SQM_20171006_001 06-Oct-2017 19:51:26 -> 19:54:04 2.6 216.5 70.6 20 on the table 4.0 1.527 0.052 1.659 0.064 1.571 0.081
107 SQM_20171006_001 06-Oct-2017 20:03:59 -> 20:06:38 2.7 229.1 83.0 20 on the table 4.0 1.527 0.037 1.659 0.040 1.571 0.068
108 SQM_20171006_001 06-Oct-2017 20:12:58 -> 20:15:36 2.6 238.1 92.1 20 on the table 4.0 1.527 0.033 1.659 0.020 1.572 0.071
109 SQM_20171006_001 06-Oct-2017 20:17:54 -> 20:20:32 2.6 243.0 97.0 20 on the table 4.0 1.527 0.041 1.659 0.038 1.571 0.101

Summary Figure for sqm_20171013_002


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
110 SQM_20171013_002 13-Oct-2017 19:17:14 -> 19:19:51 2.6 66.1 22.9 20 mounted in the CAS 1.0 0.197 0.180 0.191 0.045 0.179 0.772
111 SQM_20171013_002 13-Oct-2017 20:15:28 -> 20:18:05 2.6 124.3 35.9 20 mounted in the CAS 2.0 1.283 0.042 1.418 0.046 1.376 0.060

Summary Figure for sqm_20171020_009


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
112 SQM_20171020_009 20-Oct-2017 19:23:15 -> 19:25:53 2.6 294.0 31.9 20 mounted in the CAS 1.0 0.197 0.099 0.191 0.047 0.180 0.447
113 SQM_20171020_009 20-Oct-2017 19:49:59 -> 19:52:36 2.6 320.7 21.5 20 mounted in the CAS 2.0 1.282 0.099 1.415 0.058 1.376 0.057

Summary Figure for sqm_20171027_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
114 SQM_20171027_001 27-Oct-2017 19:33:27 -> 19:36:04 2.6 392.9 35.9 20 mounted in the CAS 1.0 0.197 0.158 0.191 0.022 0.181 0.476
115 SQM_20171027_001 27-Oct-2017 20:01:06 -> 20:03:43 2.6 420.5 22.4 20 mounted in the CAS 2.0 1.283 0.029 1.415 0.061 1.377 0.079

Summary Figure for sqm_20171103_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
116 SQM_20171103_001 03-Nov-2017 19:12:59 -> 19:15:36 2.6 39.0 18.7 20 mounted in the CAS 1.0 0.196 0.138 0.191 0.059 0.179 0.621
117 SQM_20171103_001 03-Nov-2017 20:05:37 -> 20:08:16 2.7 91.6 27.5 20 mounted in the CAS 2.0 1.283 0.053 1.417 0.049 1.378 0.127

Summary Figure for sqm_20171117_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
118 SQM_20171117_001 17-Nov-2017 15:56:20 -> 15:58:57 2.6 58.9 39.8 20 mounted in the CAS 1.0 0.197 0.251 0.191 0.026 0.180 0.667
119 SQM_20171117_001 17-Nov-2017 16:48:42 -> 16:51:28 2.8 111.3 48.2 20 mounted in the CAS 2.0 1.284 0.055 1.418 0.074 1.379 0.070

Summary Figure for sqm_20171120_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
120 SQM_20171120_001 20-Nov-2017 20:13:40 -> 20:16:18 2.6 55.5 41.9 20 mounted in the CAS 1.0 0.197 0.203 0.191 0.064 0.181 0.781
121 SQM_20171120_001 20-Nov-2017 21:00:07 -> 21:02:46 2.6 102.0 23.1 20 mounted in the CAS 2.0 1.284 0.044 1.416 0.039 1.379 0.085

Summary Figure for sqm_20171205_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
122 SQM_20171205_001 05-Dec-2017 15:19:41 -> 15:22:18 2.6 39.8 29.8 20 mounted in the CAS 1.0 0.196 0.216 0.192 0.048 0.177 0.804
123 SQM_20171205_001 05-Dec-2017 15:27:04 -> 15:29:41 2.6 47.2 37.1 20 mounted in the CAS 1.0 0.196 0.159 0.192 0.079 0.177 0.723
124 SQM_20171205_001 05-Dec-2017 15:52:49 -> 15:55:26 2.6 73.0 21.2 20 mounted in the CAS 2.0 1.284 0.065 1.424 0.037 1.364 0.048

Summary Figure for sqm_20171205_002


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
125 SQM_20171205_002 05-Dec-2017 20:59:42 -> 21:02:19 2.6 15.8 15.6 20 mounted in the CAS 1.0 0.195 0.110 0.193 0.095 0.177 0.380
126 SQM_20171205_002 05-Dec-2017 21:03:57 -> 21:06:34 2.6 20.0 19.8 20 mounted in the CAS 1.0 0.196 0.194 0.193 0.127 0.179 0.657
127 SQM_20171205_002 05-Dec-2017 21:24:16 -> 21:26:53 2.6 40.4 10.9 20 mounted in the CAS 2.0 1.285 0.043 1.417 0.074 1.364 0.123

Summary Figure for sqm_20171206_002


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
128 SQM_20171206_002 06-Dec-2017 16:03:11 -> 16:05:49 2.6 19.4 19.5 20 mounted in the CAS 1.0 0.196 0.291 0.193 0.101 0.178 0.726
129 SQM_20171206_002 06-Dec-2017 16:08:23 -> 16:11:01 2.6 24.6 24.5 20 mounted in the CAS 1.0 0.196 0.243 0.193 0.097 0.177 0.819
130 SQM_20171206_002 06-Dec-2017 16:24:46 -> 16:27:25 2.6 41.0 11.7 20 mounted in the CAS 2.0 1.284 0.049 1.418 0.073 1.363 0.086

Summary Figure for sqm_20171206_003


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
131 SQM_20171206_003 06-Dec-2017 19:00:29 -> 19:03:07 2.6 21.7 21.0 20 mounted in the CAS 1.0 0.196 0.196 0.192 0.059 0.178 0.599
132 SQM_20171206_003 06-Dec-2017 19:46:06 -> 19:48:44 2.6 67.3 19.1 20 mounted in the CAS 2.0 1.284 0.035 1.424 0.049 1.365 0.081
133 SQM_20171206_003 06-Dec-2017 19:53:17 -> 20:21:09 27.9 74.5 26.3 20 mounted in the CAS 2.0 1.284 0.046 1.426 0.054 1.364 0.105

Summary Figure for sqm_20171207_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
134 SQM_20171207_001 07-Dec-2017 18:37:31 -> 18:40:09 2.6 23.7 24.2 20 mounted in the CAS 1.0 0.195 0.134 0.193 0.057 0.177 0.413
135 SQM_20171207_001 07-Dec-2017 19:04:46 -> 19:07:24 2.6 50.9 22.4 20 mounted in the CAS 2.0 1.285 0.050 1.423 0.044 1.365 0.066

Summary Figure for sqm_20180117_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
136 SQM_20180117_001 17-Jan-2018 18:32:18 -> 18:34:56 2.6 28.7 28.4 20 mounted in the CAS 1.0 0.195 0.105 0.192 0.064 0.176 0.358
137 SQM_20180117_001 17-Jan-2018 18:51:11 -> 18:53:49 2.6 47.5 14.4 20 mounted in the CAS 2.0 1.283 0.229 1.418 0.256 1.362 0.271

Summary Figure for sqm_20180529_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
138 SQM_20180529_001 29-May-2018 19:34:07 -> 19:36:44 2.6 53.7 51.3 20 mounted in the CAS 1.0 0.195 0.213 0.192 0.073 0.177 0.562
139 SQM_20180529_001 29-May-2018 20:07:37 -> 20:10:15 2.6 87.2 28.4 20 mounted in the CAS 2.0 1.282 0.222 1.425 0.256 1.364 0.257

Summary Figure for sqm_20180626_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
140 SQM_20180626_001 26-Jun-2018 18:02:24 -> 18:05:02 2.6 282.2 53.3 20 mounted in the CAS 1.0 0.195 0.162 0.192 0.037 0.177 0.461
141 SQM_20180626_001 26-Jun-2018 18:24:44 -> 18:27:22 2.6 304.6 18.0 20 mounted in the CAS 2.0 1.280 0.102 1.418 0.099 1.361 0.143

Summary Figure for sqm_20180711_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
142 SQM_20180711_001 11-Jul-2018 15:31:25 -> 15:34:03 2.6 37.6 37.0 20 mounted in the CAS 1.0 0.195 0.195 0.191 0.048 0.175 0.643
143 SQM_20180711_001 11-Jul-2018 15:45:40 -> 15:48:18 2.6 51.8 10.0 20 mounted in the CAS 2.0 1.280 0.198 1.412 0.246 1.361 0.262

Summary Figure for sqm_20180720_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
144 SQM_20180720_001 20-Jul-2018 14:40:16 -> 14:42:54 2.6 61.3 55.4 20 mounted in the CAS 1.0 0.195 0.131 0.191 0.049 0.177 0.676
145 SQM_20180720_001 20-Jul-2018 15:11:25 -> 15:14:02 2.6 92.4 27.0 20 mounted in the CAS 2.0 1.277 0.046 1.420 0.047 1.359 0.085

Summary Figure for sqm_20180726_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
146 SQM_20180726_001 26-Jul-2018 17:31:47 -> 17:34:25 2.6 46.8 45.9 20 mounted in the CAS 1.0 0.195 0.179 0.191 0.024 0.177 0.715
147 SQM_20180726_001 26-Jul-2018 17:48:19 -> 17:50:57 2.6 63.3 12.1 20 mounted in the CAS 2.0 1.278 0.059 1.412 0.043 1.358 0.096

Summary Figure for sqm_20180802_001


Top

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby		 CAS Strt
->
Lamp On		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
148 SQM_20180802_001 02-Aug-2018 19:08:52 -> 19:11:31 2.7 377.3 39.8 20 mounted in the CAS 1.0 0.195 0.218 0.191 0.024 0.175 0.755
149 SQM_20180802_001 02-Aug-2018 19:27:12 -> 19:29:50 2.6 395.7 13.7 20 mounted in the CAS 2.0 1.277 0.054 1.413 0.059 1.358 0.071

Below is the same at the table at the top but sorted by lamp level and Position to Make it easier to see trends in the table

Pair# SQMfile CAS Start-End CAS
Total Minutes		 CAS Strt
->
SQM standby
Minutes		 CAS Strt
->
Lamp On
Minutes		 CAS
Data Type		 CAS
Position		 Lamp Level Red PD
Mean		 Red PD
%std		 White PD
Mean		 White PD
%std		 Blue PD
Mean		 Blue PD
%std
54 SQM_20170407_001 07-Apr-2017 20:08:39 -> 20:12:31 3.9 30.0 29.4 20 mounted in the CAS 1.0 0.200 0.207 0.195 0.052 0.183 0.691
57 SQM_20170501_001 01-May-2017 19:48:05 -> 19:52:57 4.9 47.5 45.7 20 mounted in the CAS 1.0 0.200 0.264 0.194 0.105 0.183 1.003
58 SQM_20170501_001 01-May-2017 19:54:05 -> 19:58:57 4.9 53.5 51.9 20 mounted in the CAS 1.0 0.200 0.228 0.194 0.061 0.182 0.996
62 SQM_20170508_001 08-May-2017 23:14:54 -> 23:17:32 2.6 44.3 43.1 20 mounted in the CAS 1.0 0.200 0.188 0.194 0.031 0.182 1.035
79 SQM_20170714_001 14-Jul-2017 20:01:30 -> 20:04:08 2.6 254.5 5.2 20 mounted in the CAS 1.0 0.198 0.164 0.193 0.128 0.180 0.597
97 SQM_20171006_001 06-Oct-2017 17:07:45 -> 17:10:22 2.6 52.9 52.4 20 mounted in the CAS 1.0 0.196 0.126 0.191 0.047 0.178 0.600
110 SQM_20171013_002 13-Oct-2017 19:17:14 -> 19:19:51 2.6 66.1 22.9 20 mounted in the CAS 1.0 0.197 0.180 0.191 0.045 0.179 0.772
112 SQM_20171020_009 20-Oct-2017 19:23:15 -> 19:25:53 2.6 294.0 31.9 20 mounted in the CAS 1.0 0.197 0.099 0.191 0.047 0.180 0.447
114 SQM_20171027_001 27-Oct-2017 19:33:27 -> 19:36:04 2.6 392.9 35.9 20 mounted in the CAS 1.0 0.197 0.158 0.191 0.022 0.181 0.476
116 SQM_20171103_001 03-Nov-2017 19:12:59 -> 19:15:36 2.6 39.0 18.7 20 mounted in the CAS 1.0 0.196 0.138 0.191 0.059 0.179 0.621
118 SQM_20171117_001 17-Nov-2017 15:56:20 -> 15:58:57 2.6 58.9 39.8 20 mounted in the CAS 1.0 0.197 0.251 0.191 0.026 0.180 0.667
120 SQM_20171120_001 20-Nov-2017 20:13:40 -> 20:16:18 2.6 55.5 41.9 20 mounted in the CAS 1.0 0.197 0.203 0.191 0.064 0.181 0.781
122 SQM_20171205_001 05-Dec-2017 15:19:41 -> 15:22:18 2.6 39.8 29.8 20 mounted in the CAS 1.0 0.196 0.216 0.192 0.048 0.177 0.804
123 SQM_20171205_001 05-Dec-2017 15:27:04 -> 15:29:41 2.6 47.2 37.1 20 mounted in the CAS 1.0 0.196 0.159 0.192 0.079 0.177 0.723
125 SQM_20171205_002 05-Dec-2017 20:59:42 -> 21:02:19 2.6 15.8 15.6 20 mounted in the CAS 1.0 0.195 0.110 0.193 0.095 0.177 0.380
126 SQM_20171205_002 05-Dec-2017 21:03:57 -> 21:06:34 2.6 20.0 19.8 20 mounted in the CAS 1.0 0.196 0.194 0.193 0.127 0.179 0.657
128 SQM_20171206_002 06-Dec-2017 16:03:11 -> 16:05:49 2.6 19.4 19.5 20 mounted in the CAS 1.0 0.196 0.291 0.193 0.101 0.178 0.726
129 SQM_20171206_002 06-Dec-2017 16:08:23 -> 16:11:01 2.6 24.6 24.5 20 mounted in the CAS 1.0 0.196 0.243 0.193 0.097 0.177 0.819
131 SQM_20171206_003 06-Dec-2017 19:00:29 -> 19:03:07 2.6 21.7 21.0 20 mounted in the CAS 1.0 0.196 0.196 0.192 0.059 0.178 0.599
134 SQM_20171207_001 07-Dec-2017 18:37:31 -> 18:40:09 2.6 23.7 24.2 20 mounted in the CAS 1.0 0.195 0.134 0.193 0.057 0.177 0.413
136 SQM_20180117_001 17-Jan-2018 18:32:18 -> 18:34:56 2.6 28.7 28.4 20 mounted in the CAS 1.0 0.195 0.105 0.192 0.064 0.176 0.358
138 SQM_20180529_001 29-May-2018 19:34:07 -> 19:36:44 2.6 53.7 51.3 20 mounted in the CAS 1.0 0.195 0.213 0.192 0.073 0.177 0.562
140 SQM_20180626_001 26-Jun-2018 18:02:24 -> 18:05:02 2.6 282.2 53.3 20 mounted in the CAS 1.0 0.195 0.162 0.192 0.037 0.177 0.461
142 SQM_20180711_001 11-Jul-2018 15:31:25 -> 15:34:03 2.6 37.6 37.0 20 mounted in the CAS 1.0 0.195 0.195 0.191 0.048 0.175 0.643
144 SQM_20180720_001 20-Jul-2018 14:40:16 -> 14:42:54 2.6 61.3 55.4 20 mounted in the CAS 1.0 0.195 0.131 0.191 0.049 0.177 0.676
146 SQM_20180726_001 26-Jul-2018 17:31:47 -> 17:34:25 2.6 46.8 45.9 20 mounted in the CAS 1.0 0.195 0.179 0.191 0.024 0.177 0.715
148 SQM_20180802_001 02-Aug-2018 19:08:52 -> 19:11:31 2.7 377.3 39.8 20 mounted in the CAS 1.0 0.195 0.218 0.191 0.024 0.175 0.755
5 SQM_20161213_001 13-Dec-2016 14:41:47 -> 15:52:39 70.9 14.3 13.0 15 on the table 1.0 0.208 0.257 0.202 0.284 0.188 0.814
6 SQM_20161213_001 13-Dec-2016 15:52:46 -> 15:55:38 2.9 85.3 83.9 20 on the table 1.0 0.208 0.146 0.202 0.037 0.190 0.316
11 SQM_20161214_001 14-Dec-2016 20:27:22 -> 20:38:25 11.0 399.7 26.6 15 on the table 1.0 0.208 0.262 0.202 0.068 0.188 0.899
12 SQM_20161214_001 14-Dec-2016 20:38:52 -> 20:42:01 3.2 411.2 38.0 20 on the table 1.0 0.207 0.246 0.202 0.074 0.186 0.583
18 SQM_20161215_001 15-Dec-2016 19:51:13 -> 20:24:05 32.9 291.1 1.8 15 on the table 1.0 0.208 0.292 0.202 0.221 0.188 0.830
19 SQM_20161215_001 15-Dec-2016 20:25:36 -> 20:28:13 2.6 325.5 36.1 20 on the table 1.0 0.208 0.072 0.202 0.059 0.189 0.375
24 SQM_20161216_001 16-Dec-2016 13:44:50 -> 14:11:42 26.9 6.3 4.2 15 on the table 1.0 0.207 0.255 0.203 0.569 0.188 0.771
25 SQM_20161216_001 16-Dec-2016 14:13:15 -> 14:15:53 2.6 34.7 32.6 20 on the table 1.0 0.208 0.095 0.202 0.045 0.188 0.572
29 SQM_20161216_001 16-Dec-2016 15:27:39 -> 15:30:17 2.6 109.1 13.8 20 on the table 1.0 0.208 0.178 0.202 0.033 0.190 0.273
30 SQM_20161223_001 23-Dec-2016 17:35:17 -> 18:03:24 28.1 10.8 2.8 15 on the table 1.0 0.207 0.278 0.203 0.437 0.188 0.836
31 SQM_20161223_001 23-Dec-2016 18:07:29 -> 18:10:09 2.7 43.0 34.9 20 on the table 1.0 0.208 0.156 0.201 0.061 0.188 0.954
32 SQM_20161223_001 23-Dec-2016 18:10:17 -> 18:12:57 2.7 45.8 37.8 20 on the table 1.0 0.208 0.167 0.201 0.067 0.188 0.910
38 SQM_20161223_001 23-Dec-2016 19:16:24 -> 19:19:03 2.6 111.9 12.1 20 on the table 1.0 0.208 0.237 0.202 0.046 0.189 0.717
39 SQM_20161223_001 23-Dec-2016 19:19:14 -> 19:21:54 2.7 114.7 14.9 20 on the table 1.0 0.208 0.265 0.202 0.079 0.188 0.787
40 SQM_20170119_001 19-Jan-2017 19:50:11 -> 19:52:50 2.7 49.9 47.8 20 on the table 1.0 0.208 0.284 0.202 0.078 0.188 0.924
41 SQM_20170119_001 19-Jan-2017 19:53:06 -> 19:55:44 2.6 52.9 50.8 20 on the table 1.0 0.207 0.287 0.202 0.067 0.187 0.604
43 SQM_20170127_001 27-Jan-2017 21:12:45 -> 21:15:22 2.6 418.4 48.0 20 on the table 1.0 0.207 0.302 0.202 0.045 0.187 0.808
45 SQM_20170321_001 21-Mar-2017 20:19:28 -> 20:22:06 2.6 168.5 21.8 20 on the table 1.0 0.207 0.333 0.202 0.059 0.187 0.608
47 SQM_20170322_002 22-Mar-2017 13:57:10 -> 13:59:48 2.6 26.2 26.3 20 on the table 1.0 0.207 0.369 0.202 0.149 0.188 0.829
48 SQM_20170322_002 22-Mar-2017 14:16:27 -> 14:19:05 2.6 45.5 45.5 20 on the table 1.0 0.207 0.255 0.201 0.097 0.189 1.168
49 SQM_20170322_002 22-Mar-2017 14:19:32 -> 14:22:09 2.6 48.5 48.7 20 on the table 1.0 0.208 0.299 0.201 0.060 0.188 0.775
61 SQM_20170508_001 08-May-2017 23:08:11 -> 23:10:48 2.6 37.6 36.3 20 on the table 1.0 0.207 0.226 0.201 0.030 0.187 0.904
71 SQM_20170714_001 14-Jul-2017 17:43:39 -> 17:46:16 2.6 116.6 33.1 20 on the table 1.0 0.204 0.156 0.198 0.040 0.186 0.729
82 SQM_20170914_001 14-Sep-2017 19:36:14 -> 19:38:52 2.6 116.4 16.3 20 on the table 1.0 0.204 0.141 0.198 0.070 0.185 0.338
83 SQM_20170925_001 25-Sep-2017 18:40:10 -> 18:42:47 2.6 116.9 44.8 20 on the table 1.0 0.204 0.197 0.198 0.050 0.184 0.819
96 SQM_20171006_001 06-Oct-2017 16:53:50 -> 16:56:28 2.6 39.0 38.4 20 on the table 1.0 0.204 0.072 0.198 0.036 0.183 0.269
98 SQM_20171006_001 06-Oct-2017 17:20:55 -> 17:23:33 2.6 66.0 65.5 20 on the table 1.0 0.204 0.141 0.198 0.073 0.184 0.706
56 SQM_20170407_001 07-Apr-2017 20:48:23 -> 20:53:15 4.9 69.8 12.6 20 mounted in the CAS 2.0 1.306 0.114 1.439 0.145 1.397 0.150
60 SQM_20170501_001 01-May-2017 20:24:05 -> 20:28:57 4.9 83.5 4.0 20 mounted in the CAS 2.0 1.307 0.044 1.438 0.038 1.396 0.082
63 SQM_20170508_001 08-May-2017 23:34:01 -> 23:36:38 2.6 63.4 15.3 20 mounted in the CAS 2.0 1.310 0.139 1.436 0.165 1.399 0.136
77 SQM_20170714_001 14-Jul-2017 19:41:24 -> 19:44:01 2.6 234.4 11.2 20 mounted in the CAS 2.0 1.287 0.231 1.419 0.260 1.380 0.296
78 SQM_20170714_001 14-Jul-2017 19:50:30 -> 19:53:07 2.6 243.5 20.3 20 mounted in the CAS 2.0 1.286 0.119 1.420 0.139 1.380 0.134
100 SQM_20171006_001 06-Oct-2017 18:24:04 -> 18:26:43 2.7 129.2 58.7 20 mounted in the CAS 2.0 1.283 0.249 1.418 0.311 1.377 0.239
111 SQM_20171013_002 13-Oct-2017 20:15:28 -> 20:18:05 2.6 124.3 35.9 20 mounted in the CAS 2.0 1.283 0.042 1.418 0.046 1.376 0.060
113 SQM_20171020_009 20-Oct-2017 19:49:59 -> 19:52:36 2.6 320.7 21.5 20 mounted in the CAS 2.0 1.282 0.099 1.415 0.058 1.376 0.057
115 SQM_20171027_001 27-Oct-2017 20:01:06 -> 20:03:43 2.6 420.5 22.4 20 mounted in the CAS 2.0 1.283 0.029 1.415 0.061 1.377 0.079
117 SQM_20171103_001 03-Nov-2017 20:05:37 -> 20:08:16 2.7 91.6 27.5 20 mounted in the CAS 2.0 1.283 0.053 1.417 0.049 1.378 0.127
119 SQM_20171117_001 17-Nov-2017 16:48:42 -> 16:51:28 2.8 111.3 48.2 20 mounted in the CAS 2.0 1.284 0.055 1.418 0.074 1.379 0.070
121 SQM_20171120_001 20-Nov-2017 21:00:07 -> 21:02:46 2.6 102.0 23.1 20 mounted in the CAS 2.0 1.284 0.044 1.416 0.039 1.379 0.085
124 SQM_20171205_001 05-Dec-2017 15:52:49 -> 15:55:26 2.6 73.0 21.2 20 mounted in the CAS 2.0 1.284 0.065 1.424 0.037 1.364 0.048
127 SQM_20171205_002 05-Dec-2017 21:24:16 -> 21:26:53 2.6 40.4 10.9 20 mounted in the CAS 2.0 1.285 0.043 1.417 0.074 1.364 0.123
130 SQM_20171206_002 06-Dec-2017 16:24:46 -> 16:27:25 2.6 41.0 11.7 20 mounted in the CAS 2.0 1.284 0.049 1.418 0.073 1.363 0.086
132 SQM_20171206_003 06-Dec-2017 19:46:06 -> 19:48:44 2.6 67.3 19.1 20 mounted in the CAS 2.0 1.284 0.035 1.424 0.049 1.365 0.081
133 SQM_20171206_003 06-Dec-2017 19:53:17 -> 20:21:09 27.9 74.5 26.3 20 mounted in the CAS 2.0 1.284 0.046 1.426 0.054 1.364 0.105
135 SQM_20171207_001 07-Dec-2017 19:04:46 -> 19:07:24 2.6 50.9 22.4 20 mounted in the CAS 2.0 1.285 0.050 1.423 0.044 1.365 0.066
137 SQM_20180117_001 17-Jan-2018 18:51:11 -> 18:53:49 2.6 47.5 14.4 20 mounted in the CAS 2.0 1.283 0.229 1.418 0.256 1.362 0.271
139 SQM_20180529_001 29-May-2018 20:07:37 -> 20:10:15 2.6 87.2 28.4 20 mounted in the CAS 2.0 1.282 0.222 1.425 0.256 1.364 0.257
141 SQM_20180626_001 26-Jun-2018 18:24:44 -> 18:27:22 2.6 304.6 18.0 20 mounted in the CAS 2.0 1.280 0.102 1.418 0.099 1.361 0.143
143 SQM_20180711_001 11-Jul-2018 15:45:40 -> 15:48:18 2.6 51.8 10.0 20 mounted in the CAS 2.0 1.280 0.198 1.412 0.246 1.361 0.262
145 SQM_20180720_001 20-Jul-2018 15:11:25 -> 15:14:02 2.6 92.4 27.0 20 mounted in the CAS 2.0 1.277 0.046 1.420 0.047 1.359 0.085
147 SQM_20180726_001 26-Jul-2018 17:48:19 -> 17:50:57 2.6 63.3 12.1 20 mounted in the CAS 2.0 1.278 0.059 1.412 0.043 1.358 0.096
149 SQM_20180802_001 02-Aug-2018 19:27:12 -> 19:29:50 2.6 395.7 13.7 20 mounted in the CAS 2.0 1.277 0.054 1.413 0.059 1.358 0.071
3 SQM_20161208_001 08-Dec-2016 20:55:46 -> 21:36:38 40.9 123.6 2.8 15 on the table 2.0 1.352 0.089 1.490 0.112 1.443 0.124
4 SQM_20161208_001 08-Dec-2016 21:40:46 -> 21:51:39 10.9 168.6 47.8 20 on the table 2.0 1.351 0.105 1.491 0.126 1.442 0.147
7 SQM_20161213_001 13-Dec-2016 16:08:46 -> 18:55:38 166.9 101.3 12.3 15 on the table 2.0 1.352 0.093 1.491 0.171 1.444 0.125
8 SQM_20161213_001 13-Dec-2016 18:55:46 -> 18:58:38 2.9 268.3 179.2 20 on the table 2.0 1.352 0.101 1.491 0.100 1.444 0.126
13 SQM_20161214_001 14-Dec-2016 20:42:23 -> 20:45:32 3.1 414.7 NaN 10 on the table 2.7 0.118 173.825 0.116 181.377 0.117 136.470
14 SQM_20161214_001 14-Dec-2016 20:47:22 -> 21:13:25 26.1 419.7 4.0 15 on the table 2.0 1.351 0.119 1.483 0.354 1.442 0.177
15 SQM_20161214_001 14-Dec-2016 21:18:40 -> 21:21:48 3.1 451.0 35.4 20 on the table 2.0 1.351 0.038 1.490 0.032 1.442 0.076
20 SQM_20161215_001 15-Dec-2016 20:32:13 -> 20:41:05 8.9 332.1 2.8 15 on the table 2.0 1.348 0.634 1.473 0.725 1.436 0.874
21 SQM_20161215_001 15-Dec-2016 20:42:39 -> 20:45:17 2.6 342.6 13.2 20 on the table 2.0 1.352 0.046 1.482 0.067 1.443 0.053
26 SQM_20161216_001 16-Dec-2016 14:28:50 -> 14:46:42 17.9 50.3 3.2 15 on the table 2.0 1.351 0.246 1.477 0.462 1.441 0.373
27 SQM_20161216_001 16-Dec-2016 14:48:50 -> 14:53:42 4.9 70.3 23.1 20 on the table 2.0 1.351 0.040 1.486 0.060 1.443 0.096
33 SQM_20161223_001 23-Dec-2016 18:20:32 -> 18:30:25 9.9 56.0 3.0 15 on the table 2.0 1.350 0.451 1.473 0.523 1.439 0.620
34 SQM_20161223_001 23-Dec-2016 18:30:33 -> 18:33:12 2.7 66.1 13.0 20 on the table 2.0 1.352 0.225 1.481 0.283 1.443 0.257
37 SQM_20161223_001 23-Dec-2016 18:58:12 -> 19:00:51 2.6 93.7 4.7 20 on the table 2.0 1.351 0.037 1.488 0.054 1.443 0.053
50 SQM_20170322_002 22-Mar-2017 14:40:38 -> 14:43:15 2.6 69.7 15.1 20 on the table 2.0 1.352 0.051 1.483 0.050 1.443 0.083
72 SQM_20170714_001 14-Jul-2017 18:32:58 -> 18:35:35 2.6 166.0 27.9 20 on the table 2.0 1.329 0.179 1.461 0.197 1.421 0.214
80 SQM_20170914_001 14-Sep-2017 18:20:21 -> 18:43:13 22.9 40.5 37.5 15 on the table 2.0 1.330 0.177 1.464 0.203 1.423 0.214
81 SQM_20170914_001 14-Sep-2017 19:06:10 -> 19:16:03 9.9 86.4 83.4 20 on the table 2.0 1.331 0.265 1.466 0.202 1.426 0.315
84 SQM_20170925_001 25-Sep-2017 19:19:45 -> 19:22:23 2.6 156.5 21.9 20 on the table 2.0 1.330 0.061 1.462 0.060 1.422 0.059
99 SQM_20171006_001 06-Oct-2017 17:52:31 -> 17:55:08 2.6 97.6 27.2 20 on the table 2.0 1.327 0.037 1.462 0.054 1.418 0.079
101 SQM_20171006_001 06-Oct-2017 18:33:57 -> 18:36:34 2.6 139.1 68.7 20 on the table 2.0 1.326 0.250 1.461 0.302 1.418 0.274
52 SQM_20170322_002 22-Mar-2017 15:41:30 -> 15:44:08 2.6 130.5 41.0 20 mounted in the CAS 4.0 1.493 0.054 1.624 0.035 1.539 0.095
53 SQM_20170322_002 22-Mar-2017 15:59:31 -> 16:02:13 2.7 148.5 59.0 20 mounted in the CAS 4.0 1.493 0.035 1.624 0.043 1.539 0.060
55 SQM_20170407_001 07-Apr-2017 20:29:40 -> 20:34:32 4.9 51.0 15.6 20 mounted in the CAS 4.0 1.504 0.089 1.626 0.122 1.546 0.100
59 SQM_20170501_001 01-May-2017 20:13:05 -> 20:17:57 4.9 72.5 13.8 20 mounted in the CAS 4.0 1.505 0.029 1.627 0.064 1.546 0.056
65 SQM_20170606_001 06-Jun-2017 20:32:32 -> 20:35:10 2.6 61.3 58.9 20 mounted in the CAS 4.0 1.474 0.042 1.602 0.031 1.525 0.106
66 SQM_20170606_001 06-Jun-2017 20:36:35 -> 20:39:13 2.6 65.3 62.9 20 mounted in the CAS 4.0 1.474 0.139 1.603 0.194 1.525 0.225
67 SQM_20170606_001 06-Jun-2017 20:40:10 -> 20:42:48 2.6 68.9 66.4 20 mounted in the CAS 4.0 1.474 0.150 1.603 0.214 1.525 0.201
68 SQM_20170606_001 06-Jun-2017 20:47:52 -> 20:50:29 2.6 76.6 74.1 20 mounted in the CAS 4.0 1.450 0.086 1.581 0.112 1.507 0.139
69 SQM_20170606_001 06-Jun-2017 20:51:27 -> 20:54:04 2.6 80.2 77.8 20 mounted in the CAS 4.0 1.449 0.174 1.580 0.212 1.507 0.239
70 SQM_20170606_001 06-Jun-2017 20:54:55 -> 20:57:33 2.6 83.6 81.1 20 mounted in the CAS 4.0 1.450 0.190 1.581 0.190 1.507 0.242
74 SQM_20170714_001 14-Jul-2017 19:17:33 -> 19:20:10 2.6 210.6 38.7 20 mounted in the CAS 4.0 1.482 0.166 1.612 0.207 1.530 0.259
75 SQM_20170714_001 14-Jul-2017 19:21:58 -> 19:24:36 2.6 215.0 43.1 20 mounted in the CAS 4.0 1.481 0.069 1.610 0.080 1.528 0.078
76 SQM_20170714_001 14-Jul-2017 19:25:46 -> 19:28:23 2.6 218.8 47.0 20 mounted in the CAS 4.0 1.481 0.039 1.610 0.058 1.528 0.050
103 SQM_20171006_001 06-Oct-2017 19:29:04 -> 19:31:42 2.6 194.2 48.2 20 mounted in the CAS 4.0 1.478 0.147 1.611 0.135 1.525 0.191
1 SQM_20161208_001 08-Dec-2016 19:00:46 -> 20:31:38 90.9 8.6 7.0 15 on the table 4.0 1.557 0.125 1.690 0.191 1.598 0.167
2 SQM_20161208_001 08-Dec-2016 20:35:46 -> 20:46:38 10.9 103.6 102.1 20 on the table 4.0 1.557 0.083 1.691 0.087 1.598 0.128
9 SQM_20161213_001 13-Dec-2016 19:10:46 -> 20:01:38 50.9 283.3 10.0 15 on the table 4.0 1.558 0.089 1.691 0.117 1.600 0.127
10 SQM_20161213_001 13-Dec-2016 20:01:46 -> 20:04:38 2.9 334.3 61.0 20 on the table 4.0 1.558 0.093 1.690 0.107 1.600 0.132
16 SQM_20161214_001 14-Dec-2016 21:27:22 -> 21:38:24 11.0 459.7 5.4 15 on the table 4.0 1.556 0.041 1.692 0.042 1.598 0.069
17 SQM_20161214_001 14-Dec-2016 21:43:48 -> 21:46:57 3.2 476.2 21.9 20 on the table 4.0 1.556 0.044 1.692 0.044 1.598 0.063
22 SQM_20161215_001 15-Dec-2016 20:47:13 -> 20:55:05 7.9 347.1 1.2 15 on the table 4.0 1.554 0.447 1.684 0.528 1.596 0.510
23 SQM_20161215_001 15-Dec-2016 20:56:35 -> 20:59:12 2.6 356.5 10.7 20 on the table 4.0 1.557 0.063 1.688 0.060 1.598 0.102
28 SQM_20161216_001 16-Dec-2016 15:07:58 -> 15:10:36 2.6 89.4 12.3 20 on the table 4.0 1.556 0.037 1.691 0.041 1.599 0.050
35 SQM_20161223_001 23-Dec-2016 18:38:32 -> 18:46:25 7.9 74.0 1.4 15 on the table 4.0 1.555 0.219 1.687 0.250 1.597 0.263
36 SQM_20161223_001 23-Dec-2016 18:46:49 -> 18:49:28 2.7 82.3 9.6 20 on the table 4.0 1.555 0.138 1.688 0.130 1.597 0.204
42 SQM_20170119_001 19-Jan-2017 20:24:10 -> 20:26:48 2.6 83.9 25.2 20 on the table 4.0 1.557 0.042 1.687 0.051 1.600 0.063
44 SQM_20170127_001 27-Jan-2017 21:32:56 -> 21:35:33 2.6 438.5 15.8 20 on the table 4.0 1.557 0.066 1.684 0.078 1.599 0.077
46 SQM_20170321_001 21-Mar-2017 21:01:24 -> 21:04:02 2.6 210.4 24.4 20 on the table 4.0 1.556 0.029 1.688 0.035 1.599 0.114
51 SQM_20170322_002 22-Mar-2017 15:26:11 -> 15:28:48 2.6 115.2 25.6 20 on the table 4.0 1.556 0.046 1.691 0.045 1.599 0.090
64 SQM_20170606_001 06-Jun-2017 20:22:14 -> 20:24:51 2.6 51.0 48.5 20 on the table 4.0 1.548 0.030 1.674 0.033 1.588 0.076
73 SQM_20170714_001 14-Jul-2017 18:49:06 -> 18:51:44 2.6 182.1 10.3 20 on the table 4.0 1.533 0.080 1.664 0.101 1.578 0.100
85 SQM_20170925_001 25-Sep-2017 20:06:47 -> 20:09:25 2.6 203.5 34.2 20 on the table 4.0 1.531 0.031 1.662 0.045 1.575 0.073
86 SQM_20170925_001 25-Sep-2017 20:22:32 -> 20:25:10 2.6 219.3 49.9 20 on the table 4.0 1.531 0.028 1.662 0.033 1.574 0.046
87 SQM_20170925_001 25-Sep-2017 20:28:13 -> 20:30:51 2.6 225.0 55.7 20 on the table 4.0 1.530 0.041 1.662 0.049 1.574 0.066
88 SQM_20170925_001 25-Sep-2017 20:34:31 -> 20:37:09 2.6 231.3 62.0 20 on the table 4.0 1.531 0.037 1.661 0.047 1.574 0.052
89 SQM_20170925_001 25-Sep-2017 20:40:00 -> 20:42:37 2.6 236.7 67.4 20 on the table 4.0 1.530 0.068 1.661 0.066 1.574 0.111
90 SQM_20170925_001 25-Sep-2017 20:44:32 -> 20:47:09 2.6 241.3 72.0 20 on the table 4.0 1.531 0.031 1.662 0.026 1.574 0.075
102 SQM_20171006_001 06-Oct-2017 18:57:45 -> 19:00:23 2.6 162.9 16.8 20 on the table 4.0 1.526 0.233 1.660 0.223 1.571 0.280
104 SQM_20171006_001 06-Oct-2017 19:38:41 -> 19:41:19 2.6 203.8 57.8 20 on the table 4.0 1.528 0.038 1.660 0.046 1.572 0.105
105 SQM_20171006_001 06-Oct-2017 19:45:05 -> 19:47:43 2.6 210.2 64.1 20 on the table 4.0 1.527 0.048 1.660 0.116 1.572 0.106
106 SQM_20171006_001 06-Oct-2017 19:51:26 -> 19:54:04 2.6 216.5 70.6 20 on the table 4.0 1.527 0.052 1.659 0.064 1.571 0.081
107 SQM_20171006_001 06-Oct-2017 20:03:59 -> 20:06:38 2.7 229.1 83.0 20 on the table 4.0 1.527 0.037 1.659 0.040 1.571 0.068
108 SQM_20171006_001 06-Oct-2017 20:12:58 -> 20:15:36 2.6 238.1 92.1 20 on the table 4.0 1.527 0.033 1.659 0.020 1.572 0.071
109 SQM_20171006_001 06-Oct-2017 20:17:54 -> 20:20:32 2.6 243.0 97.0 20 on the table 4.0 1.527 0.041 1.659 0.038 1.571 0.101
91 SQM_20170929_001 29-Sep-2017 19:10:03 -> 19:12:40 2.6 207.7 0.0 20 on the table NaN NaN NaN NaN NaN NaN NaN
92 SQM_20170929_001 29-Sep-2017 19:20:50 -> 19:23:28 2.6 218.5 0.0 20 on the table NaN NaN NaN NaN NaN NaN NaN
93 SQM_20170929_001 29-Sep-2017 19:31:14 -> 19:33:52 2.6 228.9 0.0 20 on the table NaN NaN NaN NaN NaN NaN NaN
94 SQM_20170929_001 29-Sep-2017 19:47:08 -> 19:49:45 2.6 244.8 0.0 20 on the table NaN NaN NaN NaN NaN NaN NaN
95 SQM_20170929_001 29-Sep-2017 19:57:25 -> 20:00:02 2.6 255.1 0.0 20 on the table NaN NaN NaN NaN NaN NaN NaN
pwd: E:\zflora\mldata\mobynet\characterizations\stability\SQM\data
Date: 17-Oct-2018 11:40:30
Created from cassqmmatchups_(1)
